Air-Mite Pneumatic Components for Bench-Top and Automation Systems
Reliable Air Presses, Cylinders, and Valves for Efficient Operations
Air-Mite pneumatic components provide compact, reliable solutions for automation and bench-top applications, helping manufacturers and maintenance teams improve workflow, reduce downtime, and simplify system installation.
Through All Air Inc., customers gain access to Air-Mite air arbor presses, bench-top air presses, multiple series of pneumatic cylinders, air and hydraulic valves, safety circuit components, and miniaturized pneumatic accessories — all engineered to support efficient, precise, and repeatable performance in small-scale and production environments.
Ideal applications include:
- Bench-top assembly and testing systems
- Automated material handling and positioning
- Air-powered presses and precision operations
- Compact pneumatic system integration for manufacturing or lab equipment
Explore Air-Mite Pneumatic Components for Reliable Automation

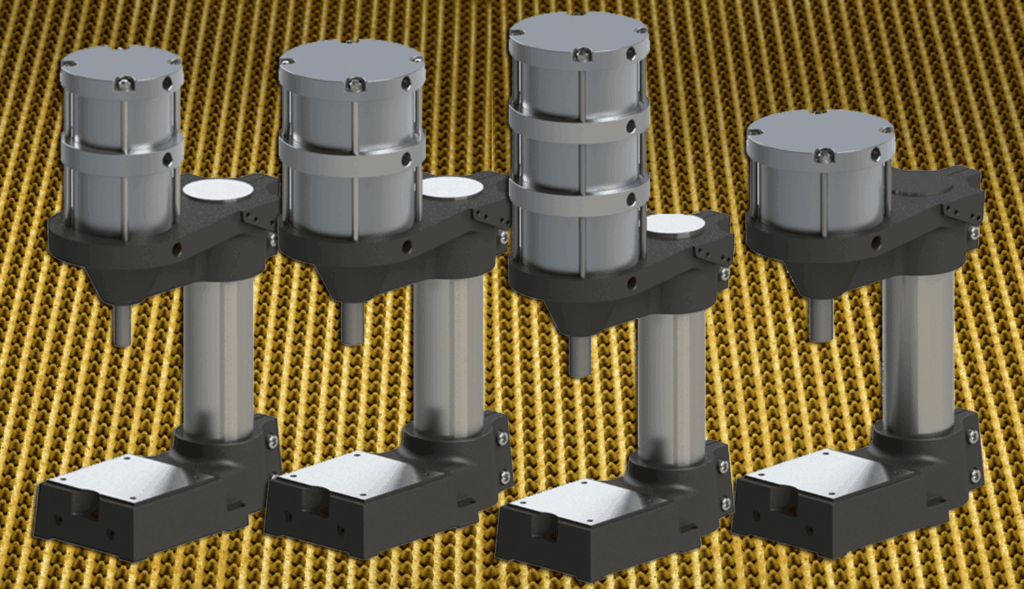

Air-Mite Pneumatic Presses for Reliable, Adjustable Force
Air-Mite pneumatic presses provide durable, versatile solutions for applying controlled force in bench-top and industrial applications. Designed for ease of use, these presses let operators adjust cylinder height and air pressure to achieve precise, repeatable results.
Key features include:
- Adjustable cylinder height for varied pressing tasks
- Force control via air pressure adjustment
- Durable, time-tested design built in the USA
- Compact bench-top and industrial configurations
Common applications:
- Assembly and test operations
- Press-fitting, staking, and forming tasks
- Lab and small-scale production pressing
- Precision work requiring adjustable, repeatable force
CMS4 400 lb Air-Mite Pneumatic Press for Controlled Force Applications
The CMS4 400 lb pneumatic press provides precise, adjustable force for bench-top and industrial operations, helping manufacturers achieve consistent, repeatable results with minimal downtime. Ideal for assembly, press-fitting, and forming tasks, this compact press lets operators control force simply by adjusting air pressure.
Key specifications:
- 400 lbs of force at 100 psi
- 2.25” bore, single piston cylinder
- 0.5” rod diameter
- 4.31” throat depth
- 120 psi maximum supplied air pressure
- Rigid cast iron cylinder mounting bracket
- 6061 aluminum machined cylinder cap
Typical applications:
- Assembly and test operations
- Press-fitting, staking, and forming tasks
- Bench-top and small-scale production work
- Precision tasks requiring adjustable, repeatable force
CMS7 700 lb Air-Mite Pneumatic Press for High-Force Applications
The CMS7 700 lb pneumatic press delivers high, adjustable force for bench-top and industrial operations, helping manufacturers perform consistent, repeatable pressing tasks with minimal downtime. Operators can easily control the applied force by adjusting air pressure, making it ideal for assembly, forming, and press-fitting applications.
Key specifications:
- 710 lbs of force at 100 psi
- 3” bore, single piston cylinder
- 0.5” rod diameter
- 4.31” throat depth
- 120 psi maximum supplied air pressure
- Rigid cast iron cylinder mounting bracket
- 6061 aluminum machined cylinder cap
Typical applications:
- Assembly and test operations
- Press-fitting, staking, and forming tasks
- Bench-top and small-scale production work
- Precision tasks requiring adjustable, repeatable force
CMS12 1200 lb Air-Mite Pneumatic Press for Heavy-Duty Applications
The CMS12 1200 lb pneumatic press provides high, adjustable force for heavy-duty bench-top and industrial operations, helping manufacturers perform precise, repeatable pressing tasks with minimal downtime. Its double-acting cylinder design allows operators to control force accurately, making it ideal for assembly, forming, and press-fitting applications that require maximum reliability.
Key specifications:
- 1260 lbs of force at 100 psi
- 4” bore, double-acting cylinder
- 0.75” rod diameter
- 4.5” throat depth
- 120 psi maximum supplied air pressure
- Rigid ductile iron cylinder mounting bracket
- 6061 aluminum machined cylinder cap
- PTFE piston wear strips
- Hardcoat anodized tubing
Typical applications:
- Heavy-duty assembly and test operations
- Press-fitting, staking, and forming tasks
- Bench-top and small-scale production requiring high force
- Precision tasks needing adjustable, repeatable performance
CMS19 1900 lb Air-Mite Pneumatic Press for High-Capacity Applications
The CMS19 1900 lb pneumatic press delivers powerful, adjustable force for bench-top and industrial operations, helping manufacturers perform precise, repeatable pressing tasks while minimizing downtime. Its robust design allows operators to control force accurately for assembly, forming, and press-fitting applications that demand maximum reliability.
Key specifications:
- 1960 lbs of force at 100 psi
- 5” bore, single piston cylinder
- 1” rod diameter
- 4.5” throat depth
- 120 psi maximum supplied air pressure
- Rigid ductile iron cylinder mounting bracket
- 6061 aluminum machined cylinder cap
- PTFE piston wear strips
- Hardcoat anodized tubing
Typical applications:
- Heavy-duty assembly and test operations
- Press-fitting, staking, and forming tasks
- Bench-top and small-scale production requiring high force
- Precision tasks needing adjustable, repeatable performance
CMS24 2400 lb Air-Mite Pneumatic Press for Heavy-Duty Applications
The CMS24 2400 lb pneumatic press delivers high, adjustable force for bench-top and industrial operations, helping manufacturers perform precise, repeatable pressing tasks while reducing downtime. Its double-piston design allows operators to control force accurately for assembly, forming, and press-fitting applications that require maximum reliability.
Key specifications:
- 2470 lbs of force at 100 psi
- 4” bore, double piston cylinder
- 0.75” rod diameter
- 4.5” throat depth
- 120 psi maximum supplied air pressure
- Rigid ductile iron cylinder mounting bracket
- 6061 aluminum machined cylinder cap
- PTFE piston wear strips
- Hardcoat anodized tubing
Typical applications:
- Heavy-duty assembly and test operations
- Press-fitting, staking, and forming tasks
- Bench-top and small-scale production requiring high force
- Precision tasks needing adjustable, repeatable performance
CMS38 3800 lb Air-Mite Pneumatic Press for Ultra-High-Force Applications
The CMS38 3800 lb pneumatic press provides ultra-high adjustable force for bench-top and industrial operations, helping manufacturers perform precise, repeatable pressing tasks while minimizing downtime. Its double-piston, double-acting design allows operators to control force accurately for assembly, forming, and press-fitting applications that demand maximum reliability.
Key specifications:
- 3850 lbs of force at 100 psi
- 5” bore, double piston, double-acting cylinder
- 1” rod diameter
- 4.5” throat depth
- 120 psi maximum supplied air pressure
- Rigid ductile iron cylinder mounting bracket
- 6061 aluminum machined cylinder cap
- PTFE piston wear strips
- Hardcoat anodized tubing
Typical applications:
- Heavy-duty assembly and test operations
- Press-fitting, staking, and forming tasks
- Bench-top and small-scale production requiring high force
- Precision tasks needing adjustable, repeatable performance
CMS58 5800 lb Air-Mite Pneumatic Press for Maximum-Force Applications
The CMS58 5800 lb pneumatic press delivers maximum adjustable force for bench-top and industrial operations, helping manufacturers achieve precise, repeatable pressing tasks while minimizing downtime. Its triple-piston, double-acting design allows operators to control force accurately for assembly, forming, and press-fitting applications that demand the highest reliability.
Key specifications:
- 5730 lbs of force at 100 psi
- 5” bore, triple piston, double-acting cylinder
- 1” rod diameter
- 4.5” throat depth
- 120 psi maximum supplied air pressure
- Rigid ductile iron cylinder mounting bracket
- 6061 aluminum machined cylinder cap
- PTFE piston wear strips
- Hardcoat anodized tubing
Typical applications:
- Heavy-duty assembly and test operations
- Press-fitting, staking, and forming tasks
- Bench-top and small-scale production requiring maximum force
- Precision tasks needing adjustable, repeatable performance
Air-Mite Safety Controls for Operator Protection
Air-Mite safety controls are designed to protect operators and reduce risk during pneumatic system operation. These products help ensure machinery only operates under safe conditions, minimizing accidental activation and workplace injuries.

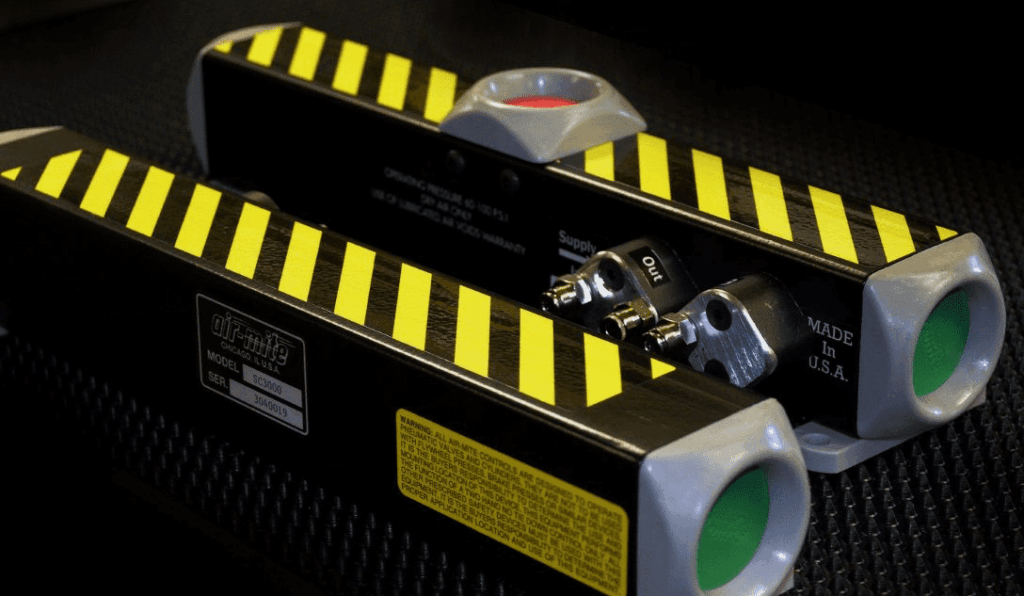

Two-Hand Safety Controls:
- Require both hands to be engaged to generate pneumatic signals
- Prevent unintended machine operation for enhanced operator safety
- Ideal for automated press and assembly applications
Safety Foot Guards:
- Protect against accidental activation of foot-operated valves
- Compatible with all Air-Mite foot-operated valves (2-position or 3-position)
- Supports multiple port sizes: 1/8”, 1/4”, 3/8”, & 1/2” NPT
Lock-Out Control Valves:
- Comply with OSHA Standard 29 CFR 1910 for hazardous energy control
- Locks valves in Normally Closed position to prevent accidental operation
- Protects employees during service, maintenance, or repair of pneumatic, hydraulic, or electrical equipment
Common applications:
- Bench-top and industrial automation requiring operator safety
- Presses, assembly lines, and material handling systems
- Maintenance operations for pneumatic, hydraulic, or electrical machinery

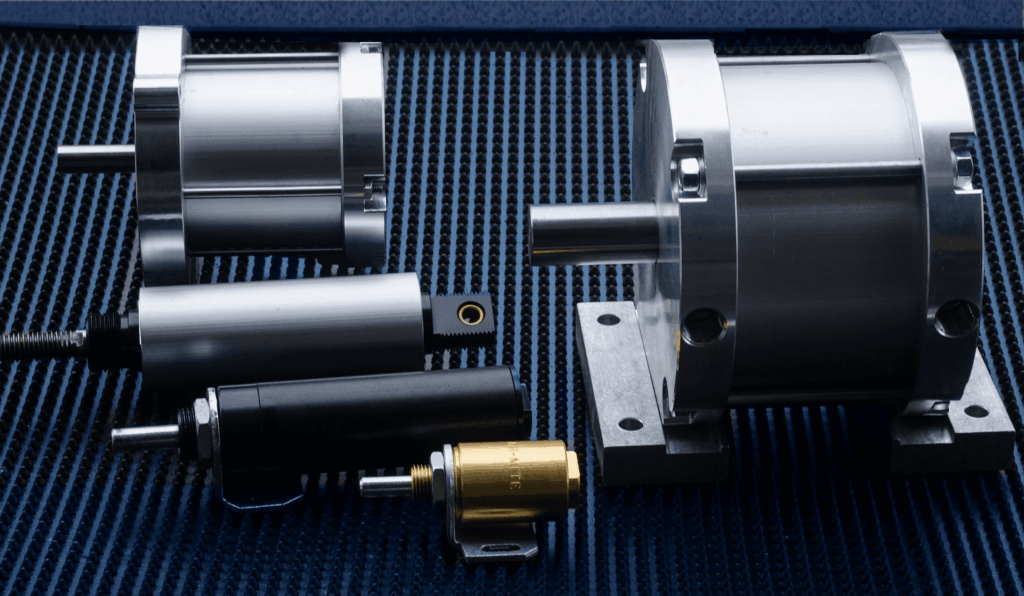

Air-Mite Pneumatic Cylinders for Reliable Motion Control
Air-Mite pneumatic cylinders provide precise, repeatable motion for industrial automation and bench-top applications. Designed for durability and flexibility, these cylinders help reduce downtime, improve efficiency, and simplify system integration across a wide range of operations. Custom cylinders are also available to meet specific application needs.
Cylinder types include:
- VS Tie Rod Cylinders
- PS Tie Rod Cylinders
- CPS Single-Acting Cylinders
- CS Single-Acting Clevis Tie Rod Cylinders
- VFS Single-Acting Flange Tie Rod Cylinders
- DPS Double-Acting Foot Tie Rod Cylinders
- DVS Double-Acting Rear Tie Rod Cylinders
- DVFS Double-Acting Front Flange Tie Rod Cylinders
- DCS Double-Acting Clevis Tie Rod Cylinders
- Single-Acting Foot & Nose Mount Cylinders
- Double-Acting Foot & Nose Mount Cylinders
- Round Line Cylinders
- Micro Cylinders
Common applications:
- Automated assembly and material handling
- Pressing, lifting, and positioning tasks
- Bench-top and industrial automation requiring compact, reliable motion
- Custom automation solutions where standard cylinders may not suffice

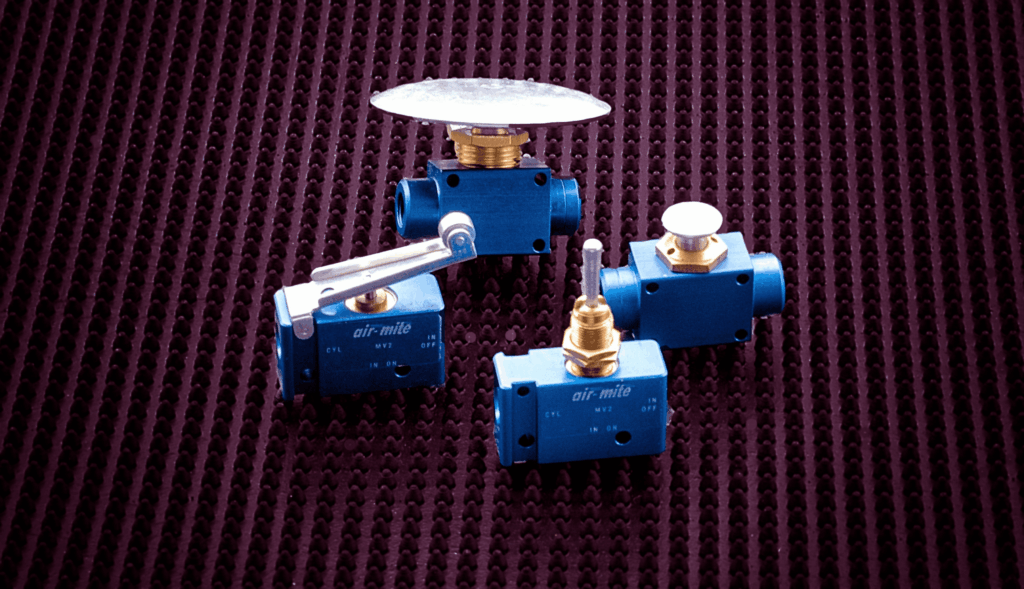

Air-Mite Pneumatic Control Valves for Reliable Airflow
Air-Mite pneumatic control valves manage the flow of pressurized air to ensure precise, consistent operation in automation systems. Designed for durability and flexibility, these valves help reduce downtime, simplify maintenance, and improve overall system efficiency. Custom valve solutions are also available to meet specific application requirements.
Valve types include:
- Ball Cam Control Valves
- Hand Ball Control Valves
- Finger Lever Control Valves
- Pedal Control Valves
- Lockout Control Valves
- Palm Button Control Valves
- Panel Mount Control Valves
- Pilot Control Valves
- Roller Cam Control Valves
- Treadle Control Valves
- Solenoid Control Valves
- Miniature Valves
- V-Series Solenoid Valves (3-way & 4-way configurations)
- Miniature Pneumatic Valves
Common applications:
- Controlling single- and double-acting cylinders in automated machinery
- Bench-top and industrial pneumatic systems
- Material handling and press operations
- Safety-critical operations requiring precise valve control
For more information about these product…
