XCNC Series
Non-Cycling Refrigerated Air Dryers

• 7-1200 SCFM
• NEMA 1 Standard
• Maximum Inlet Air Temperature:
  • XCNC7-150: 140°F (60°C)
  • XCNC200-1200: 120°F (49°C)
• Maximum Operating Pressure:
  • XCNC200-1200: 300 psig
  • XCNC7-100: 203 psig
• Rated Flow Capacity: Conditions for rating dryers are in accordance with ISO 7183
• Compressed air at dryer inlet: 100 psig (7 bar) and 100°F (38°C); ambient air temperature: 100°F (38°C)
• Pressure drip: +/- 0.5 psig (Models XCNC200-1200)

CGD Series
Non-Cycling Refrigerated Air Dryer

The CGD Series refrigerated air dryers offer the perfect balance between technology and simplicity to dry compressed air systems to a stable SO 8573-1 Air Quality, Class 4 to 5 pressure dew point. The smooth bore, copper tube-on-tube heat exchangers make for an innovative, efficient system.
CGD 15-50 SCFM

• 7-1200 SCFM
• Smooth bore, copper tube-on-tube heat exchangers
• Centrifugal separator efficiently captures condensate
• Static condenser design provides trouble free, quiet operation
• Electronic drain valve

CGD 75-1200 SCFM

• Stainless steel, cross flow heat exchangers optimize heat transfer and service life
• Compact design saves floor space
• Stainless steel inlet/outlet connections to prevent corrosion
• Timed electric condensate drain
• Integral demister/separator

XCCY Series
Cycling Refrigerated Dryer Series

• 10-1200 SCFM
• NEMA 1 Standard
• Maximum Inlet Air Temperature: 120°F (49°C)
• Maximum Operating Pressure:
  • XCCY200-800 STD Solenoid Drain (300 psig)
  • XCCY200-800 No Air Loss Drain (220 psig)
  • XCCY1000-1200 (220 psig)
• Rated Flow Capacity: Conditions for rating dryers are in accordance with ISO 7183
• Compressed air at dryer inlet: 100 psig (7 bar) and 100°F (38°C); ambient air temperature: 100°F (38°C)
• Standard XCCY200-800 models ETL-certified, XCCY1000-1200 UL 508 panels

CRPC Series
Cycling Refrigerated Air Dryer

• 75-550 SCFM
• Maximum Operating Pressure: 232 psig
• Maximum Inlet Temperature: 122ºF
• Filtration is external to the dryer and offered as a bundle package
• No-Air-Loss drain on all models
• Two levels of controllers specified by model

CRH Series
High Inlet Temp Refrigerated Air Dryers

The CRH Series High Inlet Temperature refrigerated dryers feature a unique design which works directly with reciprocating air compressors. A unique heat exchanger allows the dryer to accept elevated inlet air temperatures up to 180°F (82°C). This allows compressed air users to send high temperature air straight from their compressor directly to the CRH Series refrigerated dryer and maintain a 50°F pressure dew point. The CRH Series is ideally suited for auto body shops, auto service centers, and light industrial facilities with 5 to 30 horsepower reciprocating air compressors.

• 20 – 125 SCFM
• Maximum inlet temperature: 180°F
• Maximum working pressure: 250 PSIG
• Automatic Zero-Loss Drain

CRN Series
Non-Cycling Refrigerated Dryers

CRN Series non-cycling refrigerated air dryers are engineered to provide you with moisture free air today and tomorrow with the tradition of Champion’s durability. Quality components and engineering excellence are combined to ensure you of a stable 38°F pressure dew point. These exclusive compressed air dryers combine reliability, cutting-edge design, and innovative packaging into a single space saving unit. The air quality delivered from an CRN Series dryer will define the difference between moderate and superior results from your plant’s processes or systems.

• 10-3000 SCFM
• Maximum inlet temperature: 130°F
• Maximum operating pressure: 250 PSIG, controller dependant
• Integrated Grade B (3 micron) Filtering – standard
• Integrated Grade E, Cold Coalescing Filtering – optional
• Automatic Zero-Loss Drain
• Four levels of controllers for ultimate customization

CRE Series
Cycling Refrigerated Dryers

The CRE Series refrigerated dryer automatically cycles the refrigeration compressor on and off in response to inlet load conditions. As the inlet air load is reduced, the refrigeration compressor cycles off, providing you with the ability to reduce energy and costs.
The CRE Series has an optimized cabinet design which promotes easy access from all four sides and the hermetically sealed refrigerant compressor provides high reliability and long service life.

• 90 – 675 SCFM
• Maximum Inlet Air Pressure: 250 PSIG
• Maximum inlet Operating temperature: 130°F
• No air loss condensate drains
• Rebate eligibility
• ISO 8573.1 air quality built in

CDT Series
Heatless Desiccant Air Dryers

CDT Series Heatless desiccant dryers open up a world of customizable performance opportunities with four standard ISO quality class levels of pressure dew points to choose from. Don’t settle for less than the ability to satisfy all of your requirements for clean, dry compressed air. A carefully engineered desiccant dryer design provides a reliable method to remove moisture as a water vapor. With the option to add coalescing filters, solid particles, liquid water droplets, liquid oil and oil vapors can be removed from the compressed air system in a reliable manner.

• 40 – 5400 SCFM
• Maximum working pressure: 150 PSIG standard; higher pressures available
• Maximum inlet temperature: 120°F
• Customizable dewpoints to -100°F
• Large desiccant beds ensure consistent dew points
• Three controller options
• Packaged filtration – optional

XCHB Series
Heated Blower Desiccant Air Dryers

One look tells you that these dryers are like no other – extremely low silhouette, manifolds and valves within an arm’s reach of the operator, and readily accessible fill and drain ports are just a few of the differences apparent on the outside. Both extremely and internally, each model combines innovative engineering and technically advanced, highly durable components to provide easy installation, operation, maintenance, and simply the most reliable desiccant dryers available.

• 150 – 3000 SCFM
• Maximum Working Pressure: 150 PSIG standard; higher pressures available
• Low Profile Design
• Low Mounted Filtration for Ease of Service
• NEMA 4-Standard
• Digital Controller
• Tower Pressure Gauges
• Packaged Filtration – Standard

XCHL Series
Heatless Desiccant Air Dryers

• 90 – 3300 SCFM
• Maximum Working Pressure: 150 PSIG standard; higher pressures available
• Customizable Dewpoints to -100°F
• NEMA 4-Standard
• Digital Controller
• Low Mounted Filtration for Ease of Service
• High Strength Activated Alumina
• Tower Pressure Gauges
• Packaged Filtration – Standard

XCHP Series
Heated Purge Desiccant Air Dryers

• 150 – 3000 SCFM
• Maximum Working Pressure: 150 PSIG standard; higher pressures available
• Low Profile Design
• Low Mounted Filtration for Ease of Service
• NEMA 4-Standard
• Digital Controller
• Tower Pressure Gauges
• Packaged Filtration – Standard

CDHM Series
Dual Tower Desiccant Air Dryers

The CDHM Series desiccant air dryers use the proven “Pressure Swing Adsorption” (PSA) method for drying wet compressed air. This requires having two identical towers containing hygroscopic desiccant. The unique design of the CDHM Series allows for the dryer to start and stop with a compressor or point-of-use equipment to eliminate purge loss when off. The solid state memory feature allows the dryer to start where it left off in the drying cycle to prevent wet air downstream.

• 3 – 50 SCFM
• Maximum Working Pressure: 150 PSIG
• Maximum Inlet Temperature: 120°F
• Pressure Dewpoints to -100°F
• Unique Energy Saving Design
• Eliminate purge loos with remote start/stop control

CDS Series
Single Tower Desiccant Air Dryers

Champion specializes in delivering the best compressed air quality to your working environment. Removing water, solid particulates and oil from compressed air has many benefits which all lead to increased productivity and reduced overhead costs. The CDS Series single tower desiccant air dryer provides quality air to your application with minimal investment. The compact, in-line design is ideally suited for point of use applications, such as paint spraying operations or pneumatic tools, that require clean, dry compressed air. The modular housings, with optional oil removal pre-filter provides ease of installation to any system. Drying compressed air has never been easier.

• Single tower desiccant air dryers 5 – 30 SCFM
• Stand along tower that delivers -40°F dew point for dry air
• 1/4″ and 1/2″ connections make installation easy
• Integrated 15 micron dust filter provides added protection
• Rugged, powder coated corrosion resistant aluminum bowl withstands tough environments
• CDSF optional oil pre-filtration package available

CFL Series
Filters

CFF Series air filters provide your compressed air system with premium quality filtration for the three typical contaminant types:

1. solid particles come from ambient air contaminants like dust and from rusted, oxidized pipework. They will cause pneumatic equipment to malfunction, cause instrument and control failures, and contaminate end products;
2. condensed water droplets come from the humidity in ambient air. Water will oxidize pipework and pneumatic equipment, ruin paint finishes and end products and;
3. liquid oil and oil vapors are introduced by compressor lubricants and by hydrocarbon vapors present in ambient air. Oil-free compressed air is particularly important in food and pharmaceutical processes.

• 20 – 21250 SCFM
• Maximum working pressure: 300 PSIG
• Maximum inlet temperature: 150°F
• Seven filtration grades provide ISO 8573.1 standard air quality
• Housings used conform to major pressure vessel directives in the Americas, Europe and Asia

For more information about this product…
 Download a Catalog

FRL

Champion’s modular Filters-Regulators-Lubricators (FRL’s) are the perfect choice for the most demanding applications. By combining these three items, you receive standard 5 micron filtration, excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components. The compact, flexible design allows for easy service while the patented Flow-Guide® ensures years of trouble-free operation.

• Compact, flexible design
• Easy to service
• Manual drain – standard
• Automatic mechanical drain – optional
• Quick disconnect metal bowl with sight gauge and safety warning latch
• Balanced valve design for superior reulation characteristics
• Lubricator can be filled under pressure
• Variable Flow-Guide™orifice maintains constant oil-to-air ratio, regardless of air flow.

For more information about this product…
 Download a Catalog

CFE Series

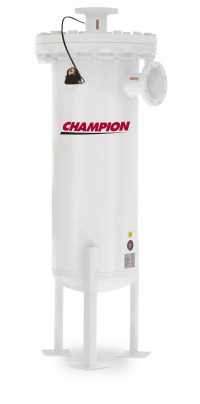

Mist Eliminators

Champion CFE Series Mist Eliminators are used to reduce energy costs and remove oil and water aerosols from compressed air systems. They also protect products and processes from contamination, increase the life of pneumatic equipment, help eliminate paint appearance and adhesion problems, and keep pneumatic instruments operating.

• 125 – 3000 SCFM
• Maximum working pressure: 150 PSIG
• Maximum operating temperature: 150°F
• Low pressure drop, saving energy
• Long life mist eliminator element – standard
• Automatic condensate drain – optional
