Condensate Management

Compressed air is discharged at elevated temperatures in a saturated condition. Any cooling which takes place through after-coolers, dryers, or pipelines cause the water vapor to condense into a liquid form, which then mixes with any oil carryover of a machine. This contaminated condensate cannot be disposed of into sewer systems, or onto the ground, without being properly treated.

Oil/Water Separators

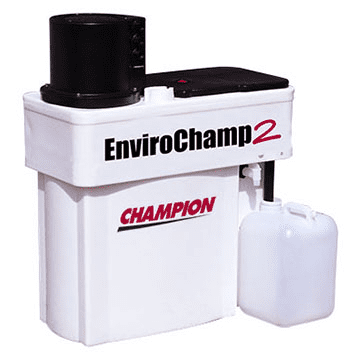

CSP EnviroChamp 2

Champion Pneumatic CSP EnviroChamp 2
The CSP EnviroChamp2 Series oil/water separator is designed for 90°F at 90% RH summertime conditions and can separate oil/discharge water to levels of 15 ppm. Using the most advanced technology for reducing the volume of compressed air condensate destined for disposal, this separator offers greater reliability, longer filter life and cleaner discharge water quality than ever before.

  • Designed to operate for 24 hour continuous heavy duty use
  • Ideal for use with CompAir lubricants such as: SSl-25F, CompLub 10, SSL-46 Plus and Air Lube 46
  • Works well with other branded PAO and POE based fluids
  • Effective design allows for optimal reliability and effectiveness
  • Heaters – optional
  • Distributor – optional
Intelli PAK

Champion Pneumatic Intelli PAK
The process of compressing air typically produces a substantial amount of condensate that contains air compressor lubricant carryover. Without an oil-water separator in your compressed air system, this condensate/lubricant mixture will go down the drain and quite possibly find its way into the surrounding groundwater. The Intelli PAK System has been engineered to provide the most effective and user-friendly oil-water separator on the market.

  • Alumino silicate substrate media is formulated to attract the contaminants and repel water molecules
  • The internal bonding process virtually eliminates any possibility of the used media being able to contaminate ground water
  • All Units will handle any lubricant including silicone
  • Five different capacities: 250 cfm, 400 cfm, 750 cfm, 1000 cfm, and 1500 cfm
  • Sleek cabinet design that matches our compressors
  • Proprietary encryption design on the replacement cartridges

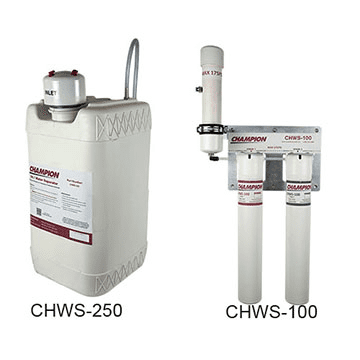

CHWS Series

Champion Pneumatic CHWS Series
Oil Water Separators
The CHWS range of oil-water separators is made of three models that cover 50, 100 and 250 cfm. All three models are simple to install, require a minimal amount of space and provide < 10 ppm condensate carryover.
CHWS-50 & 100
The two smaller CHWS units feature spin on / spin off cartridges that allow for easy and clean maintenance. The cartridges are filled with an enhanced alumina silicate substrate media bed that prolongs the life of the unit. When the unit requires maintenance, simply spin on a new cartridge.
The largest unit, the CHWS-250, uses a different strategy to accomplish the same goal of removing lubricant particles from condensate. Instead of replaceable cartridges, the CHWS-250 features a “use up and replace” design. When the molecular sieve utilized in the active filtration process is spent, replace it with a new unit.

  • Advanced molecular filtration
  • Internal decompression chamber
  • Simple and fast installation
  • Sleek design with minimal footprint
  • Industry leading capacitance
  • Laboratory tested, field proven results
  • Less than 10 ppm for life of product
  • Maintenance free life cycle

Pneumatic/Mechanical Drains

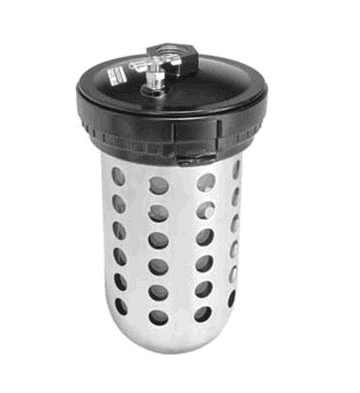

CDV1 Series

Champion Pneumatic CDV1 Series
The CDV1 Series is a zero air loss, pneumatic, mechanical drain that is designed to automatically remove liquid, oil, and water contaminants from compressed air system components. The efficient bowl size and large quiet zone ensures that no re-entrainment of liquid accumulates back into the air stream. This metal bowl is also compatible with all compressor lubricants and systems up to 200 psig.

  • Maximum fluid temperature: 175°F
  • Maximum operating pressure: 200 psig
  • No air loss drain
  • Manual override option – drain on demand
  • Float type operation – no electricity needed

Electric Timed Drains

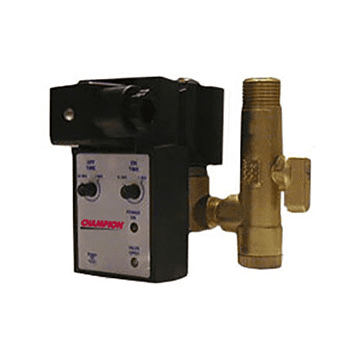

CDV2 Series

Champion Pneumatic CDV2 Series
Champion’s CDV2 Series electric timed drain is effective over a wide range of applications because its dual timer allows the user to accurately set the correct drain cycle. Its compact size and light weight allow the timer to be installed directly on drain points on filters, separators, dryers, droplets, and air compressor receivers. The sealed high impact timer enclosure provides weather tight protection.

  • NEMA 4
  • Dual timing adjustments
  • Indoor/outdoor application
  • Manual Push to test button
  • Indicating lights of valve position open or closed
  • High temperature applications
  • Reliable operation
  • Versatility in installations
  • Made in the U.S.A

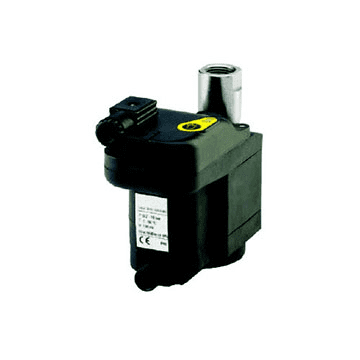

CDV4 Series

Champion Pneumatic CDV4 Series
The CDV4 Series motorized ball valve is designed for heavy duty applications with high pressure capabilities up to 600 psig. The CDV4 Series has microprocessor based electronics with 10 programmable settings. The weatherproof enclosure allows for indoor/outdoor operation and the battery back-up for when there is a power failure.

  • Double O-ring seal on valve shaft
  • Manual test button
  • Corrosion resistant valve coating
  • Reliable long-life
  • Visual operation indicators
