Valves

Fabco-Air covers all of your directional, solenoid, air pilot, needle and flow valve needs. Our valve lineup features a wide range of sizes and high-performance materials, including FDA-approved options for your flow and process valves. If installation space is an issue, you can mix and match Fabco Valves in a single compact manifold. Additionally, we carry several lines of special purpose valves—including shuttle, check, micro limit and pressure sensing valves.

Pneumatic Directional Control Valves

53 Style – Hex Body and Miniature Modular Manifolded Poppet Valves

Fabco-53 Series Valves
The Hex Body 53 Style is a 2- or 3-way solenoid valve available as Normally Open or Normally Closed in three different porting styles. Compatible with air, water and other fluids with standard Buna-N seals, these valves have a variety of options available to best suit your application. Explosion-proof coils are available for this model.

Also available in both single or multiple manifold versions, the Multiple Manifold Miniature 53 Style Valve allows you to combine multiple functions and ports to save time, money and space. Available with 10-32 or ⅛ NPT ports, this series includes pressure manifold plugging, allowing for multiple pressures and medias to be controlled at once.

18, 14, M14 & 34 Series – Standard Spool Valves

Fabco-18 Series Valves
The 18, 14, M14 and 34 Series directional control valves feature a lightweight short-stroke Delrin® spool for a fast and reliable response. These valves are suitable for vacuum directional flow applications, but not for holding vacuum applications. Selected models of the 14 Series can also be stacked to save money and space.

12, 12A, 12B & 38 Series – High Flow Spool Valves

Fabco-12 Series Valves
The 12, 12A, 12B and 38 Series directional control valves offer you a number of customization options. These long-lived valves are constructed out of lightweight aluminum with hard anodized aluminum spools. Constructed simply for easy servicing and installation, the valves come in the following operations:

  • Single and double solenoid operated
  • Pilot operated
  • Hand lever operated
  • Push-pull operated
  • Treadle operated
FVA & FVEC Series – Flow Optimized Pneumatic Solenoid Valves

Fabco-fvec Series Valves
The FVA and FVEC Series of air pilot and solenoid valves are high-flow valves available with ⅛, ¼, ⅜ and ½ NPT ports in 4-way or 3-way Normally Closed positioning. These valves have multiple options and include 2- and 3-position spools. With manifolds ranging from two to ten stations, there are plenty of customization options.

FVEN Series – Namur Valves

Fabco-FVEN SERIES Valves
The FVEN Series of solenoid 5-port 2-position control valves features NAMUR mounting that attaches directly to the actuator without additional manifolding. These valves are designed for high flow with single or double solenoid model options. With a low-energy consumption, the FVEN’s durable solenoid coil can operate at a 100% continuous duty cycle.

Process & Media Valves

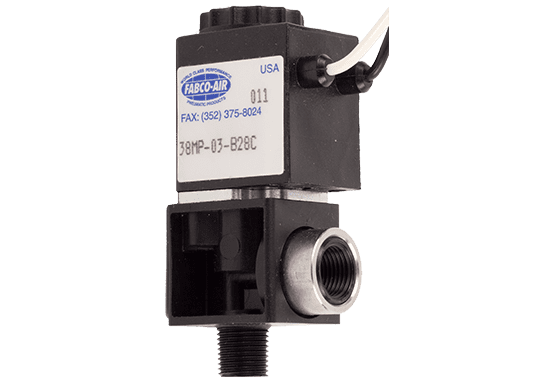

38Mp, 3853 & 3953 Series – Composite Body Poppet Valves

Fabco - 38Mp, 3853 & 3953 Series - Composite Body Poppet Valves

  • Flow rates: Cv = 0.025 to Cv = 0.31
  • Port size: ⅛ NPT
  • Constructed from media-compatible DuPont™ Zytel® FE 5105
  • FDA-approved options available
  • “Basket” orifice design feature allows the possibility of changing the orifice diameter in the field to meet flow requirements
  • Created from predominantly lightweight and corrosion-resistant composite materials
  • Choose between a brass/stainless steel or all stainless steel solenoid operator

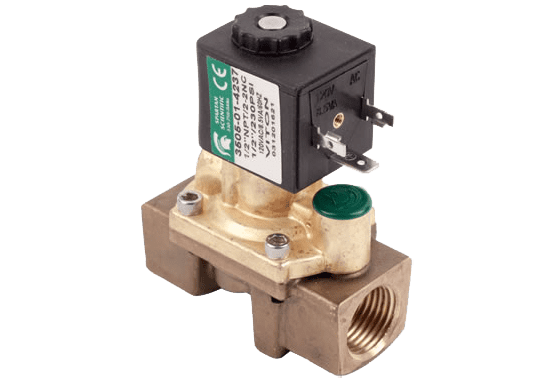

3500 Series – Brass Body Diaphragm Process Valve

Fabco - 3500 Series - Brass Body Diaphragm Process Valve

  • Flow rates: Cv = 1.5 to Cv = 2.4
  • Port sizes: ¼, ⅜ and ½ NPT
  • Robust, compact valves that combine the latest injection molding and forging technologies
  • Molded pilot section features a quick connect DIN 43650 “A” electrical connection, high-cycle solenoid parts and a push non-locking manual override
  • Use as a directing acting/pilot operated valve gives full flow throughout the pressure range starting with an MOPD of zero psi

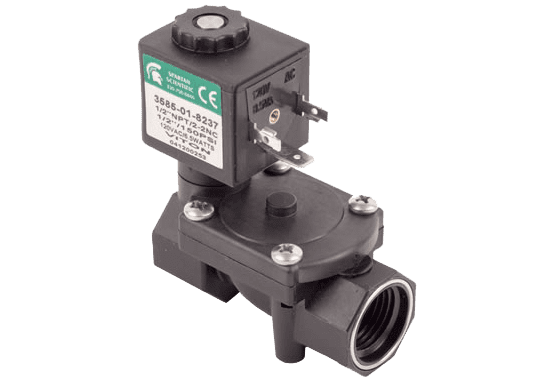

3510 Series – Composite Body Diaphragm Process Valve

Fabco - 3510 Series - Composite Body Diaphragm Process Valve

  • Flow rates: Cv = 1.5 to Cv = 2.4
  • Port sizes: ¼, ⅜, ½ NPT
  • Designed with a media compatible polymer body
  • Features a stainless steel anti-flex ring for port strength
  • Use as a directing acting/pilot operated valve gives full flow throughout the pressure range starting with an MOPD of zero psi

Special Purpose Valves

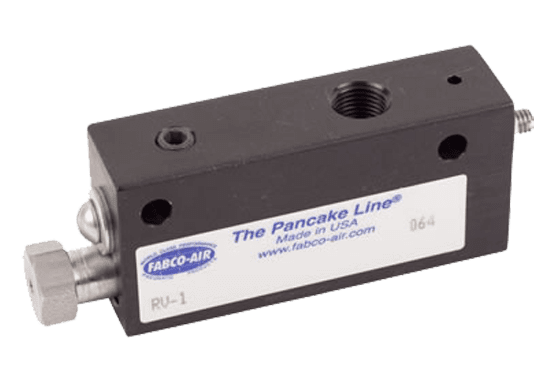

OS, RV & MSV Series – Special Purpose Valves

Fabco - OS, RV & MSV Series - Special Purpose Valves

  • OS-1 Series: provides a momentary output at its cylinder port when pressure is applied at its inlet
  • RV-1 Series valve: designed to open when a pre-set amount of pressure is applied to provide a pilot signal for circuit control
  • MSV Series: tiny, poppet-style valves designed for very light actuating forces

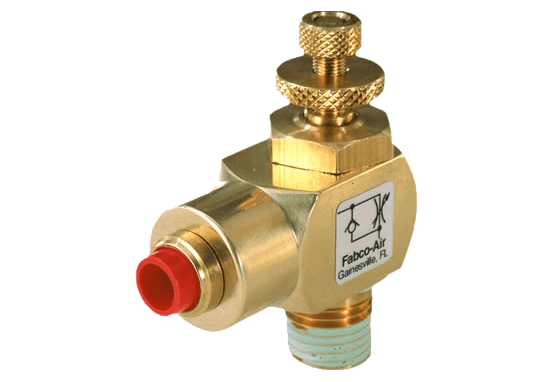

Needle Valves,  Flow Control Valves, Check Valves, Shuttle Valves & Quick Exhaust Valves

Fabco - Needle Valves,  Flow Control Valves, Check Valves, Shuttle Valves & Quick Exhaust Valves

  • Miniature Series allows you to choose between 1-way or 2-way flow, panel mounting and flow control models, all constructed from durable brass
  • Micro-Fine™ Series designed to provide high control of gasses and liquids, available in both needle or flow valve models
  • Swivel, Port-Mounted line provides a 360° swivel on all models, multiple size options and the choice between molded or brass body design
  • SuperVee™ Series can be adjusted from full flow to bubble-tight shutoff with an orifice that provides precise repetition of your selected flow rate
  • Check and shuttle valves available
