Polyurethane Tubing
If Inflexibility, cracks, and punctures have ever plagued your tubing, then it’s time for you to switch to Polyurethane Tubing. PUR tubing provides excellent flexibility and resists the kinds of damage that can lead to dangerous leaks.
Freelin-Wade offers highly versatile PU tubing in a range of sizes, configurations and hardness levels. No matter what your application, we have the right polyurethane tubing for your needs. Our inventory of PUR tubing includes an array of styles.
Ester-based vs. Ether-based Polyurethane Tubing
From the user’s standpoint, ester-based polyurethane tubing is less expensive and provides slightly better fuel and oil resistance; however, it degrades more quickly when exposed to moisture. On the other hand, ether-based tubing also resists fungus growth and it also reduces the chances of deterioration due to contamination or brittleness.
Chemically, both ester-based polyurethane pneumatic tubing and ether-based Fre-Thane® tubing are made from different polyol alcohols that cause similar, but different, reactions in the isocyanate. Both products are commonly found throughout the industrial marketplace.
Fre-Thane® PU Tubing Features & Benefits
Freelin-Wade’s PUR tubing exhibits a high resistance to abrasion, while being highly flexible and kink resistant. Fre-Thane® will stretch and flex but always return to its original shape; that’s the “memory” that makes our PU tubing extra special.
- Extremely flexible with excellent memory
- Kink & abrasion resistant
- Low gas permeability, extractables and compression set
- Resistant to chemicals, water, fuel, oil and fungus
- Transparent and opaque colors
Product Lineup

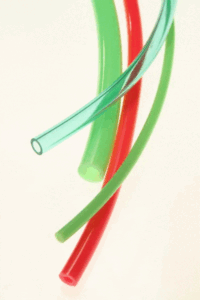

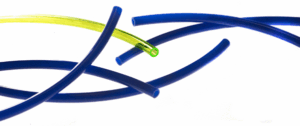

Fre-Thane® 95A Polyurethane Pneumatic Tubing
Fre-Thane® polyurethane pneumatic tubing is Freelin-Wade’s most versatile product, with more options and variations available than with any other tubing product.
Polyurethane 95A Pneumatic Tubing Features
Freelin-Wade’s Fre-Thane® 95A tubing has an incredible resistance to abrasion. It is extremely hard, tough and durable, with the added benefit of being highly flexible and kink resistant. In general, tubing that retains its shape can really take a beating. However, with Fre-Thane® you can tug it, pull it, yank it, twist it – no matter what you do, it will return to its intended shape.
- Stands up to higher pressures with ease
- Excellent rub resistance
- Kink-resistant…if kinked, will return to its original shape and performance
- Highly flexible
- Abuse-proof

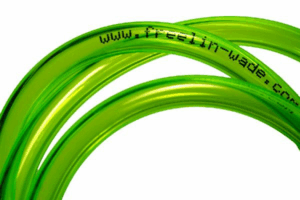

Fre-Thane® 90A Polyurethane Pneumatic Tubing
Fre-Thane® 90A tubing is a durable and abrasion resistant PU tubing product. It is also extremely flexible and kink resistant. PU 90A’s Shore® A scale rating guarantees this products level of solidity and overall strength. Our 90A PUR tubing is available in 28 in-stock colors, as well as countless numbers of custom color variations. Fre-Thane® polyurethane tubing is Freelin-Wade’s most versatile product, with more options and variations available than with any other tubing product.
Polyurethane 90A Tubing Features
Freelin-Wade’s Fre-Thane® 90A tubing has an incredible resistance to abrasion while being highly flexible and kink resistant. Traditional, non-polyurethane tubing, can really take a beating. However, PU 90A tubing will always return to its intended shape, no matter what you do to it. This is due to PU 90A’s flexible memory; Fre-Thane® can easily be stretched and flexed but it will always return to its original shape.
- Extremely flexible with excellent memory
- Kink & abrasion resistant
- Low gas permeability, extractables and compression set
- Resistant to chemicals, water, fuel, oil and fungus
- Transparent and opaque colors
Fre-Thane® 85A Polyurethane Tubing
Polyurethane 85A Tubing Features
Fre-Thane® 85A tubing is built to last. Whatever your application, this PU tubing has been designed and tested to meet or exceed your requirements. This product can be regularly jerked or wrenched but it will always return to its original shape.
- Excellent rub resistance
- High flexibility
- Kink-resistant
- Stands up to higher pressures with ease
- Resistant to chemicals, water, fuel, oil and fungus

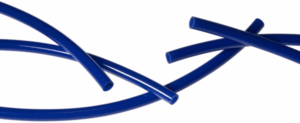

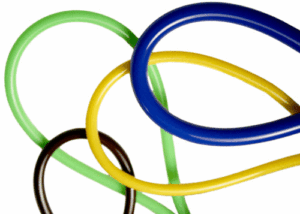

Fre-Thane® 70A Polyurethane Tubing
Polyurethane 70A Tubing Features
Fre-Thane® 70A tubing is as tough as nails. It can easily withstand constant pulling, bending, tugging, or anything else you can throw at it. No matter what you do, Fre-Thane® PU 70A tubing will always return to its intended shape.
- Extreme flexibility with excellent memory
- Kink & abrasion resistant
- Low gas permeability, extractables and compression set
- Resistance to chemicals, water, fuel, oil and fungus

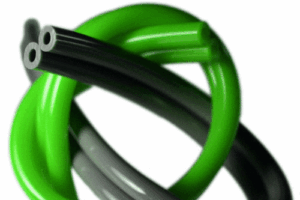

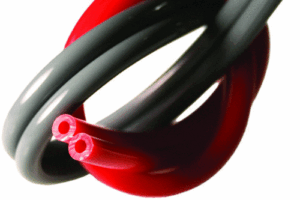

Fre-Thane® 90A Multi-Bore Tubing
Multi-Bore tubing is produced using Fre-Thane® polyurethane in a single extrusion. Unlike MCR, it is made in one extrusion which means the tube can only be made in a single color. Unlike MCR, Multi-Bore can’t be separated cleanly and should not be used with push-in fittings.
Fre-Thane® 85A Multi-Bore Tubing
Freelin-Wade’s 85A multi-bore tubing is made with our proprietary Fre-Thane® polyurethane material, which provides superior flexibility with high abrasion and kink resistance. Best of all, our Fre-Thane® multi-bore tubing exhibits exceptional “memory”—it can be stretched and flexed to extremes, and will always return to its original shape.
Fre-Thane® 85A Multi-Bore Tubing Specifications
- Temperature range: -40°F to 165°F (-40°C to 74°C)
- Vacuum rating: to 28” Hg
- Diameter tolerances: ±0.005”
- Tube markings: none
- Working pressure: 3:1 safety factor
- UV Stabilized
- Suggested fittings: barb
- Resin compliance: NSF61, meets UL94HB, USPVI
Color Options
If you require multi-bore tubing in multiple colors, please consider our 85A multi-colored ribbon (MCR) tubing.

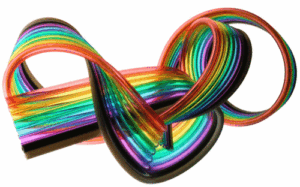

95A Multi-Colored Ribbon Polyurethane Tubing (MCR)
Freelin-Wade’s 95A multi-colored ribbon poly tubing is a durable, cost-effective way to color code tubing lines for identification, tracing, and/or troubleshooting. Our bonded multi-color tubing is tough enough to withstand the rigors of repeated flexing and stretching for a long working life with minimal maintenance requirements. MCR bonded tubing is available in a wide range of stock configurations.
Coiled 95A Multi-Color Ribbon Tubing
We also offer multi-colored ribbon tubing coils. We stock three standard two-tube MCR coils, and have the capabilities to produce any custom or specialty coiled MCR configuration that you can dream up. We have no minimum order quantity, and we’re more than happy to make prototypes for you.

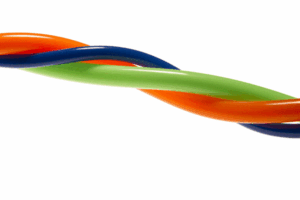

85A Multi-Colored Ribbon Polyurethane Tubing (MCR)
Freelin-Wade 85A Poly MCR Specifications
- Temperature Range: -40° to 165°F (-40° to 74°C)
- Vacuum Rating: to 28” Hg
- Tube Markings: none
- Working Pressure: 3:1 safety factor
- UV Stabilized
- Resin Compliance: NSF61, meets UL94HB, USPVI
- Suggested Fittings: barb
- Color Options: black, white, green, blue, red, yellow, orange, purple
- Tube Type: multi-color ribbon tubing
- Packaging Options: 100’ bags, cut-to-length (by the foot), samples
Static Dissipative 90A Polyurethane Tubing
Static Dissipative 90A Tubing Specifications
- Dissipative Value: per EIA Std. 541
- Volume Resistivity: 9.9×109 ohms-cm
- Surface Resistivity: 9.9×109 ohms/sq
- Temperature Range: -40° to 165°F (-40° to 74°C)
- Vacuum Rating: to 28” Hg
- Diameter Tolerances: ±0.005”
- Tube Markings: none
- Working Pressure: 3:1 safety factor
- UV Stabilized
- Suggested Fittings: barb
Features & Benefits of Static Dissipative Tubing
- Dissipates electrostatic charges with no chemical additives.
- Contains no conductive fillers and no particle emission.
- Dissipative values are permanent and cannot be washed away.
- Ideal for low humidity environments.
- Non-corrosive to electronic leads and components.

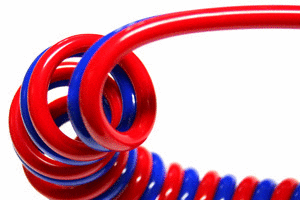

Multi-Colored Ribbon Coils
Freelin-Wade’s multi-colored ribbon (MCR) coils consist of bonded ribbons ribbon of multi-colored Fre-Thane polyurethane tubing. Our multi-color ribbon tubing is the solution you need for any application where you need to route two or more lines. It offers faster installation times and eliminates the need for spiral wrap or jacketing.
Advantages of Multi-Color Ribbon Coil Tubing
Freelin-Wade multi-color coil tubing is a durable, cost-effective way to color code your tubing lines for identification, tracing, and/or troubleshooting.
Like all of our polyurethane tubing products, our multi-colored ribbon (MCR) coils are designed to withstand the rigors of flexing and stretching. This translates to a long service life with minimal maintenance requirements.
To make our MCR bonded tubing, Freelin-Wade uses a proprietary bonding process technique that attaches the tubing permanently, if needed, while allowing the individual tubes to be separated quickly and easily, leaving no residue behind. An additional advantage of this technique is that users can install push-in style fittings without fear of an incomplete seal.

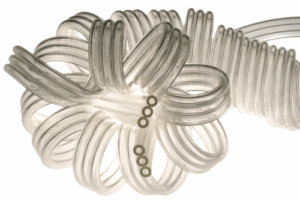

Multi-Bore Polyurethane Twin Bonded Coils
Dual bonded polyurethane coils are regularly used for transferring fluids and gas products. The multi-tube nature of these products allows for the delivery of increased amounts of fluid or gas without the hassle of larger tubes. Additionally, different types of fluid or gas can also be delivered within the various tubes, which saves space and provides added convenience.
Freelin-Wade’s unique, ether-based Fre-Thane® polyurethane coil tubing offers extreme flexibility, excellent kink resistance and outstanding memory. This polyurethane multi-tube coil can be repeatably stretched and flexed to its limit but will always return to its original shape. Fre-Thane® twin bonded coils are ideal for nearly any coil tubing application.
Additionally, Fre-Thane® is available in numerous colors, and offers the most custom-variation possibilities of any plastic tubing products.
Freelin Wade produces Fre-Thane® polyurethane multi-bore polyurethane coils in a single extrusion. This prevents the individual tubes from separating and creates a sturdier and more secure coiled tubing product. However, this means that all tubes must be the same color.
Fre-Thane® Coiled Tubing Specifications
Fre-Thane multi-bore polyurethane coil tubing maintains unique specifications that allows it to be used for several types of applications. This highly advanced PU multitube coil product is specifically formulated to deliver the results that your projects demand.
- Temperature range: -40°F to 165°F (-40°C to 74°C)
- Vacuum rating: to 28” Hg
- Diameter tolerances: ±0.005”
- Tube markings: none
- Working pressure: 3:1 safety factor
- Suggested fittings: barb
- Standard tail lengths: 8” and 16”
- Resin compliance: 90A: NSF61, meets UL94HB; 85A: NSF61, meets UL94HB, USPVI

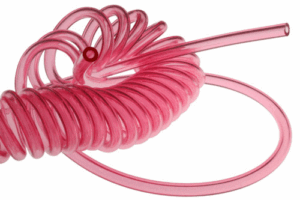

Single Tube PU Coil Tubing
Single tube PU coil tubing provides the extreme flexibility that is necessary for completing a wide range of projects. Its excellent kink resistance and outstanding memory make it the ideal choice for projects that require repeat bending and twisting of the tubing. In addition, the ether-based nature of the polyurethane material allows the spiral tubing to last longer than basic standard plastic tubing products.
Freelin-Wade’s unique, ether-based Fre-Thane® polyurethane coil tubing offers extreme flexibility, excellent kink resistance and outstanding memory. This PU coil tubing can be repeatably stretched and flexed to its limit, but will always return to its original shape. Fre-Thane® single tube coils are ideal for nearly any coil tubing application.
Additionally, Fre-Thane® polyurethane coils are available in a rainbow of colors, and offer the most custom-variation possibilities of any of our tubing products.
Fre-Thane® Plastic Spiral Tubing Specifications
The specifications of Fre-Thane spiral tubing are what separates it from its competitors. This highly advanced PU coil tubing product is specifically formulated to deliver the results that your projects demand. The specifications for polyurethane spiral tube are as follows:
- Temperature range: -40°F to 125°F (-40°C to 52°C)
- Vacuum rating: to 28” Hg
- Diameter tolerances: ±0.005”
- Tube markings: none
- Working pressure: 3:1 safety factor
- Suggested fittings: barb, push-in (95A only)
- UV stabilized
- Standard tail lengths: 8” and 16”
- Resin compliance: 95A: NSF61, meets UL94HB; 85A: NSF61, meets UL94HB, USPVI
Fre-Thane® Metric Single Tube Polyurethane Spiral Coils

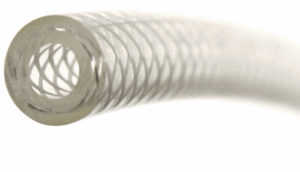

Flexeel® Reinforced Flexible Hoses
Polyurethane Reinforced Flexible Hoses
For working pressures up to 230 psi, you need a hose that can handle the load. Reinforced polyurethane flexible plastic hoses from Freelin-Wade feature tough nylon inner braids and a thick polyurethane wall for higher-pressure, abusive applications.
- Resists Cracking
- Resists Kinks
- Resists Abrasion
- Resists Chemicals
- Resists Fuel
- Resists Oil
- Resists Fungus
- Resists Water

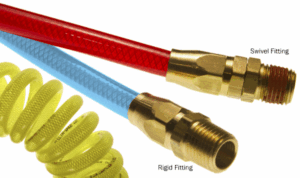

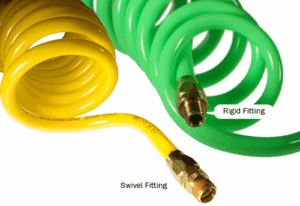

Flexcoil® Polyurethane Spiral Coils with Fittings
Flexcoil® is the original tangle free coiled hose. It’s made from Freelin-Wade’s own Fre-Thane® Polyurethane. Just like other Fre-Thane tubing, it resists abrasion and kinking. Of course, as a flexible hose, it always springs back to its original shape. Flexcoil® is ideal for use with air tools, blow guns, impact wrenches and nailers. It’s a great way to keep your work area organized and safe.
The various working length flexible hoses are ultra-convenient and easy-to-use. If you don’t see the color or length that you want, just ask us. We can configure Flexcoil® to perfectly match your requirements. Standard sized coils have two straight “tails” (8″ and 16″) to position tubing away from tools.
Flexcoil® Coiled Hose Specifications
- Temperature range: -40°F to 125°F
- Vacuum rating: to 28” Hg
- Diameter tolerances: ±0.005”
- Hardness: 95A
- Working pressure: 3:1 safety factor
- Standard tail lengths: 8” and 16”
- Resin compliance: 95A: NSF61, meets UL94HB
Flexible Spiral Coiled Hose
Flexeel® spiral coiled hoses from Freelin-Wade are lightweight and easier to handle than other, bulkier polyurethane spiral hose options. Even in subzero temperatures, Flexeel® spiral coiled hose keeps flexing, making it the ideal polyurethane spiral hose for indoor and outdoor applications. Flexeel® spiral coils are available in a range of standard sizes (see below). Freelin-Wade can also produce custom spiral hose to match your exact specifications.
Flexeel® Spiral Coiled Hose Specifications
- Temperature range: -40°F to 165°F (-40°C to 74°C)
- Pressure Rating 70°F: 200 psi
- Vacuum rating: to 28” Hg
- Diameter tolerances: 1/4″ – 5/16” ±0.005”, 3/8” – 1/2″ ±0.010”
- Tube markings: none
- Working pressure: 4:1 safety factor
- Suggested fittings: Reusable with strain relief
- UV stabilized: Yes
- Standard tail lengths: 8” and 16”
- Resin compliance: NSF61, meets UL94HB
For more information about these products…
Download a Catalog
