Humphrey Custom/High Tech Products
Humphrey Cornerstone Products are highly specialized products developed using the latest technology to meet the requirements of a particular use case.
These products are not available in Humphrey’s regular product line and have more stringent minimum quantity and lead time requirements.
If you have a use case for one of these specialized products, or if you require a custom built product for your application, contact one of All Air’s pneumatic experts to get help finding products to meet your needs.
Product Lineup
High Pressure Pneumatic Solenoid Valve
Designed for use with 0 – 175 PSI compressed air. Impervious to media conditions.
- 25mm wide, Direct-Acting
- Balanced Poppet Design
- Pipe as a 2- or 3-port valve, NC or NO
- 24 VDC with DIN entry
- Based on 253 Balanced Solenoid Valve Series.
- No lubrication required.
- TYPE OF OPERATION: Direct Solenoid
- FUNCTION: Multipurpose
- MEDIA: Compressed Air
- PIPING TYPE: Inline, Direct Piping
- NUMBER OF PORTS: 3
- PORT SIZE: 3/8 Pipe
- WETTED PARTS: Brass, NBR or FKM, Aluminum, SST, Acetal
- PRESSURE RANGE – PSI (BAR): 0-175 (0-11.9)
- FLOW SCFM @100 PSIG: (Cv) 72 (1.20)
- AMBIENT TEMPERATURE: 32°-125°F (0°-52°C)
- RESPONSE TIME: 20 / 8
- ELECTRICAL ENTRY: DIN
- VOLTAGE: 24VDC
- POWER CONSUMPTION (W): 8
- WEIGHT – OZ (GRAMS): 11.2 (318)
- COMPLIANCE: RoHS

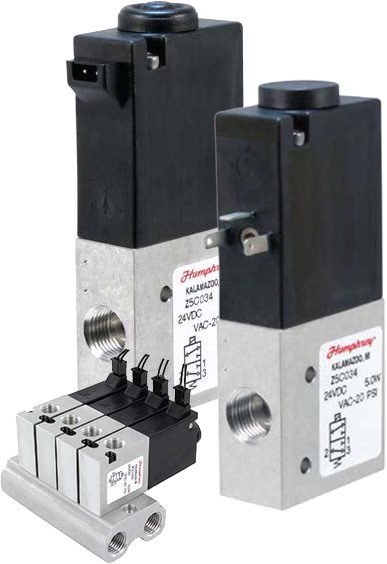

High Flow Pneumatic Solenoid Valve
Longer stroke than standard valve allowing 55 LPM Flow @ 2 PSI or 150 LPM @ 20 PSI.
- 15mm wide, Direct-Acting
- Balanced Poppet Design
- Pipe as a 2- or 3- port valve, NO or NC
- 0-20 PSI compressed air
- 24 VDC with flying lead.
- Based on 153 Balanced Solenoid Valve Series.
- Special armature set for quiet/reduced noise operations.
- No lubrication required.
- TYPE OF OPERATION: Direct Solenoid
- FUNCTION: Multipurpose
- MEDIA: Compressed Air
- PIPING TYPE: Inline, Direct Piping
- NUMBER OF PORTS: 3
- PORT SIZE: 1/8 Pipe
- WETTED PARTS: Brass, NBR or FKM, Aluminum, SST, Acetal
- PRESSURE RANGE – PSI (BAR): 0-20 (0-1.37)
- FLOW SCFM @100 PSIG (Cv): 2 PSI (Cv) 55 (.34)
- AMBIENT TEMPERATURE: 32°-125°F (0°-52°C)
- RESPONSE TIME: 20 / 8
- ELECTRICAL ENTRY: 18 AWG (24”)
- VOLTAGE: 24VDC
- POWER CONSUMPTION (W): 5
- WEIGHT – OZ (GRAMS): 0.2 (5.7)
3-Port Cartridge Solenoid Valve
Designed for tight spacing and porting flexibility. Ideal for multiple valve custom manifolds.
- Pipe as a 2- or 3-port valve, NC or NO
- Optimized flow path for low pressure media
- Can be controlled with peak and hold circuit for reduced power consumption
- 12VDC Plug-In Electrical Entry
- Expect 20 million cycles.
- TYPE OF OPERATION: Direct Solenoid
- FUNCTION: 2- or 3-Way, NO or NC
- MEDIA: Air, Oxygen, Inert Gas
- PIPING TYPE: Cartridge
- NUMBER OF PORTS: 2 or 3
- WETTED PARTS: 303 SS, Nickel Plated, Brass, FKM
- PRESSURE RANGE – PSI (BAR): 0-30 (2)
- AIR FLOW @ 15 PSI: 57 LPM
- FLUID TEMPERATURE: 32°-125°F (0°-52°C)
- AMBIENT TEMPERATURE: 32°-125°F (0°-52°C)
- RESPONSE TIME: 10 ms
- ELECTRICAL ENTRY: Plug In (to Pins)
- VOLTAGE: 12VDC
- POWER CONSUMPTION (W): 4
- DUTY CYCLE: Continuous
- WEIGHT – OZ (GRAMS): 1.4 (40)

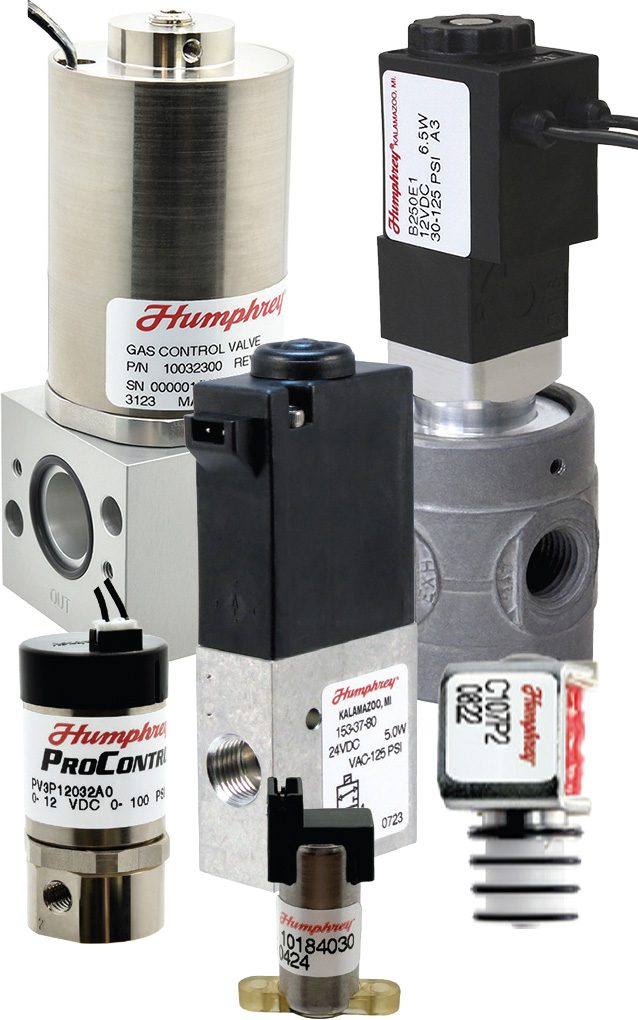

Valves Prepared for Oxygen Service
Select Humphrey standard catalog valves can be assembled and processed for use in certain medical applications, such as air, oxygen or other gas delivery.
- Valves are assembled and tested in a controlled environment by trained and qualified personnel.
- All components will receive the appropriate qualified cleaning process using only oxygen compatible solution and dried before use.
- All components will be used immediately or stored in an appropriately controlled environment.
- Assembly equipment, tooling and test fixtures are cleaned and inspected prior to every production run.
- During assembly and test all components shall be handled only with approved powder free neoprene gloves.
- All finished assemblies shall be tested using clean dry compressed air filtered with particulate and mist filters.
- All finished assemblies will be packaged in a sealed bag before leaving the controlled work area.

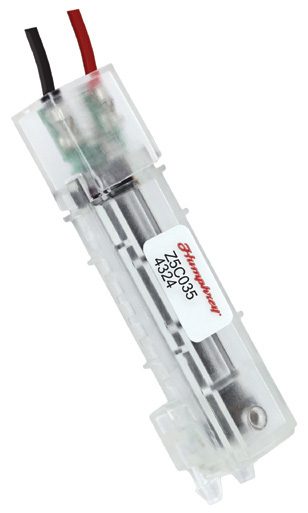

Piezo Operated Pneumatic Valve
Versatile; may function as a proportional or traditional on/off valve.
- Ultra low power consumption
- Light weight; just 7 grams
- Precise; extremely repeatable
- No heat rise
- Quiet operation
- Long service life
- Compact, slim design
- Suitable for medical and analytical fields, semiconductor manufacturing and portable, battery-operated applications
- TYPE OF OPERATION: Direct Piezo
- FUNCTION: 2-Way, NC, Proportional
- MEDIA: Clean Dry Air (CDA)
- PIPING TYPE: Inline, Barb (1/8” ID tubing)
- NUMBER OF PORTS: 2
- WETTED MATERIALS: EPDM
- PRESSURE RANGE – PSI (BAR): 25”Hg – 30 (2.07)
- HYSTERESIS: <10%
- TYP MAXIMUM FLOW @ 30 PSI (BAR): 13 SLPM (2.07)
- AMBIENT TEMPERATURE: 32°-125°F (0°-52°C)
- ELECTRICAL ENTRY: 22 AWG (2)
- OPERATING VOLTAGE RANGE: 0-250 VDC
- MAX POWER CONSUMPTION (W): > 0.01
- WEIGHT – OZ (GRAMS): 0.24 (6.8)
- COMPLIANCE: RoHS
Real World Example of Custom Build

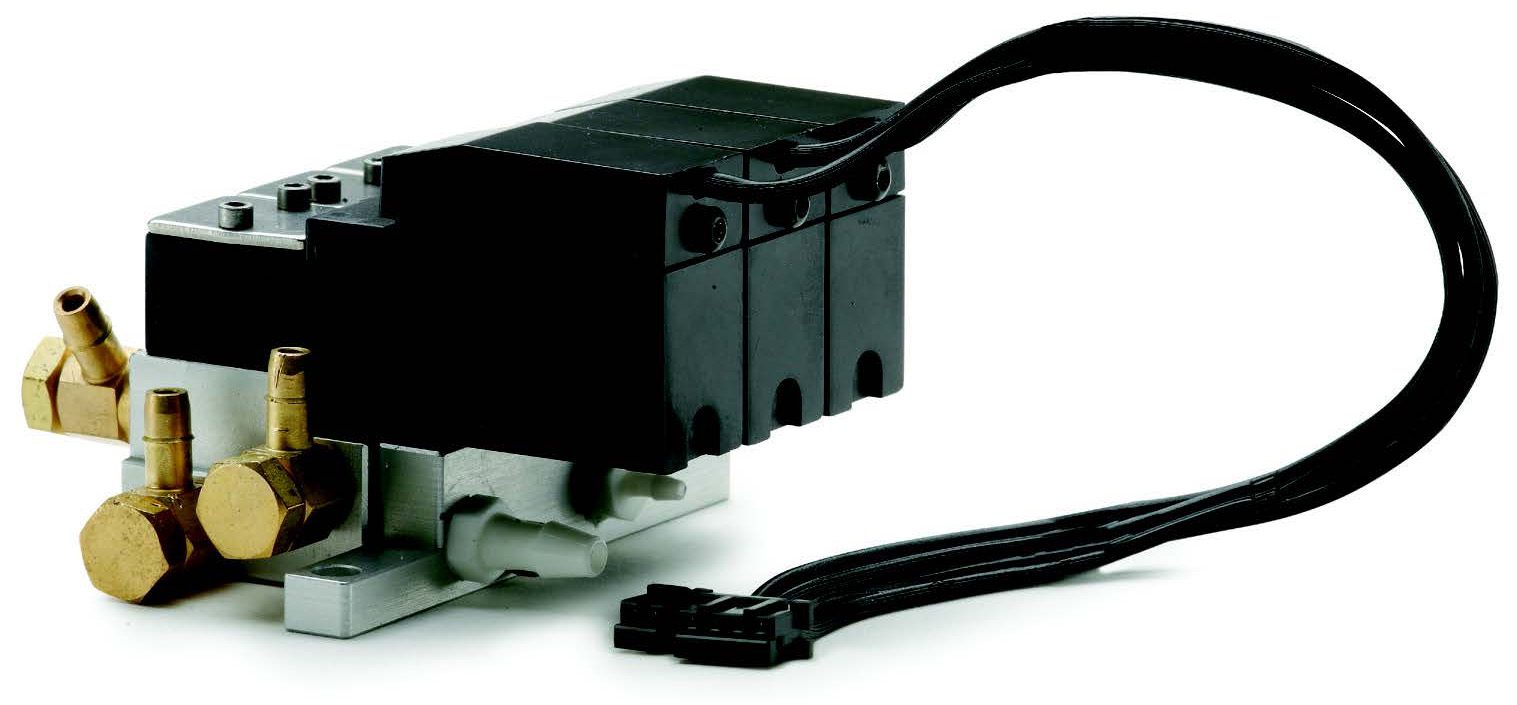

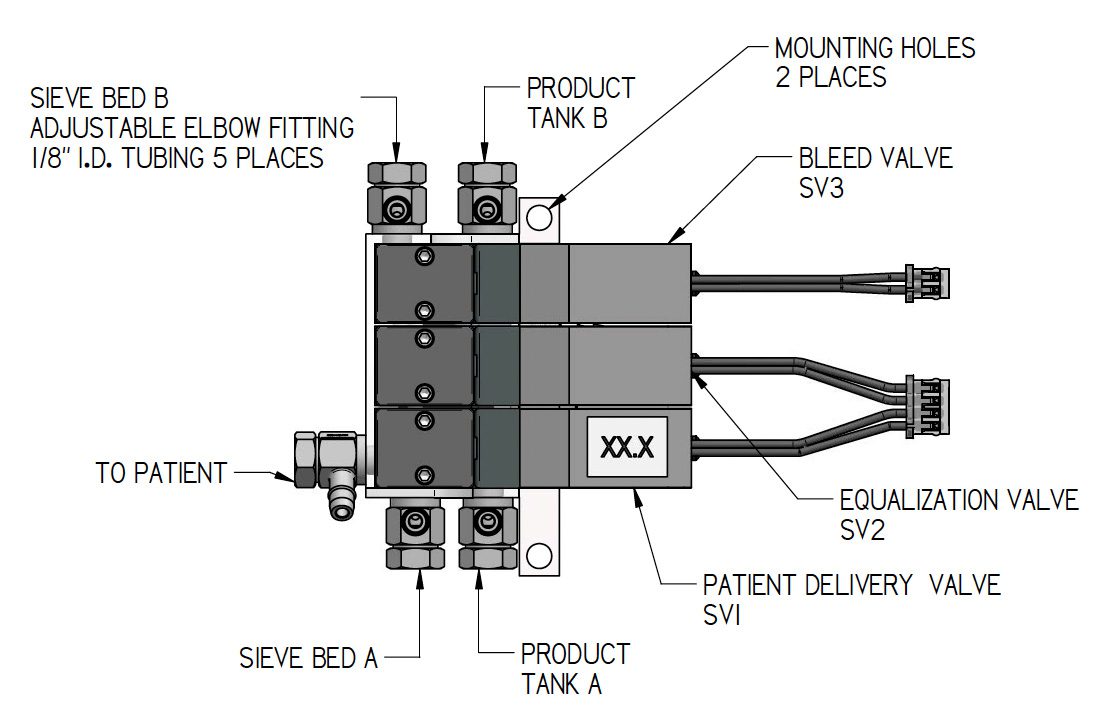

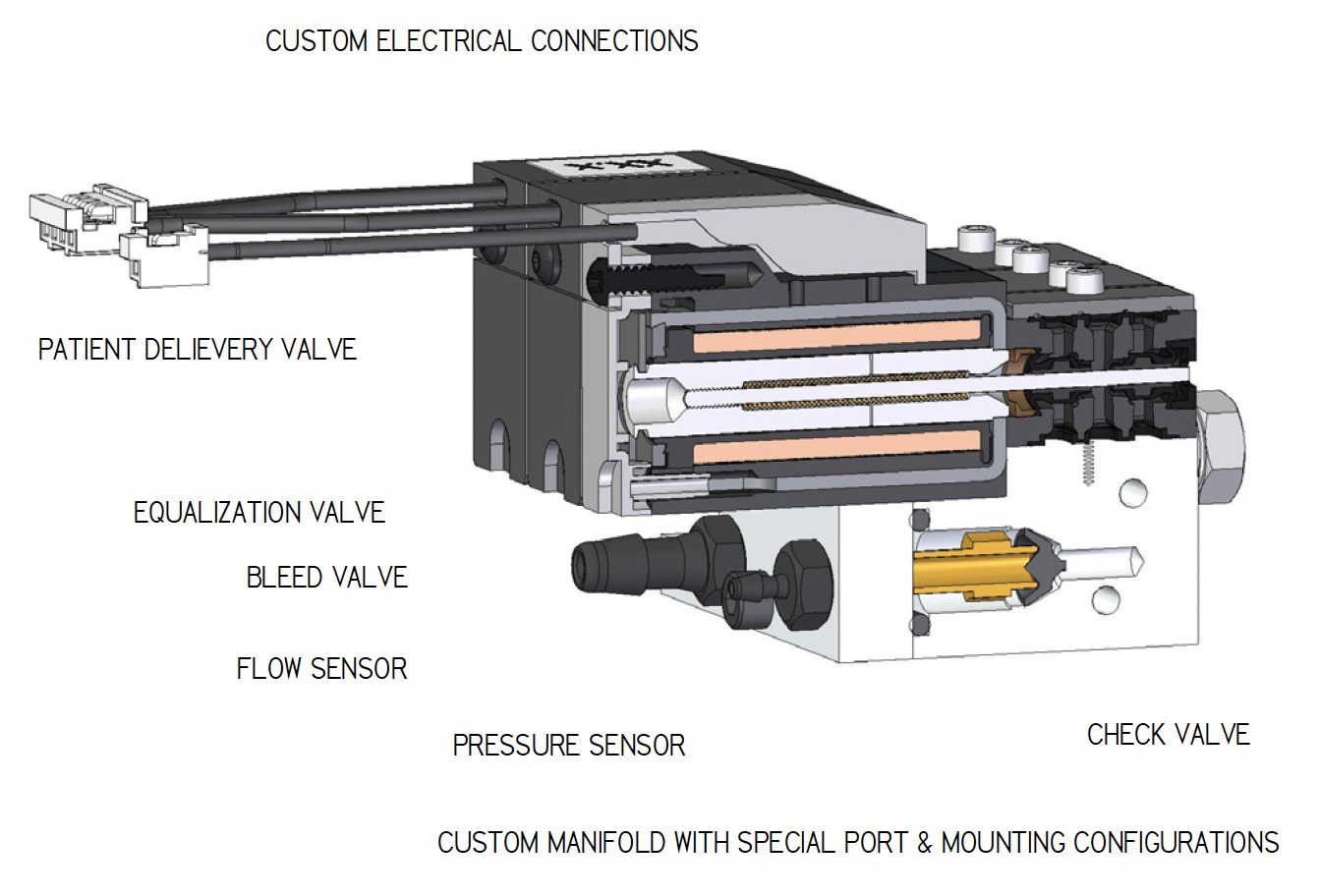

Portable Oxygen Concentrator Manifold
Customer requires custom designed manifold to meet stringent specifications that are not met by off-the-shelf products, for use in a portable oxygen concentrator.
The request is for a three-valve manifold assembly with custom mounting locations. Each valve provides a different function. One controls oxygen delivery, the other two (pressure equalization and bleed valve) control production of oxygen in the sieve bed, where nitrogen atoms are removed from atmospheric air.
Due to the precise nature of the end product, target flow rates are a critical requirement and valves must meet a four million life cycle test.
Since this is a portable product, additional requirements include: very tight size and weight limits and low current consumption to meet battery life expectations.
Customer is delivered a custom manifold, with three HK5 diaphragm/poppet solenoids (Two modified for 0.8 Watts current consumption), modified Humphrey Quick Exhaust valves with unique shuttle design used as check valves, special low profile fittings used to reduce overall size.
Additionally, these valve assemblies are shipped to meet an extremely short production deadline.
