Air Springs and Air Shock Absorbers

<< Back to Enidine page

ITT Enidine Air Springs and Air Shock AbsorbersEnidine Air Springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs incorporating fabric-reinforced Wingprene™ or natural rubber flex-member construction and corrosion-protected end retainers, Enidine Air Springs provide superior quality and performance. As actuators, Enidine Air Springs can provide either linear or angular motion.

These air springs (air shock absorbers) offer a favorable stroke-to-compressed-height ratio when compared to air cylinders, and they can accept a wide variety of actuation media such as air, water, nitrogen or anti-freeze. As isolators, Enidine Air Springs are effective in reducing the harmful effects of vibration. They can simultaneously isolate vibration and regulate load height as well as allow for consistent vibration isolation under varying loads.

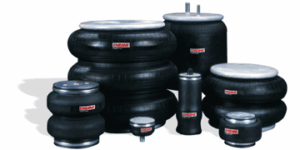

Enidine offers a variety of air spring and air shock absorber types to meet your actuation or isolation needs. The Single, Double and Triple Convolute Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the end retainer style required to suit your specific installation.
In addition to our line of air springs, we offer a large variety of industrial shock absorbers, wire rope isolators and many other energy and vibration absorption solutions.

Enidine’s air spring flex members are available in the following materials:

  • Fabric – reinforced Wingprene – Operating temperatures: – 40°F to 150°F (-40°C to 65°C)
  • Fabric – reinforced natural rubber – Operating temperatures: – 76°F to 150°F (-60°C to 65°C)

Available End Retainer Compositions:

  • Forged steel
  • Cast zinc alloy
  • Cast aluminum
