Oil-less Rocking Piston Compressors (Quiet & Clean Air)
OF series oil-less rocking piston – ideal for laboratory, medical, dental, gas generation, beverage dispensing, and other applications where noise and long life are key requirements. JUN-AIR has introduced a new generation of compressors with few moving parts, which reduces the noise, vibrations as well as wear and tear. The reduced noise and vibration level makes it possible to place the compressor directly at the place of use. The noise level is approx. 65 dB(A).
Product Lineup
106R-8B Compressor
Model: 106R
System Type: Base Unit
HP: .75
Open Flow: 4.5 cfm
Max Pressure: 87 psi
Flow @ Max Pressure: 2.3 cfm
AMPs: 3.5
Voltage: 230
Sound Level: 64 dba
Weight: 46 lbs
Tank Volume: 2.11 gal
106R-25B Compressor
Model: 106R
System Type: Base Unit
HP: .75
Open Flow: 3.3-4.3 cfm
Max Pressure: 116 psi
Flow @ Max Pressure: 1.7 cfm
AMPs: 3.6-6.6
Voltage: 120-230
Sound Level: 69 dba
Weight: 80 lbs
Tank Volume: 6.6 gal
106R-25BQ2 Compressor
Model: 106R
System Type: Base Unit
HP: .75
Open Flow: 4.3 cfm
Max Pressure: 116 psi
Flow @ Max Pressure: 1.7 cfm
AMPs: 3.7
Voltage: 230
Sound Level: 66 dba
Weight: 106 lbs
Tank Volume: 6.6 gal
106R-25HBSS Compressor
Model: 106R
System Type: Base Unit
HP: .75
Open Flow: 4.3 cfm
Max Pressure: 87 psi
Flow @ Max Pressure: 2.2 cfm
AMPs: 3.6
Voltage: 230
Sound Level: 64 dba
Weight: 52 lbs
Tank Volume: 6.6 gal

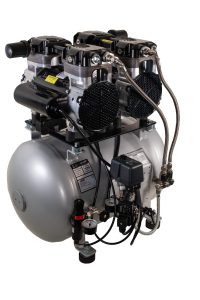

2x106R-40B Compressor
Model: 106R
System Type: Base Unit
HP: 1.5
Open Flow: 6.5-7 cfm
Max Pressure: 116 psi
Flow @ Max Pressure: 3.2 cfm
AMPs: 7.1-14.8
Voltage: 120-230
Sound Level: 71 dba
Weight: 115 lbs
Tank Volume: 10.57 gal
120R-40B Compressor
Model: 120R
System Type: Base Unit
HP: 2
Open Flow: 10 cfm
Max Pressure: 116 psi
Flow @ Max Pressure: 5.9 cfm
AMPs: 10
Voltage: 230
Sound Level: 79 dba
Weight: 120 lbs
Tank Volume: 10.57 gal
120R-40BQ3 Compressor
Model: 120R
System Type: Base Unit
HP: 2
Open Flow: 8 cfm
Max Pressure: 116 psi
Flow @ Max Pressure: 7 cfm
AMPs: 10
Voltage: 230
Sound Level: 79 dba
Weight: 114 lbs
Tank Volume: 10.57 gal
2x120R-90BQ6 Compressor
Model: 120R
System Type: Base Unit
HP: 4
Open Flow: 12 cfm
Max Pressure: 116 psi
Flow @ Max Pressure: 7 cfm
AMPs: 20
Voltage: 230
Sound Level: 80 dba
Weight: 270 lbs
Tank Volume: 23.78 gal
86R-4B Compressor
Model: 86R
System Type: Base Unit
HP: .25
Open Flow: 1.4 cfm
Max Pressure: 120 psi
Flow @ Max Pressure: .53 cfm
AMPs: 1.1-2.1
Voltage: 120-230
Sound Level: 58dba
Weight: 34.4-40 lbs
Tank Volume: 1.06 gal
87R-4B Compressor
Model: 87R
System Type: Base Unit
HP: .5
Open Flow: 3.2 cfm
Max Pressure: 120 psi
Flow @ Max Pressure: 1.2 cfm
AMPs: 2.8-5.7
Voltage: 120-230
Sound Level: 63 dba
Weight: 40 lbs
Tank Volume: 1.06 gal
87R-10BA Compressor
Model: 87R
System Type: Base Unit
HP: .5
Open Flow: 2.9 cfm
Max Pressure: 116 psi
Flow @ Max Pressure: 1 cfm
AMPs: 5.7
Voltage: 120
Sound Level: 65 dba
Weight: 51 lbs
Tank Volume: 2.64 gal
87R-15B Compressor
Model: 87R
System Type: Base Unit
HP: .5
Open Flow: 3.2 cfm
Max Pressure: 120 psi
Flow @ Max Pressure: 1.2 cfm
AMPs: 2.8-5.7
Voltage: 120-230
Sound Level: 63 dba
Weight: 61 lbs
Tank Volume: 3.96 gal
87R-25B Compressor
Model: 87R
System Type: Base Unit
HP: .5
Open Flow: 3.2 cfm
Max Pressure: 120 psi
Flow @ Max Pressure: 1.2 cfm
AMPs: 2.8-5.7
Voltage: 120-230
Sound Level: 63 dba
Weight: 70 lbs
Tank Volume: 6.6 gal
2x87R-25B Compressor
Model: 87R
System Type: Base Unit
HP: .5
Open Flow: 3.8 cfm
Max Pressure: 120 psi
Flow @ Max Pressure: 1 cfm
AMPs: 5.7
Voltage: 230
Sound Level: 60 dba
Weight: 19.1 lbs
Tank Volume: 6.6 gal
2x87R-40BPS Compressor
Model: 87R
System Type: Base Unit
HP: .5
Open Flow: 5.9 cfm
Max Pressure: 120 psi
Flow @ Max Pressure: 2.1-2.5 cfm
AMPs: 6
Voltage: 120-230
Sound Level: 72 dba
Weight: 102 lbs
Tank Volume: 10.57 gal
86R-PS Compressor
System Type: Base Unit
Model: 86R-PS
Motor: 0.25 HP
Noise Level: <53 dB(A)
Weight: 14.9 lbs
86R-VS Compressor
System Type: Base Unit
Model: 86R-VS
Motor: 0.25 HP
Noise Level: <50 dB(A)
Weight: 14.9 lbs
87R-PS Compressor
System Type: Base Unit
Model: 87R-PS
Motor: 0.5 HP
Noise Level: <60 dB(A)
Weight: 19.1 lbs
OF301-4B Compressor
Model: OF302
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Flow @ 60 Hz: 2.4 cfm ( 67.96 LPM )
Flow @ Max Pressure – 60 Hz: 0.81 cfm ( 22.94 LPM )
Max Pressure: 120 psig ( 8.27 bar )
Power: 0.33 hp ( 0.25 kW )
Weight: 42 lbs ( 19.05 kg )
Duty Cycle: 100
Tank Size: 1.1 gal ( 4.16 L )
OF302-4B Compressor
Model: OF302
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 1.1 gal (4 litres)
Noise Level (50 Hz): 65 dB(A)
Noise Level (60 Hz): 66 dB(A)
OF302V-4B Compressor
Model: OF302V
System Type: Base Unit
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
Dead End: 27.05 in-Hg (100 mbar (abs))
Tank Size: 1.1 gal (4 litres)
Noise Level (50 Hz): 60 dB(A)
Noise Level (60 Hz): 61 dB(A)
OF302-15B Compressor
Model: OF302
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 4 gal (15 litres)
Noise Level (50 Hz): 65 dB(A)
Noise Level (60 Hz): 66 dB(A)
OF302-25B Compressor
Model: OF302
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 65 dB(A)
Noise Level (60 Hz): 66 dB(A)
OF302-25BD2 Compressor
Model: OF302
System Type: Base Unit
Market: Dental / Lab
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 65 dB(A)
Noise Level (60 Hz): 66 dB(A)
Pressure Dew Point: -40°C
OF302-25BQ2 Compressor
Model: OF302
System Type: Base Unit
Market: Dental / Lab
Flow @ 60 Hz: 4.87 cfm ( 137.9 LPM )
Flow @ Max Pressure – 60 Hz: 1.55 cfm ( 43.89 LPM )
Max Pressure: 120 psig ( 8.27 bar )
Power: 0.6 hp ( 0.45 kW )
Weight: 73 lbs ( 33.11 kg )
Duty Cycle: 100
Tank Size: 6.6 gal ( 24.98 L )
Dew Point: -40
2xOF302-40B Compressor
Model: 2xOF302
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 7.63 cfm (216 l/min)
Displacement (60 Hz): 9.75 cfm (276 l/min)
FAD @ Max Pressure (50 Hz): 2.68 cfm (76 l/min)
FAD @ Max Pressure (60 Hz): 3.11 cfm (88 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 68 dB(A)
Noise Level (60 Hz): 69 dB(A)
2xOF302-40BQ2 Compressor
Model: 2xOF302
System Type: Base Unit
Market: Dental / Lab
Flow @ Max Pressure – 50 Hz: 9.18 cfm ( 259.95 LPM )
Max Pressure: 120 psig ( 8.27 bar )
Power: 1.2 hp ( 0.89 kW )
Weight: 130 lbs ( 58.97 kg )
Duty Cycle: 100
Tank Size: 10.6 gal ( 40.13 L )
Dew Point: -40
2xOF302-40BD2 Compressor
Model: 2xOF302
System Type: Base Unit
Market: Dental / Lab
Displacement (50 Hz): 7.63 cfm (216 l/min)
Displacement (60 Hz): 9.75 cfm (276 l/min)
FAD @ Max Pressure (50 Hz): 2.68 cfm (76 l/min)
FAD @ Max Pressure (60 Hz): 3.11 cfm (88 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 68 dB(A)
Noise Level (60 Hz): 69 dB(A)
Pressure Dew Point: -40°C
OF1201-25HB Compressor
Model: OF1201
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 5.16 cfm (146 l/min)
Displacement (60 Hz): 6.00 cfm (170 l/min)
FAD @ Max Pressure (50 Hz): 2.30 cfm (65 l/min)
FAD @ Max Pressure (60 Hz): 2.65 cfm (75 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 77 dB(A)
Noise Level (60 Hz): 80 dB(A)
OF1201-25HBD2 Compressor
Model: OF1201
System Type: Base Unit
Market: Dental / Lab
Displacement (50 Hz): 5.16 cfm (146 l/min)
Displacement (60 Hz): 6.00 cfm (170 l/min)
FAD @ Max Pressure (50 Hz): 2.30 cfm (65 l/min)
FAD @ Max Pressure (60 Hz): 2.65 cfm (75 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 77 dB(A)
Noise Level (60 Hz): 80 dB(A)
Pressure Dew Point: -40°C
OF1201-40B Compressor
Model: OF1201
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 5.16 cfm (146 l/min)
Displacement (60 Hz): 6.00 cfm (170 l/min)
FAD @ Max Pressure (50 Hz): 2.30 cfm (65 l/min)
FAD @ Max Pressure (60 Hz): 2.65 cfm (75 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 77 dB(A)
Noise Level (60 Hz): 80 dB(A)
OF1201-40BD2 Compressor
Model: OF1201
System Type: Base Unit
Market: Dental / Lab
Displacement (50 Hz): 5.16 cfm (146 l/min)
Displacement (60 Hz): 6.00 cfm (170 l/min)
FAD @ Max Pressure (50 Hz): 2.30 cfm (65 l/min)
FAD @ Max Pressure (60 Hz): 2.65 cfm (75 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 77 dB(A)
Noise Level (60 Hz): 80 dB(A)
Pressure Dew Point: -40°C
OF1202-40B Compressor
Model: OF1202
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 10.24 cfm (290 l/min)
Displacement (60 Hz): 11.58 cfm (328 l/min)
FAD @ Max Pressure (50 Hz): 4.59 cfm (130 l/min)
FAD @ Max Pressure (60 Hz): 5.16 cfm (146 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 76 dB(A)
Noise Level (60 Hz): 79 dB(A)
OF1202-40BD3 Compressor
Model: OF1202
System Type: Base Unit
Market: Dental / Lab
Displacement (50 Hz): 10.24 cfm (290 l/min)
Displacement (60 Hz): 11.58 cfm (328 l/min)
FAD @ Max Pressure (50 Hz): 4.59 cfm (130 l/min)
FAD @ Max Pressure (60 Hz): 5.16 cfm (146 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 76 dB(A)
Noise Level (60 Hz): 79 dB(A)
Pressure Dew Point: -40°C
2xOF1202-90B Compressor
Model: 2xOF1202
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 20.48 cfm (580 l/min)
Displacement (60 Hz): 23.17 cfm (656 l/min)
FAD @ Max Pressure (50 Hz): 9.18 cfm (260 l/min)
FAD @ Max Pressure (60 Hz): 10.31 cfm (292 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 23.7 gal (90 litres)
Noise Level (50 Hz): 79 dB(A)
Noise Level (60 Hz): 78 dB(A)
2xOF1202-90BQ6 Compressor
Model: 2xOF1202
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Flow @ 60 Hz: 9.6 cfm ( 16.31 m3h )
Flow @ Max Pressure – 50 Hz: 4.9 cfm ( 8.33 m3h )
Flow @ Max Pressure – 60 Hz: 5.5 cfm ( 9.34 m3h )
Max Pressure: 120 psi ( 8.27 bar )
Max Sound Level @ 50 Hz: 75 dB(A)
Max Sound Level @ 60 Hz: 77 dB(A)
Weight: 120 lbs ( 54.43 kg )
Duty Cycle: 100%
Tank Size: 40 liter ( 10.57 gal )
2xOF1202-150B Compressor
Model: 2xOF1202
System Type: Base Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 20.48 cfm (580 l/min)
Displacement (60 Hz): 23.17 cfm (656 l/min)
FAD @ Max Pressure (50 Hz): 9.18 cfm (260 l/min)
FAD @ Max Pressure (60 Hz): 10.31 cfm (292 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 39.6 gal (150 litres)
Noise Level (50 Hz): 79 dB(A)
Noise Level (60 Hz): 78 dB(A)
i40-4B Compressor
Model: iSeries
System Type: Base Unit
Market: Industrial
Displacement (50 Hz): 3.17 cfm (90 l/min)
FAD @ Max Pressure (50 Hz): .99 cfm (28 l/min)
Max Pressure: 100 psig (7 bar)
Tank Size: 1.1 gal (4 litres)
Noise Level (50 Hz): 66 dB(A)
i40-25B Compressor
Model: iSeries
System Type: Base Unit
Market: Industrial
Displacement (50 Hz): 3.17 cfm (90 l/min)
FAD @ Max Pressure (50 Hz): .99 cfm (28 l/min)
Max Pressure: 100 psig (7 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 66 dB(A)
i80-25B Compressor
Model: iSeries
System Type: Base Unit
Market: Industrial
Displacement (50 Hz): 6.35 cfm (180 l/min)
FAD @ Max Pressure (50 Hz): 1.97 cfm (56 l/min)
Max Pressure: 100 psig (7 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 68 dB(A)
106R-4M Compressor
Model: 106R
System Type: Cabinet
HP: .75
Open Flow: 4.2cfm
Max Pressure: 116 psi
Flow at Max Pressure: 1.6 cfm
AMPs: 7
Voltage: 120
Sound: 58 dB(A)
Weight: 102 lbs
Tank Volume: 1.06 gal
106R-25M Compressor
Model: 106R
System Type: Cabinet
HP: .75
Open Flow: 4.1-4.2cfm
Max Pressure: 116 psi
Flow at Max Pressure: 1.6-1.7 cfm
AMPs: 3.7-7.7
Voltage: 120-230
Sound: 57-58 dB(A)
Weight: 176 lbs
Tank Volume: 6.06 gal
106R-25MQ2 Compressor
Model: 106R
System Type: Cabinet
HP: .75
Open Flow: 3.7-3.8 cfm
Max Pressure: 116 psi
Flow at Max Pressure: 1.5-1.7 cfm
AMPs: 3.9-7.2
Voltage: 120-230
Sound: 57-60 dB(A)
Weight: 186-188 lbs
Tank Volume: 6.06 gal
2x106R-40M Compressor
Model: 106R
System Type: Cabinet
HP: 1.5
Open Flow: 6.8 cfm
Max Pressure: 116 psi
Flow at Max Pressure: 3.1 cfm
AMPs: 7.3-14.1
Voltage: 120-230
Sound: 57-60 dB(A)
Weight: 234-238 lbs
Tank Volume: 10.57 gal
2x106R-40MQ2 Compressor
Model: 106R
System Type: Cabinet
HP: 1.5
Open Flow: 6.8 cfm
Max Pressure: 116 psi
Flow at Max Pressure: 2.6 cfm
AMPs: 7.4
Voltage: 120
Sound: 59 dB(A)
Weight: 245 lbs
Tank Volume: 10.57 gal
120R-40M Compressor
Model: 120R
System Type: Cabinet
HP: 2
Open Flow: 8.1cfm
Max Pressure: 116 psi
Flow at Max Pressure: 5 cfm
AMPs: 10
Voltage: 230
Sound: 69 dB(A)
Weight: 245 lbs
Tank Volume: 10.57 gal
120R-40MQ3 Compressor
Model: 120R
System Type: Cabinet
HP: 2
Open Flow: 8.2cfm
Max Pressure: 116 psi
Flow at Max Pressure: 5 cfm
AMPs: 10
Voltage: 230
Sound: 69 dB(A)
Weight: 256 lbs
Tank Volume: 10.57 gal
2x120R-40M Compressor
Model: 120R
System Type: Cabinet
HP: 4
Open Flow: 13cfm
Max Pressure: 116 psi
Flow at Max Pressure: 9 cfm
AMPs: 20
Voltage: 230
Sound: 70 dB(A)
Weight: 335 lbs
Tank Volume: 10.57 gal
2x120R-40MQ6 Compressor
Model: 120R
System Type: Cabinet
HP: 4
Open Flow: 12cfm
Max Pressure: 116 psi
Flow at Max Pressure: 5.5 cfm
AMPs: 20
Voltage: 230
Sound: 69 dB(A)
Weight: 373 lbs
Tank Volume: 10.57 gal
87R-4P Compressor
& 87R-4PA Compressor
Model: 87R
System Type: Cabinet Unit
HP: .5
Open Flow: 3.5 cfm
Max Pressure: 120 psi
Flow @ max Pressure: 1 cfm
AMPs: 2.3-5.6
Voltage: 100-230
Sound Level: 50 dB(A)
Weight: 65lbs.
Tank Volume: 1.06 gal.
87R-100S Compressor
Model: 87R
System Type: Cabinet Unit
HP: .5
Open Flow: 3.9 cfm
Max Pressure: 55 psi
Flow @ max Pressure: 2.6 cfm
AMPs: 4.7
Voltage: 120
Sound Level: 63 dB(A)
Weight: 42lbs.
Tank Volume: .5 gal.
OF301-4M Compressor
Model: OF301
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 1.91 cfm (54 l/min)
Displacement (60 Hz): 2.40 cfm (68 l/min)
FAD @ Max Pressure (50 Hz): .71 cfm (20 l/min)
FAD @ Max Pressure (60 Hz): .81 cfm (23 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 1.1 gal (4 litres)
Noise Level (50 Hz): 47 dB(A)
Noise Level (60 Hz): 48 dB(A)
OF301-4MD2 Compressor
Model: OF301
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 1.91 cfm (54 l/min)
Displacement (60 Hz): 2.40 cfm (68 l/min)
FAD @ Max Pressure (50 Hz): .71 cfm (20 l/min)
FAD @ Max Pressure (60 Hz): .81 cfm (23 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 1.1 gal (4 litres)
Noise Level (50 Hz): 47 dB(A)
Noise Level (60 Hz): 48 dB(A)
Pressure Dew Point: -40°C
OF302-4M Compressor
Model: OF302
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 1.1 gal (4 litres)
Noise Level (50 Hz): 47 dB(A)
Noise Level (60 Hz): 48 dB(A)
OF302-4MD2 Compressor
Model: OF302
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 1.1 gal (4 litres)
Noise Level (50 Hz): 47 dB(A)
Noise Level (60 Hz): 48 dB(A)
Pressure Dew Point: -40°C
OF302-4MQ2 Compressor
Model: OF302
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Flow @ 60 Hz: 4.87 cfm ( 137.9 LPM )
Flow @ Max Pressure – 60 Hz: 1.55 cfm ( 43.89 LPM )
Max Pressure: 120 psig ( 8.27 bar )
Power: 0.33 hp ( 0.25 kW )
Weight: 115 lbs ( 52.16 kg )
Duty Cycle: 100
Tank Size: 1.1 gal (4 litres)
Pressure Dew Point: -40°C
OF302-4S Compressor
Model: OF302
System Type: Cabinet Unit
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 1.1 gal (4 litres)
Noise Level (50 Hz): 61 dB(A)
Noise Level (60 Hz): 61 dB(A)
OF302V-4M Compressor
Model: OF302V
System Type: Cabinet Unit
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
Dead End: 27.05 in-Hg (100 mbar (abs))
Tank Size: 1.1 gal (4 litres)
Noise Level (50 Hz): 46 dB(A)
Noise Level (60 Hz): 47 dB(A)
OF302-25M Compressor
Model: OF302
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 47 dB(A)
Noise Level (60 Hz): 48 dB(A)
OF302-25MQ2 Compressor
Model: OF302
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.37 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 47 dB(A)
Noise Level (60 Hz): 48 dB(A)
Pressure Dew Point: -40°C
2xOF302-40M Compressor
Model: 2xOF302
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 7.63 cfm (216 l/min)
Displacement (60 Hz): 9.75 cfm (276 l/min)
FAD @ Max Pressure (50 Hz): 2.68 cfm (76 l/min)
FAD @ Max Pressure (60 Hz): 3.11 cfm (88 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 50 dB(A)
Noise Level (60 Hz): 50 dB(A)
2xOF302-40MQ2 Compressor
Model: 2xOF302
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 7.63 cfm (216 l/min)
Displacement (60 Hz): 9.75 cfm (276 l/min)
FAD @ Max Pressure (50 Hz): 2.68 cfm (76 l/min)
FAD @ Max Pressure (60 Hz): 3.11 cfm (88 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 50 dB(A)
Noise Level (60 Hz): 50 dB(A)
Pressure Dew Point: -40°C
OF1201-25M Compressor
Model: OF1201
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 5.16 cfm (146 l/min)
Displacement (60 Hz): 6.00 cfm (170 l/min)
FAD @ Max Pressure (50 Hz): 2.30 cfm (65 l/min)
FAD @ Max Pressure (60 Hz): 2.65 cfm (75 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 58 dB(A)
Noise Level (60 Hz): 61 dB(A)
OF1201-25MD2 Compressor
Model: OF1201
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 5.16 cfm (146 l/min)
Displacement (60 Hz): 6.00 cfm (170 l/min)
FAD @ Max Pressure (50 Hz): 2.30 cfm (65 l/min)
FAD @ Max Pressure (60 Hz): 2.65 cfm (75 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 6.6 gal (25 litres)
Noise Level (50 Hz): 58 dB(A)
Noise Level (60 Hz): 61 dB(A)
Pressure Dew Point: -40°C
OF1202-40MQ3 Compressor
Model: OF1202
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 10.24 cfm (290 l/min)
Displacement (60 Hz): 11.58 cfm (328 l/min)
FAD @ Max Pressure (50 Hz): 4.59 cfm (130 l/min)
FAD @ Max Pressure (60 Hz): 5.16 cfm (146 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 60 dB(A)
Noise Level (60 Hz): 63 dB(A)
Pressure Dew Point: -40°C
OF1201-25MQ2 Compressor
Model: OF1201
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Flow @ 60 Hz: 6 cfm ( 169.9 LPM )
Flow @ Max Pressure – 50 Hz: 2.3 cfm ( 65.13 LPM )
Flow @ Max Pressure – 60 Hz: 2.65 cfm ( 75.04 LPM )
Max Pressure: 120 psig ( 8.27 bar )
Power: 1.22 hp ( 0.91 kW )
Weight: 216 lbs ( 97.98 kg )
Duty Cycle: 100
Tank Size: 6.6 gal ( 24.98 L )
Dew Point: -40
OF1202-40M Compressor
Model: OF1202
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 10.24 cfm (290 l/min)
Displacement (60 Hz): 11.58 cfm (328 l/min)
FAD @ Max Pressure (50 Hz): 4.59 cfm (130 l/min)
FAD @ Max Pressure (60 Hz): 5.16 cfm (146 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 60 dB(A)
Noise Level (60 Hz): 63 dB(A)
OF1202-40MD3 Compressor
Model: OF1202
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Flow @ 60 Hz: 11.58 cfm ( 327.91 LPM )
Flow @ Max Pressure – 50 Hz: 9.18 cfm ( 259.95 LPM )
Flow @ Max Pressure – 60 Hz: 10.31 cfm ( 291.95 LPM )
Max Pressure: 120 psig ( 8.27 bar )
Power: 2 hp ( 1.49 kW )
Weight: 267 lbs ( 121.11 kg )
Duty Cycle: 100
Tank Size: 10.6 gal ( 40.13 L )
Dew Point: -40
2xOF1202-40M Compressor
Model: 2xOF1202
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 20.48 cfm (580 l/min)
Displacement (60 Hz): 23.24 cfm (658 l/min)
FAD @ Max Pressure (50 Hz): 9.20 cfm (260 l/min)
FAD @ Max Pressure (60 Hz): 10.30 cfm (292 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 63 dB(A)
Noise Level (60 Hz): 66 dB(A)
2xOF1202-40MQ6 Compressor
Model: 2xOF1202
System Type: Cabinet Unit
Market: Medical / Lab / Dental
Displacement (50 Hz): 20.48 cfm (580 l/min)
Displacement (60 Hz): 23.24 cfm (658 l/min)
FAD @ Max Pressure (50 Hz): 9.20 cfm (260 l/min)
FAD @ Max Pressure (60 Hz): 10.30 cfm (292 l/min)
Max Pressure: 120 psig (8 bar)
Tank Size: 10.6 gal (40 litres)
Noise Level (50 Hz): 63 dB(A)
Noise Level (60 Hz): 66 dB(A)
Pressure Dew Point: -40°C
OF301V Compressor Motor
Model: OF301V
System Type: Motor
Displacement (50 Hz): 1.91 cfm (54 l/min)
Displacement (60 Hz): 2.40 cfm (68 l/min)
Dead End: 27.05 in-Hg (100 mbar (abs))
Noise Level (50 Hz): 60 dB(A)
Noise Level (60 Hz): 61 dB(A)
OF302 Compressor Motor
System Type: Motor
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
FAD @ Max Pressure (50 Hz): 1.34 cfm (38 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 120 psig (8 bar)
Noise Level (50 Hz): 65 dB(A)
Noise Level (60 Hz): 66 dB(A)
OF302V Compressor Motor
Model: OF302V
System Type: Motor
Displacement (50 Hz): 3.81 cfm (108 l/min)
Displacement (60 Hz): 4.87 cfm (138 l/min)
Dead End: 27.05 in-Hg (100 mbar (abs))
Noise Level (50 Hz): 60 dB(A)
Noise Level (60 Hz): 61 dB(A)
OF312 Compressor Motor
Model: OF312
System Type: Motor
Market: Beverage / Lab / Gas Generation
Displacement (50 Hz): 4.73 cfm (134 l/min)
Displacement (60 Hz): 5.93 cfm (168 l/min)
FAD @ Max Pressure (50 Hz): 2.05 cfm (58 l/min)
FAD @ Max Pressure (60 Hz): 2.26 cfm (64 l/min)
Max Pressure: 90 psig (6 bar)
Noise Level (50 Hz): 72 dB(A)
Noise Level (60 Hz): 72 dB(A)
OF322 Compressor Motor
Model: OF322
System Type: Motor
Market: Beverage / Lab / Gas Generation
Displacement (50 Hz): 2.37 cfm (67 l/min)
Displacement (60 Hz): 2.97 cfm (84 l/min)
FAD @ Max Pressure (50 Hz): 1.41 cfm (40 l/min)
FAD @ Max Pressure (60 Hz): 1.55 cfm (44 l/min)
Max Pressure: 175 psig (12 bar)
Noise Level (50 Hz): 72 dB(A)
Noise Level (60 Hz): 72 dB(A)
OF1201 Compressor Motor
Model: OF1201
System Type: Motor
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 5.16 cfm (146 l/min)
Displacement (60 Hz): 6.00 cfm (170 l/min)
FAD @ Max Pressure (50 Hz): 2.30 cfm (65 l/min)
FAD @ Max Pressure (60 Hz): 2.65 cfm (75 l/min)
Max Pressure: 120 psig (8 bar)
Noise Level (50 Hz): 77 dB(A)
Noise Level (60 Hz): 80 dB(A)
OF1202 Compressor Motor
Model: OF1202
System Type: Motor
Market: Medical / Lab / Dental / Industrial
Displacement (50 Hz): 10.24 cfm (290 l/min)
Displacement (60 Hz): 11.58 cfm (328 l/min)
FAD @ Max Pressure (50 Hz): 4.59 cfm (130 l/min)
FAD @ Max Pressure (60 Hz): 5.16 cfm (146 l/min)
Max Pressure: 120 psig (8 bar)
Noise Level (50 Hz): 76 dB(A)
Noise Level (60 Hz): 79 dB(A)
For more information about these products…
Download a Catalog
