Remove Water. Reduce Maintenance. Improve Manufacturing.
Koganei iB Cyclone is a filter-less water separator designed to improve the air supply in manufacturing by removing the water in pneumatic air lines from compressor and/or humidity (condensation) caused by temperature fluctuations.
- Half the size and over 99% drain separation ratio compared to other devices.

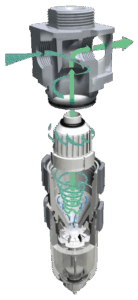

- High-speed cyclone drain separator uses the power of centrifugal separation.
- Maintenance free because no element is used. Select NO type or NC type auto drain.
- Excellent water separation performance in a wide range of flow rates.
- Specifications for ozone resistance, NCU specifications (copper free) are standard.
Model
Water separation rate
Port size
IBCY30(-F11)
99% or more
Rc1/8, Rc1/4,
NPT1/8, NPT1/4
NPT1/8, NPT1/4
IBCY40(-F11)
Rc1/4, Rc3/8,
NPT1/4, NPT3/8
NPT1/4, NPT3/8
IBCY50(-F11)
Rc3/8, Rc1/2,
NPT3/8, NPT1/2
NPT3/8, NPT1/2

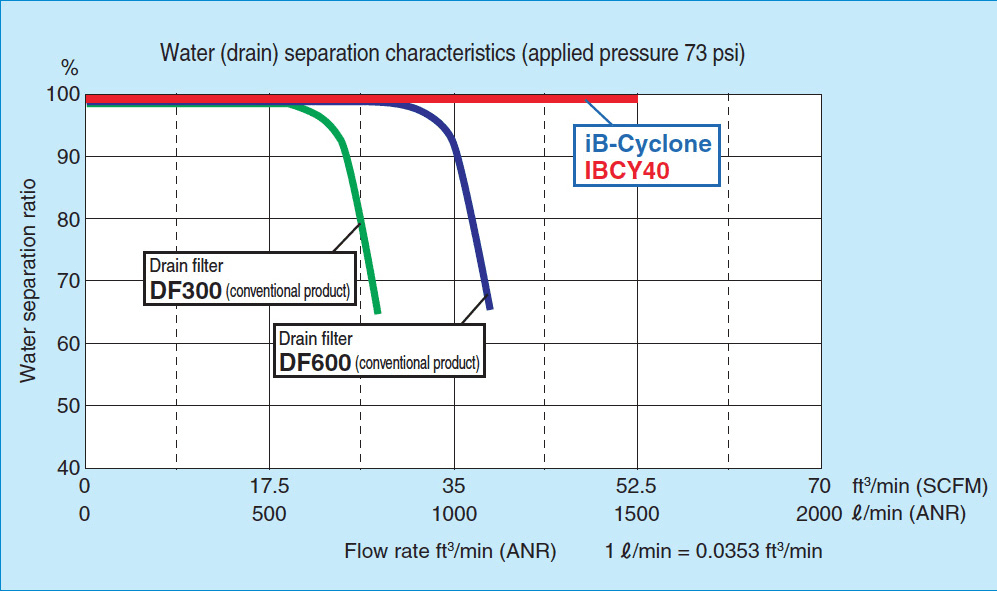

The iB-Cyclone uses a high-speed cyclonic system to maintain water(drain) separation rates even if the flow is increased. Separation performance is always steady, from small to large flow rates.
