Vacuum, Temperature and Pressure Switches
Nason switches are built for reliable positioning. Made in the USA, these compact and customizable switches feature a snap-action device, which makes their design more precise and repeatable. Their elastomer diaphragms or pistons move a precise .040 of an inch to ensure accurate, instantaneous contact under all operating conditions.
These vacuum, temperature and pressure switches are UL, CSA, and military approved with an operational life of over one million cycles and a large variety of electrical connections.
Product Lineup
Pressure Switches
For Pneumatic and Hydraulic Applications
All of Nason’s electronic pressure switches feature a “no-creep” design with a snap-action electrical device activated by an elastomer diaphragm or piston. These pressure switches keep their contacts either open or closed until a precise set point is reached. At that point, they snap over center to a new state and remain there until pressure adjusts, triggering the pneumatic switches to snap back to their original state.
We offer both factory preset and adjustable pressure switches from Nason, with an operational life of over one million cycles under most operating conditions. Our UL-, CSA-, and military-approved switches offer a wide variety of electrical connection options and are fully customizable.

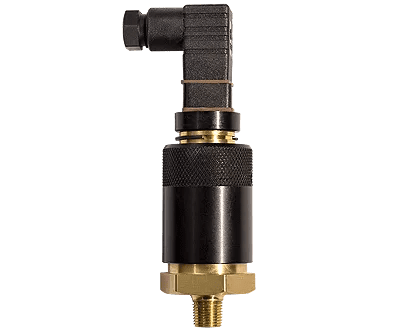

CD Adjustable High-Pressure Switch
The easily customizable CD adjustable high-pressure switch allows eight adjustment ranges 10–7500 PSI, and can be configured to be even more environmentally safe. A long-life elastomer diaphragm on this snap-action pressure switch prevents creeping, and you can even dial in settings for consistent, precise adjustability. The CD piston pressure switch comes in a variety of base material options, including brass, nickel-plated, 303 SS and 316 SS.
- Long-life elastomer diaphragm (Ranges 1-3)
- Proven sealed piston sensor (Ranges 4-8)
- High-quality snap action switch
- Field-adjustable
- Easily customized
- Quick delivery
- NEMA 4, 13

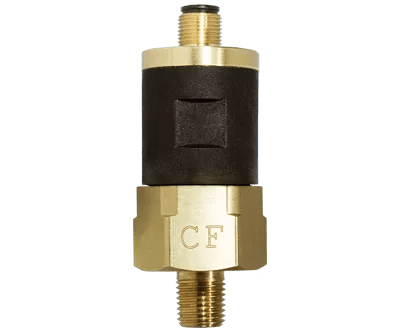

CF High-Pressure Switch
The factory-set CF high-pressure switch features set point ranges 10–7500 PSI, with hardened steel pistons designed to provide longer life cycles in the most extreme applications and conditions. A durable elastomer diaphragm connected to a piston sensor on this high-pressure switch allows for maximum precision without creeping. You can order the CF high-pressure switch in a number of base materials, including brass, nickel-plated, 303 SS and 316 SS.
- Long-life elastomer diaphragms
- Proven sealed piston sensor (on high-pressure models)
- 100% tested for accuracy
- Models available for pneumatic and hydraulic applications
- Customizable
- NEMA 4, 13

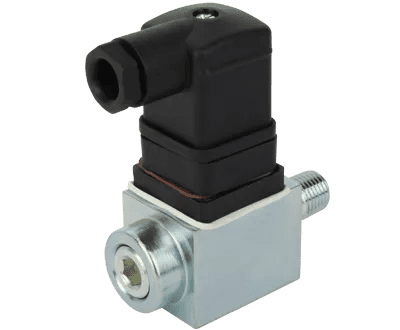

WX Adjustable Hydraulic High-Pressure Switch
The WX adjustable hydraulic high-pressure switch offers a set point range 50–5000 PSI with a tolerance of ±5 PSI or 5%. This compact pressure switch packs full-sized performance into a small space, proving itself in the most demanding mobile hydraulic applications. Available in a wide range of configurations, this piston pressure switch comes standard in zinc-plated steel with optional brass or nickel plating, 303 SS, or 316 SS.
- Long-life elastomer diaphragm
- High-quality snap action switch
- Field-adjustable
- Compact design
- Available in a wide range of configurations
- Proven in the most demanding mobile hydraulic applications
- NEMA 4, 13
XM High-Pressure Switch
The XM high-pressure switch features a fixed set point and maximum operating pressure of 5000 PSI with set points 40–4000 PSI. The factory-set fixed-pressure switch is easily customizable for your specific application and is available in a variety of base material options, including zinc-plated steel, brass, nickel-plated, 303 SS and 316 SS.
- Long-life elastomer diaphragm
- High-quality snap action switch
- Factory-set
- Compact design
- Available in a wide variety of configurations
- Proven in the most demanding mobile hydraulic applications
- NEMA 4, 13
CJ Adjustable Low-Pressure Switch
Available in a variety of base material options, including brass, aluminum, nickel-plated, delrin, 303 SS and 316 SS, the compact, field-adjustable CJ adjustable low-pressure switch was designed to meet NEMA 4 & 13 standards. The long-life elastomer diaphragm on this snap-action pressure switch prevents creeping, while the CJ’s five different ranges 3–1500 PSI allow for very precise refinements.
- Long-life elastomer diaphragm
- High-quality snap action switch
- Field-adjustable
- Compact design
- Easily customized
- Quick delivery
- NEMA 4, 13
LM Fixed Low-Pressure Switch
The factory-set, tamper-resistant LM fixed low-pressure switch meets NEMA 4 & 13 standards and is capable of withstanding a maximum operating pressure of up to 2000 PSI. This low-cost fixed pressure switch features set points 10–300 PSI and is available in a variety of base material options, including brass, nickel-plated, steel, 303 SS and 316 SS.
- Long-life elastomer diaphragm
- High-quality snap action switch
- Factory-set
- Available in a wide range of configurations
- Economical
- Models available for pneumatic and hydraulic applications
- NEMA 4, 13
MM Fixed Low-Pressure Switch
Factory-set and capable of withstanding a maximum operating pressure of up to 600 PSI, the tamper-resistant MM fixed low-pressure switch meets NEMA 4 & 13 standards. With set points 2–120 PSI, this low-cost fixed pressure switch has several options for base materials, including brass, aluminum, nickel-plated, steel, 303 SS and 316 SS.
- Long-life elastomer diaphragm
- High-quality snap action switch
- Factory-set
- Available in a wide range of configurations
- Economical
- Models available for pneumatic and hydraulic applications
- NEMA 4, 13
SM Fixed Low-Pressure Switch
Designed to meet NEMA 4 & 13 standards, the SM fixed low-pressure switch is factory-set and capable of withstanding a maximum operating pressure of up to 250 PSI. This low-cost fixed pressure switch features set points 2–120 PSI and is available in a variety of base material options, including brass, aluminum, nickel-plated, steel, 303 SS and 316 SS.
- Long-life elastomer diaphragm
- High-quality snap action switch
- Factory-set Available in a wide range of configurations
- Economical
- Models available for pneumatic and hydraulic applications
- NEMA 4, 13

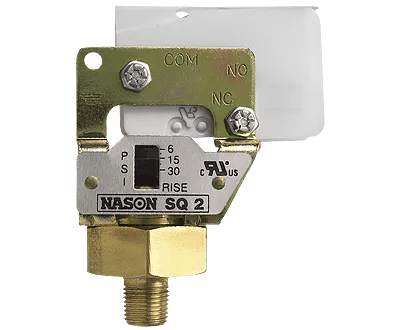

SQ Adjustable Low-Pressure Switch
Perfect for first-round designs, the field-adjustable SQ low-pressure switch meets NEMA 4 & 13 standards, combining fingertip adjustability with visual calibration with a maximum operating pressure of 250 PSI. With three adjustment ranges 2–120 PSI, a brass base material, and a long-life elastomer diaphragm to prevent creeping, this snap-action pressure switch is ideal for testing and prototyping. Once the exact parameters for a particular application are determined, the next design iteration could be built with a factory-set version.
- Long-life elastomer diaphragm
- High-quality snap action switch
- Fingertip adjustability
- Visual calibration
- Economical
- Quick delivery
Vacuum Switches
High-Quality Fixed And Adjustable Vacuum Switches — 100% Tested For Accuracy
All of Nason’s pressure switches feature a “no-creep” design with a snap-action electrical device activated by an elastomer diaphragm or piston. These adjustable vacuum switches maintain their contacts in either an open or closed state until a precise set point is reached. At that point, they snap over center to a new state and will remain there until vacuum pressure changes back over the set point, triggering the vacuum switches to snap back to their original state.
We offer both factory preset and adjustable pressure switches, with 1″ to 29″ vacuum models available and an operational life of over one million cycles under most operating conditions. Our adjustable vacuum switches offer a wide variety of electrical connection options and are fully customizable.
JV Adjustable Vacuum Switch
The field-adjustable JV vacuum switch is built to last and customizable to fit your specific applications. A variety of base material options are available for this small vacuum switch, including brass, aluminum, nickel-plated, delrin, 303 SS, 316 SS, and CF.
- Long-life elastomer diaphragm
- High-quality snap action switch
- Field-adjustable
- Compact design
- Easily customized
- NEMA 4, 13
VM Adjustable Vacuum Switch
The VM adjustable vacuum switch offers a space-efficient, cost-effective solution, designed to handle positive pressure and factory-set for tamper resistance out of the box. This adjustable vacuum switch features a range of 4” to 29” of mercury and is available in a variety of base material options, including brass, aluminum, nickel-plated, delrin, steel 303 SS and 316 SS.
- Long-life elastomer diaphragm
- High-quality snap action switch
- Factory-set
- Available in a wide range of configurations
- Economical
- NEMA 4, 13
VF Fixed Vacuum Switch
The VF Fixed Vacuum Switch offers a space-efficient, cost-effective solution and is factory-set for tamper resistance. The VF features a range of 1.5” to 28” of mercury, as well as an assortment of base material options, including brass, aluminum, nickel-plated, delrin, 303 SS and 316 SS.
- Long-life elastomer diaphragm
- High-quality snap-action switch
- Factory preset
- Available in a wide range of configurations
- Economical
- NEMA 4, 13
Temperature Switches
Durable And Highly Accurate
Used in a wide variety of manufacturing and industrial processes, Nason’s temperature switches act as a limit sensor, opening or closing a circuit when temperature rises above or falls below a defined setpoint.
Nason’s temperature sensor switches feature a “no-creep” design with a snap-action electrical device. These temperature switches keep their contacts in either an open or closed state. When sensors indicate that a precise pre-determined temperature has been reached, they snap over center to a new state. They will remain in this state until the thermal readings rise or fall back over the set point, triggering the temperature switches to snap back to their original state.
Our temperature switches offer a wide variety of electrical connection options, are fully customizable and have an operational life of over one million cycles under most operating conditions.

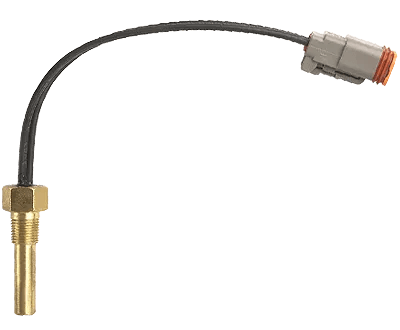

TF Low Temperature Switch
Affordable and compact, the TF is designed for lower temperature applications up to 100,000 cycles and has hysteresis built-in. This snap-action immersion temperature switch comes standard with a factory preset temperature and a 50°–285°F (10°–140°C) set point range.
- Snap action
- Immersion
- Factory preset
- Hysteretic
- Economical
- Compact
- NEMA 4, 13 IP67
- Available in a wide range of configurations

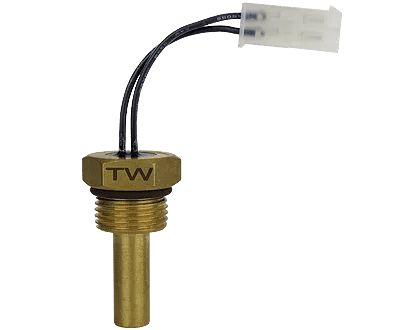

TW Snap-Disc Temperature Switch
The factory-set TW snap-disc temperature switch features set points 120-285ºF (50-140ºC) as well as a wide differential using a temperature limit sensor. This immersion temperature switch includes the industry’s leading range of media connections and probe lengths, and is available in an assortment of different configurations.
- Bi-metal immersion temperature switch
- Factory-set temperature
- Direct action contacts with minimum hysteresis
- Gold diffused, fine silver contacts for use in low-voltage/low-current applications
- Available in a wide range of configurations
- Economical
- NEMA 4, 13
TT Bimetal Temperature Switch
The factory-set TT bimetal temperature switch features set points 40–300ºF (4–148ºC), a temperature limit sensor, and the industry’s largest range of media connections and probe lengths. Gold-diffused, fine silver contacts make this low-voltage fixed temperature switch perfect for applications involving low current.
- Bi-metal immersion temperature switch
- Factory-set temperature
- Direct action contacts with minimum hysteresis
- Gold diffused, fine silver contacts for use in low-voltage/low-current applications
- Available in a wide range of configurations
- Economical
- NEMA 4, 13
TD Snap-Disc Temperature Switch
The factory-set TD snap-disc temperature switch features set points 140–300ºF (60–148ºC), as well as a thermal snap-action disc that provides a nominal differential of 10 degrees. This temperature limit sensor switch is available with a wide variety of media connections and probe lengths, making it ideal for a range of specific applications.
- Snap disc senses temperature
- High-quality snap action switch
- Factory-set
- Shock- and vibration-resistant
- Available in a wide range of configurations
- Economical
- NEMA 4, 13
For more information about these products…
Download a Catalog
