Polyurethane Pneumatic Hose

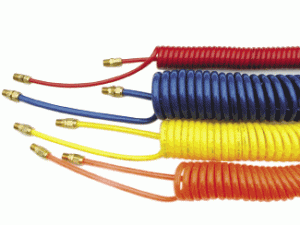

SuperCoil

SUPERCOIL® is Self-Storing Air Hose made from 95 Durometer Polyurethane. This extremely flexible hose is perfect for applications where kink and abrasion resistance are important considerations. Our contemporary looking state-of-the-art strain relief system protects the hose at its weakest point (at the barb) while enhancing the appearance of the entire assembly. Other manufacturers use a strain relief that limits the ability of the hose to bend but ours was uniquely designed to take advantage of Polyurethane’s flexibility, giving the user a much wider range of motion without the possibility of kinking. Reusable compression fittings are available for quick and easy installation without the need of any special tools. Supercoil® Hose Assemblies can be ordered with these reusable compression fittings already installed for rough environments that may require more frequent repairs. We also offer rigid fittings for additional durability on high impact or severe vibration applications.

• Temperature Range: -40°F to +165°F (-40°C to +74°C)
• Working Pressure: Varies By Hose Size (see Size Tables)
• Maximum Recommended Working Length: 90% of Material Length
• Hose Sizes: 3/16″ I. D. to 1/2″ I. D.
• Standard Colors: Black, Blue, Red, Yellow, Transparent Blue,
• Transparent Orange
• SUPER flexible – 100% kink proof
• Rugged brass swivel fittings provide long life and minimal flow restrictions
• State-of-the-art strain relief system protects the hose and increases its maneuverability
• Also available with reusable fittings for quick and easy repairs
• All swivel fittings include reusable thread sealant preapplied at the factory
• Low tension retractability – minimizes user fatigue
• Abrasion resistant
• Soft Polyurethane material will not mar finishes
• Strong enough to repel most oils and chemicals
• 16″ tail on the working (tool) end eliminates tangling of the tool with the coils
• 8″ tail on the supply end makes the connection to the air source easy
• More durable and lighter weight than rubber hose – easy to handle

Superbraid

The SUPERBRAID® Self-Storing Air Hose is made from tough Polyurethane with Polyester Braiding for additional reinforcement. Most other hoses consist of an inner tube, braiding and an outer cover that eventually loses adhesion due to the bending, flexing, expansion and contraction occuring during normal use. This separation of the layers is the most common cause for hose failure. Unlike these other hoses, we manufacture SUPERBRAID® in a way that the inner tube, braiding and outer cover cannot separate.This means that Superbraid® will not break down and its integrity is not compromised over time, assuring a long life of trouble free use! The Superbraid® Hose is very lightweight. Our 3/8″ x 50´ hose assembly (the most popular size) is more than 20% lighter than similar hose assemblies from other manufacturers so it’s easy to carry around, yet tough enough to resist the abuse of severe applications. Superbraid® features rugged fittings made from corrosion resistant brass that will withstand the roughest treatment. Our contemporary looking, state-of-the-art strain relief sleeve protects the hose at its weakest point (at the barb) and also enhances the appearance of the entire assembly.While other manufacturers use a strain relief that limits the ability of the hose to bend, ours was uniquely designed to take advantage of Polyurethane’s flexibility, giving the user a much wider range of motion without the possibility of kinking. Field attachable compression fittings are available for quick and easy installation without the need of any special tools. For rough applications that may require more frequent repairs, Superbraid® Hose Assemblies can be ordered with reusable compression fittings already installed. We also offer rigid fittings for additional durability on high impact or severe vibration applications.

• Temperature Range: -40°F to +165°F (-40°C to +74°C)
• Outer Cover: 85 Durometer Polyurethane
• Inner Braiding: Polyester
• Strain Relief Sleeves: Engineered Thermoplastic
• Standard Colors: Yellow or Transparent Blue
• Super flexible – 100% kink proof
• Easy to handle – 29% lighter weight than equivalent thermoplastic products and 63% less than equivalent rubber air hoses
• Tight bend radius minimizes space requirements
• Inner tube, braiding & outer cover will not separate
• Quick in-the-field repairs can be made with commercially available hose barbs and clamps – no special kits are needed
• Extremely tough and abrasion resistant
• Rugged brass swivel fittings provide long life & minimal flow restrictions
• State-of-the-art strain relief system protects the hose and increases its maneuverability
• Low tension retractability – minimizes user fatigue
• Abrasion resistant
• Soft Polyurethane material will not mar finishes
• Strong enough to repel most oils and chemicals
• 16″ tail on the working (tool) end eliminates tangling of the tool with the coils
• 8″ tail on the supply end makes the connection to the air source easy

Ultra-lite Superbraid

Ultra-Lite Superbraid® Hose is very lightweight. Our 3/8″ x 50´ hose assembly (the most popular size) is more than 20% lighter than similar hose assemblies from other manufacturers so it’s easy to carry around, yet tough enough to resist the abuse of severe applications.
Ultra-Lite Superbraid®’s extreme flexibility and ability to lay out flat without kinking or looping make it the most user-friendly hose available. It retains these characteristics even in cold environments (down to -40° F).
Ultra-Lite Superbraid® features rugged fittings made from corrosion resistant brass that will withstand the roughest treatment. Our state-of-the-art strain relief protects the hose at its weakest point (at the barb) while enhancing the appearance of the entire assembly.

• Temperature Range: -40°F to +165°F (-40°C to +74°C)
• Outer Cover: 85 Durometer Polyurethane
• Inner Braiding: Polyester
• Strain Relief Sleeves: Engineered Thermoplastic
• Standard Colors: Yellow or Transparent Blue
• 29% lighter weight than equivalent thermoplastic products and 63% less than equivalent rubber air hoses
• State-of-the-art strain relief system allows the hose to bend freely without kinking at the fitting
• Quick in-the-field repairs can be made with commercially available hose barbs and clamps – no special kits are needed
• Effortlessly lays out flat and coils into a loop, even in sub-zero temperatures
• Extremely tough and abrasion resistantSuper flexible – 100% kink proof

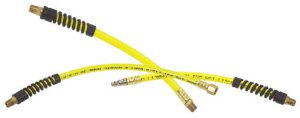

Lead-In Hose

Lead-In Hoses, also called Pigtails, Whip Ends or Whip Hoses, are used on the working end of self-storing air hose, as well as straight hoses.
Our Lead-In Hoses are made exclusively from 3/8″ Ultra-Lite Superbraid®, combining lightweight, flexibility, durability and a working pressure (200 psi) that meets the requirements of almost every application. The contemporary looking state-of-the-art strain relief sleeve on the tool end protects the hose at its weakest point (at the barb) while enhancing the appearance of the entire assembly. Other manufacturers use a strain relief that limits the ability of the hose to bend, but ours was uniquely designed to take advantage of Polyurethane’s flexibility, giving the user a much wider range of motion without the possibility of kinking.

• Temperature Range: -40°F to +165°F (-40°C to +74°C)
• Outer Cover: 85 Durometer Polyurethane
• Inner Braiding: Polyester
• Strain Relief Sleeves: Engineered Thermoplastic
• Standard Colors: Yellow or Transparent Blue
• Extends the life of the hose – Most hose wear and failure occurs near the point of use, where all of the bending and flexing occurs. A Lead-In Hose will take the brunt of the abuse, giving the hose a much longer service life.
• Protects the coupler – High vibration and impact tools will damage the valve of a coupler, causing premature failure. A short Lead-In Hose (“snubber”) between the coupler and air tool will absorb the shock and vibration, protecting the coupler from these damaging effects.
• Makes the worker more productive – Most air supply hoses are heavy or bulky and difficult to work with. A lightweight, flexible Lead-In Hose makes it easier for the worker to manipulate the air tool, reducing fatigue while increasing productivity
