Air Preparation Accessories

Parker and All Air offer a range of air preparation accessories for various applications, including ball and plug valves, check valves, safety blow guns, breather vents and a wide assortment of couplers, connectors, fittings, interchange nipples and flow control valves.

<< Back to Parker Air Preparation page

Product Lineup

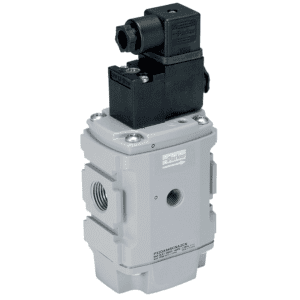

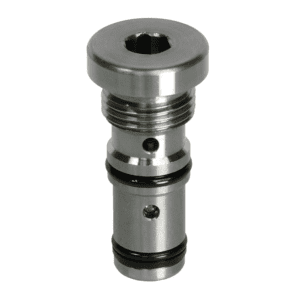

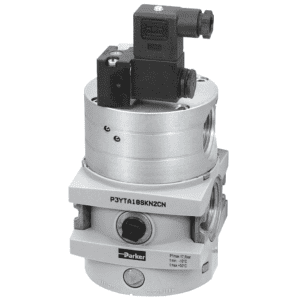

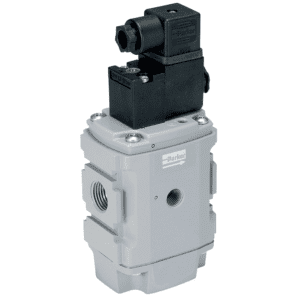

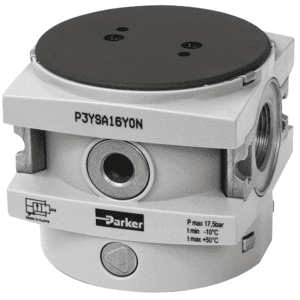

Air Preparation Accessories – Blocking Valves

Parker Air Prep Accessories
The blocking valve is a single acting spring return 2/2 valve in a fitting format. The device requires a pneumatic pilot signal to open, which allows free flow of air, gas or liquid to pass. As long as a pilot signal is present, the device will remain open. When the pilot signal is removed, the internal spring will close the blocking valve, bubble tight.

The blocking valve is oil serviceable and rated to 150 PSI. These devices have two primary design uses: (1) to prevent unwanted gravity induced motion in cylinders during shut down procedures or during periods of lost supply pressure and (2) freezing the cylinder position by using a blocking valve at each end of the cylinder. Application needs, such as tool or work piece protection, horizontal indexing or inspection stops, are often satisfied by these devices.

  • Port Size: 1/8″, 1/4″, 3/8″, 1/2″
  • Operating Pressure: 0 to 150 psi (or 0 to 10.3 bar)
  • Operating Temperature: 5° to 140° F (or -15° to 60° C)
  • Body Material: Zinc Alloy
  • Permissible Fluids Inert gases, 50 μm filtration
  • Max Operating Frequency: 10 Hz
  • Mechanical Life: 10 Million

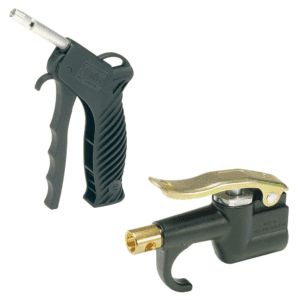

Blow Guns

Parker Blow Guns
Parker Pneumatic Division offers four types of blow guns: Brass Nozzle, Vortec FLO-GAIN, Self-Regulating and Pistol Grip. Please review details for each type of blow gun to find the one that is right for your needs.

Brass Nozzle Blow Gun: These blow guns have contoured lever or button control which provide a natural, comfortable grip even when used with gloves. They are made with a die cast zinc body with painted finish and have a finger guard with hang-up hook for finger protection and quick safe storage. Brass nozzle blow guns have a 1/4″ port and 20 SCFM rating. OSHA rated*.

Vortec FLO-GAIN Nozzle Blow Gun: The Vortec Flo-Gain nozzles are combined with high performance blow guns that offer a quiet sound level of 80 dBA. Compressed air attains sonic velocity through an adjustable slot and attaches to the exterior surface of the cone shaped nozzle. These blow guns are made with a die cast zinc body with painted finish and have a finger guard with hang-up hook for finger protection and quick safe storage. They have a 1/4″ port, 80 PSIG inlet and a 70+ SCFM rating. Settings for Vortec FLO-GAIN blow guns are shown on a micrometer dial. OSHA rated*.

Self-Regulating Blow Gun: These blow guns are designed with an integral self-regulating pressure reducing valve for automatic shut-off when nozzle is blocked. They prevent air pressure buildup over 30 PSIG in compliance with U.S. Dept. of Labor standards. An air shield aids in protecting the operator against blow back of flying of particles and are designed to operate at less than 90 dBA. These blow guns are made with a die cast zinc body with painted finish and have a finger guard with hang-up hook for finger protection and quick safe storage. They have a 1/4″ port, 70-175 PSIG inlet and a 10 SCFM rating. OSHA rated*.

Pistol Grip Blow Gun: Pistol grip blow guns are easy to aim for quick and efficient cleaning. They are lightweight, easy to handle and ideal for all shop housekeeping purposes. The easy trigger action features instant spring adjustment for controlled air to help you get the amount of air where you want it, with no restrictions, no cut-offs. Pistol grip blow guns make for a convenient connection for overhead or under bench floor air use. These blow guns have 1/4″ inlet port and a 175 PSIG pressure rating. They are not OSHA rated.

*OSHA Rated O.S.H.A. Certification: All safety blow guns conform to the requirements of Compressed Air Standards as currently described in the U.S. Bureau of Labor Standards, paragraph 1910.242, when pressurized at the inlet to a maximum of 100 PSIG. Conform to current O.S.H.A. Directive No. 100-1.

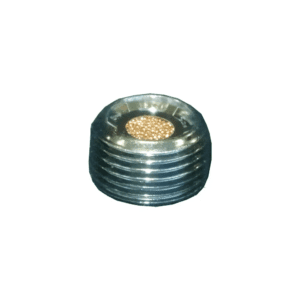

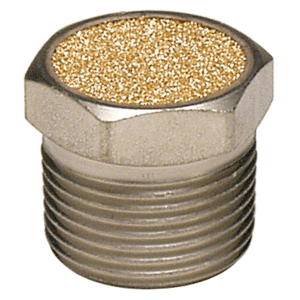

Breather Vents

Parker Breather Vents
These low silhouette versions of the muffler/filter are useful where space is a problem and/or to prevent contamination. Use for vacuum relief or pressure equalization in gear boxes, oil tanks, or reservoirs. Non-corrosive.

  • Type: Low profile filter
  • Pipe Thread (in): 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″
  • Maximum Operating Pressure: 250 psi or 17.2 bar
  • Operating temperature: 0 to 300°F (or -17° to 148° C)
  • Overall Length (in): 0.44″ to 1.50″
  • Hex Size (in): 7/16″, 9/16″, 11/16″, 7/8″, 1-1/6″, 1-5/16″, 1-11/16″, 2″

Check Valve – 339 Series (Female To Female)

Parker Check Valve
The 339 series check valves allow free flow in one direction and provide positive checked (zero flow) in the reverse direction. These valves are available with NPTF ports and are recommended for pneumatic service. They are available in female to female connection only.

  • Function(s): One Way Check Valve
  • Mounting Type: Inline
  • Port Sizes (inch): 1/8, 1/4, 3/8, 1/2, 3/4
  • Port Type: NPT
  • Free Flow (Cv): 0.66 to 6.0
  • Free Flow (SCFM): 35 to 323
  • Pressure Range (psig): 0 – 250
  • Pressure Range (bar): 0 – 17
  • Temperature Range (C): -18 – 82
  • Temperature Range (F): 0 – 180
  • Extended Temperature Version: Yes
  • Cracking Pressure: Return Poppet 1 -2 PSIG
  • Media: Air
  • Lubrication: None
  • Body Material: Brass
  • Seal Material: Urethane

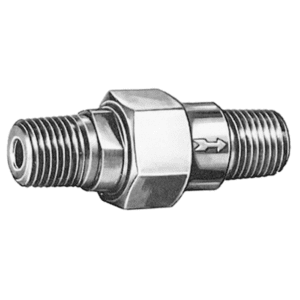

Check Valve – 3047 Series (Male To Male)


The 3047 series check valves allow free flow in one direction and provide positive checked (zero flow) in the reverse direction. These valves are available with NPTF ports and are recommended for pneumatic service. Available in male to male connection only.

  • Function(s): One Way Check Valve
  • Mounting Type: Inline
  • Port Sizes (inch): 1/4
  • Port Type: NPT
  • Free Flow (Cv): 0.56
  • Free Flow (SCFM): 30
  • Pressure Range (psig): 0 – 250
  • Pressure Range (bar): 0- 17
  • Temperature Range (C): -18 – 82
  • Temperature Range (F): 0 – 180
  • Cracking Pressure: Return Poppet 1 -2 PSIG
  • Media: Air
  • Lubrication: None
  • Body Material: Brass
  • Seal Material: Nitrile

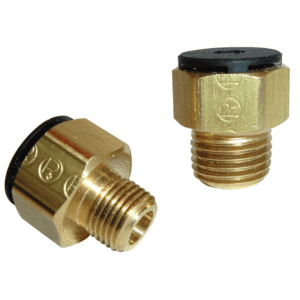

Exhaust Protector – E9 Series

Parker Exhaust Protector
E9 series exhaust protectors are intended for mobile applications, quick venting applications, and alternative exhaust port breathers that require protection against clogging. They are ideal for valves exposed to harsh environmental conditions, which can cause a “caking up” in the exhaust pipe ports where the bronze mufflers or breather vents are installed. Exhaust protectors are particularly suitable for time-sensitive applications such as axle-lift suspensions, pushers, or tag axles.

  • Port Size: 1/8″, 1/4″
  • Operating Pressure: 0 to 150 psi or 0 to 10.3 bar
  • Operating Temperature: -40° to 158°C or -40° to 70°C
  • Body Material: Brass
  • Membrane Material: Fluorocarbon
  • SCFM: (rating at 90 PSIG) 56.5, 62.7

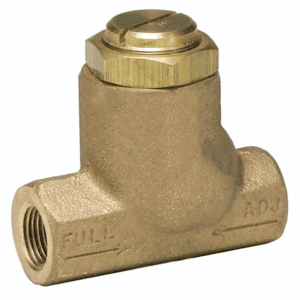

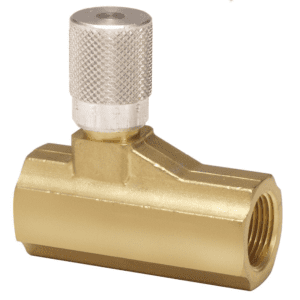

Flow Control Valve – 337 Series

Parker Flow Control
The 337 series flow control valve meters flow of air in one direction and allows free flow in the reverse direction. The plunger in these valves is a fine tapered needle, which provides precise flow control even at low flow rates. The perimeter of the adjustment knob features numerical micrometer position markings, providing a visual indication of the flow controls settings. Once the desired flow is selected, a set screw can be tightened to maintain the settings. Due to the light spring on the return check, the 337 flow controls have a 1 to 2 psig cracking pressure. Extended temperature versions up to 300 degrees F are available as specials.

  • Function: Flow Control
  • Manual Operator Style: Knob with Micrometer Position
  • Mounting Type: Inline
  • Port Connection: Female to Female
  • Port Sizes (inch): 1/8,” 1/4,” 3/8,” 1/2,” 3/4″
  • Port Type: NPT
  • Metered Flow (Cv): 0.28 to 2.62
  • Free Flow (Cv): 0.60 to 6.13
  • Metered Flow (SCFM): 15 to 140
  • Free Flow (SCFM): 32 to 327
  • Pressure Range (psig): 0 – 250
  • Pressure Range (bar): 0 – 17
  • Temperature Range (C): -18 to 82
  • Temperature Range (F): 0 to 180
  • Extended Temperature Version: Yes
  • Cracking Pressure: Return Poppet 1 -2 PSIG
  • Media: Air
  • Lubrication: None
  • Body Material: Brass
  • Seal Material: Urethane, Buna N
  • Plunger / Needle Material: Stainless Steel
  • Other Internal Material: Stainless Steel, Zinc-Plated Steel

Flow Control Valve – 3250 Series

Parker Flow Control
The 3250 Series flow control valves are specially designed to accurately meter the flow of air in one direction and allow free flow in the opposite direction. The 3250 series flow controls valves are also suitable for low pressure hydraulic service. Units 1″ and above have been designed to provide effective flow settings for large diameter cylinders and for other similar air applications. Each valve has a fine screw adjustment, allowing precise settings which are secured by a sturdy lock nut. Extended temperature versions up to 300 degrees F are available as specials.

  • Function: Flow Control
  • Manual Operator Style: Meter Screw, Screw Drive Flat
  • Mounting Type: Inline
  • Port Connection: Female to Female
  • Port Sizes (inch): 1/8,” 1/4,” 3/8,” 1/2,” 3/4,” 1,” 1 1/4,” 1 1/2″
  • Port Type: NPT
  • Metered Flow (Cv): 12.3 to 17.5
  • Free Flow (Cv): 12.3 to 17.5
  • Metered Flow (SCFM): 700 to 1800
  • Free Flow (SCFM): 70 to 1800
  • Pressure Range (psig): 0 – 250
  • Pressure Range (bar): 0 – 17
  • Temperature Range (C): -40 to 82
  • Temperature Range (F): -40 to 180
  • Extended Temperature Version: Yes
  • Media: Air
  • Lubrication: None
  • Body Material: Brass or Cast Aluminum
  • Seal Material: Buna N, Urethane
  • Plunger / Needle Material: Stainless Steel

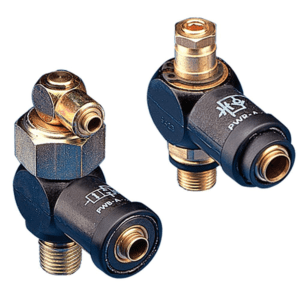

Flow Control Valve – 3251 Series

Parker Flow Control
The 3251 flow control is an ideal solution to cylinder speed control where space is at a premium. Costly fittings, connections and piping expenses can be eliminated because the valve can rotate 360 degrees, and the piping alignment can be in any direction. The 1/8″ model can be rotated after final assembly. The 3251 Flow Controls are standard male to female ported and can be ordered with optional Prestolok fittings in place of the female port. This allows for quick connection and eliminates the need for separate tube fittings. Flow is adjusted with an allen wrench and locked with a nut for tamper protection.

  • Function: Flow Control
  • Manual operator Style: Hex Head
  • Manual operator Style: Rotating Right Angle
  • Mounting Type: Rotating Right Angle
  • Port Connection: Male to Female, Male to Quick Tube Connect
  • Port Sizes (inch): 1/8,” 1/4,” 3/8,” 1/2″
  • Port Type: NPT
  • Metered Flow (Cv): 0.26 to 1.64
  • Free Flow (Cv): 0.20 to 1.41
  • Metered Flow (SCFM): 14 to 88
  • Free Flow (SCFM): 11 to 75
  • Pressure Range (psig): 0 – 125
  • Pressure Range (bar): 0 – 8
  • Temperature Range (C): -18 to 60
  • Temperature Range (F): 0 to 140
  • Extended Temperature Version: No
  • Cracking Pressure: Return Poppet
  • Media: Air
  • Lubrication: None
  • Body Material: Brass
  • Seal Material: Buna N
  • Plunger / Needle Material: Brass and Acetal
  • Option: Push To Connect Fittings Available

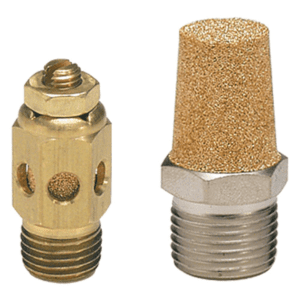

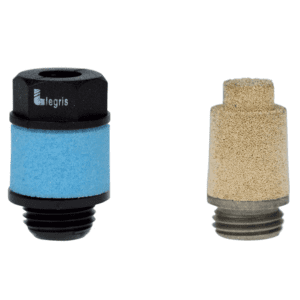

Muffler / Flow controls – EM series

Parker Muffler
Muffler/flow controls provide an acceptable exhaust noise level and effectively meter exhaust. Installed in valve exhaust ports, they control cylinder piston speeds throughout a wide range. The adjusting screw cannot be accidently blown out and can be locked to maintain setting. Products are made of brass and bronze construction, clean with commonly used solvents.

  • Type: Muffler/Filter
  • Port Size: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″
  • Maximum Operating Pressure: 250 psi (or 17.2 bar)
  • Operating Temperature: 0° to 300° F (or -17° to 149° C)
  • Overall Length: 1″ to 3.69″
  • Hex Size: 7/16″, 9/16″, 11/16″, 7/8″, 1-1/16″, 1-5/16″, 1-11/16″, 2″

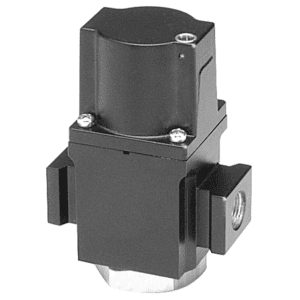

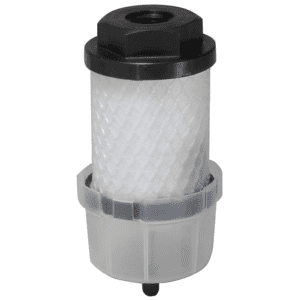

Muffler / Reclassifiers

Parker Muffler
Exhaust oil mist and noise pollution have a direct impact on worker productivity. Oil aerosol mist from lubricators and compressors is pervasive and enters the industrial plant environment through the exhaust ports of valves, cylinders and air motors. This rapidly expanding exhaust also produces sudden and excessive noise.

The ECS (Muffler-Reclassifier) is 99.97% efficient at removing the oil aerosols. The ECS also acts as a silencer to lower the dBA levels below O.S.H.A. requirements. The result is a cleaner, quieter environment which equates to greater work productivity and safety. Compressor oils and lubricating oils are exhausted from valves, cylinders and air motors into the ECS. Oil aerosols are “coalesced” into larger droplets and gravity pulls them into the attached drain sump. The sump can then be drained manually or by using a 1/4″ ID plastic tube drain. The air flowing into the ECS is also muffled or silenced as it enters the inside of the ECS and passes through the filter media into the atmosphere.

The ECS units are constructed from the same materials that go into Parker Pneumatic Division oil removal coalescing filter elements. The seamless design insures media uniformity and strength. This proven technology provides high coalescing efficiency with low pressure drop. The filter media is supported by cylindrical perforated steel retainers, both inside and out. These retainers, fully plated for excellent corrosion resistance, give the ECS units high rupture strength in either flow direction. These filters can also be used as high efficiency inlet or bypass filters, for vacuum pumps or breather elements, to protect the air above critical process liquids.

  • Product Type: Muffler/Reclassifier
  • Port Size: 1/2′, 1″
  • Maximum Operating Pressure: 100 psi (or 6.89 bar)
  • Operating Temperature: 125°F (or 51° C)
  • Oil Removal Efficiencies 99.97%
  • Noise Attenuation (dBA): 25

Needle Valve – 338 Series

Parker Flow Control
The 338 Series Needle valves bi-directionally meter the flow of air through the valve. The plunger in these valves is a fine taper needle which provides precise flow control even at low flow rates. The perimeter of the adjustment knob features numerical micrometer position markings, providing a visual indication of the flow controls settings. Once the desired flow is selected, a set screw can be tightened to maintain the settings. Extended Temperature versions up to 300 degrees F are available as specials.

  • Function: Needle Control
  • Manual Operator Style: Knob with Micrometer Position
  • Mounting Type: Inline
  • Port Connection: Female to Female
  • Port Sizes (inch): 1/8,” 1/4,” 3/8,” 1/2,” 3/4″
  • Port Type: NPT
  • Metered Flow (Cv): 0.28 to 2.62
  • Free Flow (Cv): 0.60 to 6.13
  • Metered Flow (SCFM): 15 to 140
  • Free Flow (SCFM): 32 to 327
  • Pressure Range (psig): 0 – 250
  • Pressure Range (bar): 0 – 17
  • Temperature Range (C): -18 to 82
  • Temperature Range (F): 0 to 180
  • Extended Temperature Version: Yes
  • Cracking Pressure: Return Poppet 1 -2 PSIG
  • Media: Air
  • Lubrication: None
  • Body Material: Brass
  • Seal Material: Urethane, Buna N
  • Plunger / Needle Material: Stainless Steel
  • Other Internal Material: Stainless Steel, Zinc-Plated Steel

Pressure Switch – PPS1 Series

Parker Pressure Switch
The PPS1 pressure switch monitors the air pressure in your pneumatic system. When the pressure in your system either drops below or exceeds the set point pressure, an electrical output is given. Repeatability — accuracy is the maximum allowable set point deviation of a single pressure or temperature switch under one given set of environmental and operational conditions.

Single Pole Double Throw (SPDT) Switching element — A SPDT switching element has one normally open, one normally closed and one common terminal. Three terminals mean that the switch can be wired with the circuit either normally open (NO), or normally closed (NC), or both.

Dead Band — The dead band, sometimes referred to as “differential” or “hysterisis”, is the change in pressure between actuation and deactuation set points.

  • NEMA rating: NEMA 4, 13
  • Set Point Tolerance: ±1 PSI or 5% (.07 bar)
  • Temperature Range: -40 to 220 F° (-40° to 105 C°)
  • Max. Operating Pressure (Ranges 1, 2, 3): 250 psi (17.2 bar)
  • Max. Operating Pressure (Range 4): 2000 psi (137.9 bar)
  • Deadband: 10 – 20% of set pressure

Shuttle Valve – NG164 Series

Parker Shuttle Valve
Shuttle valves provide a single pneumatic output from two separate inputs. Shuttle valves can be used in multiple applications such as “OR” logic, memory, or interlock circuits. The most basic option of the shuttle valve is to provide a single pneumatic output if either of two separate pneumatic inputs are supplied. Either “OR” of the two inputs will provide a pneumatic output. If pressure is applied to both ports simultaneously, the valve will select the port with the higher pressure.

  • Function: Shuttle Valve
  • Mounting Type: Inline
  • Port Connection: Female to Female
  • Port Sizes (inch): 1/8,” 1/4,” 3/8″
  • Port Type: NPT
  • Flow (Cv): 0.32 to 2.00
  • Flow (SCFM): 8 to 45
  • Pressure Range (psig): 3 to 260
  • Pressure Range (bar): 0 to 13.8
  • Temperature Range (C): -18 to 70
  • Temperature Range (F): 0 to 160
  • Poppet minimum shift (PSIG): 3
  • Media: Air
  • Lubrication: None
  • Body Material: Aluminum
  • Seal Material: Nitrile

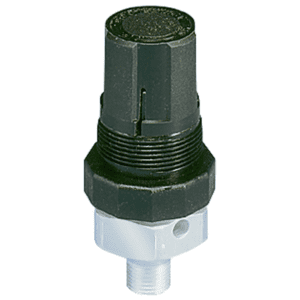

Relief Valves – 130 Series


The 130 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available.

  • Connection: Male
  • Relief Range: 0 to 100 psig (or 0 to 6.9 bar)
  • Maximum Inlet Pressure: 300 PSIG (or 20.7 bar)
  • Adjustment: Push-Pull Locking Knob
  • Material: Aluminum Body, Polypropylene Adjusting Knob, Zinc Plated Steel Adjusting Screw and Spring, Buna-N Diaphragm/Disc
  • Thread Size: 1/4″
  • Thread Type: NPT, BSPP
  • Temperature Range: 40°F to 120°F (or 4°C to 49°C)

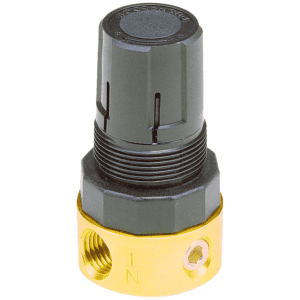

Relief Valves – 134 Series

Parker - Pressure Regulator
The 134 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available. The 134 has a brass body with captured exhaust and is an inline type unit with 3 inlet ports and 1 outlet port.

  • Connection: 3 Female Inlet Ports and 1 Outlet Port
  • Relief Range: 0 to 100 psig (or 0 to 6.9 bar)
  • Maximum Inlet Pressure: 300 psig (or 20.7 bar)
  • Adjustment: Push-Pull Locking Knob
  • Material: Brass Body, Polypropylene Adjusting Knob, Zinc Plated Steel Adjusting Screw and Spring, Buna-N Diaphragm/Disc
  • Thread Size: Inlet Port 1/8″ and 1/4″, Outlet Port 1/4″
  • Thread Type: NPT, BSPP
  • Temperature Range: 40°F to 120°F (or 4°C to 49°C)

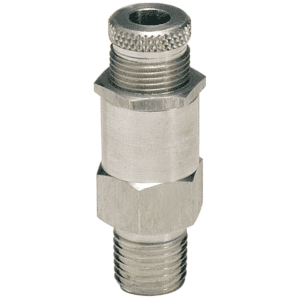

Relief Valves – RV Series

Parker Relief Valves
The RV01 series is a compact relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. It has a compact lightweight aluminum construction with high relief capacity (70.39 Cv @ 150 PSI). The adjustment range is called out within the part number and set at factory.

  • Connection: Male
  • Relief Range: 10 to 200 psig (or 0.7 to 14 bar)
  • Maximum Inlet Pressure: 300 psig (or 20.7 bar)
  • Adjustment: Control Knurled Knob
  • Material Aluminum Body, Steel Locking Nut and Spring, Plastic Poppet, Nitrile Seat
  • Thread Size: 1/4″
  • Thread Type: NPT
  • Temperature Range: 32°F to 200°F (or 0°C to 93°C)

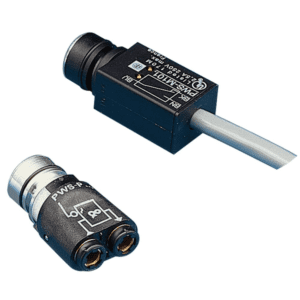

Threshold Sensors

Parker Threshold Sensors
The plug-in threshold sensors provide feedback information on pneumatic cylinder status in one of three possible outputs . . . pneumatic, electric, or electronic. Mounted into the cylinder port, these devices monitor the back pressure of the cylinder’s exhaust. When the cylinder’s piston stops, the back pressure rapidly drops and the threshold sensor provides the desired output.

Ideal for variable stroke applications, such as robotics, where other sensor type devices, such as limit switches, are impractical. These devices provide a signal whenever the cylinder stops motion. The threshold sensor consists of two complementary sub assemblies; (1) the banjo fitting and (2) the plug-in sensor element. In all cases, the sensor is easily plugged into the banjo fitting and locked in place with a spring clip. The banjo fitting is designed to accept (piggy backed) other functional fittings, such as flow controls or blocking valves. Simply select the sensor based on the type of feedback signal that best fits the application.

  • Port Size: 10-32, 1/8″, 1/4″, 3/8″, 1/2″
  • Operating Pressure: 0 to 150 psi (or 0 to 10.3 bar)
  • Operating Temperature: 5° to 140° F (or -15° to 60° C)
  • Body Material: Thermoplastic
  • Max Operating Frequency: 10 Hz
  • Mechanical Life: 10 Million

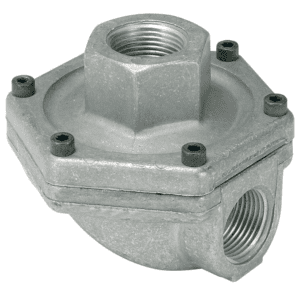

Quick Exhaust Valves – 0R Series

Parker Quick Exhaust Valves
0R quick exhaust valves provide rapid exhaust of control air when placed between the control valve and the actuator. When a cylinder can quickly exhaust pressure, cylinder stroke speed will be reduced. The 0R quick exhaust valve has a greater exhaust capacity than the many four-way directional control valves, so increased cylinder speed can be accomplished with a smaller and less expensive control valve. Diaphragm materials are available in Urethane, Nitrile, Fluorocarbon, and PTFE to meet a wide variety of temperature and pressure operating conditions. 0R Quick Exhaust Valves can also be used as shuttle valves, which determine a single pneumatic output from two separate inputs. If pressure is applied to both ports simultaneously, the valve will select the port with the higher pressure.

  • Function: Quick Exhaust Valve or Shuttle Valve
  • Mounting Type: Inline
  • Port Connection: Female to Female
  • Port Sizes (inch): 1/8, 1/4, 3/8, 1/2, 3/4
  • Port Type: NPT, BSPP
  • Flow (Cv): 2.7 to 10.0
  • Flow (SCFM): 150 to 550
  • Pressure Range (psig): 3 to 150, 50 to 200 for PTFE
  • Pressure Range (bar): 0 to 10.3, 3.4 to 13.8 for PTFE
  • Temperature Range (C): -18° to 82° Urethane & Nitrile, -18° to 204° Fluorocarbon, -18° to 260° PTFE
  • Temperature Range (F): 0° to 180° Urethane & Nitrile, 0° to 400° Fluorocarbon, 0° to 500° PTFE
  • Extended Temperature Version: Yes
  • Diaphragm Minimum Shift: Minimum 3, Maximum 50 pending diaphragm material
  • Media: Air
  • Lubrication: None
  • Body Material: Die Cast Aluminum
  • Seal Material: Urethane, Nitrile, Fluorocarbon or PTFE

Dump Valve – 06T (Compact)

Parker Dump Valve
06T modular compact dump valves automatically shut upstream pressure and exhaust the downstream pressure when the pilot pressure is released. The quick dump valves are high flow, normally closed, 3-port, 2-position directional control valves. Upon energizing the solenoid, inlet air is applied to the top of the piston. The piston pushes against the spring and opens the main valve, providing full air flow to the downstream. When the solenoid is de-energized, the main valve closes, allowing downstream air to exhaust rapidly through the bottom plug. The bottom plug is tapped so exhaust may be piped away or fitted with a muffler/silencer. The 06T can be mounted using a modular connector to other 06 series air preparation products.

  • Position: 2
  • Operator: Solenoid
  • Inlet Pressure Range (PSIG): 200
  • Inlet Pressure Range (bar): 13.8
  • Minumum Operating Pressure (PSIG): 30
  • Minumum Operating Pressure (bar): 2.1
  • Maximum Flow (SCFM): 70
  • Maximum Flow (m3/h): 33
  • Port Type: BSPP │ NPT
  • Port Size: 3/8″
  • Temperature Range Ambient (F°): 120
  • Temperature Range Ambient (C°): 49
  • Voltage Range: 120VAC and 24VDC
  • Solenoid Connection Type(s): 22mm 3 Pin (DIN 43650 Form B) or 2-Pin M12
  • Weight (lb): 2.25
  • Weight (kg): 1.02

Dump Valve – 07T (Standard)

Parker Dump Valve
07T modular standard dump valves automatically shut upstream pressure and exhaust the downstream pressure when the pilot pressure is released. The quick dump valves are high flow, normally closed, 3-port, 2-position directional control valves. Upon energizing the solenoid, inlet air is applied to the top of the piston. The piston pushes against the spring and opens the main valve, providing full air flow to the downstream. When the solenoid is de-energized, the main valve closes, allowing downstream air to exhaust rapidly through the bottom plug. The bottom plug is tapped so exhaust may be piped away or fitted with a muffler/silencer. The 07T can be mounted using a modular connector to other 07 series air preparation products.

  • Position: 2
  • Operator: Solenoid
  • Inlet Pressure Range (PSIG): 200
  • Inlet Pressure Range (bar): 13.8
  • Minumum Operating Pressure (PSIG): 30
  • Minumum Operating Pressure (bar): 2.1
  • Maximum Flow (SCFM): 110
  • Maximum Flow (m3/h): 52
  • Port Type: BSPP │ NPT
  • Port Size: 1/2″
  • Temperature Range Ambient (F°): 120
  • Temperature Range Ambient (C°): 49
  • Voltage Range: 120VAC and 24VDC
  • Solenoid Connection Type(s): 22mm 3 Pin (DIN 43650 Form B) or 2-Pin M12
  • Weight (lb): 3.75
  • Weight (kg): 1.7

Global Dump Valve – P31D Series (Mini)

Parker Global Dump Valve
P31D modular global mini dump valve automatically shut upstream pressure and exhaust the downstream pressure when the pilot pressure is released. The quick dump valve are high flow, normally closed, 3-port, 2-position directional control valves. Upon energizing the solenoid, inlet air is applied to the top of the piston. The piston pushes against the spring and opens the main valve providing full flow air to the downstream. When the solenoid is de-energized, the main valve closes allowing downstream air to exhaust rapidly through the bottom plug. The bottom plug is tapped so that exhaust may be piped away or fitted with a muffler/silencer. The P31D global soft start can be mounted using a modular connector to other P31 global air preparation products.

  • Position: 2
  • Operator: Solenoid or Air Pilot
  • Inlet Pressure Range (PSIG): 150 (solenoid) 250 (air pilot)
  • Inlet Pressure Range (bar): 10.3 (solenoid) 17 (air pilot)
  • Minumum Operating Pressure (PSIG): 44
  • Minumum Operating Pressure (bar): 3
  • Maximum Flow (SCFM): 36
  • Maximum Flow (m3/h): 17
  • Port Type: BSPP │ BSPT │ NPT
  • Port Size: 1/4″
  • Temperature Range Ambient (F°): 122 (solenoid) 176 (air pilot)
  • Temperature Range Ambient (C°): 50 (solenoid) 80 (air pilot)
  • Voltage Range 120VAC and 24VDC
  • Solenoid Connection Type(s): 15mm 3 Pin ( DIN43605 Form C)
  • Weight (lb): 0.8
  • Weight (kg): 0.37

Global Dump Valve – P32D Series (Compact)

Parker Global Soft Start
P32D modular global compact dump valves automatically shut upstream pressure and exhaust the downstream pressure when the pilot pressure is released. The quick dump valves are high flow, normally closed, 3-port, 2-position directional control valves. Upon energizing the solenoid, inlet air is applied to the top of the piston. The piston pushes against the spring and opens the main valve, providing full air flow to the downstream. When the solenoid is de-energized, the main valve closes, allowing downstream air to exhaust rapidly through the bottom plug. The bottom plug is tapped so exhaust may be piped away or fitted with a muffler/silencer. The P32D can be mounted using a modular connector to other P32 global air preparation products.

  • Position: 2
  • Operator: Solenoid or Air Pilot
  • Inlet Pressure Range (PSIG): 150 (solenoid) 250 (air pilot)
  • Inlet Pressure Range (bar): 10.3 (solenoid) 17 (air pilot)
  • Minumum Operating Pressure (PSIG): 44
  • Minumum Operating Pressure (bar): 3
  • Maximum Flow (SCFM): 108
  • Maximum Flow (m3/h): 51
  • Port Type: BSPP │ BSPT │ NPT
  • Port Size: 1/2″
  • Temperature Range Ambient (F°): 122 (solenoid) 176 (air pilot)
  • Temperature Range Ambient (C°): 50 (solenoid) 80 (air pilot)
  • Voltage Range: 120VAC and 24VDC
  • Solenoid Connection Type(s): 30mm 3-Pin ( ISO 4400 Form A) or 2-Pin M12
  • Weight (lb): 2
  • Weight (kg): 0.91

Soft Start / Dump Valve – 06S Series (Compact)

Parker Dump Valve
06S modular compact combined soft start / dump valves provide for the safe introduction of pressure to machines or systems. Soft start / dump valves, when set, allow the pressure to gradually build to the set point before fully opening to deliver full flow air line pressure. The controlled introduction can be an important safety factor and prevent damage to tooling when air pressure is introduced at machine or system start up. When the valve is installed into the pneumatic system and the pilot operator receives no signal, the air is blocked at port 1. When a pilot signal is received at the pilot operator, the valve shifts, closing the connection between ports 2 and 3. At the same time, air flow begins between ports 1 and 2 at a slow rate, controlled by the needle valve located on top of the valve. When the downstream pressure reaches approximately 60% of the supply pressure, the main valve spool opens, allowing full flow through the valve in the system. If pilot signal or system pressure is lost, the valve returns to its initial state, venting the downstream pressure through port 3.

Pressure supply piping must be the same size as the inlet port or larger, to insure the pilot valve receives sufficient pressure supply during high flow conditions. The valve should be mounted downstream of the FRL, with the soft start adjustment needle easily accessible. Note: soft start/dump valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The 06S can be mounted using a modular connector to other 06 series air preparation products.

  • Function(s): 3/2
  • Position: 2
  • Operator: Solenoid
  • Inlet Pressure Range (PSIG): 200
  • Inlet Pressure Range (bar): 13.8
  • Minumum Operating Pressure (PSIG): 30
  • Minumum Operating Pressure (bar): 2.1
  • Maximum Flow (SCFM): 70
  • Maximum Flow (m3/h): 33
  • Port Type: BSPP │ NPT
  • Port Size: 3/8″
  • Temperature Range Ambient (F°): 120
  • Temperature Range Ambient (C°): 49
  • Voltage Range: 120VAC and 24VDC
  • Solenoid Connection Type(s): 22mm 3 Pin (DIN 43650 Form B) or 2-Pin M12
  • Weight (lb): 2.25
  • Weight (kg): 1.02

Soft Start / Dump Valve – 07S Series (Standard)

Parker Dump Valve
07S modular compact combined soft start / dump valves provide for the safe introduction of pressure to machines or systems. Soft start / dump valves, when set, allow the pressure to gradually build to the set point before fully opening to deliver full flow air line pressure. The controlled introduction can be an important safety factor and prevent damage to tooling when air pressure is introduced at machine or system start up. When the valve is installed into the pneumatic system and the pilot operator receives no signal, the air is blocked at port 1. When a pilot signal is received at the pilot operator, the valve shifts, closing the connection between ports 2 and 3. At the same time, air flow begins between ports 1 and 2 at a slow rate, controlled by the needle valve located on top of the valve. When the downstream pressure reaches approximately 60% of the supply pressure, the main valve spool opens, allowing full flow through the valve in the system. If pilot signal or system pressure is lost, the valve returns to its initial state, venting the downstream pressure through port 3.

Pressure supply piping must be the same size as the inlet port or larger, to insure the pilot valve receives sufficient pressure supply during high flow conditions. The valve should be mounted downstream of the FRL, with the soft start adjustment needle easily accessible. Note: soft start/dump valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The 07S can be mounted using a modular connector to other 07 series air preparation products.

  • Function(s): 3/2
  • Position: 2
  • Operator: Solenoid
  • Inlet Pressure Range (PSIG): 200
  • Inlet Pressure Range (bar): 13.8
  • Minumum Operating Pressure (PSIG): 30
  • Minumum Operating Pressure (bar): 2.1
  • Maximum Flow (SCFM): 110
  • Maximum Flow (m3/h): 52
  • Port Type: BSPP │ NPT
  • Port Size: 1/2″
  • Temperature Range Ambient (F°): 120
  • Temperature Range Ambient (C°): 49
  • Voltage Range: 120VAC and 24VDC
  • Solenoid Connection Type(s): 22mm 3 Pin (DIN 43650 Form B) or 2-Pin M12
  • Weight (lb): 3.75
  • Weight (kg): 1.7

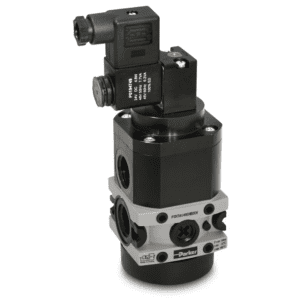

Global Soft Start / Dump Valve – P3YT Series (High Flow)

Parker Global Soft Start
P3YT modular global high flow combined soft start / dump valves provide for the safe introduction of pressure to machines or systems. Soft start / dump valves, when set, allow the pressure to gradually build to the set point before fully opening to deliver full flow air line pressure. The controlled introduction can be an important safety factor and prevent damage to tooling when air pressure is introduced at machine or system start up. When the valve is installed into the pneumatic system and the pilot operator receives no signal, the air is blocked at port 1. When a pilot signal is received at the pilot operator, the valve shifts, closing the connection between ports 2 and 3. At the same time, air flow begins between ports 1 and 2 at a slow rate, controlled by the needle valve located on top of the valve. When the downstream pressure reaches approximately 60% of the supply pressure, the main valve spool opens, allowing full flow through the valve in the system. If pilot signal or system pressure is lost, the valve returns to its initial state, venting the downstream pressure through port 3.

Pressure supply piping must be the same size as the inlet port or larger, to insure the pilot valve receives sufficient pressure supply during high flow conditions. The valve should be mounted downstream of the FRL, with the soft start adjustment needle easily accessible. Note: soft start/dump valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The P3YT can be mounted using a modular connector to other P3Y global air preparation products.

  • Function(s): 3/2
  • Position: 2
  • Operator: Solenoid or Air Pilot
  • Inlet Pressure Range (PSIG): 232
  • Inlet Pressure Range (bar): 16
  • Minumum Operating Pressure (PSIG): 29
  • Minumum Operating Pressure (bar): 2
  • Maximum Flow (SCFM): 371 │ 424
  • Maximum Flow (m3/h): 175 │ 200
  • Port Type: BSPP │ NPT
  • Port Size: 3/4″ │ 1″
  • Temperature Range Ambient (F°): 140
  • Temperature Range Ambient (C°): 60
  • Voltage Range: 24 VDC
  • Solenoid Connection Type(s): 30mm 3-Pin ( ISO 4400 Form A) or 2-Pin M12
  • Weight (lb): 3.5
  • Weight (kg): 1.6

Global Soft Start / Dump Valve – P31T Series (Mini)

Parker Global Dump Valve
P31T modular global mini combined soft start / dump valves provide for the safe introduction of pressure to machines or systems. Soft start/dump valves, when set, allow the pressure to gradually build to the set point before fully opening to deliver full flow air line pressure. The controlled introduction can be an important safety factor and prevent damage to tooling when air pressure is introduced at machine or system start up. When the valve is installed into the pneumatic system and the pilot operator receives no signal, the air is blocked at port 1. When a pilot signal is received at the pilot operator, the valve shifts, closing the connection between ports 2 and 3. At the same time, air flow begins between ports 1 and 2 at a slow rate, controlled by the needle valve located on top of the valve. When the downstream pressure reaches approximately 60% of the supply pressure, the main valve spool opens, allowing full flow through the valve in the system. If pilot signal or system pressure is lost, the valve returns to its initial state, venting the downstream pressure through port 3.

Pressure supply piping must be the same size as the inlet port or larger, to insure the pilot valve receives sufficient pressure supply during high flow conditions. The valve should be mounted downstream of the FRL, with the soft start adjustment needle easily accessible. Note: soft start/dump valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The P31T global soft start can be mounted using a modular connector to other P31 global air preparation products.

  • Function(s): 3/2
  • Position: 2
  • Operator: Solenoid or Air Pilot
  • Inlet Pressure Range (PSIG): 150 (solenoid) 250 (air pilot)
  • Inlet Pressure Range (bar): 10.3 (solenoid) 17 (air pilot)
  • Minumum Operating Pressure (PSIG): 44
  • Minumum Operating Pressure (bar): 3
  • Maximum Flow (SCFM): 36
  • Maximum Flow (m3/h): 17
  • Port Type: BSPP │ BSPT │ NPT
  • Port Size: 1/4″
  • Temperature Range Ambient (F°): 122 (solenoid) 176 (air pilot)
  • Temperature Range Ambient (C°): 50 (solenoid) 80 (air pilot)
  • Voltage Range: 120VAC and 24VDC
  • Solenoid Connection Type(s): 15mm 3 Pin (DIN43605 Form C)
  • Weight (lb): 0.9
  • Weight (kg): 0.41

Global Soft Start / Dump Valve – P32T Series (Compact)

Parker Global Dump Valve
P32T modular global compact combined soft start / dump valves provide for the safe introduction of pressure to machines or systems. Soft start / dump valves, when set, allow the pressure to gradually build to the set point before fully opening to deliver full flow air line pressure. The controlled introduction can be an important safety factor and prevent damage to tooling when air pressure is introduced at machine or system start up. When the valve is installed into the pneumatic system and the pilot operator receives no signal, the air is blocked at port 1. When a pilot signal is received at the pilot operator, the valve shifts, closing the connection between ports 2 and 3. At the same time, air flow begins between ports 1 and 2 at a slow rate, controlled by the needle valve located on top of the valve. When the downstream pressure reaches approximately 60% of the supply pressure, the main valve spool opens, allowing full flow through the valve in the system. If pilot signal or system pressure is lost, the valve returns to its initial state, venting the downstream pressure through port 3.

Pressure supply piping must be the same size as the inlet port or larger, to insure the pilot valve receives sufficient pressure supply during high flow conditions. The valve should be mounted downstream of the FRL, with the soft start adjustment needle easily accessible. Note: soft start/dump valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The P32T can be mounted using a modular connector to other P32 global air preparation products.

  • Function(s): 3/2
  • Position: 2
  • Operator: Solenoid or Air Pilot
  • Inlet Pressure Range (PSIG): 150 (solenoid) 250 (air pilot)
  • Inlet Pressure Range (bar): 10.3 (solenoid) 17 (air pilot)
  • Minumum Operating Pressure (PSIG): 44
  • Minumum Operating Pressure (bar): 3
  • Maximum Flow (SCFM): 97
  • Maximum Flow (m3/h): 46
  • Port Type: BSPP │ BSPT │ NPT
  • Port Size: 1/2″
  • Temperature Range Ambient (F°) 122 (solenoid): 176 (air pilot)
  • Temperature Range Ambient (C° ): 50 (solenoid) 80 (air pilot)
  • Voltage Range: 120VAC and 24VDC
  • Solenoid Connection Type(s): 30mm 3-Pin ( ISO 4400 Form A) or 2-Pin M12
  • Weight (lb): 2
  • Weight (kg): 0.91

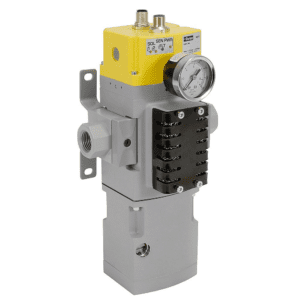

Global Redundant Safety Exhaust Valve – P33T Series (Standard)

Parker Global Redundant Safety Exhaust Valve
P33T modular global standard redundant safety exhaust valve is a solenoid pilot pneumatic safety valve that meets Category 4 (Cat 4) Performance Level e (Ple) in accordance with Machine Directive ISO 13849-1. This unit is proven control reliable technology with integrated soft start. The P33T is field repairable since it is a pneumatic/mechanical system that achieves the safety function.

This valve provides memory, monitoring and air flow control functions that are integrated into two identical valve elements. The valves lockout if asynchronous movement of the valve elements occurs during actuation or de-actuation, resulting in a residual outlet pressure of less than 1% of supply. Reset can only be accomplished by the integrated electrical (solenoid) reset. The valve cannot be reset by removing and re-applying supply pressure. The basic 3/2 normally closed valve function has a dirt tolerant wear compensating poppet design for quick response and high flow capability. Onboard LED provide indication of the main solenoid operation, reset solenoid operation and status indicator condition. P33T is available with an optional transducer for monitoring downstream pressure in the system.

  • Function(s): Dual 3/2
  • Position: 2
  • Operator: Solenoid
  • Inlet Pressure Range (PSIG): 150
  • Inlet Pressure Range (bar): 10
  • Minimum Operating Pressure (PSIG): 30
  • Minimum Operating Pressure (bar): 2
  • Maximum Flow (SCFM): 229.5
  • Maximum Flow (m3 /h): 108
  • Port Type: BSPP │ NPT
  • Port Size: 3/4″
  • Temperature Range Ambient (F°): 175
  • Temperature Range Ambient (C° ): 80
  • Voltage Range: 24 VDC
  • Solenoid Connection Type (s):
    Without Transducer: (1) M12, 5-Pin Male & (1) M12, 5-Pin Female
    With Transducer: (1) M12, 5-Pin Male & (2) M12, 5-Pin Female
  • Weight (lb): 16.1
  • Weight (kg): 7.3
  • Certification: Category 4 (CAT. 4); Performance Level e (Ple) in accordance with
    the European Machine Directive EN ISO 13849-

Soft Start Valve – 06P Series (Compact)

Parker Soft Start
06P modular compact soft start valves provide for the safe introduction of pressure to machines or systems. They allow the pressure to gradually build to a set point before fully opening to deliver full air line pressure. The controlled introduction of pressure can be an important safety factor and prevent damage to tooling when the air pressure is introduced at machine or system start up. When pressure is supplied to the inlet port, gradual filling of the downstream system occurs through the adjustment needle valve. The piston opens the main valve when the downstream side of the valve reaches approximately 60% of the supply pressure. The ramp up time to reach the switch-over pressure is adjustable via the needle valve in the cover.

Note: soft start valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The 06P can be mounted using a modular connector to other 06 series air preparation products.

  • Function(s): 2/2
  • Position: 2
  • Operator: Air Pilot
  • Inlet Pressure Range (PSIG): 200
  • Inlet Pressure Range (bar): 13.8
  • Minumum Operating Pressure (PSIG): 30
  • Minumum Operating Pressure (bar): 2.1
  • Maximum Flow (SCFM): 78
  • Maximum Flow (m3/h): 37
  • Port Type: BSPP │ NPT
  • Port Size: 3/8″
  • Temperature Range Ambient (F°): 120
  • Temperature Range Ambient (C°): 49
  • Voltage Range: N/A
  • Solenoid Connection Type(s): N/A
  • Weight (lb): 2.75
  • Weight (kg): 1.25

Soft Start Valve – 07P Series (Standard)

Parker Soft Start
07P modular standard soft start valves provide for the safe introduction of pressure to machines or systems. They allow the pressure to gradually build to a set point before fully opening to deliver full air line pressure. The controlled introduction of pressure can be an important safety factor and prevent damage to tooling when the air pressure is introduced at machine or system start up. When pressure is supplied to the inlet port, gradual filling of the downstream system occurs through the adjustment needle valve. The piston opens the main valve when the downstream side of the valve reaches approximately 60% of the supply pressure. The ramp up time to reach the switch-over pressure is adjustable via the needle valve in the cover.

Note: soft start valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The 07P can be mounted using a modular connector to other 07 series air preparation products.

  • Function(s): 2/2
  • Position: 2
  • Operator: Air Pilot
  • Inlet Pressure Range (PSIG): 200
  • Inlet Pressure Range (bar): 13.8
  • Minumum Operating Pressure (PSIG): 30
  • Minumum Operating Pressure (bar): 2.1
  • Maximum Flow (SCFM): 110
  • Maximum Flow (m3/h): 52
  • Port Type: BSPP │ NPT
  • Port Size: 1/2″
  • Temperature Range Ambient (F°): 120
  • Temperature Range Ambient (C°): 49
  • Voltage Range: N/A
  • Solenoid Connection Type(s): N/A
  • Weight (lb): 4.5
  • Weight (kg): 2.04

Global Soft Start Valve – P3YS Series (High Flow)

Parker Global Soft Start
P3YS modular global high flow soft start valves provide for the safe introduction of pressure to machines or systems. They allow the pressure to gradually build to a set point before fully opening to deliver full air line pressure. The controlled introduction of pressure can be an important safety factor and prevent damage to tooling when the air pressure is introduced at machine or system start up. When pressure is supplied to the inlet port, gradual filling of the downstream system occurs through the adjustment needle valve. The piston opens the main valve when the downstream side of the valve reaches approximately 60% of the supply pressure. The ramp up time to reach the switch-over pressure is adjustable via the needle valve in the cover.

Note: soft start valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The P3YS can be mounted using a modular connector to other P3Y global air preparation products.

  • Function(s): 2/2
  • Position: 2
  • Operator: Air Pilot
  • Inlet Pressure Range (PSIG): 254
  • Inlet Pressure Range (bar): 17.5
  • Minumum Operating Pressure (PSIG): 29
  • Minumum Operating Pressure (bar): 2
  • Maximum Flow (SCFM): 381
  • Maximum Flow (m3/h): 180
  • Port Type: BSPP │ NPT
  • Port Size: 3/4″ │ 1″
  • Temperature Range Ambient (F°): 140
  • Temperature Range Ambient (C°): 60
  • Voltage Range: N/A
  • Solenoid Connection Type(s): N/A
  • Weight (lb): 1.8
  • Weight (kg): 0.8

Global Soft Start Valve – P31S Series (Mini)

Parker Global Dump Valve
P31S modular global mini soft start valves provide for the safe introduction of pressure to machines or systems. They allow the pressure to gradually build to a set point before fully opening to deliver full air line pressure. The controlled introduction of pressure can be an important safety factor and prevent damage to tooling when the air pressure is introduced at machine or system start up. When pressure is supplied to the inlet port, gradual filling of the downstream system occurs through the adjustment needle valve. The piston opens the main valve when the downstream side of the valve reaches approximately 60% of the supply pressure. The ramp up time to reach the switch-over pressure is adjustable via the needle valve in the cover.

Note: soft start valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The P31S global soft start can be mounted using a modular connector to other P31 global air preparation products.

  • Function(s): 2/2
  • Position: 2
  • Operator: Solenoid or Air Pilot
  • Inlet Pressure Range (PSIG): 150 (solenoid) 250 (air pilot)
  • Inlet Pressure Range (bar): 10.3 (solenoid) 17 (air pilot)
  • Minumum Operating Pressure (PSIG): 44
  • Minumum Operating Pressure (bar): 3
  • Maximum Flow (SCFM): 36
  • Maximum Flow (m3/h): 17
  • Port Type: BSPP │ BSPT │ NPT
  • Port Size: 1/4″
  • Temperature Range Ambient (F°): 122 (solenoid) 176 (air pilot)
  • Temperature Range Ambient (C°): 50 (solenoid) 80 (air pilot)
  • Voltage Range: 120VAC and 24VDC
  • Solenoid Connection Type(s): 15mm 3 Pin ( DIN43605 Form C)
  • Weight (lb): 0.9
  • Weight (kg): 0.41

Global Soft Start Valve – P32S Series (Compact)

Parker Global Dump Valve
P32S modular global compact soft start valves provide for the safe introduction of pressure to machines or systems. They allow the pressure to gradually build to a set point before fully opening to deliver full air line pressure. The controlled introduction of pressure can be an important safety factor and prevent damage to tooling when the air pressure is introduced at machine or system start up. When pressure is supplied to the inlet port, gradual filling of the downstream system occurs through the adjustment needle valve. The piston opens the main valve when the downstream side of the valve reaches approximately 60% of the supply pressure. The ramp up time to reach the switch-over pressure is adjustable via the needle valve in the cover.

Note: soft start valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The P32S can be mounted using a modular connector to other P32 global air preparation products.

  • Function(s): 2/2
  • Position: 2
  • Operator: Solenoid or Air Pilot
  • Inlet Pressure Range (PSIG): 150 (solenoid) 250 (air pilot)
  • Inlet Pressure Range (bar): 10.3 (solenoid) 17 (air pilot)
  • Minumum Operating Pressure (PSIG): 44
  • Minumum Operating Pressure (bar): 3
  • Maximum Flow (SCFM): 97
  • Maximum Flow (m3/h): 46
  • Port Type: BSPP │ BSPT │ NPT
  • Port Size: 1/2″
  • Temperature Range Ambient (F°): 122 (solenoid) 176 (air pilot)
  • Temperature Range Ambient (C°): 50 (solenoid) 80 (air pilot)
  • Voltage Range: 120VAC and 24VDC
  • Solenoid Connection Type(s): 30mm 3-Pin ( ISO 4400 Form A) or 2-Pin M12
  • Weight (lb): 2
  • Weight (kg): 0.9

Global FRL Safety Exhaust Valve – P33 Series

Parker Global FRL Safety Exhaust
The P33 Safety Exhaust valve is a redundant, externally monitored, 3/2 normally closed safety valve. The primary function of this valve is to ensure safe and rapid exhaust of trapped air from a machine in the event of a fault in the safety circuit or in an emergency e-stop situation via a redundant two channel design for fail safe operation. This product meets the highest safety standards for applications up to and including Category 4, PL e.

Markets:

  • General Industrial
  • Packaging
  • Automotive

Features/Benefits:

  • Designed to be applied to machinery, to exhaust trapped air during an e-stop or fault condition.
  • Allows the machinery to achieve a safe state without trapped residual energy.
  • Available with an adjustable soft start to allow a gradual introduction of pressure into machinery on start up.
  • Two channel design means redundancy for maximum safety
  • Solid state pressure sensors provide accurate and reliable fault condition monitoring
  • M12 connectors for solenoids and sensors makes the product easy to install

Applications:

  • Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)

Conforms to:

  • International standards: complies with the Machinery Directive and standards EN ISO 13849-1 and EN ISO 13849-2 for Safety Related Parts of a Control Circuit.

For more information about these products…
 Download a Catalog
