Compressed Air Filters

Parker purification and separation technologies offer premium compressed air and gas purity, product quality, technological excellence and global support.

<< Back to Parker Air Preparation page

Product Lineup

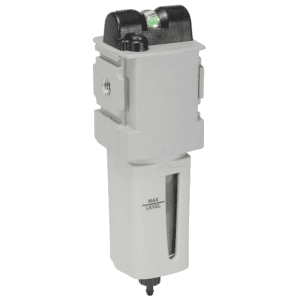

Global Compact Coalescing Filter – P32F Series

Parker Global Hi-Flow Coalescing Filter
Parker’s P32F Compact Coalescing Filter, with available differential pressure gauge, is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The P32F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the P32F allows you to connect any combination of similar air preparation product by using connector brackets. The various options available (such as auto drain, twist drain, DPI gauge and assortment of bowl options) make this series easy to configure for your application.

  • Compact Coalescing and Adsorber Filter
  • Element (μm): 0.01u, 1u, Adsorber
  • Port Type: BSPP, BSPT, NPT
  • Port Size (in): 1/4″, 3/8″, 1/2″
  • Body Material: Aluminum
  • Bowl Material: Polycarbonate, Aluminum
  • Filter Material: Borosilicate Cloth, Activated Carbon (adsorber)
  • Seals: Nitrile
  • Pressure Rating (psig): 150 (plastic), 250 (metal)
  • Pressure Rating (bar): 10 (plastic), 17 (metal)
  • Temperature Rating (F): -13° to 125° (plastic bowl), -13° to 150° (metal bowl)
  • Temperature Rating (C ): -25° to 52° (plastic bowl), -25° to 65.5° (metal bowl)
  • Flow SCFM: 53 (1 micron), 36 (0.01 micron), 85 (adsorber)
  • Drain Type: Manual, Auto
  • Weight: 0.71 lb (0.32 kg)

Global Hi-Flow Coalescing Filter – P3YF Series (Oil Removal)

Parker Global Hi-Flow Coalescing Filter
Parker’s P3YF Modular High Flow Coalescing Filter is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The P3YF is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the P3YF allows you to connect any combination of similar air preparation product by using connector brackets. The various options available (such as auto drain, twist drain, DPI gauge and assortment of filter grades) make this series easy to configure for your application.

  • Coalescing Filter
  • Element (μm): 0.01, Adsorber
  • Port Type: NPT, BSPP
  • Port Size (in): 3/4″, 1″
  • Body Material: Aluminum
  • Bowl Material: Aluminum
  • Filter Material: Borosilicate & Nano Fibers, Activated Carbon (adsorber)
  • Seals: Nitrile
  • Pressure Rating (psig): 253.8
  • Pressure Rating (bar): 17.5
  • Temperature Rating (F): 14° to 140°
  • Temperature Rating (C ): -10° to 60°
  • Flow SCFM: 104 (3/4″), 120 (1″)
  • Drain Type: Combined Manual/Semi-Auto Drain, Auto Drain
  • Weight: 3.5 lb (1.6 kg)

Global Miniature Coalescing Filter – P31F Series

Parker Global Hi-Flow Coalescing Filter
Parker’s P31F Mini Coalescing Filter, with available differential pressure gauge, is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The P31F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the P31F allows you to connect any combination of similar air preparation product by using connector brackets. The various options available (such as auto drain, twist drain, DPI gauge and assortment of bowl options) make this series easy to configure for your application.

  • Mini Coalescing and Adsorber Filter
  • Element (μm): 0.01u, 1u, Adsorber
  • Port Type: BSPP, BSPT, NPT
  • Port Size (in): 1/4″
  • Body Material: Aluminum
  • Bowl Material: Polycarbonate, Aluminum
  • Filter Material: Borosilicate Cloth, Activated Carbon (adsorber)
  • Seals: Nitrile
  • Pressure Rating (psig): 150 (plastic and metal with DPI), 250 (metal)
  • Pressure Rating (bar): 10 (plastic and metal with DPI), 17 (metal)
  • Temperature Rating (F): 14° to 125° (plastic bowl), 14° to 150° (metal bowl)
  • Temperature Rating (C ): -10° to 52° (plastic bowl), -10° to 65.5° (metal bowl)
  • Flow SCFM: 12 (1 micron), 7.5 (0.01 micron), 12.7 (adsorber)
  • Drain Type: Manual, Pulse
  • Weight: 0.24 lb (0.11 kg)

Global Particulate Filter – P31F Series (Miniature)

Parker Global Particulate Filter
Parker’s P31F is a mini particulate filter that delivers high moisture removal in a compact package. The P31F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance. The P31E can also be mounted using a modular connector to other P31 global air preparation product. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.

  • Miniature particulate filter
  • Element: 5 Micron
  • Port Size (in): 1/4″
  • Drain Type: Manual Drain or Pulse Drain
  • Thread Type: NPT, BSPP, BSPT
  • Maximum Supply Pressure (bar): Polycarbonate Bowl = 10 bar, Metal Bowl = 17 bar
  • Maximum Supply Pressure (psi): Polycarbonate Bowl = 150 psig, Metal Bowl = 250 psig
  • Operating Temperature (C): Polycarbonate Bowl = -10° to 52° C, Metal Bowl = -10° to 65.5° C
  • Operating Temperature (F): Polycarbonate Bowl = 14° to 125° F, Metal Bowl = 14° to 150° F
  • Mounting: Inline or Bracket Mounted
  • Flow Capacity (SCFM): 25 SCFM
  • Body Material: Aluminum
  • Bowl Material: Polycarbonate
  • Filter Element: Sintered Polyethylene
  • Seals: Nitrile
  • Weight: 0.24 lbs (0.11 kg)

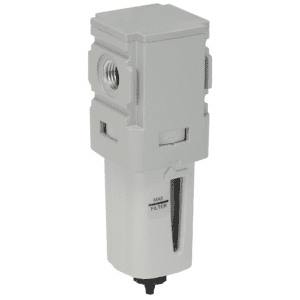

Global Particulate Filter – P32F Series (Compact)

Parker Global Particulate Filter
Parker’s P32F is a compact particulate filter that delivers high moisture removal in a compact package. The P32F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications this product can provide a solution that doesn’t sacrifice performance. The P32E can also be mounted using a modular connector to other P32 global air preparation product. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.

  • Compact particulate filter
  • Element: 5 Micron
  • Port Size (in): 1/4″, 3/8″, 1/2″
  • Drain Type: Manual Drain or Auto Drain
  • Thread Type: NPT, BSPP, BSPT
  • Maximum Supply Pressure (bar): Polycarbonate Bowl = 10 bar, Metal Bowl = 17 bar
  • Maximum Supply Pressure (psi): Polycarbonate Bowl = 150 psig, Metal Bowl = 250 psig
  • Operating Temperature (C): Polycarbonate Bowl = -10° to 52° C, Metal Bowl = -10° to 65.5° C
  • Operating Temperature (F): Polycarbonate Bowl = 14° to 125° F, Metal Bowl = 14° to 150° F
  • Mounting: Inline or Bracket Mounted
  • Flow Capacity (SCFM): 1/4 ” = 50 SCFM, 3/8″ = 78 SCFM, 1/2″ = 82 SCFM
  • Body Material: Aluminum
  • Bowl Material: Polycarbonate or Aluminum
  • Sight Gauge Material: Polycarbonate
  • Filter Element: Sintered Polyethylene
  • Seals: Nitrile
  • Weight: 0.62 lbs (0.28 kg)

Global Particulate Filter – P33F Series (Standard)

Parker Global Particulate Filter
Parker’s P33F is a standard particulate filter that delivers high moisture removal in a compact package. The P33F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The P33E can also be mounted using a modular connector to other P33 global air preparation product. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.

  • Standard particulate filter
  • Element: 5 Micron
  • Port Size (in): 1/2″, 3/4″
  • Drain Type: Manual Drain or Auto Drain
  • Thread Type: NPT, BSPP, BSPT
  • Maximum Supply Pressure (bar):
    Polycarbonate Bowl = 10 bar,
    Metal Bowl = 17 bar
  • Maximum Supply Pressure (psi):
    Polycarbonate Bowl = 150 psig,
    Metal Bowl = 250 psig
  • Operating Temperature (C):
    Polycarbonate Bowl = -25° to 52° C,
    Metal Bowl = -25° to 65.5° C
  • Operating Temperature (F):
    Polycarbonate Bowl = -13° to 125° F,
    Metal Bowl = -13° to 150° F
  • Mounting: Inline or Bracket Mounted
  • Flow Capacity (SCFM):
    1/2″ = 85 SCFM,
    3/4″ = 102 SCFM
  • Body Material: Aluminum
  • Bowl Material: Polycarbonate or Aluminum
  • Sight Gauge Material: Polycarbonate
  • Filter Element: Sintered Polyethylene
  • Seals: Nitrile
  • Weight: 1.01 lbs (0.46 kg)

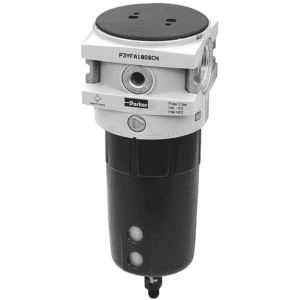

Global Particulate Filter – P3YF Series (High-Flow)

Parker Global Particulate Filter
Parker’s P3YF is a heavy duty, high flow, particulate filter that delivers high moisture removal. The P3YF is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. With various options available the P3YF can easily be configured to your application.

  • Particulate Filter
  • Element: 5 Micron
  • Port Size (in): 3/4″, 1″
  • Drain Type: Combined Manual/Semi-Auto Drain, Auto Drain
  • Thread Type: NPT, BSPP
  • Maximum Supply Pressure (bar): 17.5 bar
  • Maximum Supply Pressure (psi): 254 psig
  • Operating Temperature (C): -10° to 60° C (Auto Drain), -40° to 60° C (Combined Drain)
  • Operating Temperature (F): 14° to 140° F (Auto Drain), -40° to 140° F (Combined Drain)
  • Mounting: Inline
  • Flow Capacity (SCFM): 3/4″ = 246 SCFM, 1″ = 252 SCFM
  • Body Material: Aluminum
  • Bowl Material: Aluminum
  • Sight Gauge Material: Polypropylene
  • Filter Element: 5 Micron, Sintered P.E.
  • Seals: Nitrile
  • Weight: 1.98 lb (0.9 kg)
  • Bowl Capacity: 4.4 oz

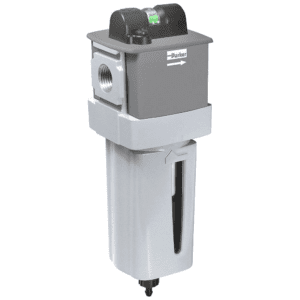

Global Standard Coalescing Filter – P33F Series

Parker Global Standard Coalescing Filter
Parker’s P33F Standard Coalescing Filter, with available differential pressure gauge, is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The P33F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the P33F allows you to connect any combination of similar air preparation product by using connector brackets. The various options available (such as auto drain, twist drain, DPI gauge and assortment of bowl options) make this series easy to configure for your application.

  • Standard Coalescing and Adsorber Filter
  • Element (μm): 0.01u, 1u, Adsorber
  • Port Type: BSPP, BSPT, NPT
  • Port Size (in): 1/2″, 3/4″
  • Body Material: Aluminum
  • Bowl Material: Polycarbonate, Aluminum
  • Filter Material: Borosilicate Cloth, Activated Carbon (adsorber)
  • Seals: Nitrile
  • Pressure Rating (psig): 150 (plastic), 250 (metal)
  • Pressure Rating (bar): 10 (plastic), 17 (metal)
  • Temperature Rating (F): -13° to 125° (plastic bowl), -13° to 150° (metal bowl)
  • Temperature Rating (C ): -25° to 52° (plastic bowl), -25° to 65.5° (metal bowl)
  • Flow SCFM: 68 (1 micron), 42 (0.01 micron), 72 (adsorber)
  • Drain Type: Manual, Auto
  • Weight: 1.1 lb (0.50 kg)

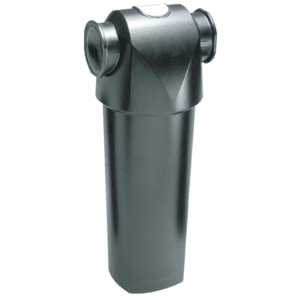

Bulk Liquid Separators – P3TF Series

Parker Bulk Liquid Separators
The P3TF Bulk Liquid Separator removes bulk liquid at all points within the compressed air system. It protects filters, refrigeration dryers, and heatless regenerative desiccant dryers by providing high liquid removal efficiencies under all flow conditions. Based upon internal design, it provides a low pressure drop from inlet to outlet, thus lowering the cost of ownership. The P3TF works well with all types of compressors, removing compressor condensate through centerfugial separation technology. Air enters the inlet containing a set of fixed vanes the air passes through, thus forcing the air to spin inside the vessel. Bulk condensate is removed due to directional changes of the airstream, velocity changes, and centrifugal actions of the vortex.

  • Port Type: NPT | BSPT | Flange
  • Port Size: 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1-1/2″ | 2″ | 3″ | 4″ | 6″
  • Operating Pressure: 232 psi or 16 bar
  • Operating Temperature: 35° to 176°F or 1.5° to 80°C
  • Flow SCFM: 21 | 85 | 85 | 233 | 233 | 742 | 742 | 1695 | 2119 | 3814
  • Flow l/sec: 10 | 40 | 40 | 110 | 110 | 350 | 350 | 800 | 1000 | 1800
  • Housing Material: Aluminum | Steel
  • Drain Type: Auto Float
  • Coating: Epoxy Painted
  • Seals: Fluorocarbon
  • Certification: ISO 8573.9 | ASME | CRN

Compact Coalescing Filter – 11F Series, Prep-Air II (Oil Removal)

parker Compact Coalescing Filter
Parker’s 11F Compact Modular Coalescing Filter is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The 11F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the 11F allows you to connect any combination of similar air preparation product by using connector brackets. The 11F comes standard with a polycarbonate bowl, wrapped with a metal bowl guard, providing 360 degrees of visibility to content inside the bowl. The various options available (such as auto drain, twist drain, DPI gauge and assortment of bowl options) make this series easy to configure for your application.

  • Compact Coalescing Filter
  • Element (μm): Grade 6, Grade 10
  • Port Type: NPT, BSPP
  • Port Size (in): 1/4″, 3/8″, 1/2″
  • Body Material: Zinc
  • Bowl Material: Polycarbonate, Zinc
  • Filter Material: Borosilicate
  • Seals: Nitrile
  • Pressure Rating (psig): 150 (plastic and with differential pressure indicator), 250 (metal)
  • Pressure Rating (bar): 10.3 (plastic and with differential pressure indicator), 17.2 (metal)
  • Temperature Rating (F): 32° to 125° (plastic bowl and with differential pressure indicator), 32° to 175° (metal bowl)
  • Temperature Rating (C ): 0° to 52° (plastic bowl and with differential pressure indicator), 0° to 80° (metal bowl)
  • Flow SCFM:
    Grade 6 45 (1/4″), 48 (3/8″), 65 (1/2″)
    Grade 10 60 (1/4″), 72 (3/8″), 95 (1/2″)
  • Drain Type: Manual Twist Drain, Automatic Float Drain
  • Weight: 1.5 lb (0.7 kg)

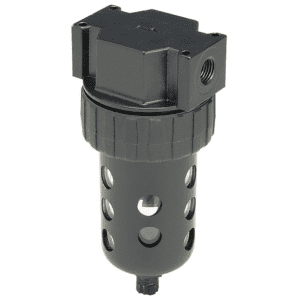

Economy Coalescing Filter – 15F Series, Prep-Air II (Oil Removal)

Parker Compact Coalescing Filter
Parker’s 15F Economy Modular Coalescing Filter is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The 15F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the 15F allows you to connect any combination of similar air preparation product by using connector brackets. The 15F comes standard with a polycarbonate bowl, wrapped with a metal bowl guard, providing 360 degrees of visibility to content inside the bowl. The various options available (such as auto drain, twist drain, DPI gauge and assortment of bowl options) make this series easy to configure for your application.

  • Economy Coalescing Filter
  • Element (μm): Grade 6
  • Port Type: NPT
  • Port Size (in): 1/4″, 3/8″
  • Body Material: Zinc
  • Bowl Material: Polycarbonate, Zinc
  • Filter Material: Borosilicate
  • Seals: Nitrile
  • Pressure Rating (psig): 150 (plastic and with differential pressure indicator), 250 (metal)
  • Pressure Rating (bar): 10.3 (plastic and with differential pressure indicator), 17.2 (metal)
  • Temperature Rating (F): 32° to 125° (plastic bowl and with differential pressure indicator), 32° to 175° (metal bowl)
  • Temperature Rating (C): 0° to 52° (plastic bowl and with differential pressure indicator), 0° to 80° (metal bowl)
  • Flow SCFM:
    Grade 6 – 30
    Grade 10 – 51 (1/4″), 66 (3/8″)
  • Drain Type: Manual Twist Drain, Automatic Pulse Drain
  • Weight: 1.2 lb (0.54 kg)

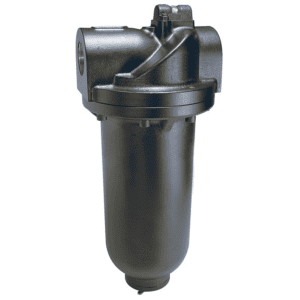

Hi-Flow Coalescing Filter – F701 Series (Oil Removal)

Parker Hi-Flow Coalescing Filter
Parker’s F701 High Flow Coalescing Filter is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The F701 is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The various options available (such as auto drain, twist drain, DPI gauge, pop up gauge, multiple filter grades and assortment of bowl options) make this series easy to configure for your application.

  • Coalescing Filter
  • Element (μm): Grade 6, Grade 10
  • Port Type: NPT, BSPP
  • Port Size (in): 3/4″, 1″
  • Body Material: Zinc
  • Bowl Material: Aluminum
  • Filter Material: Borosilicate
  • Seals: Buna N
  • Pressure Rating (psig): 300 (manual drain), 250 (T and Q auto drain), 175 (R low pressure auto drain)
  • Pressure Rating (bar): 20 (manual drain), 17 (T and Q auto drain), 12 (R low pressure auto drain)
  • Temperature Rating (F): 32° to 150° (manual drain), 32° to 125° (auto drain)
  • Temperature Rating (C ): 0° to 65° (manual drain), 0° to 52° (auto drain)
  • Flow SCFM:
    Grade 6 – 95 (32 oz bowl), 170 (100 oz bowl)
    Grade 10 – 158 (32 oz bowl), 285 (100 oz bowl)
  • Drain Type: Manual Twist Drain, Automatic Drain
  • Weight: 32 oz – 5 lb (2.3 kg), 100 oz – 8 lb (3.6 kg)

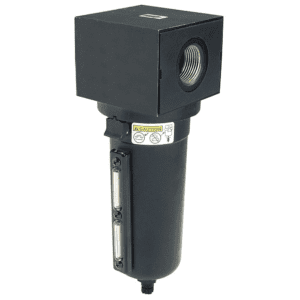

Hi-Flow Coalescing Filter – P3NF Series (Oil Removal)

Parker Hi-Flow Coalescing Filter
Parker’s P3NF High Flow Coalescing Filter is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The P3NF is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The various options available (such as auto drain, twist drain, DPI gauge and assortment of port configurations) make this series easy to configure for your application.

  • Coalescing Filter Hi-Flow
  • Element (μm): Grade 6
  • Port Typ: NPT, BSPP
  • Port Size (in): 3/4″, 1″, 1-1/2″
  • Body Material: Aluminum
  • Bowl Material: Aluminum
  • Filter Material: Borosilicate
  • Seals: Nitrile
  • Pressure Rating (psig): 250
  • Pressure Rating (bar): 17.2
  • Temperature Rating (F): 32° to 175°
  • Temperature Rating (C ): 0° to 80°
  • Flow SCFM: 130 (3/4″), 140 (1″), 150 (1-1/2″)
  • Drain Type: Manual Twist Drain, Automatic Float Drain
  • Weight: 3/4″, 1″ = 3.5 lb (1.6 kg), 1-1/2″ = 4.6 lb (2.1 kg)

Hi-Flow Coalescing Filters – 35F, 43F Series (Oil Removal)

Parker Hi-Flow Coalescing Filter
Parker’s 35F/43F Heavy Duty High Flow Coalescing Filter is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The 35F/43F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. Unique drain mounting plate design offers a trouble-free method for interchanging and installing external drains. The various options available (such as auto drain, twist drain, DPI gauge and assortment of filter grades) make this series easy to configure for your application.

  • Hi-Flow Coalescing Filter
  • Element (μm): 0.01, 1
  • Port Type: NPT, BSPP, BSPT
  • Port Size (in): 35F – 1-1/2″, 2:, 43F – 3″
  • Body Material: Aluminum
  • Bowl Material: Aluminum
  • Filter Material: Borosilicate, Activated Carbon (adsorber)
  • Seals: Fluorocarbon
  • Pressure Rating (PSIG): 250, 150 (with differential pressure indicator)
  • Pressure Rating (bar): 17.2, 10.3 (with differential pressure indicator)
  • Temperature Rating (F): 32° to 150°
  • Temperature Rating (C ): 0° to 65.5°
  • Flow SCFM: 710 (1-1/2″, 2″), 1770 (3″)
  • Drain Type: Auto Float Drain
  • Weight: 35F – 19.3 lb (8.7 kg), 43F – 32.8 lb (14.9 kg)

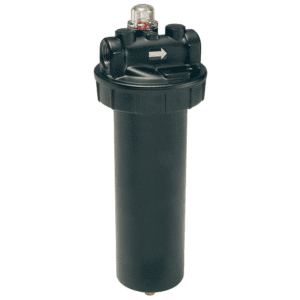

Main Line Particulate Filter – 35F/43F Series (High-Flow)

Parker Main Line Particulate Filter
Parker’s 35F/43F is a heavy duty, high flow particulate filter that delivers high moisture removal. The 35F/43F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance. The 34F/43F has heavy duty cast aluminum housings to withstand operating pressures up to 250 PSIG and a differential pressure indicator to eliminate the guess work of element replacement. The 34F/43F can easily be configured to your application.

  • Hi-Flow Filters
  • Element: 5 micron
  • Port Size (in): 1 1/2″, 2″, 3″
  • Drain Type: Automatic Float Drain
  • Thread Type: NPT, BSPP or BSPT
  • Maximum Supply Pressure (bar): Without DPI = 17.2 bar, With DPI = 10.3 bar
  • Maximum Supply Pressure (psi): Without DPI = 250 psig, With DPI = 150 psig
  • Operating Temperature (C): 0° to 65.5° C
  • Operating Temperature (F): 32° to 150° F
  • Mounting: Inline
  • Flow Capacity (SCFM): 1 1/2″ = 1280 SCFM, 2″ = 1400 SCFM, 3″ = 2900 SCFM
  • Body Material: Aluminum
  • Bowl Material: Aluminum
  • Filter Element: 5 Micron
  • Seals: Fluorocarbon
  • Weight: 35F = 19.3 lb (8.7 kg), 43F = 32.8 lb (14.9 kg)

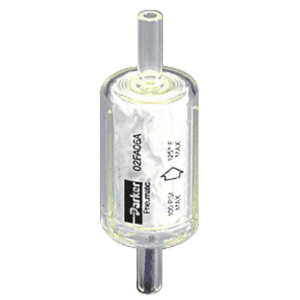

Miniature Coalescing Filter – 02F Series

Parker Miniature Coalescing Filter
Parker’s 02F Miniature Coalescing Filters are disposable inline filters designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The 02F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron.

  • Miniature Coalescing Filter
  • Element (μm): Grade 6, Grade 10
  • Port Size (in): 1/4″
  • Body Material: Nylon
  • Filter Material: Borosilicate
  • Seals: Positive Tube
  • Pressure Rating (psig): 100
  • Pressure Rating (bar): 0.69
  • Temperature Rating (F): 125°
  • Temperature Rating (C ): 52°
  • Flow SCFM: 3.5 (Grade 6), 5.3 (Grade 10)

Miniature Coalescing Filter – 10F Series (Oil Removal)


Parker’s 10F Miniature Coalescing Filter is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The 10F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The various options available (such as auto drain, twist drain and assortment of bowl options) make this series easy to configure for your application.

  • Miniature Coalescing Filter
  • Element (μm): Grade 6, Grade 10
  • Port Type: BSPP, BSPT, NPT
  • Port Size (in): 1/8″, 1/4″
  • Body Material: Zinc
  • Bowl Material: Transparent Polycarbonate, Zinc
  • Filter Material: Borosilicate and Felt Glass Fibers
  • Seals: Nitrile
  • Pressure Rating (psig): 150 (plastic), 250 (metal)
  • Pressure Rating (bar): 10.3 (plastic), 17.2 (metal)
  • Temperature Rating (F): 32° to 125° (plastic bowl, pulse drain), 32° to 175° (metal bowl)
  • Temperature Rating (C ): 0° to 52° (plastic bowl, pulse drain), 0° to 17.2° (metal bowl)
  • Flow SCFM:
    Grade 6 Element – 17 (1/8″), 20 (1/4″)
    Grade 10 Element – 19 (1/8″), 24 (1/4″)
  • Drain Type: Manual Twist Drain, Automatic Pulse Drain
  • Weight: .41 lb (0.18 kg)

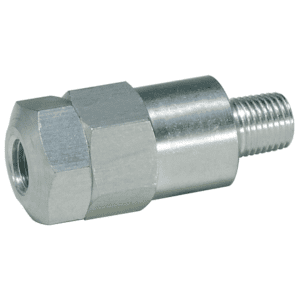

Particulate Filter – 02F Series (Miniature)

Parker Particulate Filter
Parker’s 02F is a miniature aluminum in-line filter used to remove solid particle contaminants down to 5 micron and the separation of bulk liquids. The small 02F is designed to provide protection for portable pneumatic hand tools. It weighs only 2 ounces with a throwaway filter element. Either port may be used as the inlet port.

  • Miniature Inline Filter
  • Element: 5 Micron
  • Port Size (in): 1/4″
  • Thread Type: NPT, BSPT
  • Maximum Supply Pressure (bar): 13.8
  • Maximum Supply Pressure (psi): 200
  • Operating Temperature (C): 0° to 65.5°
  • Operating Temperature (F): 32° to 150°
  • Mounting: Inline
  • Flow Capacity (SCFM): 17
  • Body Material: Aluminum
  • Filter Element: Sintered Polyethylene
  • Seals: Nitrile
  • Weight: 0.13 lbs (0.06 kg)

Particulate Filter – 05F Series, Prep-Air II (Economy)

Parker Particulate Filter
Parker’s 05F is an economy, heavy duty particulate filter that delivers high moisture removal in a compact package. The 05F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The 05F can also be mounted using a modular connector to other 05 air preparation product. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.

  • Compact filter
  • Element: 5 or 40 micron
  • Port Size (in) – 1/4″, 3/8″
  • Drain Type: Standard – Twist Drain, Optional – Automatic Float Drain
  • Thread Type: NPT or BSPP
  • Maximum Supply Pressure (bar):
    Polycarbonate Bowl = 0 to 10.3 bar,
    Metal Bowl = 0 to 17.2 bar,
    With Differential Pressure Indicator = 0 to 10.3 bar,
    Automatic Float Drain = 1.0 to 17.2 bar
  • Maximum Supply Pressure (psi):
    Polycarbonate Bowl = 0 to 150 psig,
    Metal Bowl = 0 to 250 psig,
    With Differential Pressure Indicator = 0 to 150 psig,
    Automatic Float Drain = 15 to 250 psig
  • Operating Temperature (C):
    Polycarbonate Bowl = 0° to 52° C,
    Metal Bowl = 0° to 80° C,
    With Differential Pressure Indicator = 0° to 52° C
  • Operating Temperature (F):
    Polycarbonate Bowl = 32° to 125° F,
    Metal Bowl = 32° to 175° F,
    With Differential Pressure Indicator = 32° to 125° F
  • Mounting: Inline or Mounting Bracket
  • Flow Capacity (SCFM):
    1/4″ = 54 SCFM,
    3/8″ = 70 SCFM
  • Body Material: Zinc
  • Bowl Material:
    Polycarbonate bowl with metal bowl guard. All metal (Zinc) bowl with or without sight gauge.
  • Sight Gauge Material: Polyamide
  • Filter Element: 40 Micron
  • Seals: Nitrile
  • Weight: 1.2 lb (0.54 kg)
  • Bowl Capacity: 2.0 oz

Particulate Filter – 06F Series, Prep-Air II (Compact)

Parker Particulate Filter
Parker’s 06F is a compact heavy duty particulate filter that delivers high moisture removal in a compact package. The 06F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The 06F can also be mounted using a modular connector to other 06 air preparation product. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.

  • Compact filter
  • Element: 5 or 40 Micron
  • Port Size (in): 1/4″, 3/8″, 1/2″
  • Drain Type: Standard – Twist Drain, Optional – Automatic Float Drain
  • Thread Type: NPT or BSPP
  • Maximum Supply Pressure (bar):
    Polycarbonate Bowl = 0 to 10.3 bar,
    Metal Bowl = 0 to 17.2 bar,
    With Differential Pressure Indicator = 0 to 10.3 bar,
    Automatic Float Drain = 1.0 to 17.2 bar
  • Maximum Supply Pressure (psi):
    Polycarbonate Bowl = 0 to 150 psig,
    Metal Bowl = 0 to 250 psig,
    With Differential Pressure Indicator = 0 to 150 psig,
    Automatic Float Drain = 15 to 250 psig
  • Operating Temperature (C):
    Polycarbonate Bowl = 0° to 52° C,
    Metal Bowl = 0° to 80° C,
    With Differential Pressure Indicator = 0° to 52° C
  • Operating Temperature (F):
    Polycarbonate Bowl = 32° to 125° F,
    Metal Bowl = 32° to 175° F,
    With Differential Pressure Indicator = 32° to 125° F
  • Mounting: Inline or Mounting Bracket
  • Flow Capacity (SCFM):
    1/4″ = 53 SCFM,
    3/8″ = 80 SCFM,
    1/2″ = 85 SCFM
  • Body Material: Zinc
  • Bowl Material:
    Polycarbonate bowl with metal bowl guard. All metal (Zinc) bowl with or without sight gauge
  • Sight Gauge Material: Polyamide
  • Filter Element: 5 Micron or 40 Micron
  • Seals: Nitrile
  • Weight: 1.4 lb (0.6 kg)
  • Bowl Capacity: 4.4 oz

Particulate Filter – 07F Series, Prep-Air II (Standard)

Parker Particulate Filter
Parker’s 07F is a standard heavy duty particulate filter that delivers high moisture removal in a compact package. The 07F is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance. The 07F can also be mounted using a modular connector to other 07 air preparation product. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.

  • Standard Filter
  • Element: 5 or 40 Micron
  • Port Size (in): 1/2″, 3/4″
  • Drain Type: Standard – Twist Drain, Optional – Automatic Float Drain
  • Thread Type: NPT or BSPP
  • Maximum Supply Pressure (bar):
    Polycarbonate Bowl = 0 to 10.3 bar,
    Metal Bowl = 0 to 17.2 bar,
    With Differential Pressure Indicator = 0 to 10.3 bar,
    Automatic Float Drain = 1.0 to 17.2 bar
  • Maximum Supply Pressure (psi):
    Polycarbonate Bowl = 0 to 150 psig,
    Metal Bowl = 0 to 250 psig,
    With Differential Pressure Indicator = 0 to 150 psig,
    Automatic Float Drain = 15 to 250 psig
  • Operating Temperature (C):
    Polycarbonate Bowl = 0° to 52° C,
    Metal Bowl = 0° to 80° C,
    With Differential Pressure Indicator = 0° to 52° C
  • Operating Temperature (F):
    Polycarbonate Bowl = 32° to 125° F,
    Metal Bowl = 32° to 175° F,
    With Differential Pressure Indicator = 32° to 125° F
  • Mounting: Inline or Mounting Bracket
  • Flow Capacity (SCFM):
    1/2″ = 130 SCFM,
    3/4″ = 145 SCFM
  • Body Material: Zinc
  • Bowl Material:
    Polycarbonate bowl with metal bowl guard. All metal (Zinc) bowl with or without sight gauge.
  • Sight Gauge Material: Polyamide
  • Filter Element: 5 Micron or 40 Micron
  • Seals: Nitrile
  • Weight: 2.2 lb (1.0 kg)
  • Bowl Capacity: 7.2 oz

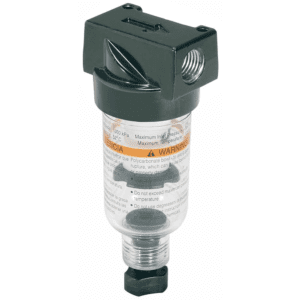

Particulate Filter – 14F Series (Miniature)

Parker Particulate Filter
Parker’s 14F is a miniature particulate filter that delivers high moisture removal in a compact package. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. With excellent water removal and various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.

  • Miniature Filter
  • Element: 5 or 40 Micron, Adsorber
  • Port Size (in): 1/8″, 1/4″
  • Drain Type: Twist Drain or Automatic Pulse Drain
  • Thread Type: NPT, BSPP or BSPT
  • Maximum Supply Pressure (bar):
    Polycarbonate Bowl = 0 to 10.3 bar,
    Metal Bowl = 0 to 17.2 bar,
    Automatic Pulse Drain = 0.7 to 17.2 bar
  • Maximum Supply Pressure (psi):
    Polycarbonate Bowl = 0 to 150 psig,
    Metal Bowl = 0 to 250 psig,
    Automatic Pulse Drain = 10 to 250 psig
  • Operating Temperature (C):
    Polycarbonate Bowl = 0° to 52° C,
    Metal Bowl = 0° to 80° C,
    Automatic Pulse Drain = 0° to 52° C
  • Operating Temperature (F):
    Polycarbonate Bowl = 32° to 125° F,
    Metal Bowl = 32° to 175° F,
    Automatic Pulse Drain = 32° to 125° F
  • Mounting: Inline or Mounting Bracket
  • Flow Capacity (SCFM): 1/8″ = 22 SCFM, 1/4″= 24 SCFM
  • Body Material: Zinc
  • Bowl Material: Polycarbonate Bowl or Metal (Zinc) Bowl
  • Filter Element: 5 Micron or 40 Micron, Adsorber
  • Seals: Nitrile
  • Weight: 0.41 lb. (0.18 kg)
  • Bowl Capacity: 1 oz

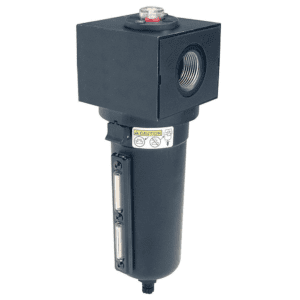

Particulate Filter – F602 Series (High-Flow)

Parker Particulate Filter
Parker’s F602 is a heavy duty particulate filter that delivers high moisture removal in a compact package. The F602 is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance. The various options available (such as auto drain, manual drain, and an assortment of bowl options) make this series easy to design to your application.

  • Hi Flow Filter
  • Element: 5 or 40 Micron
  • Port Size (in): 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″
  • Drain Type: Standard to Twist Drain, Optional to Automatic Float Drain
  • Thread Type: NPT or BSPP
  • Maximum Supply Pressure (bar):
    Aluminum Bowl = 0 to 20.4 bar,
    Zinc Bowl = 0 to 17.2 bar,
    With Internal Auto Drain = 1.4 to 11.9 bar,
    With External Auto Drain = 0 to 17.2 bar
  • Maximum Supply Pressure (psi):
    Aluminum Bowl = 0 to 300 psig,
    Zinc Bowl = 0 to 250 psig,
    With Internal Auto Drain = 20 to 175 psig,
    With External Auto Drain = 0 to 250 psig
  • Operating Temperature (C):
    Aluminum Bowl = 4.4° to 65.6° C,
    Zinc Bowl = 4.4° to 65.6° C,
    With Internal Auto Drain = 4.4° to 52° C,
    With External Auto Drain = 4.4° to 65.6° C
  • Operating Temperature (F) :
    Aluminum Bowl = 40° to 150° F,
    Zinc Bowl = 40° to 150° F,
    With Internal Auto Drain = 40° to 125° F,
    With External Auto Drain = 40° to 150° F
  • Mounting: Inline or Mounting Bracket
  • Flow Capacity (SCFM):
    3/4″ = 270 SCFM, 1″ = 300 SCFM,
    1 1/4″ = 390 SCFM,
    1 1/2″ = 450 SCFM
    2″ & 2 1/2″ = 1200 SCFM
  • Body Material: Zinc for 3/4″ to 1 1/2″ size, Aluminum for 2 to 2 1/2″ size
  • Bowl Material: Aluminum without Sight Gauge, Zinc with Sight Gauge
  • Sight Gauge Material: Nylon
  • Filter Element: 5 Micron or 40 Micron (3/4″ to 1 1/2″), 40 Micron (2″ to 2 1/2″)
  • Seals: Nitrile for 3/4″ to 1 1/2″, Buna N for 2 to 2 1/2″
  • Weight:
    3/4″ to 1″ Aluminum Bowl = 7 lb (3.18 kg), Zinc Bowl = 6.3 lb (2.86 kg)
    1 1/4″ to 1 1/2″ Aluminum Bowl = 7.7 lb (3.49 kg), Zinc Bowl = 7 lb (3.18 kg)
    2″ to 2 1/2″ Aluminum Bowl = 10.3 lb (4.67 kg), Zinc Bowl = 9.8 lb (4.45 kg)
  • Bowl Capacity: Aluminum Bowl to 32 oz, Zinc Bowl to 16 oz

Particulate Filter – P3NF Series (High-Flow)

Parker Particulate Filter
Parker’s P3NF is a heavy duty, high flow particulate filter that delivers high moisture removal. The P3NF is used for the removal of solid particle contaminants down to 40 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance. With various options available, the P3NF can easily be configured to your application.

  • Hi-Flow Filters
  • Element: 40 micron
  • Port Size (in): 3/4″, 1″, 1-1/2″
  • Drain Type: Manual Twist Drain or Automatic Float Drain
  • Thread Type: NPT, BSPP
  • Maximum Supply Pressure (bar): 0 to 17 bar, 1 to 17 bar (Automatic Float Drain)
  • Maximum Supply Pressure (psi): 0 to 250 psig, 15 to 250 psig (Automatic Float Drain)
  • Operating Temperature (C): 0° to 80° C
  • Operating Temperature (F): 32° to 175° F
  • Mounting: Inline or Mounting Bracket
  • Flow Capacity (SCFM): 3/4″ = 270 SCFM, 1″ = 300 SCFM, 1-1/2″ = 310 SCFM
  • Body Material: Aluminum
  • Bowl Material: Aluminum
  • Filter Element: 40 Micron
  • Seals: Nitrile
  • Weight: 3/4″ & 1″= 3.5 lb (1.6 kg), 1-1/2″ = 4.6 lb (2.1 kg)
  • Bowl Capacity: 18 oz

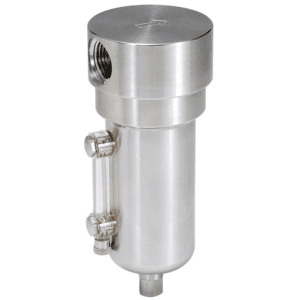

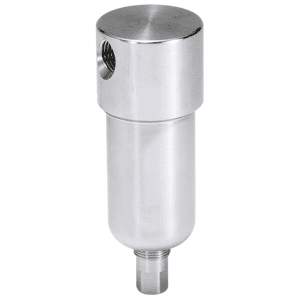

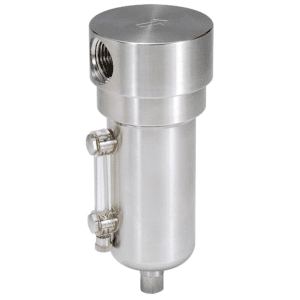

Stainless Steel Particulate Filter – PF10 (Standard)

Parker Stainless Steel Particulate Filter
Parker’s PF10 stainless steel filter delivers high moisture removal in a compact package. The PF10 is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance. The PF10 meets NACE specifications MR-01 / ISO 15156 and can be easily configured for your application.

  • Stainless Steel Filter
  • Element: 5 or 40 Micron
  • Port Size (in): 1/2″
  • Drain Type: Manual Twist Drain or Automatic Float Drain
  • Thread Type: NPT or BSPP
  • Maximum Supply Pressure (bar):
    Without Sight Gauge = 0 to 20.7 bar,
    With Sight Gauge = 0 to 17.2 bar,
    With Automatic Float Drain = 0 to 12 bar
  • Maximum Supply Pressure (psi):
    Without Sight Gauge = 0 to 300 psig,
    With Sight Gauge = 0 to 250 psig,
    With Automatic Float Drain = 10 to 175 psig
  • Operating Temperature (C):
    Without Sight Gauge = -18° to 82° C,
    With Sight Gauge = -18° to 66° C,
    With Automatic Float Drain = 0° to 66° C
  • Operating Temperature (F):
    Without Sight Gauge = 0° to 180° F,
    With Sight Gauge = 0° to 150° F,
    With Automatic Float Drain = 32° to 150° F
  • Mounting: Inline
  • Flow Capacity (SCFM): 70
  • Body Material: 316 Stainless Steel
  • Bowl Material: 316 Stainless Steel
  • Sight Gauge Material: Isoplast
  • Filter Element: 5 Micron or 40 Micron
  • Seals: Fluorocarbon
  • Weight: 1.9 lb (0.85 kg)
  • Bowl Capacity: 4 oz

Stainless Steel Particulate Filter – PF504 (Miniature)

Parker Stainless Steel Particulate Filter
Parker’s PF504 is a stainless steel miniature filter that delivers high moisture removal in a compact package. The PF504 is used for the removal of solid particle contaminants down to 5 micron and the separation of bulk liquids. This type of filter is generally used in industrial applications where liquid water, oil, and harmful dirt particles must be removed from the compressed air system. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The PF504 meets NACE specifications MR-01 / ISO 15156 and can be easily configured for your application.

  • Stainless Steel Filter
  • Element: 5 or 20 micron
  • Port Size (in): 1/4″
  • Drain Type: Manual Twist Drain or Automatic Float Drain
  • Thread Type: NPT or BSPP
  • Maximum Supply Pressure (bar):
    Without Sight Gauge = 0 to 20.7 bar,
    With Sight Gauge = 0 to 17.2 bar,
    With Automatic Float Drain = 0 to 12 bar
  • Maximum Supply Pressure (psi):
    Without Sight Gauge = 0 to 300 psig,
    With Sight Gauge = 0 to 250 psig,
    With Automatic Float Drain = 10 to 175 psig
  • Operating Temperature (C):
    Without Sight Gauge = -18° to 82° C,
    With Sight Gauge = -18° to 66° C,
    With Automatic Float Drain = 0° to 66° C
  • Operating Temperature (F):
    Without Sight Gauge = 0° to 180° F,
    With Sight Gauge = 0° to 150° F,
    With Automatic Float Drain = 32° to 150° F
  • Mounting: Inline
  • Flow Capacity (SCFM): 23 SCFM
  • Body Material: 316 Stainless Steel
  • Bowl Material: 316 Stainless Steel
  • Sight Gauge Material: Isoplast
  • Filter Element: 5 Micron or 20 Micron
  • Seals: Fluorocarbon
  • Weight: 0.6 lb (0.27 kg)
  • Bowl Capacity: 1.0 oz

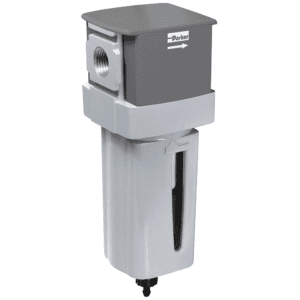

Standard Coalescing Filter – 12F Series, Prep-Air II (Oil Removal)

Parker Standard Coalescing Filter
Parker’s 12F Standard Modular Coalescing Filter is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The 12F is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. The modular style of the 12F allows you to connect any combination of similar air preparation product by using connector brackets. The 12F comes standard with a polycarbonate bowl, wrapped with a metal bowl guard, providing 360 degrees of visibility to content inside the bowl. The various options available (such as auto drain, twist drain, DPI gauge and assortment of bowl options) make this series easy to configure for your application.

  • Standard Coalescing Filter
  • Element (μm): Grade 6, Grade 10
  • Port Type: NPT, BSPP
  • Port Size (in): 1/2″, 3/4″
  • Body Material: Zinc
  • Bowl Material: Polycarbonate, Zinc
  • Filter Material: Borosilicate
  • Seals: Nitrile
  • Pressure Rating (psig): 150 (plastic and with differential pressure indicator), 250 (metal)
  • Pressure Rating (bar): 10.3 (plastic and with differential pressure indicator), 17.2 (metal)
  • Temperature Rating (F): -13° to 125° (plastic bowl), -13° to 150° (metal bowl)
  • Temperature Rating (C ): -25° to 52° (plastic bowl), -25° to 65.5° (metal bowl)
  • Flow SCFM:
    Grade 6 – 75 (1/2″), 80 (3/4″)
    Grade 10 – 125 (1/2″), 160 (3/4″)
  • Drain Type: Manual Twist Drain, Automatic Float Drain
  • Weight: 2.4 lb (1.1 kg)

Standard Coalescing Filter – PF11 Series, (Oil Removal)

Parker Standard Coalescing Filter
Parker’s PF11 Stainless Steel Coalescing Filter is designed to remove liquid aerosols, water, oil and submicron particulate matter from your pneumatic system. These filters will provide oil free air for several demanding applications. The PF11 is specifically designed for the removal of solid particles, water and oil aerosols down to 0.01 micron. Stainless steel construction handles most corrosive environments and demanding applications. The PF11 meets NACE specifications. The various options available makes this series easy to configure for your application.

  • Standard Stainless Steel Coalescing Filter
  • Element (μm): 0.01
  • Port Type: NPT, BSPP
  • Port Size (in): 1/2″
  • Body Material: 316 Stainless Steel
  • Bowl Material: 316 Stainless Steel
  • Filter Material: Borosilicate
  • Seals: Fluorocarbon
  • Pressure Rating (psig): 300 (manual drain), 250 (manual drain W), 175 (auto drain)
  • Pressure Rating (bar): 20.7 (manual drain), 17.2 (manual drain W), 12 (auto drain)
  • Temperature Rating (F): 0° to 180° (manual drain), 0° to 150° (manual drain W), 32° to 150° (auto drain)
  • Temperature Rating (C ): -18° to 82° (manual drain), -18° to 66° (manual drain W), 0° to 66° (auto drain)
  • Flow SCFM: 45
  • Drain Type: Manual Twist Drain, Automatic Float Drain
  • Weight: 1.9 lb (0.85 kg)

For more information about these products…
 Download a Catalog
