Filter Regulator Lubricator (FRL) Combinations

Product Lineup

Click to Jump to:

Modular FRL Combinations | Pipe Nippled FRL Combinations | Filter Regulator Combinations

Modular FRL Combinations

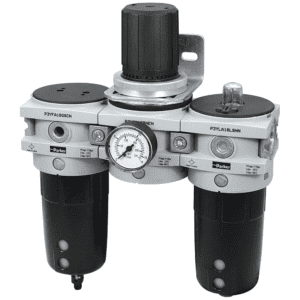

Global Hi-Flow Modular FRL Combo – P3YCA Series

Parker’s P3YCA is a 2-piece modular mounted integral particulate filter / regulator and mist style lubricator built as one configurable part number. The P3YCA provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. The P3YCA has a filter / regulator which minimizes space and piping by incorporating two units into one. This full featured P3Y high flow combo can be easily configured to meet all of your air preparation needs.

Element: 5
Port Size: 3/4in, 1in
Gauge Port Size: 1/4in
Drain Option: Twist/Semi-Automatic, Automatic Float
Port Type: NPTF, BSPP
Maximum Inlet Pressure (psig): 254
Maximum Inlet Pressure (bar): 17.5
Operating Temperature (°F): -40 to 140
Operating Temperature (°C): -40 to 60
Pressure Control Range (psig): 1 to 174 | 1 to 232
Pressure Control Range (bar): 0 to 12 | 0 to 16
Flow Rate (SCFM): 246 to 252
Flow Rate (dm3/s): 116 to 119
Body Material: Aluminum
Bowl Material: Aluminum
Seal Material: Nitrile

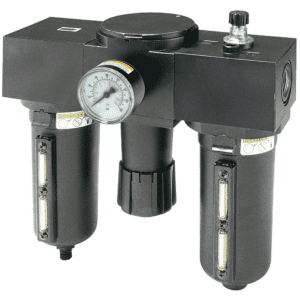

Global Hi-Flow Modular FRL Combo – P3YCB Series

Parker’s P3YCB is a 3-piece modular mounted particulate filter, regulator and mist style lubricator built as one configurable part number. The P3YCB provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. This full featured P3N high flow combo can be easily configured to meet all of your air preparation needs. This full featured P3Y high flow combo can be easily configured to meet all of your air preparation needs.

Element: 5
Port Size: 3/4in, 1in
Gauge Port Size: 1/4in
Drain Option: Twist/Semi-Automatic, Automatic Float
Port Type: NPTF, BSPP
Maximum Inlet Pressure (psig): 254
Maximum Inlet Pressure (bar): 17.5
Operating Temperature (°F): -40 to 140
Operating Temperature (°C): -40 to 60
Pressure Control Range (psig): 1 to 174 | 1 to 232
Pressure Control Range (bar): 0 to 12 | 0 to 16
Flow Rate (SCFM): 246 to 252
Flow Rate (dm3/s): 116 to 119
Body Material: Aluminum
Bowl Material: Aluminum
Seal Material: Nitrile

Mini Global Modular FRL Combo – P31 Series

Parker’s P31 mini combo can be configured as a 2 or 3-piece modular mounted particulate filter, regulator and mist style lubricator, built as one configurable part number. The P31 combo provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. This fully featured P31 mini combo can be easily configured to meet all of your air preparation needs.

Element: 5, 1.0, 0.01, Adsorber
Port Size: 1/4in, 3/8in, 1/2in
Gauge Port Size: 1/4in
Drain Option: Manual, Auto
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): -13 to 150
Operating Temperature (°C): -25 to 65.5
Pressure Control Range (psig): 0 to 30 | 0 to 60 | 0 to 125 | 0 to 250
Pressure Control Range (bar): 0 to 2 | 0 to 4 | 0 to 8 | 0 to 17
Flow Rate (SCFM): 50 to 82
Flow Rate (dm3/s): 24 to 39
Body Material: Aluminum
Bowl Material: Polycarbonate, Aluminum
Seal Material: Nitrile

Compact Global Modular FRL Combo – P32 Series

Parker’s P32 compact combo can be configured as a 2 or 3-piece modular mounted particulate filter, regulator and mist style lubricator, built as one configurable part number. The P32 compact combo provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. This fully featured P32 compact combo can be easily configured to meet all of your air preparation needs.

Element: 5, 1.0, 0.01, Adsorber
Port Type: BSPP, BSPT, NPT
Port Size: 1/4″, 3/8″, 1/2″
Relief: Relieving, Non-Relieving
Combination: B/V+Combination, Combination+B/V, Combination
Combination Type: F/R+L, F+R+L, F+Fc, F+Fc+Fa, F/R+Fc, F+Fc1+Fc
Drain Type: Manual, Auto
Supply Pressure (bar): 10 (Plastic Bowl) / 17 (Metal Bowl)
Supply Pressure (psig): 150 (Plastic Bowl) / 250 (Metal Bowl)
Secondary Pressure (bar): 6.3
Secondary Pressure (psig): 91.3
Pressure Drop (bar): 1
Pressure Drop (psig): 14.5
Mounting: No Bracket, Port Blocks, Port Blocks & Wall Bracket, Wall Bracket
Flow Capacity (SCFM): 42 to 90
Body Material: Aluminum
Bowl Material: Polycarbonate, Aluminum
Filter Element: Sintered Polyethylene
Seals: Nitrile
Filter Gauge: No Gauge, Round Gauge
Filter DPI Availability: Yes
Weight (kg): 1.03 to 1.29
Regulator Pressure (psig): 30, 60, 125, 250
Regulator Pressure (bar): 2, 4, 8, 17

Standard Global Modular FRL Combo – P33 Series

Parker’s P33 standard combo can be configured as a 2 or 3-piece modular mounted particulate filter, regulator and mist style lubricator, built as one configurable part number. The P33 standard combo provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. This fully featured P33 standard combo can be easily configured to meet all of your air preparation needs.

Element: 5, 1.0, 0.01, Adsorber
Port Size: 1/2in, 3/4in
Gauge Port Size: 1/4in
Drain Option: Manual, Auto
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): -13 to 150
Operating Temperature (°C): -25 to 65.5
Pressure Control Range (psig): 0 to 30 | 0 to 60 | 0 to 125 | 0 to 250
Pressure Control Range (bar): 0 to 2 | 0 to 4 | 0 to 8 | 0 to 17
Flow Rate (SCFM): 85 to 102
Flow Rate (dm3/s): 40 to 48
Body Material: Aluminum
Bowl Material: Polycarbonate, Aluminum
Seal Material: Nitrile

Compact Modular 2-Unit Micro-Mist FRL Combo – 16H Series

Parker’s 16H is a 2-piece modular mounted integral particulate filter / regulator and micro mist style lubricator built as one configurable part number. The 16H provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. The 16H has a filter / regulator which minimizes space and piping by incorporating two units into one.

Element: 5, 40
Port Size: 1/4in, 3/8in, 1/2in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 125
Operating Temperature (°C): 0 to 52
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 53 to 85
Flow Rate (dm3/s): 25 to 40
Body Material: Zinc
Bowl Material: Poly Carbonate, Zinc
Seal Material: Nitrile

Compact Modular 2-Unit Mist FRL Combo – 06H Series

Parker’s 06H is a 2-piece modular mounted integral particulate filter / regulator and mist style lubricator built as one configurable part number. The 06H provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. The 06H has a filter / regulator which minimizes space and piping by incorporating two units into one.

Element: 5, 40
Port Size: 1/4in, 3/8in, 1/2in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 125
Operating Temperature (°C): 0 to 52
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 53 to 85
Flow Rate (dm3/s): 25 to 40
Body Material: Zinc
Bowl Material: Poly Carbonate, Zinc
Seal Material: Nitrile

Compact Modular 3-Unit Micro-Mist FRL Combo – 16B Series

Parker’s 16B is a 3-piece modular mounted particulate filter, regulator and micro mist style lubricator built as one configurable part number. The 16B provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows.

Element: 5, 40
Port Size: 1/4in, 3/8in, 1/2in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 125
Operating Temperature (°C): 0 to 52
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 53 to 85
Flow Rate (dm3/s): 25 to 40
Body Material: Zinc
Bowl Material: Poly Carbonate, Zinc
Seal Material: Nitrile

Compact Modular 3-Unit Mist FRL Combo – 06B Series

Parker’s 06B is a 3-piece modular mounted particulate filter, regulator and mist style lubricator, built as one configurable part number. The 06B provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows.

Element: 5, 40
Port Size: 1/4in, 3/8in, 1/2in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 125
Operating Temperature (°C): 0 to 52
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 53 to 85
Flow Rate (dm3/s): 25 to 40
Body Material: Zinc
Bowl Material: Poly Carbonate, Zinc
Seal Material: Nitrile

Hi-Flow Modular 2-Unit Mist FRL Combo – P3NCA Series

Parker’s P3NCA is a 2-piece modular mounted integral particulate filter / regulator and mist style lubricator built as one configurable part number. The P3NCA provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. The P3NCA has a filter / regulator which minimizes space and piping by incorporating two units into one. This full featured P3N high flow combo can be easily configured to meet all of your air preparation needs.

Element: 40
Port Size: 3/4in, 1in, 1-1/2in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: NPTF, BSPP,BSPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 175
Operating Temperature (°C): 0 to 80
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 270 to 300
Flow Rate (dm3/s): 127 to 141
Body Material: Aluminum
Bowl Material: Aluminum
Seal Material: Nitrile

Hi-Flow Modular 3-Unit Mist FRL Combo – P3NCB Series

Parker’s P3NCB is a 3-piece modular mounted particulate filter, regulator and mist style lubricator built as one configurable part number. The P3NCB provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. This full featured P3N high flow combo can be easily configured to meet all of your air preparation needs. This full featured P3N high flow combo can be easily configured to meet all of your air preparation needs.

Element: 40
Port Size: 3/4in, 1in, 1-1/2in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: NPTF, BSPP,BSPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 175
Operating Temperature (°C): 0 to 80
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 270 to 300
Flow Rate (dm3/s): 127 to 141
Body Material: Aluminum
Bowl Material: Aluminum
Seal Material: Nitrile

Standard Modular 2-Unit Micro-Mist FRL Combo – 17H Series

Parker’s 17H is a 2-piece modular mounted integral particulate filter / regulator and micro mist style lubricator built as one configurable part number. The 17H provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. The 17H has a filter / regulator which minimizes space and piping by incorporating two units into one.

Element: 5, 40
Port Size: 3/8in, 1/2in, 3/4in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 125
Operating Temperature (°C): 0 to 52
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 100 to 145
Flow Rate (dm3/s): 47 to 68
Body Material: Zinc
Bowl Material: Poly Carbonate | Zinc
Seal Material: Nitrile

Standard Modular 2-Unit Mist FRL Combo – 07H Series

Parker’s 07H is a 2-piece modular mounted integral particulate filter / regulator and mist style lubricator built as one configurable part number. The 07H provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows. The 07H has a filter / regulator which minimizes space and piping by incorporating two units into one.

Element: 5, 40
Port Size: 3/8in, 1/2in, 3/4in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 125
Operating Temperature (°C): 0 to 52
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 100 to 145
Flow Rate (dm3/s): 47 to 68
Body Material: Zinc
Bowl Material: Poly Carbonate, Zinc
Seal Material: Nitrile

Standard Modular 3-Unit Micro-Mist FRL Combo – 17B Series

Parker’s 17B is a 3-piece modular mounted particulate filter, regulator and micro mist style lubricator built as one configurable part number. The 17B provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows.

Element: 5, 40
Port Size: 3/8in, 1/2in, 3/4in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 125
Operating Temperature (°C): 0 to 52
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 100 to 145
Flow Rate (dm3/s): 47 to 68
Body Material: Zinc
Bowl Material: Poly Carbonate | Zinc
Seal Material: Nitrile

Standard Modular 3-Unit Mist FRL Combo – 07B Series

Parker’s 07B is a 3-piece modular mounted particulate filter, regulator and mist style lubricator built as one configurable part number. The 07B provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows.

Element: 5, 40
Port Size: 3/8in, 1/2in, 3/4in
Gauge Port Size: 1/4in
Drain Option: Twist, Automatic Float
Port Type: BSPP, BSPT, NPT
Maximum Inlet Pressure (psig): 250
Maximum Inlet Pressure (bar): 17
Operating Temperature (°F): 32 to 125
Operating Temperature (°C): 0 to 52
Pressure Control Range (psig): 1 to 60 | 2 to 125 | 1 to 250
Pressure Control Range (bar): 0 to 4 | 0 to 8|0 to 17
Flow Rate (SCFM): 100 to 145
Flow Rate (dm3/s): 47 to 68
Body Material: Zinc
Bowl Material: Poly Carbonate, Zinc
Seal Material: Nitrile

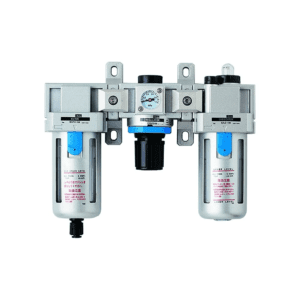

Modular Type FRL – Model: EFRL2

Lightweight and compact modular type air control unit EFRL2 series. It is an indispensable device for pneumatic control that combines a filter, regulator, and lubricator.
The EFRL2 series is a modular type air control unit with a lightweight and compact design. It is an indispensable device for Pneumatic control that combines a filter, regulator, and lubricator.
The 2-piece and 3-piece set can be easily disassembled and assembled with a connecting joint, improving maintainability.

Product Type: 3-piece Set(Air filter,Regulator,Lubricator)
Port Size: Rc1/4(08) Rc3/8(10) Rc1/2(15)
For Fluid Type: Air
Minimum Flow Rate: 63ℓ/min(ANR) Rate when about 5 drops of turbine oil are given for 1min. at a set pressure primary pressure of 0.63MPa.
Maximum Operating Pressure: 0.93 MPa
Pressure Rating: 0.05 to 0.83MPa
Operating Temperature: +5 to +60℃ °C
Filter Element Type: 5μm
Drain: 60cm³
Drain Option: Standard:With manual drain(Rotary type) Semi-standard:With automatic drain(A) The minimum operating pressure of automatic drain is 0.15MPa.
Lubricant: Turbine oil Class 1(Additive-free) ISO VG32 or its equivalent
Tank Capacity: 90cm³
Accessories Included: Type D pressure gauge(With mounting plate),Metallic case(With gauge),Gauge port plateWeight: 1.4 kg

P3X (F/R+L) Combos (Lite)

Product Type: P3X Combination
Configuration: F/R+L
Filter Element Type: 5µ | 40µ
Port Size: 1/2″ | 3/4″ | 1/2″ NPT only
Gauge Port Size: 1/4″
Drain Option: Combined Manual / Semi-Auto | Auto Drain
Port Type: BSPP | NPT
Maximum Inlet Pressure Rating: 232 (high tech polymer) psig, 16 (high tech polymer) bar
Operating Temperature: 14° to 140° °F, -10° to 60° °C
Pressure Control Range: 0 to 60 | 0 to 125 | 0 to 232 psig, 0 to 4 | 0 to 8 |0 to 16 bar
Flow Rate: 161 (1/2″) | 163 (3/4″) SCFM, 76 (1/2″) | 77 (3/4″) dm3/sec
Body Material: High Tech Polymer
Bowl Type: High Tech Polymer
Seal Material: Nitrile

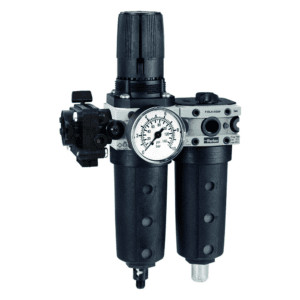

P3X (SV+F/R+L) Combos (Lite)

P3XAA is a 169mm combo, 1/2″,3/4″ BSPP (NPT 1/2″) port, slide valve, 5/40µ, high tech polymer bowl with combined manual/semi-auto or auto drain. Max pressure 16 bar with P2 ranges 0 to 4, 8 & 16 bar, nano-mist lub. Temp -10°C to 60°C.
Parker’s P3L Lite combo is a configured 2-piece unit consisting a filter regulator and mist style lubricator as one part number. The P3L combo provides accurate pressure regulation, high moisture removal efficiency, and proportional oil delivery over a wide range of air flows. This fully featured P3L Lite combo can be assembled ready for use.

Product Type: P3X Combination
Configuration: F/R+L
Filter Element Type: 5µ | 40µ
Port Size: 1/2″ | 3/4″ | 1/2″ NPT only
Gauge Port Size: 1/4″
Drain Option: Combined Manual / Semi-Auto | Auto Drain
Port Type: BSPP | NPT
Maximum Inlet Pressure Rating: 232 (high tech polymer) psig, 16 (high tech polymer) bar
Operating Temperature: 14° to 140° °F, -10° to 60° °C
Pressure Control Range: 0 to 60 | 0 to 125 | 0 to 232 psig, 0 to 4 | 0 to 8 |0 to 16 bar
Flow Rate: 161 (1/2″) | 163 (3/4″) SCFM, 76 (1/2″) | 77 (3/4″) dm3/sec
Body Material: High Tech Polymer
Bowl Type: High Tech Polymer
Seal Material: Nitrile

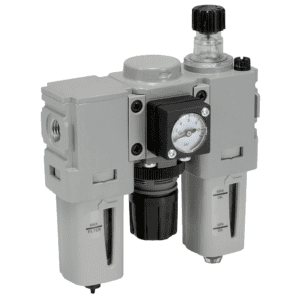

QUBE FRL Combo Series C45, C65, C105

The QUBE system unit offers flexible and extensive configurability by enabling the combination of various components and attachments, making it easy to create tailored tuning and pressure control units.
The conventional piping components, such as “tee,” “elbow,” “cross,” and “nipple,” have been modularized. This allows for flexible combinations with a wide range of options, such as shut-off valves and pressure switches. As a result, the system achieves significant space savings and a significant reduction in piping work.
In the QUBE series, components can be directly connected to each other, resulting in a significant reduction of occupied space. The assembly dimensions are determined solely by the sum of the component dimensions.
The QUBE series offers a wide range of variations with 3 body sizes and connection port sizes from Rc1/ 8 to Rc3 / 4, allowing for optimal selection according to flow rate and piping.
The QUBE series features ports one size larger than necessary for flow rate and body size, which can result in cost savings by selecting one size smaller series based on flow rate.
In the QUBE series, different series can be connected to each other, allowing for the optimal combination of series depending on the flow rate of the branch when deployed in a system unit.

Pipe Nippled FRL Combinations

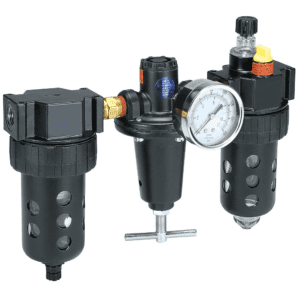

Pipe Nippled FRL 3-Piece Combo – C628 Series

Parker’s C628 is an industrial heavy duty 3-piece pipe nippled particulate filter, regulator and mist style lubricator built as one configurable part number. The C628 provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows.

3-Unit Standard Combination FRL
Element: 5m, 40m
Port Type: NPT
Port Size (in): 3/4″, 1″, 1-1/4″, 1-1/2″
Relief: Relieving, Non-Relieving
Drain Type: Automatic Float, Manual Twist
Lubricator Body Option: Button Head Fill Fitting
Maximum Supply Pressure (bar): 11.9 Internal Auto Drain, 10.2 Sight Gauge, 17.2 Zinc Bowl, 20.4 Aluminum Bowl
Maximum Supply Pressure (psi): 175 Internal Auto Drain, 150 Sight Gauge, 250 Zinc Bowl, 300 Aluminum Bowl
Operating Temperature (C): 4.4 to 52
Operating Temperature (F): 40 to 125
Mounting: Inline or Mounting Bracket
Flow Capacity (SCFM): 270 (3/4″), 300 (1″), 390 (1-1/4″), 400 (1-1/2)
Body Material: Zinc
Bowl Material: Aluminum, Zinc
Filter Element: Polypropylene
Seals: Nitrile
Drains: Brass, Acetyl, Bronze
Sight Domes: Nylon

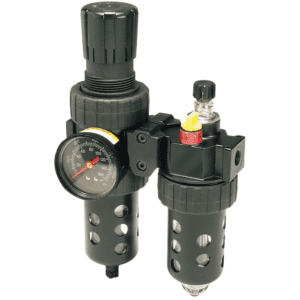

Pipe Nippled FRL 2-Piece Combo – 17G Series

Parker’s 17G is a 2-piece pipe nippled integral particulate filter / regulator and micro mist style lubricator built as one configurable part number. The 17G provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows. The 17G has a filter / regulator which minimizes space and piping by incorporating two units into one.

2-Unit Close Nippled Combination Standard (Micro-Mist)
Element: 5m, 40m
Port Type: NPT
Port Size (in): 3/8″, 1/2″, 3/4″
Relief: Relieving, Non-Relieving
Drain Type: Automatic Float, Manual Twist
Lubricator Body Option: Fill Plug, Body Pressure Fill
Maximum Supply Pressure (bar): 10.3 Plastic Bowls, 17.2 Metal Bowls
Maximum Supply Pressure (psi): 150 Plastic Bowls, 250 Metal Bowls
Operating Temperature (C): 0 to 52 Plastic Bowls, 0 to 80 Metal Bowls
Operating Temperature (F): 32 to 125 Plastic Bowls, 32 to 175 Metal Bowls
Mounting: Inline or Mounting Bracket
Flow Capacity (SCFM): 90
Body Material: Zinc
Bowl Material: Zinc, Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate
Bowl Guard: Steel

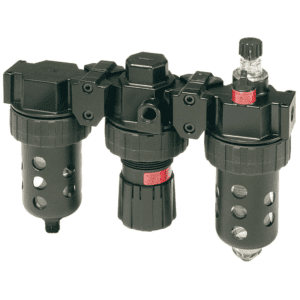

Pipe Nippled FRL 3-Piece Combo – 17A Series

Parker’s 17A is a 3-piece pipe nippled particulate filter, regulator and micro mist style lubricator built as one configurable part number. The 17A provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows.

3-Unit Close Nippled Combination Standard (Micro-Mist)
Element: 5m, 40m
Port Type: NPT
Port Size (in): 3/8″, 1/2″, 3/4″
Relief: Relieving, Non-Relieving
Drain Type: Automatic Float, Manual Twist
Lubricator Body Option: Fill Plug, Body Pressure Fill
Maximum Supply Pressure (bar): 10.3 Plastic Bowls, 17.2 Metal Bowls
Maximum Supply Pressure (psi): 150 Plastic Bowls, 250 Metal Bowls
Operating Temperature (C): 0 to 52 Plastic Bowls, 0 to 80 Metal Bowls
Operating Temperature (F) 32 to 125 Plastic Bowls, 32 to 175 Metal Bowls
Mounting: Inline or Mounting Bracket
Flow Capacity (SCFM): 90
Body Material: Zinc
Bowl Material: Zinc, Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate
Bowl Guard: Steel

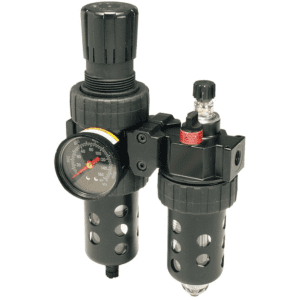

Pipe Nippled FRL 2-Piece Combo – 16G Series

Parker’s 16G is a 2-piece pipe nippled integral particulate filter / regulator and micro mist style lubricator built as one configurable part number. The 16G provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows. The 16G has a filter / regulator which minimizes space and piping by incorporating two units into one.

2-Unit Close Nippled Combination Compact (Micro-Mist)
Element: 5m, 40m
Port Type: NPT
Port Size (in): 1/4″, 3/8″, 1/2″
Relief: Relieving, Non-Relieving
Drain Type: Automatic Float, Manual Twist
Lubricator Body Option: Fill Plug, Body Pressure Fill
Maximum Supply Pressure (bar): 10.3 Plastic Bowls, 17.2 Metal Bowls
Maximum Supply Pressure (psi): 150 Plastic Bowls, 250 Metal Bowls
Operating Temperature (C): 0 to 52 Plastic Bowls, 0 to 80 Metal Bowls
Operating Temperature (F) 32 to 125 Plastic Bowls, 32 to 175 Metal Bowls
Mounting: Inline or Mounting Bracket
Flow Capacity (SCFM): 40 (1/4″), 55 (3/8″), 61 (1/2″)
Body Material: Zinc
Bowl Material: Zinc, Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate
Bowl Guard: Steel

Pipe Nippled FRL 3-Piece Combo – 16A Series

Parker’s 16A is a 3-piece pipe nippled particulate filter, regulator and micro mist style lubricator built as one configurable part number. The 16A provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows.

3-Unit Close Nippled Combination Compact (Micro-Mist)
Element: 5m, 40m
Port Type: NPT, BSPP, BSPT
Port Size (in): 1/4″, 3/8″, 1/2″
Relief: Relieving, Non-Relieving
Drain Type: Automatic Float, Manual Twist
Lubricator Body Option: Fill Plug, Body Pressure Fill
Maximum Supply Pressure (bar): 10.3 Plastic Bowls, 17.2 Metal Bowls
Maximum Supply Pressure (psi): 150 Plastic Bowls, 250 Metal Bowls
Operating Temperature (C): 0 to 52 Plastic Bowls, 0 to 80 Metal Bowls
Operating Temperature (F): 32 to 125 Plastic Bowls, 32 to 175 Metal Bowls
Mounting: Inline or Mounting Bracket
Flow Capacity (SCFM): 40 (1/4″), 55 (3/8″), 61 (1/2″)
Body Material: Zinc
Bowl Material: Zinc, Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate
Bowl Guard: Steel

Pipe Nippled FRL 3-Piece Combo – 14A Series

Parker’s 14E is a 3-piece pipe nippled miniature particulate filter, regulator and mist style lubricator built as one configurable part number. The 14E provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows.

3-Unit Close Nippled Combination Miniature
Element 5m, 40m
Port Type: NPT
Port Size (in): 1/8″, 1/4″
Relief: Relieving, Non-Relieving
Drain Type: Pulse, Manual
Lubricator Body Option: No Fill Plug
Maximum Supply Pressure (bar): 17.2
Maximum Supply Pressure (psi): 250
Operating Temperature (C): 0 to 52, 0 to 80 (metal bowl)
Operating Temperature (F): 32 to 125, 32 to 175 (metal bowl)
Mounting: Mounting Bracket or Inline
Flow Capacity (SCFM): 12 (1/8″), 15 (1/4″)
Body Material: Zinc
Bowl Material: Zinc, Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate

Pipe Nippled FRL 2-Piece Combo – 07G Series

Parker’s 07G is a 2-piece pipe nippled integral particulate filter / regulator and mist style lubricator built as one configurable part number. The 07G provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows. The 07G has a filter / regulator which minimizes space and piping by incorporating two units into one.

2 Unit Close Nippled Combination Standard (Mist)
Element: 5m, 40m
Port Type: NPT
Port Size (in): 3/8″, 1/2″, 3/4″
Relief: Relieving, Non-Relieving
Drain Type: Automatic Float, Manual Twist
Lubricator Body Option: Fill Plug, Body Pressure Fill
Maximum Supply Pressure (bar): 10.3 Plastic Bowls, 17.2 Metal Bowls
Maximum Supply Pressure (psi): 150 Plastic Bowls, 250 Metal Bowls
Operating Temperature (C): 0 to 52 Plastic Bowls, 0 to 80 Metal Bowls
Operating Temperature (F) 32 to 125 Plastic Bowls, 32 to 175 Metal Bowls
Mounting: Inline or Mounting Bracket
Flow Capacity (SCFM): 90
Body Material: Zinc
Bowl Material: Zinc, Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate
Bowl Guard: Steel

Pipe Nippled FRL 3-Piece Combo – 07A Series

Parker’s 07A is a 3-piece pipe nippled particulate filter, regulator and mist style lubricator built as one configurable part number. The 07A provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows.

3- Unit Close Nippled Combination Standard (Mist)
Element: 5m, 40m
Port Type: NPT
Port Size (in): 3/8,” 1/2″, 3/4″
Relief: Relieving, Non-Relieving
Drain Type: Automatic Float, Manual Twist
Lubricator Body Option: Fill Plug, Body Pressure Fill
Maximum Supply Pressure (bar): 10.3 Plastic Bowls, 17.2 Metal Bowls
Maximum Supply Pressure (psi): 150 Plastic Bowls, 250 Metal Bowls
Operating Temperature (C): 0 to 52 Plastic Bowls, 0 to 80 Metal Bowls
Operating Temperature (F) 32 to 125 Plastic Bowls, 32 to 175 Metal Bowls
Mounting: Inline or Mounting Bracket
Flow Capacity (SCFM): 90
Body Material: Zinc
Bowl Material: Zinc, Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate
Bowl Guard: Steel

Pipe Nippled FRL 2-Piece Combo – 06G Series

Parker’s 06G is a 2-piece pipe nippled integral particulate filter / regulator and mist style lubricator built as one configurable part number. The 06G provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows. The 06G has a filter / regulator which minimizes space and piping by incorporating two units into one.

2-Unit Close Nippled Combination Compact (Mist)
Element: 5m, 40m
Port Type: NPT, BSPP, BSPT
Port Size (in): 1/4″, 3/8,” 1/2″
Relief: Relieving, Non-Relieving
Drain Type: Automatic Float, Manual Twist
Lubricator Body Options: Fill Plug, Body Pressure Fill
Maximum Supply Pressure (bar): 10.3 Plastic Bowls, 17.2 Metal Bowls
Maximum Supply Pressure (psi): 150 Plastic Bowls, 250 Metal Bowls
Operating Temperature (C): 0 to 52 Plastic Bowls, 0 to 80 Metal Bowls
Operating Temperature (F): 32 to 125 Plastic Bowls, 32 to 175 Metal Bowls
Mounting: Inline or Mounting Bracket
Flow Capacity (SCFM): 40 (1/4″), 55 (3/8″), 61 (1/2″)
Body Material: Zinc
Bowl Material: Zinc, Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate
Bowl Guard: Steel

Pipe Nippled FRL 3-Piece Combo – 06A Series

Parker’s 06A is a 3-piece pipe nippled particulate filter, regulator and mist style lubricator built as one configurable part number. The 06A provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows.

3-Unit Close Nippled Combination (Mist)
Element: 5m, 40m
Port Type: NPT
Port Size (in): 1/4″, 3/8″, 1/2″
Relief: Relieving, Non-Relieving
Drain Type: Automatic Float, Manual Twist
Lubricator Body Option: Fill Plug, Body Pressure Fill
Maximum Supply Pressure (bar): 10.3 Plastic Bowls, 17.2 Metal Bowls
Maximum Supply Pressure (psi): 150 Plastic Bowls, 250 Metal Bowls
Operating Temperature (C): 0 to 52 Plastic Bowls, 0 to 80 Metal Bowls
Operating Temperature (F): 32 to 125 Plastic Bowls, 32 to 175 Metal Bowls
Mounting: Inline or Mounting Bracket
Flow Capacity (SCFM): 40 (1/4″), 60 (3/8″), 75 (1/2″)
Body Material: Zinc
Bowl Material: Zinc, Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate
Bowl Guard: Steel

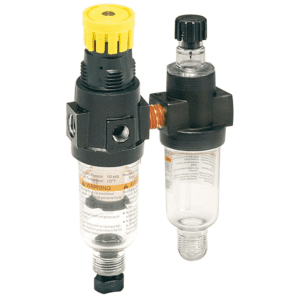

Pipe Nippled FRL 2-Piece Combo – 14G Series

Parker’s 14G is a 2-piece pipe nippled miniature integral particulate filter / regulator and mist style lubricator built as one configurable part number. The 14G provides accurate pressure regulation, high moisture removal efficiency and proportional oil delivery over a wide range of air flows. The 14G has a filter / regulator which minimizes space and piping by incorporating two units into one.

2-unit Close Nippled Combination Miniature
Element: 5m, 40m
Port Type NPT, BSPP, BSPT
Port Size (in): 1/8,” 1/4″
Relief: Relieving, Non-Relieving
Drain Type: Pulse, Manual
Lubricator Body Option: No Fill Plug
Maximum Supply Pressure (bar): 17.2
Maximum Supply Pressure (psi): 250
Operating Temperature (C): 0 to 52, 0 to 80 (metal bowl)
Operating Temperature (F): 32 to 125, 32 to 175 (metal bowl)
Mounting: Mounting Bracket or Inline
Flow Capacity (SCFM): 16 (1/8”), 18 (1/4”)
Body Material: Zinc
Bowl Material: Zinc | Transparent Polycarbonate
Filter Element: Plastic
Seals: Nitrile
Drains: Plastic
Sight Domes: Polycarbonate

For more information about these products…
Download a Catalog

Contact All Air Incorporated today:

Request more information or Download a catalog here

View Our Product Line

Find more information at the Parker website

Subscribe to Our Newsletter
