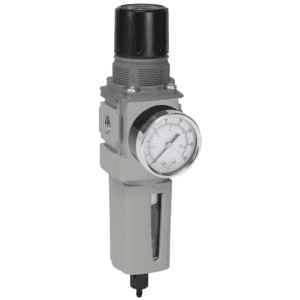

Global Modular Compact Filter Regulator – P32E Series

Parker’s P32E is a compact particulate filter/regulator that provides accurate pressure regulation and high moisture removal efficiency in a compact package. P32E is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. With a balanced poppet design and a 5 micron filter element, this filter/regulator delivers quick response, accurate pressure regulation and a high rate of particulate removal. For specific flow and space restricted applications this product can provide a solution that does not sacrifice performance.

The P32E can also be mounted using a modular connector to other P32 global air preparation product. The various options available such as auto drain, manual drain, gauge, assortment of bowl/drain options, pressure range and preset pressures make this series easy to design to your application.

• Global Modular Compact Filter/Regulator
• Element: 5 micron
• Port Sizes: 1/4″ | 3/8″ | 1/2″
• Gauge Port Size: 1/4″
• Relieving | Non-Relieving
• Drain Type: Manual | Auto
• Thread Type: BSPP | BSPT | NPT
• Maximum Supply Pressure (bar): 10 (plastic bowl) | 17 (metal bowl)
• Maximum Supply Pressure (psi): 150 (plastic bowl) | 250 (metal bowl)
• Operating Temperature (C): -25° to 52° (plastic bowl) | -25° to 65.5° (metal bowl)
• Operating Temperature (F): -13° to 125° (plastic bowl) | -13° to 150° (metal bowl)
• Preset Pressure Option: No
• Pressure Range (psig): 0 to 30 | 0 to 60 | 0 to 125 |0 to 250
• Pressure Range (bar): 0 to 2 | 0 to 4 | 0 to 8 |0 to 17
• Mounting: Plastic panel mount nut
• Flow Capacity (SCFM): 89 (1/4″) | 123 (3/8″) | 136 (1/2″)
• Body and Adjustment Knob Material: Aluminum | Acetal
• Bowl Material: Polycarbonate | Zinc
• Filter Element: Sintered polyethylene
• Seals: Nitrile
• Weight: 1.17 lbs or 0.53 kg

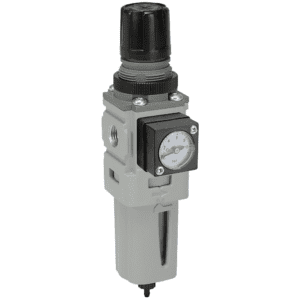

Global Modular Semi-Precision Filter Regulator – P32E Series

Parker’s P32E is a compact semi-precision particulate filter/regulator that provides extremely accurate pressure regulation and high moisture removal efficiency in a compact package. P32E is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. With a balanced poppet design and a 5 micron filter element this filter/regulator delivers quick response, fine adjustment sensitivity regulation and a high rate of particulate removal. This product utilizes a smaller valve head and machined seat insert for more precision adjustment. The P32E can also be mounted using a modular connector to other P32 global air preparation product.

• Global Modular Compact Semi-Precision Filter/Regulator
• Element: 5 micron
• Port Size: 1/4″ | 3/8″ | 1/2″
• Gauge Port Size: 1/4″
• Relieving | Non-Relieving
• Drain Type: Manual | Auto
• Thread Type: BSPP | BSPT | NPT
• Maximum Supply Pressure (bar): 10 (plastic bowl) | 17 (metal bowl)
• Maximum Supply Pressure (psi): 150 (plastic bowl) | 250 (metal bowl)
• Operating Temperature (C): -25° to 52° (plastic bowl) | -25° to 65.5° (metal bowl)
• Operating Temperature (F): -13° to 125° (plastic bowl) | -13° to 150° (metal bowl)
• Preset Pressure Option: No
• Pressure Range (psig): 0 to 30 | 0 to 60 | 0 to 125 |0 to 250
• Pressure Range (bar): 0 to 2 | 0 to 4 | 0 to 8 |0 to 17
• Mounting: Plastic panel mount nut
• Flow Capacity (SCFM): 75
• Body and Adjustment Knob Material: Aluminum | Acetal
• Bowl Material: Polycarbonate | Zinc
• Filter Element: Sintered polyethylene
• Seals: Nitrile
• Weight: 1.17 lbs or 0.53 kg

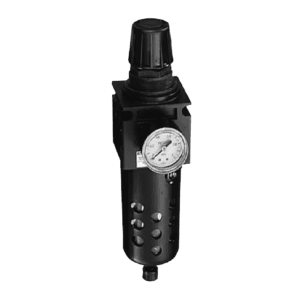

Compact Filter Regulator – 06E Series Prepair II

Parker’s 06E is a compact particulate filter/regulator that provides accurate pressure regulation and high moisture removal efficiency in a compact package. 06E is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. The modular style of the 06E allows you to connect any combination of similar air preparation product by using connector brackets. A rolling diaphragm is used for extended industrial life and is excellent where a more stable air pressure is desired.

The 06E comes standard with a polycarbonate bowl, wrapped with a metal bowl guard providing 360 degrees of visibility to content inside the bowl. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The various options available such as auto drain, twist drain, gauge, assortment of bowl options, pressure range and preset pressures make this series easy to configure for your application.

• Compact Filter/Regulator
• Element: 5µ | 40µ
• Port Size: 1/4″ | 3/8″ | 1/2″
• Gauge Port Size: 1/4″
• Relieving | Non-Relieving
• Drain Type: Twist | Auto Float
• Thread Type: BSPP | NPT
• Maximum Supply Pressure (bar): 10.3 (polycarbonate) | 17.2 (metal) | 17.2 (automatic float drain)
• Maximum Supply Pressure (psi): 150 (polycarbonate) | 250 (metal) | 250 (automatic float drain)
• Operating Temperature (C): 0° to 52° (polycarbonate) | 0° to 80° (metal)
• Operating Temperature (F): 32° to 125° (polycarbonate) | 32° to 175° (metal)
• Preset Pressure Option: Yes
• Pressure Range (psig): 0 to 30 | 0 to 60 | 0 to 125 |0 to 250
• Pressure Range (bar): 0 to 2 | 0 to 4 | 0 to 8 |0 to 17
• Mounting: Mounting bracket kit
• Flow Capacity (SCFM): 46 (1/4″) | 55 (3/8″) | 61 (1/2″)
• Body and Adjustment Knob Material: Zinc | Plastic
• Bowl Material: Polycarbonate | Zinc
• Filter Element: Plastic
• Seals: Nitrile
• Weight: 1.6 lbs or 0.7 kg

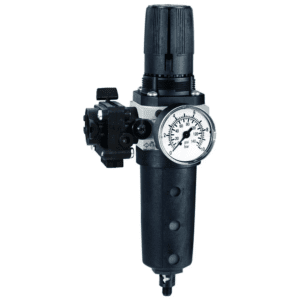

Hi-Flow Filter Regulator – P3NE Series

Parker’s P3NE is a high flow filter/regulator that provides accurate pressure regulation and high moisture removal efficiency in a compact package. P3NE is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. The robust features of the P3NE such as the large filter element and solid control piston guarantees a low pressure drop and extended product life. The self relieving feature plus a balanced poppet provides quick response and accurate pressure regulation to help meet the needs of your air system requirements.

The PN3E comes standard with a 40 micron filter element but keep in mind a 5 micron element is offered for more demanding air purification. For high flow and space restricted applications this product can provide a solution that does not sacrifice performance. The various options available such as auto drain, twist drain, gauge, port block kits, pressure range and port types make this series easy to configure for your application.

• Filter/Regulator Hi-Flow
• Element: 40µ
• Port Size: 3/4″ | 1″ | 1-1/2″
• Gauge Port Size: 1/4″
• Relieving
• Drain Type: Twist | Auto Float
• Thread Type: BSPP | NPT
• Maximum Supply Pressure (bar): 17.2
• Maximum Supply Pressure (psi): 250
• Operating Temperature (C): 0° to 80°
• Operating Temperature (F): 32° to 175°
• Preset Pressure Option: None
• Pressure Range (psig): 0 to 60 | 0 to 125 |0 to 250
• Pressure Range (bar): 0 to 4 | 0 to 8 | 0 to 17
• Mounting: Mounting Bracket Kit
• Flow Capacity (SCFM): 250
• Body and Adjustment Knob Material: Aluminum | Steel
• Bowl Material: Steel
• Filter Element: Plastic
• Seals: Nitrile
• Weight: 5.3 lbs or 0.2 kg

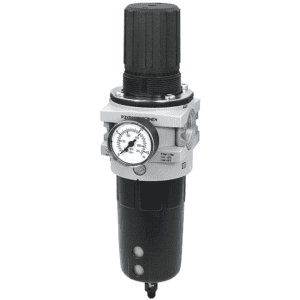

Miniature Filter Regulator – B34 Series

Parker’s B34E is a miniature particulate filter/regulator that provides accurate pressure regulation and high moisture removal efficiency in a compact package. B34E is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. With a balanced poppet, large diaphragm and a 5 micron element coming standard, this filter/regulator is an excellent choice where reliable pressure regulation and a high rate of particulate removal is needed. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance.

• Miniature Filter/Regulator
• Element: 5µ
• Port Size: 1/8″ | 1/4″
• Gauge Port Size: 1/8″
• Relieving | Non-Relieving
• Drain Type: Automatic Pulse Drain
• Thread Type: BSPP | NPT
• Maximum Supply Pressure (bar): 10.3 (polycarbonate) | 17.2 (metal)
• Maximum Supply Pressure (psi): 150 (polycarbonate) | 300 (metal)
• Operating Temperature (C): 4.4° to 52°
• Operating Temperature (F): 40° to 125°
• Preset Pressure Option: None
• Pressure Range (psig): 0 to 25 | 0 to 60 | 0 to 125
• Pressure Range (bar): 0 to 1.7 | 0 to 4 |0 to 8
• Mounting: Mounting Bracket Kit
• Flow Capacity (SCFM): 17 (1/8″) | 19 (1/4″)
• Body and Adjustment Knob Material: Aluminum | Acetal
• Bowl Material: Polycarbonate | Zinc
• Filter Element: Sintered Polyethylene
• Seals: Buna
• Weight: 0.6 lbs or 0.27 kg

Precision Filter Regulator – P3EA632 Series

Parker’s P3EA632 is a precision particulate filter/regulator that provides extremely accurate pressure regulation and high moisture removal efficiency in a compact package. P3EA632 is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. With internal and external epoxy finish, along with brass free construction, this unit is well suited for harsh and corrosive demanding applications.

The P3EA632 has an integral relief valve, 5 micron element and a non bleed design so that the regulator delivers quick response, fine adjustment sensitivity and a high rate of particulate removal for a longer life. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The various options available make this series easy to configure for your application.

• Precision Filter/Regulator
• Element: 5µ
• Port Size: 1/4″
• Relieving
• Drain Type: Filter Dripwell with Drain Plug
• Thread Type: BSPP | NPT
• Maximum Supply Pressure (bar): 17
• Maximum Supply Pressure (psi): 250
• Operating Temperature (C): -23° to 71°
• Operating Temperature (F): -10° to 160°
• Preset Pressure Option: None
• Pressure Range (psig): 1 to 60 | 2 to 120
• Pressure Range (bar): 0 to 4| 0 to 8.2
• Flow Capacity (SCFM): 25
• Material: Aluminum

Stainless Steel Standard Filter Regulator – PB11, PB12 Series

Parker’s PB11/12 is a stainless steel particulate filter/regulator that provides accurate pressure regulation and high moisture removal efficiency in a compact package. PB11/12 is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. A large diaphragm to valve ratio provides precise regulation and high flow capacity.

The PB11/12 comes standard with stainless steel bowl, adjustment springs, body, bonnet, bottom plug and poppet for applications in corrosive or wash down applications. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The various options available such as auto drain, low temperature seals, pressure range and panel mounting capabilities make this series easy to configure for your application.

• Stainless Steel Filter/Regulator
• Element: 5µ | 40µ
• Port Size: 1/2″
• Gauge Port Size: 1/4″
• Relieving | Non-Relieving
• Drain Type: Manual Twist | Automatic Float
• Thread Type: BSPP | NPT
• Maximum Supply Pressure (bar): 20.7
• Maximum Supply Pressure (psi): 300
• Operating Temperature (C): -18° to 66° | -18° to 82° (PB12 metal bowl D)
• Operating Temperature (F): 0° to 150° | 0° to 180° (PB12 metal bowl D)
• Preset Pressure Option: None
• Pressure Range (psig): 0 to 60 | 0 to 125 | 0 to 250
• Pressure Range (bar): 0 to 4 | 0 to 8 |0 to 17
• Mounting: Panel Mount Nut option
• Flow Capacity (SCFM): 72
• Body and Adjustment Knob Material: 316 Stainless Steel
• Bowl Material: 316 Stainless Steel
• Filter Element: Polyethylene
• Seals: Fluorocarbon
• Weight: 2.42 lbs or 1.09 kg

Standard Filter Regulator – 07E Series Prepair II

Parker’s 07E is a standard particulate filter/regulator that provides accurate pressure regulation and high moisture removal efficiency in a compact package. 07E is a one piece combined filter/regulator which minimizes space and piping by incorporating two units into one. The modular style of the 07E allows you to connect any combination of similar air preparation product by using connector brackets. A rolling diaphragm is used for extended industrial life and is excellent where a more stable air pressure is desired.

The 07E comes standard with a polycarbonate bowl, wrapped with a metal bowl guard providing 360 degrees of visibility to content inside the bowl. For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The various options available such as auto drain, twist drain, gauge, assortment of bowl options, pressure range and preset pressures make this series easy to configure for your application.

• Standard Filter/Regulator
• Element: 5µ | 40µ
• Port Size: 1/2″ | 3/4″
• Gauge Port Size: 1/4″
• Relieving | Non-Relieving
• Drain Type: Twist | Auto Float
• Thread Type: BSPP | NPT
• Maximum Supply Pressure (bar): 10.3 (polycarbonate) | 17.2 (metal) | 17.2 (automatic float drain)
• Maximum Supply Pressure (psi): 150 (polycarbonate) | 250 (metal) | 250 (automatic float drain)
• Operating Temperature (C): 0° to 52° (polycarbonate) | 0° to 80° (metal)
• Operating Temperature (F): 32° to 125° (polycarbonate) | 32° to 175° (metal)
• Preset Pressure Option: Yes
• Pressure Range (psig): 0 to 30 | 0 to 60 | 0 to 125 |0 to 250
• Pressure Range (bar): 0 to 2 | 0 to 4 | 0 to 8 |0 to 17
• Mounting: Mounting bracket kit
• Flow Capacity (SCFM): 90
• Body and Adjustment Knob Material: Zinc | Plastic
• Bowl Material: Polycarbonate | Zinc
• Filter Element: Plastic
• Seals: Nitrile
• Weight: 2.5 lbs or 1.1 kg

QUBE Filter Regulators Series B45, B65, B105

The QUBE system unit offers flexible and extensive configurability by enabling the combination of various components and attachments, making it easy to create tailored tuning and pressure control units.
The conventional piping components, such as “tee,” “elbow,” “cross,” and “nipple,” have been modularized. This allows for flexible combinations with a wide range of options, such as shut-off valves and pressure switches. As a result, the system achieves significant space savings and a significant reduction in piping work.
In the QUBE series, components can be directly connected to each other, resulting in a significant reduction of occupied space. The assembly dimensions are determined solely by the sum of the component dimensions.
The QUBE series offers a wide range of variations with 3 body sizes and connection port sizes from Rc1/ 8 to Rc3 / 4, allowing for optimal selection according to flow rate and piping.
The QUBE series features ports one size larger than necessary for flow rate and body size, which can result in cost savings by selecting one size smaller series based on flow rate.
In the QUBE series, different series can be connected to each other, allowing for the optimal combination of series depending on the flow rate of the branch when deployed in a system unit.
