Round Body Cylinders

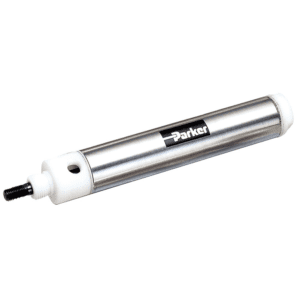

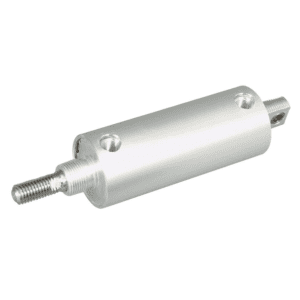

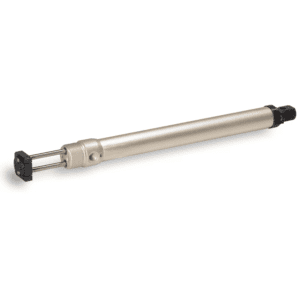

Pneumatic Round Body Cylinder – SRD & SRDM Series

Parker Pneumatic Cylinder The SRD/SRDM series cylinders are designed to withstand a wide range of operating environments to tolerate moisture as well as many types of lubricants and solvents. The cylinders have a Delrin® (acetal resin) head and cap, an anodized aluminum piston, stainless steel cylinder tube, and stainless steel piston rod. Stainless steel accessories are also available.

  • Bore Sizes: 9/16″, 3/4″, 1-1/16″, 1-1/2″, 2″
  • Stroke Range: up to 32″”
  • Operating Characteristics: double acting, single acting, and double rod
  • Maximum Operating Pressure: 100 psi or 7 bar
  • Operating Temperature Range: 32°F to 160°F (0° to 71°C)
  • 4 mounting styles
  • 250 psi air service
  • 304 stainless cylinder body
  • Standard Temperature: -10°F to 165°F
  • High temperature seals optional: -10°F to 250°F
  • Single and double acting versions
  • Bumpers, adjustable cushions, and rod wiper options available
Pneumatic Round Body Cylinder – SRX Series

Parker Pneumatic Cylinder
The SRX series cylinder allows maximum flexibility by incorporating many of the proven features and benefits of the SR series, while adding the capability of monitoring cylinder position throughout its entire working stroke range. The SRX series cylinder is ideal for applications in which standard NFPA or round body cylinders incorporating limit switches may not be practical; or in instances when varying stroke length and/or monitoring cylinder speed is essential.

  • Bore Sizes: 1-1/16″, 1-1/2″, 2″, 2-1/2″, 3″
  • Stroke Range: up to 24″
  • Operating Characteristics: double acting
  • Maximum Operating Pressure: 150 psi or 10 bar
  • Operating Temperature Range: 40°F to 160°F or 46°C to 71°C
  • 3 mounting styles available
  • 304 stainless cylinder body
  • Repeatability: ±0.001″ (interface electronics dependent)
  • Non Linearity: ±1% of Full stroke (18″” stroke max.)
  • Resolution: infinite
  • Signal Input: 5 to 24 VDC
  • Signal Output (w/o controls): DC ratio metric voltage (*1 Mega Ohm impedance interface device suggested)
  • Signal Output (w/controls): 0 to 10 VDC or 4 to 20 mA
  • Maximum Speed: 50″” per second

The SRX series compact design, corrosion resistant construction, and proven reliability make this cylinder the ideal choice for a user seeking continuous feedback.

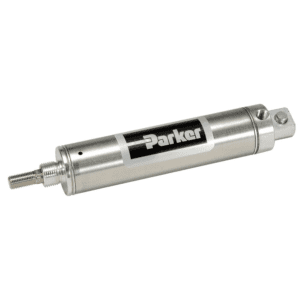

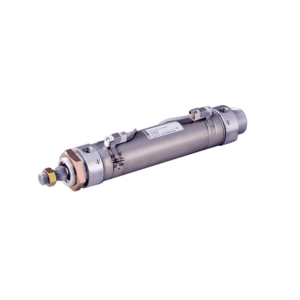

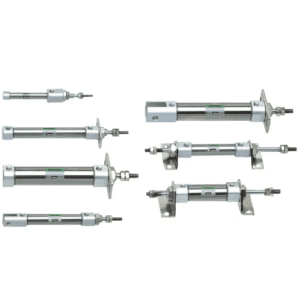

Pneumatic Round Body Cylinder – SR & SRM Series

Parker Pneumatic Cylinder
The SR/SRM series is a crimped, round body cylinder with a stainless steel tube and aluminum end caps. This series offers a wide variety of bore sizes and mounting applications to fit all different types of applications. The SRM series air cylinder can be ordered with reed or solid state sensors that are easily adjustable anywhere on the cylinder body, with no special mounting rail required.

  • Bore Sizes: 5/16″, 7/16″, 9/16″, 3/4″, 7/8″, 1-1/16″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/2″, 3″
  • Stroke Range: up to 32″
  • Operating Characteristics: double acting, single acting, and double rod
  • Maximum Operating Pressure: 250 psi
  • Operating Temperature Range: -10 to 165°F or -23 to 74°C
  • 28 mounting styles
  • 304 stainless cylinder body
  • Bumpers, adjustable cushions, and rod wiper options available
  • Non-Repairable

Standard versions of the SR have a market leading three day lead time. The most common bore and stroke cylinders are stocked and ship within 24 hours to fulfill urgent customer demand.

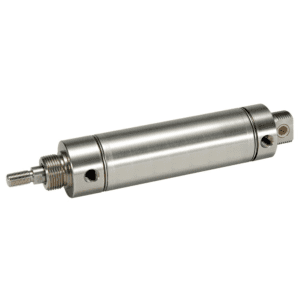

Pneumatic Round Body Cylinder – SRG & SRGM Series

Parker Pneumatic Cylinder
The SRG/SRGM Series cylinders are all stainless-steel round cylinders. The cylinders are standard with 303 stainless-steel heads and caps, and 304 stainless piston rod on all bore sizes. A urethene rod wiper is also standard, along with a magnetic version available for sensing options.

  • Bore Sizes: 3/4″, 1-1/16″, 1-1/2″, 2″, 2-1/2″
  • Stroke Range: up to 12″
  • Operating Characteristics: double acting
  • Maximum Operating Pressure: 250 psi or 17 bar
  • Operating Temperature Range: -10°F to 165°F or -23° to 74°C
  • 2 mounting styles (D and DXP)
  • Bumpers are available

This version of the SR is ideal for food grade and harsher environments.

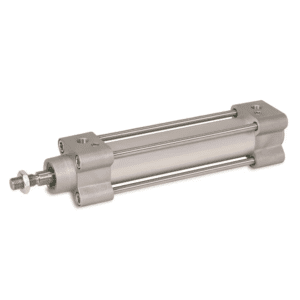

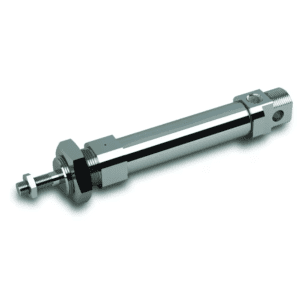

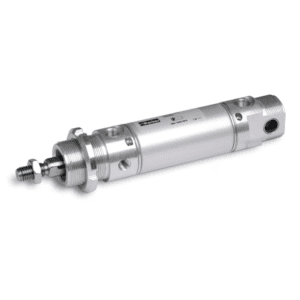

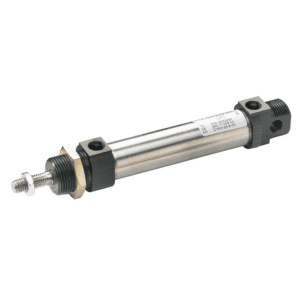

Pneumatic ISO Cylinder – P1A Series (Non-Repairable)

Parker Pneumatic Cylinder The P1A range of cylinders is intended for use in a wide range of applications. The cylinders are particularly suitable for lighter duties in the packaging, food and textile industries. Hygienic design, the use of corrosion-resistant materials and initial lubrication with our food-grade grease makes the cylinders suitable for food industry applications. Careful design and high quality manufacture throughout ensure long service life and optimum economy. Mounting dimensions fully in accordance with ISO 6432 and CETOP RP52P greatly simplifies installation and world-wide interchangeability.

  • Double acting buffer cushioning version cylinders are available in bores of 10,12,16,20 and 25mm, with standard stroke lengths of 10 to 320mm.
  • Single-acting cylinders with spring return in the retract direction are available in stroke lengths up to 80mm.
  • Single-acting cylinders with spring return in the advance direction are available in 16, 20 and 25mm bore sizes and with stroke lengths up to 80mm.

Adjustable pneumatic cushioning permits greater loads and higher operating speeds, making the cylinders suitable for more demanding duties. These cylinders are available in bores of 16, 20 and 25mm with standard stroke lengths from 20 to 500mm. P1A mini ISO cylinders are available in several standard variants, such as non-standard stroke length, extended piston rods, through piston rods and high temperature versions all supported by a complete range of sensors and mountings.”

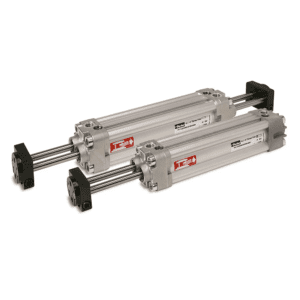

  • P1A with rod guidance modules

The P1A mini ISO cylinders can be equipped with an external rod guidance module that when fitted prevents the piston from rotating enabling the cylinder to resist turning moments and greater transverse forces. These are available with plain bearings as U style or linear ball bearings as H style. The body of the rod guidance has pre-drilled mounting holes and is connected to the piston rod by means of a flexocoupling that help relieve the build-up of stress in the cylinder. P1A cylinders with rod guidance modules are available with bores from 12 to 25mm, and stroke lengths up to 250mm.

General Technical Data:

  • International standards : complies with ISO 6432
  • Bore Sizes : Ø10, Ø12, Ø16, Ø20 and Ø25mm
  • Stroke Length : 5 to 1000mm
  • Versions :
    • double acting
    • double acting with through rod
    • single Acting Spring Return
    • single Acting Spring Advance
  • Cushioning :
    • rubber buffer fixed Ø12, Ø16, Ø20 and Ø25mm
    • adjustable pneumatic Ø16, Ø20 and Ø25mm
  • Position sensing : cylinders in standard temperature design are fitted with a magnet for proximity position sensing. An optional bracket securely fastens anywhere along the cylinder barrel allowing the mounting of electronic type sensors or reed switches that can be supplied with either flying lead or cable plug connector. The high temperature version does not have a magnetic ring in the piston and therefore cannot be used with sensors.
  • Installation : a wide range of surface treated and stainless steel mountings are available.
  • Mounting position : any

Operating and Environmental Data:

  • Operating Medium : for best possible service life and trouble-free operation dry, filtered compressed air to ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer) and is in line with the air quality from most standard compressors with a standard filter.
  • Operating Pressure : 10 Bar Maximum
  • Operating Temperature :
    • standard temperature -20°C to +80°C
    • high temperature -10°C to +150°C (Ø12, Ø16, Ø20 and Ø25mm)
    • outer seals in fluorocarbon – FPM (fluorocarbon rubber) -20°C to +80°C
  • Pre-lubricated : further lubrication is normally not necessary. If additional lubrication is introduced it must be continued.
  • Corrosion Resistance : high resistance to corrosion and chemicals.

Material Specification – Cylinder:

  • End Covers : Anodised aluminium
  • Cylinder Barrel : Stainless steel
  • Piston Rod : Stainless steel
  • Piston Rod Nut : Stainless steel
  • Mounting Nut : Stainless steel
  • Scraper Ring : Outer seals in fluorocarbon – FPM (Fluorocarbon rubber)
  • Piston Rod Seal
    • standard temperature – NBR (Nitrile rubber)
    • high temperature – FPM (Fluorocarbon rubber)
    • outer seals in fluorocarbon – FPM (Fluorocarbon rubber)
  • Piston, Complete :
    • standard temperature – NBR (Nitrile rubber) / steel
    • high temperature – HNBR (Hydrogenated nitrile butadiene rubber) / steel
  • Magnet : Plastic coated magnetic material
  • Piston Seals :
    • standard temperature – NBR (Nitrile rubber)
    • high temperature – FPM (Fluorocarbon rubber)
  • O Rings (internal) : NBR (Nitrile rubber)
  • Piston Rod Bearing : Multilayer PTFE (Polytetrafluroethylene) / steel
  • Cushion Screws : Stainless steel
  • Return Spring (single acting only) : Surface treated spring steel

Material Specification – Rod Guidance Modules:

  • Body : Anodised aluminium
  • Guide Bars, H style : Stainless steel
  • Front Plate : Anodised aluminium
  • Guide Bars, U style : Stainless steel
  • Front Plate : Zinc plated steel
  • Plain Bearings : Bronze
ISO Pneumatic Cylinders, Stainless Steel Round Design – P1S Series

Parker ISO Pneumatic Cylinders, Stainless Steel Round Design - P1S Series The P1S stainless steel cylinders have been specially designed for use in particularly demanding food, drink, beverage and harsh environments. This hygienic design with external seals of fluorianted rubber and pre-lubricated with food-industry-approved grease according to USDA-H1 make the cylinders particularly suitable for food industry use. The P1S actuator in bore sizes Ø10 to Ø63 mm is an ISO 6431 / ISO 6432 stainless steel cylinders with standard temperature of -20°C to +80°C and high temperature option.

A version of ISO 6432 Ø10 – Ø25mm incorporates fixed end cushioning, while the cylinders Ø20 – Ø63mm have pneumatic end-cushioning with adjusting screws for precise setting. Adjustable pneumatic cushioning permits greater loads and higher operating speeds, making the cylinder suitable for more demanding applications with shorter cycle times. Fixing dimensions to ISO 6431 / 6432 simplifies installation.

  • ISO 6432
  • ISO 6431
  • High Temperature

Features/Benefits:

  • Piston rod, cylinder tube and end covers are all manufactured in stainless steel for improved corosion resistance
  • End covers have no recesses or other grooves, reducing areas where dirt or liquids can collect ensuring any cleaning required is easy and effective
  • Pre-lubricated with food-industry-approved grease according to USDA-H1
  • Range of mountings and sensors
  • Proven Parker Prädifa seal technology for long performance life
  • Product Series: Pneumatic Cylinders
  • Product Type: Linear Actuator, Cylinder Actuator
  • Technology: Pneumatics
  • Cylinder Type: Non-Guided, Guided, Through Rod
  • Cylinder Action: Double Acting, Single Acting Spring Return
  • Bore Diameter: 10mm | 12mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm | 63mm
  • Maximum Stroke Length: 1000 mm, 39.3 inch
  • Extend Stroke Force: 47 to 1870 (at 6 bar) N
  • Retract Stroke Force: 39 to 1680 (at 6 bar) N
  • Cushioning Type: Rubber Buffer Fixed, Pneumatic Adjustable
  • Port Size: M5, G1/8, G1/4, G3/8
  • Rod End Thread Type: Male
  • Maximum Operating Pressure: 10 bar, 145 psi
  • Operating Temperature: -20 to +80 (Standard)
    • Ø10-16: -10 to +120 (High) / Ø20-25: -10 to +150 (High) °C, -4 to +176 (Standard)
    • Ø10-16: +14 to +248 (High) / Ø20-25: +14 to +302 (High) °F
  • Position Sensing Type: Optional Bracket (Standard Temp only)
  • Mounting Option: ISO 6431 | ISO 6432
  • Specifications Met: ISO 6431 | ISO 6432
  • Piston Rod Material: Stainless Steel
  • Body Material: Stainless Steel
  • End Cap Material: Stainless Steel
  • Body Type: Round
  • Corrosion Resistance Included: Yes
  • Repairable: Ø10-16: No | Ø32-63: Yes
Pneumatic Round Body Cylinder – P Series

Parker Pneumatic Cylinder
The P series is a heavy-duty, repairable round cylinder. The heads and caps are lightweight aluminum for maximum corrosion resistance. The cylinder body is hard anodized aluminum for corrosion and abrasion resistance and the smooth I.D. finish provides long seal life. The Piston is available with either O-Ring or Lip seal® design. The P Series Piston Rod is chrome plated steel. The wear-compensating rod seal design conforms to pressure variations and provides maximum seal life. The high-strength steel retaining snap ring is precision made to securely lock the head and cap in place. The P series cylinders are easily removed for quick disassembly and repair.

  • Bore Sizes: 1-1/8”, 1-1/2”, 2”, 2-1/2”, 3” and 4”
  • Stroke Range: Up to 20″”
  • Operating Characteristics: double-acting, spring-return and spring-extend models
  • Max Operating Pressure: 150 psi or 10 bar
  • Operating Temperature Range: -10°F to 250°F or -23°C to +121°C
  • Adjustable cushions available of 2-4″” Bore Sizes
All Round Pneumatic Cylinders – R32-63 Series

Parker All Round Pneumatic Cylinders - R32-63 Series

The R Series actuator bores Ø32-Ø63mm is a double acting lightweight aluminium round cylinder for standard temperature -10°C to +70°C and offers performance, reliability and long service life. With pneumatic cushioning enabling high speeds and short cycle times providing an economical solution to suit environmental applications in processing, packaging and handling.

Features/Benefits:

  • Aluminium and stainless steel design for corrosion resistance
  • Pneumatic cushioning enabling high speeds and short cycle times
  • Aluminium construction for lightweight design
  • Product Series: Pneumatic Cylinders
  • Product Type: Linear Actuator, Cylinder Actuator
  • Technology: Pneumatics
  • Cylinder Type: Non-Guided | Through Rod
  • Cylinder Action: Double Acting
  • Bore Diameter: 32mm | 40mm | 50mm | 63mm
  • Maximum Stroke Length: 500 mm, 19.6 inch
  • Extend Stroke Force: 650 to 2500 at 6 bar N
  • Retract Stroke Force: 434 to 1683 at 6 bar N
  • Cushioning Type: Pneumatic Adjustable
  • Port Size: G1/8 | G1/4 | G3/8
  • Rod End Thread Type: Male
  • Maximum Operating Pressure: 10 bar, 145 psi
  • Operating Temperature: -10 to +70 °C, +14 to +158 °F
  • Position Sensing Type: Optional Bracket
  • Mounting Option: Yes
  • Piston Rod Material: Stainless Steel
  • Body Material: Aluminium
  • End Cap Material: Aluminium
  • Body Type: Round
  • Corrosion Resistance Included: Yes
  • Repairable: Yes
Round Type Pneumatic Cylinder Model: 10Z-3

Parker Round Type Pneumatic Cylinder Model:10Z-3
The 10Z-3 series is round body pneumatic cylinder that uses a band type compact switch. By adopting a stainless steel tube, it has a simple appearance. The switch can be easily mounted at any position by adopting a band type. We also have inner diameters from φ12 to φ63. We have a wide variety of models such as double acting type, single acting type, valve set, and stroke adjustment.

  • Bore Diameter: φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63
  • For Fluid Type: Air
  • Lubricant: Unnecessary
  • Pressure Rating: φ12,φ16:0.07 to 1MPa φ20 to φ40:0.05 to 1MPa φ50,φ63:0.02 to 1MPa
  • Proof Pressure: 1.5MPa
  • Operating Speed: φ12,φ16:50 to 500mm/s φ20 to φ63:20 to 700mm/s
  • Operating Temperature: -10 to +70℃(No freezing) °C
  • Cushioning Type: φ12 to φ40:With cushion pads φ50,φ63:With cushions on both ends Semi-standard φ20 to φ40:With cushions on both ends
  • Thread Tolerance: JIS 6g/6H
  • Stroke Tolerance: Φ12, φ16 200 mm or less: 0 to +1.0 mmφ20 to φ63 250 mm or less: 0 to +1.0 mmφ20 to φ63 251 to 900 mm: 0 to +1.5 mm
  • Mounting Type: φ12,φ16:Basic style/SD,LS,LB,FA,FB Clevis cut style/SK,LK,FK Rear port style/SP,LP,FP φ20 to φ40:Basic style/SD,LS,LB,FA,FB,TA,TB,AD,BD Clevis cut style/SK,LK,FK,TK Rear port style/SP,LP,FP,TP,AP,BP φ50,φ63:Basic style/SD,LB,FA,FB,CA,TA,TB,AD,BD Clevis cut style/SK,LK,FK,TK Rear port style/SP,LP,FP,TP,AP,BP
  • Rod End Type: Rod eye(T-end)(φ50,φ63),Rod eye(S-end)with spherical bearing,Rod clevis(Y-end)with pin,Floating joint(φ20 to φ63)(F-end:Do not use together with Mounting style TA,TB and CA accessories.)
  • Bellows Material: Nylon tarpaulin(φ20 to φ63)
  • Accessories Included: SD bracket(φ12 to φ40),TA,TB bracket(φ20 to φ63)

Guided Cylinder Slides

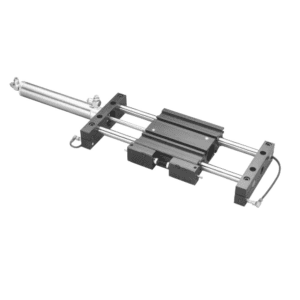

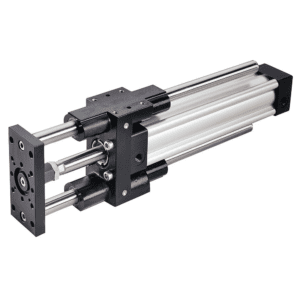

Pneumatic Guided Cylinder Slide – P5E Series

Parker Pneumatic Cylinder
The P5E series guided cylinder is designed to be a lighter weight solution for standard duty linear motion applications. Two parallel precision ground case hardened, or stainless steel, support shafts are guided by four linear bushings and incorporated into the body assembly. The bearings are prelubricated to provide millions of trouble-free cycles. Composite bushings are standard with all three shaft styles and available with oversized shafting. Optional linear ball bearings are available with stainless steel shafting only. The P5E series features a one-piece cast aluminum body with tapped and counterbored mounting holes. Standard dowel pin holes provide precision mounting for the body and tool plate. The P1D cylinder utilizes an alignment coupler which prevents the piston rod from deflecting under high loads or long strokes. Standard piston wear bands allow the piston rod assembly to “float” in the bore thereby eliminating metal-to-metal contact. The result is dramatically greater cylinder seal life especially when the support shafts deflect under load. This ensures very long cylinder life with reduced maintenance and downtime.

  • Bore sizes: 32, 40, 50, 63, 80, and 100 mm
  • Stroke length: available in any practical length to 1350 mm (varies by series and guide rod size, longer available, consult factory)
  • Operating characteristics: double acting
  • Maximum operating pressure: 1 MPa (145 psi or 10 bar)
  • Operating temperature range: 14°F to 165°F or -10°C to 74°C
  • Support rod sizes: 12, 16, 20, 25, and 30 mm
  • Energy absorption: bumpers and cushions
  • Stroke adjustment: adjustable stop collars
  • Flow controls: Presto-lok and NPT
  • Cylinder mounting: ISO 6431 and DIN 24335
  • Switches and Sensors: standard magnetic piston, optional reed switches or solid state and proximity sensors. Sold separately.
  • Filtration requirement: 40 micron filtered, dry air
  • Contaminant-tolerant shaft seals
  • Rod lock option available

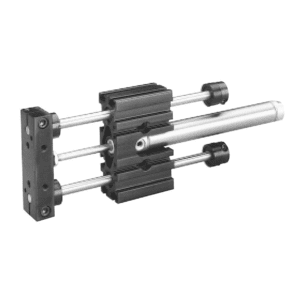

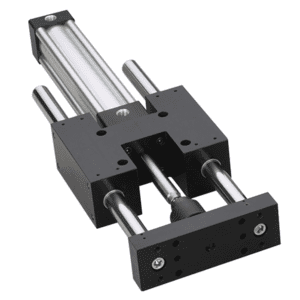

Pneumatic Guided Cylinder Slide – HBB Series

Parker Pneumatic Cylinder
The HBB series linear slides are capable of handling heavy duty guided linear motion applications. The HBB, or “”base”” version, is designed to span the work area and tranlate the load between two support points. Two parallel precision ground case hardened, or stainless steel, support shafts are guided by four linear bushings and incorporated into the body assembly. The bearings are prelubricated to provide millions of trouble-free cycles. Composite bushings with standard or oversized shafting or linear ball bearings are available.

The HBB series features a machined, anodized one-piece aluminum body with tapped and counterbored through holes for mounting flexibility. Standard dowel pin holes provide precision mounting for the body and tool plate. The power behind the HBB series is Parker’s premium NFPA aluminum, steel, or ISO cylinder. Standard piston wear bands allow the piston rod assembly to “float” in the bore thereby eliminating metal-to-metal contact. The result is dramatically greater cylinder seal life especially when the support shafts deflect under load. This ensures very long cylinder life with reduced maintenance and downtime. Available options include 3-position cylinders and slides without cylinders. Consult factory for other application needs.

  • HBC, HBT, & HBB versions are also available to handle a variety of external loading and mounting configurations
  • Bore sizes:
    • 40, 50, and 63 mm (for P1D)
    • 1-1/2″, 2″, and 2-1/2″ (for 4MA, 3MA, 4MAJ, 2A, 4ML, 3L)
  • Maximum suggested stroke length:
    • HBR15: 30″
    • HBR20: 36″
    • HBR25: 42″
    • (varies by series and guide rod size, longer available, consult factory)
  • Operating characteristics: double acting
  • Maximum operating pressure:
    • 100 psi (air) – 4MAJ cylinder
    • 150 psi (air) – P1D cylinder
    • 250 psi (air) – 4MA, 3MA, 2A cylinders
    • 400 psi (oil) – 4ML cylinder only
    • 750 psi (oil) – 3L cylinder only
  • Operating temperature range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to 74°C
    • Fluorocarbon seals: 0°F to 250°F or -17°C to 121°C
  • Support rod sizes: 20, 25, 30 and 35 mm
  • Energy absorption: bumpers, cushions and shock absorbers
  • Stroke adjustment: adjustable stop collars
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included).
  • Filtration requirement: 40 micron filtered, dry air
  • Contaminant-tolerant shaft seals
  • Stroke tolerance: +.030, -.000
  • Rod lock option available

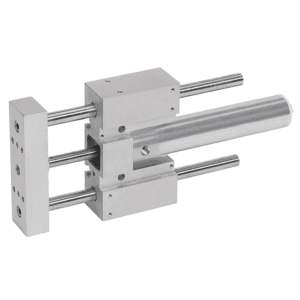

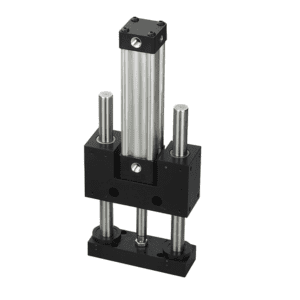

Pneumatic Guided Cylinder Slide – HBC Series

Parker Pneumatic Cylinder
The HBC series linear slides are capable of handling standard duty guided linear motion applications. The HBC, or “”compact”” version, is designed to extend and retract a load beyond the support point into the work area. Two parallel precision ground case hardened, or stainless steel, support shafts are guided by four linear bushings and incorporated into the body assembly. The bearings are pre-lubricated to provide millions of trouble-free cycles. Composite bushings with standard or oversized shafting or linear ball bearings are available.

The HBC series features a machined, anodized one-piece aluminum body with tapped and counterbored through holes for mounting flexibility. Standard dowel pin holes provide precision mounting for the body and tool plate. The power behind the HBC series is Parker’s premium NFPA aluminum, steel, or ISO cylinder. Standard piston wear bands allow the piston rod assembly to “float” in the bore thereby eliminating metal-to-metal contact. The result is dramatically greater cylinder seal life especially when the support shafts deflect under load. This ensures very long cylinder life with reduced maintenance and downtime. Available options include 3-position cylinders and slides without cylinders. Consult factory for other application needs.

  • HBT, HBR, & HBB versions are also available within this series to handle a variety of external loading and mounting configurations
  • Bore sizes:
    • 40, 50, and 63 mm (for P1D)
    • 1 1/2″, 2″, and 2 1/2″ (for 4MA, 3MA, 4MAJ, 2A, 4ML, 3L)
  • Maximum suggested stroke length:
    • HBC15: 8″
    • HBC20: 10″
    • HBC25: 12″
    • (varies by series and guide rod size, longer available, consult factory)
  • Operating characteristics: double acting
  • Maximum operating pressure:
    • 100 psi (air) – 4MAJ cylinder
    • 150 psi (air) – P1D cylinder
    • 250 psi (air) – 4MA, 3MA, 2A cylinders
    • 400 psi (oil) – 4ML cylinder only
    • 750 psi (oil) – 3L cylinder only
  • Operating temperature range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to 74°C
    • Fluorocarbon seals: 0°F to 250°F or -17°C to 121°C
  • Support rod sizes: 20, 25, 30 and 35 mm
  • Energy absorption: bumpers, cushions and shock absorbers
  • Stroke adjustment: adjustable stop collars
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included).
  • Filtration requirement: 40 micron filtered, dry air
  • Contaminant-tolerant shaft seals
  • Stroke tolerance: +.030, -.000
  • Rod lock option available

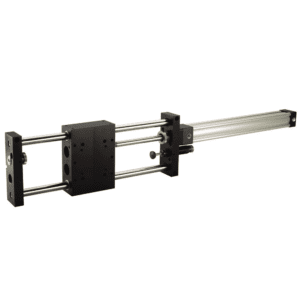

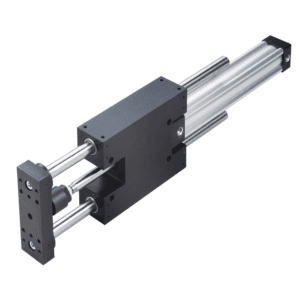

Pneumatic Guided Cylinder Slide – HBR Series

Parker Pneumatic CylinderThe HBR series linear slides are capable of handling heavy duty guided linear motion applications. The HBR, or “”reach”” version, is designed to extend and retract a load beyond the support point into the work area. Two parallel precision ground case hardened, or stainless steel, support shafts are guided by four linear bushings and incorporated into the body assembly. The bearings are prelubricated to provide millions of trouble-free cycles. Composite bushings with standard or oversized shafting or linear ball bearings are available.

The HBR series features a machined, anodized one-piece aluminum body with tapped and counterbored through holes for mounting flexibility. Standard dowel pin holes provide precision mounting for the body and tool plate. The power behind the HBR series is Parker’s premium NFPA aluminum, steel, or ISO cylinder. The HBR utilizes an alignment coupler which prevents the piston rod from deflecting under high loads or long strokes. Standard piston wear bands allow the piston rod assembly to “”float”” in the bore thereby eliminating metal-to-metal contact. The result is dramatically greater cylinder seal life especially when the support shafts deflect under load. This ensures very long cylinder life with reduced maintenance and downtime. Available options include 3-position cylinders and slides without cylinders. Consult factory for other application needs.

  • HBC, HBT, & HBB versions are also available to handle a variety of external loading and mounting configurations
  • Bore sizes:
    • 40, 50, and 63 mm (for P1D)
    • 1-1/2″, 2″, and 2-1/2″ (for 4MA, 3MA, 4MAJ, 2A, 4ML, 3L)
  • Maximum suggested stroke length:
    • HBR15: 30″
    • HBR20: 36″
    • HBR25: 42″
    • (varies by series and guide rod size, longer available, consult factory)
  • Operating characteristics: double acting
  • Maximum operating pressure:
    • 100 psi (air) – 4MAJ cylinder
    • 150 psi (air) – P1D cylinder
    • 250 psi (air) – 4MA, 3MA, 2A cylinders
    • 400 psi (oil) – 4ML cylinder only
    • 750 psi (oil) – 3L cylinder only
  • Operating temperature range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to 74°C
    • Fluorocarbon seals: 0°F to 250°F or -17°C to 121°C
  • Support rod sizes: 20, 25, 30 and 35 mm
  • Energy absorption: bumpers, cushions and shock absorbers
  • Stroke adjustment: adjustable stop collars
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included).
  • Filtration requirement: 40 micron filtered, dry air
  • Contaminant-tolerant shaft seals
  • Stroke tolerance: +.030, -.000
  • Rod lock option available

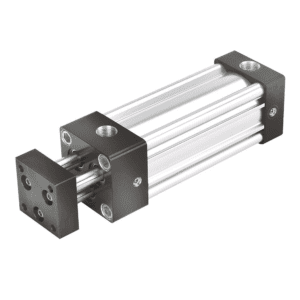

Pneumatic Guided Cylinder Slide – HBT Series

Parker Pneumatic Cylinder
The HBT series linear slides are capable of handling medium heavy duty guided linear motion applications. The HBT, or “”thrust”” version, is designed to extend and retract a load beyond the support point into the work area. Two parallel precision ground case hardened, or stainless steel, support shafts are guided by four linear bushings and incorporated into the body assembly. The bearings are prelubricated to provide millions of trouble-free cycles. Composite bushings with standard or oversized shafting or linear ball bearings are available.

The HBT series features a machined, anodized one-piece aluminum body with tapped and counterbored through holes for mounting flexibility. Standard dowel pin holes provide precision mounting for the body and tool plate. The power behind the HBT series is Parker’s premium NFPA aluminum, steel, or ISO cylinder. The HBT utilizes an alignment coupler which prevents the piston rod from deflecting under high loads or long strokes. Standard piston wear bands allow the piston rod assembly to “float” in the bore thereby eliminating metal-to-metal contact. The result is dramatically greater cylinder seal life especially when the support shafts deflect under load. This ensures very long cylinder life with reduced maintenance and downtime. Available options include 3-position cylinders and slides without cylinders. Consult factory for other application needs.

  • HBC, HBT, & HBB versions are also available to handle a variety of external loading and mounting configurations
  • Bore sizes:
    • 40, 50, and 63 mm (for P1D)
    • 1-1/2″, 2″, and 2-1/2″ (for 4MA, 3MA, 4MAJ, 2A, 4ML, 3L)
  • Maximum suggested stroke length:
    • HBR15: 30″
    • HBR20: 36″
    • HBR25: 42″
    • (varies by series and guide rod size, longer available, consult factory)
  • Operating characteristics: double acting
  • Maximum operating pressure:
    • 100 psi (air) – 4MAJ cylinder
    • 150 psi (air) – P1D cylinder
    • 250 psi (air) – 4MA, 3MA, 2A cylinders
    • 400 psi (oil) – 4ML cylinder only
    • 750 psi (oil) – 3L cylinder only
  • Operating temperature range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to 74°C
    • Fluorocarbon seals: 0°F to 250°F or -17°C to 121°C
  • Support rod sizes: 20, 25, 30 and 35 mm
  • Energy absorption: bumpers, cushions and shock absorbers
  • Stroke adjustment: adjustable stop collars
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included).
  • Filtration requirement: 40 micron filtered, dry air
  • Contaminant-tolerant shaft seals
  • Stroke tolerance: +.030, -.000
  • Rod lock option available
Pneumatic Guided Cylinder Slide – P5L-B Series

Parker Pneumatic Cylinder The P5L-B series guided cylinder features the popular P1L round body repairable cylinder and offers a fully featured and highly engineered guided bearing system, creating a guided cylinder suitable for the most demanding heavy duty applications. The P5L-B, or “”base”” version, is designed to span the work area and tranlate the load between two support points. Two parallel precision ground case hardened chrome plated, or stainless steel, support shafts are guided by four linear bushings and incorporated into the body assembly. The bearings are prelubricated to provide millions of trouble-free cycles. Composite bushings with standard or oversized shafting or linear ball bearings are available.

The P5L-B Series features a machined, anodized one-piece aluminum body with counterbored through holes and T-slots for mounting flexibility. Standard dowel pin holes provide precision mounting for the body and tool plate. Standard piston wear bands allow the piston rod assembly to “”float”” in the bore thereby eliminating metal-to-metal contact. The result is dramatically greater cylinder seal life especially when the support shafts deflect under load. This ensures very long cylinder life with reduced maintenance and downtime. The P5L-B has a full range of features and options.

  • P5L-T and P5L-R versions are also available to handle a variety of external loading and mounting configurations
  • Bore sizes: 20, 25, 32, 40, 50, 63, 80, and 100 mm
  • Maximum stroke: 400 to 1000 mm (varies by series and guide rod size, longer available, consult factory)
  • Operating characteristics: double acting
  • Maximum operating pressure: 1MPa (145 psi or 10 bar)
  • Operating temperature range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to 74°C
    • Fluorocarbon seals: 0°F to 250°F or -17°C to 121°C
  • Support rod sizes: 10, 12, 16, 20, 25, 30, 40, 50, and 60mm
  • Energy absorption: bumpers, cushions and shock absorbers
  • Stroke adjustment: adjustable stop collars and micro adjusters
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included).
  • Filtration requirement: 40 micron filtered, dry air
  • Contaminant-tolerant shaft seals
  • Self-aligning recirculating ball bearings available with carbon or stainless steel shafting
  • Direct mount design to enable simple multi-axis system assembly

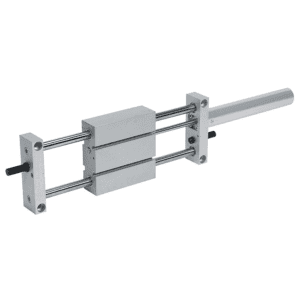

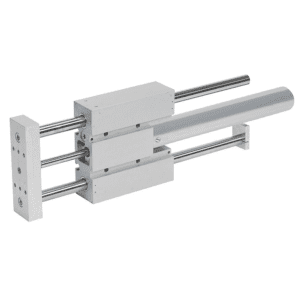

Pneumatic Guided Cylinder Slide – P5L-R Series

Parker Pneumatic Cylinder
The P5L-R series guided cylinder features the popular P1L round body repairable cylinder and offers a fully featured and highly engineered guided bearing system, creating a guided cylinder suitable for the most demanding heavy duty applications. The P5L-R, or “”reach”” version, is designed to extend and retract a load beyond the support point into the work area. Two parallel precision ground case hardened chrome plated, or stainless steel, support shafts are guided by four linear bushings and incorporated into the body assembly. The bearings are prelubricated to provide millions of trouble-free cycles. Composite bushings with standard or oversized shafting or linear ball bearings are available.

The P5L-R Series features a machined, anodized one-piece aluminum body with counterbored through holes and T-slots for mounting flexibility. Standard dowel pin holes provide precision mounting for the body and tool plate. Standard piston wear bands allow the piston rod assembly to “”float”” in the bore thereby eliminating metal-to-metal contact. The result is dramatically greater cylinder seal life especially when the support shafts deflect under load. This ensures very long cylinder life with reduced maintenance and downtime. The P5L-R has a full range of features and options.

  • P5L-T, and P5L-B versions are also available to handle a variety of external loading and mounting configurations
  • Bore sizes: 20, 25, 32, 40, 50, 63, 80, and 100 mm
  • Maximum stroke: 400 to 1000 mm (varies by series and guide rod size, longer available, consult factory)
  • Operating characteristics: double acting
  • Maximum operating pressure: 1MPa (145 psi or 10 bar)
  • Operating temperature range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to 74°C
    • Fluorocarbon seals: 0°F to 250°F or -17°C to 121°C
  • Support rod sizes: 10, 12, 16, 20, 25, 30, 40, 50, and 60mm
  • Energy absorption: bumpers, cushions and shock absorbers
  • Stroke adjustment: adjustable stop collars and micro adjusters
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included).
  • Filtration requirement: 40 micron filtered, dry air
  • Contaminant-tolerant shaft seals
  • Self-aligning recirculating ball bearings available with carbon or stainless steel shafting
  • Direct mount design to enable simple multi-axis system assembly
Pneumatic Guided Cylinder Slide – P5L-T Series

Parker Pneumatic Cylinder
The P5L-T series guided cylinder features the popular P1L round body repairable cylinder and offers a fully featured and highly engineered guided bearing system, creating a guided cylinder suitable for medium heavy duty applications. The P5L-T, or “”thrust”” version, is designed to extend and retract a load beyond the support point into the work area. Two parallel precision ground case hardened chrome plated, or stainless steel, support shafts are guided by four linear bushings and incorporated into the body assembly. The bearings are prelubricated to provide millions of trouble-free cycles. Composite bushings with standard or oversized shafting or linear ball bearings are available.

The P5L-T series features a machined, anodized one-piece aluminum body with counterbored through holes and T-slots for mounting flexibility. Standard dowel pin holes provide precision mounting for the body and tool plate. Standard piston wear bands allow the piston rod assembly to “”float”” in the bore thereby eliminating metal-to-metal contact. The result is dramatically greater cylinder seal life especially when the support shafts deflect under load. This ensures very long cylinder life with reduced maintenance and downtime. The P5L-T has a full range of features and options.

  • P5L-R and P5L-B versions are also available to handle a variety of external loading and mounting configurations
  • Bore sizes: 20, 25, 32, 40, 50, 63, 80, and 100 mm
  • Maximum stroke: 400 to 1000 mm (varies by series and guide rod size, longer available, consult factory)
  • Operating characteristics: double acting
  • Maximum operating pressure: 1MPa (145 psi or 10 bar)
  • Operating temperature range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to 74°C
    • Fluorocarbon seals: 0°F to 250°F or -17°C to 121°C
  • Support rod sizes: 10, 12, 16, 20, 25, 30, 40, 50, and 60mm
  • Energy absorption: bumpers, cushions and shock absorbers
  • Stroke adjustment: adjustable stop collars and micro adjusters
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included).
  • Filtration requirement: 40 micron filtered, dry air
  • Contaminant-tolerant shaft seals
  • Self-aligning recirculating ball bearings available with carbon or stainless steel shafting
  • Direct mount design to enable simple multi-axis system assembly
Pneumatic Guided Cylinder Slide – P5T Series


The P5T series short stroke thrust slide is designed for heavy duty short stroke applications where mounting envelopes are limited and substantial side-loading is present. Built into the housing are four composite bushings which guide two parallel precision ground case hardened and chrome plated support shafts. This compact housing minimizes overall body length and width, allowing use in very confined spaces. The unitized body integrates a low profile cylinder which contains a wear band and piston magnet. The body comes standard with top ports; rear and side porting is optional. Also, built into the body are piston bumpers, which reduce noise and dissipate energy, resulting in longer operating life. Standard dowel pin holes provide precision mounting for the body and tool plate.

P5T short stroke thrusters are ideal for conveyor line stops, tamping boxes in packaging applications, presses, parts transfer, machine loading/unloading, clamping, assembly and many other factory automation applications. Available options include linear ball bearings, high load bearing configurations, NPT and BSPP porting, corrosion resistant shafting, and dual tooling plates.

  • Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, and 100mm
  • Standard strokes: 10 to 200 mm depending on model, custom stroke lengths available
  • Operating characteristics: double acting
  • Maximum operating pressure: 1MPa (145 psi or 10 bar)
  • Operating temperature range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to 74°C
    • Fluorocarbon seals: 0°F to 250°F or -17°C to 121°C
  • Support rod sizes: 8, 10, 12, 16, 20, 25, 30, and 35mm
  • Energy absorption: bumpers and shock absorbers
  • Stroke adjustment: adjustable stop collars
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: standard magnetic piston, optional reed switches or solid state and proximitysensors. Sold separately.
  • Filtration requirement: 40 micron, filtered dry air
  • Rod lock option available

Guided Cylinders

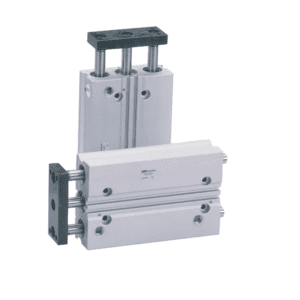

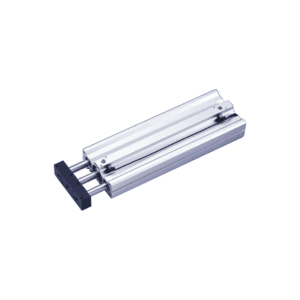

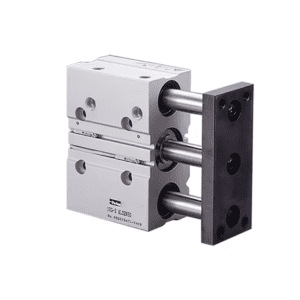

P5TA9 – Short Stroke Thruster Twin Guided Cylinder

Parker P5TA9 - Short Stroke Thruster Twin Guided Cylinder
Parker P5TA Series, short stroke thruster twin guided cylinder, has high accuracy and high stiffness of positioning without out rotation by two guides. In addition, its compact and robust design gurantees long service life and low maintanance cost.

  • Cylinder Type: Twin Guided
  • Operating Temperature: 5 to 60 °C, 41 to 140 °F
  • Body Material: Aluminum alloy
  • Body Type: Profile
  • Piston Rod Material: Aluminum alloy
  • Lubricant: Not necessary
  • Sensor Type: PD/PE Auto Switch, RCB Auto Switch
  • Mounting Position: Mounting in 4 position
Twin Rod Pneumatic Cylinders, Non Rotatable – RDV Series

Parker Twin Rod Pneumatic Cylinders, Non Rotatable - RDV Series
Perfect integration of two piston rods allowing to accept off-center forces of the cylinder axis. The non rotate twin rods version is mainly used for specific applications where piston rotation is not acceptable.
RDV are a range of double acting twin rod cylinders designed for use in non rotate applications and are suited to handling and packaging applications.
RDV Series : Double acting twin rod (Twin rod one side only). Available in bore Ø25mm with round profile, adjustable pneumatic cushioning, magnetic piston and standard temperature -10°C to +70°C.

  • Product Series: Pneumatic Cylinders
  • Product Type: Linear Actuator, Cylinder Actuator
  • Technology: Pneumatics
  • Cylinder Type: Guided | Through Rod
  • Actuation Type: Double Acting
  • Bore Diameter: 25 mm
  • Maximum Stroke Length: 500 mm, 19.69 inch
  • Extend Stroke Force: 265 N, 59.57 lbs
  • Retract Stroke Force: 235 N, 52.83 lbs
  • Cushioning Type: Pneumatic adjustable
  • Port Size: G1/8
  • Maximum Operating Pressure: 10 bar, 145 psi
  • Operating Temperature: 60 °C, +14 to +158 °F
  • Position Sensing Type: Optional Bracket
  • Mounting Option: Yes
  • Piston Rod Material: Stainless Steel
  • Body Material: Stainless Steel
  • End Cap Material: AluminiumBody Type: Round
  • Corrosion Resistance Included: Yes
  • Repairable: No
Twin Rod Pneumatic Cylinders, Smooth Profile Design – P1F Series

Parker Twin Rod Pneumatic Cylinders, Smooth Profile Design - P1F Series
Perfect integration of two piston rods allowing to accept off-center forces of the cylinder axis. The non rotate twin rods version is mainly used for specific applications where piston rotation is not acceptable.
Available in bore sizes Ø32mm – Ø100mm with smooth profile tube, adjustable pneumatic cushioning, magnetic piston and standard temperature -20°C to +80°C. Available in two versions.
– P1F-R Series : Double acting twin rods (single twin rod one side only).
– P1F-Q Series : Double acting through twin rods (both side twin rods).

  • Product Series: Pneumatic Cylinders
  • Product Type: Linear Actuator, Cylinder Actuator
  • Technology: Pneumatics
  • Cylinder Type: Guided | Through Rod
  • Actuation Type: Double Acting
  • Bore Diameter: 32mm | 40mm | 50mm | 63mm | 80mm | 100mm
  • Maximum Stroke Length: 2000 mm
    78.74 inch
  • Extend Stroke Force: 374 N to 4240 N (at 6 bar)
    84.08 lbs to 953.2 lbs (at 6 bar)
  • Retract Stroke Force: 380 N to 3900 N (at 6 bar)
    85.43 lbs to 876.8 lbs (at 6 bar)
  • Cushioning Type: Pneumatic Adjustable
  • Port Size: G1/8 | G1/4 | G3/8 | G1/2
  • Maximum Operating Pressure: 10 bar
    145 psi
  • Operating Temperature: -20C to +80C
    -4F to +176F
  • Position Sensing Type: 2 T-slots on one side
  • Mounting Option: Yes
  • Specifications Met: Yes
  • Piston Rod Material: Stainless Steel
  • Body Material: Aluminium
  • End Cap Material: Cast Aluminium
  • Body Type: Profile
  • Repairable: No
Pneumatic Guided Cylinder – XLT


The XLT Series Guided Cylinder provides precise, torque resistant linear motion in a very light weight, compact package. The XLT, or “thrust” version, is designed to extend and retract a load beyond the support point into the work area. Built into the tooling plate, an alignment coupler allows the piston rod to self-center. This extends cylinder life especially when the support shafts deflect under load. The housing is manufactured from anodized extruded aluminum incorporating through holes and “T” slots for mounting flexibility. Supported by the main body are four pre-lubricated recirculating ball bearings and two precision ground support shafts. Optional composite bushings may be specified.

Outboard wiper seals protect the bearings from contamination and retain lubrication. This ensures long life with reduced maintenance. A pre-lubricated SRM stainless steel air cylinder with a stainless steel piston rod provides thrust, while the support shafts and bearings provide positive load support for millions of non-lube, trouble-free cycles. Standard dowel pin holes provide precision mounting for the body and tool plate.

  • XLR (Reach) and XLB (Base) versions are also available to handle a variety of external loading and mounting configurations
  • Bore sizes 9/16″, 3/4″, 1-1/16″, 1-1/2″ (14, 19, 27, & 38mm)
  • Maximum suggested stroke length:
    • XLT04: 6″
    • XLT06: 12″
    • XLT08: 14″
    • XLT12: 18″
    • (varies by series and guide rod size, longer available, consult factory)
  • Operating Characteristics: double acting (single acting available)
  • Maximum Operating Pressure: 100 psi or 7 bar, 0.7MPa
  • Operating Temperature Range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to +74°C
    • Fluorocarbon seals: 0°F to 250°F to -17°C to +121°C
  • Support Rod Sizes: 1/4″, 3/8″, 1/2″, 3/4″
  • Energy Absorption: bumpers, cushions and shock absorbers
  • Stroke Adjustment: adjustable stop collars
  • Flow Controls: Presto-lok and NPT
  • Switches and Sensors: Standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included)
  • Filtration Requirement: 40 micron filtered, dry air
Pneumatic Guided Cylinder – XLR


The XLR series guided cylinder provides precise, torque resistant linear motion in a very light weight, compact package. The XLR, or “reach” version, is designed to extend and retract a load beyond the support point into the work area. Built into the tooling plate, an alignment coupler allows the piston rod to self-center. This extends cylinder life especially when the support shafts deflect under load. The housing is manufactured from anodized extruded aluminum incorporating through holes and “T” slots for mounting flexibility. Supported by the main body are four pre-lubricated recirculating ball bearings and two precision ground support shafts. Optional composite bushings may be specified.

Outboard wiper seals protect the bearings from contamination and retain lubrication. This ensures long life with reduced maintenance. A pre-lubricated SRM stainless steel air cylinder with a stainless steel piston rod provides thrust, while the support shafts and bearings provide positive load support for millions of non-lube, trouble-free cycles. Standard dowel pin holes provide precision mounting for the body and tool plate. On the XLR, “T” slots support optional stroke adjusters, shock absorbers and proximity sensors. One adjustment moves all three components in unison – eliminating multiple iterations during setup.

  • XLT (Thrust) and XLB (Base) versions are also available to handle a variety of external loading and mounting configurations
  • Bore sizes 9/16″, 3/4″, 1-1/16″, 1-1/2″ (14, 19, 27, & 38mm)
  • Maximum suggested stroke length:
    • XLR04: 8″
    • XLR06: 16″
    • XLR08: 18″
    • XLR12: 24″
    • (varies by series and guide rod size, longer available, consult factory)
  • Operating Characteristics: double acting (single acting available)
  • Maximum Operating Pressure: 100 psi or 7 bar, 0.7MPa
  • Operating temperature range (cylinder):
    • Standard seals: 0°F to 165°F or -17°C to +74°C
    • Fluorocarbon seals: 0°F to 250°F or -17°C to +121°C
  • Support Rod Sizes: 1/4″, 3/8″, 1/2″, 3/4″
  • Energy Absorption: bumpers, cushions and shock absorbers
  • Stroke Adjustment: adjustable stop ollars
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: Standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included)
  • Filtration Requirement: 40 micron filtered, dry air
Pneumatic Guided Cylinder – XLB

Parker Pneumatic Cylinder
The XLB series guided cylinder provides precise, torque resistant linear motion in a very light weight, compact package. The XLB, or “base” version, is designed to span the work area and translate the load between two support points. Built into the tooling plate, an alignment coupler allows the piston rod to self-center. This extends cylinder life especially when the support shafts deflect under load. The housing is manufactured from anodized extruded aluminum, incorporating through holes and “T” slots for mounting flexibility. Supported by the main body are four pre-lubricated recirculating ball bearings and two precision ground support shafts. Optional composite bushings may be specified.

Outboard wiper seals protect the bearings from contamination and retain lubrication. This ensures long life with reduced maintenance. A pre-lubricated SRM stainless steel air cylinder with a stainless steel piston rod provides thrust, while the support shafts and bearings provide positive load support for millions of non-lube, trouble-free cycles. Standard dowel pin holes provide precision mounting for the body and tool plate. On the XLB, “T” slots support optional stroke adjusters, shock absorbers and proximity sensors. One adjustment moves all three components in unison – eliminating multiple iterations during setup.

  • XLT (Thrust) and XLR (Reach) versions are also available to handle a variety of external loading and mounting configurations
  • Bore Sizes: 9/16″, 3/4″, 1-1/16″, 1-1/2″ (14, 19, 27, & 38mm)
  • Maximum suggested stroke length:
    • XLR04: 12″
    • XLR06: 12″
    • XLR08: 18″
    • XLR12: 24″
    • (varies by series and guide rod size, longer available – consult factory)
  • Operating Characteristics: double acting (single acting available)
  • Maximum Operating Pressure: 100 psi or 7 bar
  • Operating Temperature Range (cylinder):
    • Standard Seals: 0°F to 165°F or -17°C to +74°C
    • Fluorocarbon Seals: 0°F to 250°F or -17°C to +121°C
  • Support Rod Sizes: 1/4″, 3/8″, 1/2″, 3/4″
  • Energy Absorption: bumpers, cushions and shock absorbers
  • Stroke Adjustment: adjustable stop collars
  • Flow controls: Presto-lok and NPT
  • Switches and Sensors: Standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included)
  • Filtration Requirement: 40 micron filtered, dry air

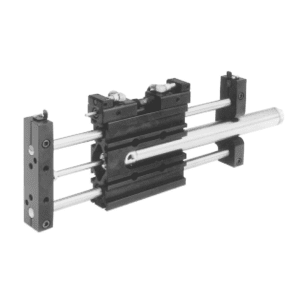

Rodless Cylinders

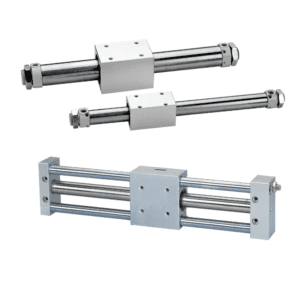

Magnetically Coupled Rodless Cylinder- P1ZS / P1ZG / P1ZT

Parker Magnetically Coupled Rodless Cylinder- P1ZS / P1ZG / P1ZT
Magnetically coupled cylinders save space and have a wide range of applications. The P1Z series can be used in many diverse environments, because there is no external leakage. The use of a linear guide makes loading and moments, directly on the cylinder possible. A top cover can be mounted over the sliding section of the cylinder to prevent scratches and damage, and centralized piping minimizes mounting space. The P1Z series is available in 5 tube sizes 16mm through 40mm and strokes up to 2000 mm are standard.

  • Cylinder Action: Double Acting
  • Maximum Stroke Length: 1000, 1500, 2000, 750 mm, –
  • Extend Stroke Force: 120 to 754 (at 6 bar) N, –
  • Retract Stroke Force: 120 to 754 (at 6 bar) N, –
  • Cushioning Type: Air Cushion, Bumper Cushion
  • Maximum Operating Pressure: 7 bar, 102 psi
  • Operating Temperature: 0 to +60 °C, +32 to +140 °F
  • Mounting Option: Yes
  • Body Material: Stainless Steel
  • End Cap Material: Aluminum
  • Body Type: Round
  • Repairable: Yes
Pneumatic Rodless Cylinder – P1X Series

Parker Pneumatic Cylinder
The P1X is a rodless cylinder with an oval piston design. The oval piston design is advantagous for lower profile application requirements as well as higher side-load moment capacity. The P1X also has a stroke adjustment/positioning option. This creates the ability for the user to change the stroke on demand. The stroke adjuster is a shock absorber that also helps with deceleration. This shock option may be necessary for high speed applications. The P1X is available in 7 different bore sizes with multiple porting, mounting and sensing options.

  • Bore Sizes: 16, 20, 25, 32, 40, 50, and 63mm
  • Stroke Range: Up to 5000mm
  • Operating Characteristics: Double Acting
  • Maximum Operating Pressure: 100 PSI (7 Bar)
  • Operating Temperature Range: 40 to 140°F (5 to 60°C)

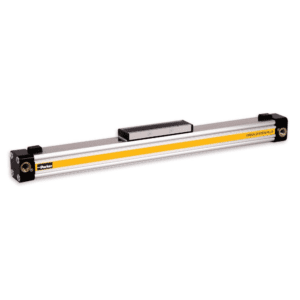

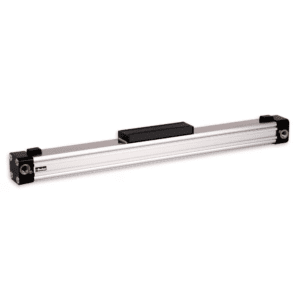

Rodless Pneumatic Cylinders, Low Leakage – Origa OSP-L Series

Parker Rodless Pneumatic Cylinders, Low Leakage - Origa OSP-L Series

The OSP-L with high tech polymer sealing band for ultra-low leakage is a completely modular designed rodless cylinder. It offers a most comprehensive range of guides with a very long lifetime. The OSP-L rodless actuator in bore sizes Ø25, Ø32, and Ø40mm is a combined linear actuator, guidance and control package with additional functions designed into modular system components. Integral dovetail mounting rails on 3 sides of the cylinder enable modular components such as linear guides, valves, magnetic switches etc. to be fitted to the cylinder itself solving many installation problems, especially where space is limited and forms an ideal basis for additional customer specific functions providing total installation flexibility. Optimised cylinder profile for maximum stiffness with minimum weight, corrosion resistant steel outer sealing band and robust wiper system on the carrier for use in aggressive environments. The high-tech polymer inner band provides optimum sealing and extremely low friction for high performance operation. OSP-L is available as standard temperature -20°C to +80°C with a low temperature -40°C option. Long lifetime and service intervals up to 7,000km provide a unit ideally suited for point-to point operations, reciprocating movements and simple traverse / transfer applications.

  • Stainless Steel Version: for use in constantly damp or wet environments.All screws are A2 quality stainless steel (material no.1.4301 / 1.4303)
  • Low Temperature Version: for use in an environment with low temperatures (down to -40°C)
  • End Face Air Connection: in some situations it is necessary or desirable to fit a special end cap with the air connection on the end-face instead of the standard end cap with the air connection on the side. The special end cap can also be rotated 4 x 90° to locate the cushion adjustment screw as desired.
  • Both Air Connections at One End: a special end cap with both air connections on one side is available for situations where shortage of space, simplicity of installation or the nature of the process make it desirable. Air supply to the other end is via internal air passages (OSP-L25 to L40).
  • Integrated 3/2 Way VOE Valves: for optimal control of the OSP-L cylinder, 3/2 way valves integrated into the cylinder’s end caps can be used as a compact and complete solution. They allow for easy positioning of the cylinder, smooth operation at the lowest speeds and fast response, making them ideally suited for the direct control of production and automation processes.
  • Duplex Connection: the duplex connection combines two OSP-L cylinders of the same size into a compact unit with high performance.
  • Multiplex Connection: the multiplex connection combines two or more OSP-L cylinders of the same size into one unit. The orientation of the carriers can be freely selected.
  • Magnetic Switches Type RS, ES, RST, EST: for electrical sensing of end and intermediate piston positions.
  • Clevis Mounting: carrier with tolerance and parallelism compensation for driving loads supported by external linear guides.
  • End Cap Mounting: for end-mounting of the cylinder.
  • Mid Section Support: to avoid excessive bending and oscillation of the cylinder, mid-section supports are required dependent on specified stroke lengths and applied loads. The diagrams show the maximum possible support spacings depending on the load. Bending up to max. 0.5 mm is permissible between supports. The mid section supports are clamped on to the dovetail profile of the cylinder tube. They are also able to take the axial forces.
  • Tandem Cylinder: two pistons are fitted for higher load capacity and increased support.
  • Inversion Mounting: the inversion mounting transfers the driving force to the opposite side, e. g. for dirty environments.
  • Slideline Version: cost effective plain bearing guide for moderate loads.
  • Starline Version: recirculating ball bearing guide for very high loads and precision.
  • Variable Stop VS Version: the variable stop provides simple stroke limitation.

Features/Benefits

  • Modular system with a wide range of guides
  • Ultra-low leakage
  • Special cushioning system for cycle time optimisation
  • Smooth running characteristics
  • Lightweight
  • Integrated VOE valves available to reduce air consumption

Specifications

  • Specifications Met: Low Temperature version – 40°C
  • Product Series: Pneumatic Cylinders
  • Product Type: Linear Actuator, Cylinder Actuator
  • Technology: Pneumatics
  • Cylinder Type: Guide | Tandem
  • Cylinder Action: Double Acting
  • Bore Diameter: 25mm | 32mm | 40mm
  • Maximum Stroke Length: 6000 mm, 236.2 inch
  • Extend Stroke Force: 295 to 754 (at 6 bar) N
  • Retract Stroke Force: 295 to 754 (at 6 bar) N
  • Cushioning Type: Pneumatic | Shock Absorbers
  • Port Size: G1/8 | G1/4
  • Maximum Operating Pressure: 8 bar, 116 psi
  • Operating Temperature: -10 to +80 °C, +14 to +176 °F
  • Position Sensing Type: Sensor slots on 3 sides
  • Mounting Option: Yes
  • Body Material: Aluminium
  • End Cap Material: Aluminium
  • Body Type: Profile
  • Corrosion Resistance Included: Yes
  • Repairable: Yes
Rodless Pneumatic Cylinders, Standard – Origa OSP-P Series

Parker Pneumatic Cylinder
The OSP-P rodless actuator in bore sizes Ø10, Ø16, Ø25, Ø32, Ø40, Ø50, Ø63 and Ø80mm is a combined linear actuator, guidance and control package with additional functions designed into modular system components. Mounting rails on 3 sides of the cylinder enable modular components such as linear guides, brakes, valves, magnetic switches etc. to be fitted to the cylinder itself solving many installation problems, especially where space is limited and forms an ideal basis for additional customer specific functions providing total installation flexibility. Optimised cylinder profile for maximum stiffness and minimum weight, corrosion resistant steel outer sealing band, robust wiper system on the carrier for use in aggressive environments and a proven corrosion resistant steel inner band for optimum sealing. OSP-P is available as standard temperature -10°C to +80°C with high and low temperature options and can be supplied with optional active or passive dynamic braking. Long lifetime and service intervals up to 8,000km provide a unit ideally suited for point-to point operations, reciprocating movements and simple traverse / transfer applications.

  • Long Stroke Version : for extremely long strokes up to max. 41m. Bore sizes Ø50 – 80 mm
  • Clean Room Cylinders: for use in clean room applications, certified with the IPA-Certificate (to DIN EN ISO 14644-1). The special design of the linear drive enables all emissions to be led away. Bore sizes Ø16 – 32 mm
  • ATEX Version : for use in potentially explosive atmospheres in Equipment Group II, Category 2 GD. The cylinders are to the ATEX 94/9/EG (ATEX 95) for Pneumatic Components.
  • Stainless Steel Version : for use in constantly damp or wet environments. All screws are A2 quality stainless steel (material no.1.4301 / 1.4303)
  • Slow Speed Version : specially formulated grease lubrication facilitates slow, smooth and uniform piston travel in the speed range from 0.005 to 0.2 m/s. Minimum achievable speeds are dependent on several factors. Please consult our technical department. Slow speed lubrication in combination with Viton® on demand. Oil free operation referred.
  • High Speed Version : up to 30 m/s. Please consult our technical department. Bore sizes Ø25 – 32 mm
  • High Temperature Version : for use in an environment with high temperatures (up to +120°C ) or in chemically aggressive areas. All seals are made of Viton®. Sealing bands: Stainless steel.
  • Low Temperature Version : for use in an environment with low temperatures ( down to -40°C )
  • End Face Air Connection : in some situations it is necessary or desirable to fit a special end cap with the air connection on the end-face instead of the standard end cap with the air connection on the side. The special end cap can also be rotated 4 x 90° to locate the cushion adjustment screw as desired. Bore sizes Ø16 – 80 mm
  • Both Air Connections at One End : a special end cap with both air connections on one side is available for situations where shortage of space, simplicity of installation or the nature of the process make it desirable. Air supply to the other end is via internal air passages (OSP-P25 to P80) or via a hollow aluminium profile fitted externally (OSP-P16). In this case the end caps cannot be rotated. Bore sizes Ø16 – 80 mm
  • Integrated 3/2 Way VOE Valves : for optimal control of the OSP-P cylinder, 3/2 way valves integrated into the cylinder’s end caps can be used as a compact and complete solution. They allow for easy positioning of the cylinder, smooth operation at the lowest speeds and fast response, making them ideally suited for the direct control of production and automation processes. Bore sizes Ø25 – 50 mm
  • Duplex Connection : the duplex connection combines two OSP-P cylinders of the same size into a compact unit with high performance. Bore sizes Ø25 – 50 mm
  • Multiplex Connection : the multiplex connection combines two or more OSP-P cylinders of the same size into one unit. The orientation of the carriers can be freely selected. Bore sizes Ø25 – 50 mm
  • Magnetic Switches type RST, EST : for electrical sensing of end and intermediate piston positions, also in EX-Areas.
  • Clevis Mounting : carrier with tolerance and parallelism compensation for driving loads supported by external linear guides.
  • End Cap Mounting : for end-mounting of the cylinder.
  • Mid Section Support : to avoid excessive bending and oscillation of the cylinder, mid-section supports are required dependent on specified stroke lengths and applied loads. The diagrams show the maximum possible support spacings depending on the load. Bending up to max. 0.5 mm is permissible between supports. The mid section supports are clamped on to the dovetail profile of the cylinder tube. They are also able to take the axial forces.
  • Tandem Cylinder : two pistons are fitted for higher load capacity and increased support.
  • Inversion Mounting : the inversion mounting transfers the driving force to the opposite side, e. g. for dirty environments. Bore sizes Ø16 – 80 mm
  • Basic Guide Version : integrated directly into the cylinder profile tube, closing the gap between the standard version of the OSP-P rodless linear actuators and their combination with the external Slideline plain bearing guide. This makes the Basic Guide ideal for all applications that require a particularly compact, highly durable guide for maximum load values as well as simple play adjustment. Bore sizes Ø25 – 50 mm. ATEX Version available.
  • Slideline Version : cost effective plain bearing guide for moderate loads. Active / passive brake optional. Bore sizes Ø16 – 80 mm. ATEX version available.
  • Powerslide Version : the roller guide for heavy loads and hard application conditions. Bore sizes Ø16 – 50 mm
  • PROline Version : the compact aluminium roller guide for high loads and velocities. Active/ Passive Brake optional. Bore sizes Ø16 – 50 mm
  • Starline Version : recirculating ball bearing guide for very high loads and precision. Bore sizes Ø16 – 50 mm
  • KF Guide Version : recirculating ball bearing guide for high loads and precision. Correspond to FESTO dimensions (Type DGPL-KF). Bore sizes Ø16 – 50 mm
  • HD Heavy Duty Guide Version : recirculating ball bearing guide for highest loads and greatest accuracy. Bore sizes Ø25 – 50 mm
  • Variable Stop VS Version : the variable stop provides simple stroke limitation. Bore sizes Ø25 – 50 mm
  • Intermediate Stop Module ZSM : a cost effective positioning module without electrical or electronic components that allows the guide carriage to stop at any intermediate position with high accuracy. It can be retrofitted

General Technical Data:

  • International Standards : N/A
  • Bore Sizes : Ø10, Ø16, Ø25, Ø32, Ø40, Ø50, Ø63 and Ø80mm
  • Stroke Length :
    • Standard stroke version up to 6000mm
    • Long stroke version (Ø50, Ø63 and Ø80mm) up to 41m
  • Versions : Double acting
  • Cushioning : Adjustable pneumatic, special cushioning system, external hydraulic shock absorber
  • Speed Range : 0.005 – 30m/s
  • Position Sensing : For electrical sensing of the carrier position, e.g. at the end positions, magnetic switches may be fitted. Position sensing is contactless and is based on magnets fitted as standard to the carrier. A yellow LED indicates operating status. Choose between electronic or reed sensors with various cable lengths and connector or flying lead connection.
  • Sensoflex SFI-plus : Contactless magnetic displacement measuring system for speeds up to 10 m/s. Suitable for almost any control or display unit with a counter input. Also available for the OSP-E series. Resolution 0.1mm or 1.0 mm
  • Installation :
    • Directly.
    • A wide range of cylinder mountings in anodised aluminium.
  • Mounting Position : Any

Operating and Environmental Data:

  • Operating Medium : For best possible service life and trouble-free operation dry, filtered compressed air to ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer) and is in line with the air quality from most standard compressors with a standard filter.
  • Operating Pressure : 8 bar max
  • Operating Temperature :
    • Standard temperature -10°C to +80°C
    • High temperature -10°C to +120°C
    • Low temperature -40°C to +80°C
  • Pre-lubricated : Further lubrication is not necessary.
  • Corrosion Resistance : Resistance to corrosion and chemicals.

Material Specification – Cylinder:

  • End Covers : Aluminium, laquered / Plastic (P10)
  • Cylinder Barrel : Anodised aluminium
  • End Cover Screws : Galvanised steel (standard) / Stainless steel (optional)
  • Sealing Band : Corrosion resistant steel
  • Seals : NBR (Nitrile rubber) (standard) / FPM (Viton) (optional)
  • Carrier (Piston) : Anodised aluminium
  • Dust Covers / Wipers : Plastic

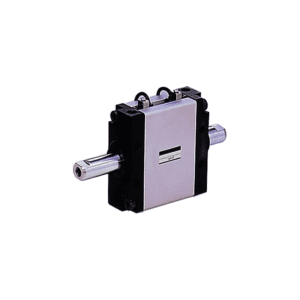

Rodless Cylinder (Band type) Model: BL6

Parker Rodless Cylinder (Band type) Model: BL6
The OSP-P rodless actuator in bore sizes Ø10, Ø16, Ø25, Ø32, Ø40, Ø50, Ø63 and Ø80mm is a combined linear actuator, guidance and control package with additional functions designed into modular system components. Mounting rails on 3 sides of the cylinder enable modular components such as linear guides, brakes, valves, magnetic switches etc. to be fitted to the cylinder itself solving many installation problems, especially where space is limited and forms an ideal basis for additional customer specific functions providing total installation flexibility. Optimised cylinder profile for maximum stiffness and minimum weight, corrosion resistant steel outer sealing band, robust wiper system on the carrier for use in aggressive environments and a proven corrosion resistant steel inner band for optimum sealing. OSP-P is available as standard temperature -10°C to +80°C with high and low temperature options and can be supplied with optional active or passive dynamic braking. Long lifetime and service intervals up to 8,000km provide a unit ideally suited for point-to point operations, reciprocating movements and simple traverse / transfer applications.

  • Product Type: Basic style
  • Bore Diameter: φ16,φ25,φ32,φ40,φ50,φ63,φ80
  • For Fluid Type: Air
  • Stroke Length: φ16,φ25:Standard maximum stroke 2800,Fabrication stroke 5800 φ32 to φ50:Standard maximum stroke 2700,Fabrication stroke 5700 φ63,φ80:Standard maximum stroke 2500,Fabrication stroke 5500 mm
  • Lubricant: Unnecessary
  • Pressure Rating: φ16:0.15 to 0.8MPa φ25 to φ80:0.1 to 0.8MPa
  • Operating Speed: φ16:200 to 2500mm/s φ25 to φ80:200 to 4000mm/s
  • Operating Temperature: -10 to +80℃(No freezing) °C
  • Cushioning Type: Air cushioning
  • Mounting Position: Free
  • Port Location: Basic style,Common ports type(φ25 to φ63)
  • Cushioning Stroke Length: φ16:11mm φ25:17mm φ32:20mm φ40:27mm φ50:30mm φ63:32mm φ80:39mm
  • Stroke Tolerance: 1500mm or less:0 to +1.5 1501 to 5500mm:0 to +2.5 5501mm or more:0 to +3
  • Accessories Included: Clevis attachment,Turn bracket,Mounting block,Intermediate support

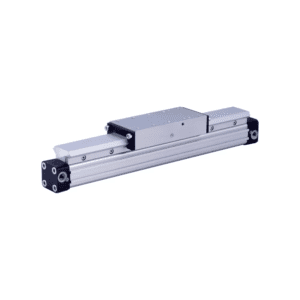

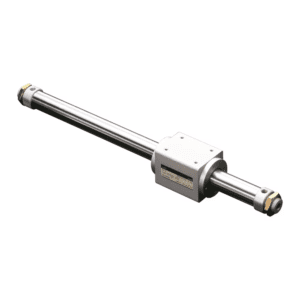

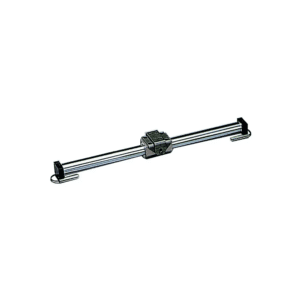

Rodless Cylinder (Magnet Type) Model: RL2

Parker Rodless Cylinder (Magnet Type) Model: RL2
Oil-free magnetic rodless cylinder RL2 series with excellent holding capacity and space saving. The mounting space is extremely compact, about half that of a conventional cylinder.
The RL2 series is a magnet type rodless cylinders. We also have bore size from φ10 to φ40. Two types are available, a standard type and a guide type. There are 2 types of guide structures with guides, a general-purpose type and a high-precision type.

  • Bore Diameter: φ10,φ16,φ20,φ25,φ32,φ40Cylinders with bores of φ10,φ16 and φ20 come only in Magnetic holding force strong type.
  • For Fluid Type: Air
  • Lubricant: Unnecessary Once lubricating the cylinder,you must lubricate it constantly.
  • Pressure Rating: Magnetic holding force strong type(H):0.15 to 0.7MPa Magnetic holding force general purpose type(M):0.15 to 0.45MPa
  • Proof Pressure: 1.03MPa
  • Operating Speed: 100 to 500mm/s
  • Operating Temperature: -10 to +70℃(No freezing)(Ambient/fluid temperature) °C
  • Cushioning Type: φ10 to φ25:With shock absorbing pad φ32,φ40:With cushions on both ends
  • Thread Tolerance: JIS 6H/6g
  • Installation: Free

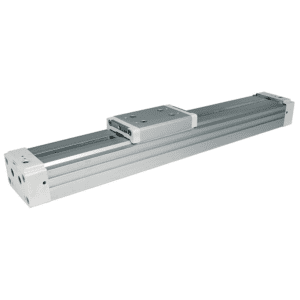

Rodless Cylinder(Magnet Type) Model:RL3CL

Parker Rodless Cylinder(Magnet Type) Model:RL3CL
Oil-free magnetic rodless cylinder RL2 series with excellent holding capacity and space saving. The mounting space is extremely compact, about half that of a conventional cylinder.
The RL2 series is a magnet type rodless cylinders. We also have bore size from φ10 to φ40. Two types are available, a standard type and a guide type. There are 2 types of guide structures with guides, a general-purpose type and a high-precision type.

  • Product Type: Magnetic holding force general purpose type
  • Bore Diameter: φ16,φ20,φ25,φ32,φ40
  • For Fluid Type: Air
  • Lubricant: Unnecessary
  • Pressure Rating: 0.1 to 0.34MPa
  • Proof Pressure: 1.03MPa
  • Operating Speed: 100 to 400mm/s
  • Operating Temperature: 0 to +60℃(No freezing) °C
  • Cushioning Type: With shock absorbing pad
  • Mounting Position: Free Cylinders with bores of φ16 to φ25 are suitable for vertical mounting operation.
  • Stroke Tolerance: 50 to 1000mm:0 to +1.5 1001 to 1500mm:0 to +2.0
  • Magnet Holding Capability: φ16:73.5N φ20:127.5N φ25:196.1N φ32:313.8N φ40:500.1N
  • Accessories Included: Mount attachment

Tie Rod Cylinders

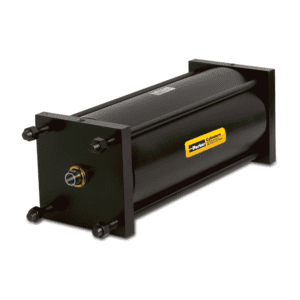

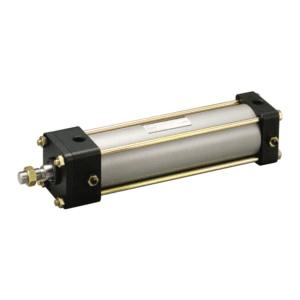

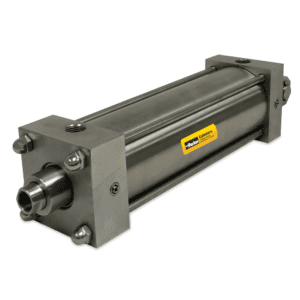

Pneumatic Non-Rotating Piston Rod Cylinder – 2MNR

Parker Pneumatic Cylinder
The 2MNR series cylinder has a ruggedly constructed, highly configurable, non-rotating piston design. The aluminum body and machined aluminum end caps make the 2MNR a light weight solution. With 6 bore sizes, 10 NFPA mounting styles, and a variety of other options, the 2MNR is easily adaptable. The carboxilated nitrile seal, polyurethane rod wiper, and piston wear band combine to offer low friction, leak free operation and long service life. To minimize downtime when maintenance is required, the externally removable bronze glands enable servicing of the cylinder without disassembly of the body. The 2MNR series cylinder has a full range of features and options.

  • Bore Sizes: 1⅛”, 1½”, 2”, 2½”, 3¼”, and 4”
  • Stroke Length: Available in any practical stroke length
  • Operating Characteristics: double acting
  • Maximum Operating Pressure: 250 psi or 17 bar
  • Operating Temperature Range:
    • Standard seals: -10°F to 165°F or -23°C to +74°C
    • Fluorocarbon Seals: -10°F to 250°F or -23°C to +121°C
  • Rod Diameters: 5/16” – 5/8“
  • Rod Ends: Single or double piston rod ends available, double piston rod end can be single or triple rod design
  • Ports: NPTF ports are standard, others available
  • Cushion: Adjustable cushions head, cap, or both

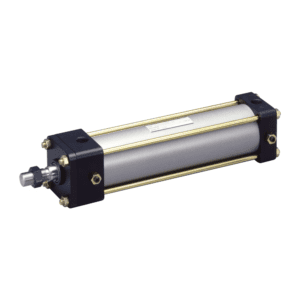

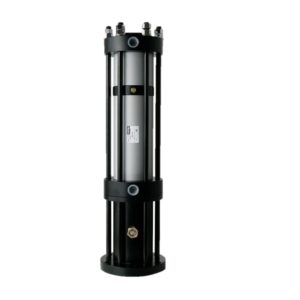

Pneumatic Tie Rod Cylinder – C Series (Inch, Medium Duty)

Parker Pneumatic Cylinder
The C Series is a configurable, general purpose legacy cylinder. The aluminum body and end caps make it a light weight solution. An oil impregnated, bronze rod bushing provides maximum bearing area and a non-abrasive surface for long service life. A synthetic rubber coated piston is designed to compensate for wear, eliminating metal-to-metal contact. Fully adjustable, floating cushions offer an efficient means of decelerating heavy loads. The modular design offers flexibility by providing three different mounting options with the basic cylinder. In addition to this, four different mounting kits can be bolted on quickly and easily.

  • Bore Sizes: 1-1/4″, 1-3/4″, 2-1/2″, 3-5/8″, and 4-1/2″
  • Stroke Length: available in any practical stroke length, max 20″” standard
  • Operating characteristics: double acting, spring extend, spring return
  • Maximum Operating Pressure: 200 psi or 13 bar
  • Operating Temperature range: -4°F to +165°F or -20°C to +74°C
  • C Series cylinders can be operated up to 200°F with reduced service life
  • Cushions (standard or adjustable), bumpers available
  • Prelubrication C series air cylinders are factory pre-lubricated. Parker Lube-A-Cyl is applied to cylinder bore, piston rod and seals. Lube-A-Cyl is an extreme pressure lubricant which adheres to the surfaces and for medium duty service (additional lubrication is not necessary)
  • Construction: hard coated aluminum cylinder body
  • Mounting Styles: three standard choices with 4 optional mounting kits available for bolting on quickly and easily

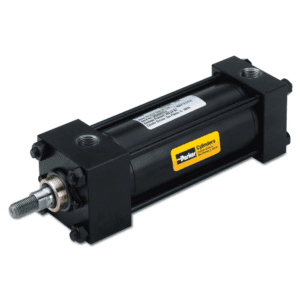

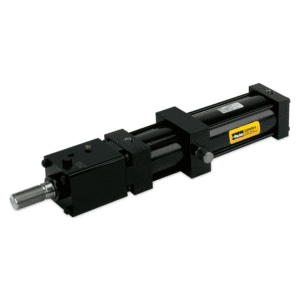

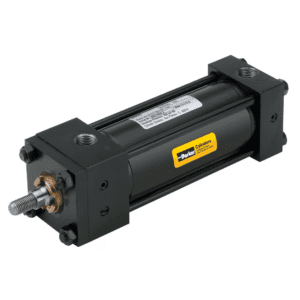

Pneumatic NFPA Cylinder – 4MA Series

Parker Pneumatic Cylinder
The 4MA series cylinder is a ruggedly constructed, highly configurable, all purpose design. The aluminum body and machined aluminum end caps make the 4MA a light weight solution. With 8 bore sizes, 20 NFPA mounting styles, and a variety of other options the 4MA is easily adaptable to practically any application. Carboxilated nitrile seals, a urethane rod wiper, and piston wear band combine to offer low friction, leak free operation, and long service life. To minimize downtime when maintenance is required, the externally removeable bronze gland enables servicing of the cylinder without disassembly of the body. The 4MA series cylinder has a full range of features and options.

  • 4MAJ (Rod Lock) and 4ML (Hydraulic) versions are also available
  • Bore Sizes: 1 1/2″, 2″, 2 1/2″, 3 1/4″, 4″, 5″, 6″, 8″
  • Stroke Length: available in any practical stroke length
  • Operating characteristics: double acting
  • Maximum operating pressure:
    • 100 psi (air) – 4MAJ
    • 250 psi (air) – 4MA
    • 400 psi (oil) – 4ML
  • Operating temperature range:
    • Standard seals: -10°F to 165°F or -23°C to 74°C
    • Fluorocarbon seals: -10°F to 250°F to -23°C to 121°C
    • Low temp seals: -50°F to 150°F to -46°C to 66°C
  • Gland options, including the HI LOAD design for side load conditions and metallic rod wiper design
  • Custom designs for endcaps, pistons, piston rods, mounts, etc.
  • Rod diameters: 5/8″, 1″, 1-3/8″, oversize rod option available
  • Rod ends: 4 standard, specials and double rod ends available
  • Porting options
  • Cushions, bumpers
  • Machined head and cap from extruded aluminum bar stock, black anodized for corrosion resistance
  • Combined with the following as standard offerings:
    • Parker HB slide packages to become guided cylinders (HBC/HBT/HBR/HBB)
    • Parker “B” Series air valves as an air cylinder/valve combination unit (ACVB Option)
    • Bolt-On Linear Transducer for continuous piston rod position sensing (LPSO Option)
  • RoHS compliant

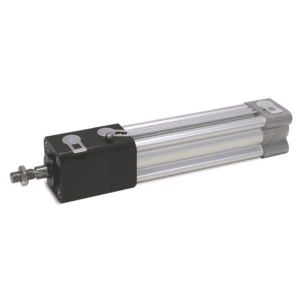

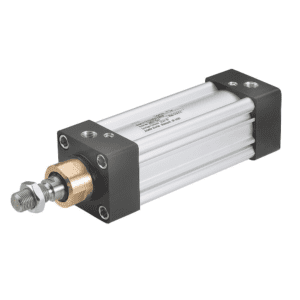

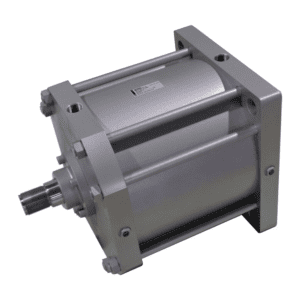

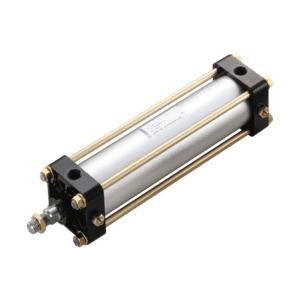

Pneumatic ISO/VDMA Cylinder – P1D Series

Parker Pneumatic Cylinder
The P1D family of ISO 15552 / VDMA magnetic profile and rod-tie pneumatic cylinders offer an extensive range of environmental and application options and come in bore sizes Ø32 to Ø125mmm, with strokes of up to 2800mm. The innovative P1D is a future-proof generation of double acting cylinders, with a new design of air cushioning. The P1D-series includes design variants suitable for non corrosive environments, food and washdown environments and heavy duty applications, plus cylinder options including static or dynamic rod locking and high and low temperature versions.

  • The P1D-B actuator in bore sizes Ø32 to Ø125mm is an ISO 15552 / VDMA magnetic profile cylinder for standard temperature -20°C to +80°C. A basic entry level cylinder for non corrosive environments. Strokes up to 2800mm.
  • The P1D-S actuator in bore sizes Ø32 to Ø125mm is an ISO 15552 / VDMA magnetic profile cylinder for standard temperature -20°C to +80°C. With various piston rod materials and sealing options for a wide range of applications. Strokes up to 2800mm.
  • The P1D Pro Clean actuator with sensor function in bore sizes Ø32 – Ø125mm is an ISO 15552 / VDMA clean profile cylinder for standard temperature -20°C to +80°C. Designed for food and washdown environments where sensing is required. Strokes to 2800mm
  • The P1D Ultra Clean actuator without sensor function in bore sizes Ø32 to Ø125mm is an ISO 15552 / VDMA clean profile cylinder for standard temperature -20°C to +80°C. Specifically designed for food and washdown environments. Strokes up to 2800mm.
  • The P1D-H actuator in bore sizes Ø32 to Ø125mm is an ISO 15552 / VDMA P1D-S magnetic profile cylinder for standard temperature -20°C to +80°C. The static rod lock allows the piston rod to be locked in any position. Strokes up to 2800mm.
  • The P1D-L actuator in bore sizes Ø32 to Ø125mm is an ISO 15552 / VDMA P1D-S magnetic profile cylinder for standard temperature -20°C to +80°C. The dynamic rod lock allows the piston rod to belocked in any position. Strokes up to 2800mm.
  • The P1D-V actuator in bore sizes Ø32 to Ø125mm is an ISO 15552 / VDMA P1D-S magnetic profile cylinder for standard temperature -20°C to +80°C with the addition of a factory mounted Viking Xtreme valve. Strokes up to 2800mm.
  • The P1D-X actuator in bore sizes Ø32 to Ø125mm is an ISO 15552 / VDMA profile cylinder for high and low temperature applications -40°C and up to +150°C with corrosion resistant body for harsh conditions. Strokes up to 2800mm.
  • The P1D-T actuator in bore sizes Ø32 to Ø125mm is an ISO 15552 / VDMA magnetic tie rod cylinder for standard temperature -20°C to +80°C with a corrosion resistant metal body. Strokes up to 2800mm.
  • The P1D-T large bore actuator in bore sizes Ø160 to Ø320mm is an ISO 15552 / VDMA magnetic tie rod cylinder for standard temperature -20°C to +80°C. P1D-T has a corrosion resistant body and is suitable for heavy duty applications. Strokes up to 2000mm.

General Technical Data:

  • International Standards : complies with ISO 15552, ISO 6431, VDMA 24562 and AFNOR installation dimension standards.
  • Bore Sizes : Ø32, Ø40, Ø50, Ø63, Ø80, Ø100 and Ø125 mm
  • Stroke Length : 5 to 2800mm
  • Versions : double acting
  • Cushioning : adjustable pneumatic
  • Position Sensing : “Drop in” sensors can easily be installed in the recessed grooves located on three faces mechanically protecting the sensor that can be located at any position along the piston stroke. Choose between electronic or reed sensors with various cable lengths and 8 mm snap on, M12 threaded or flying lead connection.
  • Installation : a wide range of cylinder mountings in aluminium.
  • Mounting Position : any

Operating and Environmental Data:

  • Operating Medium : for best possible service life and trouble-free operation dry, filtered compressed air to ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer) and is in line with the air quality from most standard compressors with a standard filter.
  • Operating Pressure : 0.5 to 10 Bar
  • Operating Temperature : -20°C to +80°C (standard temperature)
  • Pre-lubricated : further lubrication is normally not necessary. If additional lubrication is introduced it must be continued.
  • Corrosion Resistance : resistance to corrosion and chemicals.

Material Specification:

  • End Covers : Aluminium
  • Cylinder Barrel : Anodised aluminium
  • Piston Rod : Stainless steel (Standard) / Chromium plated steel (optional)
  • Piston Rod Nut : Zinc plated steel
  • End Cover Screws : Zinc plated steel
  • Scraper Ring : PUR (Polyurethane)
  • Piston Rod Seal : PUR (Polyurethane)
  • Piston : POM (Polyoxymethylene)
  • Magnet : Plastic coated magnetic material
  • Piston Bearing : POM (Polyoxymethylene)
  • Piston Seals : PUR (Polyurethane)
  • Piston Bolt : Zinc plated steel
  • O Rings : NBR (Nitrile rubber)
  • Piston Rod Bearing : Multilayer PTFE / Steel
  • Cushion Screws : Stainless steel
  • Cushion Seals : PUR (Polyurethane)

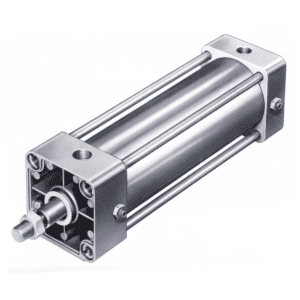

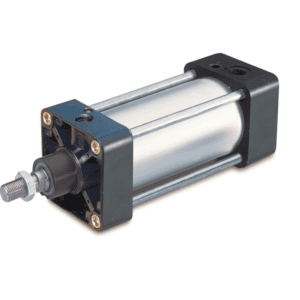

ISO 15552 Pneumatic Cylinders, Tie-Rod Design – P1F-T Series

Parker Pneumatic Cylinder
The P1F-T tie rod cylinder follows the ISO 15552 standard for interchangeability and is available throughout Parker’s extensive sales network, insuring global customers will have local support when and where they need it. The P1F-T is available in bore sizes from 32 to 125 mm. Magnetic piston for standard temperature (-20 to +80°C). Utilizing internal composite technology (piston) to save weight, while assuring the high performance and functionality expected of an ISO cylinder. With aluminum sandblast front and rear end plates, multilayer PTFE coated steel bearing , pneumatic cushioning and magnetic piston with polyurethane seals as standard this is our heavy duty Tie-Rods ISO cylinder. Offering various piston rod materials, sealing options and supported by a full range of ISO mountings and sensors the P1F-T series is suitable for wide range of general purpose industrial and heavy duty applications.

Challenges encountered within rigorous environments require leading engineered solutions and products. Meeting these exacting needs the P1F-T provides the answer for high and low temperatures applications. Engineered to provide superior performance in harsh conditions using proven class leading seal technology for reliable operation and long service life in temperatures down to -40°C and up to +150°C. With robust corrosion resistant body and optional metal scraper the P1F-T leads the way in today’s changing climate.

Markets:

  • Factory Automation
  • Machine Tools
  • Packaging Machinery
  • Vehicle Assembly Facilities
  • Material Handling
  • Outdoor, Transport

Features/Benefits:

  • Conforms to ISO 15552 standard
  • Bores from 32 to 125 mm
  • Heavy Duty Tie-Rods Design
  • End plates and tube with smooth surfaces
  • Corrosion resistant with sandblast end plates, barrel in anodized aluminium and stainless steel piston rod
  • Polyurethane seal technology inside
  • Adjustable air cushioning with retained stainless steel cushioning slotted screws on same side
  • Mechanical end stops reduce the noise
  • Wide range of mountings and drop-in sensors

Applications:

General industry – Linear movement

  • Push objects
  • Stop/Hold/Go

General industry – Clamping

  • Clamp objects
  • Fix / hold in position

General industry – Holding

  • Lift, moving, clamping

General industry – Controlling

  • Change lane, direction
  • Change level

Packaging – Moving

  • Push / pull objects
  • Sorting, conveying

Outdoor transport and railway – Linear movement

  • Moving, clamping, closing

Option Overview:

FKM (fluoro elastomer) scraper for high chemical resistance:

For use in applications where chemicals may affect the scraper in the front end plate, an option with a scraper in FKM rubber for better chemical resistance must be used. Temperature range -10 to +80°C.

Metal Scraper Ring:

Standard scraper ring cannot be used in environments where the piston rod may be coated with resin, ice, cement, sugar crystals, dough, etc., primarily in timber handling, refrigerated / chilled transport, cement industry, chemicals and food and drinks. The build-up of hard abrasive coatings on the piston rod can damage the standard scraper ring and shorten service life. A metal scraper ring with a stainless steel carrier, brass outer scraper ring and a nitrile rubber inner scraper ring is an option for all diameters of P1F-T cylinders. This metal scraper has to be used with a hard-chromium plated piston rod. Temperature range -30 to +80°C.

High Temperature:

All seals in the high temperature version of P1F-T are developed and validated for continuous operation up to +150°C. The combination of the seal geometry and the fluoro elastomer (FKM) material ensures reliable and long service life. Certain restrictions apply when choosing sensors due to the temperature range. High temperature cylinders have no magnetic piston and cannot be fitted with sensors (the magnetic field strength in high temperatures is too low to ensure correct reliable sensor function). The key for reliable operation of pneumatic cylinders in high temperatures is the seal and grease system. It takes thorough testing to arrive at the optimum and proven technology.

  • Seals in proven fluoro elastomer (FKM) material for reliability and long service life.
  • Dedicated high temperature grease with a special formula is vital for the performance of the cylinder.
  • The combined system of seals and grease developed for P1F-T is the key for the excellent function in the temperature range -10 to +150°C.

Low Temperature:

All seals in the low temperature version of P1F-T are developed and validated for continuous operation down to -40°C. Ultrathan polyurethane (TPU-PUR) seal technology and specifically formulated grease support performance and reliability for low temperature applications. As standard supplied with a magnetic ring in the piston for proximity sensing but please note that the sensors are normally specified for full performance to -30°C only. Parker have combined the most sought after features of seal technology to provide low temperature pneumatic cylinders with high reliability, low leakage and long service life.

  • Seals engineered for low temperature in ultrathan polyurethane (TPU-PUR), formulated specifically for optimal performance in the temperature range -40 to +80°C.
  • Seal material retains its elastic properties with maintained performance even at extreme low temperature.
  • Low temperature characteristics but maintaining superior wear resistance.
  • Heavy Duty proven profile

Piston Rod in different materials:

  • Austenitic stainless steel DIN X8 CrNiS 18-9, standard
  • Austenitic chromium plated steel DIN C45E, optional
  • Austenitic chromium plated stainless steel DIN X2 CrNiMoN 17-12-2 (on request)

General Technical Data:

  • International Standard: complies with ISO 15552 (corresponds to the withdrawn standards ISO 6431, DIN ISO 6431, VDMA 24562, NFE 49003.1 and UNI 10290) for installation dimensions.
  • Bore Sizes : Ø32, 40, 50, 63, 80, 100 and 125 mm
  • Stroke Length : 5 to 2000mm
  • Versions : double acting / double acting with through rod
  • Cushioning : adjustable pneumatic
  • Position Sensing : “Drop in” or “Straight in” sensors can easily be installed by adding on the tie-rods brackets protecting the sensor that can be located at any position along the piston stroke. Choose between electronic or reed sensors with various cable lengths and M8 knurled screws or flying lead connection. The low temperature version has a magnetic ring in the piston for proximity sensing (but please note that the sensors are normally specified for full performance down to-30°C only). The high temperature version does not have a magnetic ring in the piston and therefore cannot be used with sensors.
  • Installation : a wide range of cylinder mountings in aluminum providing the same overall corrosion resistance.
  • Mounting Position : any

Operating and Environmental Data:

  • Operating Medium : for best possible service life and trouble-free operation dry, filtered compressed air to ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer) and is in line with the air quality from most standard compressors with a standard filter.
  • Operating Pressure : 1 to 10 bar
  • Speed : 10 to 1000 mm/s
  • Standard temperature: -20 to +80°C / low temp -40 to +80°C / – high temp -10 to +150°C / metal scraper -30 to +80°C / FKM wiper seal -10 to +80°C
  • Pre-lubricated : further lubrication is normally not necessary. If additional lubrication is introduced it must be continued.
  • Corrosion Resistance : high resistance to corrosion and chemicals. Materials and surface treatment have been selected for industrial applications where solvents and detergents are frequently used.

Material Specification:

  • End Plates : Sandblast aluminium EN-AC-46100 (AlSi11Cu2(Fe)
  • Cylinder Barrel : Anodized aluminium (AlMgSi 0.5-F25) 20µm
  • Tie-Rods : Austenitic stainless steel DIN X8 CrNiS 18 9
  • Piston Rod :
    • Austenitic stainless steel DIN X8 CrNiS 18-9, standard
    • Austenitic chromium plated steel DIN C45E, optional
    • Austenitic chromium plated stainless steel DIN X2 CrNiMoN 17-12-2 (on request)
  • Piston Rod Bolt : Zinc plated steel
  • End Plates Screws : Zinc plated steel
  • Piston Bolt : Zinc plated steel
  • Cushion Screws and Retainers : stainless steel
  • Piston Rod Bearing : PTFE (Polytetraflurothylene)
  • Scraper and rod piston seals :
    • PUR (Polyurethane), standard temperature
    • FKM (fluoro elastomer), optional, high temperature
    • TPU-PUR (ultrathan polyurethane), optional, low temperature
    • Metal scraper, optional, Stainless steel / brass
  • Piston :
    • POM (Polyoxymethylene), standard temperature
    • Aluminium, optional, low and high temperature
  • Magnet : Plastic coated magnetic material (optional for high temp)
  • Piston Bearing : POM (Polyoxymethylene), standard temperature
  • Piston Seals :
    • PUR (Polyurethane), standard temperature
    • FKM (fluoro elastomer), optional, high temperature
    • TPU-PUR (ultrathan polyurethane), optional, low temperature
  • Cushion Seals :
    • PUR (Polyurethane), standard temperature
    • FKM (fluoro elastomer), optional, high temperature
    • TPU-PUR (ultrathan polyurethane), optional, low temperature
  • Static O Rings :
    • NBR (Nitrile rubber), standard and optional low temperature
    • FKM (fluoro elastomer), optional, high temperature

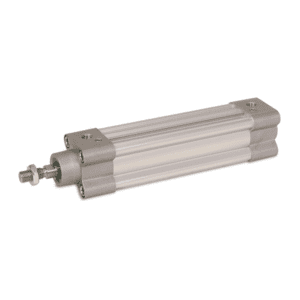

ISO 15552 Pneumatic Cylinders, Smooth Profile Design – P1F-S Series

Parker Pneumatic Cylinder
The P1F-S smooth profile cylinder follows the ISO 15552 standard for interchangeability and is available throughout the extensive Parker sales network, insuring local support globally for customers when and where they need it. The P1F-S is available in bore sizes from 32 to 125 mm with magnetic piston for standard temperature (-20 to +80°C). Utilizing internal composite technology (piston) to save weight, while assuring the high performance and functionality expected of an ISO cylinder. With aluminum sandblast front and rear end plates, multilayer PTFE coated steel bearing with stainless steel piston rod, pneumatic cushioning and magnetic piston with polyurethane (PUR) seals as standard this is our industrial profile ISO cylinder. Offering various piston rod materials, sealing options and supported by a full range of ISO mountings and sensors the P1F-S series is suitable for wide range of general purpose industrial applications.

Challenges encountered within rigorous environments require leading engineered solutions and products. The P1F-S provides the answer for high and low temperatures applications. Engineered to provide superior performance in harsh conditions using proven class leading seal technology for reliable operation and long service life in temperatures down to -40°C and up to +150°C. With robust corrosion resistant body and optional metal scraper the P1F-S leads the way in today’s changing climate.

Markets:

  • Factory Automation
  • Machine Tools
  • Packaging Machinery
  • Vehicle Assembly Facilities
  • Material Handling
  • Outdoor, Transport

Features / Benefits:

  • Conforms to ISO 15552 standard
  • Bores from 32 to 125 mm
  • Smooth Profile Design with 2 T-slots on one top face
  • End plates and tube with smooth surfaces
  • Corrosion resistant with sandblast end plates, barrel in anodized aluminium and stainless steel piston rod
  • Polyurethane seal technology inside
  • Adjustable air cushioning with retained stainless steel cushioning slotted screws on same side
  • Mechanical end stops reduce the noise
  • Wide range of mountings and drop-in sensors

Applications:

General industry – Linear movement

  • Push objects
  • Stop/Hold/Go

General industry – Clamping

  • Clamp objects
  • Fix / hold in position

General industry – Holding

  • Lift, moving, clamping

General industry – Controlling

  • Change lane, direction
  • Change level

Packaging – Moving

  • Push / pull objects
  • Sorting, conveying

Outdoor transport and railway – Linear movement

  • Moving, clamping, closing

Option Overview:

FKM (fluoro elastomers) scraper for high chemical resistance:

For use in applications where chemicals may affect the scraper in the front end plate, an option with a scraper in FKM rubber for better chemical resistance must be used. Temperature range -10 to +80°C.

Metal Scraper Ring:

Standard scraper ring cannot be used in environments where the piston rod may be coated with resin, ice, cement, sugar crystals, dough, etc., primarily in timber handling, refrigerated / chilled transport, cement industry, chemicals and food and drinks. The build-up of hard abrasive coatings on the piston rod can damage the standard scraper ring and shorten service life. A metal scraper ring with a stainless steel carrier, brass outer scraper ring and a nitrile rubber inner scraper ring is an option for all diameters of P1F-S cylinders. This metal scraper has to be used with a hard-chromium plated piston rod. Temperature range -30 to +80°C.

High Temperature:

All seals in the high temperature version of P1F-S are developed and validated for continuous operation up to +150°C. The combination of the seal geometry and the fluoro elastomer (FKM) material ensures reliable and long service life. Certain restrictions apply when choosing sensors due to the temperature range. High temperature cylinders have no magnetic piston and cannot be fitted with sensors (the magnetic field strength in high temperatures is too low to ensure correct reliable sensor function). The key for reliable operation of pneumatic cylinders in high temperatures is the seal and grease system. It takes thorough testing to arrive at the optimum and proven technology.

  • Seals in proven fluoro elastomer (FKM) material for reliability and long service life.
  • Dedicated high temperature grease with a special formula is vital for the performance of the cylinder.
  • The combined system of seals and grease developed for P1F-S is the key for the excellent function in the temperature range -10 to +150°C.

Low Temperature:

All seals in the low temperature version of P1F-S are developed and validated for continuous operation down to -40°C. Ultrathan polyurethane (TPU-PUR) seal technology and specifically formulated grease support performance and reliability for low temperature applications. As standard supplied with a magnetic ring in the piston for proximity sensing but please note that the sensors are normally specified for full performance to -30°C only. Parker have combined the most sought after features of seal technology to provide low temperature pneumatic cylinders with high reliability, low leakage and long service life.

  • Seals engineered for low temperature in ultrathan polyurethane (TPU-PUR), formulated specifically for optimal performance, in the temperature range -40 to +80°C.
  • Seal material retains its elastic properties with maintained performance even at extreme low temperatures.
  • Low temperature characteristics but maintaining superior wear resistance.
  • Smooth proven profile.

Piston rod in different materials:

  • Hard-chromium plated austenitic steel DIN C45E.

ATEX Certification: An atmosphere with the potential to become an explosive atmosphere during operating conditions and / or under the influence of the surroundings is defined as a potentially explosive atmosphere. Products covered by directive 94/34/EC are defined as intended for use in potentially explosive atmospheres. Smooth profile P1F-A cylinders can be supplied ATEX certified for use in these type of environments, temperature restriction -20 to +60°C.

Dynamic and Static Rod Locks: See P1F-L and P1F-H versions.

General Technical Data:

  • International Standard : complies with ISO 15552 (corresponds to the withdrawn standards ISO 6431, DIN ISO 6431, VDMA 24562, NFE 49003.1 and UNI 10290) for installation dimensions.
  • Bore Sizes : Ø32, 40, 50, 63, 80, 100 and 125 mm
  • Stroke Length : 5 to 2000mm
  • Versions : double acting / double acting with through rod
  • Cushioning : adjustable pneumatic
  • Position Sensing : “Drop in” or “Straight in” sensors can easily be installed in two recessed grooves located on one face mechanically protecting the sensor that can be located at any position along the piston stroke. Choose between electronic or reed sensors with various cable lengths and M8 knurled screws or flying lead connection. The low temperature version has a magnetic ring in the piston for proximity sensing (but please note that the sensors are normally specified for full performance down to-30°C only). The high temperature version does not have a magnetic ring in the piston and therefore cannot be used with sensors.
  • Installation : a wide range of cylinder mountings in aluminum providing the same overall corrosion resistance.
  • Mounting Position : any

Operating and Environmental Data:

  • Operating Medium : for best possible service life and trouble-free operation dry, filtered compressed air to ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer) and is in line with the air quality from most standard compressors with a standard filter.
  • Operating Pressure : 1 to 10 bar
  • Speed : 10 to 1000 mm/s
  • Standard temperature : -20 to +80°C / -20 to +60°C (ATEX) / low temp -40 to +80°C / – high temp -10 to +150°C / metal scraper -30 to +80°C / FKM wiper seal -10 to +80°C
  • Pre-lubricated : further lubrication is normally not necessary. If additional lubrication is introduced it must be continued.
  • Corrosion Resistance : resistance to corrosion and chemicals. Materials and surface treatment have been selected for industrial applications where solvents and detergents are frequently used.

Material Specification:

  • End Plates : Sandblast aluminium EN-AC-46100 (AlSi11Cu2(Fe)
  • Cylinder Barrel : Anodized aluminium (AlMgSi 0.5-F25) 20µm
  • Piston Rod :
    • Austenitic stainless steel DIN X8 CrNiS 18-9
    • Hard-chromium plated austenitic steel DIN C45E
    • Hard-chromium plated stainless steel DIN X2 CrNiMoN 17-2
  • Piston Rod Bolt : Zinc plated steel
  • End Plates Screws : Zinc plated steel
  • Piston Bolt : Zinc plated steel
  • Cushion Screws and Retainers : stainless steel
  • Piston Rod Bearing : PTFE (Polytetraflurothylene)
  • Scraper and rod piston seals :
    • PUR (Polyurethane), standard temperature
    • TPU-PUR (Ultrathan polyurethane), optional, low temperature
    • FKM (fluoro elastomers), optional, high temperature
    • Metal scraper, optional, stainless steel / brass
  • Piston :
    • POM (Polyoxymethylene), standard temperature
    • Aluminium, low and high temperatures
  • Magnet : Plastic coated magnetic material (optional for high temp)
  • Piston Bearing : POM (Polyoxymethylene), standard temperature
  • Piston Seals :
    • PUR (Polyurethane), standard temperature
    • FKM (fluoro elastomer), optional, high temperature
    • TPU-PUR (Ultrathan polyurethane), low temperature
  • Cushion Seals :
    • PUR (Polyurethane), standard temperature
    • FKM (fluoro elastomer), optional, high temperature
    • TPU-PUR (Ultrathan polyurethane), low temperature
  • Static O Rings :
    • NBR (Nitrile rubber), standard and low temperature
    • FKM (fluoro elastomer), high temperature

Compact Cylinders

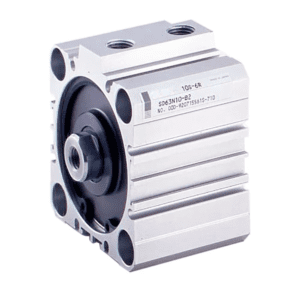

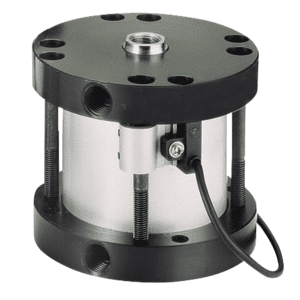

Pneumatic Compact Cylinder – LP Series

Parker Pneumatic Cylinder
The LP series air cylinder is designed and built to meet your demands for space saving, low cost actuators – and to provide you with maximum reliability and cost effectiveness within minimum space requirements. For applications when piston position sensing is required, the LPM series low profile air cylinder is the choice for a low profile, economical cylinder. Reed and solid state switches, along with the magnetic piston, provide actuation points between or at either end of the cylinder. Adjustment is simple so you can detect the presence of the piston along or at the end of the stroke and send the necessary signals for circuit control.

  • LP and LPM (magnet/sensing)
  • Bore sizes: 9/16″, 3/4″, 1 1/8″,1 1/2″, 2″, 2 1/2″, 3″ and 4″
  • Stroke range: 1/8″ to 6″
  • Operating characteristics: single acting, double acting
  • Max operating pressure: 250 psi or 17 bar
  • Operating temperature range: -10°F to 200°F (LPM series 140°F max) or -23°C to 93°C

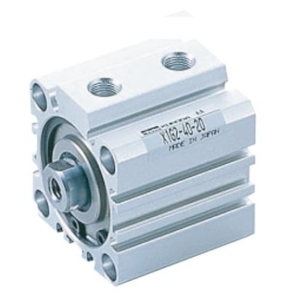

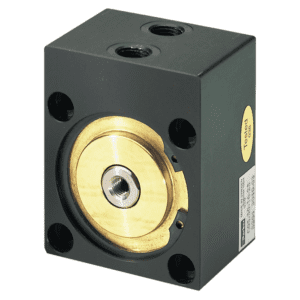

Pneumatic Compact Cylinder – C05 Series (Short Stroke)

Parker Pneumatic Cylinder
The C05 actuator is available in double acting bores Ø12 to Ø63mm and C05S in single acting bores Ø8 to Ø63mm. The main body is machined from one piece thus providing an easy to clean unit. With stainless steel piston rod as standard, anodised corrosion resistant body and thrust forces of up to 3000N it is ideally suited for clamping and locking operations.

General Technical Data:

  • International standards : N/A
  • Bore Sizes : Ø8, Ø12, Ø20, Ø32, Ø50 and Ø63mm
  • Stroke Length : 4, 5, 10 and 25mm (Standard strokes only)
  • Versions : double acting (Ø12 to Ø63mm) / single acting, spring return (Ø8 to Ø63mm)
  • Cushioning : N/A
  • Position Sensing : N/A
  • Installation : the compact design with mounting holes through the cylinder body makes the unit easy to install
    in confined spaces.
  • Mounting Position : any

Operating and Environmental Data:

  • Operating Medium : for best possible service life and trouble-free operation dry, filtered compressed air to
    ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation
    (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer)
    and is in line with the air quality from most standard compressors with a standard filter.
  • Operating Pressure : 10 Bar Maximum
  • Operating Temperature : -20°C to +70°C (Standard temperature)
  • Pre-lubricated : further lubrication is normally not necessary. If additional lubrication is introduced it must be continued.
  • Corrosion Resistance : resistant to corrosion

Material Specification – Cylinder:

  • Front End Cover : Brass / Anodised aluminium (Single acting Ø50 to Ø63mm)
  • Cylinder Housing : Anodised aluminium
  • Piston Rod : Stainless steel
  • Piston Rod Seal : NBR (Nitrile rubber)
  • Piston Rod Bearing : Brass + PTFE (Polytetrafluroethylene) / Brass + Steel (Single acting (Ø50 to Ø63mm)
  • Circlip : Spring steel
  • Return Spring : Surface treated spring steel

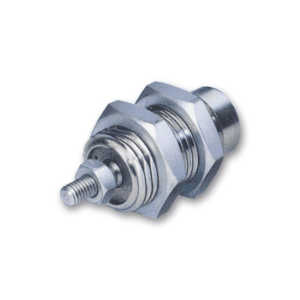

Pneumatic Compact Cylinder – P1G Series (Cartridge)


The P1G actuator in bore sizes Ø6 to Ø16mm is a single acting spring return cartridge cylinder for standard temperature -20°C to +80°C. Constructed with a nickel plated brass body, stainless steel piston rod and return spring this compact cylinder offers a good level of corrosion resistance. A threaded body provides intergral mounting and cylinders are supplied complete with one piston rod nut and two mounting nuts all in nickel plated brass.

General Technical Data:

  • International standards : N/A
  • Bore Sizes : Ø6, Ø10, and Ø16mm
  • Stroke Length : 5, 10 and 15mm (standard strokes only)
  • Versions: single acting, spring return
  • Cushioning : N/A
  • Position Sensing : N/A
  • Installation : threaded body offers integral mounting
  • Mounting Position : any

Operating and Environmental Data

  • Operating Medium : for best possible service life and trouble-free operation dry, filtered compressed air to
    ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation
    (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer)
    and is in line with the air quality from most standard compressors with a standard filter.
  • Operating Pressure : 2 to 7 Bar
  • Operating Temperature : -20°C to +80°C (standard temperature)
  • Pre-lubricated : further lubrication is normally not necessary. If additional lubrication is introduced it must be continued.
  • Corrosion Resistance : high resistance to corrosion and chemicals.

Material Specification – Cylinder:

  • Cylinder Body : Nickel plated brass
  • Piston Rod : Stainless steel
  • Piston Rod Nut : Nickel plated brass
  • Mounting Nut : Nickel plated brass
  • Seals : NBR (Nitrile rubber)
  • Return Spring : Stainless steel

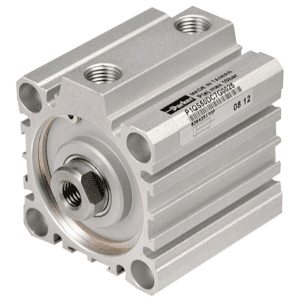

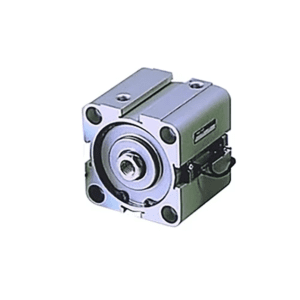

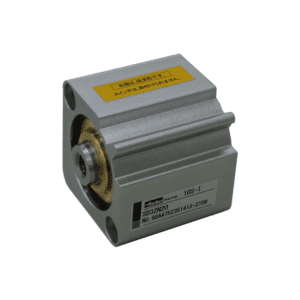

Pneumatic Compact Cylinder – P1Q Series (Economy)


Parker’s P1Q series cylinders provide an economical, compact design suited for a variety of applications. With its modular flexibility, the P1Q will provide the ideal solution machine builders need today. The P1Q series is available in 10 bore sizes from Ø12 mm to Ø100 mm and standard strokes from 5 mm to 100 mm. The cylinder is supplied in a choice of magnetic or non-magnetic function, the non-magnetic version offers very short axial dimensions. For optimum compactness the P1Q range is supplied with female piston rod thread.

The P1Q provides quieter operation due to its built in buffer cushioning which is standard on all bore sizes. Included within the magnetic versions bores 32 – 100mm is a teflon piston wear ring providing superior life. In addition to the compactness and modular design flexibility of P1Q are a range of cylinder mountings including flange, foot and clevis brackets to ease installation.

General Technical Data:

  • International standards : complies with ISO 15524 (Excludes bores Ø12 and Ø16)
  • Bore Sizes : Ø12, Ø16, Ø20, Ø25, Ø32, Ø40, Ø50, Ø63, Ø80 and Ø100mm
  • Stroke Length : 5 to 100mm (standard strokes only)
  • Versions : double acting
  • Cushioning : rubber buffer fixed
  • Position Sensing : Magnetic cylinders are suitable for proximity position sensing within the integrated sensor grooves
    allowing for compact installation. For 12mm and 16mm bores the sensors can be mounted on 3 sides and for 20mm
    to 100mm bores on four sides for flexible mounting and ease of installation. Electronic type sensors or reed switches
    are available with either flying lead or M8 cable plug connector.
  • Installation : Directly via through holes or female threaded holes on the front and rear face. Supported by a range of
    cylinder mountings including flange, foot and clevis brackets to ease installation.

Operating and Environmental Data:

Material Specification – Cylinder:

  • Operating Medium : for best possible service life and trouble-free operation dry, filtered compressed air to
    ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation
    (a lower dew point should be selected for minus temperature operation and we recommend the use of an
    inline dryer) and is in line with the air quality
    from most standard compressors with a standard filter.
  • Operating Pressure : 0.5 to 10 Bar Maximum
  • Operating Temperature : -5°C to +60°C (standard temperature)
  • Pre-lubricated : further lubrication is normally not necessary. If additional lubrication is introduced it
    must be continued.
  • Corrosion Resistance : high resistance to corrosion and chemicals. Materials and surface treatment have been
    selected for industrial applications where solvents and detergents are frequently used.

Material Specification – Cylinder:

  • End Covers : Anodized aluminium
  • Cylinder Barrel : Anodized aluminium
  • Piston Rod : Stainless steel (Ø12 to Ø32mm) / Medium carbon steel (Ø40 to Ø100mm)
  • Piston Rod Seal : NBR (Nitrile rubber)
  • Piston : Anodized aluminium
  • Magnet : Plastic coated magnetic material
  • Piston Seals : NBR (Nitrile rubber)
  • Piston Screw : Stainless steel (Ø12 to Ø32mm) / SCM (Thermally refined steel) (Ø40 to Ø100mm)
  • O Rings (internal) : NBR (Nitrile rubber)
  • Piston Rod Bearing : Bearing alloy
  • Circlip : Stainless steel (Ø12 to Ø32mm) / Spring steel (Ø40 to Ø100mm)
  • Piston Gasket : NBR (Nitrile rubber)
  • Buffer : NBR (Nitrile rubber)
  • Wear Ring : PTFE (Ø32 to Ø100mm)

Rod-Lock Cylinders

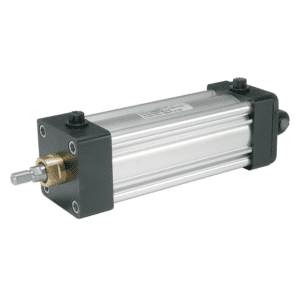

ISO 15552 Pneumatic Cylinders, Dynamic Rod Lock – P1F-L Series

Parker Pneumatic Cylinder
The P1F-L in bore sizes Ø32 to 125mm is an ISO 15552 linear pneumatic cylinder for standard temperature (-20 to +80°C) with an integrated air/spring dynamic rod lock allowing the piston rod to be braked or locked in any position. Incorporating a powerful piston rod locking device, which clamps the piston rod and locks it in position. The locking device is a spring lock with an air pressure release and is mounted to the front plate of the cylinder. In the absence of an air signal pressure, full holding force is applied to the piston rod. When air is present at a certain minimum pressure the locking device is released.

The piston rod lock can be used in all material handling systems where controlled fastening or positioning is required. The piston rod lock is also suitable for use as a pressure-loss brake for cylinders with suspended loads.

The P1F-L rod lock cylinder is available for cylinder bores Ø32 to 125mm. The design provides several valuable characteristics, such as:

  • A high holding force.
  • The front plate and locking device are built into a common block for compact installation.
  • Exhaust air from the locking device can be piped away from when there are demands for a contamination free environment.

The design is easy to clean, sealed and waterproof. The exhaust air from the lock unit can be removed by replacing the filter unit with a connector and hose. This is an advantage in terms of cleaning or when environmental factors are important.

Like all P1F cylinders this series is supported by a full range of ISO mountings, sensors and is suitable for wide range of general typical industrial applications. Note that these units are not certified for use in safety systems.

Markets:

  • Factory Automation
  • Machine Tools
  • Packaging Machinery
  • Vehicle Assembly Facilities
  • Material Handling
  • Outdoor, Transport

Features/Benefits:

  • Conforms to ISO 15552 standard
  • Bores from 32 to 125 mm
  • Smooth Profile Design with 2 T-slots on one top face
  • End plates and tube with smooth surfaces
  • Corrosion resistant with sandblast end plates and barrel in anodized aluminium and chromium piston rod
  • Polyurethane seal technology inside
  • Adjustable air cushioning with retained stainless steel cushioning slotted screws on same side
  • Mechanical end stops reduce the noise
  • Wide range of mountings and drop-in sensors

Applications:

General industry – Linear movement

  • Push objects
  • Stop/Hold/Go

General industry – Clamping

  • Clamp objects
  • Fix / hold in position

General industry – Holding

  • Lift, moving, clamping

General industry – Controlling

  • Change lane, direction
  • Change level

Packaging – Moving

  • Push / pull objects
  • Sorting, conveying

Outdoor transport and railway – Linear movement

  • Moving, clamping, closing

General Technical Data:

  • International Standard: complies with ISO 15552 (corresponds to the withdrawn standards ISO 6431, DIN ISO 6431, VDMA 24562, NFE 49003.1 and UNI 10290) for installation dimensions except WH which smaller and not in accordance with ISO.
  • Bore Sizes : Ø32, 40, 50, 63, 80, 100 and 125 mm
  • Stroke Length : 5 to 2000mm
  • Versions : double acting / double acting with through rod
  • Cushioning : adjustable pneumatic
  • Position Sensing : “Drop in” or “Straight in” sensors can easily be installed in two recessed grooves located on one face mechanically protecting the sensor that can be located at any position along the piston stroke. Choose between electronic or reed sensors with various cable lengths and M8 knurled screws or flying lead connection.
  • Installation : a wide range of cylinder mountings in aluminum providing the same overall corrosion resistance.
  • Mounting Position : any

Operating and Environmental Data:

  • Operating Medium : for best possible service life and trouble-free operation dry, filtered compressed air to ISO 8573-1:2010 quality class 3.4.3 should be used. This specifies a dew point of +3°C for indoor operation (a lower dew point should be selected for minus temperature operation and we recommend the use of an inline dryer) and is in line with the air quality from most standard compressors with a standard filter.
  • Operating Pressure : > 4 to 10 bar
  • Brake Release Pressure : > 4 bar (Signal pressure to inlet port in the lock unit)
  • Operating Temperature : standard temperature -20 to +80°C
  • Pre-lubricated : further lubrication is normally not necessary. If additional lubrication is introduced it must be continued.
  • Corrosion Resistance : high resistance to corrosion and chemicals. Materials and surface treatment have been selected for industrial applications where solvents and detergents are frequently used.

Material Specification:

  • End Plates : Sandblast aluminium EN-AC-46100 (AlSi11Cu2(Fe)
  • Brake body : Anodized aluminium
  • Cylinder Barrel : Anodised aluminium (AlMgSi 0.5-F25) 20µm
  • Piston Rod :
    • Austenitic chromium plated steel DIN C45E
    • Austenitic chromium plated stainless steel DIN X2 CrNiMoN 17-12-2
  • Piston Rod Bolt : Zinc plated steel
  • End Plates Screws : Zinc plated steel
  • Piston Bolt : Zinc plated steel
  • Cushion Screws and Retainers : stainless steel
  • Piston Rod Bearing : PTFE (Polytetraflurothylene)
  • Scraper and rod piston seals :
    – PUR (Polyurethane), standard temperature
  • Piston :
    – POM (Polyoxymethylene), standard temperature
  • Magnet : Plastic coated magnetic material
  • Piston Bearing : POM (Polyoxymethylene)
  • Piston Seals :
    – PUR (Polyurethane), standard temperature
  • Cushion Seals :
    – PUR (Polyurethane), standard temperature
  • Static O Rings : NBR (Nitrile rubber)
  • Material Specification for Piston Rod Locking:
  • Housing/end piece : Black anodised aluminium
  • Lock collar/piston : Hardened steel
  • Springs : Stainless steel
  • Piston rod seal bores 32-40mm : UHMWPE plastic
  • Piston rod seal bores 50-63-80-100-125mm : Polyurethane (PUR)
  • O-rings : Nitrile rubber (NBR)
  • Scraper ring : Polyurethane
  • Air filter : Brass/sintered bronze

For more information about these products…
 Download a Catalog
