Pneumatic Rotary Actuators

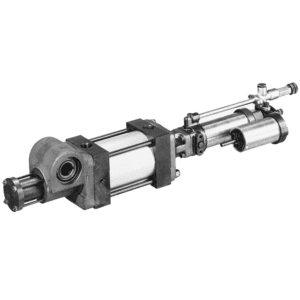

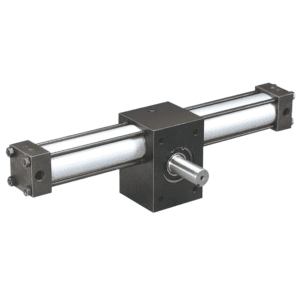

Pneumatic Rotary Actuator – B671/F672 Series (Heavy Duty Rack-And-Pinion)

Parker - Pneumatic Rotary Actuator - B671/F672 Series
The B671 series pneumatic rotary actuator is designed to provide force in a reciprocating, rotational motion. It is ideal for any application requiring constant torque through a rotational distance: rotating or lifting heavy objects, positioning or bending operations. The F672 Series utilizes the same high quality construction found on the B671 Series with the addition of a coupling arrangement for a hydro-check. An F672/hydro-check assembly will provide controlled feed rates and excellent rotational control with pneumatic power through adjustable hydraulic resistance.

The B671/F672 series pneumatic rotary actuator can be powered by shop air or inert gas. The actuators are pre-lubricated at assembly with NLG1 grade 2 grease with outstanding oxidation stability and corrosion resistant additives. This pre-lubrication is intended for use in pneumatic systems where airline lubrication is not used. However, to assure maximum service life of the cylinder, the air supply should be properly filtered and moisture free. The pneumatic rotary actuator can be controlled by any conventional 4-way valve – hand, foot, mechanically or electrically controlled. All four sizes of rotary actuators are designed for direct on-shaft installation – no flexible couplings, cam and roller or chain and sprocket combinations are required.

The rotary actuator/hydro-check combination consists of the F672 series actuator axially linked to an F172-2 or F172-3 series hydro-check. The hydro-check is a precision built adjustable hydraulic resistance unit designed to provide controlled feed rates. When coupled to an actuator, excellent rotational control is attained. The rotary actuator/hydro-check combination provides consistent torque with adjustable hydraulic resistance for a smooth controlled rotational feed rate. Axial couplings of these units eliminate eccentric loading of component parts. These actuators are available in three torque ranges to comply with varying load requirements. The hydro-check is capable of checking axial loads to 3,000 lbs. and is available with many controlling options.

  • Output torques @ 100 psi (6.9 bar): 100 to 2,500 lb-in
  • Maximum pressure: 140 psig (9.7 bar)
  • Operating temperature range: nitrile seals 0° to 180° F (-18 to 82°C)
  • Standard rotations: 90°, 180°, 360°
  • Rotational tolerance:
    • B6711/F6721: -0°, +5°
    • B6712/F6722: -0°, +4°
    • B6713/F6723: -0°, +3°
    • B6714/F6724: -0°, +2°
  • Maximum breakaway pressure: 10 psig (0.7 Bar)
  • Mounting orientation: unrestricted
  • Standard timing: keyway in 12:00 position at midstroke
  • Recommended filtration: 40 micron filtered, dry air
  • Pneumatic cushions to minimize noise, vibration shock and assist deceleration control
  • Built-in hydro-check option designed to provide controlled feed rates
  • Rack and pinion design provides excellent efficiency characteristics
Pneumatic Rotary Actuator – HP Series (Large Bore Rack-And-Pinion)

Parker - Pneumatic Rotary Actuator - HP Series
The HP Series actuator combines an alloy steel gear set with a high strength, aluminum housing and precision, micro finish, honed seamless, alloy steel tubing cylinders into an actuator suitable for numerous applications where higher torques are required.

  • Output torques @ 100 psi (6.9 bar): 4,500 & 10,000 lb-in
  • Maximum pressure: 100 psig (6.9 bar)
  • Operating temperature range:
    • Nitrile seals 0 to 180° F (-18° to 82°C)
    • Fluorocarbon seals 0° to 250°F (-18° to 121°C)
  • Standard rotations: 90°, 180°, 360°
  • Rotational tolerance: -0°, +2°
  • Maximum breakaway pressure: 10 psig (0.7 bar)
  • Mounting orientation: unrestricted
  • Standard timing: Keyway in 12:00 position at midstroke
  • Recommended filtration: 40 micron filtered, dry air
  • Pneumatic cushions to minimize noise, vibration shock and assist deceleration control
  • End-of-rotation stroke adjusters for load position control and accurate rotation adjustment
  • Proximity switches for position sensing
  • Rack and pinion design provides excellent efficiency characteristics
  • Numerous shaft options available
  • Ideal for large torque pneumatic applications

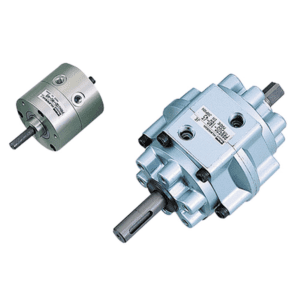

Pneumatic Rotary Actuator – PRN Series (Vane)

Parker - Pneumatic Rotary Actuator - PRN Series
PRN(A) series rotary actuators are available in 9 sizes to handle a range of torque requirements up to 2549 lb-in @ 100 psi. The two-piece machined aluminum body and single piece shaft, vane, and seal incorporate a rounded vane design to virtually eliminate vane seal bypass. A selection of rotation angles and oscillating reference points are available for each model to provide options for both range and orientation. Additional options include mounting brackets, position sensors, and hydraulic shock absorbers. Below is a summary of specification information, please refer to the catalog tables for model specific detail.

  • Model sizes 1, 3, 10, 20, 30, 50, 150, 300, and 800 are available to handle a range of torque requirements
  • Output torque @ 100 psi: 1.6 – 2549 lb-in
  • Maximum operating pressure: 30-150 psi (2-10 bar)
  • Operating temperature range: 23° to 176°F (-5 to 80°C )
  • Standard rotations: 90°, 100°, 180°, 270°, 280°
  • Rotation tolerance: 0° to +4°
  • Oscillating reference point: 40°, 45°, 90°
  • Shock absorbers and position sensors available
  • Flange and foot mount brackets available

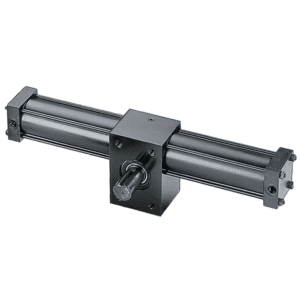

Pneumatic Rotary Actuator – PTR Series (Rack-And-Pinion)

Parker - Pneumatic Rotary Actuator - PTR Series
The PTR series rotary actuator is ideal for most pneumatic applications. The PTR Series actuator combines an alloy steel gear set with a high strength, anodized aluminum housing and Parker 3L or 2A Series cylinder components into an actuator suitable for years of trouble free service. The actuator maximizes volumetric efficiency by using self-energizing PolyPak seals. Mechanical efficiency is maximized by using antifriction bearings and Wear-pak® piston technology.

  • Output torques @ 100 psi (6.9 bar): 39 lb-in to 2,281 lb-in
  • Nominal pressure: 100 psig (6.9 bar)
  • Operating temperature range:
    • Nitrile seals 0° to 180° F (-18° to 82°C)
    • Fluorocarbon seals 0° to 250°F (-18° to 121°C)
  • Standard rotations: 90°, 180°, 270°, 360°, 450°
  • Rotational tolerance: -0°, +2°
  • Maximum breakaway pressure: 5 psig (0.4 bar)
  • Mounting orientation: unrestricted
  • Standard timing: keyway in 12:00 position at midstroke
  • Recommended filtration: 40 micron filtered, dry air
  • Pneumatic cushions to minimize noise, vibration shock and assist deceleration control
  • End-of-rotation stroke adjusters for load position control and accurate rotation adjustment
  • Polyurethane bumpers to absorb shock & noise, thus permitting faster cycle times and increased production
  • Built-in meter out flow control valves provide precise adjustment of actuator speed
  • Reed, Hall Effect or proximity switches for position sensing
  • Self contained air/oil option for pneumatic operation with no slipping, jerking or bouncing
  • Three position option can be used with many special machine and material handling applications
  • Rack and pinion design provides excellent efficiency characteristics
  • Large Hollow Gears Offer More Shaft Options
  • PTR series are designed for Low Wear on dynamic seals and longer life
  • Excellent in High Speed Production Applications

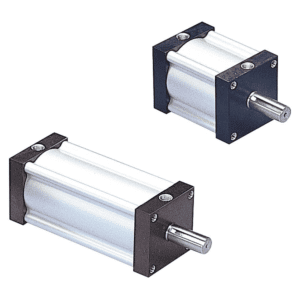

Pneumatic Rotary Actuator – PV Series (Vane)

Parker - Pneumatic Rotary Actuator - PV Series
PV series rotary actuators are available in 8 sizes to handle a range of torque requirements, up to 1800 lb-in at 100 psi. The hard coat anodized aluminum construction can be configured as a single vane or double vane design providing options for maximum rotation and maximum torque within the same envelope. Internal bumpers can be used to reduce the maximum rotation to 90° or 180° while stroke adjusters can be used to adapt the rotation angle to the specific needs of the application by setting both the start and stop points.

Available options include single end porting, flange mounting, double ended shaft, cleanroom, and high temperature seals. With a variety of options and configurations, the PV is a very versatile and adaptable rotary actuator.

  • Model Sizes 10, 11, 22, 33, 36, 42, 44, 46 are available to handle a range of torque requirements
  • Output torque @ 100 psi: 8 to 1800 lb-in
  • Maximum operating pressure: 150 psi (10 bar)
  • Operating temperature range:
    • Nitrile seals 30 to 180° F (-1 to 82°C)
    • Fluorocarbon seals 30° to 250°F (-1 to 121°C)
  • Standard rotations:
    • Single vane units: 280° (except sizes 10 & 11: 275°)
    • Double vane units: 100° (except sizes 10 & 11: 95°)
  • Rotation tolerance: ± 1° (except size 10 & 11: ± 2.5°)
  • Stroke adjusters available for load position control and accurate rotation adjustment
  • Internal bumpers available to provide 90° and 180° rotation
  • Mounting orientation: unrestricted
  • Bearings: bushing or ball
  • Clean room option available on some sizes
  • Magnet option available to enable proximity switches for position sensing

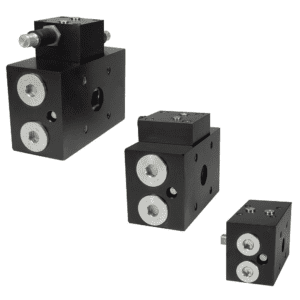

Pneumatic Rotary Actuator – WR Series (Wrist Rotator)

Parker - Pneumatic Rotary Actuator - WR Series
WR (Wrist Rotate) series rotary actuators provide added features to allow use as a modular pick-and-place component or as a precision pneumatic rotary actuator. Rotation stops provide adjustable rotation from 30° to 205° and feature hydraulic shock absorbers or polyurethane bumpers. Optional plug-in style inductive proximity sensors provide an end of rotation signal. A piston magnet option is available for use with hall effect and reed sensors for full rotation position sensing. The body features hard coat anodized aluminum and stainless steel construction for corrosion resistance.

  • Output torque @ 100 psi: 15 or 65 lb-in
  • Maximum operating pressure: 150 psi (10 bar)
  • Operating temperature range: 0 to 180°F  (-17° to 82°C)
  • Rotation range: 30° to 205° (adjustable)
  • Mounting orientation: unrestricted

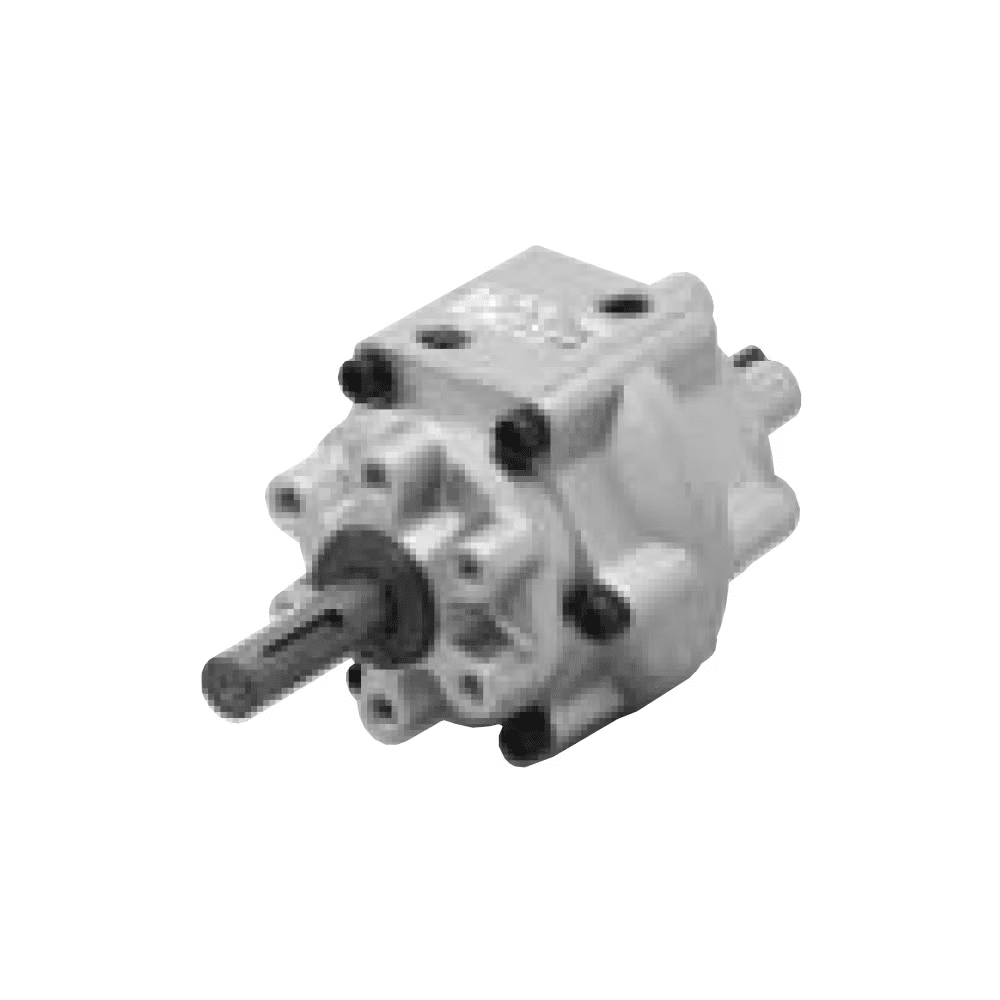

Air-hydro HI-ROTOR: PRF Series

Parker Air-hydro HI-ROTOR: PRF Series
All models are acceptable non lubricated air assured by a unique sealing mechanism and relubricated seals to assure outstanding durability.
These series are uniquely designed sealing mechanism that minimizes leakage, assuring low-speed oscillating and stable, smooth operation at low pressures and speeds, and meet the special shape of shafts.
Three oscillation reference points of 40˚, 45˚ and 90˚ and five oscillating angles of 90˚, 100˚, 180˚, 270˚ Non-standard oscillating angles are available on request.
Air hydro types suitable for operation at low speed are standardized.

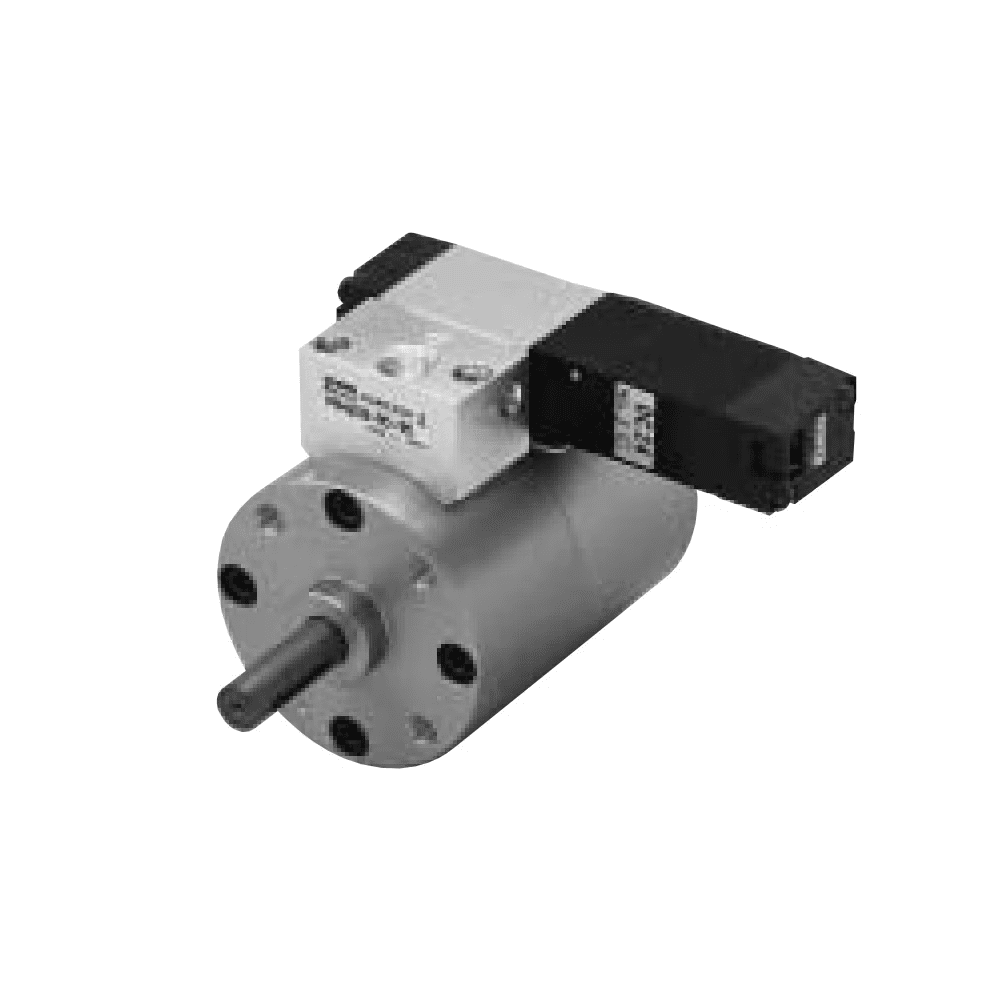

Miniature HI-PAL HI-ROTOR with Solenoid Valve: PRH & PRHA Series

Parker Miniature HI-PAL HI-ROTOR with Solenoid Valve: PRH & PRHA Series
A solid vane shaft and built-in damper are combined with a unique sealing mechanism to assure outstanding durability.
These series are uniquely designed sealing mechanism that minimizes leakage, assuring low-speed oscillating and stable, smooth operation at low pressures and speeds, and meet the special shape of shafts such as hollow shafts and lead screws.
Three oscillation reference points of 40˚, 45˚ and 90˚ and five oscillating angles of 90˚, 100˚, 180˚, 270˚ and 280˚ are featured. Oscillating angles that are frequently used are standardized for a wide selection. Non-standard oscillating angles are available on request.

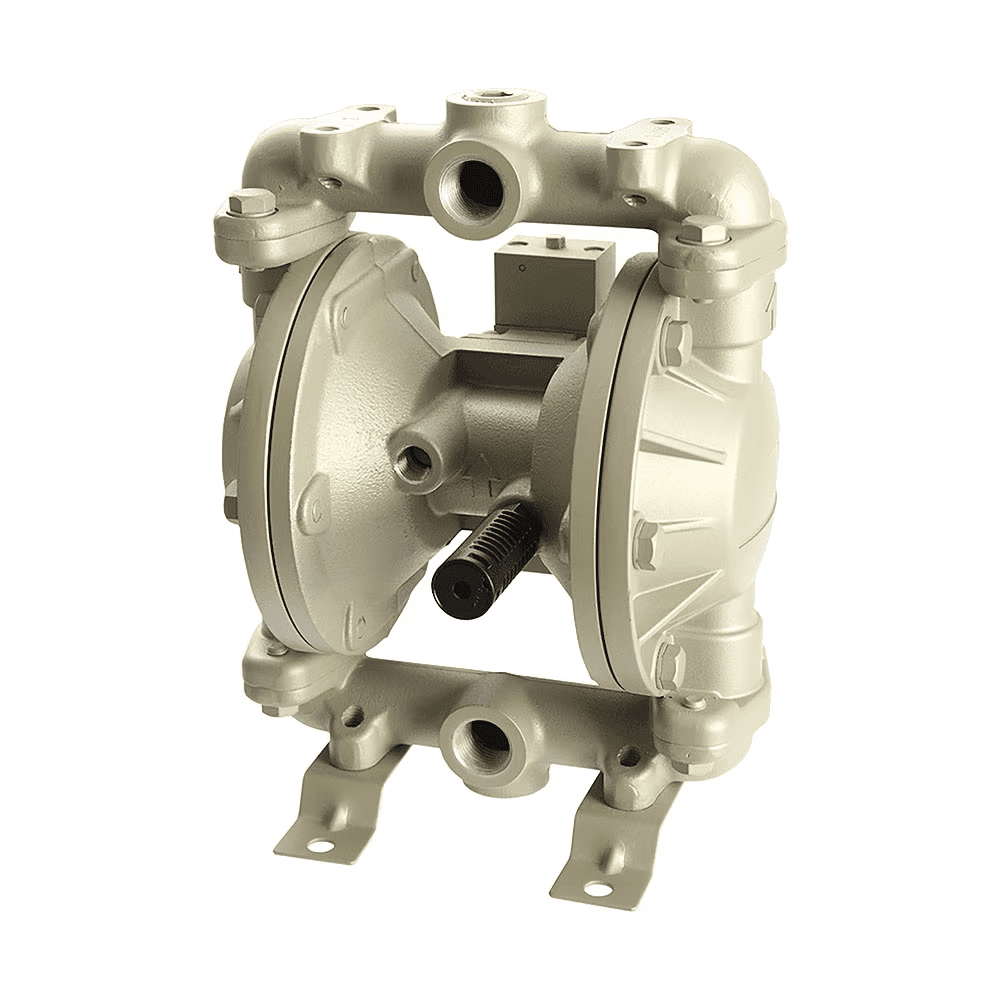

Pneumatic Operated Diaphragm Pump/Metal Body Type Model:TD Series

Parker Pneumatic Operated Diaphragm Pump/Metal Body Type Model:TD Series
TD series, pneumatic driven diaphragm pumps are self-contained pumps driven
by the compressed air of the compressor. Supports pumping of chemicals such
as acids and alkalis, organic solvents, slurry liquids, and viscous liquids.
Explosion-proof, fire-resistant, safe.
Features/Benefits:

  • Maximum discharge rate: 341L / min
  • Has excellent explosion proof and fire resistance
  • Self-priming, no priming is required
  • Connection direction of the piping can be changed freely
  • 3 types of body materials: aluminum alloy, stainless steel, and cast iron

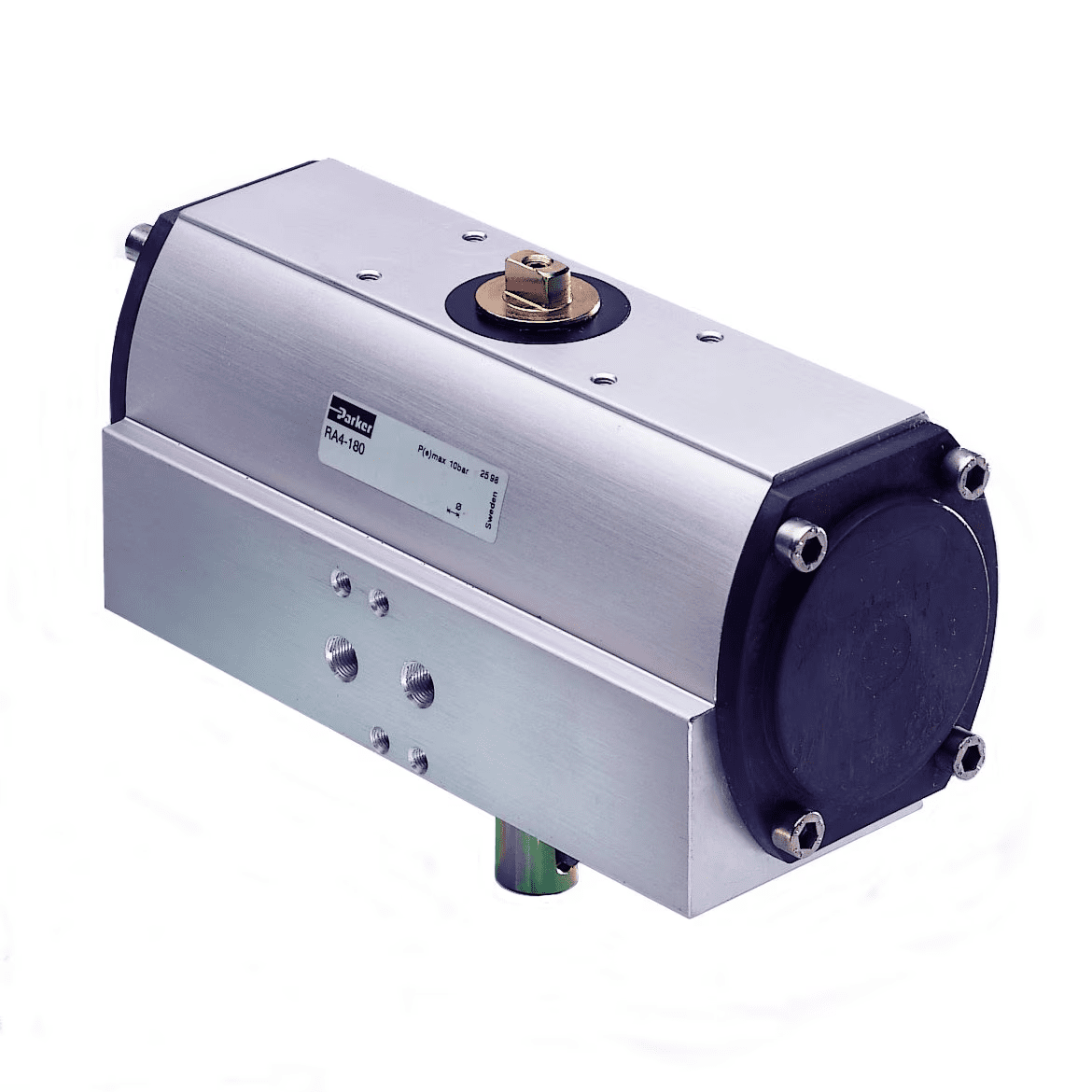

Pneumatic Rotary Rack and Pinion Cylinders – RA Series

Parker Pneumatic Rotary Rack and Pinion Cylinders - RA Series
The RA is a double‑acting rotary actuator with high torque and compact installation dimensions. The unit is available in 5 different sizes, covering a turning moment range of 20 to 200Nm. As standard, all sizes are available with a turning angle of either 90° or 180°. The actuator has double pistons and toothed piston rods in a rack‑and‑pinion type arrangement that transmits the turning moment to the output shaft. This type of construction gives an even turning moment throughout the rotation movement. The drive shaft is robustly supported in bushings of self‑lubricating plastic with a key way on the output end of the shaft. The opposite end of the shaft has a stub that can be used to accommodate end‑position indication, or to facilitate hand operation of the actuator. The turning limits of the rotary actuator should be determined by external stop lugs, in order to protect the unit from the effects of excessive load inertia. The RA rotary actuator has a cylinder block of natural anodised aluminium with end covers of black anodised aluminium. To facility ease of installation compressed air is fed into the piston chambers via the standardised connection arrangement to EURO standard according to ISO 5211, VDI/VDE 3845 and NAMUR on the side of the unit. Other design variants are available on request including single acting with spring return for 90° rotation, non standard turning angles and optional surface treatments.

Features/Benefits:

  • Complies with interface and connections ISO5211, DIN3337, VDI/VDE and NAMUR for standard installation dimensions
  • Direct valve connection to NAMUR to ease installation
  • Male and female shafts available for direct application interface
  • Double acting and single acting units to the same external dimensions
  • Robust shaft bearing of lubricant charged plastic for dry operation
  • Stub shaft for end position indicators or hand operation
  • Anodised cylinder block and end covers for corrosion resistance

General Technical Data:

  • International Standards : Connection arrangements – EURO standard according to ISO 5211, VDI/VDE 3845 and NAMUR
  • Rotation Angles : 90° and 180°
  • Versions : Double acting / Single acting (Spring return)
  • Cushioning : N/A
  • Installation : Direct mounting
  • Mounting Position : Any

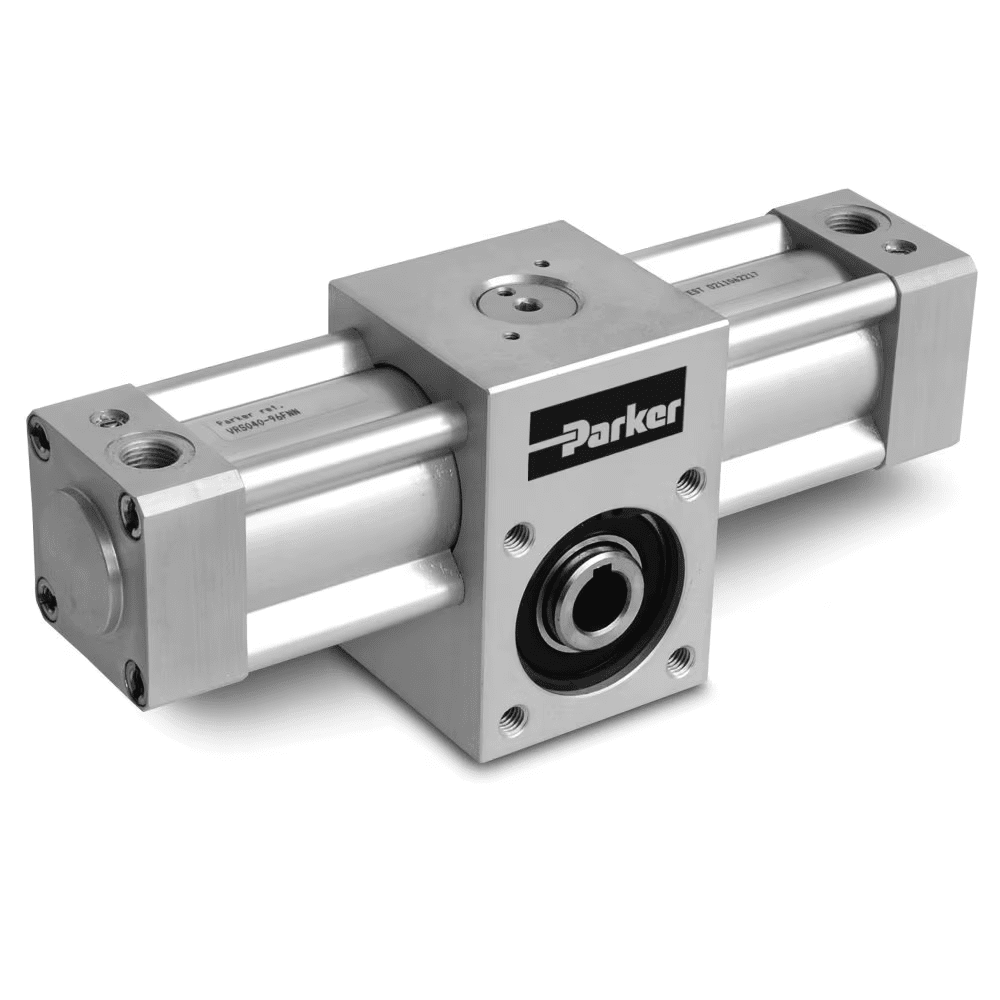

Pneumatic Rotary Rack and Pinion Cylinders – VRS/VRA Series

Parker Pneumatic Rotary Rack and Pinion Cylinders - VRS/VRA Series
The VRS / VRA rotary actuator in bore sizes Ø32 to 125mm with rotation angles of 96°, 186° and 366° converts linear motion into rotary motion via a rack and pinion drive with male or female output shaft and adjustable pneumatic cushioning. Suitable for applications such as door / gate opening and closing, clamping and agitation of fluids and raw materials. Theoretical torque up to 460Nm
The VRS / VRA rotary actuator converts linear motion of 2 single acting opposing cylinders into rotary motion via a rack and pinion drive contained within the cylinder body. Drive is transmitted via a male or female output shaft and adjustable pneumatic cushioning helps to protect the unit from the effects of excessive load inertia. Optional angle adjustment stops can be added to both, or either endplate, allowing 15° adjustment of the rotation angle and port positions can be specified on any face to facilitate ease of installation. Anodised aluminium body, tube and end plates offers a good resistance to corrosion. For more aggressive, corrosive environments the VRA version in bores Ø32 to 80mm has a stainless steel pinion contained in a silicon sealed waterproof enclosure. Stainless steel ball bearings, circlips, tie rods and screws add to the overall protection level. VRS / VRA versions are standard temperature -10°C to +60°C. Both units can be supplied fitted with a magnetic piston and an optional sensor bracket clamps to the cylinder profile to allow the fitting of P8S sensors for position detection.
Features/Benefits:

  • Male and female shafts available for direct application interface
  • Adjustable cushioning for controlled handling of speeds and loads
  • Optional adjustment stop for controlled rotation angle
  • Anodized body, barrel and end caps for corrosion resistance
  • PUR (Polyurethane) piston seals for improved service intervals
  • VRA version designed and engineered for corrosive environments
  • Clearance adjustment screw on Ø32 – 80mm versions reduces backlash for improved movement and positional accuracy

General Technical Data

  • Bore Sizes : Ø32, Ø40, Ø50, Ø63, Ø80, Ø100 and Ø125mm
  • Rotation Angles : 96°, 186° and 366°
  • Versions : Double acting
  • Cushioning : Adjustable pneumatic
  • Position Sensing : Cylinders are designed with a magnet for proximity position sensing. An optional bracket securely fastens anywhere along the cylinder barrel allowing the mounting of electronic type sensors or reed switches that can be supplied with either flying lead or cable plug connector

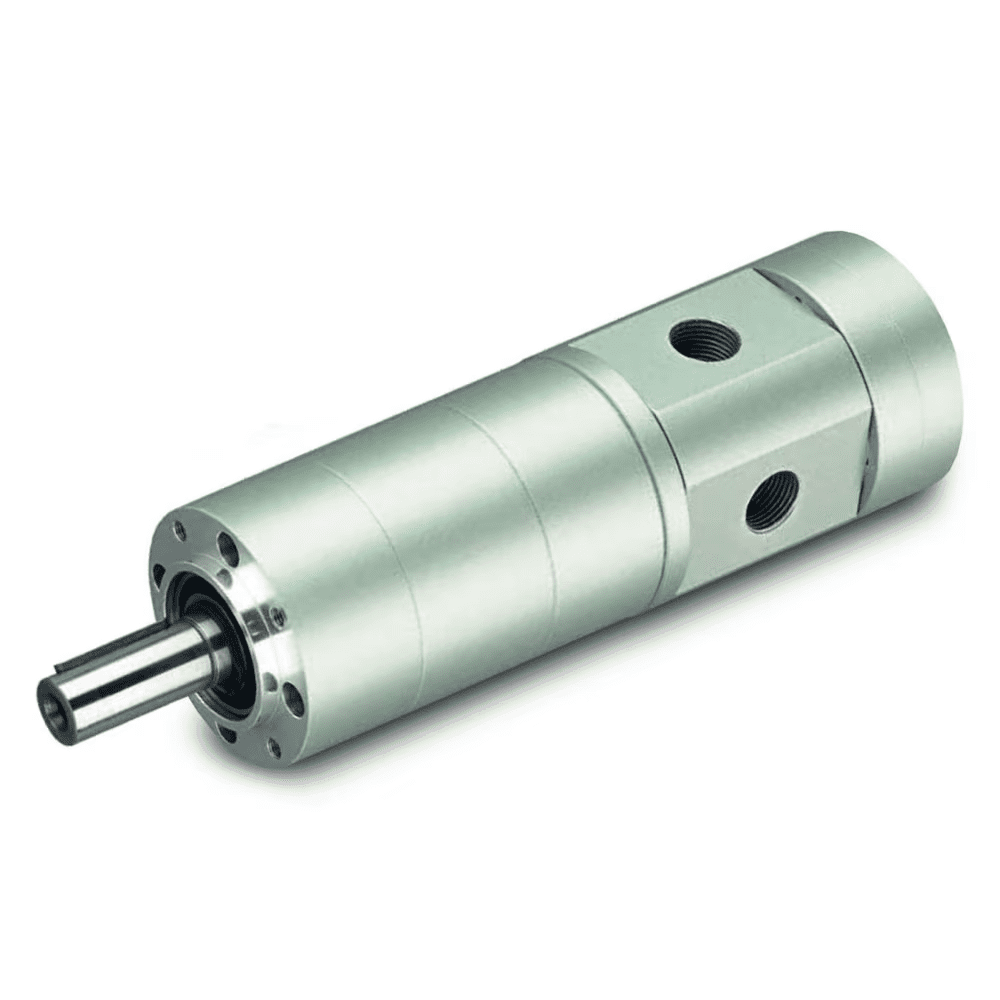

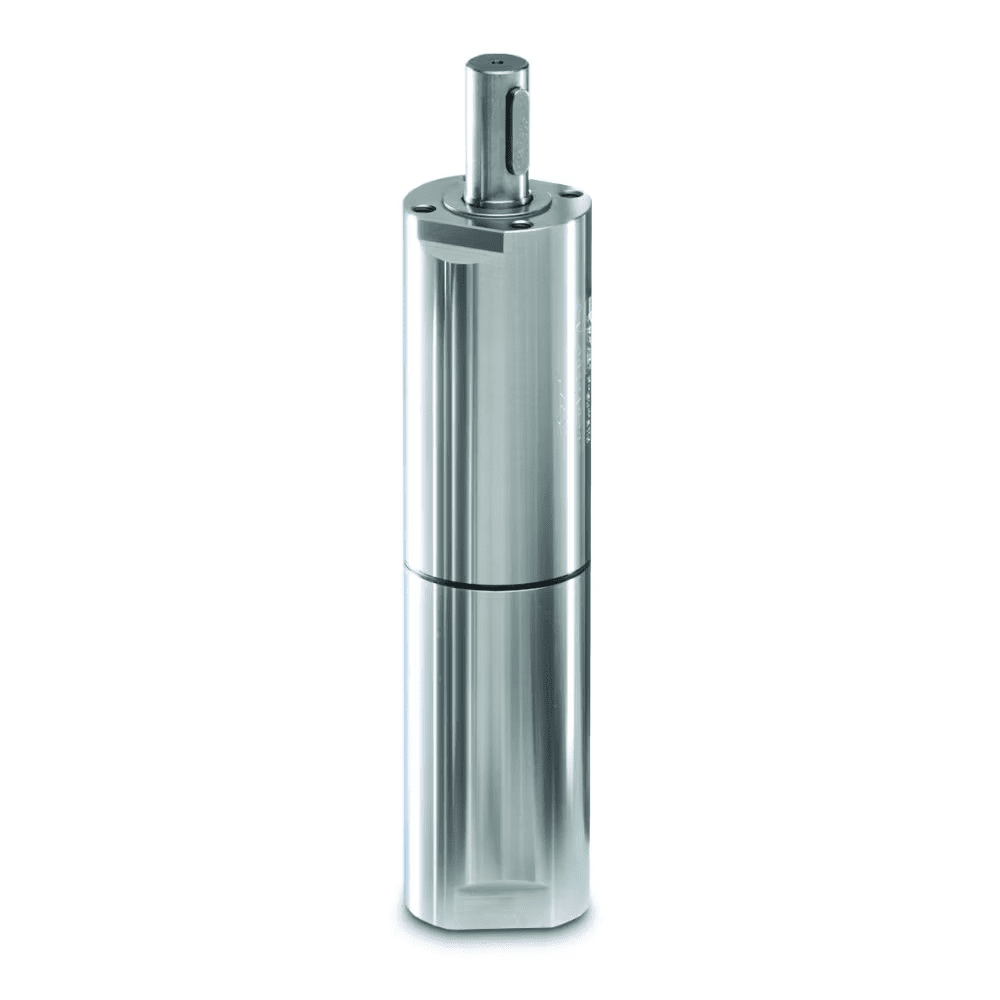

Pneumatic Rotary Vane Air Motors – P1V-A Series

Parker Pneumatic Rotary Vane Air Motors - P1V-A Series
P1V-A is a range of air motors intended for heavy and demanding applications. The motor housings are made from painted cast iron, and the components sealed to permit operation in damp and dirty environments.
The range contains six different sizes with power ratings of 1600, 3200, 5000, 6000, 9000 and 18000 Watts. Motors with power ratings from 1600 to 6000 Watts can be supplied with built-in gearboxes, either planetary, helical (spur) or worm drives, to provide the correct speed of rotation and torque. ATEX certified versions for environments with an explosive atmosphere are available for models P1V-A160, P1V-A320, P1V-A500, P1V-A600.
Basic motors: All pneumatic motors are equipped with spring loaded vanes as standard, which gives the motors very good starting and low speed running characteristics. The simple construction of the motors makes them very reliable, with long service life and they are easy to service.
Motors with planetary gears: A P1V-A combined with a planetary gear has small installation dimensions, low weight in relation to performance, free installation position, flange mounting as standard, in line output shaft and high efficiency. They are available with shaft speeds ranging from 190 to 600rpm, with torques ranging from 32 to 84Nm.
Motors with helical (spur) gears: A P1V-A combined with a helical gear has high efficiency, simple installation with flange or foot, and competitive pricing. They are available with shaft speeds ranging from 18 to 625rpm, with torques ranging from 24 to 2460Nm. Oil-bath gears mean that the installation position must be decided beforehand. The installation position governs the amount of oil in the gearbox and the location of the filling and drain plug.
Motors with worm gears: A P1V-A combined with a worm drive gear has the following characteristics: gearboxes with high gear ratios are self locking, which means that they can be used to maintain the output shaft in position, simple installation with the flange on the left or right sides or with a foot, small installation dimensions and competitive pricing. They are available with shaft speeds ranging from 37 to 350rpm, with torques ranging from 40 to 980Nm. Oil-bath gears mean that the installation position must be decided beforehand. The installation position governs the amount of oil in the gearbox and the location of the filling and drain plug.
Holding brakes: Fitted to the front of motors without gearboxes and can be ordered pre-assembled to the motor or as an optional item.
Features/Benefits:

  • Much smaller installation dimensions than corresponding electric motors
  • Can be loaded until they stall, without damage
  • They are designed to be able to withstand the toughest heat, vibration, impact etc.
  • Can be stopped and started continually without damage
  • Weight is several times less than corresponding electric motors
  • Can be used in the harshest environments
  • Simple design principle makes them very easy to service
  • Reversible
  • The design and the low number of moving parts aids reliability
  • Explosion proof and ATEX certified

General Technical Data:

  • Nominal Power : 1600, 2600 and 3600 Watts
    Installation : Combination face and base mounting offer flexibility in application and design. Helical and worm gearboxes have oil-bath gears meaning that the installation position must be decided beforehand. The installation position governs the amount of oil in the gearbox and the location of the filling and drain plug

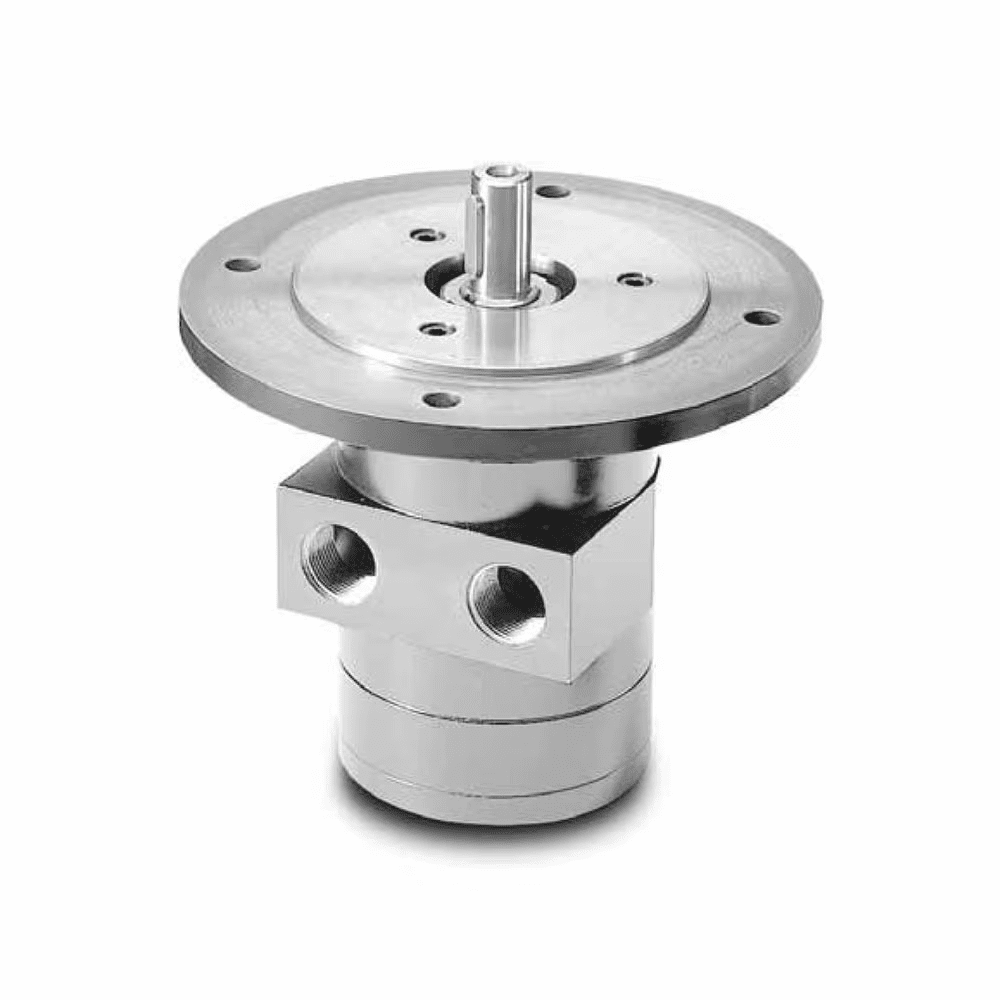

Pneumatic Rotary Vane Air Motors – P1V-M Series

Parker Pneumatic Rotary Vane Air Motors - P1V-M Series
P1V-M is a series of air motors robustness makes it suitable for all normal air motor applications. The range contains five different sizes with power ratings of 200, 400, 600, 900 and 1200 Watts with planetary gearbox and motor made of grey casted iron. The gearbox is of the planetary type, permanently lubricated with grease. The flange mounting is cast as an integral part of the case, and give, together with the foot bracket, plenty of opportunity for simple and robust installation.
The motor and gearbox are built to be extremely strong, making the motors suitable for compact applications. A new design principle has made service activities quicker and easier than for any comparable motor. Servicing involves loosening the screws holding the rear piece to the motor, removing the worn vanes from the back and inserting the new vanes. Unlike traditional air motors, there is no need to fully open the P1V-M for servicing, making the process much easier.
Features/Benefits:

  • Smaller installation dimensions than corresponding electric motors
  • Can be loaded until they stall, without damage
  • Designed to be able to withstand the toughest heat, vibration, impact etc.
  • Can be stopped and started continually without damage
  • Weight is several times less than corresponding electric motors
  • Suitable for the harshest environments
  • Simple design principle makes them easy to service
  • Reversible
  • The design and the low number of moving parts aids reliability
  • Explosion proof and ATEX certified

General Technical Data:

  • International Standards : ATEX
  • Nominal Power : 200, 400, 600, 900 and 1200 Watts
  • Installation : Direct or with optional foot and flange brackets.
  • Operating Medium : 40μm filtered, oil mist or dry unlubricated compressed air
  • Oil Free Operation : ISO8573-1 purity class 3.4.1 (Indoor) / ISO8573-1 purity class 1.2.1 (Outdoor)
  • Oil Operation : 1-2 drop per cube meter, ISO8573-1 purity class 3.-.5
  • Recommended Oil : Foodstuffs industry Klüber oil 4 UH1- 32 N
  • Operating Pressure : 3 to 7 bar maximum (6 bar in explosive atmospheres)
  • Operating Temperature : Standard  temperature -20°C to +110°C
  • Corrosion Resistance : Resistance to corrosion and chemicals.
Pneumatic Rotary Vane Air Motors – P1VAS Series

Parker Pneumatic Rotary Vane Air Motors - P1VAS Series
P1VAS is a range of stainless steel air motors in six different sizes, with power ranging from 120 to 1600 Watts and speeds from 50 to 22000 rpm. The air motor and planetary reduction gear are built into a polished stainless steel housing that is sealed by a fluorocarbon rubber O-ring. The output shaft, which is made of polished stainless steel, is also sealed by a fluorocarbon rubber seal. Thanks to the cylindrical shape, there are no pockets that can accumulate dirt or bacteria. The P1VAS series is designed to be operated at intermittent intervals under non-lubricated conditions.
With all external components made of stainless steel meaning that they can be used in food grade applications and other environments where there is a risk of corrosion. The choice of materials reflects the fact that aggressive cleaning materials are used in food grade applications.
Features/Benefits:

  • Smaller installation dimensions than corresponding electric motors
  • Can be loaded until they stall, without damage
  • Designed to be able to withstand the toughest heat, vibration, impact etc.
  • Can be stopped and started continually without damage
  • Weight is several times less than corresponding electric motors
  • Can be used in the harshest environments
  • Simple design principle makes them very easy to service
  • Reversible
  • The design and the low number of moving parts aids reliability
  • Explosion proof and ATEX certified

General Technical Data:

  • International Standards : ATEX
  • Nominal Power : 120, 200, 300, 600, 900 and 1600 Watts
  • Installation : Direct or optional flange and foot bracket.

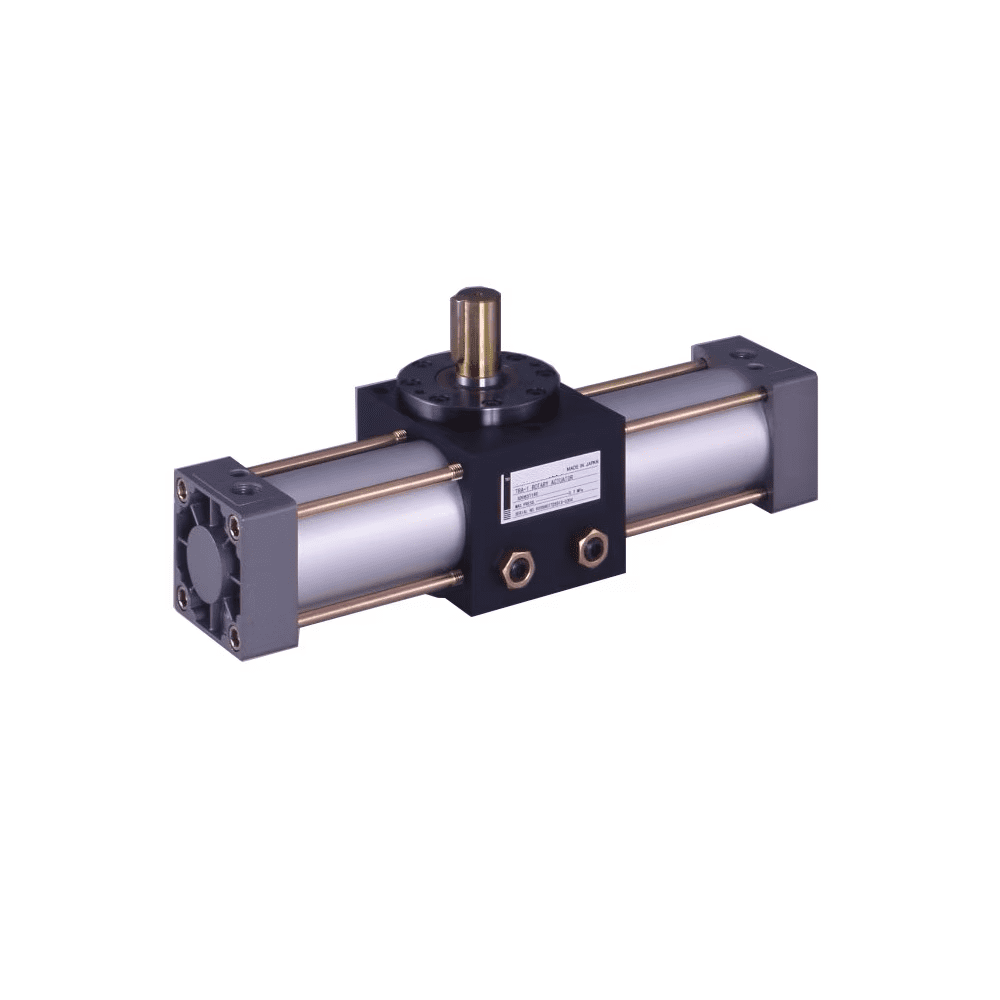

Rack-and-Pinion Rotary Actuator Model:TRA-1

Parker Rack-and-Pinion Rotary Actuator Model:TRA-1
The TRA-1 series is a pneumatic rack and pinion type rotary actuator. The unique backlash removal mechanism eliminates backlash at the rotating end. For the on-board switches, we have standardized the highly versatile magnetic proximity switches AX and AZ.
Features/Benefits:

  • Equipped with a unique backlash removal mechanism.
  • The swing angle can be adjusted by ± 5 ° by the rotation angle fine adjustment mechanism.
  • Equipped with a cushion mechanism as standard.
  • The switch is a system-up type that can be installed later.
Radial Piston Type Air Motor Model:TAM4

Parker Radial Piston Type Air Motor Model:TAM4
The TAM4 series is a radial piston type air motor that can be mounted in any direction. Since it has a built-in balancer mechanism, it can operate with low vibration. In addition to the standard type, brake, reducer, and brake/reducer are also available, so you can choose according to your preference.
Features/Benefits:

  • The mounting direction is free.
  • 3 mounting styles
  • It can be used even in harsh environments
  • The simple design principle makes maintenance very easy
  • Equipped with a brake, reducer, and brake/reducer in addition to the basic type

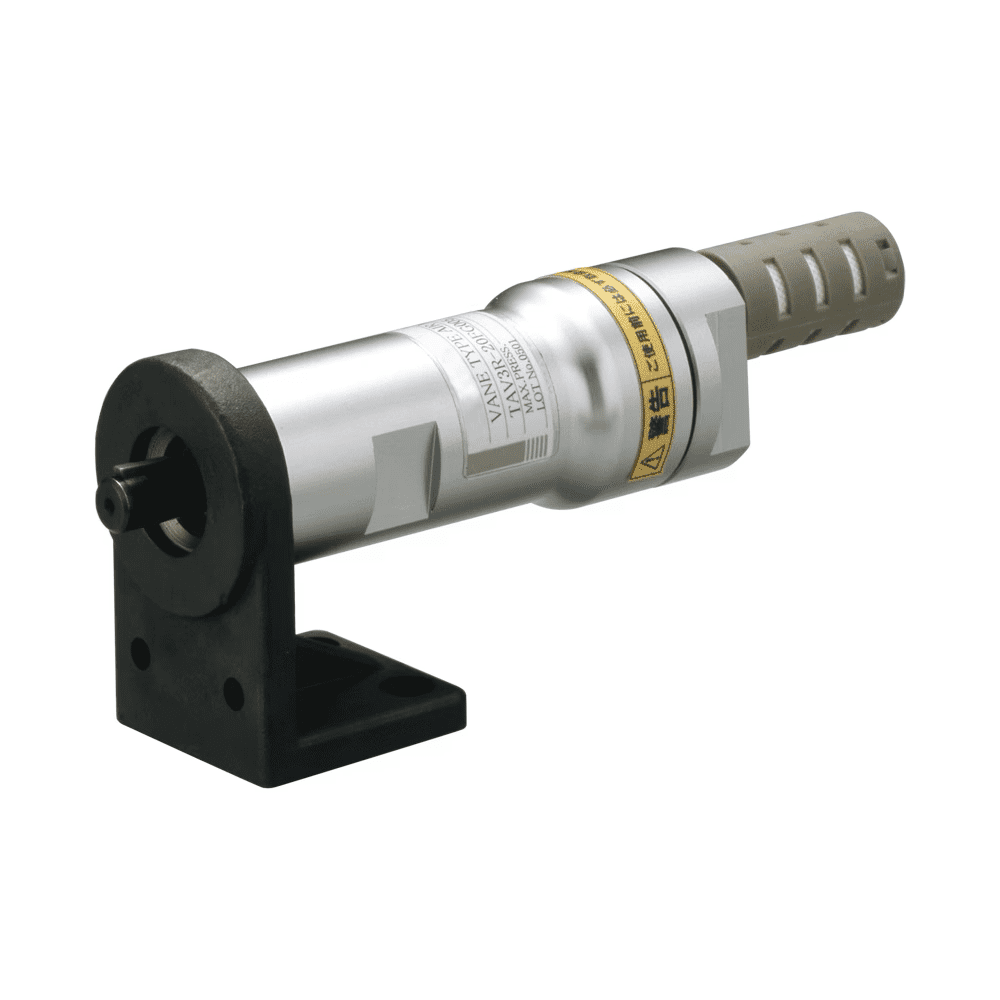

Vane Type Air Motor Model:TAV3

Parker Vane Type Air Motor Model:TAV3
The TAV3 series is a lightweight and compact high-speed Vane Type air motor. You can easily switch between forward and reverse rotation. The self-cooling effect reduces the temperature rise. It also contributes to energy saving by reducing air consumption.
Features/Benefits:

  • Lightening by aluminum body adoption.(About 30% weight saving compared with our standard)
  • Downsized by rear exhaust adoption.(About 30% size saving compared with our standard)
  • Durability is improved by adopting high-performance planetary gears.
  • Completely explosion-proof by pneumatic drive.

Hydraulic Rotary Actuators

Hydraulic Rotary Actuator – Unibody Series (Medium Duty)

Parker - Hydraulic Rotary Actuator - Unibody Series
The Hydraulic Unibody (HUB) series actuator is designed to perform in the harshest environmental conditions. Built with a hard-coat anodized housing and hardened, high-strength alloy steel pinion and racks, this product is ideal for applications where weather can be a factor. The HUB series is designed with several add-on valve modules for lower overall integration costs, as well as an increase in product performance. Multiple feedback and visual indication options are also available.

  • Output torques @ 3000 psi (207 Bar): 1800 lb-in to 10,000  lb-in.
  • Maximum operating pressure: 3000 psi (207 Bar)
  • Operating temperature range:
    • Nitrile seals -40° to 180°F  or -40° to 82°C
  • Standard rotations: 90°
  • Rotational tolerance: -0°, +2°
  • Maximum breakaway pressure: 70 psig or 4.8 Bar
  • Mounting orientation: unrestricted
  • Standard timing: keyway in 12:00 position at midstroke
  • Recommended filtration: ISO class 17/14 or better
  • Rack and pinion design provides excellent efficiency characteristics (90-95%) and minimizes HPU Size
  • Direct mounting design to numerous process valves allows for minimal integration cost
  • Integrated valve modules options are available for increased performance and reduced plumbing cost
  • Cross over vent module – allows for flow between both cylinder ports
  • Counter-balance valve module with cross over vent – designed for load holding in both directions and preventing a run-awayload situation from occurring. Also allows for flow between both cylinder ports.
  • D03 Solenoid ready module – manifold block directly mounted to actuator for reduced plumbing and increase in performance
  • Numerous linear and positional feedback and visual indication options available
  • Environmentally rugged for reliable performance in harsh conditions

Markets/Applications

  • Automation/Mounting, Processing, Flood Gate Actuation, End of Arm Tooling
  • Mining/Mobile Longhole Drilling, Tunnel Boring
  • Mobile/Fire Truck Ladder Rotation, Aerial Lift Basket, X-ray Boom Rotation, Forklift Handling & Storage,
  • Refuse Tippers
  • Oil & Gas/Process Valve Actuation
  • Oil Industry Machinery/Clamping, Lockout
  • Water Management
Hydraulic Rotary Actuator – HTR Series (Medium Duty)

Parker - Hydraulic Rotary Actuator - HTR Series
The HTR Series rotary actuator incorporates many hydraulic and mechanical features that make this actuator both robust and ideal for the most demanding high production applications. These features include high load capability tapered roller bearings; a chrome alloy steel rack and pinion gear set; a high strength ductile iron or steel housing; and proven Parker Hannifin cylinder components. The HTR Series actuators have been successfully employed in automotive plant production machinery; machine tool equipment; plastics and rubber processing machinery; basic metals production machinery and in material handling machinery.

The HTR Series can be employed as an integral machine component, where the actuator can simultaneously transmit torque and support the line shaft or the load. Such an arrangement allows for the elimination of one set of external support bearings. Optional cushions can also be incorporated to decelerate external loads, thus eliminating the need for an external deceleration device such as shock absorbers or brakes. Additionally, machine installations can be simplified with the hollow shaft feature by eliminating additional coupling. This is achieved by means of a square shaft key or if needed the housing can be drilled and tapped to mount various brackets. For easy serviceability, the piston seals can be inspected and replaced while the actuator remains installed on the machinery.

  • Output torques @ 3000 psi (207 bar): 900 lb.-in to 600,000 lb-in. (larger output torques available upon request)
  • Maximum operating pressure: 3000 psi (207 bar) non-shock
    • Except HTR22/45: 2000 psi (138 bar) non-shock
  • Operating temperature range:
    • Nitrile seals: -40° to 180°F or -40° to 82°C
    • Fluorocarbon seals: -20° to 250°F or -29° to 121°C
  • Standard rotations: 90°, 180°, 360°, 450°
  • Rotational tolerance: -0°, +2°
  • Maximum breakaway pressure: 70 psig or 4.8 bar
  • Mounting orientation: unrestricted
  • Standard timing: Keyway in 12:00 position at midstroke
  • Recommended filtration: ISO class 17/14 or better
  • Hydraulic cushions to minimize noise, vibration shock and assist deceleration control
  • Reed, Hall Effect or proximity switches for position sensing
  • End-of-rotation stroke adjusters for load position control and accurate rotation adjustment
  • Built-in meter out flow control valves with reverse flow check valves provide a neat package
  • Three position option can be used with many special machine and material handling applications
  • Rack and pinion design provides excellent efficiency characteristics (90-95%) and minimizes HPU Size
  • Minimal heat build up, limits need for heat exchanger
  • Large hollow gears offer more shaft options
  • HTR series are designed for low wear on dynamic seals and longer life
  • Excellent in high speed production applications

Markets/Applications

  • Aggregate/granite block rollover
  • Automation/mounting, processing, flood gate actuation, end of arm tooling
  • Automotive/automation, clamping, tube bending
  • Conveyor/swing and rotate
  • Fluid management & flow control/power plants
  • Machine builders/end of arm tooling
  • Marine offshore/boomslewer, submersible
  • Mining/mobile longhole drilling, tunnel boring
  • Mobile/fire truck ladder rotation, aerial lift basket, X-ray boom rotation, forklift handling & storage, refuse tippers
  • Oil & gas/process valve actuation
  • Plastics/blow molding, injection molding
  • Rubber/mixing
  • Solar/panel rotation
  • Steel & casting/ladle tilt, coil box, steel booming, pipe fabrication
  • Testing equipment/flight simulators, cycle loading, tensile test machines
  • Water management
Hydraulic Rotary Actuator – LTR Series (Light Duty)

Parker - Hydraulic Rotary Actuator - LTR Series
The LTR series rotary actuator is ideal for low pressure hydraulic applications. The LTR Series actuator combines an alloy steel gear set with a high strength aluminum housing and Parker 3L or 2A Series cylinder components into an actuator suitable for years of trouble free service. The actuator maximizes volumetric efficiency by using self-energizing PolyPak seals. Mechanical efficiency is maximized by using antifriction bearings and Wear-pak® piston technology.

  • Output torques @ 1000 psi (69 bar): 395 lb.-in to 22,813 lb-in.
  • Nominal pressure: 1000 psig (69 bar) (3L cylinder pressure ratings apply)
  • Operating temperature range:
    • Nitrile seals: -40 to 180° F or -40 to 82°C
    • Fluorocarbon seals: -20 to 250°F or -29 to 121°C
  • Standard rotations: 90°, 180°, 270°, 360°, 450°
  • Rotational tolerance: -0°, +2°
  • Maximum breakaway pressure: 30 psig or 2 bar
  • Mounting orientation: unrestricted
  • Standard timing: Keyway in 12:00 position at midstroke
  • Recommended filtration: ISO class 17/14 or better
  • Hydraulic cushions to minimize noise, vibration shock and assist deceleration control
  • Reed, Hall Effect or proximity switches for position sensing
  • End-of-rotation stroke adjusters for load position control and accurate rotation adjustment
  • Built-in meter out flow control valves with reverse flow check valves provide a neat package
  • Three position option can be used with many special machine and material handling applications
  • Rack and pinion design provides excellent efficiency characteristics (90-95%) and minimizes HPU Size
  • Minimal heat build up, limits need for heat exchanger
  • Large hollow gears offer more shaft options
  • LTR series are designed for low wear on dynamic seals and longer life
  • Excellent in high speed production applications

Markets/Applications

  • Aerospace/water bomb, tank door actuation
  • Automation/mounting, processing, flood gate actuation, end of arm tooling
  • Conveyor/swing and rotate
  • Mobile/fire truck ladder rotation, aerial lift basket, X-ray boom rotation, forklift handling & storage, refuse tippers
  • Transportation/bus wheelchair ramp
Hydraulic Rotary Actuator – M Series (Heavy Duty)

Parker - Hydraulic Rotary Actuator - M Series
Designed to meet steel mill specifications, these non-tie rod units incorporate a range of features that provide heavy duty dependable service. The heat treated pinions provide low tooth contact pressures and permit hollow shaft configurations with bore sizes capable of transmitting full operating torques, including shock loadings. The M Series units are fitted with wear ring bushings that provide full support and eliminate the possibility of contact between the cylinder and piston. The large diameter tapered roller bearings on the pinion allow the actuator to absorb considerable thrust, radial and overhung loads. For ease of maintenance, all pressure seals on M Series can be inspected or replaced without removing the actuator from the customer’s shaft.

  • Output torques @ 3000 psi (207 bar): 75,000 lb.-in to 50,000,000  lb-in.
  • Maximum operating pressure: 3000 psi (207 bar)
  • Operating temperature range:
    • Nitrile seals: -40° to 180°F  or -40° to 82°C
    • Fluorocarbon seals: -20° to 250°F  or -29° to 121°C
  • Standard rotations: 90°, 180°, 360°
  • Rotational tolerances: -0°, +2°
  • Maximum breakaway pressure: 75 psi  or 5 bar
  • Mounting orientation: unrestricted
  • Timing: Keyway located at 12:00 position at midstroke of actuator
  • Housing:
    • Heavy duty ductile iron (units up to 1000M),
    • Steel weldments (units larger than 1000M)

Rack and pinion design provides excellent efficiency characteristics (90-95%) and minimizes HPU Size

Minimal heat build up, limits need for heat exchanger

Large hollow gears offer more shaft options

M series are designed for low wear on dynamic seals and longer life

Excellent in high speed production applications

Markets/Applications

  •  Aluminum/automation
  •  Fluid management & flow control/power plants
  •  Marine offshore/boomslewer, submersible
  •  Mining/mobile longhole drilling, tunnel boring
  •  Mobile/fire truck ladder rotation, aerial lift basket, X-ray boom rotation, forklift handling & storage, refuse tippers
  •  Nuclear/door actuation
  •  Paper & pulp/walking beam
  •  Rubber/mixing
  •  Space/rocket launch tower
  •  Steel & casting/ladle tilt, coil box, steel booming, pipe fabrication

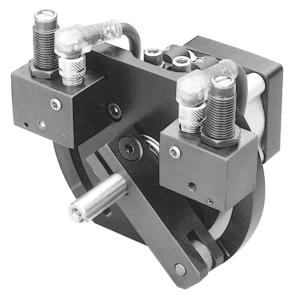

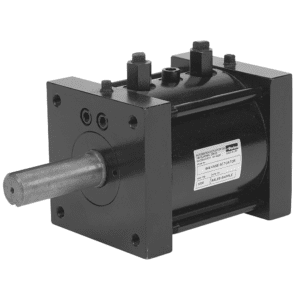

Hydraulic Rotary Actuator – Tork-Mor Series (Vane)

Parker - Hydraulic Rotary Actuator - Tork-Mor Series
Tork-Mor series actuators are produced in eighteen sizes generating up to 145,000 lb-in of torque at rated pressure. Capable of providing full torque instantly in either direction, they are available with 100° or 280° rotation at pressures up to 1000 psi. The Tork-Mor series can be mounted in any axis using a wide variety of standard or optional mountings. Proven reliable through many years of field service, the Tork-Mor series incorporates many quality features including precision ball bearings to provide shaft support, externally removable gland for ease of seal replacement, and cylinders honed to a 10 micro inch finish to ensure long seal life.

    • Output torques @ 500 psi (35 Bar): 800 lb-in to 142,000  lb-in.
    • Maximum operating pressure: 1000 psi (69 Bar) hydraulic
    • Operating temperature range:
      • Nitrile seals -40° to 180°F (-40° to 82°C)
      • Fluorocarbon seals -20° to 250°F (-29° to 121°C)
    • Rotations:
      • S Models – 280°
      • DS Models – 100°
    • Rotational tolerance: ± 1°:
    • Max. allowable drain line pressure : 50 psi (hydraulic)
    • External shaft load capacities:
      • Thrust Loads: Units have no thrust load capacity.
      • Radial Loads: External radial loads are not recommended and can reduce the life of the unit. Consult factory before applying.

Vane design provides fair efficiency characteristics (75-85%)

Limited rotation and torque range

Small package size is suitable for application with space constraints

Precision positioning is achieved due to no backlash design

Suited for medium speed production applications

Markets/Applications

  • Automation/Mounting, Processing, Flood Gate Actuation, End of Arm Tooling
  • Automotive/Automation, Clamping, Tube Bending
  • Conveyor/Swing and Rotate
  • Entertainment/Pool Gate Actuation, Robotic Joint Motion
  • Industrial/Automation, Clamping
  • Plastics/Blow Molding, Injection Molding
  • Oil Industry Machinery/Clamping, Lockout
  • Steel & Casting/Ladle Tilt, Coil Box, Steel Booming, Pipe Fabrication
  • Testing Equipment/Flight Simulators, Cycle Loading, Tensile Test Machines
  • Welding/Weld Gun Indexing, Clamping
Helical Hydraulic Rotary Actuator Replacement Parts
  • Helac PowerTilt Manifold Kits
  • Helac Hydraulic Rotary Actuator Seal Kits
  • Helac Hydraulic Rotary Actuator Valve Assembly
  • Helac Hydraulic Rotary Actuator Bearing Kits
  • Helac Hydraulic Rotary Actuator Hardware Kits
  • Helac Hydraulic Rotary Actuator Hardware
  • Helac Hydraulic Rotary Actuator Valve Cartridges
  • Helac Hydraulic Rotary Actuator Hydraulic Kits
  • Helac Hydraulic Rotary Actuator Parts

For more information about these products…
 Download a Catalog
