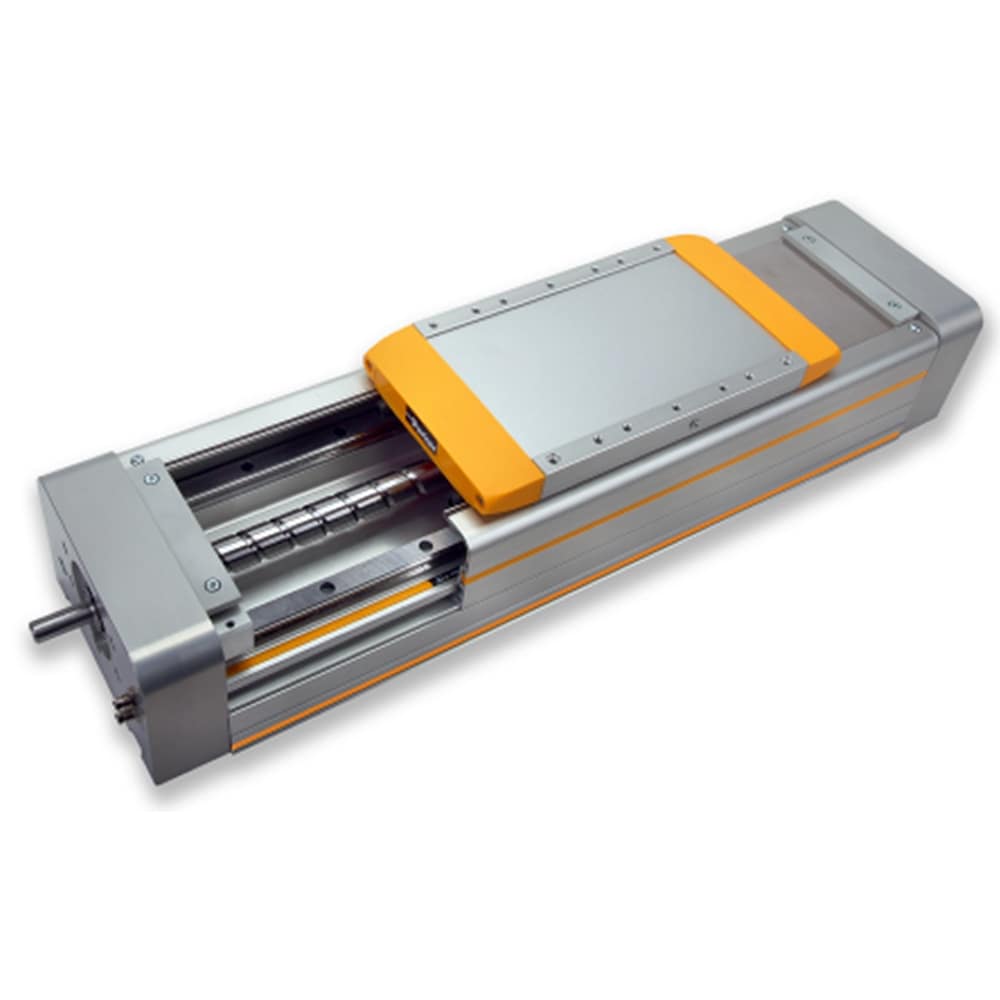

HMRS08 Screw Driven, Square Rail Bearing Rodless Linear Actuator

Parker Hannifin’s High Moment Rodless (HMR) electromechanical actuator series is one of the most versatile actuator lines on the market today. Guided by two square rail bearings, the HMR has enormous moment and payload capacity for two different chassis profiles, allowing the user to choose between a low profile “basic” version, or a “reinforced” version giving structural rigidity for long unsupported spans. Ease of use by integrated external accessible lubrication fittings into the carriage that allow for evenly dispensed lubricant across all bearing trucks. In addition, there are options including 5 different frame sizes, different drive trains, multiple mountings, internally wired sensor as well as the IP54 protective cover. With a multitude of other customisable features the HMR is truly designed for flexibility.
HMRS08 screw driven actuators provide precise path and position control for payloads of up to 1800N. Available with either basic or reinforced profiles, the HMR linear actuators offer user-friendly flexibility and a range of fully integrated options

• Product Type: Linear Actuator
• Technology: ElectromechanicalProfile Width: 85 mm
• Drive Axis Type: Ballscrew
• Bearing Type: Square Rail
• Maximum Stroke Length: 1200 mm, 47 inch
• Maximum Operating Speed: 0.6 m/sec, 23.6 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 820 N, FX: 184 lbs
• Load Capacity: FZ: 10 to 1800 N, FZ: 1800 N (standard), 2700 N (tandem carriage)
• Repeatability: ± 0.02 mm, ± 0.0008 inch
• Additional Protection Included: IP54 (with outer cover)

HMRS15 Screw Driven, Square Rail Bearing Rodless Linear Actuator

HMRS15 screw driven actuators provide precise path and position control for payloads of up to 8800N. Available with either basic or reinforced profiles, the HMR linear actuators offer user-friendly flexibility and a range of fully integrated options.

• Product Type: Linear Actuator
• Technology: Electromechanical
• Profile Width: 150 mm
• Drive Axis Type: Ballscrew
• Bearing Type: Square Rail
• Maximum Stroke Length: 2500 mm, 98 inch
• Maximum Operating Speed: 1 m/sec, 39.3 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 2600 N, FX: 584 lbs
• Load Capacity: FZ: 750 to 8800 N, FZ: 8800 N (standard), 13200 N (tandem carriage)
• Repeatability: ± 0.02 mm, ± 0.0008 inch
• Additional Protection Included: IP54 (with outer cover)

HMRS24 Screw Driven, Square Rail Bearing Rodless Linear Actuator

HMRS24 screw driven actuators provide precise path and position control for payloads of up to 26600N. Available with either basic or reinforced profiles, the HMR linear actuators offer user-friendly flexibility and a range of fully integrated options.

• Product Type: Linear Actuator
• Technology: Electromechanical
• Profile Width: 240 mm
• Drive Axis Type: Ballscrew
• Bearing Type: Square Rail
• Maximum Stroke Length: 4000 mm, 157 inch
• Maximum Operating Speed: 1.6 m/sec, 63 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 5500 N, FX: 1236 lbs
• Load Capacity: FZ: 1500 to 26600 N, FZ: 26600 N (standard), 39900 N (tandem carriage)
• Repeatability: ± 0.02 mm, ± 0.0008 inch
• Additional Protection Included: IP54 (with outer cover)

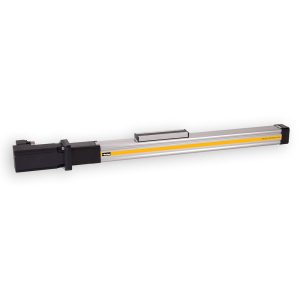

OSPE32-ST Trapezoidal Screw Driven, Rodless Actuator

The internal plain bearing OSPE32-ST lead screw driven actuator with self-locking characteristic is ideal for horizontal and vertical slow-speed, low duty cycle, medium thrust applications. Payloads to 1000N.

• Product Type: Linear Actuator
• Technology: Electromechanical
• Product Series: OSP-E
• Profile Width: 52 mm
• Drive Axis Type: Leadscrew
• Bearing Type: Glider Bushing
• Maximum Stroke Length: 2000 mm, 78 inch
• Maximum Operating Speed: 0.1 m/sec, 3.9 inch/sec
• Maximum Acceleration: 2 m/sec2, 77.3 inch/sec2
• Maximum Thrust: FX: 1300 N, FX: 292 lbs
• Load Capacity: FZ: 100 to 1000 N, FZ: 1000 N
• Repeatability: ± 0.5 mm, ± 0.02 inch
• Additional Protection Included: Steel Strip Cover
• Specifications Met: Cleanroom (custom option)

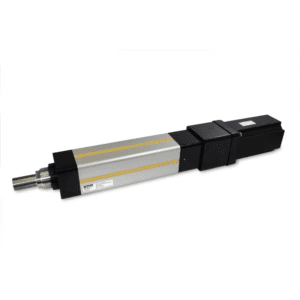

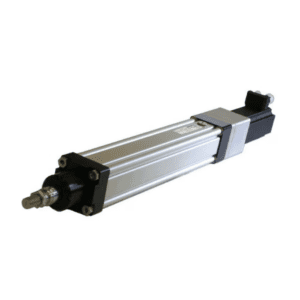

ETH032 High-Force Screw Drive Electric Cylinder/Actuator

The Parker ETH is the next generation of electric linear thrust cylinder/actuator product that is suitable to replace pneumatic and hydraulic cylinders in many applications while simultaneously increasing the reliability of the production process and decreasing overall cost and maintenance. Utilizing a completely new integrated drive train and guidance design, the ETH has greatly improved overall thrust capacity within a smaller overall footprint, producing a cylinder with industry leading power density. Parker ETH032 high force ball screw electric linear cylinder/actuator offers compact design and high thrust to 832lbs. The ETH is designed to compete with similarly sized roller screw products and offers an energy efficient solution to hydraulic actuation. The new integrated design creates a more durable unit overall that has dramatically increased product life characteristics.
ETH ball screw cylinders/actuators are engineered to be extremely user-friendly employing a wide range of configurable options to allow for true application optimization. They can be configured with either inline or parallel motor mounting options to allow for accommodating tighter space constraints. With a standardized ISO footprint, ETH cylinders can be designed into existing fluid power applications, adding programmability and the option of closed loop control as well as high durability and long life. Due to the high mechanical efficiency of an electric cylinder they offer lower overall cost of ownership relative to similarly sized fluid power systems.
With five different frame sizes to meet a multitude of application demands, the ETH family has been optimized to fit almost any industrial requirement, and has been successfully implemented in applications such as test and laboratory equipment, valve and flap actuation, press equipment, food and beverage process automation, packaging, along with a multitude of general material handling applications.

• Product Series: ETH
• Rod End Dimension: ISO32
• Profile Width: 46.5 mm
• Drive Axis Type: Screw
• Maximum Stroke Length: 1000 mm, 39.3 inch
• Maximum Operating Speed: 1 m/sec, 39.37 inch/sec
• Maximum Acceleration: 12 m/sec2, 472 inch/sec2
• Maximum Thrust: 3700 N, 832 lb
• Repeatability: ±: 0.03 (motor inline) / 0.05 (motor parallel) mm, ±: 0.001 (motor inline) / 0.002 (motor parallel) inch
• Ingress Protection Rating: IP54, IP65 (optional)
• Corrosion Resistance Included: Yes (stainless steel)
• Specifications Met: ATEX (optional)
• Operating Temperature: -10° … +70° °C, +14° … +158° °F

ETH080 High-Force Screw Driven Electric Cylinder/Linear Actuator

Parker’s ETH080 High-Speed High-Force Screw Drive Electric Linear Actuator is a compact, heavy duty cylinder with high thrusts to 5643lbs. Part of the ETH next generation line of electric thrust cylinder products, Parker’s ETH080 is suitable to replace pneumatic and hydraulic cylinders in many applications while simultaneously increasing the reliability of the production process and decreasing overall cost and maintenance. Utilizing a completely new integrated screw drive train and guidance design, the ETH has greatly improved overall thrust capacity within a smaller overall footprint, producing a cylinder with industry leading power density. The ETH is designed to compete with similarly sized roller screw products and offers an energy efficient solution to hydraulic actuation. The new integrated design creates a more durable unit overall that has dramatically increased product life characteristics.
ETH cylinders/actuators are engineered to be extremely user-friendly employing a wide range of configurable options to allow for true application optimization. They can be configured with either inline or parallel motor mounting options to allow for accommodating tighter space constraints. With a standardized ISO footprint, ETH cylinders can be designed into existing fluid power applications, adding programmability and the option of closed loop control as well as high durability and long life. Due to the high mechanical efficiency of an electric cylinder they offer lower overall cost of ownership relative to similarly sized fluid power systems.
With five different frame sizes to meet a multitude of application demands, the Parker ETH family has been optimized to fit almost any industrial requirement, and has been successfully implemented in applications such as test and laboratory equipment, valve and flap actuation, press equipment, food and beverage process automation, packaging, along with a multitude of general material handling applications.

• Product Series: ETH
• Rod End Dimension: ISO80
• Profile Width: 95 mm
• Drive Axis Type: Screw
• Maximum Stroke Length: 1600 mm, 63 inch
• Maximum Operating Speed: 1.7 m/sec, 66.9 inch/sec
• Maximum Acceleration: 15 m/sec2, 590 inch/sec2
• Maximum Thrust: 25100 N, 5643 lb
• Repeatability: ±: 0.03 (motor inline) / 0.05 (motor parallel) mm, ±: 0.001 (motor inline) / 0.002 (motor parallel) inch
• Ingress Protection Rating: IP54, IP65 (optional)
• Corrosion Resistance Included: Yes (stainless steel)
• Specifications Met: ATEX (optional)
• Operating Temperature: -10° … +70° °C, +14° … +158° °F

ETH125 High-Force Screw Driven Electric Cylinder/Linear Actuator

Achieve greater control and increased reliability with Parker ETH125 High-Force High-Thrust Electric Cylinder/Linear Actuator offering thrust forces to 114000N and 25628lbs, strokes to 2.0m and an ISO125 compatible flange. Parker ETH is the next generation of electric screw driven thrust cylinder/linear actuator product that is suitable to replace pneumatic and hydraulic cylinders in many applications while simultaneously increasing the reliability of the production process and decreasing overall cost and maintenance. Utilizing a completely new integrated drive train and guidance design, the ETH has greatly improved overall thrust capacity within a smaller overall footprint, producing a cylinder with industry leading power density. The ETH is designed to compete with similarly sized roller screw products and offers an energy efficient solution to hydraulic actuation. The new integrated design creates a more durable unit overall that has dramatically increased product life characteristics.
ETH screw driven cylinders/actuators are engineered to be extremely user-friendly employing a wide range of configurable options to allow for true application optimization. They can be configured with either inline or parallel motor mounting options to allow for accommodating tighter space constraints. With a standardized ISO footprint, ETH electric cylinders can be designed into existing fluid power applications, adding programmability and the option of closed loop control as well as high durability and long life. Due to the high mechanical efficiency of an electric cylinder they offer lower overall cost of ownership relative to similarly sized fluid power systems.
With five different frame sizes to meet a multitude of application demands, the Parker ETH family has been optimized to fit almost any industrial requirement, and has been successfully implemented in applications such as test and laboratory equipment, valve and flap actuation, press equipment, food and beverage process automation, packaging, along with a multitude of general material handling applications.

• Product Series: ETH
• Rod End Dimension: ISO125
• Profile Width: 150 mm
• Drive Axis Type: Screw
• Maximum Stroke Length: 2000 mm, 78.7 inch
• Maximum Operating Speed: 0.8 m/sec, 31.49 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: 114000 N, 25628 lb
• Repeatability: ±: 0.03 (motor inline) / 0.05 (motor parallel) mm, ±: 0.001 (motor inline) / 0.002 (motor parallel) inch
• Ingress Protection Rating: IP54, IP65 (optional)
• Corrosion Resistance Included: Yes (stainless steel)
• Specifications Met: ATEX (optional)
• Operating Temperature: -10° … +70° °C, +14° … +158° °F

ET50 Screw Drive Electric Cylinder/Actuator

The ET50 ‘ElectroThrust’ Series of electric cylinder linear actuators combine an unparalleled design with a variety of options that make it easy to integrate into any automation application. Produced to hard metric ISO standards, the ET-series electric cylinders can be mounted into existing fluidpower cylinder applications, adding infinite programmability and control to the durability and long life expected of hydraulic and pneumatic cylinders.

• Product Series: ET
• Rod End Dimension: ISO50
• Profile Width: 63.5 mm
• Drive Axis Type: Screw
• Maximum Stroke Length: 1500 mm, 59 inch
• Maximum Operating Speed: 1.5 m/sec, 60 inch/sec
• Maximum Acceleration: 9.8 m/sec2, 386 inch/sec2
• Maximum Thrust: 3200 N, 720 lb
• Repeatability: ±: 0.03 (motor inline) / 0.15 (motor parallel) mm, ±: 0.001 (motor inline) / 0.006 (motor parallel) inch
• Ingress Protection Rating: IP54, IP65 (optional)
• Corrosion Resistance Included: Yes (stainless steel)
• Operating Temperature: 0° … +60° °C, +32° … +140° °F

ET100 Screw Drive Electric Cylinder/Actuator

The ET100 ‘ElectroThrust’ Series of electric cylinder linear actuators combine an unparalleled design with a variety of options that make it easy to integrate into any automation application. Produced to hard metric ISO standards, the ET-series electric cylinders can be mounted into existing fluidpower cylinder applications, adding infinite programmability and control to the durability and long life expected of hydraulic and pneumatic cylinders.

• Product Series: ET
• Rod End Dimension: ISO100
• Profile Width: 114 mm
• Drive Axis Type: Screw
• Maximum Stroke Length: 1500 mm, 59 inch
• Maximum Operating Speed: 1.2 m/sec, 50 inch/sec
• Maximum Acceleration: 9.8 m/sec2, 386 inch/sec2
• Maximum Thrust: 23500 N, 5300 lb
• Repeatability: ±: 0.03 (motor inline) / 0.15 (motor parallel) mm, ±: 0.001 (motor inline) / 0.006 (motor parallel) inch
• Ingress Protection Rating: IP54, IP65 (optional)
• Corrosion Resistance Included: Yes (stainless steel)
• Operating Temperature: 0° … +60° °C, +32° … +140° °F

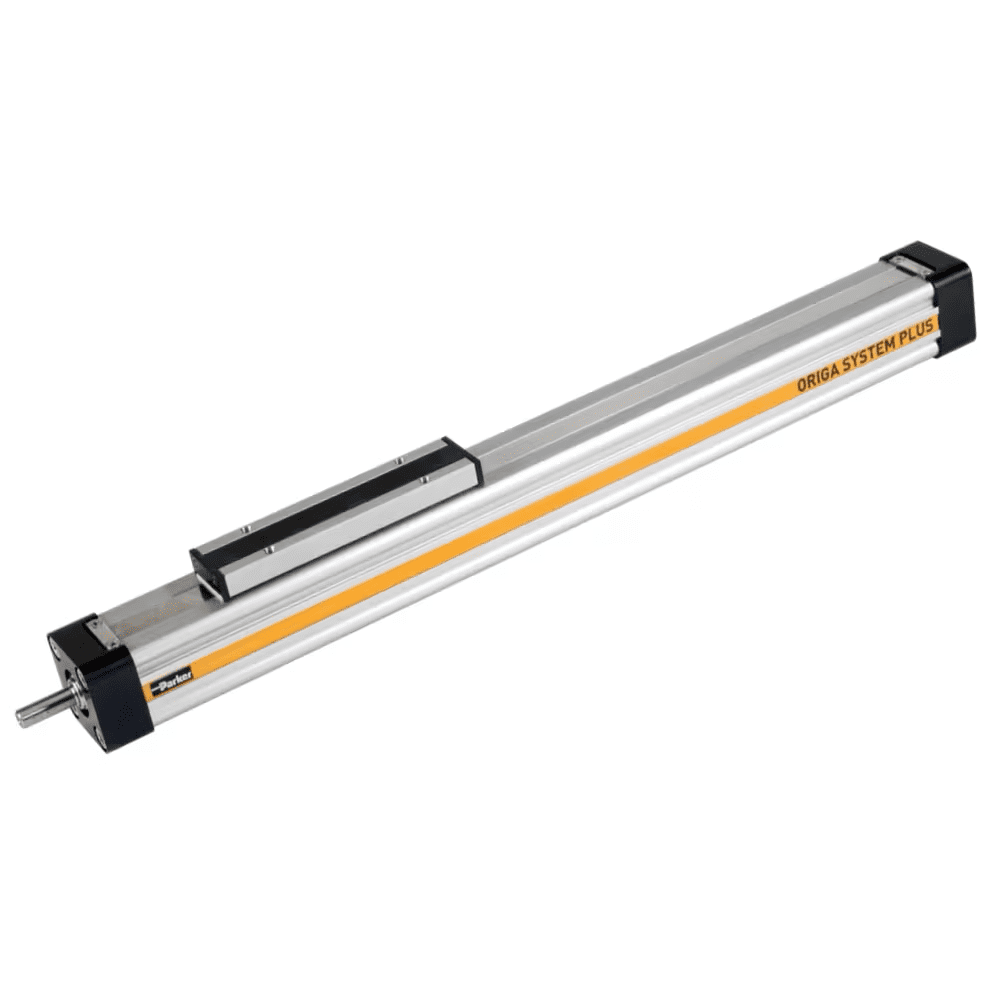

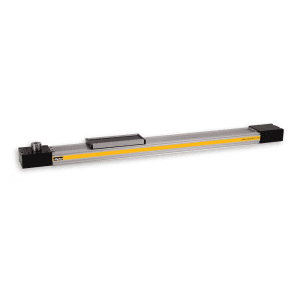

OSPE25-SB Ball Screw Driven, Rodless Actuator

Completely modular to accommodate a broad range of installation and performance requirements, the OSPE-SB is a ball screw driven linear actuator designed to offer medium precision positioning at a 100% duty cycle.  With 3 different bore sizes, multiple guidance, mounting and carriage options, and an integrated seal strip offering IP54 protection, along with a multitude of other customizable features, the OSPE-SB is a versatile yet cost-effective point to point positioner.

With multiple guide, carriage and mounting options, and an IP54 rating, the OSPE-SB 25 ball screw driven actuator is designed for medium precision, high duty cycle applications. Suitable for payloads up to 500N

• Profile Width: 41 mm
• Drive Axis Type: Ballscrew
• Bearing Type: Glider, POWERSLIDE, PROLINE
• Maximum Stroke Length: 1100 mm, 43 inch
• Maximum Operating Speed: 0.25 m/sec, 9.8 inch/sec
• Maximum Acceleration: 2 m/sec2, 77.3 inch/sec2
• Maximum Thrust: FX: 250 N, FX: 56 lbs
• Load Capacity: FZ: 100 to 500 N, FZ: 500 N (Glider Bearing), 387 N (PowerSlide), 1549 N (ProLine)
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Additional Protection Included: Steel Strip Cover
• Specifications Met: Cleanroom (custom option)
• Ingress Protection Rating: IP54

OSPE50-SB Ball Screw Driven, Rodless Actuator

With multiple guide, carriage and mounting options, and an IP54 rating, the OSPE-SB 50 ball screw driven actuator is designed for medium precision, high duty cycle applications. Suitable for payloads up to 3000N.

• Profile Width: 87 mm
• Drive Axis Type: Ballscrew
• Bearing Type: Glider, POWERSLIDE, PROLINE
• Maximum Stroke Length: 3200 mm, 126 inch
• Maximum Operating Speed: 1.25 m/sec, 49.2 inch/sec
• Maximum Acceleration: 10 m/sec2, 386.5 inch/sec2
• Maximum Thrust: FX: 1450 N, FX: 326 lbs
• Load Capacity: FZ: 500 to 3000 N, FZ: 3000 N (Glider Bearing), 1699 N (PowerSlide), 5626 N (ProLine)
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Additional Protection Included: Steel Strip Cover
• Specifications Met: Cleanroom (custom option)
• Ingress Protection Rating: IP54

HLEZ150 Rack & Pinion Driven, Roller Wheel, Rodless Linear Actuator

The HLE-Z offers the same rugged roller bearing design and industrially hardened structure as the HLE-RB, however the incorporation of a rack-and-pinion drive train allows for truly “endless” travel lengths. This design utilizes Parker’s HLE150-RB series as the platform, allowing for significant structural rigidity and high normal loading. The exceptional dynamic characteristics of this unit make it the ideal fit for high speed linear translation and positioning applications over long distances.
HLEZ actuators offer the same rugged bearing design as the HLE but with an integral rack-and-pinion drive allowing for endless travel. The unique design gives high performance with no lubrication requirement. Ideal for high speed/long travel applications

• Profile Width: 87 mm
• Drive Axis Type: Ballscrew
• Bearing Type: Glider, POWERSLIDE, PROLINE
• Maximum Stroke Length: 3200 mm, 126 inch
• Maximum Operating Speed: 1.25 m/sec, 49.2 inch/sec
• Maximum Acceleration: 10 m/sec2, 386.5 inch/sec2
• Maximum Thrust: FX: 1450 N, FX: 326 lbs
• Load Capacity: FZ: 500 to 3000 N, FZ: 3000 N (Glider Bearing), 1699 N (PowerSlide), 5626 N (ProLine)
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Additional Protection Included: Steel Strip Cover
• Specifications Met: Cleanroom (custom option)
• Ingress Protection Rating: IP54

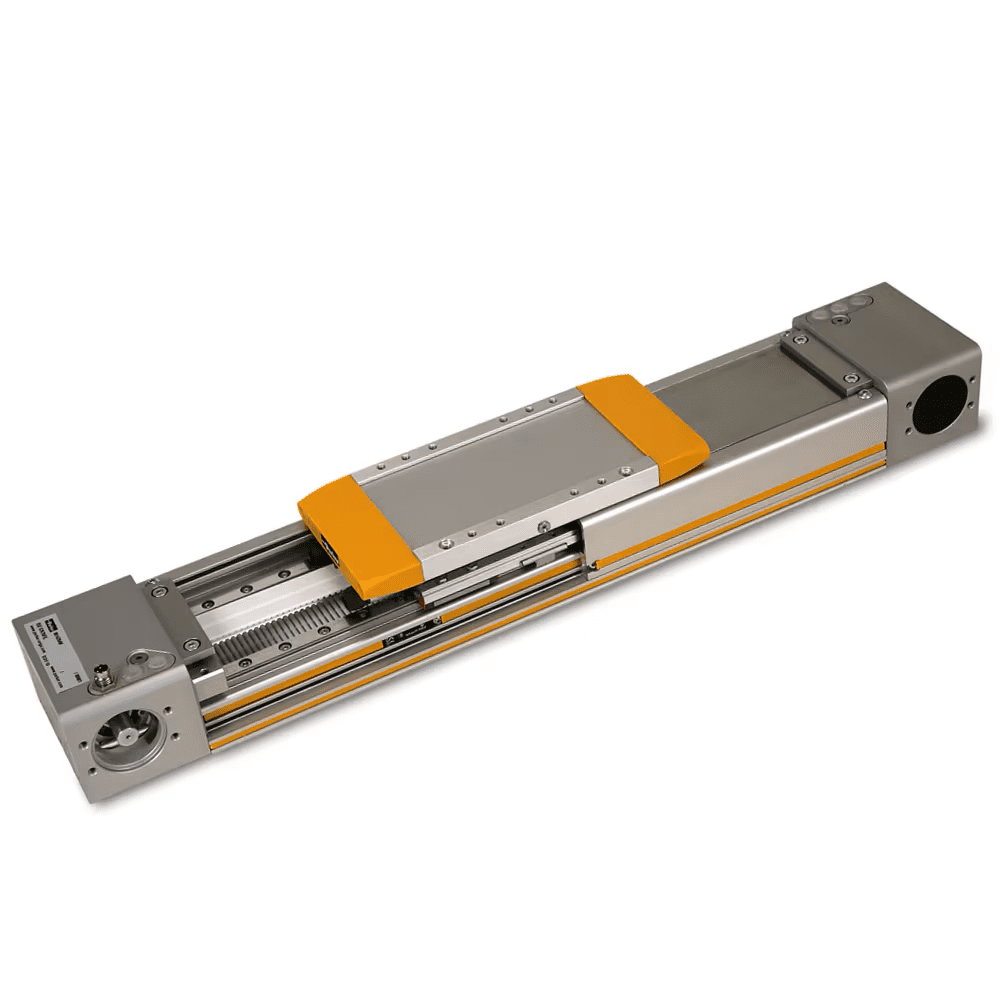

HMRB08 Belt Driven, Square Rail Bearing, Rodless Linear Actuator

Offering extreme configurability and maximized application optimization for industrial markets, Parker Hannifin’s High Moment Rodless, electromechanical linear actuator series is one of the most user friendly and versatile actuator lines on the market today. With 5 different frame sizes, 2 different drive train options, multiple mounting, carriage and sensor options, and an IP54 protective cover option, along with a multitude of other customizable features the HMR was truly designed with flexibility in mind.

Offering extreme configurability and maximized application optimization the HMRB08 belt driven actuator utilizes two square rail bearing guides for maximum moment loading capacity and is ideal for single or multi-axis systems. For payloads up to 1800N.

• Profile Width: 85 mm
• Drive Axis Type: Belt
• Bearing Type: Square Rail
• Maximum Stroke Length: 3000 mm, 118 inch
• Maximum Operating Speed: 2 m/sec, 79 inch/sec
• Maximum Acceleration: 30 m/sec2, 1181 inch/sec2
• Maximum Thrust: FX: 295 N, FX: 66 lbs
• Load Capacity: FZ: 10 to 1800 N, FZ: 1800 N (standard), 2700 N (tandem carriage)
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Additional Protection Included: Optional Outer Cover
• Ingress Protection Rating: IP20, IP54

HMRB15 Belt Driven, Square Rail Bearing, Rodless Linear Actuator

Offering extreme configurability and maximized application optimization the HMRB15 belt driven actuator utilizes two square rail bearing guides for maximum moment loading capacity and is ideal for single or multi-axis systems. For payloads up to 8800N.

• Profile Width: 150 mm
• Drive Axis Type: Belt
• Bearing Type: Square Rail
• Maximum Stroke Length: 6000 mm, 236 inch
• Maximum Operating Speed: 5 m/sec, 197 inch/sec
• Maximum Acceleration: 50 m/sec2, 1968 inch/sec2
• Maximum Thrust: FX: 1050 N, FX: 236 lbs
• Load Capacity: FZ: 750 to 8800 N, FZ: 8800 N (standard), 13200 N (tandem carriage)
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Additional Protection Included: Optional Outer Cover
• Ingress Protection Rating: IP20, IP54

HMRB24 Belt Driven, Square Rail Bearing, Rodless Linear Actuator

Offering extreme configurability and maximized application optimization the HMRB24 belt driven actuator utilizes two square rail bearing guides for maximum moment loading capacity and is ideal for single or multi-axis systems. For payloads up to 26600N.

• Profile Width: 240 mm
• Drive Axis Type: Belt
• Bearing Type: Square Rail
• Maximum Stroke Length: 6000 mm, 236 inch
• Maximum Operating Speed: 5 m/sec, 197 inch/sec
• Maximum Acceleration: 50 m/sec2, 1968 inch/sec2
• Maximum Thrust: FX: 4000 N, FX: 899 lbs
• Load Capacity: FZ: 1500 to 26600 N, FZ: 26600 N (standard), 39900 N (tandem carriage)
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Additional Protection Included: Optional Outer Cover
• Ingress Protection Rating: IP20, IP54

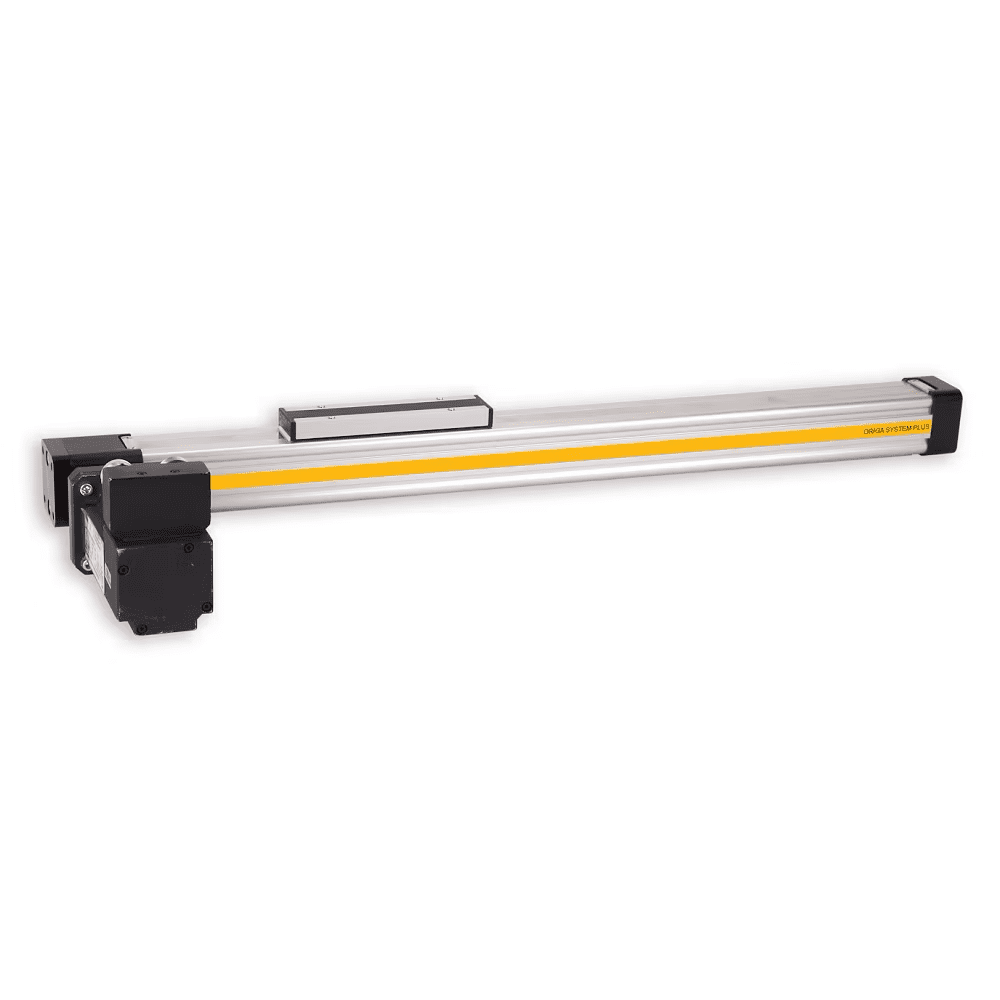

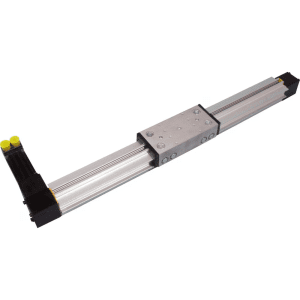

OSPE32-B Belt Driven, Rodless Actuator

With multiple guide, carriage and mounting options and an IP54 rating, along with a multitude of other customizable features the OSPE-B 32 is designed to be our most versatile yet cost-effective point to point positioner. Suitable for payloads up to 300N.

• Profile Width: 52 mm
• Drive Axis Type: Belt
• Bearing Type: Glider Bushing with options for External Roller Guides
• Maximum Stroke Length: 5000 mm, 197 inch
• Maximum Operating Speed: 3 m/sec, 120 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 150 N, FX: 34 lbs
• Load Capacity: FZ: 40 to 300 N, FZ: 300 N (up to 2117 with external guide options)
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Additional Protection Included: Steel Strip Cover
• Specifications Met: Cleanroom (custom option)
• Ingress Protection Rating: IP54

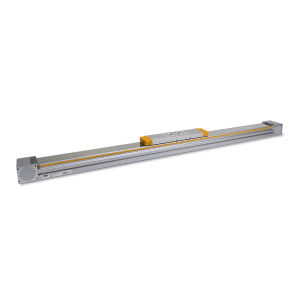

OSPE20-BHD Belt Driven, Square Rail Bearing, Rodless Linear Actuator

The integrated square rail bearing design of OSPE20-BHD belt driven electric linear actuator offers a combination of high speed, high loading capacity and high thrust, coupled with the extreme flexibility and low profile design makes this unit ideally suited in compact foot prints for handling operations within industrial, manufacturing and assembly environments.
The square rail bearing OSPE20-BHD belt driven electric linear actuators for high performing, dynamic positioning is packaged in a low profile IP54 rated assembly and offers multiple configured options. Payloads to 1600N.

• Product Type: Linear Actuator
• Technology: Electromechanical
• Profile Width: 73 mm
• Drive Axis Type: Belt
• Bearing Type: Square Rail
• Maximum Stroke Length: 5760 mm, 227 inch
• Maximum Operating Speed: 3 m/sec, 118 inch/sec
• Maximum Acceleration: 50 m/sec2, 1968 inch/sec2
• Maximum Thrust: FX: 550 N, FX: 124 lbs
• Load Capacity: FZ: 100 to 1600 N, FZ: 1600 N
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Additional Protection Included: Steel Strip Cover
• Specifications Met: Cleanroom (custom option)

OSPE32-BHD Belt Driven, Square Rail Bearing, Rodless Linear Actuator

The square rail bearing OSPE32-BHD belt driven electric linear actuators for high performing, dynamic positioning is packaged in a low profile IP54 rated assembly and offers multiple configured options. Payloads to 10000N.

• Technology: Electromechanical
• Product Style: Rodless
• Profile Width: 116 mm
• Drive Axis Type: Belt
• Bearing Type: Square Rail
• Maximum Stroke Length: 5600 mm, 220 inch
• Maximum Operating Speed: 5 m/sec (10 with roller guide option), 197 inch/sec (394 with roller guide option)
• Maximum Acceleration: 50 m/sec2, 1968 inch/sec2
• Maximum Thrust: FX: 1870 N, FX: 420 lbs
• Load Capacity: FZ: 500 to 10000 N, FZ: 10000 N (1348 with roller guide option)
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Additional Protection Included: Steel Strip Cover
• Specifications Met: Cleanroom (custom option)

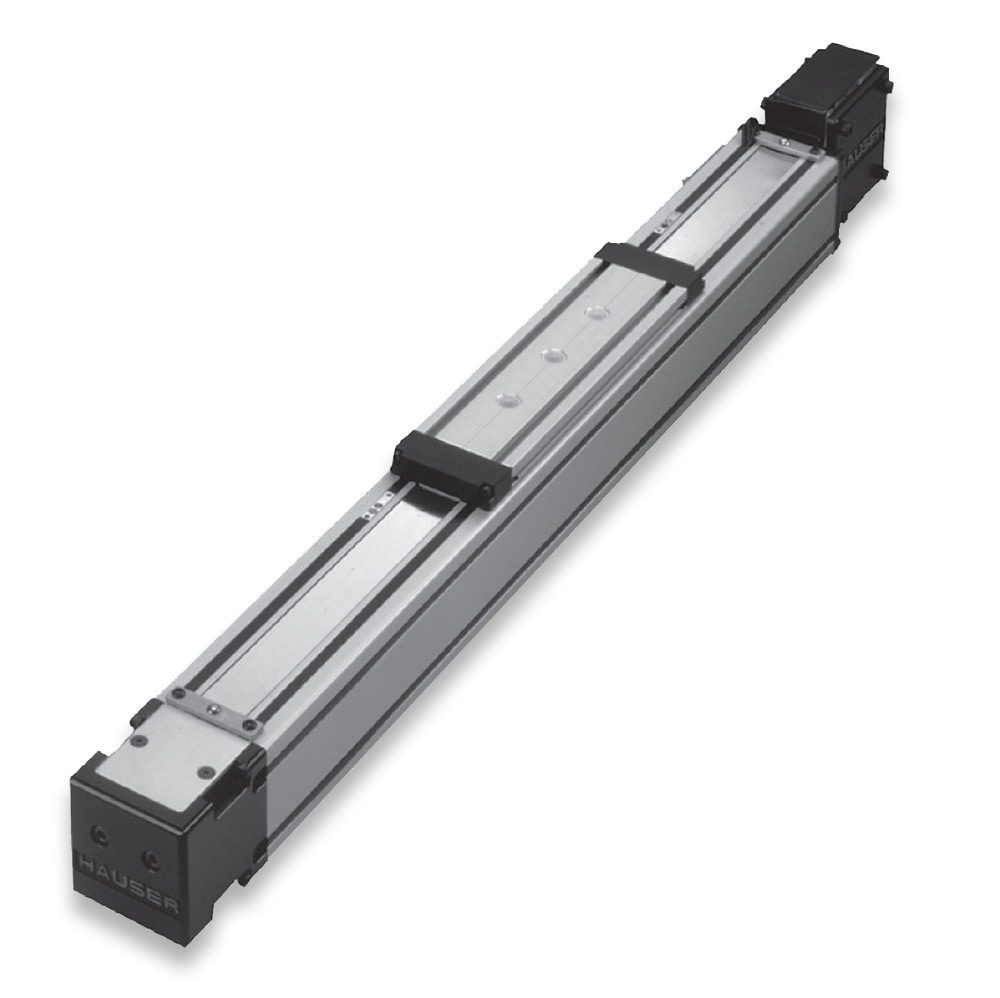

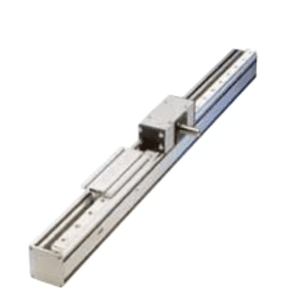

HLE Series – LEB100 Belt Driven, Roller Wheel, All Purpose Rodless Linear Actuator

The HLE series ‘all-purpose’ linear actuator offers an appropriate solution for all motion tasks and is ideal for use as a single-axis or as a component in a multiple-axis gantry system. It has been developed for rapid linear movements over long stroke distances, providing a simple machine and system element that can be used without the need for any specialized knowledge – installation and setup only requires a small amount of effort from the user. The HLE carriage is rigidly supported on three sides by heavy duty, polyamide roller wheels housed inside of a rugged aluminium housing. The bearing wheels are pre-loaded to eliminate play in the system and strategically located along the carriage to evenly distribute load across the length of the carriage. The HLE linear actuator utilises a high strength, steel reinforced belt and pulley drive train that provides fast, highly repeatable positioning of the carriage. The mounting of the belt to the carriage is designed to enable easy replacement of the belt without the need to remove the payload, while simultaneously providing a very rigid connection. The drive pulley assembly is designed to accept planetary gearheads as well as a wide variety of servo and stepper motors. The HLE is available in many different configurations, with numerous options and accessories – with thousands of units in operation worldwide, the HLE is truly a proven performer in its ability to offer long-life and trouble free operation.
LEB100 actuators incorporate a high strength timing belt, guided by low friction, heavy-duty roller wheels inside a sealed housing. With a load capacity to 2450N and speeds up to 5m/s, LEB100’s are optimized for high speed, single or multi-axis systems.

• Profile Width: 100 mm
• Drive Axis Type: Belt
• Bearing Type: Roller Wheel – Polyamide
• Maximum Stroke Length: 6300 mm (single profile), 13000 mm (max by splicing), 248 inch (single profile), 787 inch (max by splicing)
• Maximum Operating Speed: 5 m/sec, 197 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 580 N, FX: 130 lbs
• Load Capacity: FZ: 1000 N, FZ: 2450 N (extended carriage)
• Repeatability: ± 0.05 mm (up to 3m), 0.1 mm (3m and above), ± 0.002 inch (up to 118 inch), 0.004 inch (118 inch and above)
• Idler Unit Option: Yes
• Additional Protection Included: Steel Strip Cover
• Corrosion Resistance Included: Yes

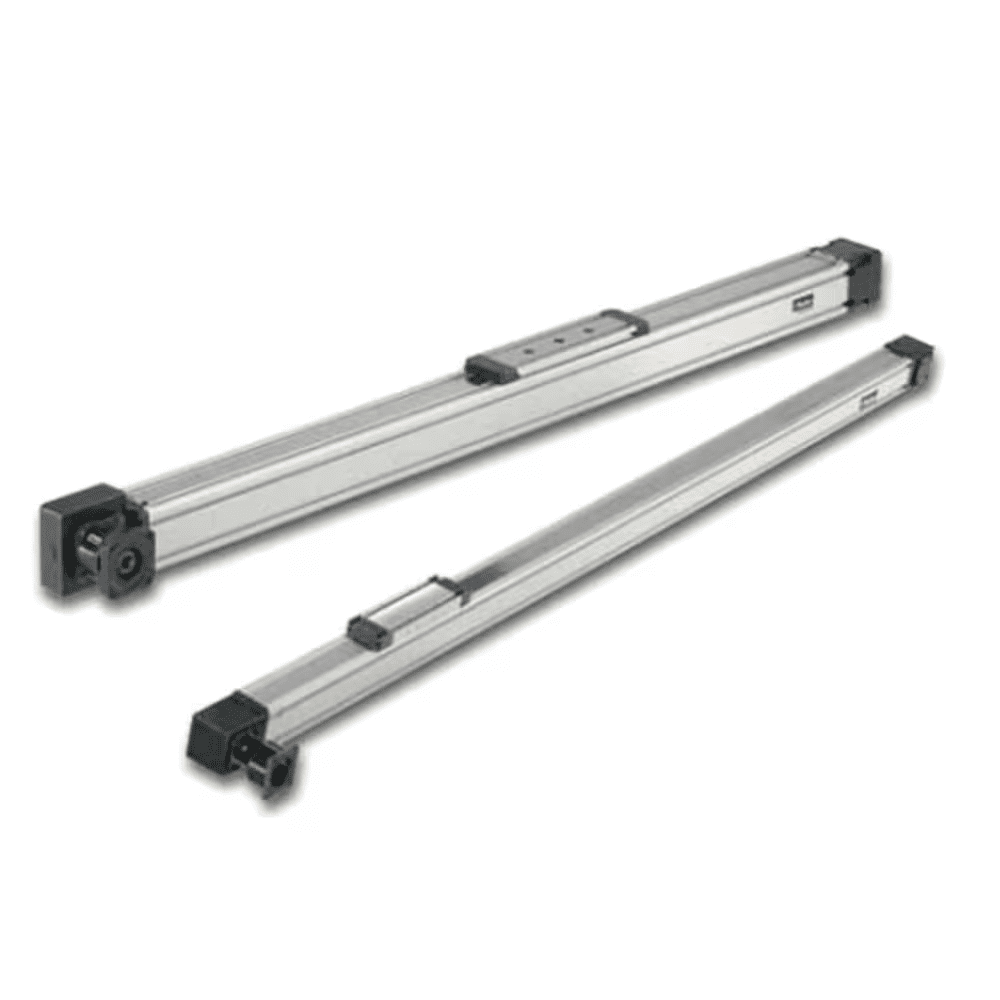

HLE060-SR Belt Driven, Square Rail Bearing, Rodless Linear Actuator

With thousands of units in operation worldwide, the HLE Series is truly a proven performer in its ability to offer long-life and trouble free operation. The guidance system is the principal distinction between the HLE-RB (roller bearing) and HLE-SR (square rail). The HLE-SR employs a square rail bearing system, which permits greater load carrying capability within the same overall package size as the HLE-RB. By containing the square rail bearing inside the envelope of the HLE body it is fully protected by the IP30 strip seal. The HLE-SR still offers the same high speed, high acceleration, and stiff, rigid construction. It is ideally suited for use in either single axis configurations or high speed, multi-axis, gantry systems.

A square rail is the defining distinction of the HLE-SR, permitting greater load carrying capacity within the same overall package size. The HLE060-SR boasts rated payload capacity of up to 1600N & is optimized for high speed, single/multi-axis systems.

• Profile Width: 60 mm
• Drive Axis Type: Belt
• Bearing Type: Square Rail
• Maximum Stroke Length: 3050 mm, 120 inch
• Maximum Operating Speed: 3 m/sec, 120 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 500 N, FX: 112 lbs
• Load Capacity: FZ: 100 to 1600 N, FZ: 1600 N
• Repeatability: ± 0.2 mm, ± 0.008 inch
• Idler Unit Option: Yes
• Additional Protection Included: Steel Strip Cover
• Corrosion Resistance Included: Yes (stainless steel)
• Specifications Met: Cleanroom (custom option)
• Ingress Protection Rating: IP30

HLE060-RB Belt Driven, Roller Wheel, Rodless Linear Actuator

With thousands of units in operation worldwide, the HLE Series is truly a proven performer in its ability to offer long-life and trouble free operation. The HLE-RB series of linear actuators is an extremely rugged and industrially hardened linear actuator that offers high speed, high acceleration and long travel lengths, combined with a stiff, rigid construction. It is ideally suited for use in either single axis configurations or high speed, multi-axis, gantry systems The HLE-RB carriage is rigidly supported on three sides by heavy duty, poly-amide roller wheels housed inside of a rugged aluminum housing, and offer a steel wheel option for elevated loading conditions. The bearing wheels are pre-loaded to eliminate play in the system and strategically located along the carriage to evenly distribute load across the length of the carriage.

HLE060-RB actuators incorporate high strength timing belt, guided by low friction, heavy-duty roller wheels, inside a sealed housing. With load capacity to 355N and speeds up to 5m/s, HLE-RB’s are optimized for high speed, single or multi-axis systems.

• Profile Width: 60 mm
• Drive Axis Type: Belt
• Bearing Type: Roller Wheel – Polyamide
• Maximum Stroke Length: 4000 mm (single profile), 20000 mm (max by splicing), 157 inch
• Maximum Operating Speed: 5 m/sec, 200 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 500 N, FX: 112 lbs
• Load Capacity: FZ: 10 to 355 N, FZ: 355 N
• Repeatability: ± 0.2 mm, ± 0.008 inch
• Idler Unit Option: Yes
• Additional Protection Included: Steel Strip Cover
• Specifications Met: Cleanroom (up to Class 100, ISO Class 5)
• Ingress Protection Rating: IP30

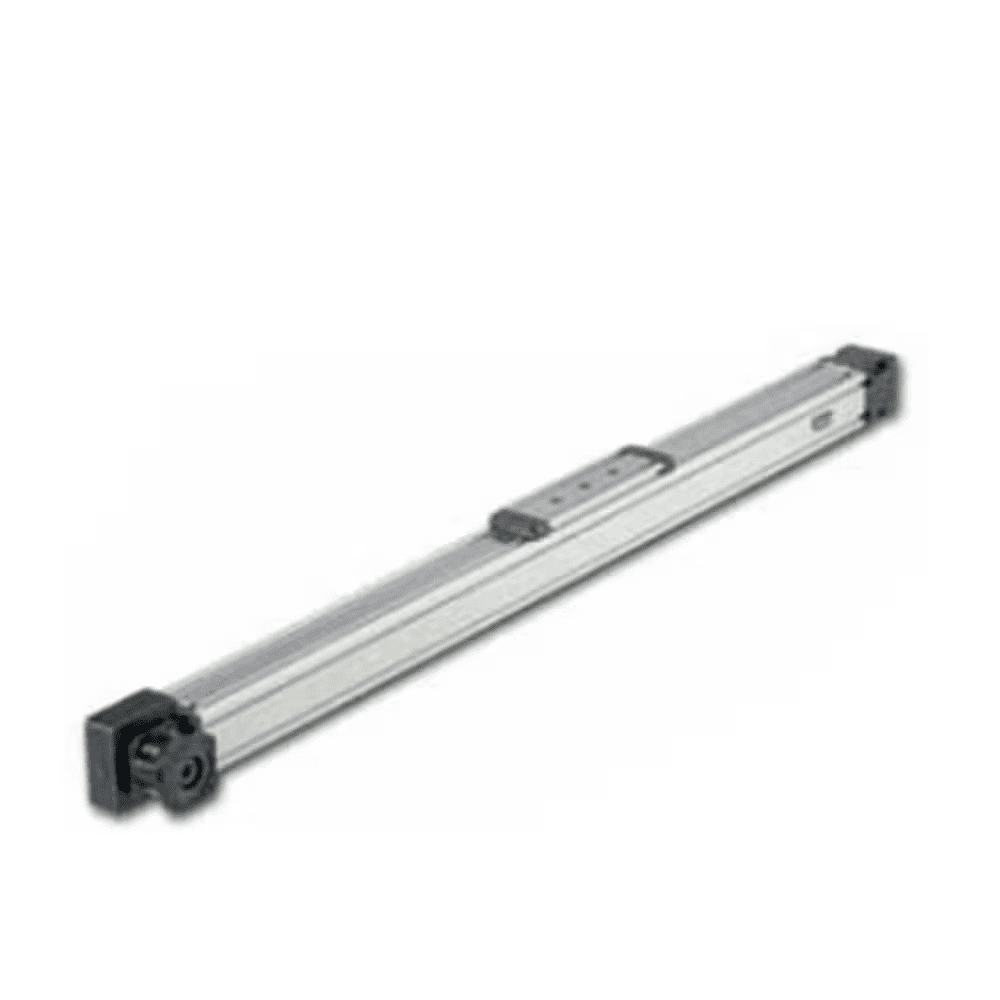

HLE150-RB Belt Driven, Roller Wheel, Rodless Linear Actuator

HLE150-RB actuators incorporate high strength timing belt, guided by low friction, heavy-duty roller wheels, inside a sealed housing. With load capacity to 3320N and speeds up to 5m/s, HLE-RB’s are optimized for high speed, single or multi-axis systems

• Profile Width: 150 mm
• Drive Axis Type: Belt
• Bearing Type: Roller Wheel – Polyamide
• Maximum Stroke Length: 7900 mm (single profile), 20000 mm (max by splicing), 311 inch
• Maximum Operating Speed: 5 m/sec, 200 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 2235 N, FX: 502 lbs
• Load Capacity: FZ: 300 to 3320 N, FZ: 3320 N
• Repeatability: ± 0.2 mm, ± 0.008 inch
• Idler Unit Option: Yes
• Additional Protection Included: Steel Strip Cover
• Specifications Met: Cleanroom (up to Class 100, ISO Class 5)
• Ingress Protection Rating: IP30

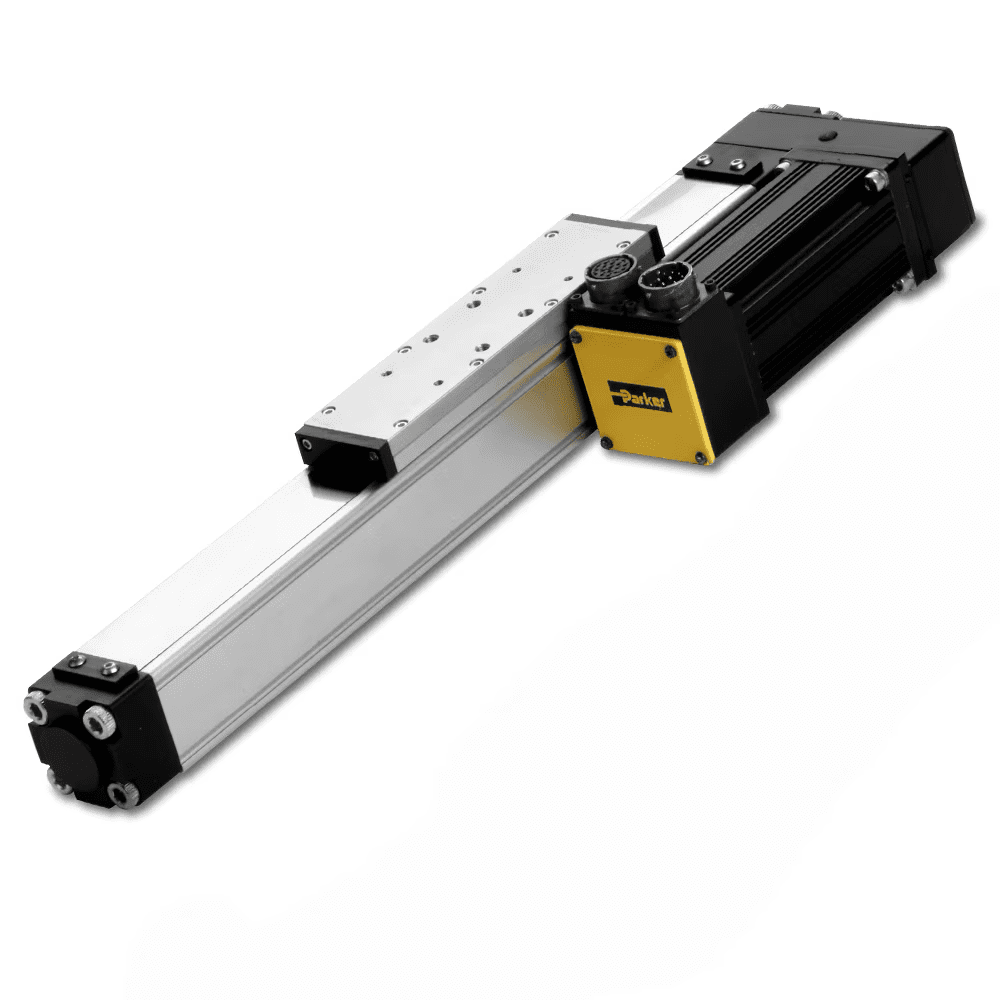

ER050, Belt Driven, Roller Wheel, Rodless Linear Actuator

In the belt driven version of the ER050 linear actuator, heavy duty roller wheels inside an aluminum housing, guide and support the load. The low cost, modular design, of the ER050 carries payloads up to 445N, and supports a multitide of applications.

• Profile Width: 63.5 mm
• Drive Axis Type: Belt
• Bearing Type: Roller Wheel – Nylatron
• Maximum Stroke Length: 4550 mm, 179 inch
• Maximum Operating Speed: 5 m/sec, 200 inch/sec
• Maximum Acceleration: 9.8 m/sec2, 386 inch/sec2
• Maximum Thrust: FX: 267 N, FX: 60 lbs
• Load Capacity: FZ: 100 to 445 N, FZ: 445 N
• Repeatability: ± 0.10 mm (inline), 0.20 mm (parallel), ± 0.004 inch (inline), 0.008 inch (parallel)
• Ingress Protection Rating: IP00

ERV5, Belt Driven, Roller Wheel, Rodless Linear Actuator

The ERV series of linear actuators expand on the ER family and bring an external bearing design, which spreads the bearing span and increases the overall load capacity. The ERV is an extremely rugged and industrially hardened linear actuator utilizing the same roller wheel technology as the industry leading HPLA and HLE products. The bearing wheels are pre-loaded to eliminate play in the system and strategically located along the carriage to evenly distribute load across the length of the carriage.
Expanding on the ER family, the ERV5 linear actuator offers external roller bearings, increasing the overall load capacity to 1915N, while maintaining a low cost solution for linear motion applications

• Profile Width: 58 mm
• Drive Axis Type: Belt
• Bearing Type: Roller Wheel – Polyamide
• Maximum Stroke Length: 6050 mm, 238 inch
• Maximum Operating Speed: 5 m/sec, 200 inch/sec
• Maximum Acceleration: 9.8 m/sec2, 386 inch/sec2
• Maximum Thrust: FX: 587 N, FX: 132 lbs
• Load Capacity: FZ: 200 to 1915 N, FZ: 1915 N
• Repeatability: ± 0.10 mm (inline), 0.20 mm (parallel), ± 0.004 inch (inline), 0.008 inch (parallel)
• Ingress Protection Rating: IP00

HLR Series – HLR070 High Load Rodless Linear Actuator

The HLR is a linear actuator specially designed for the use in high quantity OEMs applications. This is a belt driven / linear guideway equipped actuator offering a very high load capacity at an extreme small form factor. Its compact outside dimensions and stroke capabilities makes it ideal for a wide variety of standard applications.
HLR070 is a belt driven / linear guideway equipped rodless linear actuator offering high load capacity at a small form factor and high dynamics up to 5m/s and 50 m/s2. The HLR is optimised to build easily multiaxis systems.

• Product Series: HLR
• Profile Width: 69 mm
• Drive Axis Type: Belt
• Bearing Type: Linear Guideway
• Maximum Stroke Length: 2500 mm, 98 inch
• Maximum Operating Speed: 5 m/sec, 197 inch/sec
• Maximum Acceleration: 50 m/sec2, 1968 inch/sec2
• Maximum Thrust: FX: 500 N, FX: 112 lbs
• Load Capacity: FZ: 3847 N
• Repeatability: ± 0.05 mm, ± 0.002 inch
• Idler Unit Option: Yes
• Specifications Met: 2011/65/EG ROHS

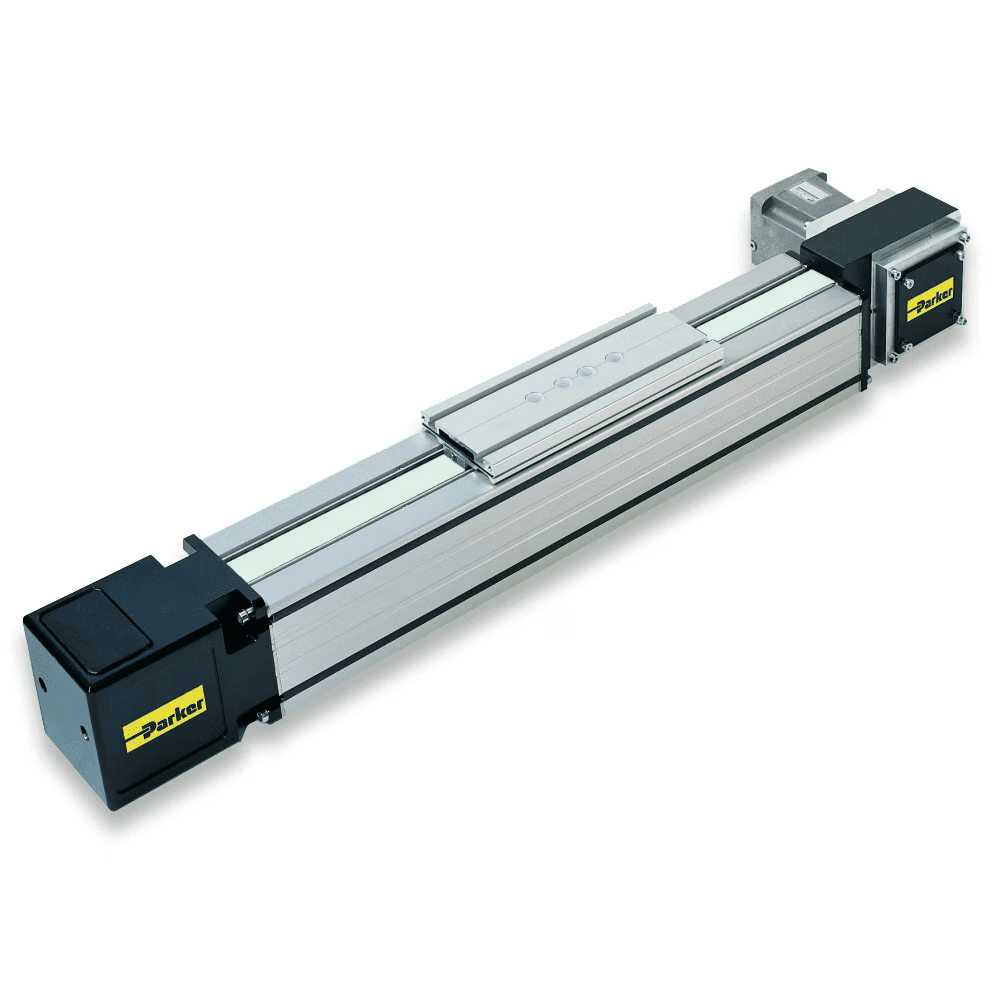

HPLA 080 Belt Driven, Roller Wheel, Rodless Linear Actuator

The HPLA series of high performance linear actuators has an extremely robust design that offers long service life and low maintenance to all industrial handling applications. Its main features are high speed, high acceleration and long travel lengths, combined with a stiff, rigid construction allowing the use of the LBB080 even under harsh environmental conditions. It is ideally suited for use in either single axis configurations or high speed, multi-axis gantry systems. The HPLA carriage is rigidly supported on three sides by heavy duty roller bearings which are preloaded to eliminate play in the system. The LBB080’s high strength, steel reinforced belt and pulley system provides fast, highly repeatable positioning of the carriage. The mounting of the belt to the carriage is designed to enable easy replacement of the belt without the need to remove the payload.

HPLA080 actuators incorporate a high strength timing belt, guided by low friction, heavy-duty roller wheels, inside a sealed housing. With load capacity to 3000N and speeds up to 5m/s, HPLA080’s are optimized for high speed, single or multi-axis systems

• Profile Width: 80 mm
• Drive Axis Type: Belt
• Bearing Type: Roller Wheel – Polyamide (Steel option for high load)
• Maximum Stroke Length: 5610 mm (single profile), 13000 mm (max by splicing), 220 inch (single profile), 787 inch (max by splicing)
• Maximum Operating Speed: 5 m/sec, 197 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 1114 N, FX: 250 lbs
• Load Capacity: FZ: 1000 N, FZ: 3050 N (Polyamide – extended carriage), 3023 N (Steel – standard carriage)
• Repeatability: ± 0.05 mm (up to 3m), 0.1 mm (3m and above), ± 0.002 inch (up to 118 inch), 0.004 inch (118 inch and above)
• Idler Unit Option: Yes
• Additional Protection Included: Steel Strip Cover
• Corrosion Resistance Included: Yes
• Specifications Met: Cleanroom (up to Class 100, ISO Class 5)

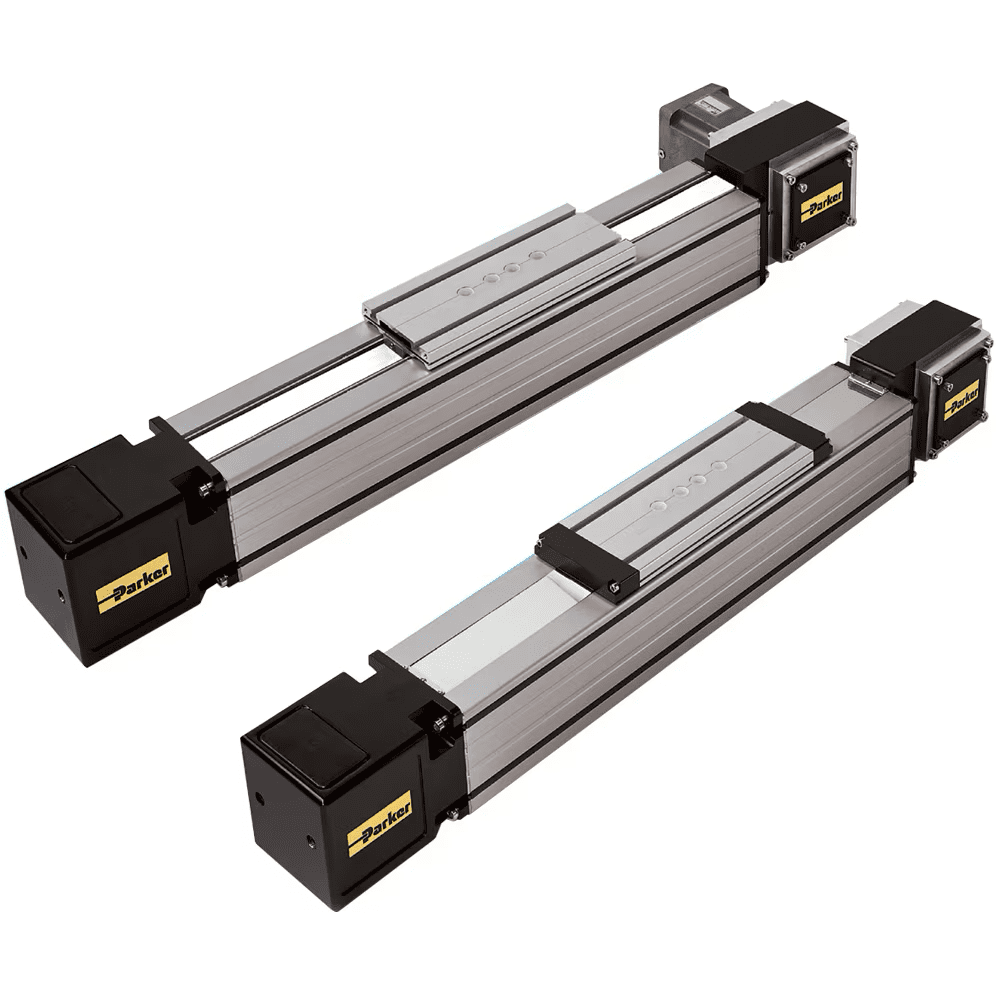

HPLA 180 Belt Driven, Roller Wheel, Rodless Linear Actuator

HPLA180 actuators incorporate a high strength timing belt, guided by low friction, heavy-duty roller wheels, inside a sealed housing. With load capacity to 14900N and speeds to 5m/s, HPLA180’s are optimized for high speed, single or multi-axis systems.

• Profile Width: 180 mm
• Drive Axis Type: Belt
• Bearing Type: Roller Wheel – Polyamide (Steel option for high load)
• Maximum Stroke Length: 9440 mm (single profile), 19000 mm (max by splicing), 371 inch (single profile), 787 inch (max by splicing)
• Maximum Operating Speed: 5 m/sec, 197 inch/sec
• Maximum Acceleration: 10 m/sec2, 393 inch/sec2
• Maximum Thrust: FX: 5457 N, FX: 1227 lbs
• Load Capacity: FZ: 5000 N, FZ: 8180 N (Polyamide – extended carriage), 14900 N (Steel – standard carriage)
• Repeatability: ± 0.05 mm (up to 3m), 0.1 mm (3m and above), ± 0.002 inch (up to 118 inch), 0.004 inch (118 inch and above)
• Idler Unit Option: Yes
• Additional Protection Included: Steel Strip Cover
• Corrosion Resistance Included: Yes

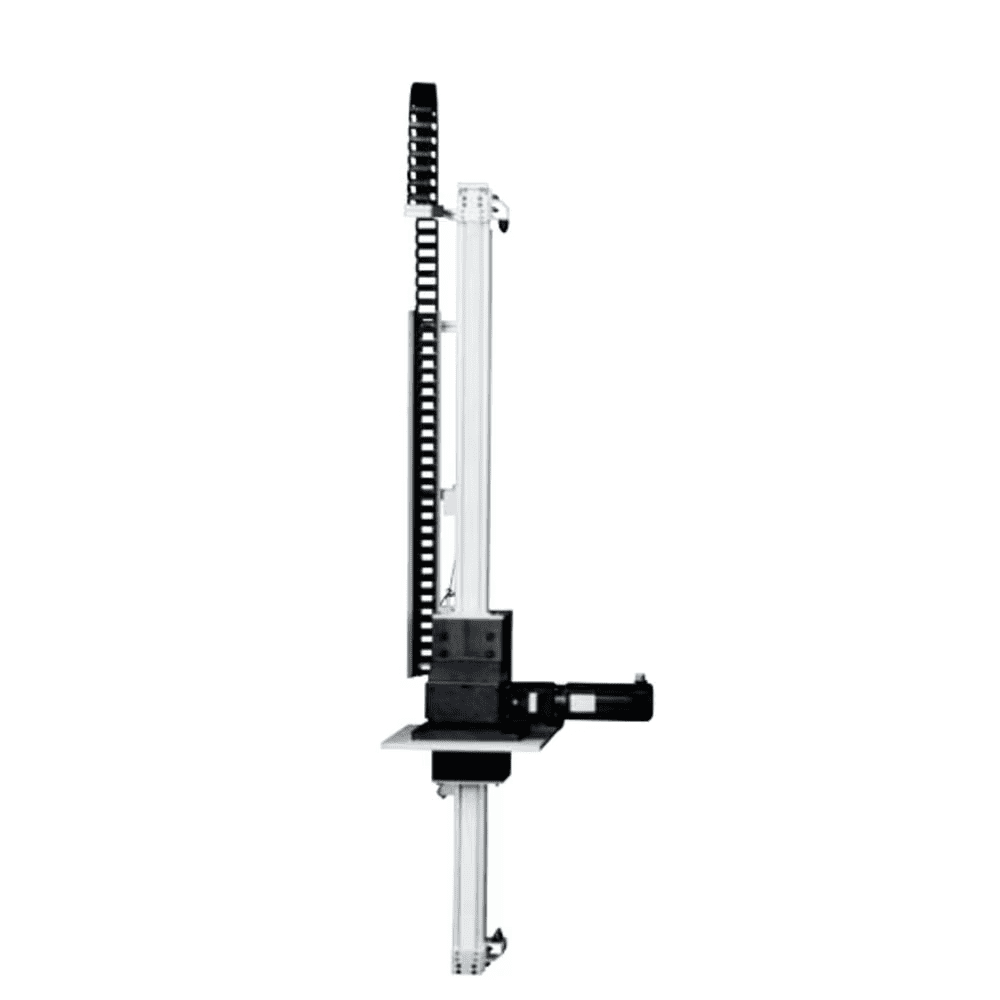

HZR080 Belt Driven, Roller Wheel, Z-Axis Linear Actuator

The HZR is a high speed, extremely stiff, belt driven actuator for use in vertical applications. Utilizing the same roller wheels as the HPLA/HLE products, the HZR080 can move up to 750N at up to 5m/s and is designed to support dynamic loading conditions.

• Profile Width: 80 mm
• Drive Axis Type: Belt
• Bearing Type: Roller Wheel – Polyamide
• Maximum Stroke Length: 1500 mm, 59 inch
• Maximum Operating Speed: 5 m/sec, 200 inch/sec
• Maximum Acceleration: 5 m/sec2, 197 inch/sec2
• Maximum Thrust: FX: 2827 N, FX: 636 lbs
• Load Capacity: FZ: 200 to 750 N, –
• Repeatability: ± 0.2 mm, ± 0.008 inch
• Ingress Protection Rating: IP30

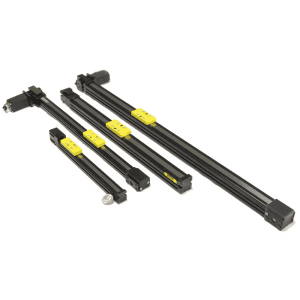

LCR 22 Belt Driven, Rodless Linear Actuator

The LCR (Light Capacity Rodless) is a belt or leadscrew driven miniature linear actuator that has been design to answer the needs of OEM instrument builder. Due to its design, the LCR is the ideal mechanical positioner for applications in the life science space requiring a high quality, miniature, and easy to use rodless linear actuator. Flexible sizes, drive train types, bearings and strokes make it the ideal building block to base an instrument design around.

The LCR 22 Belt is a value driven linear actuator which is ideal for OEM applications, moving light payloads of up to 45N at high speeds. The LCR 22 is ideal for OEM’s looking for a miniature actuator as it measures just 22 millimeters in width.

• Profile Width: 22 mm
• Drive Axis Type: Belt
• Bearing Type: Glider Bushing, Square Rail
• Maximum Stroke Length: 500 mm, 20 inch
• Maximum Operating Speed: 0.68 m/sec, 26.6 inch/sec
• Maximum Acceleration: 20 m/sec2, 786 inch/sec2
• Maximum Thrust: FX: 25 N, FX: 5.6 lbs
• Load Capacity: FZ: 0 to 45 N, FZ: 45 N (square rail), 25 N (bushing)
• Repeatability: ± 0.2 mm (square rail), ± 0.5 mm (bushing), ± 0.008 inch (square rail), 0.020 inch (bushing)
• Idler Unit Option: Yes
• Specifications Met: Cleanroom (custom option)
• Ingress Protection Rating: IP00
