Vacuum Pressure Sensors – MPS-33 Pressure Sensor (1 Color Panel Mount)

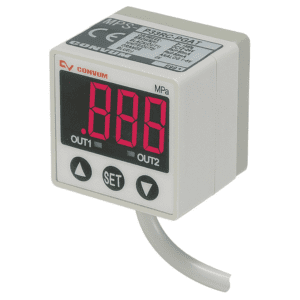

MPS-33 pressure sensors have two independent open collective transistor type outputs with an additional 1-5 VDC analog output. Each sensor displays the pressure reading on a 1 color Red, LED display panel and includes a two meter grommet lead wire for electrical connection. Solid state outputs are available in PNP or NPN. Sensors can be used to monitor vacuum pressure and up to 145 psig.

Applications for pressure sensors are numerous and important in today’s high-tech manufacturing environment. Outputs can be programmed normally passing or non-passing and in either Hysteresis Mode or Window Comparative Modes. In Hysteresis Mode, the user sets the switch point and reversing point. In Window Comparator Mode, the user sets the hi and low pressure band of operation. In addition to electrical outputs, these sensors have additional programming options that can be integrated into the system logic for additional benefits. Choose the best pressure sensor for the application based on pressure range, output type and additional programming options.

• Pressure Range: 0 – 30 inHg, -14.5 to 72 PSI, 0 to 145 PSI
• Display Units Of Measure: PSIG | Bar | inHg | mmHg | kPa | kfg | cm3 | mmH2O
• Output Type: (2) PNP with (1) 1-5 VDC | (2) NPN with (1) 1-5 VDC
• Electrical Connection: 2 Meter, 5 Wire Lead Wire
• Media: Air & Non-corrosive Gases | Incombustible Gases
• Diaphragm Material: Silicon
• Port Size: 1/8″ Female
• Port Type: NPSF | BSPP
• Operating Temperature (F): 32° to 122°
• Operating Temperature (C): 0° to 50°
• Power Supply: 12 to 24 VDC + or – 10% or less. Ripple (Vp-p) 10% or less
• Display: 1 color Red LED, 3 + 1/2 digit, 7 segment
• Response Time: < or = 2.5ms (chattering-proof function: 24ms, 192ms, 786m selections)
• Repeatability: + or – 2% of full scale
• Certifications/Approvals: IP65 with dust tube connection, CE marked, EMC-EN61000-6-2: 2001, Rohs
• Current Consumption: <55mA
• Material Housing: ABS (gray) |Pressure port: Zinc die-cast | Diaphragm: Silicon
• Unique Programming Options
  • N.O or N.C Output Modes
  • Units of Measure
  • Hysteresis or Window Comparative Mode
  • Output Response Time
  • Lockable Programming
  • Minimum Display Value
  • Maximum Display Valve
  • Zero Reset
  • Error output mode
• Accessories: Panel Mounting Bracket | Surface Mounting Bracket

Vacuum Pressure Sensors – MPS-34 Pressure Sensor (2 Color Panel Mount)

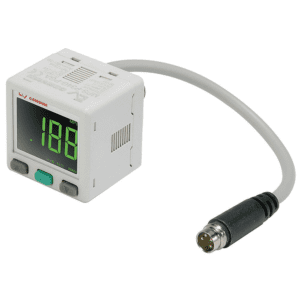

MPS-34 pressure sensors are available with one independent PNP open collective transistor type output with an additional 4-20 mA output that displays the pressure reading on a 2 color Red/Green LED display panel that can be programmed to change color as the output changes state for visual monitoring. A 4 Pin, M8 male electrical connector is provide for electrical connection. Sensors can be used to monitor vacuum pressure and up to 145 psig.

Applications for pressure sensors are numerous and important in today’s high-tech manufacturing environment. Outputs can be programmed normally passing or non-passing and in either Hysteresis Mode or Window Comparative Modes. In Hysteresis Mode, the user sets the switch point and reversing point. In Window Comparator Mode, the user sets the hi and low pressure band of operation. In addition to electrical outputs, these sensors have additional programming options that can be integrated into the system logic for additional benefits. . Choose the best pressure sensor for the application based on pressure range, output type and additional programming options.

• Pressure Range: 0 – 30 inHg, 0 to 145 PSI
• Pressure Range: PSIG, Bar, inHg, mmHg, kPa, kfg,cm3
• Output Type: (1) PNP with (1) 4-20ma
• Electrical Connection: M8, 4 pin
• Media: Air & Non-corrosive Gases | Incombustible Gases
• Diaphragm Material: Silicon
• Port Size: 1/8″ Male
• Port Type: NPT | BSPP
• Operating Temperature (F): 32° to 122°
• Operating Temperature (C): 0° to 50°
• Power Supply: 12 to 24 VDC + or – 10% or less. Ripple (P-P) 10% or less
• Display: 2 color Red / Green LED, 3 + 1/2 digit, 7 segment
• Response Time: < or = 2.5ms (chattering-proof function: 24ms, 250ms, 500ms, 1000ms, and 1500ms selections)
• Repeatability: + or – 2% of Full Scale
• Certifications/Approvals: IP40 | CE marked | EMC-EN61000-6-2: 2001 |Rohs
• Current Consumption: 45mA (with no load)
• Material Housing: ABS (gray) | Pressure port: Zinc die-cast | Diaphragm: Silicon
• Unique Programming Options
  • N.O or N.C Output Modes
  • Units of Measure
  • Hysteresis or Window Comparative Mode
  • Output Response Time
  • Lockable Programming
  • Minimum Display Value
  • Maximum Display Valve
  • Zero Reset
  • Red / Green LED display options
  • Error output mode
• Accessories: Panel Mounting Bracket | Surface Mounting Bracket

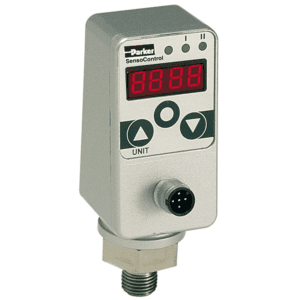

Vacuum Pressure Sensors – SCPSD Pressure Sensor (High Pressure 315 Stainless Steel)

SCPSD pressure sensors are available with one or two independent PNP open collective transistor type outputs, with an additional 4-20 mA output that displays the pressure reading on a red LED display panel for visual monitoring. A M12 male electrical connector is provide for electrical connection. Sensors can be used to monitor vacuum pressure and up to 9000 psig.

Applications for pressure sensors are numerous and important in today’s high-tech manufacturing environment. Outputs can be programmed normally passing or non-passing and in either Hysteresis Mode or Window Comparative Modes. In Hysteresis Mode, the user sets the switch point and reversing point. In Window Comparator Mode, the user sets the hi and low pressure band of operation. In addition to electrical outputs, these sensors have additional programming options that can be integrated into the system logic for additional benefits.Choose the best pressure sensor for the application based on pressure range, output type and additional programming options.

• Pressure Range: -14.7 to 250 PSI, 0 – 1000 PSI, 0 to 3000 PSI, 0 to 5000 PSI, 0 to 9000 PSI
• Pressure Range: PSIG | Bar
• Output Type: (2) PNP | (1) PNP with 4-20MA, (2) PNP with 4-20MA
• Electrical Connection| M12 4 pin | M12 5 pin
• Media: Air, Hydraulic Oil & Non-corrosive Gases
• Diaphragm Material: Ceramic | Stainless Steel
• Port Size: 7/16-20 UNF-2b (SAE-4), 1/4 BSPP
• Port Type: Male
• Operating Temperature (F): -4° to 185°
• Operating Temperature (C): -20° to 85°
• Power Supply: 15 to 30 VDC, Class 2 power supply
• Display: 1 color Red LED, 4-Digit, 7-Segment LED, 9mm height display
• Response Time: < 10ms
• Repeatability: + or – 0.25% Full Scale
• Certifications/Approvals: UL listed | CE marked | IP 67 | EN60529 | EMC-EN50082-2 Class B | EN 50081-2
• Current Consumption: < 100 mA
• Material Pressure Die-cast zinc Z 410: Surface-finishing. Display – Polyester, Diaphragm :Ceramic or Stainless Steel pending pressure scale.
• Unique Programming Options
  • N.O or N.C Output Modes
  • Units of Measure
  • Hysteresis or Window Comparative Mode
  • Output Response Time
  • Password Lockable Programming
  • Zero Reset
  • Error Output Mode
  • Decimal Set Point
• Accessories: RS232 Programming Kit
• Unique Options: Display head swivels 290°
