Shock Absorbers
Parker shock absorbers can help increase production, extend machine life and reduce energy costs. They are available in two different types, non-adjustable and self compensating. They assist in bringing a moving load to rest, quickly and safely, without rebound or backward movement. Shock absorbers convert the kinetic energy generated by the deceleration of the load into thermal energy. Optimum operating conditions are achieved if the energy is dissipated almost uniformly. Self compensating shock absorbers decelerate movement smoothly while requiring no adjustment. These versatile performers offer wide effective weight ranges for handling a wider range of applications and increased velocities.
Product Lineup

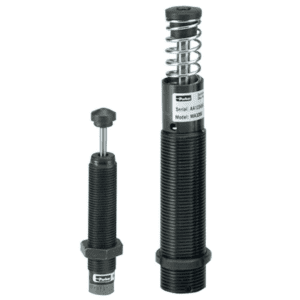

Shock Absorbers – MC / SC Series
Specifications
- Technology: Pneumatics
- Product Type: Shock Absorbers (Non-Adjustable | Self Compensating)
- Application: Miniature | Heavyweight | Heavy Industrial
- Piston Rod Material: Steel, hard-chrome plated
- Body Material: Steel, black oxide finish
- Button Material: Thermoplastic | Steel | None (no button)
- Stroke Length: 5 to 150 (MC) | 40 (SC) mm
- Effective Mass: up to 18800 kg
- Operating Temperature: -12° to 70° (MC) | -12° to 90° (SC) °C
- Mounting Type: Flange | Foot | Clamp

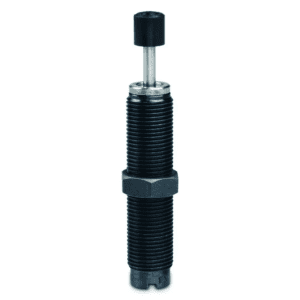

Shock Absorbers – SA Series
Specifications
- Technology: Pneumatics
- Product Type: Shock Absorbers (Adjustable | Non-Adjustable)
- Application: Miniature | Heavyweight | Heavy Industrial
- Piston Rod Material: Steel, hard-chrome plated
- Body Material: Steel, black oxide finish
- Button Material: Thermoplastic | Steel | None (no button)
- Stroke Length: 6.5 to 150 mm
- Effective Mass: up to 68040 kg
- Operating Temperature: -12° to 80° °C
- Mounting Type: Flange | Foot

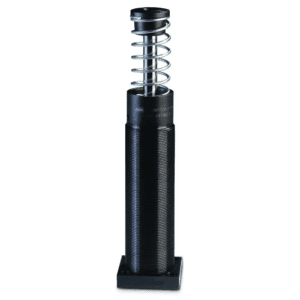

Actuator Accessories – Shock Absorbers
Adjustable shock absorbers have a multiple-orifice design principle that includes a series of orifices machined along the length of a fixed inner tube. The inner tube rotates upon adjustment, allowing for easy product selection and design flexibility.
- Effective Weight Ranges up to 450,000 lbs.
- Stroke Ranges up to 16”
- Multiple Mounting Options
- Side Load Adapters Available
Using shock absorbers can help increase production, extend machine life, and reduce energy costs.

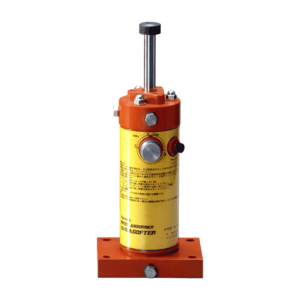

Adjustable Type Multi-orifice Model:AS-06
The Dyna-Softer AS-06 series is a shock absorber that can process up to 353J of absorbed energy. Since it is a variable orifice type, it can be easily adjusted according to changes in collision load energy by operating the adjustment dial. There are 2 types of strokes, and the mounting style can be selected from front flange, rear flange, and clevis type.
Specifications
- Product Series: Dyna softer of adjustable type/Multi orifice
- Return Type: Spring return type
- Energy Absorption: ASE-06-10,ASF-06-10:141 ASU-06-10:97.1 ASE-06-24,ASF-06-24:353 ASU-06-24:245 J
- Stroke Length: AS*-06-10:25.4 AS*-06-24:63.5 mm
- Load Equivalent Weight: 11 to 11000kg
- Energy Capacity: AS*-06-10:735J/min AS*-06-24:1330J/min The value shown at an ambient temperature of 26.7℃ J/min
- Operating Speed: 5m/s
- Maximum Drag Load: ASE-06-10,ASF-06-10,ASE-06-24,ASF-06-24:11300N ASU-06-10:7790N ASU-06-24:7870N
- Retract Stroke Force: AS*-06-10:73.5N AS*-06-24:79.4N Maximum values when rod is retracted full stroke
- Return Time: AS*-06-10：0.1s AS*-06-24：0.3s Maximum values when rod is retracted full stroke
- Maximum Operating Frequency: 30 times/min
- Operating Temperature: -10 to +50℃(No freezing) °C
- Mounting Type: E style(Rear flange),F style(Front flange),U style(Cap clevis)
- Weight: ASE-06-10,ASF-06-10:1.19kg ASU-06-10:1.26kg ASE-06-24,ASF-06-24:1.62kg ASU-06-24:1.68kg
- Accessories Included: Auxiliary oil reservoir
