Product Lineup

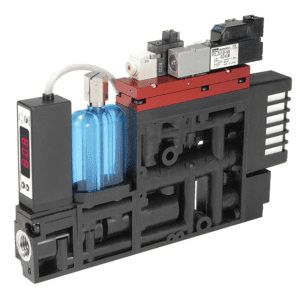

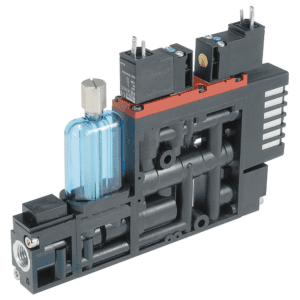

Vacuum Generator – CEK Series (Integrated)

Parker - Vacuum Generator - CEK Series The CEK is perfect for non-porous applications such as material handling or critical applications involving glass or sheet metal handling. The CEK single stage vacuum generator is similar to the MC72 with the addition of a vacuum memory valve. As long as there is compressed air, the valve will maintain vacuum “on” during an output power loss, such as an emergency stop. In addition to this valve, an air-economizing valve is included and provides air economizing savings. If the degree of vacuum decays, the integrated sensors will signal to the PLC to turn vacuum back on, the air economizing valve will turn off, and the unit will create a higher level of vacuum in the system. This cycle will repeat and thus conserve compressed air while holding the part. During loss of power, the air economizing valve will turn off and the vacuum memory valve will maintain the degree of vacuum. Other integrated components include valves for vacuum and blow-off functions, a blow-off flow regulating valve, a vacuum filter, as well as an exhaust silencer and vacuum check valve. Optional MPS-23 pressure sensors reduce cycle time and can be used for air economizing to conserve air during part transfer. Inline versions can be mounted in manifolds up to 5 stations.

  • Operation: Single Stage Venturi
  • Mounting Type: Inline, Manifold
  • Vacuum Flow (SCFM): Up to 5.5 SCFM
  • Inlet Pressure Flow (SCFM): 3.5 to 10.2
  • Max Degree of Vacuum (Hg): 24
  • Sensor Options: PNP, NPN Sensor
  • Integrated Components: Vacuum & Blow-off Solenoid Valve, Vacuum Check Valve, Vacuum & Exhaust Filter
  • Integrated Functions: Air Economizing with Emergency Stop
  • Max Manifold Stations: 5
  • Vacuum Port Size: 1/4″
  • Pressure Port Size: 1/4″
  • Port Type: NPT, BSPP
  • Voltage Range: 24VDC
  • Solenoid Connection Types: DIN Connector
  • Pressure Range (psig): 40 to 70
  • Pressure Range (bar): 2.8 to 4.8
  • Temperature Range (c): 5 to 50
  • Temperature Range (f): 41 to 132
  • Body Material: PA & PBT
  • Unique Option: Air Economizing capabilities with lose of output power. Circuit provisions to continue Air Economizing with part on.

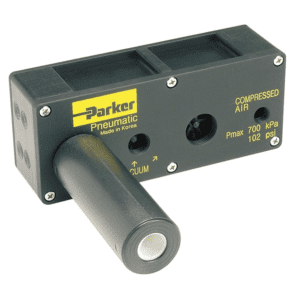

Vacuum Generator – CHF Series (Inline)

Parker - Vacuum Generator - CHF Series
CHF high flow series is a multistage vacuum generator. CHF is intended for higher flow vacuum applications that, due to system porosity issues, have a low application degree of vacuum. These units are ideal for porous applications. A four bolt mounting pattern with a gauge opposite of the vacuum and pressure inlet ports, enables this generator to be panel mounted. The CHF series comes standard with flow through exhaust mufflers to reduce clogging in dirty environments. An additional pneumatic control valve is required to create vacuum flow.

  • Operation: Multiple Stage Venturi
  • Mounting Type: Inline
  • Vacuum Flow (SCFM): Up to 31.8
  • Inlet Pressure Flow (SCFM): 6.5 to 14.0
  • Max Degree of Vacuum (Hg): 27
  • Vacuum Port Size: 3/8″
  • Pressure Port Size: 1/4″
  • Port Type: NPT
  • Pressure Range (psig): 80
  • Pressure Range (bar): 5.5
  • Temperature Range (c): 0 to 49
  • Temperature Range (f): 32 to 120
  • Body Material: Aluminum

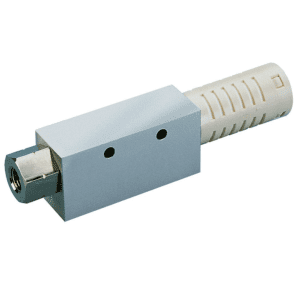

Vacuum Generator – CV Series (Inline)

Parker - Vacuum Generator - CV Series
CV is a basic single stage vacuum generator with an aluminum basic body. Vacuum ports sizes range from 1/4″ to 3/4.” CV vacuum generators include exhaust mufflers. Additional pneumatic valves will be required to create vacuum pressure.

  • Operation: Single Stage Venturi
  • Mounting Type: Inline
  • Vacuum Flow (SCFM): Up to 12.36
  • Inlet Pressure Flow (SCFM): 0.46 to 13.60
  • Max Degree of Vacuum (Hg): 17 or 27
  • Vacuum Port Size: 1/8,” 3/8,” 1/2,” 3/4″
  • Pressure Port Size: 1/8,” 3/8,” 1/2″
  • Port Type: NPT, BSPP
  • Pressure Range (psig): 14 to 114
  • Pressure Range (bar): 1 to 7.8
  • Temperature Range (c): 0 to 49
  • Temperature Range (f): 32 to 120
  • Body Material: Aluminum

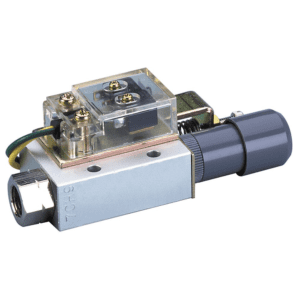

Vacuum Generator – CV-CK Series (Inline)

Parker - Vacuum Generator - CV-CK Series
CV-CK is a single stage vacuum generator with an adjustable open contact mechanical switch for vacuum confirmation. Great for low cost vacuum confirmation. Switch output is normally open and can be connected to AC or DC power. Additional pneumatic valves will be required to create vacuum pressure.

  • Operation: Single Stage Venturi
  • Mounting Type: Inline
  • Vacuum Flow (SCFM): Up to 5.85 SCFM
  • Inlet Pressure Flow (SCFM): 0.95 to 3.88
  • Max Degree of Vacuum: (Hg) 27
  • Sensor Options: Mechanical Vacuum Switch
  • Integrated Component: Vacuum Switch
  • Vacuum Port Size: 1/8,” 1/4,” 3/8″
  • Pressure Port Size: 1/8,” 1/4″
  • Port Type: NPT, BSPP
  • Pressure Range (psig): 14 to 114
  • Pressure Range (bar): 1 to 7.8
  • Temperature Range (c): 0 to 60
  • Temperature Range (f): 32 to 140
  • Body Material: Aluminum

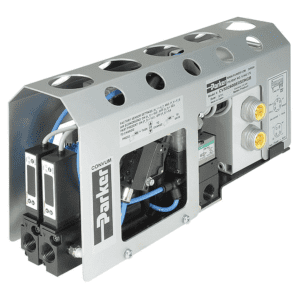

Vacuum Generator – CVX0260B Series (Integrated)

Parker - Vacuum Generator - CVX0260B Series
The CVX0260B is ideal for non-porous applications that require fast response of large vacuum and blow-off release flow rates, an emergency stop management system, and programmable air-economizing features. The CVX026B is a 2 station MC72 vacuum generator with the addition of an M12 quick connect or DeviceNet electrical package which, combined with the integrated MPS-23 pressure sensors, provides all the programming necessary for air economizing functions.  CVX0260B has additional functionality to prevent dropped parts due to loss of output power. During an emergency event or power failure, when the vacuum command signal is lost, the system will detect the presence of a part and continue to operate in the vacuum mode, creating a high degree of vacuum as long as compressed air is provided to the unit. If the system detects that a part is not present, each vacuum channel will remain closed and eliminate unnecessary air consumption when it is not required by the system. Each vacuum generator is operated independent of the other. Therefore, if one generator has a part on, only one generator will create vacuum and use compressed air in an emergency stop event. Other integrated components include valves for vacuum and blow-off functions, a blow-off flow regulating valve, a vacuum filter, as well as an exhaust silencer and vacuum check valves.

  • Operation: Single Stage Venturi
  • Mounting Type: Manifold
  • Vacuum Flow (SCFM): Up to 5.5 SCFM
  • Inlet Pressure Flow (SCFM): 3.5 to 10.2
  • Max Degree of Vacuum (Hg): 24
  • Sensor Options: PNP, NPN Sensor
  • Integrated Components: Vacuum & Blow-off Solenoid Valve, Vacuum Check Valve, Vacuum & Exhaust Filter
  • Integrated Functions: Air Economizing with Emergency Stop
  • Max Manifold Stations: 2 Station Only
  • Vacuum Port Size: 1/4″
  • Pressure Port Size: 3/8″
  • Port Type: NPT, BSPP
  • Voltage Range: 24VDC,110AC
  • Solenoid Connection Types: M12
  • Industrial Network Options: DeviceNet
  • Pressure Range (psig): 40 to 70
  • Pressure Range (bar): 2.8 to 4.8
  • Temperature Range (c): 5 to 50
  • Temperature Range (f): 41 to 132

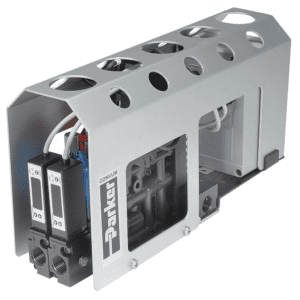

Vacuum Generator – CVXCEK Series (Integrated)

Parker - Vacuum Generator - CVXCEK Series
The CVXCEK is perfect for non-porous applications such as material handling or critical applications involving glass or sheet metal handling. The CVXCEK is a 2 station CEK vacuum generator with the addition of an M12 quick connect electrical package which, combined with the integrated MPS-23 pressure sensors, provides all the programming necessary for air economizing functions. The CVX0260B has additional functionality to prevent dropped parts due to loss of output power. This unit provides air economizing functions during loss of output power, increasing the opportunity for conserving compressed air. As long as there is compressed air, the vacuum memory valve will maintain vacuum “on” during an output power loss; and the air economizing valve maintains the unit in the air economizing mode. Only with the loss of both input and output power will the unit turn off the air economizing mode and create a high degree of vacuum. In either event, the degree of vacuum will be maintained and the part will be held to the vacuum cup with compressed air. Each vacuum generator is operated independent of the other. If one generator has a part on, only one generator will create vacuum and use compressed air in an emergency stop event. Other integrated components include valves for vacuum and blow-off functions, a blow-off flow regulating valve, a vacuum filter, as well as an exhaust silencer and vacuum check valve.

  • Operation: Single Stage Venturi
  • Mounting Type: Manifold
  • Vacuum Flow (SCFM): Up to 5.5 SCFM
  • Inlet Pressure Flow (SCFM): 3.5 to 10.2
  • Max Degree of Vacuum (Hg): 24
  • Sensor Options: PNP, NPN Sensor
  • Integrated Components: Vacuum & Blow-off Solenoid Valve, Vacuum Check Valve, Vacuum & Exhaust Filter
  • Integrated Functions: Air Economizing with Emergency Stop
  • Max Manifold Stations: 2 Station Only
  • Vacuum Port Size: 1/4″
  • Pressure Port Size: 3/8″
  • Port Type: NPT, BSPP
  • Voltage Range: 24VDC,110AC
  • Solenoid Connection Types: M12
  • Pressure Range (psig): 40 to 70
  • Pressure Range (bar): 2.8 to 4.8
  • Temperature Range (c): 5 to 50
  • Temperature Range (f): 41 to 132
  • Body Material: PA & PBT
  • Unique Options: Air Economizing capabilities with lose of output power. Circuit provisions to continue Air Economizing with part on.

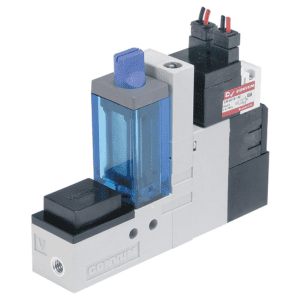

Vacuum Generator – MC22 Series (Integrated)

Parker - Vacuum Generator - MC22 Series
The MC22 is a light weight complete vacuum package for factory automation. The MC22 includes vacuum generating and blow-off release valves included with the unit. The small foot print allows the unit to be located close to the suction cup for maximum performance. The MC22 has additional integrated components such as a regulating blow-off needle, vacuum filters, exhaust mufflers, and an optional vacuum check valve. Integrated check valves offer air economizing options with the MPS-23 and MVS-201 pressure sensors. Additionally, the MVS-201 has an output for vacuum confirmation and a controlled output that interfaces directly with the blow-off release pilot valve. This eliminates a PLC output required for low-off release. The sensor automatically activates the blow-off release when the vacuum signal is removed. This is an excellent option for existing applications with only one PLC output and the user wants to add air economizing without changing the PLC Logic. The unit can be ordered normally open or normally closed and be assembled into a maximum 8 station manifold.

  • Operation: Single Stage Venturi
  • Mounting Type: Inline, Manifold
  • Vacuum Flow (SCFM): Up to 1.55 SCFM
  • Inlet Pressure Flow (SCFM): 1.55
  • Max Degree of Vacuum (Hg): 24
  • Sensor Options: PNP, NPN Sensor
  • Integrated Components: Vacuum & Blow-off Solenoid Valve, Vacuum Check Valve, Vacuum & Exhaust Filter
  • Integrated Functions: Air Economizing, Automatic Blow-off
  • Max Manifold Stations: 8
  • Vacuum Port Size: M5
  • Pressure Port Size: 1/8″
  • Port Type: NPT, BSPP
  • Voltage Range: 24VDC
  • Solenoid Connection Types: Clip Type
  • Pressure Range (psig): 21 to 84
  • Pressure Range (bar): 1.4 to 5.8
  • Temperature Range (c): 5 to 50
  • Temperature Range (f): 41 to 132
  • Body Material: Aluminum

Vacuum Generator – MC72 Series (Integrated)

Parker - Vacuum Generator - MC272 Series
The MC72 is perfect for non-porous applications such as material handling and critical applications involving glass, or general transfer applications. The MC72 includes vacuum pilot and blow-off release pilot valves to minimize system components and vacuum response times. The MC72 has additional integrated components such as regulating blow-off needle, vacuum filters, exhaust mufflers, and an optional vacuum check valve. Integrated check valves offer air economizing options with the MPS-23 and MVS-201 pressure sensors. Additionally, the MVS-201 has an output for vacuum confirmation and a controlled output that interfaces directly with the blow-off release pilot valve, which eliminates a PLC output required for blow-off release. The sensor automatically activates the blow-off release when the vacuum signal is removed. This is an excellent option for existing applications with only one PLC output and the user wants to add air economizing without changing PLC Logic. The unit can be ordered normally open or normally closed and be assembled into a maximum 5 station manifold.

  • Operation: Single Stage Venturi
  • Mounting Type: Inline, Manifold
  • Vacuum Flow (SCFM): Up to 5.5 SCFM
  • Inlet Pressure Flow (SCFM): 3.5 to 10.2
  • Max Degree of Vacuum (Hg): 24
  • Sensor Options: PNP, NPN Sensor
  • Integrated Components: Vacuum & Blow-off Solenoid Valve, Vacuum Check Valve, Vacuum & Exhaust Filter
  • Integrated Functions: Air Economizing, Automatic Blow-off
  • Max Manifold Stations: 5
  • Vacuum Port Size: 1/4″
  • Pressure Port Size: 1/4″
  • Port Type: NPT, BSPP
  • Voltage Range: 24VDC
  • Solenoid Connection Types: DIN Connector
  • Pressure Range (psig): 40 to 70
  • Pressure Range (bar): 2.8 to 4.8
  • Temperature Range (c): 5 to 50
  • Temperature Range (f): 41 to 132
  • Body Material: PA & PBT

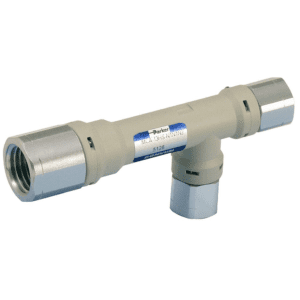

Vacuum Generator – MCA Series (Inline)

Parker - Vacuum Generator - MCA Series
MCA is lightweight, single stage vacuum generator. Female vacuum ports allow a vacuum cup to be installed directly at the cup, which reduces space and response time of the system. Available port sizes are either 1/8″ or 1/4″ NPT. Additional pneumatic valves will be required to create vacuum pressure.

  • Operation: Single Stage Venturi
  • Mounting Type: Inline
  • Vacuum Flow: Up to 1.26 SCFM
  • Inlet Pressure Flow (SCFM): 1.68 to 2.81
  • Max Degree of Vacuum (Hg): 24
  • Vacuum Port Size: 1/8,” 1/4″
  • Pressure Port Size: 1/8,” 1/4″
  • Port Type: NPT, BSPP
  • Pressure Range (psig): 14 to 114
  • Pressure Range (bar): 1 to 7.8
  • Temperature Range (c): 0 to 49
  • Temperature Range (f): 32 to 120
  • Body Material: Polycarbonate
