Valves

Parker’s valve offering includes hydraulic, pneumatic, instrumentation, refrigeration and aerospace in a variety of types and various configurations. Parker valve brand names include Apitech, Colorflow, Commercial, Denison, Gresen, IQAN, Manatrol, Manapak, Schrader Bellows, Republic, Sinclair Collins, Skinner, Sporlan and Sterling. Parker valve types can be manual, motor actuated or solenoid operated while mounting configurations can be sub-based, in-line or manifold.

Parker valve types:

  • Ball, solenoid, needle and check
  • Plug, bleed, poppet and purge
  • Metering, manifold, proportional and diaphragm
  • Bulk gas valves
  • Butterfly, flare and shuttle
  • Directional, bankable and microfluidic
  • Mobile motion control
  • Electronic and electrohydraulic
  • Servo, DIN slip in or threaded cartridge
  • Pressure control, safety relief, shut off and thermostatic expansion

Parker offers a variety of valves for a variety of applications.
Industries using Parker’s Valves:

  • Instrumentation, Semi- conductor
  • Food and beverage, Refrigeration
  • Transportation, Marine and Industrial

Parker also offers valves for specialty markets such as Aerospace and Solar, Oil, Gas and wind generation. Parker directional, pressure and fluid control valves are used in many applications with imperial and metric sizes available according to application and material. Materials include brass, steel, stainless steel, plastics and highly customized materials like PFA and PTFE.

Product Lineup

Body Ported Valves (Inline)

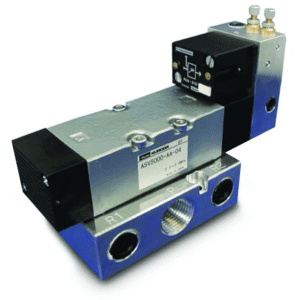

ASC/ASV Series Pneumatically Operated Economical Air Saver Unit

Parker-Air Saver Unit
Installation of the Air Saver Unit is simple and reduction in air consumption can be realised immediately. When using an electrically operated solenoid valve to control the air blow, an Air Saver Unit can quickly and easily be retrofitted provided an immediate reduction in air consumption with no changes to the PLC programme. When using manual valves such as ball valves, ASV200, ASV500 and ASV2000 do not need any electrical power. Simply installing the unit brings immediate reduction in air consumption and improved efficiency. The pulsing air technology in the Air Saver Unit reduces consumption by converting continuous air blow into a pulsed air blow without the need for any other external control. Air is blown in a series of ON and OFF pulses, when the blow is OFF there is no air consumption.

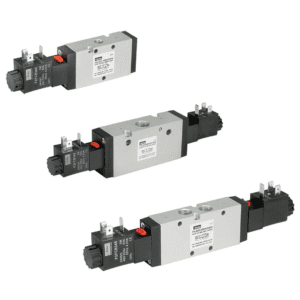

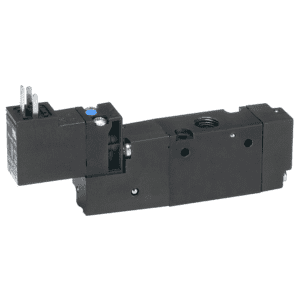

Pneumatic Solenoid Valve – Viking Lite Series

Parker-Solenoid Valve
The Viking Lite valve is a robust, versatile inline valve with compact installation dimensions that is well suited for general industrial applications. The valve can be installed as a single valve for point-of-use applications or mounted on aluminum bar manifolds for centralized applications. Functional options include solenoid air piloted 24vdc and 120vac valves. Limited options makes this valve an easy valve to specify. The bi-directional wear compensated spool performs well in temperature ranges from 14F to 122F and pressure ranges from 22 to 145 PSG. When in service, radial expansion of the spool seal occurs to maintain sealing contact with the valve bore. This sealing method reduces friction and produces a lower required minimum pilot pressure. As the seal wears, it maintains surface contact with the internal bore, which reduces valve leakage in high cyclic applications and extends valve life.

  • Function(s): 3/2, 5/2 , 5/3
  • Operation: Solenoid Air Operated
  • Manual Operator: Non-Locking and Locking Manual Overrides
  • Mounting Type: Inline, IEM aluminum bar
  • Mounting: Standard
  • Max Manifold Stations:10
  • Port Sizes (inch): 1/8″, 1/4″, 3/8″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 0.6
  • Flow Max (Cv): 2.5
  • Flow (Qn): l/min
  • Flow (Q Max): l/min
  • Voltage Range: 24VDC to 120VAC Standard
  • Mobile Voltage
  • Solenoid Connection Type(s): 22mm | 3 Pin (DIN 43650 Form B)
  • Certifications/Approvals: IP65, RoHs, CE
  • Pressure Range: (psig) 22 to 145 or (bar) 1.5 to 10
  • Solenoid Minimum Operating Pressure (psig): 22, 43.5
  • Temperature Range: ( c ) -10 to 50 or (F) 14 to 122
  • Media: Air
  • Lubrication: Non Lube
  • Power Consumption: 2.5W
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile

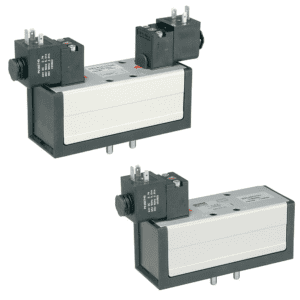

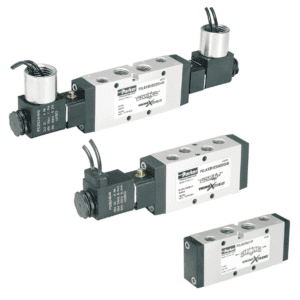

Pneumatic Solenoid Valve – Viking Xtreme Series

Parker-Solenoid Valve
The Viking Xtreme Valve is a robust, versatile Inline valve that combines high performance with compact installation dimensions that is well suited for general to harsh industrial applications as well as mobile related applications. The valve can be installed as a single valve for point-of-use applications or mounted on aluminum bar manifolds for centralized applications.

Viking Xtreme is a fully featured valve that has multiple solenoid voltages incorporating standard or mobile rated coils. Remote pilot valves are also available. Applications with salt spray and high vibration requirements can benefit from the Viking Xtreme valve features which include stainless steel end fasteners, internal springs, and solenoid armatures.

The bi-directional over molded spool performs well in temperatures ranging from -40F to 140F and pressures ranging from Vacuum to 232 PSG .

  • Function(s): 3/2, 5/2 , 5/3
  • Operation: Solenoid Air & Remote Pilot Operated
  • Manual Operator: Non-Locking and Locking Manual Overrides
  • Mounting Type: Inline, IEM aluminum bar
  • Mounting: Standard Basic Inline. Namur Mount
  • Max Manifold Stations: 12
  • Port Sizes (inch): 1/8″, 1/4″, 3/8″, 1/2″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 0.5
  • Flow Max (Cv): 2.7
  • Voltage Range: 12VDC to 240VAC
  • Mobile Voltage Available
  • Solenoid Connection Type(s): 15mm | 3 Pin ( DIN43605 Form C), 22mm |
    3 Pin (DIN 43650 Form B) , Grommet, Conduit, 30mm | 3-Pin (ISO 4400 Form A)
  • Certifications/Approvals: IP65, RoHs, CE ATEX, Hazardous Duty, Intrinsically Safe Options.
    Up to 400 hour Salt Spray & +5G Shock and Vibration Tested.
  • Pressure Range: (psig) VAC to 232 or (bar) VAC to 16
  • Solenoid Minimum Operating Pressure: (psig) 22, 46, 51
  • Temperature Range: ( c ) -40 to 60 or (F) -40 to 140
  • Media: Air
  • Lubrication: Non Lube
  • Power Consumption: 2.5W to 7.3W
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile

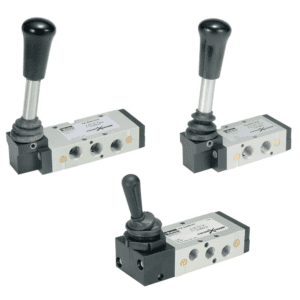

Pneumatic Manual Valve – Viking Xtreme Manual Series

Parker-Pneumatic Manual Valve
The Viking Xtreme manual valve is a robust, versatile inline valve that is well suited for general to harsh industrial and mobile related applications. Stainless steel handles are specifically designed for gloved hands to suit applications in the most arduous of environments. Manual operators include twist knob and stainless steel operators with booted handles. The Viking Xtreme manual valve also features stainless steel components such as end fasteners, internal springs, and handles, which extend valve life in salt spay and high vibration applications. The bi-directional over molded spool performs well in temperature ranges from -40F to 140F, and pressure ranges from Vacuum to 232 PSG .

  • Function(s): 3/2, 5/2 , 5/3
  • Operation: Manual Operated
  • Manual Operator: Manual Handle, Rotary Switch
  • Mounting Type: Inline, Surface Mount
  • Port Sizes (inch): 1/8″, 1/4″, 3/8″, 1/2″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 0.5
  • Flow Max (Cv): 2.7
  • Certifications/Approvals: IP65, RoHs, CE, Up to 400 hour Salt Spray & +5G Shock and Vibration Tested
  • Pressure Range (psig): VAC to 232
  • Pressure Range (bar): VAC to 16
  • Temperature Range ( c ): -40 to 60
  • Temperature Range (F): -40 to 140
  • Media: Air
  • Lubrication: Non Lube
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile

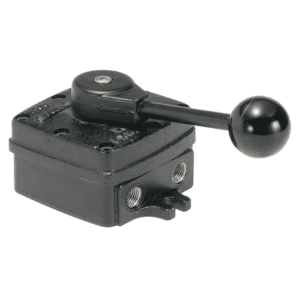

Pneumatic Manual Valve – HV Series

Parker-Pneumatic Manual Valve
HV Series is a rotary disc valve with a robust knob manual operator. It is available in 3 position all-ports-blocked with spring center versions. The valve is surface mounted with side ports.

  • Function(s): 4/3
  • Operation: Manual Handle
  • Manual Operator: Rotary Manual Handle
  • Mounting Type: Inline, Surface Mount
  • Port Sizes (inch): 1/4, 3/8, 1/2
  • Port Type: NPT
  • Flow Min (Cv): 0.5
  • Flow Max (Cv): 1.5
  • Pressure Range: (psig) 0 to 150 or (bar) 0 to 10
  • Temperature Range: (c) 0 to 60 or (F) 32 to 166
  • Media: Air
  • Lubrication: Non Lube – Lubrication recommended
  • Body Material: Aluminum
  • Seal Material: Polyurethane
Pneumatic Manual Valve – VL Series

Parker-Pneumatic Manual Valve
The VL Series is a rotary disc valve with a robust knob manual operator. It is available in a 3 position exhaust center detent version. The valve is surfaced mounted with side ports and low shift forces. Recommended for stationary air cylinders and used as a throttling valve for positioning air cylinders. The valve handle can be orientated to any 4 positions to suit the application parameters.

  • Function(s) 4/3 CE
  • Manual Operated
  • Manual Operator Rotary Manual Handle
  • Mounting Type Inline, Surface Mount
  • Port Sizes (inch) 1/4, 3/8, 1/2
  • Port Type NPT
  • Flow Min (Cv) 2.5
  • Flow Max (Cv) 6.2
  • Pressure Range (psig) 0 to 150
  • Pressure Range (bar) 0 to 10
  • Solenoid Minimum Operating Pressure (psig)
  • Temperature Range ( c ) -8 to 93
  • Temperature Range (F) 18 to 200
  • Media Air
  • Lubrication Non Lube Lubrication recommended
  • Body Material Bronze disc, cast iron surface
  • Seal Material

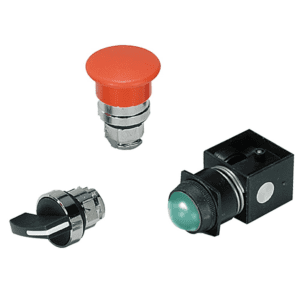

Pneumatic Manual Valve – Push Buttons and Panels


Push button and panel valves are 3-way normally open or closed valves that are mounted in control panels for Human-Machine-Interface to remotely operate other pneumatic devices. The push button head is mounted to a ring that fits a 22 mm (7/8″) mounting hole (standard). One or two valve bodies, which can be normally open or closed, can be mounted to the ring. Depending on the operator, they can be actuated independently or simultaneously. Operators like push button flush, mushroom, and locking mushroom, operate the valves simultaneously while selector, locking selector, and rotary selector operate the valves independently. Optional passing or non-passing electrical valve bodies can also mounted to the rings along with a pneumatic valve proving both electrical and pneumatic output signals. Electrical bodies are rated up to 240V and 10 Amps.

  • Function(s): 3/2
  • Positions: 2
  • Positions: Manual Operated
  • Manual Operator: Push Button Flush, Mushroom, and Locking Mushroom, Selector, Locking Selector, Rotary Selector
  • Mounting Type: 22mm Panel Mount
  • Port Sizes (inch): 5/32″ OD Tube
  • Port Type: 5/32″ Instant for Semi-Rigid Nylon or Polyurethane Tube
  • Flow Min (Cv): 0.08
  • Flow Max (Cv): 0.18
  • Pressure Range (psig): 15 to 145
  • Pressure Range (bar): 1 to 10
  • Temperature Range (c): -15 to 60
  • Temperature Range (F): 5 to 140
  • Media: Air
  • Lubrication: Non Lube
  • Unique Feature: Electrical Switch Body, 240V 10AMP

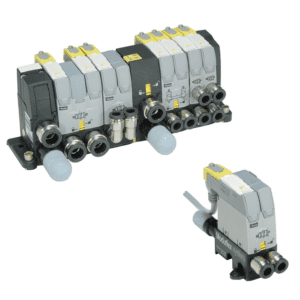

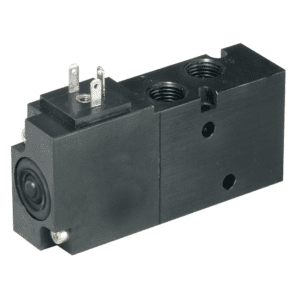

Pneumatic Solenoid Valve – XM Series

Parker-Solenoid Valve
The XM series valve is a 3/2 or 4/2 position direct acting inline valve with 1/8 NPT ports. The XM valve can be oriented in any position and has multiple electrical connection options such as 15mm 3 pin DIN, grommet with lead wires, and 1/2 NPT conduit. The coil is continuous duty rated. IEM bar manifolds up to 12 stations are available. This valve is direct acting which means the coil, upon energizing, actuates the operator which then shifts the valve.

  • Function(s): 3/2, 4/2
  • Operation: Solenoid Direct Acting
  • Mounting Type: Inline, IEM Bar, Manifold
  • Max Manifold Stations: 12
  • Port Sizes: 1/8
  • Port Type: NPT
  • Flow Max (Cv): 0.15
  • Voltage Range: 12VDC to 240VAC
  • Mobile Voltage Available
  • Solenoid Connection Type(s): Conduit, Grommet, 15mm 3-pin
  • Certifications/Approvals: ROHS
  • Pressure Range (psig): Vac – 125
  • Temperature Range (C): 0-50
  • Temperature Range (F): 32 to 125
  • Media: Inert gases
  • Power Consumption: 4.5W
  • Body Material: Aluminum
  • Seal Material: Buna N

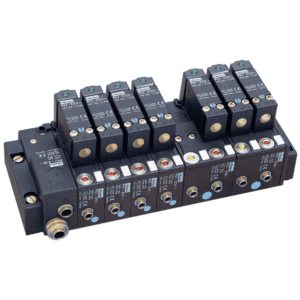

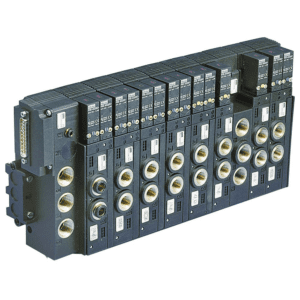

Pneumatic Solenoid Valve – PS1E Series

Parker-Solenoid Valve
The PS1E series valve is an internal air piloted stacking style valve. The PS1E valves are stacking style only with plug-in coils. Available valve functions are 3/2, and 5/2 single and double solenoid. Each valve is individually wired with a separate conductor. Surge suppressors with an indicating LED are available and are mounted between the coil and the valve body. Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool.

  • Function(s): 3/2, 5/2
  • Operation: Solenoid Air & Remote Pilot Operated
  • Mounting Type: Stacking
  • Max Manifold Stations: No maximum
  • Port Sizes: 5/32″, 1/4″, 6 mm tube
  • Port Type: Tube
  • Flow Min (Cv): 0.14
  • Flow Max (Cv): 0.16
  • Voltage Range: 12 to 48VDC, 120/240VAC
  • Solenoid Connection Type(s): 15mm, 3 pin, DIN 43650C
  • Certifications/Approvals: IP65
  • Pressure Range (psig): 40 to 120
  • Solenoid Minimum Operating Pressure (psig): 40
  • Temperature Range (C): -15 to 60
  • Temperature Range (F): 5 to 140
  • Media: Compressed Air
  • Lubrication: Lubricated or non-lubricated air
  • Power Consumption: 1.2W, 1.6VA
  • Body Material: Glass filled polyamide
  • Seal Material: Poppet – polyurethane, Seals – Nitrile (Buna N)

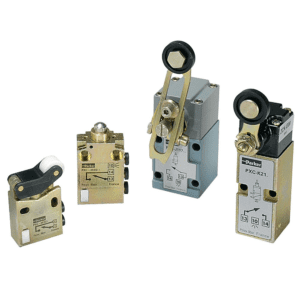

Pneumatic Manual Valve – Limit Switches

Parker-Pneumatic Manual Valve
Pneumatic Limit Switches are compact, manual mechanical 3 way valves that can be mounted near cylinder movement to provide a pneumatic response once the mechanical operator is tripped. Mechanical operators include both metal and plastic rollers and plungers as well as whisker valves. Valves are either normally closed or normally open.

  • Function(s): 3/2
  • Positions: 2
  • Positions: Manual Operated
  • Manual Operator: Roller, Plunger, Wisker
  • Mounting Type: Inline
  • Port Sizes (inch): 5/32″ OD Tube, 10-32 UNF
  • Port Type: 5/32″” Instant for Semi-Rigid Nylon or Polyurethane Tube
  • Flow Min (Cv): 0.07
  • Flow Max (Cv): 0.28
  • Pressure Range (psig): 40 to 115
  • Pressure Range (bar): 3 to 8
  • Temperature Range (c): 0 to 50
  • Temperature Range (F): 32 to 122
  • Media: Air
  • Lubrication: Non Lube
Pneumatic Manual Valve – PL Series

Parker-Pneumatic Manual Valve
The PL Series is a rotary disc valve with a robust knob manual operator. It is available in a 3 position all ports blocked detent version. The valve is surfaced mounted with side ports and low shift forces. It is recommended for stationary air cylinders and uses as a throttling valve for positioning air cylinders. The valve handle can be orientated to any 4 positions to suit the application parameters.

  • Function(s): 4/3 APB
  • Manual Operated
  • Manual Operator: Rotary Manual Handle
  • Mounting Type: Inline, Surface Mount
  • Port Sizes (inch) 1/4, 3/8, 1/2
  • Port Type NPT
  • Flow Min (Cv) 2.5
  • Flow Max (Cv) 6.2
  • Pressure Range (psig) 0 to 150
  • Pressure Range (bar) 0 to 10
  • Solenoid Minimum Operating Pressure (psig)
  • Temperature Range ( c ) -8 to 93
  • Temperature Range (F) 18 to 200
  • Media Air
  • Lubrication Recommended
  • Body Material Bronze Disc, Cast Iron Surface
  • Seal Material

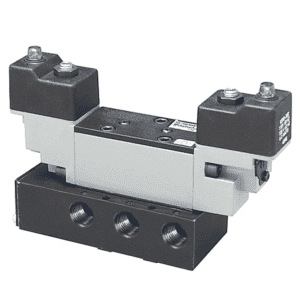

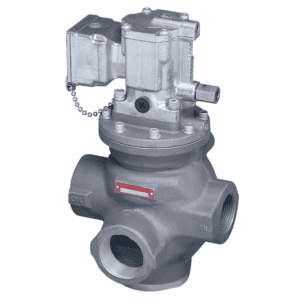

Pneumatic Solenoid Valve – N Series

Parker-Solenoid Valve
The N Series valve is an inline high flow, quick response poppet valve with a flow factor up to 30 Cv. The rugged N Series is well suited for both general and heavy industrial applications such as foundries, pulp & paper mills, steel mills and automotive. Short stoke poppets respond quickly to provide immediate large orifice area flow for the quick response, high flow applications. The “bullet nose” solenoid plunger provides extended life for continuous duty solenoid applications. The solenoids are available in a wide range of voltages with and without LED indicators.

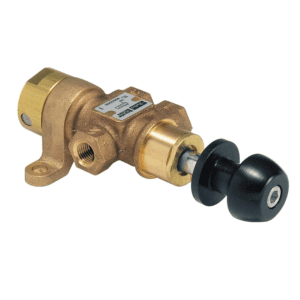

Pneumatic Manual Valve – M0 Series

Parker-Pneumatic Manual Valve
The M0 valve is an inline manual mechanical valve with air pilot options. Manual operators include knob, palm button, lever, foot pedal & cam. Mechanical linkages can be connected to the clevis mount for cylinder operated applications. The M0 valve is available with spring return and detent functions. Bronze bodies, stainless steel hard chrome plated spools, and brass internal spacers with specially compounded O-rings, make the M0 valve suitable for air, inert gas and low pressure medium aniline oil applications. With an application review of internal compatibility, the M0 valve can be used with water media as well. The closed at change-over spool design provides all ports closed transition which reduces cross over leakage to other ports of the valve.

  • Function(s): 3/2, 4/2, 4,3
  • Operation: Manual & Remote Pilot Operated
  • Manual Operator: Knob, Palm, Button, Lever, Foot Pedal, Clevis & Cam Operated
  • Mounting Type: Inline, Surface Mount
  • Port Sizes (inch): 1/4,” 3/8,” 1/2,” 3/4″
  • Port Type: NPTF
  • Flow Min (Cv): 2.4
  • Flow Max (Cv): 8
  • Pressure Range: (psig) Vac to 225 or (bar) Vac to 15
  • Temperature Range: (c) -26 to 93 or (F) -15 to 200
  • Media: Air, inert gases, medium aniline oils
  • Lubrication: Non Lube, Lubrication recommended
  • Body Material: Bronze
  • Seal Material: Buna-N with Molybdenum Disulfide

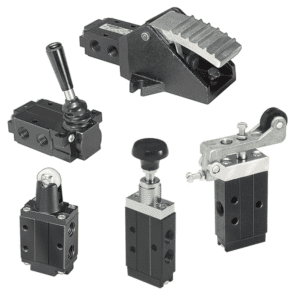

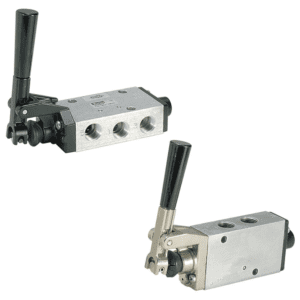

Pneumatic Manual Valve – DirectAir 4 Series

Parker-Pneumatic Manual Valve
The DirectAir4 valve is a compact designed manual or mechanical operated Inline valve. The variety of operators include roller, lever, button, pedal and treadle foot operated valves. The valve design features balanced forces across the spool so that 3/2 valves can be piped normally open or normally closed by changing the inlet supply from port 1 to port 3. The DirectAir valve bodies are manufactured from aluminum with stainless steel spool, sealed by static fluorocarbon seals. The valves are designed to give long trouble free service life when used with or without lubrication.

  • Function(s): 3/2, 5/2, 5/3
  • Manual Operator: Roller, Lever, Button, Pedal and Treadle Foot Operated
  • Mounting Type: Inline
  • Port Sizes (inch): 1/4
  • Port Type: NPT
  • Flow Max (Cv): 0.83
  • Certifications/Approvals: RoHs, CE
  • Pressure Range (psig): VAC to 150
  • Pressure Range (bar): VAC to 10)
  • Temperature Range (c): 0 to 80
  • Temperature Range (F): 32 to 175
  • Media: Air
  • Lubrication: Non Lube
  • Body Material: Anodized Aluminum
  • Seal Material: Flourocarbon Dynamic, Nitrile U-Cups
Pneumatic Manual Valve – 42 Series

Parker-Pneumatic Manual Valve
The 42 series is a lever or foot pedal manual mechanical valve with flow factors to 2.9 Cv. The orientation of the lever operator can be obtained with actuation movement parallel or perpendicular to the ports of the valve. This allows the designer to mount the valve to the best ergonomic position for the operator, while optimizing the installation of air fittings and tubing. The valve function and operation include 2 position spring return or detent, and 3 position all ports block and center exhaust detent.

  • Function(s): 5/2, 5/3
  • Manual Operator: Lever and Foot Pedal
  • Mounting Type: Inline
  • Port Sizes (inch): 3/8,” 1/4″
  • Port Type: NPT
  • Flow Min (Cv): 1.3
  • Flow Max (Cv): 2.9
  • Certifications/Approvals: RoHs, CE
  • Pressure Range (psig): VAC to 150
  • Pressure Range (bar): VAC to 10
  • Temperature Range (c): 0 to 140
  • Temperature Range (F): -18 to 60
  • Media: Air
  • Lubrication: Non Lube
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile

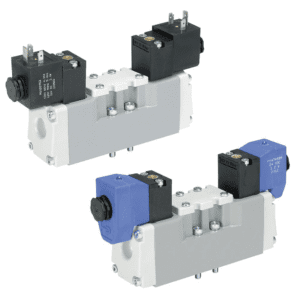

Pneumatic Solenoid Valve – Adex Series

Parker-Solenoid Valve
The Adex valve series offers both direct acting pilot valves for low flow, quick response applications, and solenoid air piloted compact valves for general industrial applications. It is a great valve for panel mounting applications due to the clip-on wiring options. Low power solenoids with LED and surge suppression are standard features on the Adex valve, which can installed as a single valve for point-of-use applications or mounted on aluminum bar manifolds for centralized applications. IEM or subbase bar manifolds can incorporate a 25 Pin Sub-d collective wiring to reduce the costs of wiring multiple solenoids. The bi-directional wear compensated spool performs well in temperature ranges from 32F to 122F and pressure ranges from Vacuum to 100 PSG. When in service, radial expansion of the spool seal occurs to maintain sealing contact with the valve bore. This sealing method reduces friction and produces a lower required minimum pilot pressure. As the seal wears, it maintains surface contact with the internal bore, which reduces valve leakage in high cyclic applications and extends valve life.

  • Function(s): 3/2, 5/2 , 5/3
  • Operation: Solenoid Air Operated ( A05 / A12 ), & Direct Operated (A00)
  • Manual Operator: Combined Non-Locking & Locking Manual Override
  • Mounting Type: Inline, IEM Bar Manifold, Subbase Manifold
  • Mounting: Standard
  • Max Manifold Stations: 20
  • Port Sizes (inch): M3, M5, 1/8″
  • Port Type: Metric, BSPP, NPT
  • Flow Min (Cv): 0.02
  • Flow Max (Cv): 0.47
  • Voltage Range: 5 to 24VDC, 110/220VAC
  • Mobile Voltage
  • Solenoid Connection Type(s): 25-pin D-sub, wired clip connector
  • Pressure Range: (psig) VAC to 100 or (bar) VAC to 6.8
  • Solenoid Minimum Operating Pressure (psig): 15
  • Temperature Range: ( c ) 0 to 50 (Intermittent Duty, AC &DC), 0 to 40 (Continuous Duty, DC only)
  • Temperature Range: (F) 32 to 122 (Intermittent Duty, AC &DC), 32 to 104 (Continuous Duty, DC only)
  • Media: Air
  • Lubrication: Non Lube
  • Power Consumption: 0.6W
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile

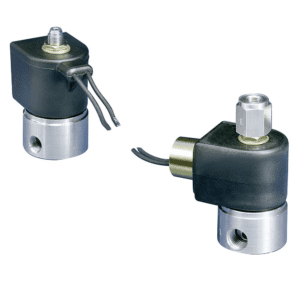

Pneumatic Solenoid Valve – Cyclone Series

Parker-Solenoid Valve
The Cyclone series valve is a 2/2 or 3/2 direct acting inline valve with 1/8 or 1/4 NPT ports. The Cyclone valves may be oriented in any position and can be mounted inline or surface mounted, using the two #10-32 x 3/8″ holes provided in the bottom of the valve body. The solenoid housing, which is available in brass or stainless steel, rotates for ease of electrical connections. This valve is direct acting which means the coil upon energizing actuates the operator which then shifts the valve. Coil options are grommet with lead wires, and 1/2″ NPT conduit connection.

  • Function(s): 3/2
  • Operation: Solenoid Direct Acting
  • Mounting: Type Inline
  • Port Sizes: 1/8,” 1/4″
  • Port Type: NPT
  • Flow Min (Cv): 0.02
  • Flow Max (Cv): 0.73
  • Voltage Range: 12VDC to 240VAC
  • Solenoid Connection Type(s): Conduit, Grommet w/ lead wires
  • Certifications/Approvals: CE, UL
  • Pressure Range (psig): VAC – 500
  • Temperature Range (C): -7 to 82
  • Temperature Range (F): 20 to 180
  • Media: Inert gases and non-corrosive liquids
  • Body Material: Stainless Steel, Brass
  • Seal Material: Buna N, Fluorocarbon
  • Coil Rating: Class F, Class H
Pneumatic Manual Valve – DirectAir 2 Series

Parker-Pneumatic Manual Valve
The DirectAir 2 valve is a compact designed manual or mechanical operated Inline valve. The variety of operators include roller, lever, push button, plunger and one-way tripper operated valves. The roller, plunger, one-way trippers and toggle valves are ideal for space saving mounting to provide cylinder positioning feedback. The valve design features both spool and poppet type valves. The spool valves have balanced forces across the spool so that 3/2 valves can be piped normally open or normally closed by changing the inlet supply from port 1 to port 3. DirectAir valve bodies are manufactured from aluminum with stainless steel spool, sealed by static fluorocarbon seals. Valves are designed to give long trouble free service life when used with or without lubrication.

  • Function(s): 3/2, 5/2
  • Manual Operator: Roller, Lever, Push Button, Plunger, One Way Tripper, Toggle
  • Mounting Type: Inline
  • Port Sizes (inch): 1/8
  • Port Type: NPT
  • Flow Min (Cv): 0.17
  • Flow Max (Cv): 0.83
  • Certifications/Approvals: RoHs, CE
  • Pressure Range (psig): VAC to 150
  • Pressure Range (bar): VAC to 10
  • Temperature Range (c): 0 to 80
  • Temperature Range (F): 32 to 175
  • Media: Air
  • Lubrication: Non Lube
  • Body Material: Anodized Aluminum
  • Seal Material: Flourcarbon Dynamic, Nitrile U-Cups
Pneumatic Solenoid Valve – B3 Series

Parker-Solenoid Valve
The B3 Series valve offers a wide variety of sizes and configurations for general industrial applications. The valve can be installed as a single valve for point-of-use applications or mounted on aluminum bar manifolds for centralized applications. The B3 Series is a fully-featured valve that has multiple solenoid voltages incorporating standard or mobile rated coils. Remote pilot valves are also available.

The B3 Series valve is a basic 1/8″ ported valve. The bi-directional wear compensated spool performs well in temperature ranges from 5F to 120F and pressure ranges from Vacuum to 145 PSG. When in service, radial expansion of the spool seal occurs to maintain sealing contact with the valve bore. This sealing method reduces friction and produces a lower required minimum pilot pressure. As the seal wears, it maintains surface contact with the internal bore, which reduces valve leakage in high cyclic applications and extends valve life.

  • Function(s): 3/2, 5/2 , 5/3
  • Operation: Solenoid Air & Remote Pilot Operated
  • Manual Operator: Non-Locking and Locking Manual Overrides
  • Mounting Type: Inline, IEM aluminum bar
  • Mounting: Standard
  • Max Manifold Stations:12
  • Port Sizes (inch): 1/8,
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 0.5
  • Flow Max (Cv): 0.75
  • Voltage Range:12VDC to 240VAC
  • Solenoid Connection Type(s): 15mm | 3 Pin ( DIN43605 Form C)
  • Certifications/Approvals: IP65, CE, CSA Hazardous Duty, Intrinsically Safe Options
  • Pressure Range: (psig) VAC to 145 or (bar) VAC to 10
  • Solenoid Minimum Operating Pressure (psig): 20, 30, 35, 45
  • Temperature Range: (c) -15 to 49 or (F) 5 to 120
  • Media: Air
  • Lubrication: Non Lube
  • Power Consumption: 1.5W
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile

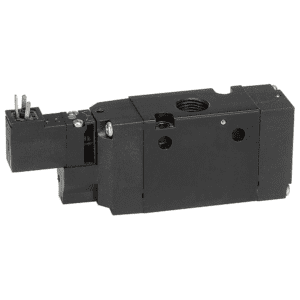

Pneumatic Solenoid Valve – B5 Series

Parker-Solenoid Valve
The B5 Series valve offers a wide variety of sizes and configurations for general industrial applications. The valve can be installed as a single valve for point-of-use applications or mounted on aluminum bar manifolds for centralized applications. The B5 Series is a fully-featured valve that has multiple solenoid voltages incorporating standard or mobile rated coils. Remote pilot valves are also available.

The B5 Series valve is a basic 1/4″ valve with 1/4″ and 3/8″ port options. The bi-directional wear compensated spool performs well in temperature ranges from 5F to 120F and pressure ranges from Vacuum to 145 PSG. When in service, radial expansion of the spool seal occurs to maintain sealing contact with the valve bore. This sealing method reduces friction and produces a lower required minimum pilot pressure. As the seal wears, it maintains surface contact with the internal bore which reduces valve leakage in high cyclic applications and extends valve life.

  • Function(s): 3/2, 5/2 , 5/3
  • Operation: Solenoid Air & Remote Pilot Operated
  • Manual Operator: Non-Locking and Locking Manual Overrides
  • Mounting Type: Inline, IEM aluminum bar
  • Mounting: Standard
  • Max Manifold Stations:12
  • Port Sizes (inch): 1/4″, 3/8″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 1.1
  • Flow Max (Cv): 1.4
  • Voltage Range:12VDC to 240VAC
  • Solenoid Connection Type(s):
    15mm | 3 Pin ( DIN43605 Form C), 22mm | 3 Pin (DIN 43650 Form B)
    Grommet, Conduit, 30mm | 3-Pin ( ISO 4400 Form A)
  • Certifications/Approvals: IP65, CE, CSA Hazardous Duty, Intrinsically Safe Options
  • Pressure Range: (psig) VAC to 145 or (bar) VAC to 10
  • Solenoid Minimum Operating Pressure (psig): 20, 30, 35, 45
  • Temperature Range: (c) -15 to 49 or (F) 5 to 120
  • Media: Air
  • Lubrication: Non Lube
  • Power Consumption: 1.5W, 2.5W, 7.3W
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile
Pneumatic Solenoid Valve – B6 Series

Parker-Solenoid Valve
The B6 Series valve offers a wide variety of sizes and configurations for general industrial applications. The valve can be installed as a single valve for point-of-use applications or mounted on aluminum bar manifolds for centralized applications. The B6 Series is a fully-featured valve that has multiple solenoid voltages incorporating standard or mobile rated coils. Remote pilot valves are also available.

The B6 valve is a basic 3/8″ valve with 3/8″ ports The bi-directional wear compensated spool performs well in temperature ranges from 5F to 120F and pressure ranges from Vacuum to 145 PSG. When in service, radial expansion of the spool seal occurs to maintain sealing contact with the valve bore. This sealing method reduces friction and produces a lower required minimum pilot pressure. As the seal wears, it maintains surface contact with the internal bore which reduces valve leakage in high cyclic applications and extends valve life.

  • Function(s): 3/2, 5/2 , 5/3
  • Operation: Solenoid Air & Remote Pilot Operated
  • Manual Operator: Non-Locking and Locking Manual Overrides
  • Mounting Type: Inline, IEM aluminum bar
  • Mounting: Standard
  • Max Manifold Stations:12
  • Port Sizes (inch): 3/8″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 2.1
  • Flow Max (Cv): 2.7
  • Voltage Range:12VDC to 240VAC
  • Solenoid Connection Type(s):
    15mm | 3 Pin ( DIN43605 Form C), 22mm | 3 Pin (DIN 43650 Form B)
    Grommet, Conduit, 30mm | 3-Pin ( ISO 4400 Form A)
  • Certifications/Approvals: IP65, CE, CSA Hazardous Duty, Intrinsically Safe Options
  • Pressure Range: (psig) VAC to 145 or (bar) VAC to 10
  • Solenoid Minimum Operating Pressure (psig): 20, 30, 35, 45
  • Temperature Range: (c) -15 to 49 or (F) 5 to 120
  • Media: Air
  • Lubrication: Non Lube
  • Power Consumption: 1.5W, 2.5W, 7.3W
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile

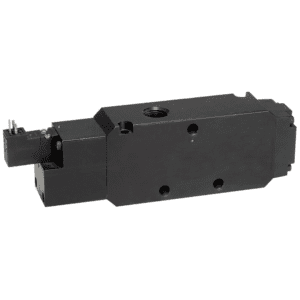

Pneumatic Solenoid Valve – B7 Series

Parker-Solenoid Valve
The B7 Series valves offers a wide variety of sizes and configurations for general industrial applications. The valve can be installed as a single valve for point-of-use applications or mounted on aluminum bar manifolds for centralized applications. The B7 Series is a fully-featured valve that has multiple solenoid voltages incorporating standard or mobile rated coils. Remote pilot valves are also available.

The B7 valve has 1/2″ ports. The bi-directional wear compensated spool performs well in temperature ranges from 5F to 120F and pressure ranges from Vacuum to 145 PSG. When in service, radial expansion of the spool seal occurs to maintain sealing contact with the valve bore. This sealing method reduces friction and produces a lower required minimum pilot pressure. As the seal wears, it maintains surface contact with the internal bore which reduces valve leakage in high cyclic applications and extends valve life.

  • Function(s): 3/2, 5/2 , 5/3
  • Operation: Solenoid Air & Remote Pilot Operated
  • Manual Operator: Non-Locking and Locking Manual Overrides
  • Mounting Type: Inline, IEM aluminum bar
  • Mounting: Standard
  • Max Manifold Stations:12
  • Port Sizes (inch): 1/2,”
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 5.7
  • Flow Max (Cv): 5.9
  • Voltage Range:12VDC to 240VAC
  • Mobile Voltage Available
  • Solenoid Connection Type(s):
    15mm | 3 Pin ( DIN43605 Form C), 22mm | 3 Pin (DIN 43650 Form B)
    Grommet, Conduit, 30mm | 3-Pin ( ISO 4400 Form A)
  • Certifications/Approvals: IP65, CE, CSA Hazardous Duty, Intrinsically Safe Options
  • Pressure Range: (psig) VAC to 145 or (bar) VAC to 10
  • Solenoid Minimum Operating Pressure (psig): 20, 30, 35, 45
  • Temperature Range: (c) -15 to 49 or (F) 5 to 120
  • Media: Air
  • Lubrication: Non Lube
  • Power Consumption: 1.5W, 2.5W, 7.3W
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile

Parker-Solenoid Valve

Pneumatic Solenoid Valve – B8 Series

The B8 Series valves offers a wide variety of sizes and configurations for general industrial applications. The valve can be installed as a single valve for point-of-use applications or mounted on aluminum bar manifolds for centralized applications. The B8 Series is a fully-featured valve that has multiple solenoid voltages incorporating standard or mobile rated coils. Remote pilot valves are also available.

The B8 valve has 3/4″ ports. The bi-directional wear compensated spool performs well in temperature ranges from 5F to 120F and pressure ranges from Vacuum to 145 PSG. When in service, radial expansion of the spool seal occurs to maintain sealing contact with the valve bore. This sealing method reduces friction and produces a lower required minimum pilot pressure. As the seal wears, it maintains surface contact with the internal bore which reduces valve leakage in high cyclic applications and extends valve life.

  • Function(s): 3/2, 5/2 , 5/3
  • Operation: Solenoid Air & Remote Pilot Operated
  • Manual Operator: Non-Locking and Locking Manual Overrides
  • Mounting Type: Inline, IEM aluminum bar
  • Mounting: Standard
  • Max Manifold Stations:12
  • Port Sizes (inch): 3/4″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 6.6
  • Flow Max (Cv): 7.0
  • Voltage Range:12VDC to 240VAC
  • Mobile Voltage Available
  • Solenoid Connection Type(s):
    15mm | 3 Pin ( DIN43605 Form C), 22mm | 3 Pin (DIN 43650 Form B)
    Grommet, Conduit, 30mm | 3-Pin ( ISO 4400 Form A)
  • Certifications/Approvals: IP65, CE, CSA Hazardous Duty, Intrinsically Safe Options
  • Pressure Range: (psig) VAC to 145 or (bar) VAC to 10
  • Solenoid Minimum Operating Pressure (psig): 20, 30, 35, 45
  • Temperature Range: (c) -15 to 49 or (F) 5 to 120
  • Media: Air
  • Lubrication: Non Lube
  • Power Consumption: 1.5W, 2.5W, 7.3W
  • Body Material: Anodized Aluminum
  • Seal Material: Nitrile

Base Mounted Valves

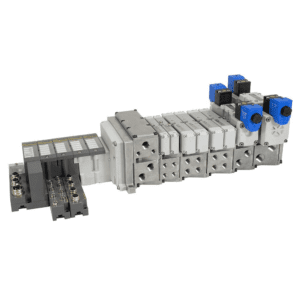

Pneumatic Solenoid Valve – H Series ISO

Parker - Pneumatic Solenoid Valve - H Series ISO The H Series ISO Valve is a family of base mounted valves available in five size ranges (Sizes 02, 01, 1, 2 and 3) with flow from 0.55 to 6 Cv. for right sizing the application. The product family has 5/2 or 5/3 functions with a dual 3/2 function available in size 02. Plugin or non-plugin valve types mounted on a single subbase or manifolds provide the convenience of multiple wiring options. Electrical connections can be made on the valve or through the manifold using either hard wire or industrial networking technologies. The H Series ISO family includes multiple collective wiring and networking options to connect back to the controller. Valve sizes 02, 01, 1 and 2 can be mounted on the same manifold without transition kits to right size the valve for the application with no wasted space when using the universal manifold. Designed to ISO 5599 and 15407 standards.

Markets:

  • Automotive
  • Factory Automation
  • Heavy Industrial

Features/Benefits:

  • Right sizing is the ability to use different size valves on one manifold to maximize cost savings and space.
  • ISO valve platforms, such as Parker H Series ISO 5599 and 15407, assures easy maintenance, replacement, or modifications in the future.
  • Pneumatic zoning allows for multiple pressure zones in one manifold for different working pressures.
  • Ability to build a high density manifold up to 32 addressable solenoids.
  • A pilot exhaust module allows the disconnection of pilot pressure to bring the valve to a safe state quickly while maintaining main supply pressure. Apply in safe state zoning or cylinder rod lock applications.
  • The manifold end plate easily converts from internal to external pilot to provide pilot pressure to all zones.

Applications:

  • Machine Tool
  • End of Arm Tooling
  • Vehicle Body Assembly/Welding
  • Case Erectors
  • Palletizing
  • Wrapping/Bundling
  • Other automation applications requiring flow rates up to 6.0 Cv.

Technologies:

  • Collective wiring applications (25 pin, D-sub, 19-pin Brad Harrison, 12-pin M23, 19-pin M23, terminal block for conduit)
  • Networked connectivity (IO-Link, EtherNet/IP, EtherCAT, PROFINET, DeviceNet, ControlNet, PROFIBUS, AS-i, InterBus-S, Modbus/TCP)
Pneumatic Solenoid Valve – Moduflex Series

Parker - Pneumatic Solenoid Valve - Moduflex Series
The Moduflex series valve is an internal/external air piloted stacking style valve. The Moduflex valves are stacking style only.

Available valve functions are:

  • 4/2, single and double solenoid / single and double air pilot
  • 3/2, single solenoid, NC w/ exhaust check
  • Dual, 3/2, double solenoid, NC/NC, NO/NO, NC/NO, w/ exhaust check
  • Dual, 3/2, NC/NC

There are three mounting configurations available – S series (Stand alone), T series (Manifold w/ individual cable per solenoid), and V series (Manifold w/ backplane circuit board for collective wiring). The V series has head module options – 20 and 25 pin Dsub connections, and fieldbus options Devicenet, Profibus DP, CANopen, Interbus-S, and ASi. The Moduflex valve manifold can be field converted from internal to external pilot supply by removing the cover on the left hand end plate and rotating the “X” channel selector 180 degrees so the 4mm tube connection can be used for external pilot supply pressure. The cover can then be reinstalled. Internal pilot operation means that supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass which is then applied to the piston to shift the spool. External pilot is when the valve gets its “internal” pressure from an “external pilot port” instead of the #1 port. Moduflex fieldbus head modules can also be used with Isys Iso and Isys Micro valve manifolds.

  • Function(s): Dual 3/2, 4/2, 4/3
  • Operation: Solenoid Air Operated
  • Mounting Type: Manifold, Subbase
  • Max Manifold Stations: 19 20 and 25 pin, 16 if fieldbus
  • Port Sizes: 4mm OD – 1/2 OD
  • Port Type: Tube Push-In Connections
  • Flow Min (Cv): 0.18
  • Flow Max (Cv): 0.8
  • Voltage Range: 24VDC
  • Solenoid Connection Type(s): 20-pin Multi-Connector, 25-pin D-sub
  • Industrial Network Options: Profibus DP, Devicenet, CANopen, Interbus-S, ASi
  • Certifications/Approvals: CE, IP65 (V), IP67 (S and T)
  • Pressure Range (psig): VAC-120
  • Solenoid Minimum Operating Pressure (psig): 43
  • Temperature Range (C): 0 – 54
  • Temperature Range (F): 32 – 130
  • Media: Inert gases
  • Power Consumption: 1W
  • Body Material: Nickel Plated Brass
  • Seal Material: Buna N
  • Coil Rating: Class B

For more information about this product…
 Watch a Video

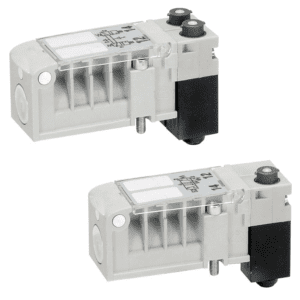

Pneumatic Solenoid Valve – H Micro Series

Parker - Pneumatic Solenoid Valve - H Micro Series
The H Micro series valve is an internal/external air piloted subbase style valve. The H Micro valves are plugin only and are mounted on a manifold base which holds 4 valve modules. Available valve functions are:

  • 4/2, single and double solenoid
  • 4/3, all ports blocked in the center position, double solenoid
  • Dual 3/2, NC/NC, NO/NO, and NO/NC double solenoid

The manifold bases hold four valve modules, and contain circuit boards, for collective wiring, that can be either single address (for single solenoid valves), or double address (for double solenoid valves). The manifold bases have either side or bottom M7 ports. Several sizes of tube fittings can be installed in the M7 ports. The collective wiring options are:

  • 25 pin Dsub
  • Moduflex fieldbus (Devicenet, Profibus DP, CANopen, Interbus-S, and ASi)
  • Turck (CANopen, DeviceNet, Profibus DP, Ethernet I/P, Modbus TCP, and Profinet)
  • Isysnet (Ethernet I/P, DeviceNet, ControlNet, and Profibus DP)

The H Micro valve manifold can be field converted from internal to external pilot supply by moving the M7 plug located on the right hand end plate to the appropriate port. Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which then is applied to the piston to shift the spool. External pilot is when the valve gets its “internal” pressure from an “external pilot port” instead of the #1 port. These valves can be used with Isysnet, Turcknet, or Moduflex fieldbus.

  • Function(s): Dual 3/2, 5/2, 5/3
  • Operation: Solenoid Air Operated
  • Mounting Type: Manifold
  • Max Manifold Stations: 32
  • Port Sizes: End plate ports – 3/8 BSPP or NPT, Manifold working ports – tubing sizes 4, 6, 8, 10 mm – 5/32, 1/4, 3/8 in
  • Flow Min (Cv): 0.3
  • Flow Max (Cv): 0.35
  • Voltage Range: 24VDC
  • Solenoid Connection Type(s): 25-pin D-sub
  • Industrial Network Options: Ethernet I/P, Devicenet, Controlnet, Profibus, Canopen, ASi, Interbus-S, Modbus/TCP, Profinet
  • Certifications/Approvals: EMC/CE, IP65
  • Pressure Range (psig): VAC – 120
  • Solenoid Minimum Operating Pressure (psig): 40
  • Temperature Range (C): -15 to 49
  • Temperature Range (F): 5 to 120
  • Media: Inert gases
  • Power Consumption: 1W
  • Body Material: Polyamide Reinforced Fiberglass
  • Seal Material: Buna N

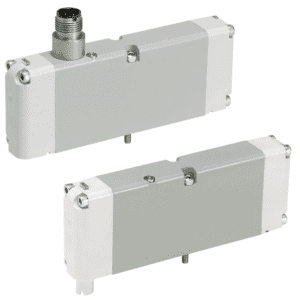

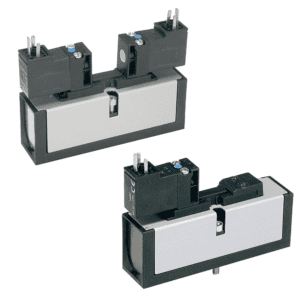

Pneumatic Solenoid ISO Valve – H Series ISO 15407-1 & 15407-2 Series

Parker - Pneumatic Solenoid ISO Valve - H Series ISO 15407-1 & 15407-2 Series
The H Series ISO series valve, size 01 (26mm) and size 02 (18mm), is an internal/external air piloted subbase style valve. Available valve functions are:

  • 5/2, single and double solenoid
  • 5/3, all ports blocked in the center position, double solenoid
  • Dual, 3/2, double solenoid, NC/NC, NO/NO, NC/NO
  • Dual, 3/2, NC/NC

The H Series ISO size 01 and 02 valves can be configured as plugin or non-plugin, and can be mounted on a stand alone subbase or on a multiple valve manifold. The size 02 can be mounted on a manifold with 1/8 NPT/BSPP ports, and the size 01 can be mounted on a subbase, or on a manifold with 1/4 NPT/BSPP bottom and side ports.

In the case of the plugin style valve on a manifold, there are options such as a terminal block (size 01 only) or 6″ lead wires in the base, or circuit boards in the base for collective wiring in the left hand end plate. The collective wiring options are 25 pin Dsub, 16 point terminal strip, M23 12 and 19 pin, 19 pin Brad Harrison, and a valve driver module that connects the valve bank to an industrial network such as: Ethernet I/P, Devicenet, Controlnet, Profibus, Canopen, ASi, Interbus-S, Modbus/TCP, or Profinet. In the case of the non-plugin style valve it can be mounted on a subbase or manifold, but the coils are wired directly with M12 cables.

The ISO size 01 and 02 valves can be field converted easily from internal to external pilot supply by flipping the valve to base gasket. Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool. External pilot is when the valve gets its “internal” pressure from an “external pilot port” instead of the #1 port. These valves can be used with Isysnet, Turcknet, or Moduflex fieldbus.

  • Function(s): Dual 3/2, 5/2, 5/3
  • Operation: Solenoid Air Operated
  • Mounting Type: Subbase, Manifold
  • Mounting: Standard ISO 15407-1, 15407-2
  • Max Manifold Stations: 32
  • Port Sizes: 1/8,” 1/4″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 0.55
  • Flow Max (Cv): 1.1
  • Voltage Range: 24VDC to 120VAC
  • Solenoid Connection Type(s): 15407-1 : 4-pin M12, 15407-2 : 25-pin D-sub, 19-pin Brad Harrison, 12-pin M23, 19-pin M23, 16-point terminal strip
  • Industrial Network Options: Ethernet I/P, Devicenet, Controlnet, Profibus, Canopen, ASi, Interbus-S, Modbus/TCP, Profinet
  • Certifications/Approvals: CSA/C-US, NEMA 4, IP65
  • Pressure Range (psig): VAC – 145
  • Solenoid Minimum Operating Pressure (psig): 25
  • Temperature Range (C): -15 to 49
  • Temperature Range (F): 5 to 120
  • Media: Inert gases
  • Power Consumption: 1W, 2VA
  • Body Material: Aluminum
  • Seal Material: Buna N

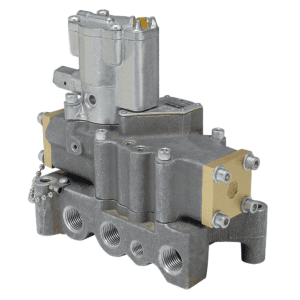

Pneumatic Solenoid Valve – Valvair II Series

Parker - Pneumatic Solenoid Valve - Valvair II Series
The Valvair II valve is a robust, versatile valve that is well suited for general to harsh industrial applications, such as concrete aggregate plants and steel mills. It offers flow factors up to 12 Cv. The valve can be installed as a single inline or subbase valve for point-of-use applications, or mounted on segmented manifolds for centralized applications. A variety of operators are available from air piloted to solenoid air piloted, with direct conduit or junction box electrical connection. The valves are field converted from standard internal to external pilot operated service, and are suitable for non-lube operation. Dynamic urethane o-rings with an off-center parting line, coupled with Nituf coated and hardened aluminum spools, create a valve with improved lubrication retention and low friction operation. Sandwich pressure regulators can also be added to the valve stack to control air pressure at each valve application.

  • Function(s): 5/2 , 5/3
  • Operations: Solenoid Air & Remote Pilot Operated
  • Manual Operator: Non-Locking and Locking Manual Overrides
  • Mounting Type: Inline, Manifold, Single Subbase
  • Port Sizes (inch): 3/8, 1/2, 3/4, 1, 1-1/4
  • Port Type: NPT
  • Flow Min (Cv): 4.5
  • Flow Max (Cv): 12
  • Voltage Range: 12VDC to 240AC
  • Solenoid Connection Type(s): Conduit, JIC
  • Certifications/Approvals: General Purpose CSA, Hazardous Duty : UL & CSA, NEMA 4 options
  • Pressure Range (psig): 0 to 250
  • Pressure Range (bar): 0 to 17
  • Solenoid Minimum Operating Pressure (psig): 35
  • Temperature Range (c): 0 to 93
  • Temperature Range (F): 0 to 200
  • Media: Air
  • Lubrication: Non Lube
  • Body Material: Aluminum Alloy
  • Seal Material: Nitrile
  • Coil Rating: Class B
  • Unique Feature: Sandwich Regulators
Pneumatic Solenoid Valve – Sprint Series

Parker - Pneumatic Solenoid Valve - Sprint Series
The Sprint valve is a robust, versatile valve that is well suited for general to harsh industrial applications, such as concrete aggregate and rubber plants. The valve can be installed as a single inline or subbase valve for point-of-use applications, or mounted on segmented manifolds for centralized applications. A variety of operators are available, from air piloted to solenoid air piloted with direct conduit connection in the valve, or in the manifolds for plug in valves. The valves are field converted from standard internal to external pilot operated service and are suitable for lubricated or non-lubricated operation. Sandwich pressure regulators and flow controls can be added to the valve stack to control air pressure and flow at each valve application.

  • Function(s): 5/2 , 5/3
  • Positions: Solenoid Air Operated
  • Manual Operator: Non-Locking and Locking Manual Overrides
  • Mounting Type: Inline, Manifold, Single Subbase
  • Port Sizes (inch): 1/4, 3/8
  • Port Type: NPT
  • Flow Min (Cv): 1.4
  • Flow Max (Cv): 1.54
  • Voltage Range: 12VDC to 120AC
  • Solenoid Connection Type(s): Inline | Conduit Manifold : Conduit to manifolds
  • Pressure Range (psig): 25 to 150
  • Pressure Range (bar): 1.5 to 10
  • Solenoid Minimum Operating Pressure (psig): 35c
  • Temperature Range (c): -7 to 60
  • Temperature Range (F): 20 to 140
  • Media: Air
  • Lubrication: Non Lube
  • Body Material: Zinc Alloy
  • Seal Material: Nitrile
  • Coil Rating: Class B
  • Unique Feature: Sandwich Regulators and Flow Controls

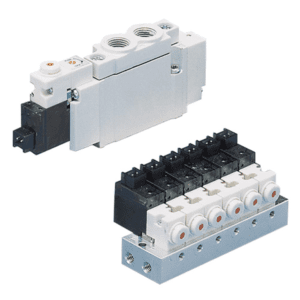

Pneumatic Manual Valve – PVL Series

Parker - Pneumatic Manual Valve - PVL Series
The PVL series valve is an internal air piloted, inline, or stacking style valve. The PVL valves can be configured as plugin or non-plugin, solenoid or air pilot actuated. M5, 1/8, 1/4, or 3/8 NPT/BSPP/Tube ports are avalable. Available valve functions are:

  • 5/2, single and double solenoid / single and double air pilot
  • 5/3, double solenoid, all ports blocked or center exhaust
  • dual, 3/2, double solenoid, NC/NC

The electrical connection options are the non-plugin 15 mm 3 pin DIN connectors wired directly to each coil, or the 25 pin Dsub collective wiring option. The air piloted connection is 5/32″ tube. The PVL series valves can be configured as inline, stacking, or with collective wiring. Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool.

  • Function(s): 5/2, 5/3
  • Operation: Solenoid Air Operated
  • Mounting Type: Stacking, Inline
  • Max Manifold Stations: 16
  • Port Sizes: M5, 1/8,” 1/4,” 3/8″
  • Port Type: BSPP, NPT, Tube
  • Flow Min (Cv): 0.6
  • Flow Max (Cv): 1.2
  • Flow (Qn) l/min: 270
  • Flow (Q Max) l/min: 1800
  • Voltage Range: 12VDC to 240VAC
  • Solenoid Connection Type(s): 15mm 3 pin DIN 43650C, 25 pin Dsub
  • Certifications/Approvals: UL, NFC 79 300, IP65
  • Pressure Range (psig): 30-150
  • Pressure Range (bar): 2-10
  • Solenoid Minumum Operating Pressure (psig): 30
  • Temperature Range (C): -15 to 60
  • Temperature Range (F): 5 to 140
  • Media: Inert gases
  • Lubrication: Pre-lubricated
  • Power Consumption: 1.2W, 1.6VA
  • Body Material: Glass Filled Polyamide
  • Seal Material: Polyurethane
Pneumatic Solenoid ISO Valve – H Series ISO 5599-1 & 5599-2 Series

Parker - Pneumatic Solenoid ISO Valve - H Series ISO 5599-1 & 5599-2 Series
The H Series ISO series valve (size 1, 2, and 3) is an internal/external air piloted subbase style valve. Available valve functions are 5/2, single and double solenoid – 5/3, all ports blocked in the center position, double solenoid. The H Series ISO size 1, 2, and 3 valves can be configured as plugin or non-plugin, and can be mounted on a stand alone subbase or on a multiple valve manifold. The size 1 has a subbase with 3/8 NPT/BSPP side ports or a manifold with 3/8 NPT/BSPP side and bottom ports. The size 2 has a subbase with 1/2 NPT/BSPP side ports and manifold options with 1/2 NPT/BSPP bottom and side ports. The size 3 has a subbase with 3/4 NPT/BSPP side ports and a manifold with 3/4 NPT/BSPP bottom and side ports.

In the case of the plugin style valve on a subbase, the wiring options are a terminal block, 6″ lead wires, 4 pin M12, or 3 pin or 5 pin mini. On a manifold, the wiring options are a terminal block or 6″ lead wires, or circuit boards in the base for collective wiring. The collective wiring options are:

  • 25 pin Dsub
  • M23 12 pin or 19 pin
  • 19 pin Brad Harrison
  • Valve driver module that connects the valve bank to an industrial network such as Ethernet I/P, Devicenet, Controlnet, Profibus, Canopen, ASi, Interbus-S, Modbus/TCP, or Profinet

In the case of the non-plugin style valve, it can be mounted on a subbase or manifold, but the coils are wired directly with cables. In the case of non-plugin, cables are wired directly to the coils with a 30mm 3 pin DIN connector (ISO 4400 DIN 43650A). The ISO size 1, 2, and 3 valves can be field converted easily from internal to external pilot supply by flipping the gasket under each coil operator. Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool. External pilot is when the valve gets its “internal” pressure from an “external pilot port” instead of the #1 port. These valves can be used with Isysnet, Turcknet, or Moduflex fieldbus.

  • Function(s): 5/2, 5/3
  • Operation: Solenoid Air Operated
  • Mounting Type: Subbase, Manifold
  • Mounting: Standard ISO 5599-1, 5599-2
  • Max Manifold Stations: 24
  • Port Sizes: 3/8,” 1/2,” 3/4″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 1.5
  • Flow Max (Cv): 6
  • Voltage Range: 24VDC to 120VAC
  • Solenoid Connection Type(s): 5599-1 : 30mm 3-pin DIN (ISO4400 form A), 5-pin Mini, 4-pin M12, 5599-2 : 25-pin D-sub, 19-pin Brad Harrison, 12-pin M23, 19-pin M23
  • Industrial Network Options: Ethernet I/P, Devicenet, Controlnet, Profibus, Canopen, ASi, Interbus-S, Modbus/TCP, Profinet
  • Certifications/Approvals: CSA/C-US, NEMA 4, IP65
  • Pressure Range (psig): VAC – 145
  • Solenoid Minimum Operating Pressure (psig): 25
  • Temperature Range (C): -15 to 49
  • Temperature Range (F): 5 to 120
  • Media: Inert gases
  • Power Consumption: 3.2W, 4.5VA
  • Body Material: Aluminum
  • Seal Material: Buna N
Pneumatic Solenoid ISO Valve – DX ISOMAX 5599-1 Series

Parker - Pneumatic Solenoid ISO Valve - DX ISOMAX 5599-1 Series
The DX ISOMAX 5599 series valve is an internal/external air piloted subbase style valve. The ISOMAX size 1, 2, and 3 valves are non-plugin only and can be mounted on a stand alone subbase or a multiple valve manifold. 1/4″, 3/8″, or 1/2″ NPT/BSPP ports are available. Available valve functions are:

  • 5/2, single solenoid, spring or air return
  • 5/2 position, double solenoid
  • 5/3, double solenoid, all ports blocked or center exhaust

Each coil is wired individually with a 30 mm 3 pin DIN connector. The DX ISOMAX series valves can be field converted from internal to external pilot supply by moving the gaskets located under the solenoid operators. Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool. External pilot is when the valve gets its “internal” pressure from an “external pilot port” instead of the #1 port. The ISOMAX valves use a ceramic seat for low friction, fast response, and resistance to contamination.

  • Function(s): 5/2, 5/3
  • Operation: Solenoid Air Operated
  • Mounting Type: Manifold, Subbase
  • Mounting: Standard ISO 5599-1
  • Max Manifold Stations: 21
  • Port Sizes: 1/4,” 3/8,” 1/2″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 0.6
  • Flow Max (Cv): 4.15
  • Flow (Qn) l/min: 1680
  • Flow (Q Max) l/min: 6540
  • Voltage Range: 24VDC to 120AC
  • Solenoid Connection Type(s): 2-pin M12, 3-pin 22mm, 3-pin 30mm
  • Certifications/Approvals: ISO 5599-1, IP65
  • Pressure Range (psig): VAC-145
  • Pressure Range (bar): -0.9-10
  • Solenoid Minumum Operating Pressure (psig): 15
  • Temperature Range (C): -10 to 60
  • Temperature Range (F): 14 to 140
  • Media: Inert gases
  • Lubrication: Self lubricating Acetal/Ceramic
  • Power Consumption: 2.7W, 3.7VA
  • Body Material: Polyamide Reinforced Fiberglass
  • Seal Material: Ceramic seat / Nitrile seals
Pneumatic Solenoid ISO Valve – DX ISOMAX 15407-1 Series

Parker - Pneumatic Solenoid ISO Valve - DX ISOMAX 15407-1 Series
The DX ISOMAX 15407 series valve is an internal/external air piloted subbase style valve. The ISOMAX size 01 and 02 valves are non-plugin only and can be mounted on a stand alone subbase or a multiple valve manifold. 1/8″ or 1/4″ NPT/BSPP ports are available. Available valve functions are:

  • 5/2, single solenoid, spring or air return
  • 5/2, double solenoid
  • 5/3 position, double solenoid, all ports blocked or center exhaust

Each coil is wired individually with a 15 mm 3 pin DIN connector. The DX ISOMAX series valves can be field converted from internal to external pilot supply by moving the gaskets located under the solenoid operators. Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool. External pilot is when the valve gets its “internal” pressure from an “external pilot port” instead of the #1 port. The ISOMAX valves use a ceramic seat for low friction, fast response, and resistance to contamination.

  • Function(s): 5/2, 5/3
  • Operation: Solenoid Air Operated
  • Mounting Type: Manifold, Subbase
  • Mounting: Standard ISO 15407-1
  • Max Manifold Stations: 32
  • Port Sizes: 1/8,” 1/4″
  • Port Type: BSPP, NPT
  • Flow Min (Cv): 0.35
  • Flow Max (Cv): 0.75
  • Flow (Qn) l/min: 720
  • Flow (Q Max) l/min: 1050
  • Voltage Range: 24VDC to 120AC
  • Solenoid Connection Type(s): 15mm 3-pin, M12
  • Certifications/Approvals: ISO 15407-1, VDMA 24563, IP65
  • Pressure Range (psig): VAC-145
  • Pressure Range (bar): -0.9-10
  • Solenoid Minimum Operating Pressure (psig): 15
  • Temperature Range (C): -10 to 60
  • Temperature Range (F): 14 to 140
  • Media: Inert gases
  • Lubrication: Self lubricating Acetal/Ceramic
  • Power Consumption: 1.2W, 1.6VA
  • Body Material: Polyamide Reinforced Fiberglass
  • Seal Material: Ceramic seat / Nitrile seals

For more information about these products…
 Download a Catalog
