A precision gantry stage or gantry system is sometimes called a linear robot or Cartesian robot. Gantry robots typically provide overhead motion in 2 or 3 linear degrees of freedom (X-Y and X-Y-Z) and are often used for pick and place applications, 3D printing or laser machining, precision handling, and electronics applications. These precision automation systems only share the name and general layout with the high load gantry cranes often used in ports for loading and unloading of cargo.

The advantage of an overhead XY gantry or XYZ gantry system, in contrast to a split bridge granite motion system or traditional XYZ linear slides or XY slide assemblies, is its ability to keep the work piece stationary and move sensors, laser heads or dispensers above the work piece. Gantry linear robots also cover a relatively large work area on a relatively small footprint. Gantry granite motion systems often include a manipulator / gripper mounted on a vertical axis.

Product Lineup

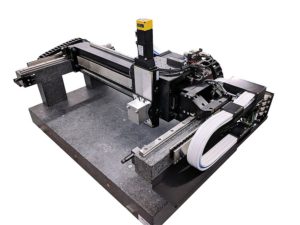

A-341 PIglide HGS Hybrid Gantry System

Physik Instrument A-341 PIglide HGS Hybrid Gantry System
Hybrid Guide Design with Air Bearings and Recirculating Ball Bearing Guides for High Precision with Low Profile.

  • Hybrid design: Gantry axis with recirculating ball bearing guides, bridge axis with air bearing
  • Absolute encoder
  • High-performance ironless linear motors
  • Various travel ranges. Options and customized adaptations
  • Flexible modular platform

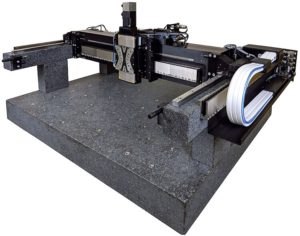

A-351 MGS Gantry System with Linear Motors

Physik Instrument A-351 MGS Gantry System with Linear Motors
Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.

  • Overhead moving XY gantry
  • Precision recirculating ball bearing guides
  • Absolute encoder
  • High-performance ironless linear motors
  • Various travel ranges. Options and customized adaptations
  • Flexible modular platform

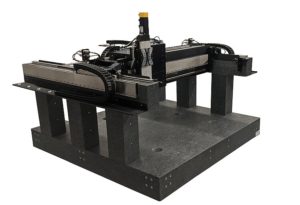

A-352 MGS Large Format Gantry System with Linear Motors

Physik Instrument A-352 MGS Large Format Gantry System with Linear Motors
Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.

  • XY gantry for overhead motion. Travel ranges to 1 m × 2 m
  • Precision recirculating ball bearing guides
  • Absolute encoder
  • High-performance ironless linear motors
  • Various travel ranges. Options and customized adaptations
  • Flexible modular platform

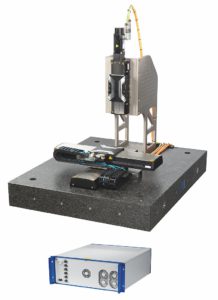

X-417 Integrated Multi-Axis System

Physik Instrument X-417 Integrated Multi-Axis System
XY(Z) Positioning System with Controller • Quickly Available

  • XY system made of two V-417 positioners, travel ranges from 204 to 407 mm
  • XYZ system with L-412 positioner as Z axis, 102 mm travel range
  • Suitable G-901 ACS controller with ACS driver module
  • Optional with granite base plate
  • Extensive accessories, software support available
