Pisco’s Vacuum Products provide a wide range of solutions for efficient material handling in automation and industrial processes. These products, including vacuum pumps, generators, and suction cups, are designed to securely grip and transport various materials, enhancing precision and reliability. Pisco’s vacuum solutions ensure strong and stable performance, making them ideal for tasks that require dependable vacuum pressure and flexibility in diverse applications.

Product Lineup

Click to Jump to:

Vacuum Generators | Vacuum Pumps | Vacuum Regulators
Vacuum Release Unit | Vacuum Filters | Vacuum Cups | Vacuum Controllers

Vacuum Generators

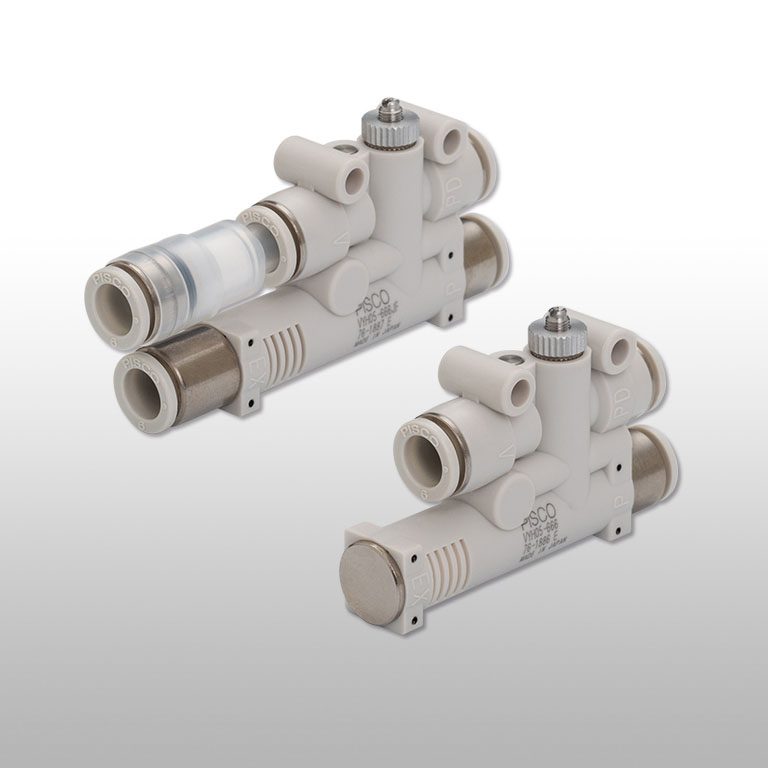

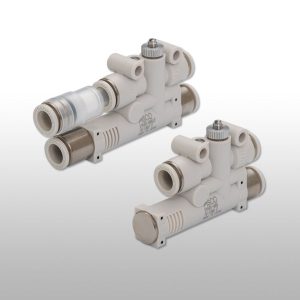

Vacuum Generator VH・VS

Pisco Vacuum Generator VH・VS
RoHS2 Compliant

Ejector with built-in push-in fitting for valve direct mounting type.

  • Fluid medium: Air
  • Operating pressure range: 0.15～0.7MPa
  • Rated supply pressure: 0.5MPa (H, L type)/0.35MPa (E type)
  • Operating temp. range: 0～60℃ (No freezing)

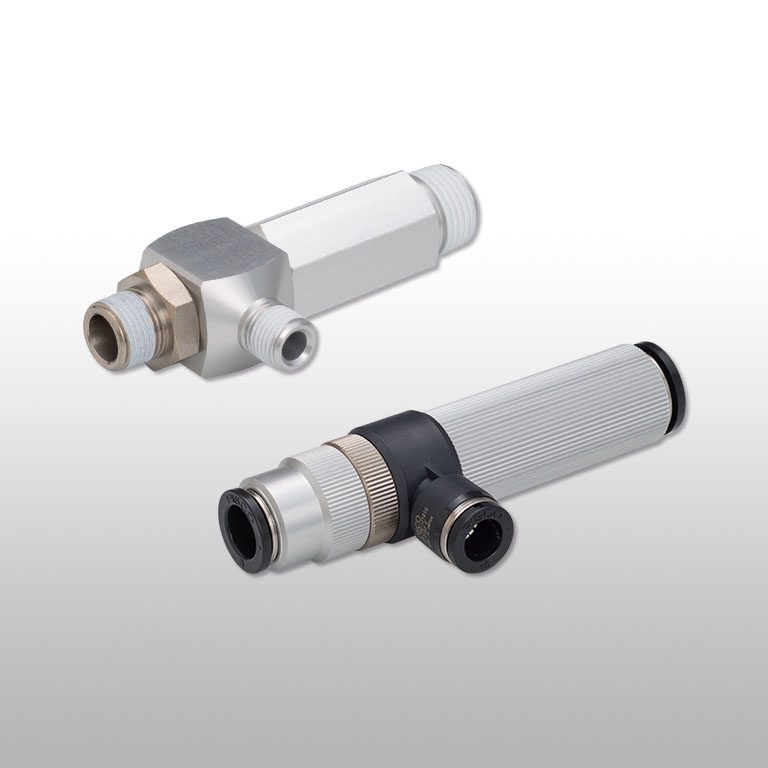

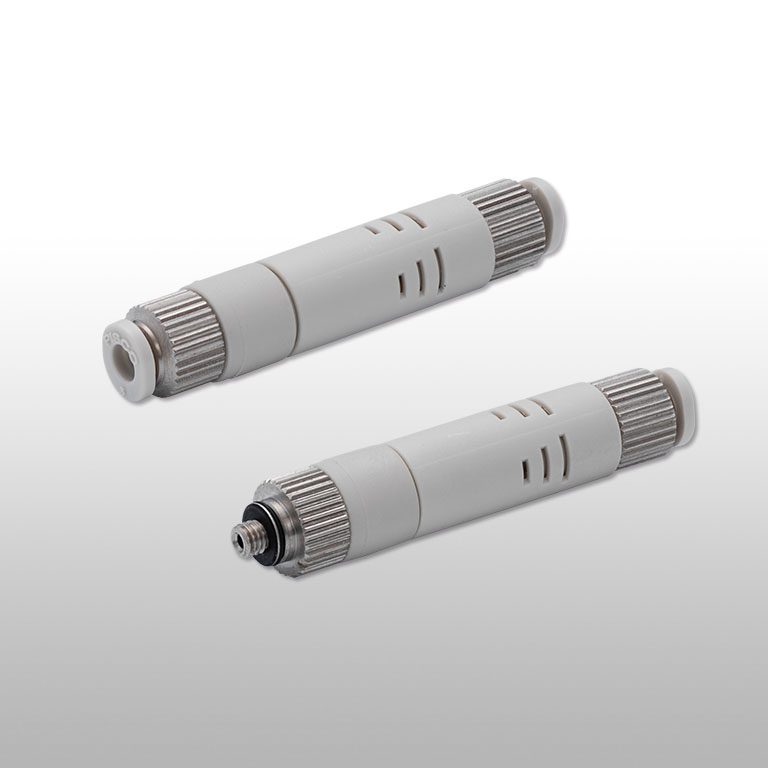

Vacuum Generator VU

Pisco Vacuum Generator VU
RoHS2 Compliant

Conversion from compressed air to vacuum is possible in one line.

  • Fluid medium: Air
  • Operating pressure range: 0.15～0.7MPa
  • Rated supply pressure: 0.5MPa (H, L type)/0.35MPa (E type)
  • Operating temp. range: 0～60℃ (No freezing)
Vacuum Generator VUM

Pisco Vacuum Generator VUM
RoHS2 Compliant

Ultra-small. Conversion from compressed air to vacuum is possible in one line.

  • Fluid medium: Air
  • Operating pressure range: 0.15～0.7MPa
  • Rated supply pressure: 0.5MPa (H, L type)/0.35MPa (E type)
  • Operating temp. range: 0～60℃ (No freezing)
Vacuum Generator VY

Pisco Vacuum Generator VY
RoHS2 Compliant

Integration of ejector and blow-off (vacuum break) functions. Great price compared to conventional vacuum generators with solenoid valve. Small size and lightweight. Installation at the end of vacuum circuit is possible.

  • Fluid medium Air (JIS B 8392-1:”Class 1.2.1～2.4.3″)
  • Operating pressure range 0.3～0.7MPa
  • Rated supply pressure 0.5MPa (H, L type)/0.35Mpa (E type)
  • Operating temp. range 5～50℃ (No freezing)
  • Refueling Not required

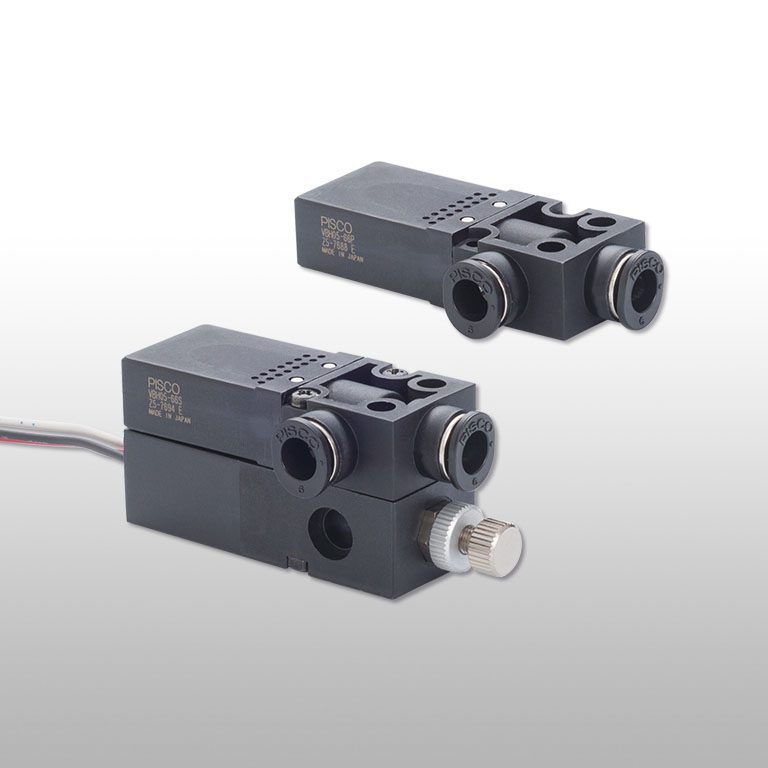

Vacuum Generator VB

Pisco Vacuum Generator VB
RoHS2 Compliant

A type integrated with a mechanical vacuum switch is available.

  • Fluid medium: Air
  • Operating pressure range: 0.15～0.7MPa
  • Rated supply pressure: 0.5MPa (H, L type)/0.35MPa (E type)
  • Operating temp. range: 0～60℃ (No freezing)

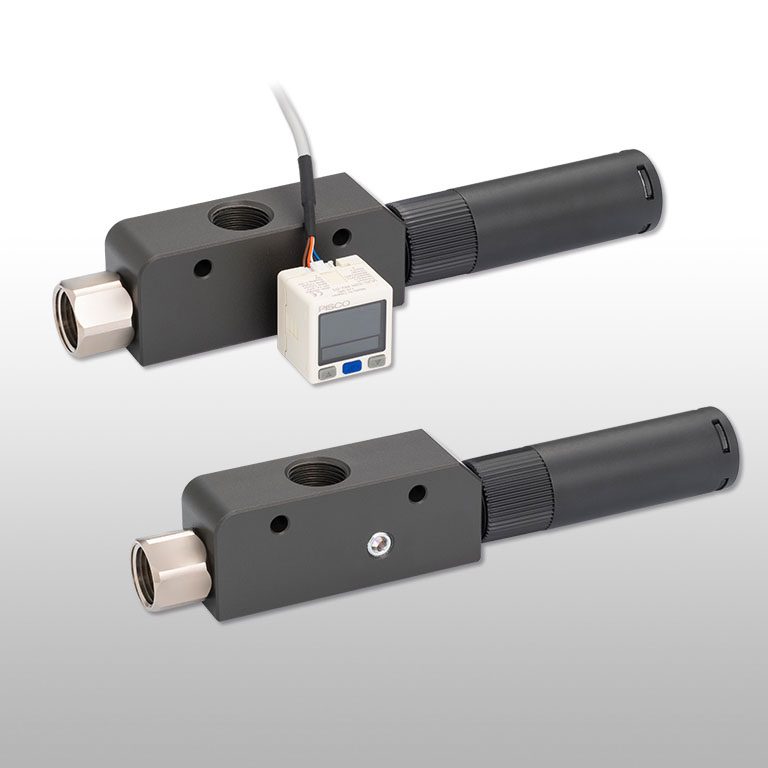

Vacuum Generator VLS

Pisco Vacuum Generator VLS
RoHS2 Compliant

Square aluminum body, adopted a cylindrical silencer with excellent silencing effect.

  • Fluid medium: Air, inert gas
  • Operating pressure range: 0.15～0.7MPa
  • Rated supply pressure: 0.5MPa
  • Operating temp. range: 0～60℃(No freezing)
Vacuum Generator VM・VC

Pisco Vacuum Generator VM・VC
RoHS2 Compliant

Ejector can be mounted directly to the pad holder of the vacuum pad.

  • Fluid medium: Air, inert gas
  • Operating pressure range: 0.15～0.7MPa
  • Rated supply pressure: 0.5MPa (H, L type)/0.35MPa (E type)
  • Operating temp. range: 0～60℃(No freezing)
Vacuum Generator VRL

Pisco Vacuum Generator VRL
RoHS2 Compliant

Carries small, irregularly shaped workpieces such as particles, powders, and fibers. The suction port and the exhaust port are located in straight line which make it possible to carry works in one line.

  • Fluid medium: Air, inert gas
  • Operating pressure range: 0～0.9MPa
  • Rated supply pressure: 0.5MPa
  • Operating temp. range: 0～60℃(No freezing)

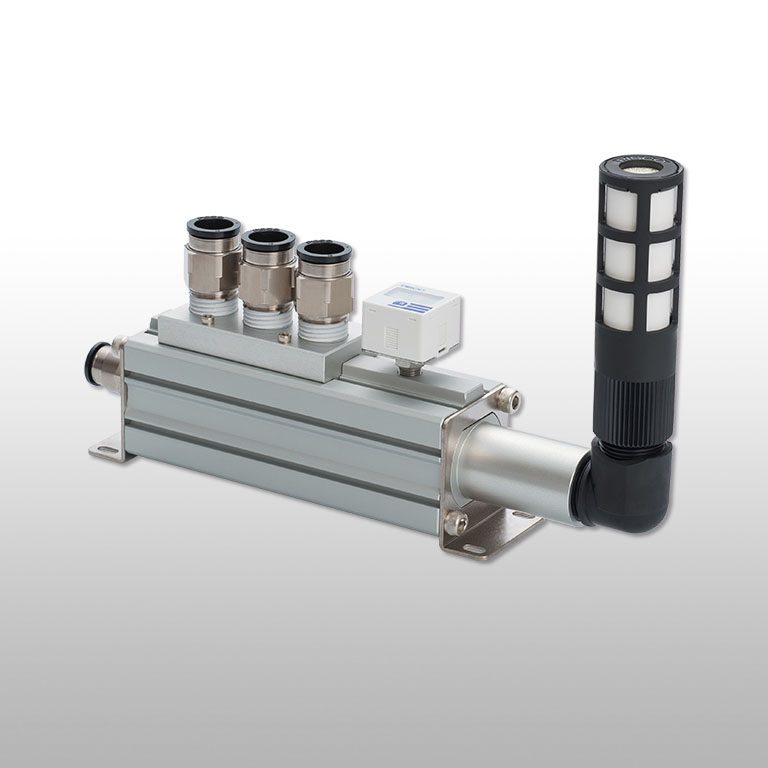

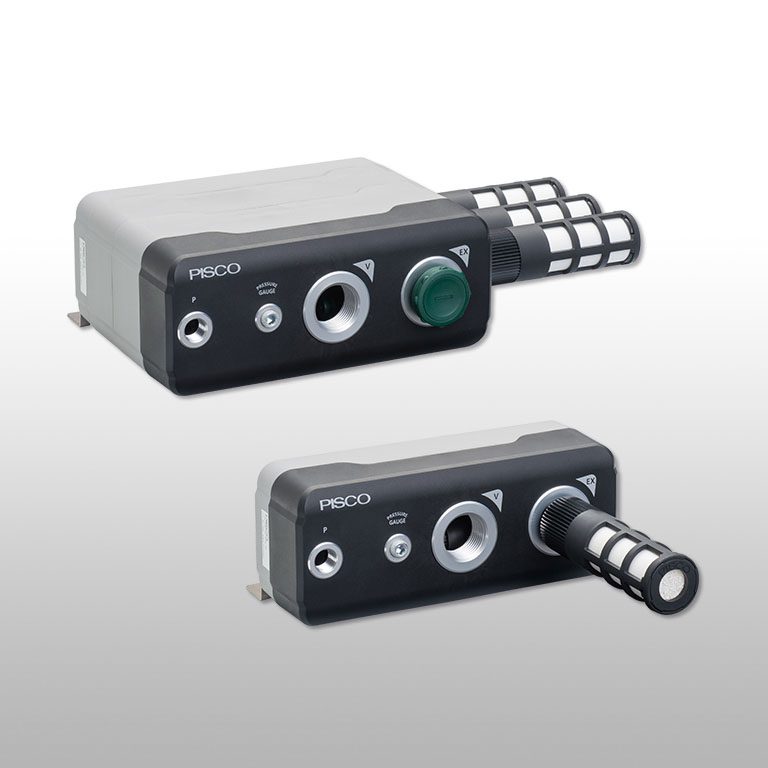

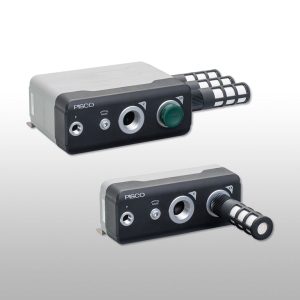

Vacuum Generator VVV

Pisco Vacuum Generator VVV
RoHS2 Compliant

  • Multi-stage nozzle ejector that high vacuum level and large suction flow rate can be obtained with low (0.35MPa) supply pressure.
  • 3 vacuum ports enable easy distribution.
  • Recommended for vacuum packaging, defoaming and deaeration as well as work adsorption transportation.
  • Best suited for large and heavy or porous workpiece in automobile industry and packaging industry, etc.
  • Easy maintenance and long life
  • Vacuum port direction can be changed.
  • Depending on the installation site, exhaust direction can be selected from straight or elbow.
  • Easy to check the vacuum level with digital pressure gauge.
  • Fluid medium: Air
  • Operating pressure range: 0.3～0.7MPa
  • Rated supply pressure: 0.35MPa
  • Operating temp. range: 5～50℃(No freezing)
Vacuum Generator VLM

Pisco Vacuum Generator VLM
RoHS2 Compliant

  • Multi layered structure.
  • Multi-stage nozzle ejector with stackable construction, ensuring a high vacuum of -94 kPa and a large suction flow of up to 1,110 l/min[ANR].
  • Suction flow can be approx. 2.2times (on average) larger than air consumption.
  • Silencer installation direction is selectable.
  • Excellent ozone resistance.
  • Fluid medium: Air, inert gas
  • Operating pressure range: 0～0.9MPa
  • Rated supply pressure: 0.5MPa
  • Operating temp. range: 5～50℃(No freezing)
  • Nozzle bore: φ1.6mm

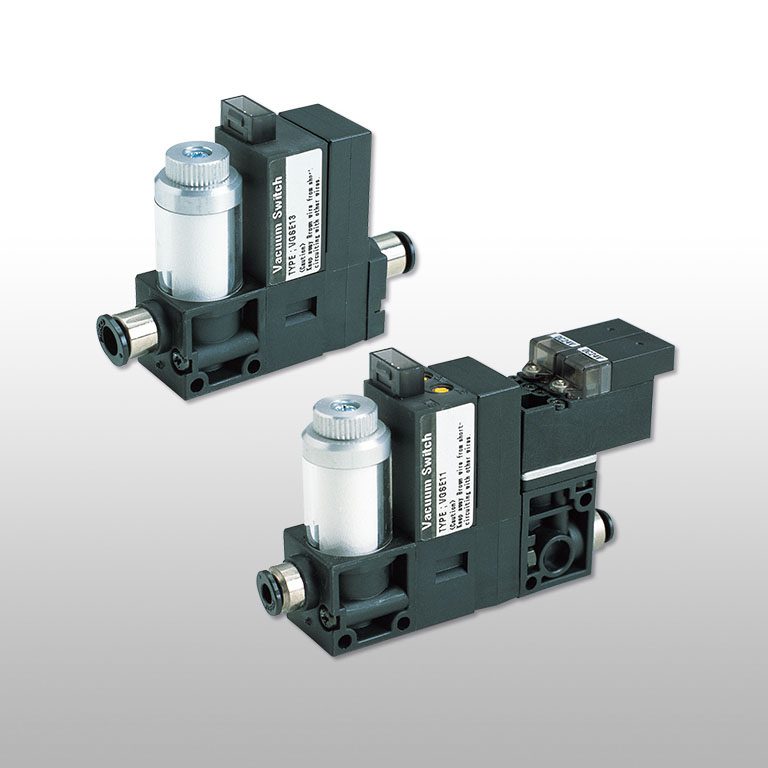

Multi-Function Vacuum Generator Module VG

Pisco Multi-function vacuum generator module VG
RoHS2 Compliant

  • Vacuum generator, air supply/blow-off solenoid valve and vacuum switch modules can be combined depending on vacuum system
  • Vacuum generator, air supply/blow-off solenoid valve and vacuum switch modules can be combined depending on vacuum system
  • Three types of vacuum switches are provided.
  • Fluid media: Air (JIS B 8392-1:Class1.2.1～2.4.3 compliant)
  • Operating pressure range: 0.25～0.7MPa
  • Operating temperature range: 5～50℃(No freezing)
  • Operating humidity range: 35～85%RH(No condensation)
  • Vibration/Impact resistance: Max. 50m/s2 / Max.150m/s2
  • Protective structure: Equivalent to IP40
  • Lubrication: Not required
  • Pressure resistance(Air supply circuit): 1.05MPa
  • Pressure resistance(Vacuum circuit): 0.2MPa

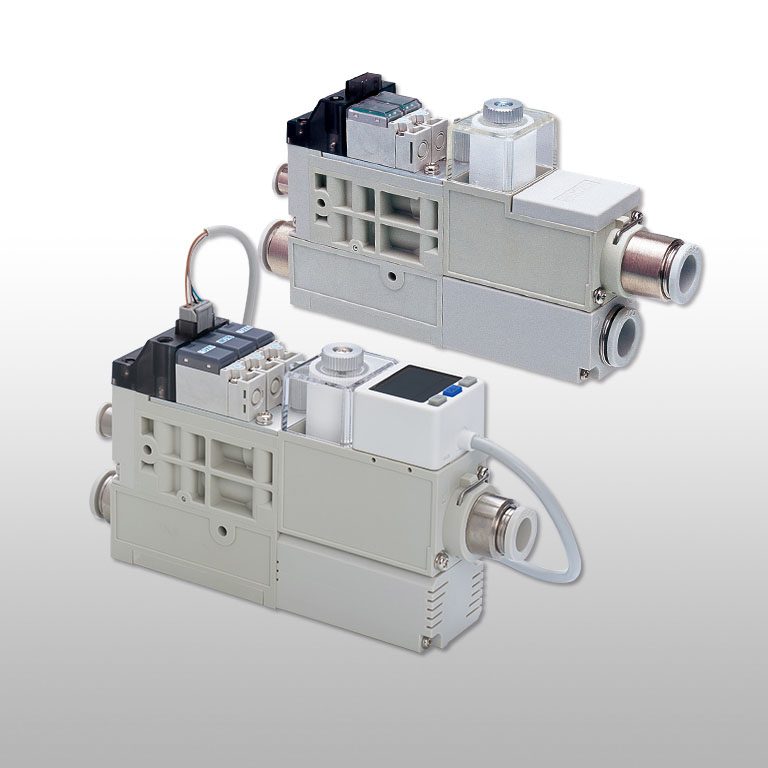

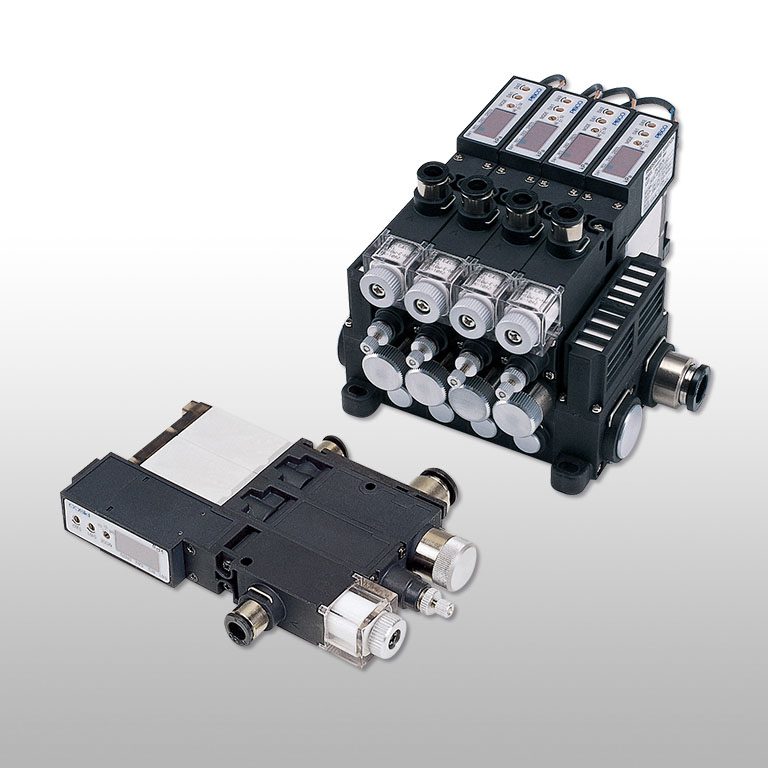

Multi-Function Vacuum Generator Module VK

Pisco Multi-Function Vacuum Generator Module VK
RoHS2 Compliant

  • Modularized unit combinations.
  • Blow-off valve is available in two types, solenod type and air timer type.
  • Blow-off unit incorporates a switchover valve which enables quicker air blow for vacuum release.
  • Manual override : push-turn locking
  • Pressure switch is available in two types, electronic sensor type with LED display and low price mechanical switch type
  • Easy to read LED display vacuum switch.
  • Two types of LED vacuum switches are available, two switch outputs, or analog & one switch output, to be selected depending on a given application.
  • 4 sizes of standard nozzle bores are provided, φ0.5mm(05), φ0.7mm(07), φ1.0mm(10) and φ1.2mm(12).
  • Fluid media: Air(JIS B 8392-1:Class1.2.1～2.4.3 compliant)
  • Operating pressure range: 0.25～0.7MPa
  • Operating temperature range: 5～50℃(No freezing)
  • Operating humidity range: 35～85%RH(No condensation)
  • Vibration/Impact resistance: Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IP40
  • Lubrication: Not required
  • Pressure resistance(Air supply circuit): 1.05MPa
  • Pressure resistance(Vacuum circuit): 0.2MPa
Multi-Function Vacuum Generator Module VJ

Pisco Multi-Function Vacuum Generator Module VJ
RoHS2 Compliant

  • Prevents works from being-blown away with newly added blow-off flow adjusting function.
  • Shorter vacuum release time.
  • Built-in relief mechanism in the blow-off circuit.
  • Supply valve is available in three different types.
  • Power saving double solenoid (retention type) is optimal for applications where vacuum is generated for a long period of time.
  • LED vacuum switch for clearer visual recognition.
  • Fluid media: Air(JIS B 8392-1:Class1.2.1～ 2.4.3 compliant)
  • Operating pressure range: 0.3～0.7MPa
  • Operating temperature range: 5～50℃(No freezing)
  • Operating humidity range: 35～85%RH(No condensation)
  • Vibration/Impact resistance: Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IP40
  • Lubrication: Not required
  • Pressure resistance(Air supply circuit): 1.05MPa
  • Pressure resistance(Vacuum circuit): 0.2MPa

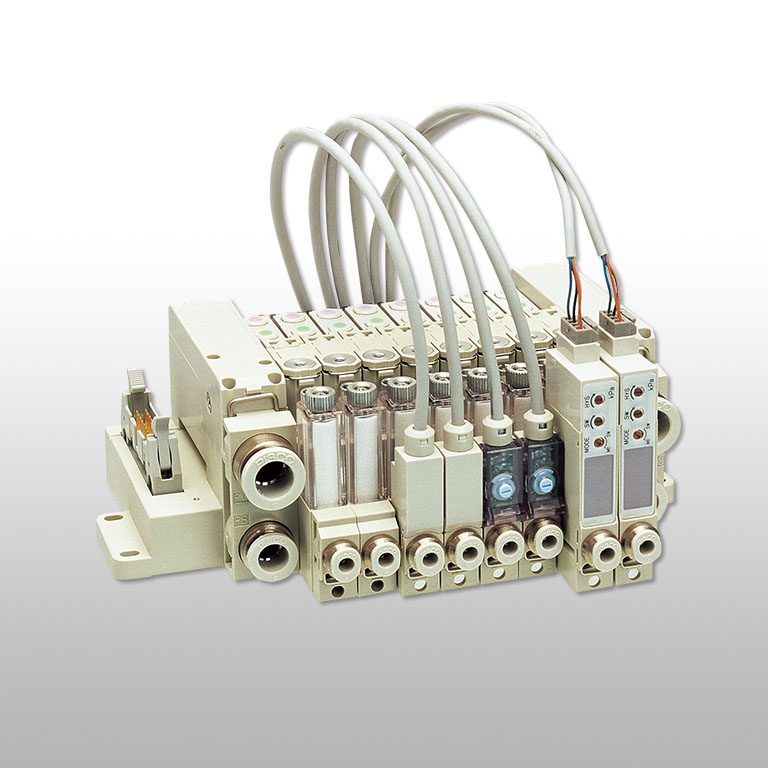

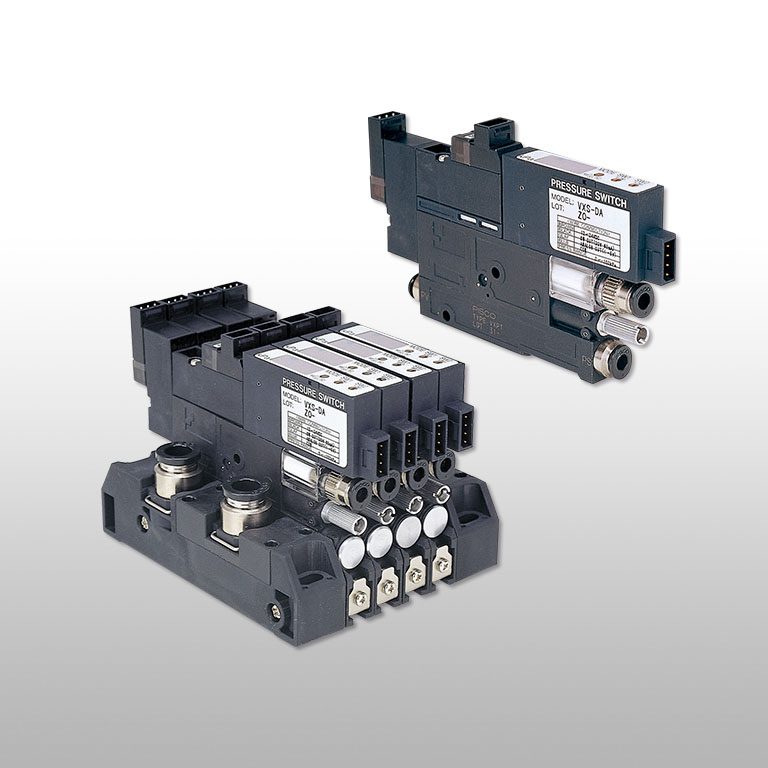

Multi-Function Vacuum Generator Module VX

Pisco Multi-function vacuum generator module VX
RoHS2 Compliant

  • High-cycle vacuum system.
  • Light weight and compact
  • 2 types of installation, direct-mounting by screw or DIN-rail mounting
  • Vacuum switch is available in three types.
  • Available in the specification for fields requiring “No copper-based metal material is used in airflow paths”and “Low-level Ozone resistance”.
  • Fluid media: Air(JIS B 8392-1:Class1.2.1～ 2.4.3 compliant)
  • Operating pressure range: 0.3～0.7MPa
  • Operating temperature range: 5～50℃(No freezing)
  • Operating humidity range: 35～85%RH(No condensation)
  • Vibration/Impact resistance: Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IP40
  • Lubrication: Not required
  • Pressure resistance(Air supply circuit): 1.05MPa
  • Pressure resistance(Vacuum circuit): 0.2MPa

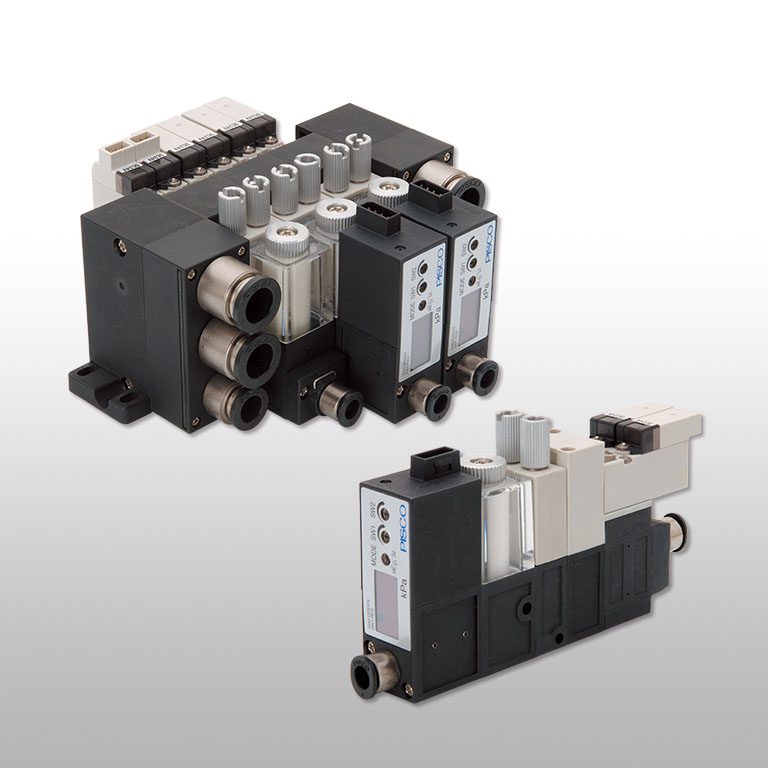

Multi-Function Vacuum Generator Module VQ

Pisco Multi-Function Vacuum Generator Module VQ
RoHS2 Compliant

  • 31.5mm wide vacuum unit is designed to optimize the control of high vacuum flows
  • Twin nozzle type is the most suitable for applications with longer suctioning time or long-distance transportation.
  • 2 Nozzle combination makes possible substantial reductions in air consumption.
  • Suction flow rate of two-stage nozzle pump is about 40% more flow than Single nozzle pump.
  • Easy-to-read dual LCD pressure switch is provided
  • Pressure outputs are indicated in two colors in the main display window.
  • Single nozzle type is available.
  • Available in the specification for fields requiring “No copper-based metal material is used in airflow paths”and “Low-level Ozone resistance”.
  • Fluid media: Air(JIS B 8392-1:Class1.2.1～ 2.4.3 compliant)
  • Operating pressure range: 0.3～0.7MPa
  • Operating temperature range: 5～50℃(No freezing)
  • Operating humidity range: 35～85%RH(No condensation)
  • Vibration/Impact resistance: Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IP40
  • Lubrication: Not required
  • Pressure resistance(Air supply circuit): 1.05MPa
  • Pressure resistance(Vacuum circuit): 0.2MPa
Multi-Function Vacuum Generator Module VZ

Pisco Multi-Function Vacuum Generator Module VZ
RoHS2 Compliant

  • Small size and lightweight
  • Built-in vent valve
  • Suction valve is offered in both single- and double -solenoid types.
  • Supply valve and blow-off valve can be powered by a single muti-pin connector.
  • Plug-in manifold with a multi-pin connector reduces wiring.
  • Power consumption of solenoid valve is reduced to 0.55W for energy savings.
  • Vacuum port size can be chosen from φ6mm, φ4mm push-in fitting and M5 female thread.
  • Fluid media: Air(JIS B 8392-1:Class1.2.1～ 2.4.3 compliant)
  • Operating pressure range: 0.3～0.7MPa
  • Operating temperature range: 5～50℃(No freezing)
  • Operating humidity range: 35～85%RH(No condensation)
  • Vibration/Impact resistance: Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IP40
  • Lubrication: Not required
  • Pressure resistance(Air supply circuit): 1.05MPa
  • Pressure resistance(Vacuum circuit): 0.2MPa

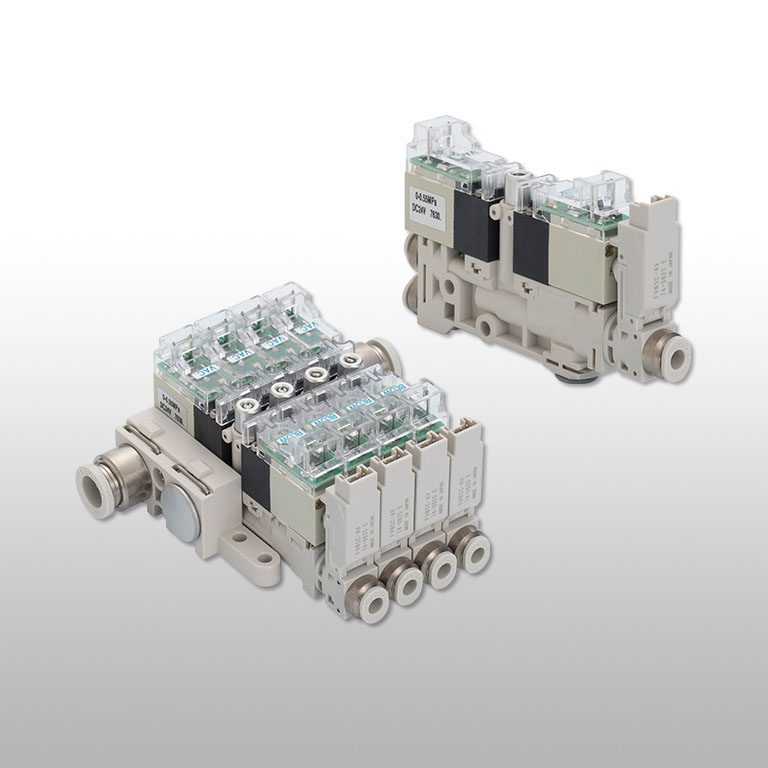

Multi-Function Vacuum Generator Module VN

Pisco Multi-Function Vacuum Generator Module VN
RoHS2 Compliant

  • Equipped with direct-operated solenoid valves
  • Small size and lightweight
  • High speed, yet stable respons (ON/OFF=Max. 5msec)
  • Direct operated solenoid valve used for the main valve.
  • A dedicated blow-off air supply port is provided as configuration option, which enables pressure control by an external pressure regulator for fine-adjusted puff-air delivery.
  • Common supply port type is also available.
  • Supply pressure: 0.5MPa
  • Two types of analog output sensor switches and four types of LED display sensors are offered. Digital indicator is provided as option for an analog type of sensor.
  • Fluid media: Air(JIS B 8392-1:Class1.2.1～ 2.4.3 compliant)
  • Operating pressure range: 0～0.55MPa
  • Operating temperature range: 5～50℃(No freezing)
  • Operating humidity range: 35～85%RH(No condensation)
  • Vibration/Impact resistance: Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IP40
  • Lubrication: Not required
  • Pressure resistance(Air supply circuit): .85MPa
  • Pressure resistance(Vacuum circuit): 0.2MPa

Vacuum Pumps

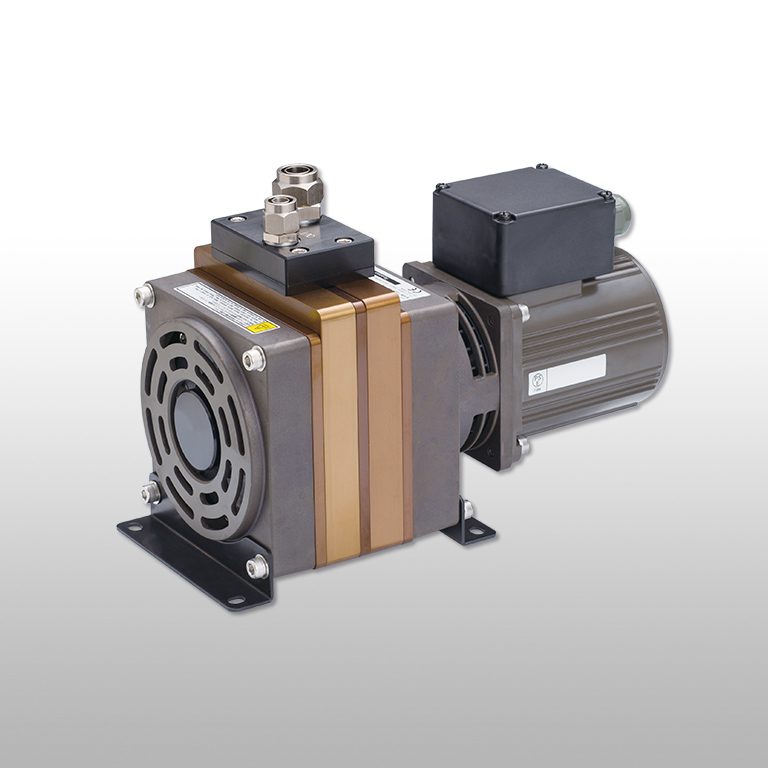

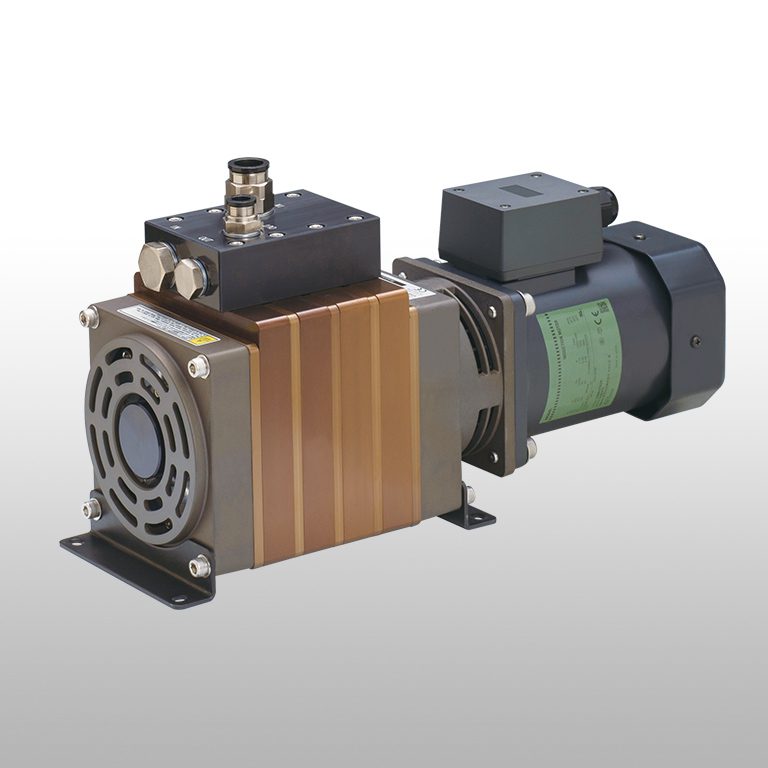

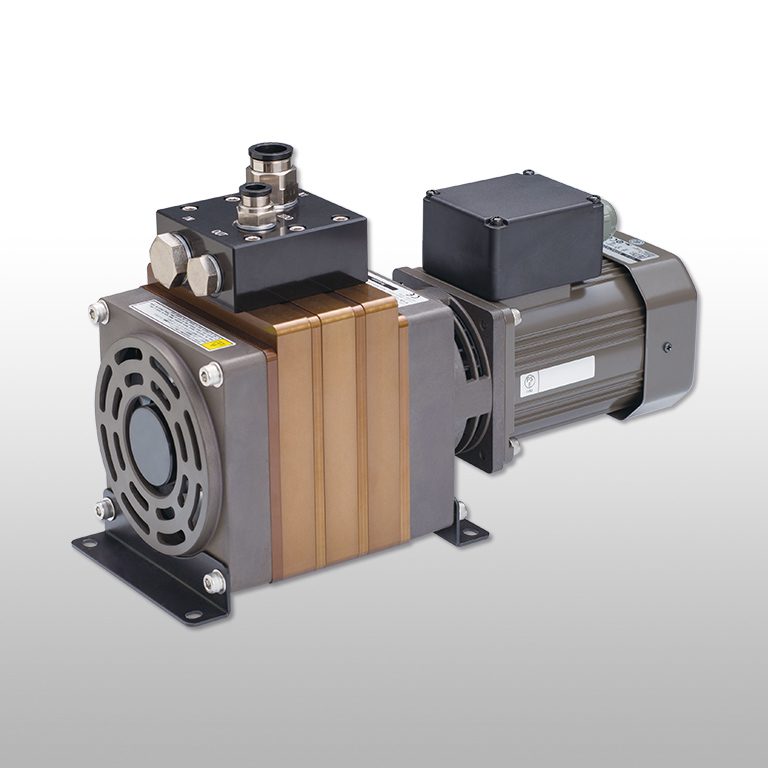

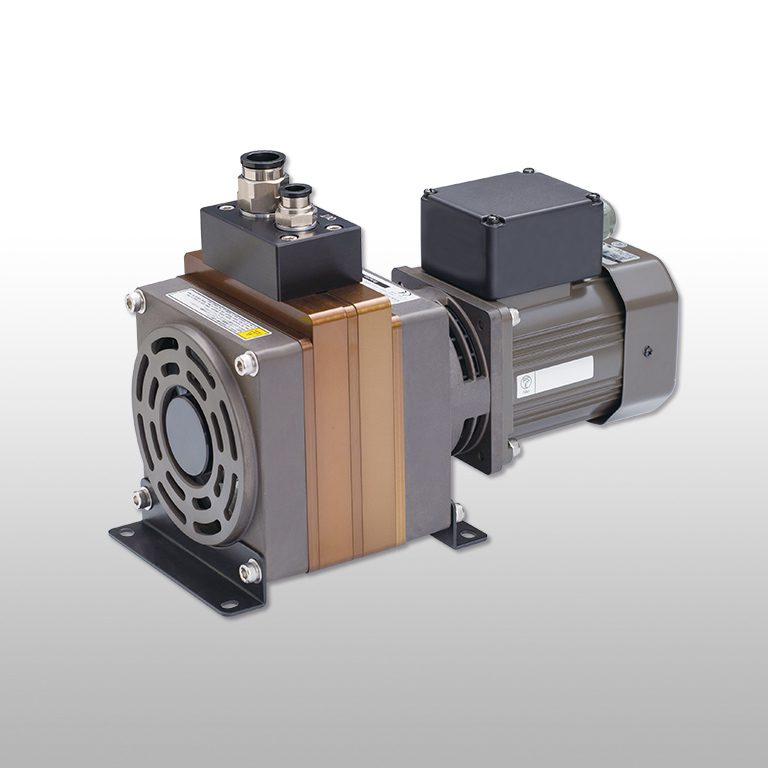

Rotary Vacuum Pump RPV06A Medium vacuum, 30L

Pisco Rotary Vacuum Pump RPV06A Medium vacuum, 30L
RoHS2 Compliant
Options:

  • 3 phase motor
  • single phase 100/115VAC motor
  • single phase 100VAC motor
  • single phase 100VAC motor with a built-in power switch
  • Energy saving
  • Light weight and compact
  • Space saving
  • Low driving noise and vibration
  • Low heat generation
  • Long life
  • High durability and wear resistance
  • Low dust generation
  • No. of cylinders: Twin (2)
  • Cylinder layout: In-line
  • Pumping speed: (L/min) 30(50Hz)/36(60Hz)
  • Final vacuum: (Pa abs) ≦350(50Hz)/≦300(60Hz)
  • Final vacuum: (kPa G) ≦-100.95(50Hz)/≦-101.0(60Hz)
  • Max. suction pressure: Atmospheric pressure
  • Ambient temperature (indoor)(℃): 5～40
  • Ambient humidity (indoor): Max. 85%RH (No dew condensation)
  • Gas (inhaled gas): No corrosive or exposable gas
  • Vibration of installation site: Max. 4.9m/s2(10～60㎐)
  • Altitude of installation site: 1000m ASL or less
  • Install orientation: Motor axis to be horizontal
  • Operation noise (dB(A))(*2) ≦58(50Hz)/≦63(60Hz)
  • Vacuum port size G3/8
  • Exhaust port size G1/4
Rotary Vacuum Pump RPV062 Low Vacuum, 60L

Pisco Rotary Vacuum Pump RPV062 Low Vacuum, 60L
RoHS2 Compliant
Options:

  • 3 phase motor
  • single phase 100/115VAC motor
  • single phase 100VAC motor
  • single phase 100VAC motor with a built-in power switch
  • Energy saving
  • Light weight and compact
  • Low driving noise and vibration
  • Low heat generation
  • Long life
  • Low dust generation
  • No. of cylinders: Twin (2)
  • Cylinder layout: Parallel
  • Pumping speed: (L/min) 60(50Hz)/72(60Hz)
  • Final vacuum: (Pa abs) ≦3500(50Hz)/≦3000(60Hz)
  • Final vacuum: (kPa G) ≦-97.8(50Hz)/≦-98.3(60Hz)
  • Max. suction pressure: Atmospheric pressure
  • Ambient temperature (indoor)(℃): 5～40
  • Ambient humidity (indoor): Max. 85%RH (No dew condensation)
  • Gas (inhaled gas): No corrosive or exposable gas
  • Vibration of installation site: Max. 4.9m/s2(10～60㎐)
  • Altitude of installation site: 1000m ASL or less
  • Install orientation: Motor axis to be horizontal
  • Operation noise (dB(A))(*2) ≦58(50Hz)/≦63(60Hz)
  • Vacuum port size G1/2
  • Exhaust port size G3/8
Rotary Vacuum Pump RPV063 Low vacuum, 90L

Pisco Rotary Vacuum Pump RPV063 Low vacuum, 90L
RoHS2 Compliant

  • Energy saving
  • Light weight and compact
  • Low driving noise and vibration
  • Low heat generation
  • Long life
  • Low dust generation
  • No. of cylinders: Triple (3)
  • Cylinder layout: Parallel
  • Pumping speed: (L/min) 90(50Hz)/108(60Hz)
  • Final vacuum: (Pa abs) ≦3500(50Hz)/≦3000(60Hz)
  • Final vacuum: (kPa G) ≦-97.8(50Hz)/≦-98.3(60Hz)
  • Max. suction pressure: Atmospheric pressure
  • Ambient temperature (indoor)(℃): 5～40
  • Ambient humidity (indoor): Max. 85%RH (No dew condensation)
  • Gas (inhaled gas): No corrosive or exposable gas
  • Vibration of installation site: Max. 4.9m/s2(10～60㎐)
  • Altitude of installation site: 1000m ASL or less
  • Install orientation: Motor axis to be horizontal
  • Operation noise (dB(A))(*2) ≦58(50Hz)/≦63(60Hz)
  • Vacuum port size G1/2
  • Exhaust port size G3/8
Rotary Vacuum Pump RPV064 Low Vacuum, 120L

Pisco Rotary Vacuum Pump RPV064 Low vacuum, 120L type
RoHS2 Compliant

  • Energy saving
  • Light weight and compact
  • Low driving noise and vibration
  • Low heat generation
  • Long life
  • Low dust generation
  • No. of cylinders: Quad (4)
  • Cylinder layout: Parallel
  • Pumping speed: (L/min) 120(50Hz)/144(60Hz)
  • Final vacuum: (Pa abs) ≦3500(50Hz)/≦3000(60Hz)
  • Final vacuum: (kPa G) ≦-97.8(50Hz)/≦-98.3(60Hz)
  • Max. suction pressure: Atmospheric pressure
  • Ambient temperature (indoor)(℃): 5～40
  • Ambient humidity (indoor): Max. 85%RH (No dew condensation)
  • Gas (inhaled gas): No corrosive or exposable gas
  • Vibration of installation site: Max. 4.9m/s2(10～60㎐)
  • Altitude of installation site: 1000m ASL or less
  • Install orientation: Motor axis to be horizontal
  • Operation noise (dB(A))(*2) ≦58(50Hz)/≦63(60Hz)
  • Vacuum port size G1/2
  • Exhaust port size G3/8

Vacuum Regulators

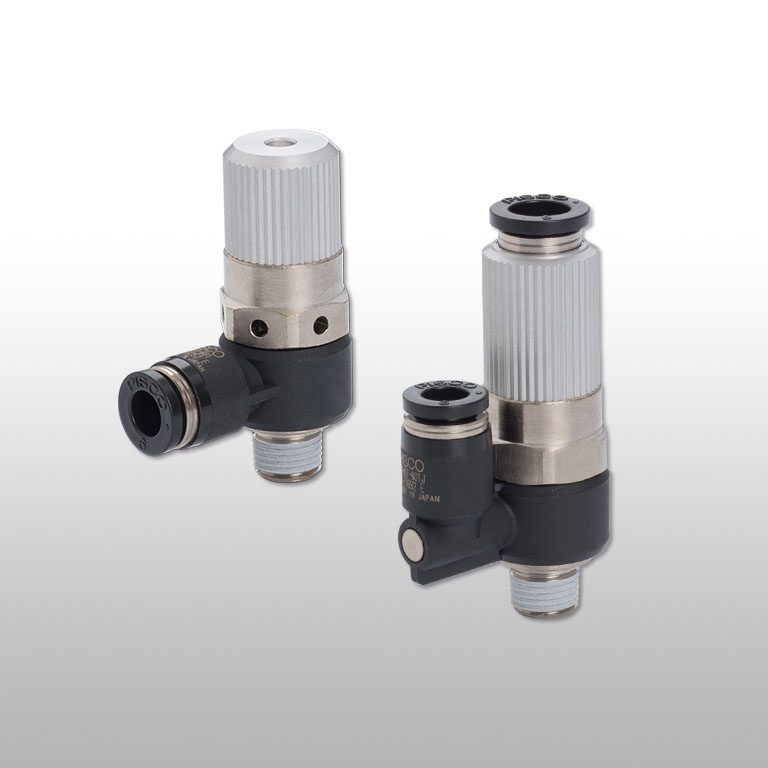

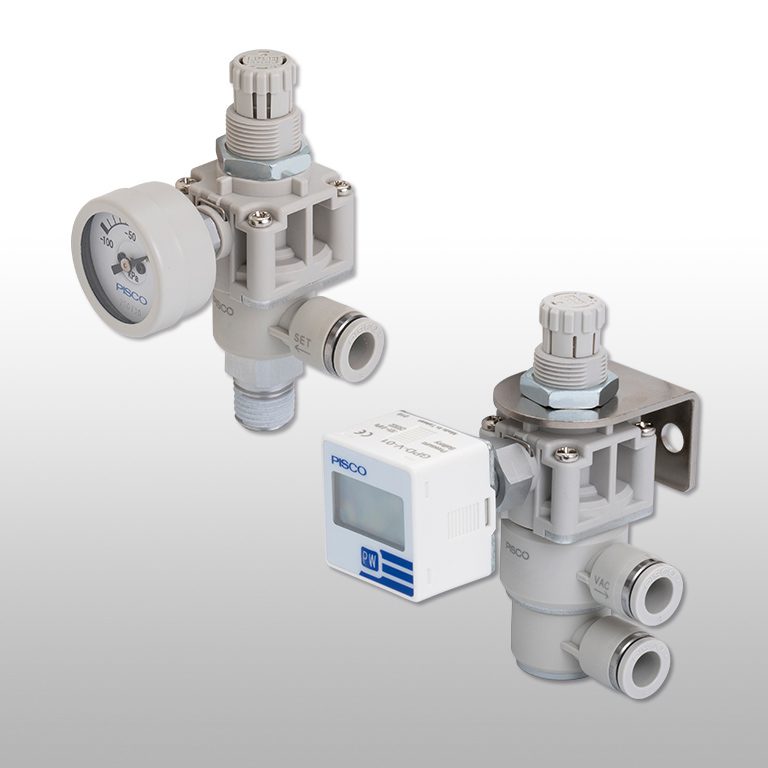

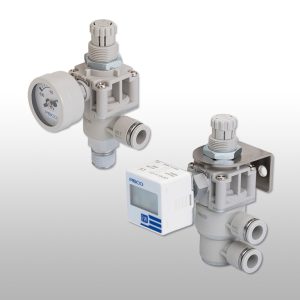

Vacuum Regulator Push-lock type

Pisco Vacuum Regulator Push-lock type
RoHS2 Compliant

  • Push-lock knob for easy pressure adjustment
  • 50% lighter
  • Available for fields requiring “No copper-based metal material is used in airflow paths” and “Low-level Ozone resistance”
  • Lead-out directions are adjustable by rotating the fitting part individually
  • Recommended for control of source pressure. Terminal pressure also can be controlled.
  • Fluid medium: Air
  • Operating pressure range: -100～100kPa/-100～0kPa
  • Setting Pressure range: -100～-1.3kPa
  • Max. suction flow rate: 30L/min[ANR]
  • Operating temp. range: 0～50℃/0～40℃(No freezing)

Vacuum Release Units

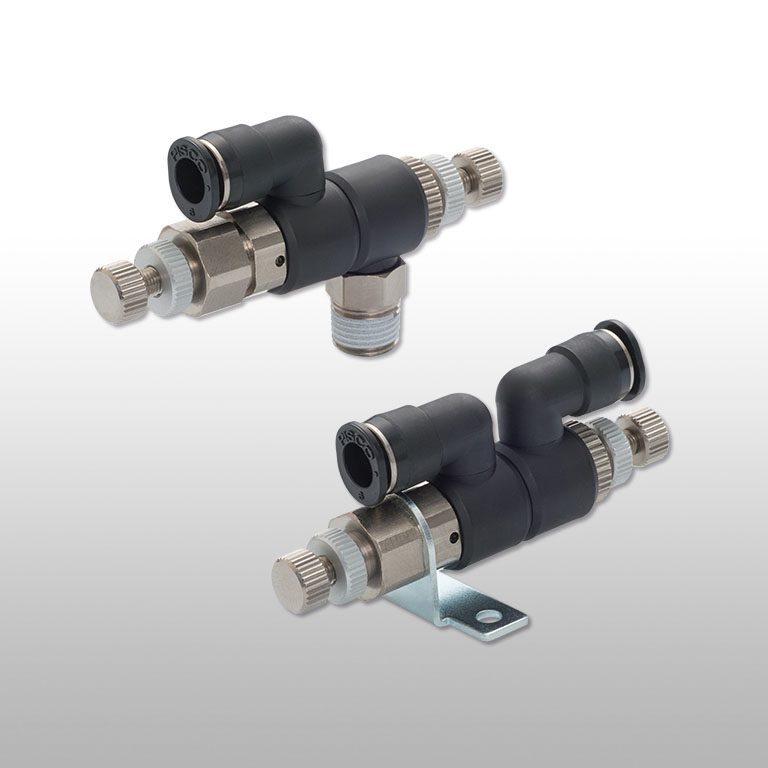

Vacuum Release Unit

Pisco Vacuum Release Unit
RoHS2 Compliant

  • Adjusts the vacuum release air while retaining vacuum generators’ vacuum characteristics
  • Pressure adjusting combined with flow adjusting
  • Relief mechanism built into the circuit breaks vacuum, shortening vacuum release time
  • Tubes can be taken out freely in any direction by rotating resin body and joint parts
  • Fluid medium: Air
  • Operating pressure range: 0～.7MPa
  • Setting Pressure range: -0.015～0.015MPa
  • Operating vacuum pressure: 0～-101kPa
  • Operating temp. range: 0～60℃(No freezing)

Vacuum Filters

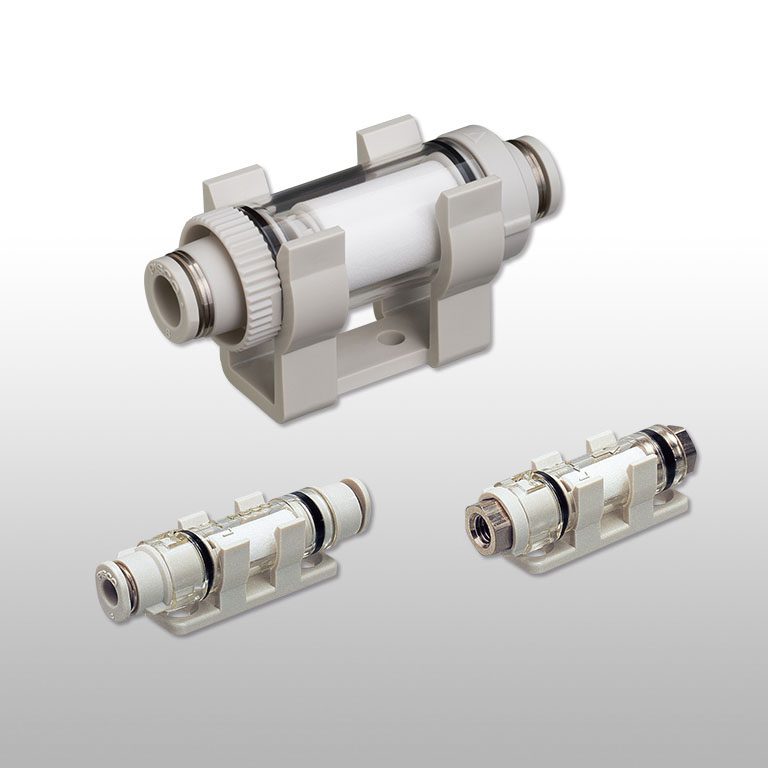

Vacuum Filter VFU

Pisco Vacuum Filter VFU
RoHS2 Compliant

  • Union type Vacuum Filter
  • Small vacuum filter is suitable for a high-cycle vacuum operation
  • 2 options of element size depending on dust size or exchange period of the element
  • Available for fields requiring “No copper-based metal material is used in airflow paths” and “Low-level Ozone resistance”
  • Fluid medium: Air
  • Operating pressure range: -100～0kPa
  • Filtering accuracy(*1): 5μm (Trapping efficiency : 95%)
  • Operating temp. range: 0～60℃(No freezing)

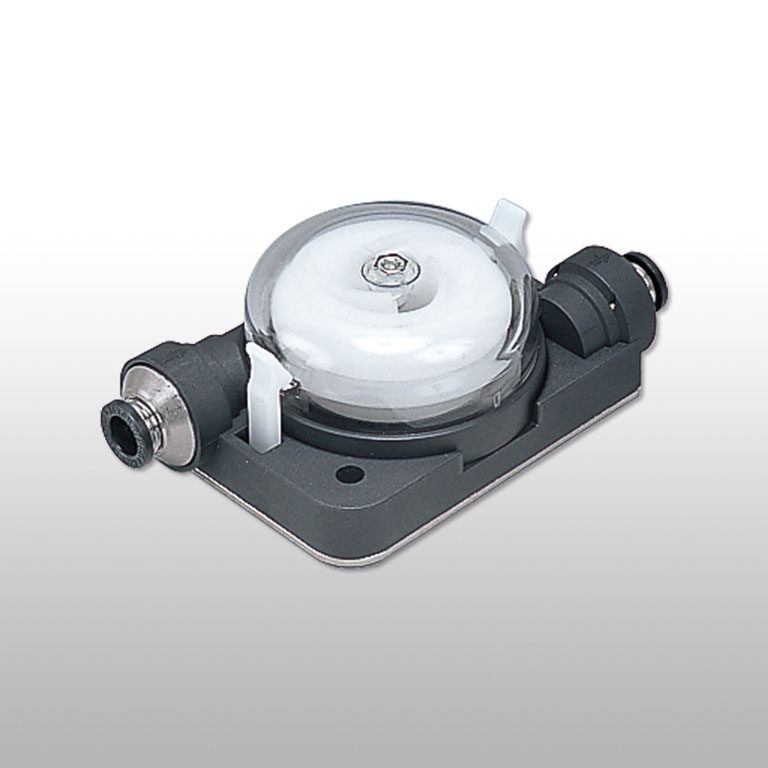

Vacuum Filter VFB

Pisco Vacuum Filter VFB
RoHS2 Compliant

  • Removes the dust and water drops sucked in by the Vacuum Generator using the element and cyclone effect
  • Easy Cleanup
  • Fluid medium: Air
  • Operating pressure range: -100～0kPa
  • Filtering accuracy(*1): 10μm
  • Operating temp. range: 0～60℃(No freezing)
  • Filter Area: 20cm2

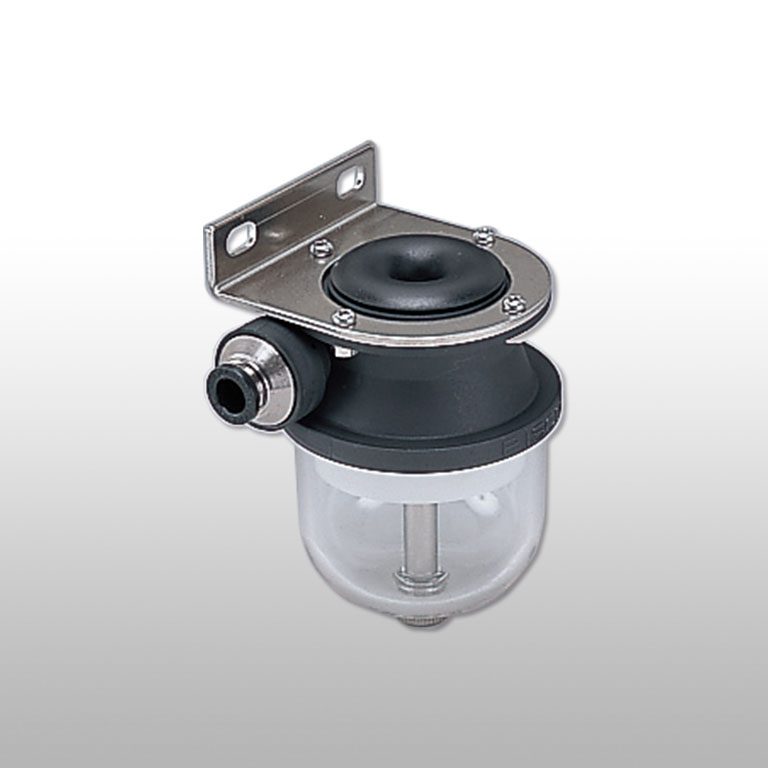

Vacuum Filter VFR

Pisco Vacuum Filter VFR
RoHS2 Compliant

  • Removes the dust and water drops sucked in by the Vacuum Generator using the element and cyclone effect
  • large dust case reduces maintenance frequency
  • Fluid medium: Air
  • Operating pressure range: -100～0kPa
  • Filtering accuracy(*1): 10μm
  • Operating temp. range: 0～60℃(No freezing)
  • Filter Area: 20cm2
Vacuum Filter VFJ

Pisco Vacuum Filter VFJ
RoHS2 Compliant

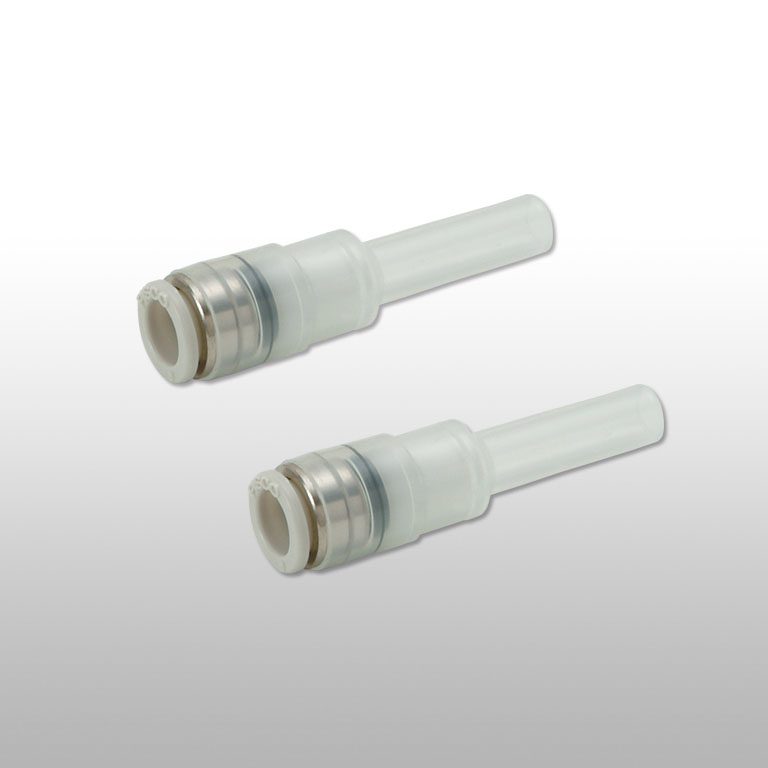

  • Integrated plug-in filter and union fitting
  • Fluid medium: Air
  • Operating pressure range: -100～0kPa
  • Filtering accuracy(*1): 5μm
  • Operating temp. range: 0～60℃(No freezing)
  • Filter Area: 0.8cm2 *1/1.1cm2 *2

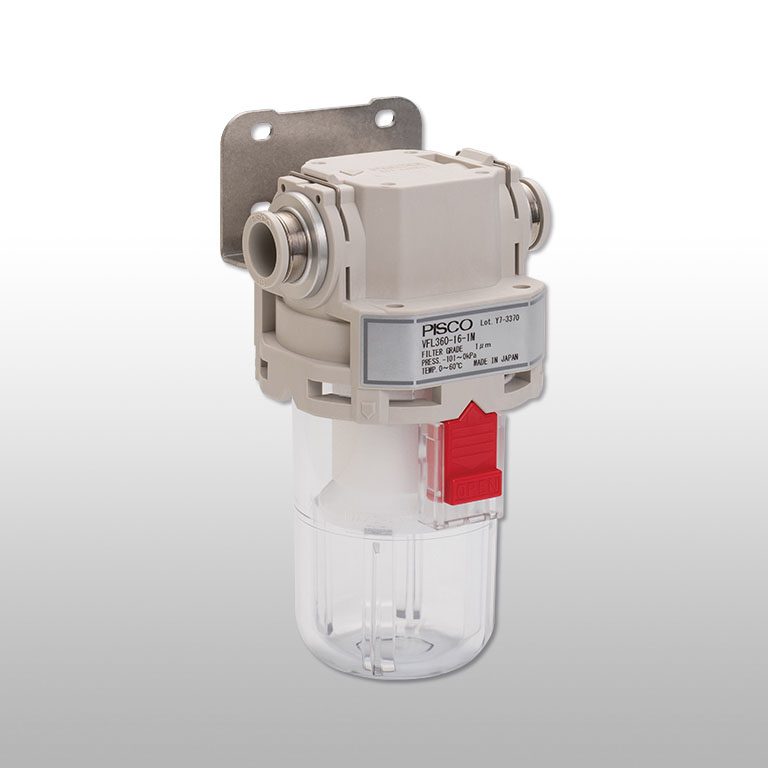

Vacuum Filter VFL

Pisco Vacuum Filter VFL
RoHS2 Compliant

  • Large Flow Vacuum Filter – Flow rate : 360L/min[ANR]
  • 4 filtration accuracy options – 1μm, 5μm, 10μm, 200μm
  • 3 connection types options – Taper pipe female thread, Parallel pipe female thread and Push-in fitting are available
  • Light weight resin body
  • Operating pressure range -101～0kPa
  • Filtering accuracy(*1): 1,5,10,200μm (Trapping efficiency : 95%)
  • Operating temp. range: 0～60℃(No freezing)
  • Filter area: 64.4cm2
  • Processing flow rate(*2): 360L/min[ANR]
  • Bowl capacity: 90cm3
  • Blow-off pressure(*3): 0.1MPa or less

Vacuum Cups

See End-Of-Arm Tooling

Vacuum Controllers

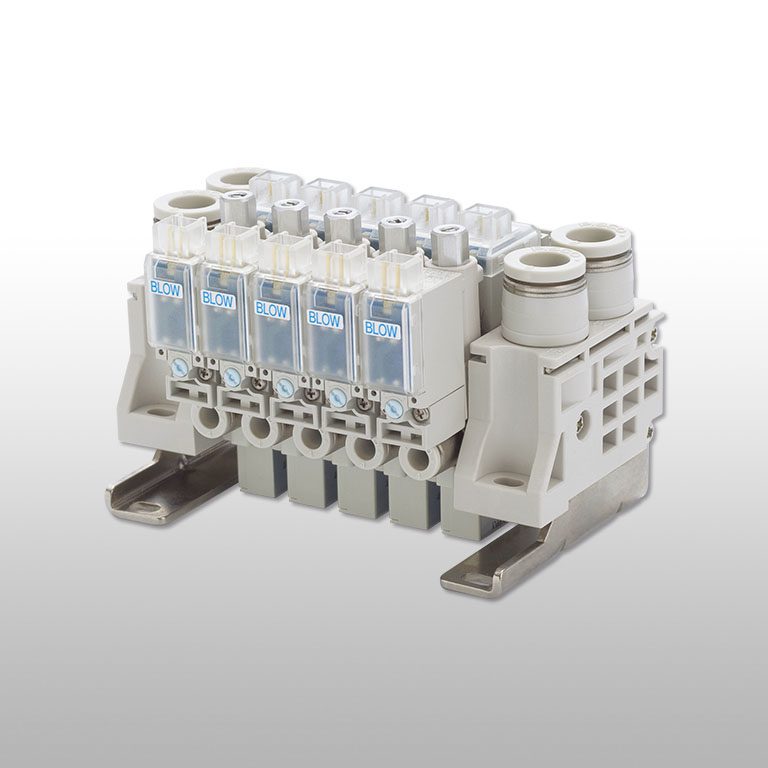

External Vacuum Controller VJP

Pisco External Vacuum Controller VJP
RoHS2 Compliant

  • Pressure adjusting blow-off
  • Shortened of blow-off time
  • Blow-off circuit includes relief mechanism
  • Supply valves are available in three different types
  • Improved visibility via LED display
  • Fluid medium: Air (JIS B 8392-1:Class1.2.1～2.4.3 compliant)
  • Operating pressure range: 0.3～0.7MPa
  • Working vacuum range: -100～0kPa
  • Operating temp. range: 5～50℃ (No freezing)
  • Operating humidity range: 35～85%RH (No dew condensation)
  • Vibration/Impact resistance” Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IEC IP40
  • Lubrication: Not required
  • Proof pressure (Air supply circuit): 1.05MPa
  • Proof pressure (Vacuum circuit): 0.2MPa

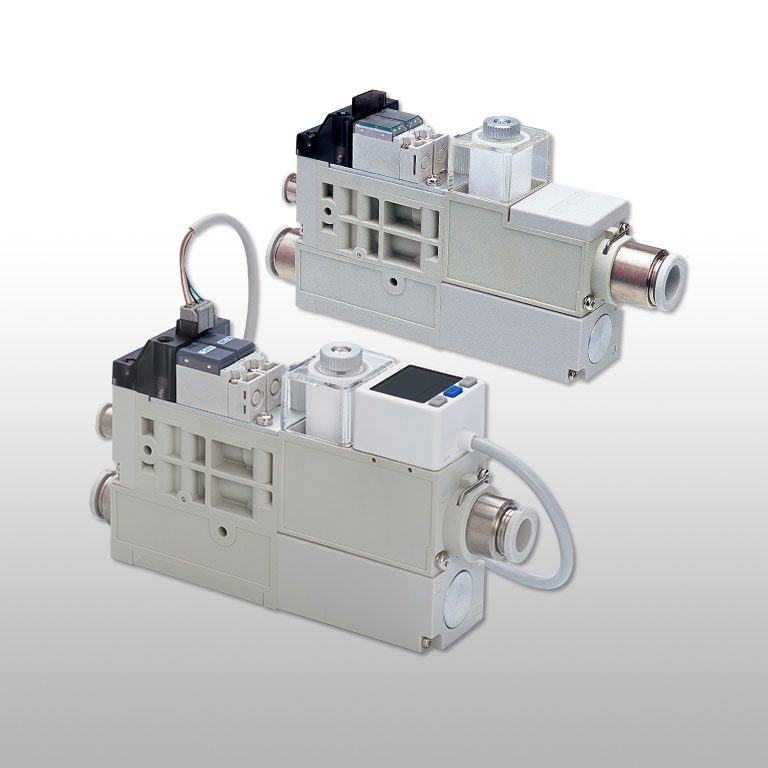

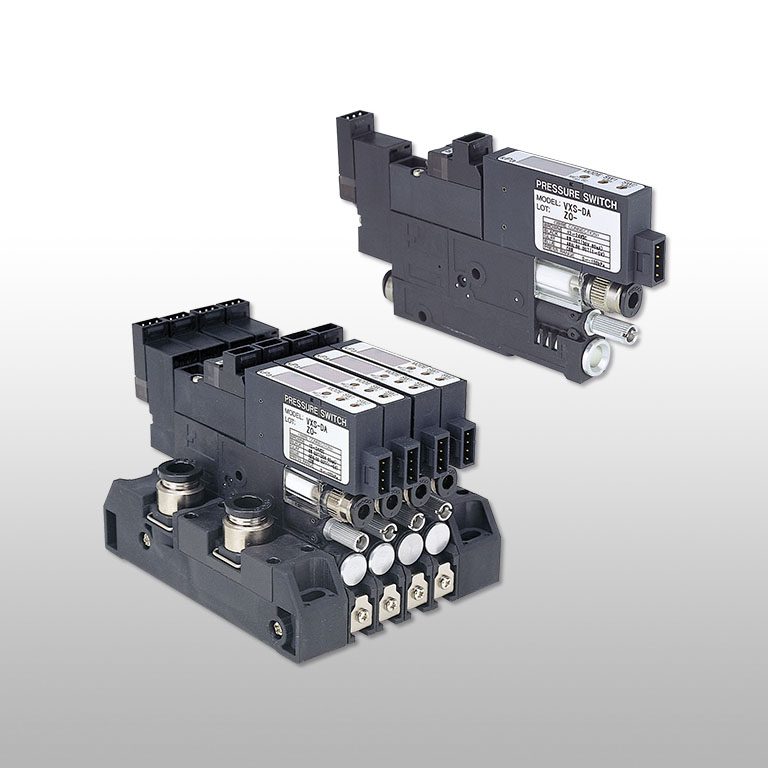

External Vacuum Controller VXP & VXPT

Pisco External Vacuum Controller VXP & VXPT
RoHS2 Compliant

  • Response of supply valve is maximized for high-cycle vacuum system
  • Three-way vacuum supply main valve – vacuum release time is drastically shortened
  • Light weight and compact
  • Two types of vacuum switch are available
  • Two types of installation are available
  • Available in the specification for fields requiring “No copper-based metal material is used in airflow paths”and “Low-level Ozone resistance”
  • Fluid medium: Air (JIS B 8392-1:Class1.2.1～2.4.3 compliant)
  • Operating pressure range: 0.3～0.7MPa
  • Working vacuum range: -100～0kPa
  • Operating temp. range: 5～50℃ (No freezing)
  • Operating humidity range: 35～85%RH (No dew condensation)
  • Vibration/Impact resistance” Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IEC IP40
  • Lubrication: Not required
  • Proof pressure (Air supply circuit): 1.05MPa
  • Proof pressure (Vacuum circuit): 0.2MPa
External Vacuum Controller VQP

Pisco External Vacuum Controller VQP
RoHS2 Compliant

  • 31.5mm wide vacuum unit is designed to optimize the control of large vacuum flows
  • Normally closed type and Normally open type available
  • Easily viewable LCD dual display pressure sensor
  • Available in the specification for fields requiring “No copper-based metal material is used in airflow paths”and “Low-level Ozone resistance”
  • Fluid medium: Air (JIS B 8392-1:Class1.2.1～2.4.3 compliant)
  • Operating pressure range: 0.3～0.7MPa
  • Working vacuum range: -100～0kPa
  • Operating temp. range: 5～50℃ (No freezing)
  • Operating humidity range: 35～85%RH (No dew condensation)
  • Vibration/Impact resistance” Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IEC IP40
  • Lubrication: Not required
  • Proof pressure (Air supply circuit): 1.05MPa
  • Proof pressure (Vacuum circuit): 0.2MPa

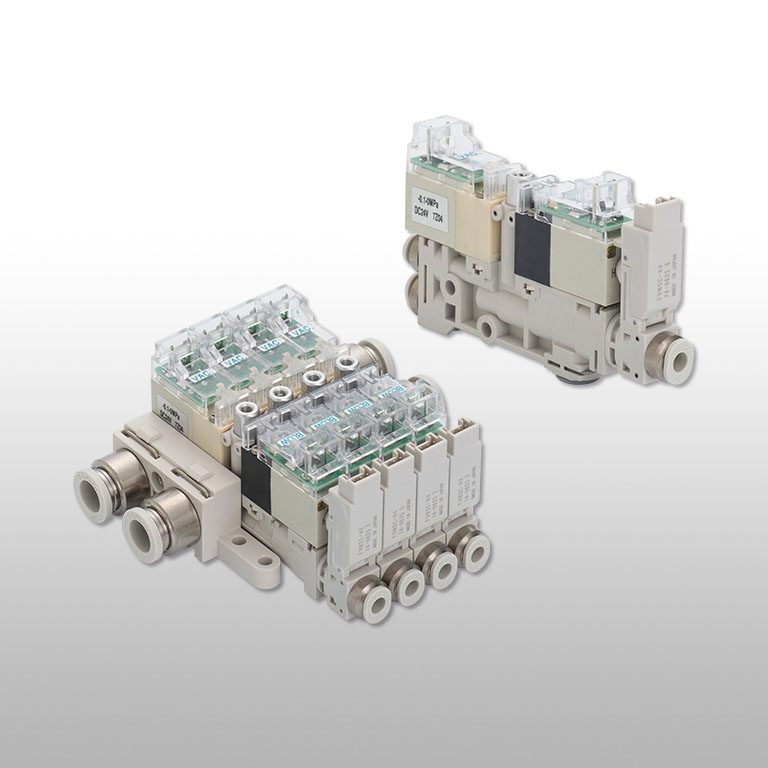

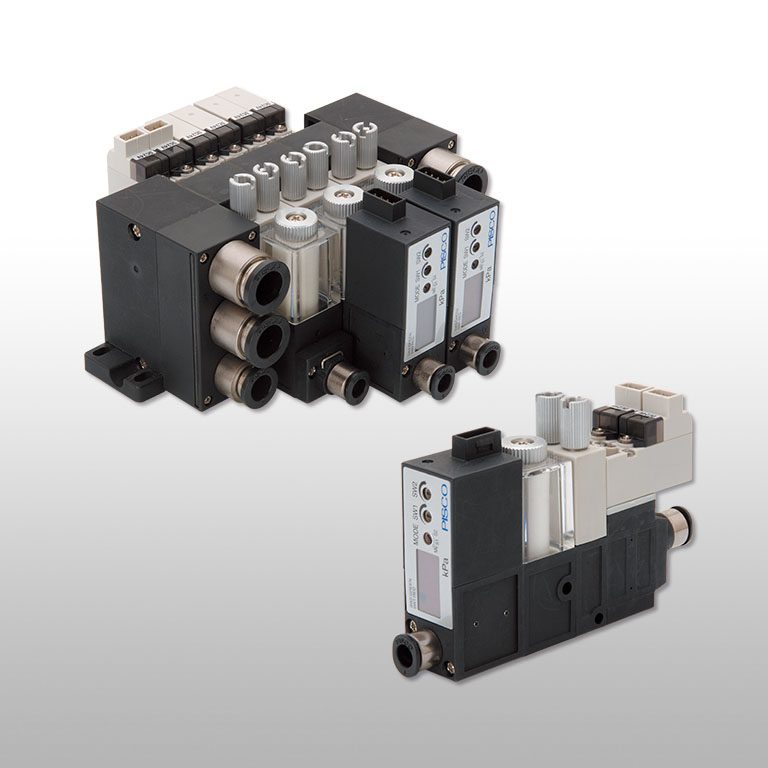

External Vacuum Controller VZP

Pisco External Vacuum Controller VZP
RoHS2 Compliant

  • Small and lightweight
  • Bundled wiring dedicated to manifold mount
  • Energy saving – valve power consumption=0.55W
  • A variety of pressure sensor options
  • Expandable
  • Push-in fitting or female thread available
  • Fluid medium: Air (JIS B 8392-1:Class1.2.1～2.4.3 compliant)
  • Operating pressure range: 0.3～0.7MPa
  • Working vacuum range: -100～0kPa
  • Operating temp. range: 5～50℃ (No freezing)
  • Operating humidity range: 35～85%RH (No dew condensation)
  • Vibration/Impact resistance” Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IEC IP40
  • Lubrication: Not required
  • Proof pressure (Air supply circuit): 1.05MPa
  • Proof pressure (Vacuum circuit): 0.2MPa
External Vacuum Controller VNP

PISCO External Vacuum Controller VNP
RoHS2 Compliant

  • Suitable for uses requiring space-saving and high speed
  • Compact and lightweight
  • High speed, yet stable
  • 4 types of analog output sensors are available
  • Fluid medium: Air (JIS B 8392-1:Class1.2.1～2.4.3 compliant)
  • Operating pressure range: 0～0.55MPa
  • Working vacuum range: -100～0kPa
  • Operating temp. range: 5～50℃ (No freezing)
  • Operating humidity range: 35～85%RH (No dew condensation)
  • Vibration/Impact resistance” Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IEC IP40
  • Lubrication: Not required
  • Proof pressure (Air supply circuit): .85MPa
  • Proof pressure (Vacuum circuit): 0.2MPa
External Vacuum Controller VIP

Pisco External Vacuum Controller VIP
RoHS2 Compliant

  • Built-in flow Sensor available
  • Recommended for semiconductor related equipment and miniature work
  • Ultra small body, but large flow
  • 8.5L/min[ANR] or more at vacuum supply pressure -80kPa.
  • Blow-off air rate adjusting
  • Fluid medium: Air (JIS B 8392-1:Class1.2.1～2.4.3 compliant)
  • Operating pressure range: 0.3～0.7MPa
  • Working vacuum range: -90～0kPa
  • Operating temp. range: 5～50℃ (No freezing)
  • Operating humidity range: 35～85%RH (No dew condensation)
  • Vibration/Impact resistance” Max. 50m/s2 / Max. 150m/s2
  • Protective structure: Equivalent to IEC IP40
  • Lubrication: Not required
  • Proof pressure (Air supply circuit): 1.05MPa
  • Proof pressure (Vacuum circuit): 0.2MPa

For more information about these products…
 Download a Catalog

Need more info? We can help! Contact All Air today!

Request more information or
Download a catalog here

View Our Product Line

Find more information at the
Pisco website
