Refrigerated Dryers

Pneumatech Refrigerated Dryers use the same cooling principal as typical air conditioning units in homes across the world. Using the refrigeration system and passing compressed air through a heat exchanger, the air is cooled to approximately 3°C/40 °F. As the air cools, water droplets begin to form in the air due to condensation much like the water droplets that form on the outside of a cold drink. The moisture laden air then undergoes a mechanical separation process where the liquid or “condensate” is separated from the air stream. The air is then rewarmed using the incoming air which lowers the relative humidity of the air and traps any remaining moisture in a vapor form.

Product Lineup

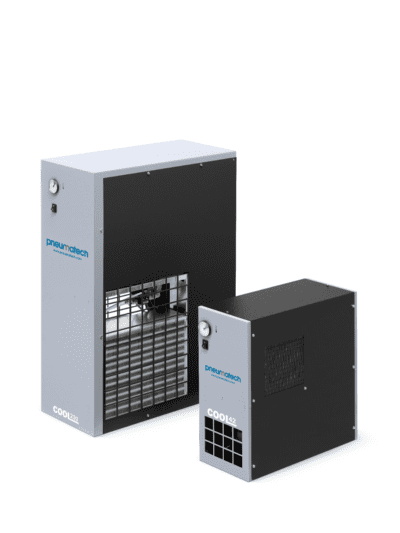

COOL 12-272 Non-Cycling Refrigeration Dryers

The compressed air coming out of the compressor is always saturated. Pneumatech’s reliable and robust COOL refrigeration dryers are an efficient solution to lower the presence of moisture and the resultant corrosion in your compressed air system. COOL dryers can act as a second line of defense after water separators and aftercoolers giving you a stable, low dew point.

COOL dryers deliver stable performance thanks to the efficient refrigerant gas and carefully selected components. The simple vertical design and small footprint makes COOL dryers an easy-to-use drying solution for various industrial applications.

The COOL range offers a stable pressure dew point as low as 5°C, ensuring ISO 8573-1 class 5 quality.

Strong Performance & Reliability
Compact & Easy To Install
Super Cost Saver
Easy Maintenance

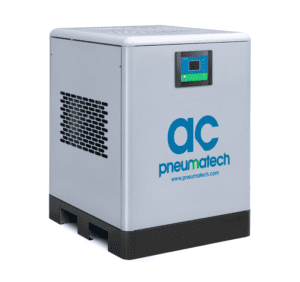

AC 15-200 Cycling Refrigeration Dryers

The AC Series Cycling Dryers are equipped with our proprietary energy saving algorithm, which adapts the energy consumption to the real load, lowering your operational costs.

Where less cooling is required, the refrigerant compressor stops and power consumption is significantly reduced, with savings up to 50%. AC250-600 dryers are also equipped with a flow switch which detects whether there is flow going through the dryer; and shuts down the refrigerant compressor when there is no flow. To make these energy saving functionalities work, the AC range makes use of advanced controllers, which communicate through voltage-free contacts or industrial protocols.

Pneumatech’s AC range offers premium refrigeration drying technology at the lowest operational costs. All AC dryers are equipped with our proprietary energy saving algorithm, which adapts the energy consumption to the real load by continuously monitoring the ambient temperature and the pressure dewpoint.

In this way, the risk of downstream corrosion is reduced to zero at all times. When there is less cooling needed, the refrigerant compressor stops and power consumption is significantly reduced, with savings up to 50%.

Premium energy efficiency is also guaranteed thanks to low pressure drops over the heat exchangers, zero-loss drains and our winning combination: rotary compressors and R410A refrigerant on AC125-200. This combination is up to 30% more energy efficient, requires 19% less refrigerant gas and is 100% compliant with European regulation EU No 517/2014.

Purelogic™ Controller
Premium energy efficiency
Zero-loss drain
Superior reliability
Easy installation & maintenance at low cost
Connectivity

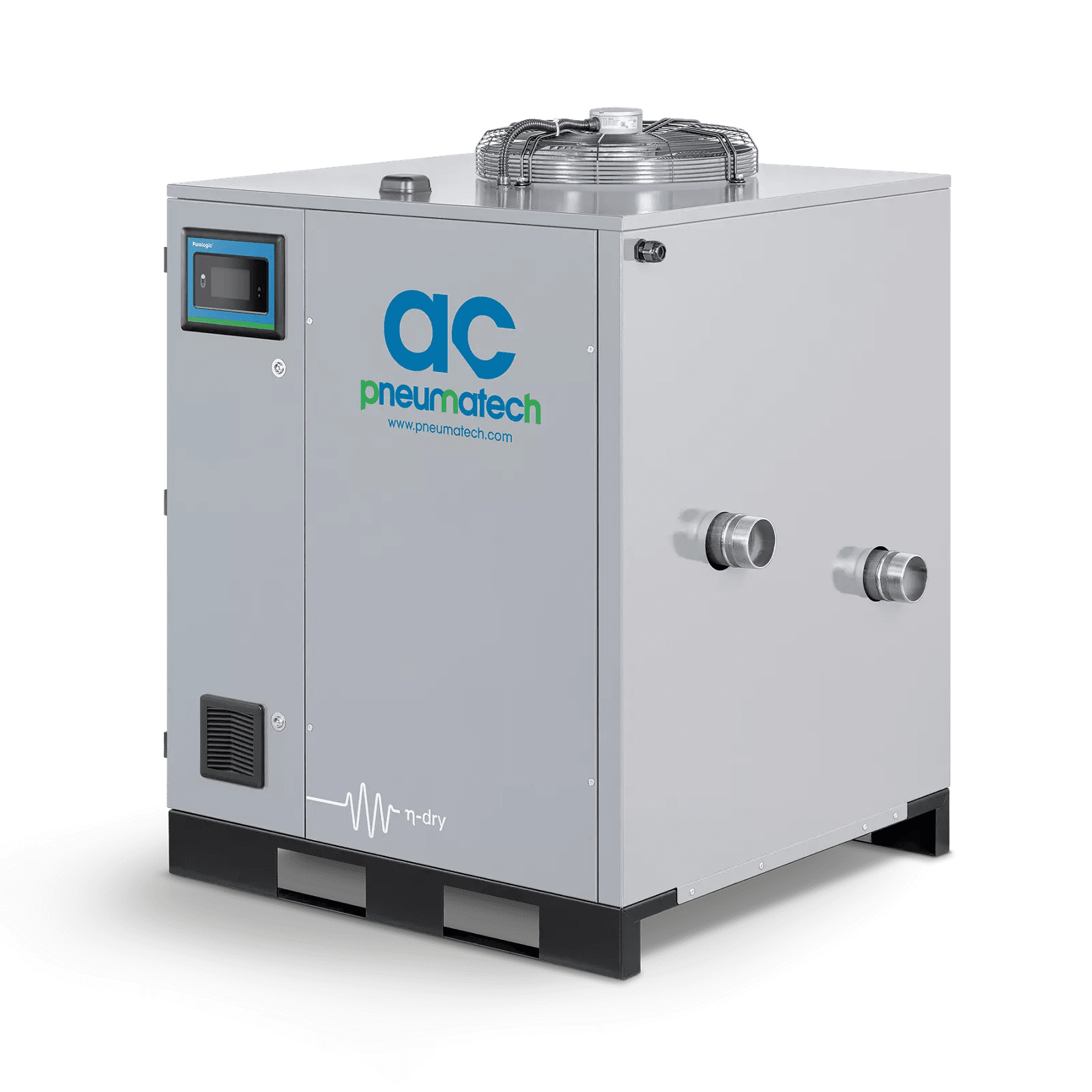

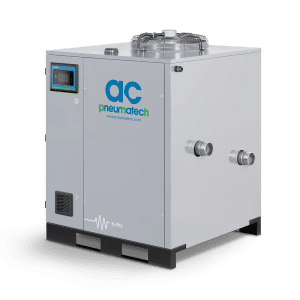

AC 650-2100 VSD Cycling Dryers

Pneumatech extends its premium AC refrigerated dryer range with variable speed technology in order to match the energy consumption to the actual compressed air demand.

AC 650-2100 is Pneumatech’s premium refrigeration dryer range at higher flows: from 1120 up to 3636 m³/hr (657-2141 cfm).

As in the small AC range, operating costs are significantly reduced thanks to the energy saving and flow switch algorithms, the zero-loss drains, the low pressure drop over the heat exchangers and the combination of rotary compressors and R410A refrigerant. The refrigeration cycle is further optimized in all working conditions by making use of the automatic expansion valve & electronic hot gas bypass valve.

From AC 650 onwards, dedicated variable speed (VSD) variants have been added to the range. The VSD controller incorporated in these dryers matches the energy consumption to the actual compressed air demand. This reduces energy used by as much as 70%, compared to conventional dryers. It works by varying the speed of the compressor, hereby ensuring a stable dew point.

The PurelogicTM is installed as standard on all dryers: it ensures maximum reliability by monitoring the most important parameters of the dryer and offers impressive control and monitoring capabilities, like internet-based visualization. The entire range is available in both air-cooled and water-cooled versions.

Premium energy efficiency
Stable pressure dew point
Purelogic Controller
Rotary compressors & R410A
Superior performance & reliability
Availability of water-cooled condensers

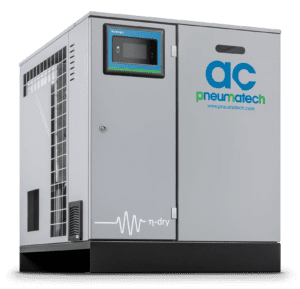

AC 200-630 VSD Revolutionary Cycling Refrigeration VSD Dryers

The AC VSD from Pneumatech raises the bar in refrigerant dryer performance. Using variable speed drive technology, it significantly reduces energy consumption while consistently supplying top-quality air. And, thanks to a carbon footprint that is smaller than that of its competitors, it even benefits the environment.

A Leap Forward In Dryer Technology
The new AC VSD refrigerant dryer from Pneumatech was engineered to make a difference, delivering energy savings of up to 60%. At the same time, the AC VSD supports production quality and reliability and offers a small carbon footprint.

Top Compressed Air Quality And A Low Dew Point
Pneumatech’s new dryer produces a stable supply of Class 4 purity air, which helps protect production reliability and quality. The AC VSD maintains its low dew point even in ambient temperatures of up to 46°C.

A Step Toward A Greener Future
But the AC VSD’s benefits extend beyond its outstanding performance. Due to its low energy consumption, it features a smaller carbon footprint than its competitors. Combined with an excellent TEWI-score, it helps companies meet their climate goals.

Increased uptime, powered by ICONS and New PurelogicT™
Touch based advance controller with Interfacing through Modbus, Profibus or Ethernet/IP and an Intelligent Connectivity (ICONS).

Reduced Total Cost Of Ownership And Faster Payback
Payback as low as 1.5 years thanks to reduced power consumption.

The Next Chapter In Dryer Excellence
Variable frequency drive providing unmatched energy savings as compared to other dryers with lowest pressure drop possible.

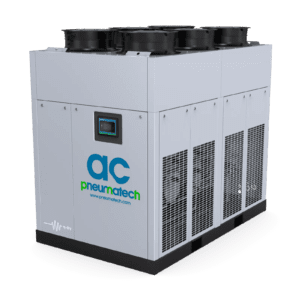

AC 2650-4200 & AC 2650-8500 VSD Cycling Refrigeration Dryers

Enjoy a stable dew point in of 3°C/37°F with this highly efficient compressed air dryer for changing air demands. Reduced lifecycle costs and faster payback thanks to reduced power consumption. A unique combination of high-efficiency components, smart unit design and an advanced control system enables you to achieve average energy savings of 50%.

Stable dew point at all operating conditions

AC 2650-8500 FS/VSD is Pneumatech’s premium refrigeration dryer range at higher flows: from 4500 up to 14400 m³/h (2650-8475 cfm). AC 2650-8500 (VSD) refrigerant dryers are engineered in house and tested using the most stringent methods (at ambient temperatures up to 46°C/115°F). They exceed the international standards for compressed air purity and are tested according to ISO 7183:2007.

New AC Range is the most efficient compressed air dryer for continuous and varying air demand applications. A combination of new innovative technologies integrated in the new AC 2650-8500 (VSD) dryers’ design makes them a perfect match for customers looking for reliable equipment with a low cost of ownership. The unique combination of high efficiency components, a smart unit design and an advanced unit control system gives an opportunity to save on average 50% of the consumed energy.

Significantly reduced power consumption and low quantities of refrigerant make sure the AC 2650-8500 (VSD) dryers operate at the lowest possible carbon footprint.

Reliable
Low lifecycle costs
Flexible

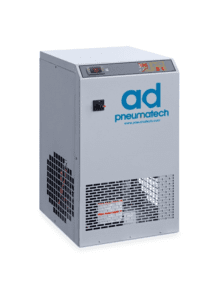

AD 15-3000 Non-Cycling Refrigeration Dryers

Non-cycling compressed air fridge dryers for dew points up to 3°C/37°F
Pneumatech’s AD 15-3000 non-cycling refrigeration dryers aredesigned to protect your compressed air system by lowering the presence of moisture in the compressed air. Thanks to the new controller with digital display, real time PDP monitoring is possible. The zero-loss electronic drains avoid compressed air losses. The well-designed heat exchangers ensure maximum cooling efficiency, making the AD dryers a genuine air drying solution in industrial applications. The AD15-105 is introducing the efficient and environmental friendly R513A refrigerant, reducing the global warming potential largely.

The AD125-1250 range is equipped with the winning combination: rotary compressors and R410A refrigerant. This combination is up to 30% more energy efficient, requires 19% less refrigerant gas and is 100% compliant with European regulation EU No 517/2014, hereby significantly reducing the ecological footprint of these dryers. Rotary compressors are moreover very reliable thanks to the low vibration levels and limited mechanical load. R410A guarantees stable evaporation, which makes the pressure dew point of up to 3°C/37°F achievable

Low Pressure Drop
Energy Savings
Superior Reliability
Rotary compressors and R410A refrigerant
Connectivity
Easy plug-and-play installation

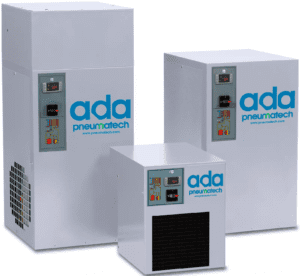

ADA 25-125 Non-Cycling High Temperature Refrigeration Dryers

Easy Installation
Rated for Temperatures up to 180 ºF

What makes the ADA range unique?

Patented design with built-in aftercooler/condenser with cycling fan
Automatic drain with solid-state, programmable timer and manual override with particle strainer included
Unit shipped with full refrigerant charge
cULus industrial control panel with refrigerant suction gauge
Durable powder-coated cabinet

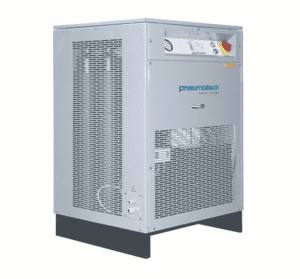

AC HP Series – High-Pressure Refrigerated Dryers

Pneumatech offers an extensive range of high pressure refrigerated dryers for applications up to 50 bar / 725 PSI. Solutions for pressures up to 350 bar / 5075 PSI are available on request.The heavy duty steel construction makes the heat exchanger extremely reliable and long lasting for high-pressure applications.The highly-efficient water separator guarantees water separation up to 150% of the nominal flow.
