Pneumatic Cylinders & Actuators

<< Back to Schrader Bellows page

Product Lineup

Aluminum Pneumatic Cylinders

Schrader Bellows Aluminum Pneumatic Cylinders
Aluminum pneumatic cylinders from Parker Hannifin offer flexible design with versions for affordable performance, ease of maintenance, customization, and for applications that require high cleanliness and sanitary standards. These anodized aluminum cylinders offer a range of bore sizes, strokes, rod diameters, rod end styles and other options.

Compact Pneumatic Cylinders

Schrader Bellows offers a selection of low profile and extra low profile pneumatic cylinders. Versatility prevails with options in mounting styles, bore sizes, and strokes. A range of features, ideal for operations such as clamping and locking, include permanent lubrication, long bearing assembly, flexible porting, and easy installation.

Compact P1Q Series Global Cylinders

Schrader Bellows Compact P1Q Series Global Cylinders
The P1Q Series has 10 bore sizes and standard stroke ranges from 5mm -100mm. Both male and female rod end options and magnetic or non-magnetic construction can be specified. Also, threaded through holes are the standard mounting option, and 4 additional modular mounting configurations are available.

C05 Short Stroke Pneumatic Cylinders

Schrader Bellows C05 Short Stroke Pneumatic CylindersCompact short stroke air cylinders available in single and double acting versions. Ideally suited for clamping and locking operations.The range includes bores from 8 to 63 mm, providing thrust forces of up to 3000 N.

The design has been optimized to include the following features:

  • Installation: The compact design (with mounting holes through the pneumatic cylinder body) makes the unit easy to install in confined spaces.
  • Clean design: The main body is machined from one piece, thus providing an easy to clean unit. Stainless steel piston rods are standard for corrosion resistance.
  • Maintenance free: The units are pre-lubricated for use without additional lubrication, reducing maintenance costs and providing an improved working environment.
  • 6 Bore Sizes – 8mm though 63mm
  • Short Stroke Pneumatic Cylinder
  • Block Style Mount
  • Single and Double Acting Available
LP/LPM Low Profile Pneumatic Cylinders

Schrader bellows LP/LPM Low Profile Pneumatic Cylinders

  • Construction: Low Profile, Anodized Aluminum, Repairable Tie Rod Design
  • Bore Sizes: 9/16, 3/4, 1-1/8, 1-1/2, 2, 2-1/2, 3,& 4
  • Strokes: Available in stroke lengths to 6 (bore size dependant)
  • Single Acting and Double Acting Versions
  • Piston Rod Diameters: 1
  • Operating Medium: Pneumatic, 250-PSI
  • Standard Fluid: Filtered Air
  • Piston Rod Ends: 2 standard, specials to order
  • Single or double piston rod ends available
  • Mounting styles: 6 Mounting Styles available
  • Standard Operating Temperature: -10F to + 165F
  • Optional High Temperature Option: -10F to + 250F

Additional Options:

  • Lipseal Piston Option
  • Bumpers
  • Magnetic Piston Sensing

Design Features:

  • Low Profile, Compact Design
  • Rated for Non Lube Service
  • Can be ordered in any practical stroke length without delivery penalty
P1G Series- Cartridge Cylinders

Schrader Bellows P1G Series- Cartridge Cylinders

  • 6, 10, and 16mm Bore Sizes
  • 5, 10, and 15mm Stroke Lengths
  • Cartridge Style Mount
  • Single Acting, Non-Lube Design
  • Nickel Plated Brass Body with Stainless Steel Rod for Corrosion

Threaded body, cartridge style Pneumatic Cylinders provide space savings and flexibility.

P1M Compact Pneumatic Cylinders

Schrader Bellows P1M Compact Pneumatic Cylinders

  • Construction: 3 Piece Bolted, Anodized Aluminum, Repairable Design
  • Bore Sizes: 12,16,20,25,32,40,50,63,80, and 100mm
  • Strokes: Available in stroke lengths to 500mm (bore size dependant)
  • Single Acting and Double Acting Versions
  • Piston Rod Diameters: 6 25mm
  • Operating Medium: Pneumatic, 150-PSI (10 Bar)
  • Standard Fluid: Filtered Air
  • Piston Rod Ends: 4 standard, specials to order
  • Single or double piston rod ends available
  • Mounting styles: Basic, Double Rear Clevis, Single Rear Clevis, Foot Mount, Front Flange, Rear Flange
  • Standard Operating Temperature: -10F to + 165F
  • Optional High Temperature Option: +14F to + 250F

Additional Options:

  • NPT, BSPP, and BSPT Port Threads
  • Flexible Porting
  • Long Bearing
  • Bumpers
  • Stainless Steel Piston Rod
  • Magnetic Piston Sensing

Design Features:

  • Corrosion Resistant Aluminum Construction Throughout
  • Rated for Non Lube Service
  • Fully Recessed Switch Grooves
  • Wide variety of switches available
  • Can ordered in any practical stroke length without delivery penalty.
P1M Swing Clamp Extra Low Profile Pneumatic Cylinder

Schrader Bellows P1M Swing Clamp Extra Low Profile Pneumatic Cylinder
The P1M Swing Clamp Cylinder incorporates several innovative features including: 3-piece bolted construction, internal transfer tube, long bearing head option standard, bumpers standard, outboard rotating guide mechanism, and recessed sensor grooves. The combination of these features, in addition to maintaining the smallest dimensional envelope possible, make the P1M Swing Clamp Pneumatic Cylinder ideal for applications that require a compact design and superior clamping capability.

  • Available in 32, 40, and 50mm bore Sizes
  • P1M swing clamp option offers clamping capability to the extensive list of features associated with the P1M cylinder. This option is ideal for clamping applications that have limited space available.
P1M With Tooling Plate Extra Low Profile Pneumatic Cylinders

Schrader Bellows P1M With Tooling Plate Extra Low Profile Pneumatic Cylinders

  • Available in 12, 16, 20, 25, 32, 40 and 50mm bore sizes
  • Long stroke lengths
  • Standard features include long bearing assembly, bumpers, flexible porting and flush sensor grooves
  • Compact, 3-piece bolted design
  • Custom or blank tooling plate configurations available
  • Standard tooling plate bolt pattern matches Parker P5G Grippers without need for a transition plate
  • P1M Tooling Plate Cylinders provide non-rotating capability with increased load carrying capacity

Linear Actuators

With a range of design styles, including those for heavy duty linear motion applications, your Parker Pneumatic Linear Slideoffers durability, long life, and the highest level of performance. Parker Linear Actuators are used in a wide range of applications,including; factory automation, packaging, transportation, energy, and life sciences.

GDL Aluminum Roller Guides

Schrader Bellows GDL Aluminum Roller Guides
Light, Smooth, & Accurate Aluminum Rail & Cassettes

Parker designed its GDL Guideline Aluminum Profile Roller Guides to provide smooth operation and load-carrying capacity for industrial automation. These are a great alternative to steel guides!

By using lightweight aluminum components, the moving masses are reduced, travel speeds are increased and actuation energy is saved. The GDL Series is available in a High Performance guide, as well as in Standard, High Dynamics and Grease-Free versions. Parker-Origa can supply any length and offers fast delivery.

GDL High Performance Features & Benefits

  • Low noise
  • No re-circulating balls to fall out
  • 60% lighter weight then steel
  • Very low friction
  • Speeds up to 10 m/s
  • Acceleration / deceleration rates of 40 m/s2
  • High alloy spring steel guideways
  • Stainless steel guideways available
  • Pre-lubed for life of bearing, no grease fitting
  • Anodized aluminum for corrosion protection
  • Easy drilling and tapping of aluminum rails
  • Flexibility w/drag adjustment screw

Applications for GDL Series Aluminum Roller Guides

  • Food industry
  • Packaging machinery
  • Medical equipment
  • Processing industry
  • Machine tools
  • Assembly systems
  • Handling applications
  • Special machines
HBB Series Base Slides

Schrader Bellows HBB Series Base Slides
Specifications:

  • Maximum operating pressure: 150 psi (air) 250 psi (oil) – 2ML cylinder only 750 psi (oil) – 3L cylinder only
  • Operating characteristics: double acting
  • Four support rod sizes: 20, 25, 30 and 35 mm
  • Stroke tolerance: +.030, -.000
  • Mounting: unrestricted
  • Operating temperature range (cylinder): Standard seals 0 to 165F Fluorocarbon seals* 0 to 250F
  • Filtration requirement: 40 micron filtered, dry air
HBC, HBT, HBR Guided Cylinders

Schrader Bellows HBC, HBT, HBR Guided Cylinders

  • 4 major slide versions (HBC, HBT, HBR) with increasing levels of performance
  • 3 sizes per version
  • Anodized aluminum housings and tooling plates
  • Strokes available in any practical length to 36″ (longer available)
  • Standard temperatures (0º to +165ºF)
  • Standard case hardened support shaft diameters 20, 25 and 30mm
  • Composite bushings
  • Double-acting air cylinder
  • 250 PSIG (17 Bar) maximum air service with standard cylinder
  • Magnetic piston ring standard for pneumatic cylinders

Model Code Options include:

  • Linear ball bearing bushings
  • Oversize guide shaft diameters 25, 30 and 35mm
  • Stainless steel guide shafts
  • Contaminant-tolerant shaft seals
  • NFPA or ISO cylinders, or only prepared for cylinders
  • Rod lock versions of both NFPA and ISO cylinders
  • 3MA, 4MA, 4ML and 4MAJ Series Cylinders
  • Up to 750 PSIG (52 Bar) maximum hydraulic service (depending on cylinder type)
  • High temperature option (0º to +250ºF) with fluorocarbon seals
  • Bumpers, stop collars, shock absorbers and cushioned air cylinders
  • Cylinder flow controls
  • Proximity sensors (for slide components)
P5E Series Guided Cylinder (ISO Cylinder Style)

Schrader Bellows P5E Series Guided Cylinder (ISO Cylinder Style)
The P5E Series guided cylinder is designed for heavy duty linear motion applications. Two parallel precision ground, case hardened support shafts are guided by fdour linear bushings. The bearings are prelubricated to provide millions of trouble-free cycles.

  • The anodized aluminum body is lightweight and provides strength and three mounting faces.
  • The cylinder is aligned with a coupler which allows piston rod to self-center, thus increasing cylinder life.
  • Support shafts are case hardened and machined from high carbon alloy steel.
  • Stainless steel and oversize shafts are available.
P5L Series Thrust, Reach and Base Slides

Schrader Bellows P5L Series Thrust, Reach and Base Slides
Designed for extreme guided linear motion applications. The P5L Series Guided Cylinder features the popular P1L round body repairable cylinder and offers a fully featured and highly engineered guided bearing system, creating a guided cylinder suitable for the most demanding applications. Two case hardened support shafts are guided by four linear bearings and incorporated into a one-piece housing.

Bearing options include:

  • Standard Composite Bushing – Available with Chrome plated or Stainless Steel Shafting
  • Oversized Composite Bushing – Available with Chrome plated or Stainless Steel Shafting
  • Recirculating Ball Bearing – Available with Carbon or Stainless Steel Shafting
  • Self-Aligning Recirculating Ball Bearings – Available with Carbon or Stainless Steel Shafting

Composite bushings are Teflon impregnated providing self lubrication thus eliminating the need for external or internal lubrication. The P5L has a full range of available options including:

  • Energy Absorption Bumpers, Cushions and Shock Absorbers
  • Stroke Adjustment Bumpers and Adjustable Stop Collars, Micro Adjusters
  • Flow Controls Presto-lok and NPT
  • Switches and Sensors Standard magnetic piston, optional reed switches or solid state and proximity sensors. Also available as proximity sensor ready (no sensor included).
P5T Series Thrusters (Built-In Cylinder Style)

Schrader Bellows P5T Series Thrusters (Built-In Cylinder Style)
The P5T Series Short Stroke Thrust Slide is designed for heavy duty short stroke applications where mounting envelopes are limited, and substantial side-loading is present. Built into the slide housing are four bushings which guide two parallel precision ground Rc 60-65 case-hardened support shafts.

  • Maximum operating pressure :1MPa (10 bar/145 psi)
  • Support Rod Sizes 8 to 35mm
  • Compact, one-piece body provides economy and minimum package size by integrating a low-profile cylinder and support shafts.
P5T2 Series- Short Stroke Thruster

Schrader Bellows P5T2 Series- Short Stroke Thruster
The P5T2 Series features short-stroke, heavy-duty performance in a smaller footprint than conventional thrusters that use external cylinders.

Parker’s innovative design of the P5T2 addresses requirements in the packaging, conveyor and assembly markets where available space is limited and loads are typically substantial. The P5T2 Series is ideal for handling frequent stops on conveyor equipment, tamping and pressing on packaging machinery, as well as the unloading/loading and clamping processes on assembly machinery.

Specifications:

  • Available in 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100mm bore sizes with strokes up to 200mm.
  • Maximum operating pressure is 1MPa (10 bar/145 psi).
  • Standard through-hole mounting on all sizes and available rear mounting, when special ordered, on all sizes, ensuring drop-in capabilities for a variety of installations.
  • Top porting is standard, but rear and side porting are available on all sizes as well.
  • A true rod-lock mechanism, which stops the unit in current position upon loss of air pressure, is available on 32mm through 100mm bore sizes.
XLB Series Precision Linear Base Slides

Schrader Bellows XLB Series Precision Linear Base Slides
Specifications:

  • Maximum operating pressure: 100 psi air
  • Operating characteristics: double acting standard (single acting available)
  • Four support rod sizes: 1/4″, 3/8″, 1/2″, 3/4″
  • Stroke tolerance: 1/16″
  • Mounting: unrestricted
  • Operating temperature range (cylinder): Standard seals 0 to 165F Viton® seals* 0 to 250F
  • Filtration requirement: 40 micron filtered, dry air

Features:

  • Alignment Coupler – A low profile alignment coupler* allows the piston rod to self-center. This increases cylinder life especially when the support rods deflect under load.
  • T-Slot Extruded Aluminum Housing – The anodized aluminum body incorporates square nut “T” slots. These slots allow maximum mounting flexibility for tooling changes. Optional dowel pin holes are available.
  • Lightweight Body – The extruded aluminum housing’s efficient design provides a substantial weight reduction. Lower weight allows for less inertia in applications requiring body movement. Consequently, higher cycle speeds and greater productivity can be attained.
  • Linear Ball or PTFE Composite Bushings – Low friction, recirculating linear ball bushings provide high precision and speed. PTFE composite bushings are available for high impact loads, washdown, and very contaminated environments.
  • Electrical Position Sensors – Proximity sensors, Hall Effect and reed switches are available. Magnets are standard on all cylinders.
XLR Series Precision Linear Reach Slides

Schrader Bellows XLR Series Precision Linear Reach Slides
Specifications:

  • Maximum operating pressure: 100 psi
  • Operating characteristics: double acting standard (single acting available)
  • Four support rod sizes: 1/4″, 3/8″, 1/2″, 3/4″
  • Stroke tolerance: 1/16″
  • Mounting: unrestricted
  • Operating temperature range (cylinder) Standard seals 0 to 165F Viton® seals* 0 to 250F
  • Filtration requirement: 40 micron filtered, dry air

Features:

  • Alignment Coupler – A low profile alignment coupler* allows the piston rod to self-center. This increases cylinder life especially when the support rods deflect under load.
  • T-Slot Extruded Aluminum Housing – The anodized aluminum body incorporates square nut “T” slots. These slots allow maximum mounting flexibility for tooling changes. One adjustment simultaneously alters stroke, shock absorber position, and proximity sensor position. Dowel pin holes are optional.
  • Lightweight Body – The extruded aluminum housing’s efficient design provides a substantial weight reduction. Lower weight allows for less inertia in applications requiring body movement. Consequently, higher cycle speeds and greater productivity can be attained.
  • Linear Ball or PTFE Composite Bushings – Low friction, recirculating linear ball bushings provide high precision and speed. PTFE composite bushings are available for high impact loads, washdown, and very contaminated environments.
  • Electrical Position Sensors – Proximity sensors, eed switches are available. Magnets are standard on all cylinders.

P1A (ISO 6432) Pneumatic Cylinders

The Parker P1A series of pneumatic cylinders are intended for use in a wide range of applications. These cylinders are particularly suitable for lighter duties in the packaging, food, and textile industries. Hygienic design, the use of corrosion-resistant materials, and initial lubrication with our food-grade grease, makes the air cylinders suitable for food industry applications.

  • Construction: Stainless Steel Body, Anodized Aluminum End Caps. Stainless Steel Piston Rod
  • Dimensions: Standard Mini ISO 6432
  • Mounting Styles: Nose Mount and Pivot Mount are standard. Modular accessories are available to configure the following mounts: Front / Rear Flange Foot
  • Mounting Head Trunnion Mounting
  • Bore Sizes: 10 – 25mm
  • Piston Rod Diameters: 4 – 10mm
  • Piston Rod Ends: Male Rod Standard, Specials Available
  • Stroke Lengths: 10 – 500mm, Bore Size Dependent
  • Cushions: Optional at Either End
  • Bumpers: Standard
  • Piston: Magnetic Standard
  • Nominal Pressure: 10 Bar (145 PSI)
  • Standard Fluid: Dry, Filtered Lubricated or Non Lubricated Air
  • Standard Operating Temperature: -20°C to +80°C, +4°F to 176°F
  • Optional High Temperature: -10°C to +120°C, 14°F to +248°F (10,12, and 16mm Bore) -10°C to +150°C, 14°F to + 302°F (20 and 25mm Bore)
  • Optional Low Temperature: – 40°C to +60°C, -40°F to + 160°F
  • Additional Information: Other options available include; double rod, double rod with adjustable cushions, double rod hollow, single acting spring extend, single acting spring return, external fluorinated seals, PTFE and Copper Free cylinders.
P1D ISO Pneumatic Cylinder

Schrader bellows P1D ISO Pneumatic Cylinder

  • General Construction: Anodized aluminum heads, caps and profiled cylinder body for 32-125mm bores. Anodized aluminum round body and steel tie rods for 160-200mm bores.
  • Versions: Standard, Removable Gland and Clean (IP65)
  • Standards: ISO 6431, ISO/DIS 15552, VDMA24562, AFNor
  • Bore Sizes: 32, 40, 50, 63, 80, 100, 125, 160 and 200mm
  • Strokes: Available in any practical stroke length
  • Piston Rods: 1240mm, case-hardened and chrome plated steel (standard)
  • Piston Rod Ends: 2 standard (male and female), specials to order
  • Single or double piston rod ends available
  • Cylinder Mounting Styles: 16 standard
  • Operating Medium: pneumatic (air), 10 Bar (145 psi)
  • Standard Fluid: Dry, filtered air
  • Standard Operating Temperature: -20C to + 80C (-4F to + 176F)
  • Optional High Temperature Option: -10C to + 121C (+14F to + 250F)
  • Ports: BSPP standard, other porting styles (NPTF, BSPT, etc.) available

Additional Options:

  • Rod Locking Device (32125mm bore sizes)
  • Fluorocarbon seals
  • Hydraulic service
  • Stainless steel piston rods (303, 316, 17-4 PH), fasteners and rod accessories
  • Metallic rod scraper

Design Features:

  • Corrosion-resistant anodized aluminum construction throughout
  • Magnetic piston ring (for external sensors) included as standard
  • Cushions both ends standard
  • Removable rod gland assembly for Removable Gland Version
  • Self-compensating rod wiper and seal
  • Rated for non-lube service

NFPA and Tie Rod Pneumatic Cylinders

Parker offers a range of Medium and Heavy Duty Tie Rod Pneumatic Cylinders to meet your application needs.

ACVB Series- Cylinder/Valve System

Schrader Bellows ACVB Series- Cylinder/Valve System

  • Standard Fluid Filtered Air.
  • Standard Temperature -5 F to 120 F (-15 C to 49 C).
  • Maximum 145 PSI operating pressure.
  • Fits 11/4″ through 21/2″ Bore 2A, MA, and 2MA standard cylinders.*
  • Uses standard Parker fittings, tubing, and seals.
  • Compact manifold accommodates B3 Series valve from Parker Pneumatic Division without field modification to cylinder.
  • Standard Fluid Filtered Air.
  • Standard Temperature -5 F to 120 F (-15 C to 49 C).
  • Maximum 145 PSI operating pressure.
  • Fits 11/2″ through 5″ Bore 2A, MA, and 2MA standard cylinders.
  • Uses standard Parker fittings, tubing, and seals.
  • Full manifold accommodates B3, B5 and B6 series Parker Pneumatic valves, without field modification to cylinder (B6 series shown).
  • Bolt pattern conforms to NAMUR standard on B5 and B6 valves.
  • Manifold and valve do not overhang beyond head or cap fasteners.

*11/4″ bore size only available on 2MA

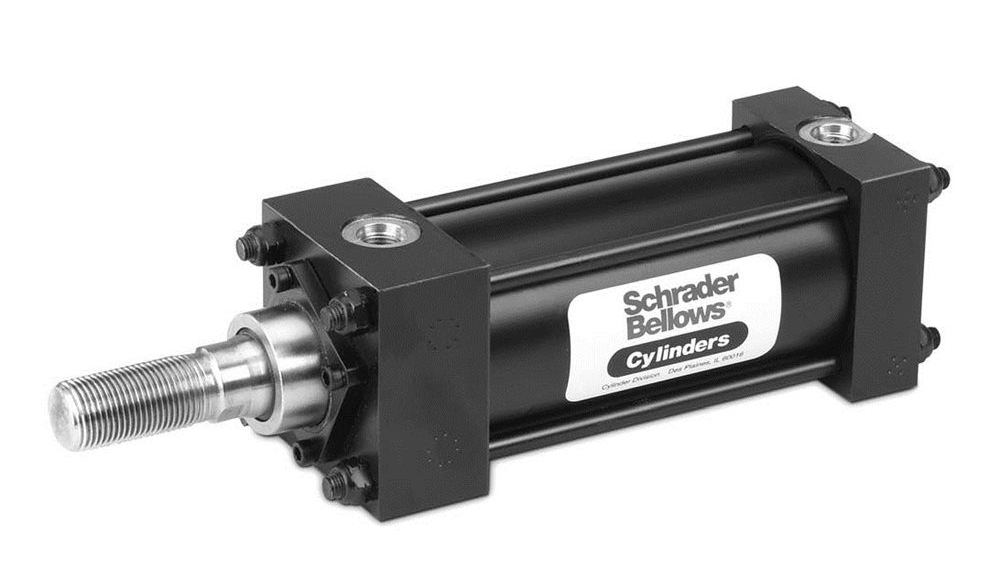

C Medium Duty Pneumatic Cylinder

Schrader Bellows C Medium Duty Pneumatic Cylinder

  • Prelubricated for LongerLife
  • Medium Duty Industrial Air Cylinders
  • 200 p.s.i. Maximum Operating Pressure
  • Bore Sizes: 1 1/4″, 1 3/4″, 2 1/2″, 3 5/8″, and 4 1/2″.
  • Single and Double Rod Types
  • Three Mounting Styles
  • Strokes: Available to 20″ as standard. For longer strokes, consult Parker, Cylinder Division.
  • Operating Temperatures: for best seal life operating tempera-tures should not exceed 165F. Cylinder can be operated to 200F maximum with reduced life.
  • Spring Returned Models: provided to order with spring at either end as specified. Call out end to which pressure will be applied. Cylinder will be longer than standard. Consult factory for addition to dimensions LB or LD.

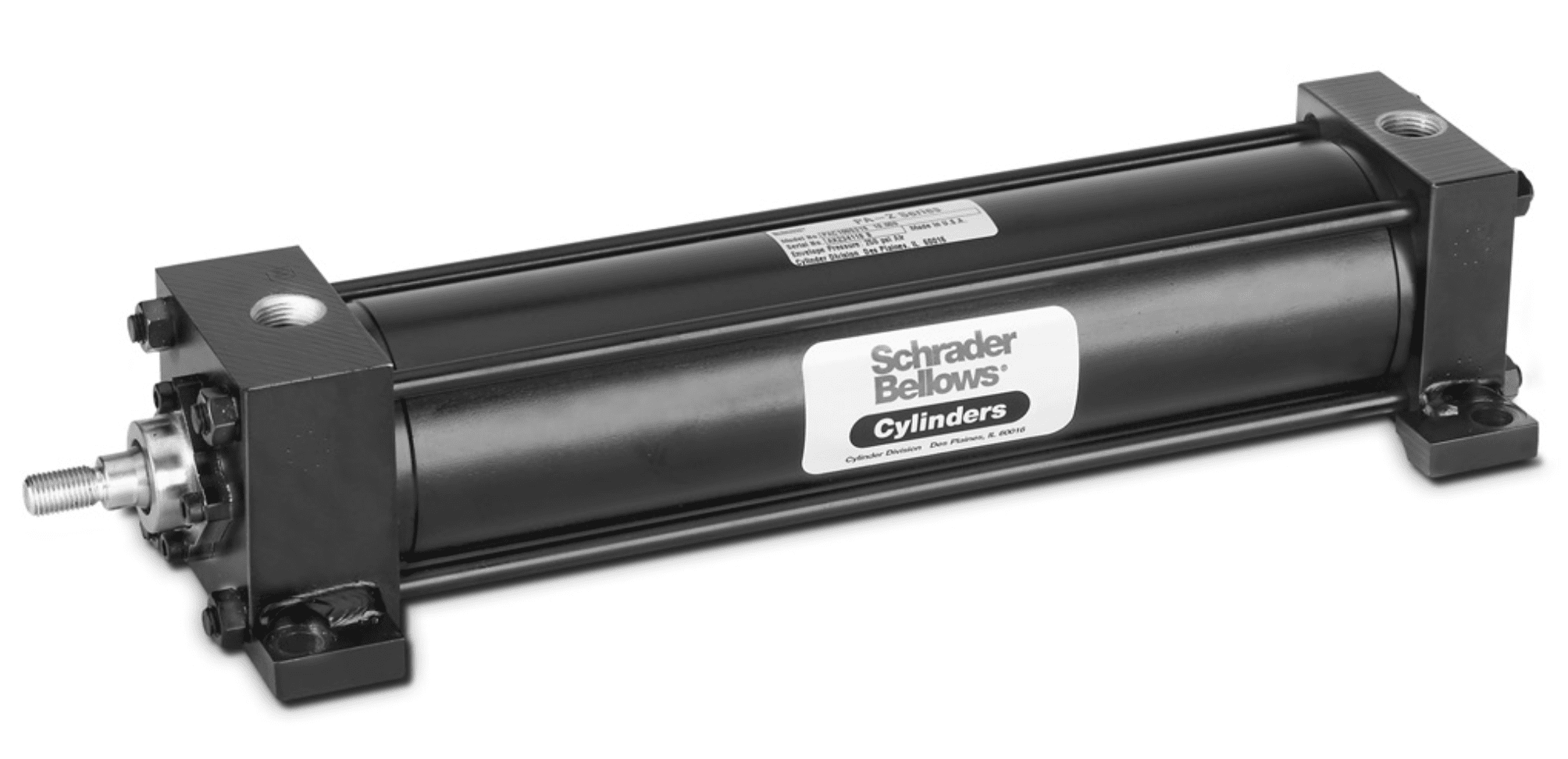

MA Industrial Pneumatic Cylinders

Schrader Bellows MA Industrial Pneumatic Cylinders
MA Industrial Pneumatic Cylinder Standard Specifications

  • Seven bore sizes
  • 1 1/2″ through 6″
  • Three rod diameters – 5/8″, 1″ and 1 3/8″
  • Twelve mounting styles
  • Choice of three rod end styles
  • Cushions at head, cap or both ends
  • Double rod models in six mounting styles
  • JIC interchangeable
  • Temperature Range 10 F. to 165 F.

 Download a Catalog

MAN Industrial Pneumatic Cylinders

Schrader Bellows MA Industrial Pneumatic Cylinders
MAN Non-Lube Industrial Pneumatic Cylinders share the Standard Specifications with the MA Cylinder line:

  • Seven bore sizes
  • 1 1/2″ through 6″
  • Three rod diameters – 5/8″, 1″ and 1 3/8″
  • Twelve mounting styles
  • Choice of three rod end styles
  • Cushions at head, cap or both ends
  • Double rod models in six mounting styles
  • JIC interchangeable
  • Temperature Range -10 F. to 165 F

 Download a Catalog

 Par-Check Pneumatic Cylinder Add on for Load Check

Schrader Bellows Par-Check Pneumatic Cylinder Add on for Load Check
Self-Contained Hydraulic Units for Precision Control of Machine or Air Movement.

Series HC

  • Standard duty
  • Single-acting units
  • Two basic configurations (Forward and Reverse acting)
  • Checks loads up to 1200 lbs.(5340 N)

Series DC

  • Heavy Duty
  • Single-acting units, Stop and Skip models, Precision (where feed rate is no more than 50′ (1300 mm) or less than 1″ (25.4mm) per minute)
  • Checks loads up to 3000 lbs. (13300 N)

Series DA

  • Heavy duty
  • Double-acting units provide control in application which require checking action on both advance and retract of piston rod.
  • Precision model available (where feed rate is no more than 50′ (1300 mm) or less than 1″ (25.4mm) per minute)
  • Checks loads up to 3000 lbs. (13300 N)
PRL Rod Lock Device

Schrader Bellows PRL Rod Lock Device
Construction: Rod Lock Device. Extruded, anodized aluminum body.

  • Bore Sizes: 32mm, 40mm, 50mm, 63mm, 80mm, 100mm & 125mm
  • Piston Rod Diameters: 12mm, 16mm, 20mm, 25mm & 32mm
  • Operating Medium: Pneumatic, 10 Bar, min. 4 Bar + 10% to unlock.
  • Standard Fluid: Filtered Air
  • Minimum holding force corresponding of 6.8 bar applied to bore diameter.
  • Mounting styles: 2 standard, also can be mounted on Series MP cylinders
  • Standard Operating Temperature: -23C to + 74C

Additional Options:

  • Exhaust air can be piped away in contaminant free environment.

Design Features:

  • Locks in Both Directions
  • Rated for Non-Lube Service

 Download a Catalog

P1D Iso Pneumatic Cylinder

Schrader Bellows P1D Iso Pneumatic Cylinder

  • General Construction: Anodized aluminum heads, caps and profiled cylinder body for 32-125mm bores. Anodized aluminum round body and steel tie rods for 160-200mm bores.
  • Versions: Standard, Removable Gland and Clean (IP65)
  • Standards: ISO 6431, ISO/DIS 15552, VDMA24562, AFNor
  • Bore Sizes: 32, 40, 50, 63, 80, 100, 125, 160 and 200mm
  • Strokes: Available in any practical stroke length
  • Piston Rods: 1240mm, case-hardened and chrome plated steel (standard)
  • Piston Rod Ends: 2 standard (male and female), specials to order
  • Single or double piston rod ends available
  • Cylinder Mounting Styles: 16 standard
  • Operating Medium: pneumatic (air), 10 Bar (145 psi)
  • Standard Fluid: Dry, filtered air
  • Standard Operating Temperature: -20C to + 80C (-4F to + 176F)
  • Optional High Temperature Option: -10C to + 121C (+14F to + 250F)
  • Ports: BSPP standard, other porting styles (NPTF, BSPT, etc.) available

Additional Options:

  • Rod Locking Device (32125mm bore sizes)
  • Fluorocarbon seals
  • Hydraulic service
  • Stainless steel piston rods (303, 316, 17-4 PH), fasteners and rod accessories
  • Metallic rod scraper

Design Features:

  • Corrosion-resistant anodized aluminum construction throughout
  • Magnetic piston ring (for external sensors) included as standard
  • Cushions both ends standard
  • Removable rod gland assembly for Removable Gland Version
  • Self-compensating rod wiper and seal
  • Rated for non-lube service
S Universal Midget Pneumatic Cylinders

Schrader Bellows S Universal Midget Pneumatic Cylinders

  • Construction: Square Head and Cap, Tie Rod Design
  • Bore Sizes: , 1, 1-1/8, 1-1/4
  • Strokes: Available in any practical stroke length up to 12
  • Ports: NPTF Ports are standard
  • Single or Double Acting Versions
  • Piston Rod Diameters: , 5/16, 3/8, and Stainless Steel
  • Operating Medium: Pneumatic, 200 PSI
  • Standard Fluid: Filtered Air
  • Piston Rod Ends: Standard Male, Specials to order
  • Single or double piston rod ends available
  • Mounting styles: Universal (Bottom Tapped), or Nose Mounting
  • Standard Operating Temperature: -10F to + 165F
  • Optional High Temperature Option: +10F to + 250F

Additional Options:

  • Fixed Cushions head end, cap end, or both ends
  • Rear Clevis, Front Flange, or Rear Flange Mounting Kits Available
  • Lip Seal Piston

Design Features:

  • Piston is permanently attached to the piston rod for maximum durability
  • Rated for Non Lube Service
SA Stainless Steel NFPA Pneumatic Cylinders

Schrader Bellows SA Stainless Steel NFPA Pneumatic Cylinders

  • Construction: Square Head and Cap, Tie Rod Design, Stainless Steel Heads, Caps, Cylinder Body, Tie Rods and Piston Rods
  • Bore Sizes: 1-1/8, 1-1/2, 2, 2-1/2, 3-, 4, 5, 6, 8
  • Standards: NFPA Interchangeable (ANSI/NFPA T.3.6.7R2-1996) 1-1/2 8
  • Strokes: Available in any practical stroke length
  • Ports: NPTF Ports are standards
  • Piston Rod Diameters:3/8, , 5/8, 1, 1-3/8, and 1-3/4
  • Operating Medium: Pneumatic, 250 PSI
  • Standard Fluid: Filtered Air
  • Piston Rod Ends: Standard Male, Intermediate Male, Female, Specials to order
  • Single or double piston rod ends available
  • Mounting styles: 8 standard NFPA mounting styles available
  • Standard Operating Temperature: -40F to + 200F
  • Optional High Temperature Option: -10F to + 250F

Additional Options:

  • Bumpers at both head and cap end or either end
  • Adjustable Cushions at both head and cap end or either end
  • Full line of mounting accessories
  • Stop Tubing
  • Magnetic Piston Sensing
  • Port Relocation (other than standard)

Design Features:

  • Stainless Steel Construction for Superior Corrosion Resistance
  • Rated for Non Lube Service

 Download a Catalog

Rodless Pneumatic Cylinders

Parker’s rodless air cylinders, including the Parker-Origa System Plus (OSP), offers flexible linear drives which can be simply and neatly integrated into any machine layout. From the P1X Series compact, high speed, no-lubrication cylinder to the complete OSP linear system combining pneumatic or electric actuation with guidance and control modules, Parker has the rodless pneumatic cylinder to suit the exact needs of individual installations.

GDL Aluminum Roller Guides

Schrader Bellows GDL Aluminum Roller Guides
Light, Smooth, & Accurate Aluminum Rail & Cassettes

Parker designed its GDL Guideline Aluminum Profile Roller Guides to provide smooth operation and load-carrying capacity for industrial automation. These are a great alternative to steel guides!

By using lightweight aluminum components, the moving masses are reduced, travel speeds are increased and actuation energy is saved. The GDL Series is available in a High Performance guide, as well as in Standard, High Dynamics and Grease-Free versions. Parker-Origa can supply any length and offers fast delivery.

GDL High Performance Features & Benefits

  • Low noise
  • No re-circulating balls to fall out
  • 60% lighter weight then steel
  • Very low friction
  • Speeds up to 10 m/s
  • Acceleration / deceleration rates of 40 m/s2
  • High alloy spring steel guideways
  • Stainless steel guideways available
  • Pre-lubed for life of bearing, no grease fitting
  • Anodized aluminum for corrosion protection
  • Easy drilling and tapping of aluminum rails
  • Flexibility w/drag adjustment screw

Applications for GDL Series Aluminum Roller Guides

  • Food industry
  • Packaging machinery
  • Medical equipment
  • Processing industry
  • Machine tools
  • Assembly systems
  • Handling applications
  • Special machines
Origa System Plus- Osp Modular Linear Drive

Schrader Bellows Origa System Plus- Osp Modular Linear Drive
OSP: orIGA System Plus – Modular Linear Drive System

Based on the orIGA rodless cylinder, proven in worldwide markets, Parker-Origa now offers the complete solution for linear drive systems. Designed for absolute reliability, high performance, ease of use, and optimized engineering, the orIGA System Plus satisfies even the most demanding applications.

OSP Advantages:

  • Superior sealing with proprietary band design
  • Field convertible linear guides for dynamic loading Situations
  • Special options: – High/Low temp – Low friction seal technology – Slow and high speed for uniform travel
  • Corrosion resistant coatings for wash-down applications (Xylan®)
  • Brake option for positioning and failsafe applications
  • Long life (8,000 kilometers)
  • Proprietary emulsified piston seal design maintains lubrication for long life
  • Special grease options: – Food-grade – Clean Room – Slow speed
P1X Series Compact Rodless Air Cylinders

Schrader Bellows P1X Series Compact Rodless Air Cylinders

  • Construction: Band Style Rodless Cylinder. High speed operation and no lubrication required.
  • Bore Sizes: 16mm, 20mm, 25mm, 32mm, 40mm, 50mm & 63mm.
  • Strokes: Available up to 5m standard, consult factory for longer strokes
P1Z Magnetically Coupled Rodless Air Cylinder

Schrader Bellows P1Z Magnetically Coupled Rodless Air Cylinder

  • Description: The magnetic rodless cylinder is a pneumatic cylinder featuring a mobile piston fitted with annular magnets. The mobile carriage is also equipped with magnets to provide magnetic coupling between the piston and carriage.
  • Cushioning: – 16 mm: non-adjustable bumper or adjustable pneumatic cushioning. – 20 and 32 mm: adjustable pneumatic cushioning.
  • Mounting: The mobile carriage is free to rotate 360 around the cylinder axis. This feature facilitates the adaptation of the cylinder to various mounting arrangements.
RC Rodless Pneumatic Cylinders

Schrader Bellows RC Rodless Pneumatic Cylinders

  • Construction: Band Style Rodless Cylinder. Extruded, anodized aluminum body, heads and caps.
  • Bore Sizes: 25mm, 32mm, 40mm, 50mm & 63mm
  • Strokes: Available up to 130 inches standard, consult factory for longer strokes
  • Operating Medium: Pneumatic, 10 Bar
  • Standard Fluid: Filtered Air
  • Single or double carriages available
  • Mounting styles: 4 standard
  • Standard Operating Temperature: -23C to + 74C

Additional Options:

  • Intermediate Supports
  • Magnetic Piston Sensing
  • Transfer Porting

Design Features:

  • Corrosion Resistant Aluminum Construction Throughout
  • Cushions Standard
  • Rated for Non-Lube Service

Round Body Pneumatic Cylinders

Parker offers stainless steel pneumatic cylinders in a range of sizesideal for applications requiring high cleanliness and sanitary standards, such as the food industry. The stringent requirements for hygiene regarding choice of material and corrosion resistance have guided the development of these pneumatic cylinders.

P1A (ISO 6432) Pneumatic Cylinders

Schrader Bellows P1A (ISO 6432) Pneumatic Cylinders
The Parker P1A series of pneumatic cylinders are intended for use in a wide range of applications. These cylinders are particularly suitable for lighter duties in the packaging, food, and textile industries. Hygienic design, the use of corrosion-resistant materials, and initial lubrication with our food-grade grease, makes the air cylinders suitable for food industry applications.

  • Construction: Stainless Steel Body, Anodized Aluminum End Caps. Stainless Steel Piston Rod
  • Dimensions: Standard Mini ISO 6432
  • Mounting Styles: Nose Mount and Pivot Mount are standard. Modular accessories are available to configure the following mounts: Front / Rear Flange Foot
  • Mounting Head Trunnion Mounting
  • Bore Sizes: 10 – 25mm
  • Piston Rod Diameters: 4 – 10mm
  • Piston Rod Ends: Male Rod Standard, Specials Available
  • Stroke Lengths: 10 – 500mm, Bore Size Dependent
  • Cushions: Optional at Either End
  • Bumpers: Standard
  • Piston: Magnetic Standard
  • Nominal Pressure: 10 Bar (145 PSI)
  • Standard Fluid: Dry, Filtered Lubricated or Non Lubricated Air
  • Standard Operating Temperature: -20°C to +80°C, +4°F to 176°F
  • Optional High Temperature: -10°C to +120°C, 14°F to +248°F (10,12, and 16mm Bore) -10°C to +150°C, 14°F to + 302°F (20 and 25mm Bore)
  • Optional Low Temperature: – 40°C to +60°C, -40°F to + 160°F
  • Additional Information: Other options available include; double rod, double rod with adjustable cushions, double rod hollow, single acting spring extend, single acting spring return, external fluorinated seals, PTFE and Copper Free cylinders.
P1L Aluminum Repairable Pneumatic Cylinder

Schrader Bellows P1L Aluminum Repairable Pneumatic Cylinder

  • Construction: Round Body Repairable Cylinder. Extruded,anodized aluminum body, heads and caps 20mm 100mm bore.
  • Bore Sizes: 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm & 100mm
  • Strokes: Available up to 1000mm standard, consult factory for longer strokes
  • Piston Rod Diameters: 8mm 32mm
  • Operating Medium: Pneumatic, 10 Bar
  • Standard Fluid: Filtered Air
  • Piston Rod Ends: 2 standard, specials to order
  • Single or double piston rod ends available
  • Mounting styles: 12 standard
  • Standard Operating Temperature: -23C to + 74C
  • Optional High Temperature Option: -23C to + 121C

Additional Options:

  • Adjustable Cushions head end, cap end, or both ends (Captive Design)
  • Mountings can be inch or metric
  • Ports can be NPTF or BSPP
  • Magnetic Piston Sensing

Design Features:

  • Corrosion Resistant Aluminum Construction Throughout
  • Impact Resistant Bumpers Standard
  • Self Compensating Rod Wiper and Seal
  • Rated for Non Lube Service
SA Stainless Steel NFPA Pneumatic Cylinders

Schrader Bellows SA Stainless Steel NFPA Pneumatic Cylinders

  • Construction: Square Head and Cap, Tie Rod Design, Stainless Steel Heads, Caps, Cylinder Body, Tie Rods and Piston Rods
  • Bore Sizes: 1-1/8, 1-1/2, 2, 2-1/2, 3-, 4, 5, 6, 8
  • Standards: NFPA Interchangeable (ANSI/NFPA T.3.6.7R2-1996) 1-1/2 8
  • Strokes: Available in any practical stroke length
  • Ports: NPTF Ports are standards
  • Piston Rod Diameters:3/8, , 5/8, 1, 1-3/8, and 1-3/4
  • Operating Medium: Pneumatic, 250 PSI
  • Standard Fluid: Filtered Air
  • Piston Rod Ends: Standard Male, Intermediate Male, Female, Specials to order
  • Single or double piston rod ends available
  • Mounting styles: 8 standard NFPA mounting styles available
  • Standard Operating Temperature: -40F to + 200F
  • Optional High Temperature Option: -10F to + 250F

Additional Options:

  • Bumpers at both head and cap end or either end
  • Adjustable Cushions at both head and cap end or either end
  • Full line of mounting accessories
  • Stop Tubing
  • Magnetic Piston Sensing
  • Port Relocation (other than standard)

Design Features:

  • Stainless Steel Construction for Superior Corrosion Resistance
  • Rated for Non Lube Service

 Download a Catalog

SR Stainless Steel Pneumatic Cylinder

Schrader Bellows SR Stainless Steel Pneumatic Cylinder

  • Construction: Crimped Round Body, Stainless Steel Tube, Aluminum End Caps, Non-Repairable
  • Bore Sizes: 5/16, 7/16, 9/16, , 7/8, 1-1/16, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/2, 3
  • Standards: Industry Interchangeable
  • Strokes: 1/2 32, Bore Size & Mounting Style Dependant
  • Ports: NPTF Ports Standard
  • Piston Rod Diameters: .125, .188, .250, .312, .437, .50, .625, .750
  • Piston Rod Material: Stainless Steel (Up to 1.5 Bore), Carbon Steel (1.75 3.0 Bore)
  • Piston Rod Ends: Standard Male, Specials To Order
  • Operating Medium: Pneumatic, 250 PSI
  • Standard Fluid: Filtered Air
  • Single or double piston rod ends available
  • Single Acting or Double Acting Versions
  • Mounting styles: 28 Standard
  • Standard Operating Temperature: -10F to + 165F
  • Optional High Temperature Option: -10F to + 250F

Additional Options:

  • Bumpers (standard on selected bore sizes)
  • Adjustable Cushions; head end, cap end, or both ends (Bore Size Dependant)
  • Rod Wiper
  • Full line of mounting accessories
  • Extra or no Wrench Flats
  • Port Relocation (other than standard)
  • Private Label

Design Features:

  • 304 Stainless Steel Body with Aluminum End Caps for Corrosion Resistance
  • Rated for Non Lube Service
  • Rolled Rod Threads
  • Lip Seal Piston
  • Captive Cushion Design
  • Oil Impregnated Rod Bushing

 Download a Catalog

SRD Stainless Steel Body/Delrin(R) End Caps

Schrader Bellows SRD Stainless Steel Body/Delrin(R) End Caps

  • Construction: Crimped Round Body, Stainless Steel Tube, Delrin (Acetal Resin) End Caps, Non-Repairable
  • Bore Sizes: 9/16, , 1-1/16, 1-1/2, and 2
  • Standards: Industry Interchangeable
  • Strokes: 1 32, Bore Size & Mounting Style Dependant
  • Ports: NPTF Ports Standard
  • Piston Rod Diameters:.188, .250, .312, .437, .50, .625
  • Piston Rod Material: Stainless Steel
  • Piston Rod Ends: Standard Male, Specials to Order
  • Operating Medium: Pneumatic, 100 PSI
  • Standard Fluid: Filtered Air
  • Single or double piston rod ends available
  • Mounting styles: 3 Standard
  • Standard Operating Temperature: 32F to + 140F

Additional Options:

  • Bumpers
  • Magnetic Piston Sensing
  • Rod Wiper
  • Full line of Stainless Steel Mounting Accessories
  • Special Rod Ends Available
  • Extra or no Wrench Flats
  • Port Relocation (other than standard)
  • Private Label

Design Features:

  • Unitized Construction
  • 304 Stainless Steel Body with Delrin Acetal Resin) End Caps for Corrosion Resistance
  • Rated for Non Lube Service
  • Rolled Rod Threads
  • Lip Seal Piston
  • Oil Impregnated Rod Bushing
  • Delrin is a registered trademark of Dupont

 Download a Catalog

SRDM Stainless Steel Body/Delrin(R) End Caps

Schrader Bellows SRD Stainless Steel Body/Delrin(R) End Caps

  • Construction: Crimped Round Body, Stainless Steel Tube, Delrin (Acetal Resin) End Caps, Non-Repairable
  • Bore Sizes: 9/16, , 1-1/16, 1-1/2, and 2
  • Standards: Industry Interchangeable
  • Strokes: 1 32, Bore Size & Mounting Style Dependant
  • Ports: NPTF Ports Standard
  • Piston Rod Diameters:.188, .250, .312, .437, .50, .625
  • Piston Rod Material: Stainless Steel
  • Piston Rod Ends: Standard Male, Specials to Order
  • Operating Medium: Pneumatic, 100 PSI
  • Standard Fluid: Filtered Air
  • Single or double piston rod ends available
  • Mounting styles: 3 Standard
  • Standard Operating Temperature: 32F to + 140F

Additional Options:

  • Bumpers
  • Magnetic Piston Sensing
  • Rod Wiper
  • Full line of Stainless Steel Mounting Accessories
  • Special Rod Ends Available
  • Extra or no Wrench Flats
  • Port Relocation (other than standard)
  • Private Label

Design Features:

  • Unitized Construction
  • 304 Stainless Steel Body with Delrin Acetal Resin) End Caps for Corrosion Resistance
  • Rated for Non Lube Service
  • Rolled Rod Threads
  • Lip Seal Piston
  • Oil Impregnated Rod Bushing
  • Delrin is a registered trademark of Dupont

 Download a Catalog

SRM Stainless Steel Pneumatic w/Piston Sensing

Schrader Bellows SRM Stainless Steel Pneumatic w/Piston Sensing

  • Construction: Crimped Round Body, Stainless Steel Tube, Aluminum End Caps, Non-Repairable
  • Magnetic Piston Sensing Standard
  • Bore Sizes: 9/16, , 1-1/16, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/2
  • Standards: Industry Interchangeable
  • Strokes: 32, Bore Size & Mounting Style Dependant
  • Ports: NPTF Ports Standard
  • Piston Rod Diameters: .188, .250, .312, .437, .50, .625
  • Piston Rod Material: Stainless Steel (Up to 1.5 Bore), Carbon Steel (1.75 2-1/2 Bore)
  • Piston Rod Ends: Standard Male. Specials to order
  • Operating Medium: Pneumatic, 250 PSI
  • Standard Fluid: Filtered Air
  • Single or double piston rod ends available
  • Single Acting or Double Acting Versions
  • Mounting styles: 24 Standard
  • Standard Operating Temperature: +14F to + 140F

Additional Options:

  • Bumpers (standard on selected bore sizes)
  • Adjustable Cushions; head end, cap end, or both ends (Bore Size Dependant)
  • Rod Wiper
  • Full line of mounting accessories
  • Special Rod Ends Available
  • Extra or no Wrench Flats
  • Port Relocation (other than standard)
  • Private Label

Design Features:

  • 304 Stainless Steel Body with Aluminum End Caps for Corrosion Resistance
  • Rated for Non Lube Service
  • Rolled Rod Threads
  • Lip Seal Piston
  • Captive Cushion Design
  • Oil Impregnated Rod Bushing

 Download a Catalog

 SRX Stainless Steel Body Pneumatic Cylinders

Schrader Bellows SRX Stainless Steel Body Pneumatic Cylinders

  • Construction: Crimped Round Body, Stainless Steel Tube, Non Repairable, with built in LRT for continuous feedback
  • Bore Sizes: 1.06, 1.50, 2.00, 2.50, and 3.00
  • Standards: Industry Interchangeable
  • Strokes: Available in any practical stroke length up to 24
  • Piston Rod Diameters: .38, .50, .62, and .75
  • Piston Rod Ends: Male Standard, Specials To Order
  • Operating Medium: Pneumatic, 150 PSI
  • Standard Fluid: Filtered Air
  • Mounting styles: 3 standard
  • Standard Operating Temperature: +40F to + 160F
  • Ports: NPTF Standard
  • Additional Options: — Bumpers — 3 Pin Plug Connector — Low Friction Seals — 3 Different Controller Options Available
  • Design Features: — 304 Stainless Steel Tube with Aluminum End Caps for Corrosion Resistance — LRT can be removed and replaced in the event of failure —
  • Outboard Rod / Wiper Seal — Rated for Non Lube Service

 Download a Catalog
