Springville Manufacturing has been providing quality air cylinders and components since 1974. Springville’s low cost aluminum skquarehead cylinders and air oil tanks feature interchangeability and pre-lubricated or non-lubricted services. They also offer round aluminum 150 PSI air cylinders with stainless steel piston rods and bronze rod bushings.

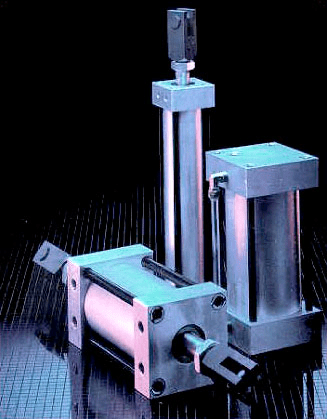

I/M/A Series Cylinders

Springville Products
Low Cost Aluminum Squarehead Cylinders & Air Oil Tanks – 250 PSI Air

  • Interchangeability
  • Pre-lubricated for non-lubricated service
  • Low friction teflon piston bearing
  • All bronze extended life rod bearing
  • High strength chrome-plated steel piston rod
  • Square machined aluminum heads
  • Light Weight aluminum tubing precision machined to length
  • Tubing I.D. Hard coated for corrosion resistance and extended seal life
  • Flush mounting holes – front, rear, and bottom
  • BUNA-N piston and rod seals
  • Rubberized tube seal gaskets
  • 100% field repairable
  • High strength coated steel tie rods


  • Stroke lengths to specifications
  • Viton seals
  • Cushions and Bumpers
  • Adjustable cushions
  • Special rod threads, ports and mounting holes
  • Non-rotating
  • Magnetic pistons and reed switches
  • Spring returns
  • Stainless steel piston rods
  • Several mounts available
  • Engineered specials

For more information about this product…
 Download a Catalog

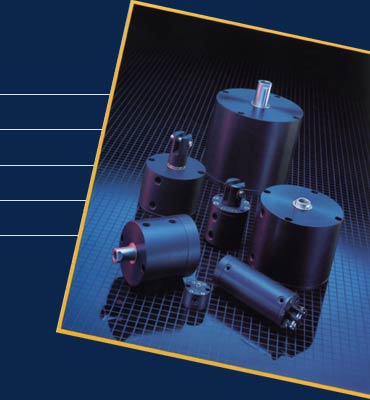

C Series Cylinders

Springville C Series Cylinders
1/2″ thru 4″ Bores

  • Stainless steel piston rods
  • Bronze rod bushings
  • BUNA N “O” rings
  • Black anodized finish
  • Bodies, covers & pistons of machined aluminum bar


  • Non-rotating
  • Viton seals
  • Chrome piston rods
  • Spring return/extend
  • Bumpers
  • Hard coat anodizing
  • Hollow piston rods
  • Engineered specials
  • Double ended

For more information about this product…
 Download a Catalog

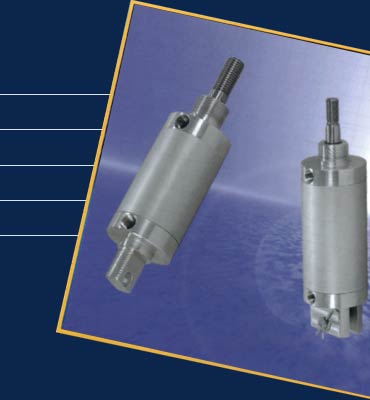

SB Series Cylinders (Silver Bullet)

Springville SB Series Cylinders
1 1/8″ thru 4″ Bores

  • Clean non-tie rod design
  • “Repairable” cylinder design
  • High tensile aluminum heads
  • Temperatur range -40° to 250° F
  • Self lubricating bronze bushings
  • Rod wiper cleans the rod & protects the seal
  • 150 PSI Rating
  • Fractional strokes
  • Hard chrome piston rod
  • U-Cup rod seals
  • Teflon glide piston seal
  • Hard coated aluminum tube


  • Bumpers
  • Cushions
  • Stop tubes
  • Special rod ends and threads
  • Viton high temperature seals -20° to 400° F
  • Oil service
  • U-Cup piston seals
  • Magnetic seals
  • Stainless Rods
  • Reed and Hall Switches

For more information about this product…
 Download a Catalog
