Air Filter-Regulator-Lubricator (FRLs)
STC and All Air offer a complete line of modular air-processing equipment. A-Series Filters, Regulators, and Lubricators (FRLs) are interchangeable with SMC-NAC Series FRLs. STC FRL components are of modular design with joiner clamps that allow easy connection and disconnection of the FRL components for simple installation and maintenance.
Explanation of drain options for filter bowls:
- Manual Drain: Bowl must be drained by hand
- Semi-Auto Drain: Bowl will drain automatically when the housing is depressurized
- Auto Drain: Bowl will drain automatically while the housing is pressurized when the water level reaches the built-in limit

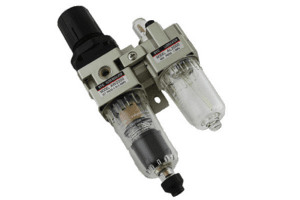

Product Lineup

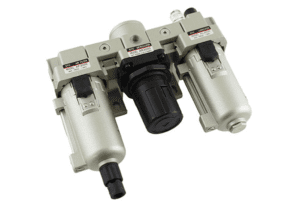

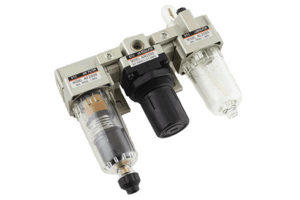

Filter-Regulator-Lubricators
AC1000-M5
M5 Filter- Regulator- Lubricator* (3 SCFM)
AC2000-01
1/8″ NPT Filter- Regulator- Lubricator* (18 SCFM)
AC2000-01D
1/8″ NPT Filter- Regulator- Lubricator* with Auto Drain (18 SCFM)
AC2000-01M
1/8″ NPT Filter- Regulator- Lubricator* Metal Bowl (18 SCFM)
AC2000-01DM
1/8″ NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (18 SCFM)
AC2000-02
1/4″ NPT Filter- Regulator- Lubricator* (18 SCFM)
AC2000-02D
1/4″ NPT Filter- Regulator- Lubricator* with Auto Drain (18 SCFM)
AC2000-02M
1/4″ NPT Filter- Regulator- Lubricator* Metal Bowl (18 SCFM)
AC2000-02DM
1/4″ NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (18 SCFM)
AC3000-02
1/4″ NPT Filter- Regulator- Lubricator* (70 SCFM)
AC3000-02D
1/4″ NPT Filter- Regulator- Lubricator* with Auto Drain (70 SCFM)
AC3000-02M
1/4″ NPT Filter- Regulator- Lubricator* with Metal Bowl (70 SCFM)
AC3000-02DM
1/4″ NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (70 SCFM)
AC3000-03
3/8″ NPT Filter- Regulator- Lubricator* (70 SCFM)
AC3000-03D
3/8″ NPT Filter- Regulator- Lubricator* with Auto Drain (70 SCFM)
AC3000-03M
3/8″ NPT Filter- Regulator- Lubricator* with Metal Bowl (70 SCFM)
AC3000-03DM
3/8″ NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (70 SCFM)
AC4000-03
3/8″ NPT Filter- Regulator- Lubricator* (140 SCFM)
AC4000-03D
3/8″ NPT Filter- Regulator- Lubricator* with Auto Drain (140 SCFM)
AC4000-03M
3/8″ NPT Filter- Regulator- Lubricator* with Metal Bowl (140 SCFM)
AC4000-03DM
3/8″ NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (140 SCFM)
AC4000-04
1/2″ NPT Filter- Regulator- Lubricator* (140 SCFM)
AC4000-04D
1/2″ NPT Filter- Regulator- Lubricator* with Auto Drain (140 SCFM)
AC4000-04M
1/2″ NPT Filter- Regulator- Lubricator* with Metal Bowl (140 SCFM)
AC4000-04DC
1/2″ NPT Filter- Regulator- Lubricator* with Drain Cock (manual shut off valve) (140 SCFM)
AC4000-04DM
1/2″ NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (140 SCFM)
AC4000-06
3/4″ NPT Filter- Regulator- Lubricator* (160 SCFM)
AC4000-06D
3/4″ NPT Filter- Regulator- Lubricator* with Auto Drain (160 SCFM)
AC4000-06M
3/4″ NPT Filter- Regulator- Lubricator* with Metal Bowl (160 SCFM)
AC4000-06DM
3/4″ NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (160 SCFM)
AC5000-10
1″ NPT Filter- Regulator- Lubricator* (180 SCFM)
AC5000-10D
1″ NPT Filter- Regulator- Lubricator* with Auto Drain (180 SCFM)
AC5000-10M
1″ NPT Filter- Regulator- Lubricator* with Metal Bowl (180 SCFM)
AC5000-10DM
1″ NPT Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (180 SCFM)
AC1010-M5
M5/10-32 Stacking Filter- Regulator- Lubricator* (3 SCFM)
AC2010-01
1/8″ NPT Stacking Filter- Regulator- Lubricator* (18 SCFM)
AC2010-01D
1/8″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (18 SCFM)
AC2010-01DM
1/8″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (18 SCFM)
AC2010-02
1/4″ NPT Stacking Filter- Regulator- Lubricator* (18 SCFM)
AC2010-02D
1/4″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (18 SCFM)
AC2010-02M
1/4″ NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (18 SCFM)
AC2010-02DM
1/4″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (18 SCFM)
AC3010-02
1/4″ NPT Stacking Filter- Regulator- Lubricator* (60 SCFM)
AC3010-02D
1/4″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (60 SCFM)
AC3010-02M
1/4″ NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (60 SCFM)
AC3010-02DM
1/4″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (60 SCFM)
AC3010-03
3/8″ NPT Stacking Filter- Regulator- Lubricator* (60 SCFM)
AC3010-03D
3/8″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (60 SCFM)
AC3010-03M
3/8″ NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (60 SCFM)
AC3010-03DM
3/8″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (60 SCFM)
AC4010-03
3/8″ NPT Stacking Filter- Regulator- Lubricator* (105 SCFM)
AC4010-03D
3/8″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (105 SCFM)
AC4010-03M
3/8″ NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (105 SCFM)
AC4010-04
1/2″ NPT Stacking Filter- Regulator- Lubricator* (105 SCFM)
AC4010-04D
1/2″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (105 SCFM)
AC4010-04M
1/2″ NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (105 SCFM)
AC4010-04DM
1/2″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (105 SCFM)
AC4010-06
3/4″ NPT Stacking Filter- Regulator- Lubricator* (105 SCFM)
AC4010-06D
3/4″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (105 SCFM)
AC4010-06M
3/4″ NPT Stacking Filter- Regulator- Lubricator* with Metal Bowl (105 SCFM)
AC4010-06DM
3/4″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (105 SCFM)
AC5010-10
1″ NPT Stacking Filter- Regulator- Lubricator* (140 SCFM)
AC5010-10D
1″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain (140 SCFM)
AC5010-10DM
1″ NPT Stacking Filter- Regulator- Lubricator* with Auto Drain & Metal Bowl (140 SCFM)
AFC1500
1/8″ NPT Stacked Filter- Regulator- Lubricator
Flow Rate (SCFM): 18

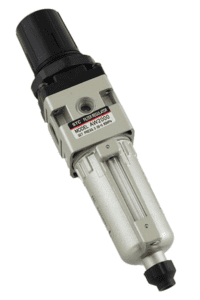

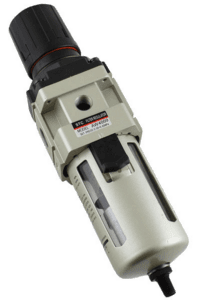

Filter-Regulators
AW1000-M5
M5 Filter- Regulator* (3 SCFM)
AW2000-01
1/8″ NPT Filter- Regulator* (19 SCFM)
AW2000-01D
1/8″ NPT Filter- Regulator* with Auto Drain (19 SCFM)
AW2000-01M
1/8″ NPT Filter- Regulator* with Metal Bowl (19 SCFM)
AW2000-01DM
1/8″ NPT Filter- Regulator* Auto Drain & Metal Bowl (19 SCFM)
AW2000-02
1/4″ NPT Filter- Regulator* (19 SCFM)
AW2000-02D
1/4″ NPT Filter- Regulator* with Auto Drain (19 SCFM)
AW2000-02M
1/4″ NPT Filter- Regulator* with Metal Bowl (19 SCFM)
AW2000-02DM
1/4″ NPT Filter- Regulator* Auto Drain & Metal Bowl (19 SCFM)
AW3000-02
1/4″ NPT Filter- Regulator* (70 SCFM)
AW3000-02D
1/4″ NPT Filter- Regulator* with Auto Drain (70 SCFM)
AW3000-02M
1/4″ NPT Filter- Regulator* with Metal Bowl (70 SCFM)
AW3000-02DM
1/4″ NPT Filter- Regulator* Auto Drain & Metal Bowl (70 SCFM)
AW3000-03
3/8″ NPT Filter- Regulator* (70 SCFM)
AW3000-03D
3/8″ NPT Filter- Regulator* with Auto Drain (70 SCFM)
AW3000-03M
3/8″ NPT Filter- Regulator* with Metal Bowl (70 SCFM)
AW3000-03DM
3/8″ NPT Filter- Regulator* Auto Drain & Metal Bowl (70 SCFM)
AW4000-03
3/8″ NPT Filter- Regulator* (140 SCFM)
AW4000-03D
3/8″ NPT Filter- Regulator* with Auto Drain (140 SCFM)
AW4000-03M
3/8″ NPT Filter- Regulator* with Metal Bowl (140 SCFM)
AW4000-03DM
3/8″ NPT Filter- Regulator* Auto Drain & Metal Bowl (140 SCFM)
AW4000-04
1/2″ NPT Filter- Regulator* (140 SCFM)
AW4000-04D
1/2″ NPT Filter- Regulator* with Auto Drain (140 SCFM)
AW4000-04M
1/2″ NPT Filter- Regulator* with Metal Bowl (140 SCFM)
AW4000-04DM
1/2″ NPT Filter- Regulator* Auto Drain & Metal Bowl (140 SCFM)
AW4000-06
3/4″ NPT Filter- Regulator* (160 SCFM)
AW4000-06D
3/4″ NPT Filter- Regulator* with Auto Drain (160 SCFM)
AW5000-10
1″ NPT Filter- Regulator* (195 SCFM)
AW5000-10D
1″ NPT Filter- Regulator* with Auto Drain (195 SCFM)

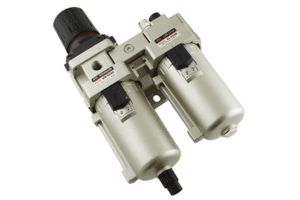

AFR 1000/1500
1/8″ NPT Stacked Filter-Regulator
Flow Rate (SCFM): 18
AFR2000
1/4″ NPT Stacked Filter-Regulator
Flow Rate (SCFM): 18

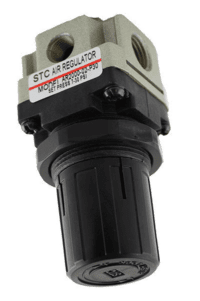

Regulators
AR1000-M5
M5/10-32 Regulator* (4 SCFM)
AR2000-01
1/8″ NPT Regulator* (19 SCFM)
AR2000-02
1/4″ NPT Regulator* (19 SCFM)
AR2500-02
1/4″ NPT Regulator* (50 SCFM)
AR3000-02
1/4″ NPT Regulator* (88 SCFM)
AR3000-03
3/8″ NPT Regulator* (88 SCFM)
AR4000-03
3/8″ NPT Regulator* (210 SCFM)
AR4000-04
1/2″ NPT Regulator* (210 SCFM)
AR4000-06
3/4″ NPT Regulator* (210 SCFM)
AR5000-06
3/4″ NPT Regulator* (280 SCFM)
AR5000-10
1″ NPT Regulator* (280 SCFM)

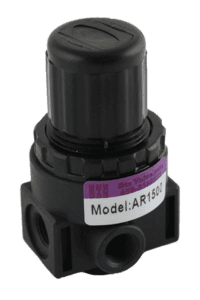

AR1500
1/8″ NPT Regulator (Includes Gauge & Bracket)
Flow Rate (SCFM): 18
AR2000
1/4″ NPT Regulator (Includes Gauge & Bracket)
Flow Rate (SCFM): 18
BR3000
3/8″ NPT Regulator (Includes Gauge & Bracket)
Flow Rate (SCFM): 60
BR4000
1/2″ NPT Regulator (Includes Gauge & Bracket)
Flow Rate (SCFM): 60

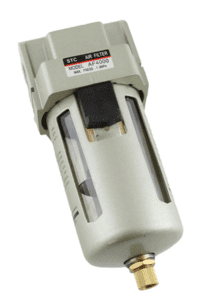

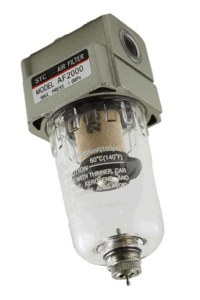

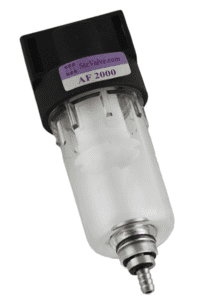

Filters
AF1000-M5
M5 Filter (4 SCFM)
AF2000-01
1/8″ NPT Filter (26 SCFM)
AF2000-01D
1/8″ NPT Filter with Auto Drain (26 SCFM)
AF2000-01M
1/8″ NPT Filter with Metal Bowl (26 SCFM)
AF2000-01DM
1/8″ NPT Filter with Auto Drain & Metal Bowl (26 SCFM)
AF2000-02
1/4″ NPT Filter (26 SCFM)
AF2000-02D
1/4″ NPT Filter with Auto Drain (26 SCFM)
AF2000-02M
1/4″ NPT Filter with Metal Bowl (26 SCFM)
AF2000-02DM
1/4″ NPT Filter Auto Drain & Metal Bowl (26 SCFM)
AF3000-02
1/4″ NPT Filter (70 SCFM)
AF3000-02D
1/4″ NPT Filter with Auto Drain (70 SCFM)
AF3000-02M
1/4″ NPT Filter with Metal Bowl (70 SCFM)
AF3000-02DM
1/4″ NPT Filter Auto Drain & Metal Bowl (70 SCFM)
AF3000-03
3/8″ NPT Filter (70 SCFM)
AF3000-03D
3/8″ NPT Filter with Auto Drain (70 SCFM)
AF3000-03M
3/8″ NPT Filter with Metal Bowl (70 SCFM)
AF3000-03DM
3/8″ NPT Filter Auto Drain & Metal Bowl (70 SCFM)
AF4000-03
3/8″ NPT Filter (140 SCFM)
AF4000-03D
3/8″ NPT Filter with Auto Drain (140 SCFM)
AF4000-03M
3/8″ NPT Filter with Metal Bowl (140 SCFM)
AF4000-03DM
3/8″ NPT Filter Auto Drain & Metal Bowl (140 SCFM)
AF4000-04
1/2″ NPT Filter (140 SCFM)
AF4000-04D
1/2″ NPT Filter with Auto Drain (140 SCFM)
AF4000-04M
1/2″ NPT Filter with Metal Bowl (140 SCFM)
AF4000-04DM
1/2″ NPT Filter Auto Drain & Metal Bowl (140 SCFM)
AF4000-06
3/4″ NPT Filter (210 SCFM)
AF4000-06D
3/4″ NPT Filter with Auto Drain (210 SCFM)
AF4000-06M
3/4″ NPT Filter with Metal Bowl (210 SCFM)
AF4000-06DM
3/4″ NPT Filter Auto Drain & Metal Bowl (210 SCFM)
AF5000-10
1″ NPT Filter (245 SCFM)
AF5000-10D
1″ NPT Filter with Auto Drain (245 SCFM)
AF5000-10M
1″ NPT Filter with Metal Bowl (245 SCFM)
AF5000-10DM
1″ NPT Filter with Auto Drain & Metal Bowl (245 SCFM)
AF2000
1/4″ NPT Filter
Flow Rate (SCFM): 18

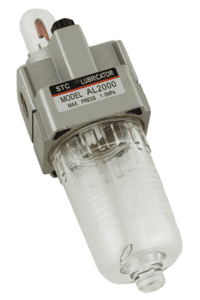

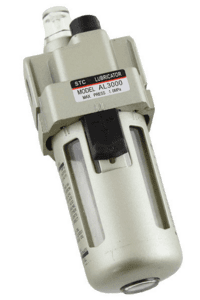

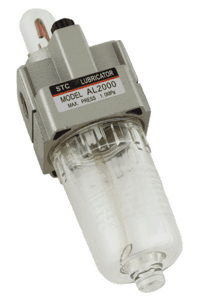

Lubricators
AL1000-M5
M5 Lubricator (3 SCFM)
AL2000-01
1/8″ NPT Lubricator (28 SCFM)
AL2000-01M
1/8″ NPT Lubricator with Metal Bowl (28 SCFM)
AL2000-02
1/4″ NPT Lubricator (28 SCFM)
AL2000-02M
1/4″ NPT Lubricator with Metal Bowl (28 SCFM)
AL3000-02
1/4″ NPT Lubricator (60 SCFM)
AL3000-02M
1/4″ NPT Lubricator with Metal Bowl (60 SCFM)
AL3000-03
3/8″ NPT Lubricator (60 SCFM)
AL3000-03M
3/8″ NPT Lubricator with Metal Bowl (60 SCFM)
AL4000-03
3/8″ NPT Lubricator (180 SCFM)
AL4000-03M
3/8″ NPT Lubricator with Metal Bowl (180 SCFM)
AL4000-04
1/2″ NPT Lubricator (180 SCFM)
AL4000-04M
1/2″ NPT Lubricator with Metal Bowl (180 SCFM)
AL4000-06
3/4″ NPT Lubricator (220 SCFM)
AL4000-06M
3/4″ NPT Lubricator with Metal Bowl (220 SCFM)
AL5000-10
1″ NPT Lubricator (245 SCFM)
AL5000-10M
1″ NPT Lubricator with Metal Bowl (245 SCFM)
AL2000
1/4″ NPT Lubricator
Flow Rate (SCFM): 18
Shut-off Valves/Lockout Valves
VHS2000-01
1/8″ NPT Relieving Shut-off / Lockout Valve for 2000-01 Series FRL
VHS2000-02
1/4″ NPT Relieving Shut-off / Lockout Valve for 2000-02 Series FRL
VHS3000-02
1/4″ NPT Relieving Shut-off / Lockout Valve for 3000-02 Series FRL
VHS3000-03
3/8″ NPT Relieving Shut-off / Lockout Valve for 3000-03 Series FRL
VHS4000-03
3/8″ NPT Relieving Shut-off / Lockout Valve for 4000-03 Series FRL
VHS4000-04
1/2″ NPT Relieving Shut-off / Lockout Valve for 4000-04 Series FRL
VHS5000-06
3/4″ NPT Relieving Shut-off / Lockout Valve for 5000-06 Series FRL
VHS5000-10
1″ NPT Relieving Shut-off / Lockout Valve for 5000-10 Series FRL
Pressure Gauges
GE 1-60
1″ Dia. 1/16″ 0-60 PSI back mount pressure gauge for 1000 series FRL
GE 1-160
1″ Dia. 1/16″ 0-160 PSI back mount pressure gauge for 1000 series FRL
GE 1 1/2-30
1 1/2″ Dia. 1/8″ NPT 0-30 PSI back mount pressure gauge for 2000 series FRL
GE 1 1/2-60
1 1/2″ Dia. 1/8″ NPT 0-60 PSI back mount pressure gauge for 2000 series FRL
GE 1 1/2-160
1 1/2″ Dia. 1/8″ NPT 0-160 PSI back mount pressure gauge for 2000 series FRL
GE 2-30
2″ Dia. 1/4″ NPT 0-30 PSI back mount pressure gauge for 3000-5000 series FRL
GE 2-60
2″ Dia. 1/4″ NPT 0-60 PSI back mount pressure gauge for 3000-5000 series FRL
GE 2-160
2″ Dia. 1/4″ NPT 0-160 PSI back mount pressure gauge for 3000-5000 series FRL
GP 1 1/2-160
1 1/2″ Dia. 1/8″ NPT 0-160 PSI panel mount pressure gauge for 2000 series FRL
GP 2-160
2″ Dia. 1/4″ NPT 0-160 PSI panel mount pressure gauge
GA 1 1/2-60
1.5″ Dia. 1/8″ NPT 0-60 PSI SS housing back mount glycerin filled
GA 1 1/2-160
1.5″ Dia. 1/8″ NPT 0-160 PSI SS housing back mount glycerin filled
Brackets
Spacers
Y20 – Spacer for AC2000 / AC2010
Y30 – Spacer for AC3000 / AC3010
Y40 – Spacer for AC4000-04 / AC4010-04
Y50 – Spacer for AC4000-06 / AC4000-06
Y60 – Spacer for AC5000 / AC5010
L-Type Spacers
Y20L – L-Type Spacer Bracket for AC2000
Y30L – L-Type Spacer Bracket for AC3000
Y40L – L-Type Spacer Bracket for AC4000-04
Y50L – L-Type Spacer Bracket for AC4000-06
Y60L – L-Type Spacer Bracket for AC5000
T-Type Spacers
Y20T – T-Type Spacer Bracket for AC2010
Y30T – T-Type Spacer Bracket for AC3010
Y40T – T-Type Spacer Bracket for AC4010-04
Y50T – T-Type Spacer Bracket for AC4010-06
Y60T – T-Type Spacer Bracket for AC5010
Spacers with NTP Port
Y21-N01 – Spacer with 1/8 NPT Port for AC2000
Y21-N02 – Spacer with 1/4 NPT Port for AC2000
Y31-N01 – Spacer with 1/8 NPT Port for AC3000
Y31-N02 – Spacer with 1/4 NPT Port for AC3000
Y41-N02 – Spacer with 1/4 NPT Port for AC4000
Y41-N03 – Spacer with 3/8 NPT Port for AC4000
Y61-N03 – Spacer with 3/8 NPT Port for AC5000
Y61-N04 – Spacer with 1/2 NPT Port for AC5000
L-Bracket
B110L – L-Bracket for AC1000
B210L – L-Bracket for AC2000
B310L – L-Bracket for AC3000
B410L – L-Bracket for AC4000
B510L – L-Bracket for AC4000-06
T-Bracket
B110T – T-Bracket for AC1010
B210T – T-Bracket for AC2010
B310T – T-Bracket for AC3010
B410T – T-Bracket for AC4010
B510T – T-Bracket for AC4010-06
Bracket for AR/AW
B120 – Bracket for AR/AW1000
B220 – Bracket for AR/AW2000
B320 – Bracket for AR/AW3000
B420 – Bracket for AR/AW4000-5000
Bracket for AF/AL
B240 – Bracket for AF/AL2000
B340 – Bracket for AF/AL3000
B440 – Bracket for AF/AL4000-04
B540 – Bracket for AF/AL4000-06
B640 – Bracket for AF/AL5000
FRL Ordering Guide (e.g., AC1000-M5)
| Model | Body Size | Port Size | Options | Standard Features |
|---|---|---|---|---|
| AC = Filter- Regulator- Lubricator
AF = Filter AL = Lubricator AR = Regulator AW = Stacking Filter-Regulator |
1000 2000 3000 4000 5000 |
00 = 10-32 (M5)
01 = 1/8″ NPT 02 = 1/4″ NPT 03 = 3/8″ NPT 04 = 1/2″ NPT 06 = 3/4″ NPT 10 = 1″ NPT |
D = Automatic Drain
DC = Drain Cock (with manual shut off valve) M = Metal Bowl (with Sight Glass) P30 = 30PSI Regulating Range P60 = 60PSI Regulating Range F5 = 5 Micron Filter |
125PSI Regulating Range
Polycarbonate Bowl (3000-5000 Series with Steel Bowl Shield) Semi-Auto Differential Drain 25 Micron Sintered Brass Filter |
| AC = Stacking Filter- Regulator- Lubricator | 1010 2010 3010 4010 5010 |
00 = 10-32 (M5)
01 = 1/8″ NPT 02 = 1/4″ NPT 03 = 3/8″ NPT 04 = 1/2″ NPT 06 = 3/4″ NPT 10 = 1″ NPT |
D = Automatic Drain
DC = Drain Cock (with manual shut off valve) M = Metal Bowl (with Sight Glass) P30 = 30PSI Regulating Range P60 = 60PSI Regulating Range F5 = 5 Micron Filter |
125PSI Regulating Range
Polycarbonate Bowl (3000-5000 Series with Steel Bowl Shield) Semi-Auto Differential Drain 25 Micron Sintered Brass Filter |
Specifications
Filter- Regulator- Lubricator (AC)
| Model | Air Flow Rate* SCFM (LPM) |
| AC 1000-00 | 3 (90) |
| AC 2000-XX | 18 (500) |
| AC 3000-XX | 70 (2000) |
| AC 4000-XX | 140 (4000) |
| AC 4000-06 | 160 (4500) |
| AC 5000-XX | 180 (5000) |
Stacking Filter- Regulator- Lubricator (AC)
| Model | Air Flow Rate* SCFM (LPM) |
| AC 1010-00 | 3 (90) |
| AC 2010-XX | 18 (500) |
| AC 3010-XX | 60 (1700) |
| AC 4010-XX | 105 (3000) |
| AC 4010-06 | 105 (3000) |
| AC 5010-XX | 140 (4000) |
Filter- Regulator (AW)
| Model | Air Flow Rate* SCFM (LPM) |
| AW 1000-00 | 3 (90) |
| AW 2000-XX | 19 (550) |
| AW 3000-XX | 70 (2000) |
| AW 4000-XX | 140 (4000) |
| AW 4000-06 | 160 (4500) |
| AW 5000-XX | 195 (5500) |
Regulator (AR)
| Model | Air Flow Rate* SCFM (LPM) |
| AR 1000-00 | 4 (100) |
| AR 2000-XX | 19 (550) |
| AR 3000-XX | 88 (2500) |
| AR 4000-XX | 210 (6000) |
| AR 4000-06 | 210 (6000) |
| AR 5000-XX | 280 (8000) |
Filters (AF)
| Model | Air Flow Rate* SCFM (LPM) |
| AF 1000-00 | 4 (110) |
| AF 2000-XX | 26 (760) |
| AF 3000-XX | 70 (2000) |
| AF 4000-XX | 140 (4000) |
| AF 4000-06 | 210 (6000) |
| AF 5000-XX | 245 (7000) |
Lubricators (AL)
| Model | Air Flow Rate* SCFM (LPM) |
| AL 1000-00 | 3 (90) |
| AL 2000-XX | 28 (800) |
| AL 3000-XX | 60 (1700) |
| AL 4000-XX | 180 (5000) |
| AL 4000-06 | 220 (6300) |
| AL 5000-XX | 245 (7000) |
*Measured with Supply Air Pressure @100PSI and Set Point Pressure @75PSI.
| Model Series | Port Size | Port Size (Pressure Gauge) | Regulating Range | Max. Operating Pressure | Operating Temperature | Filtration | Bowl Material | Bowl Guard | Body Material | Construction/ Regulator |
Seals | Filter Drain | Service |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000-00 | 10-32 (M5) | 1/16 Rc (PT) | 7 – 100PSI | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
N/A | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differential Drain | For Air Only |
| 1010-00 | 10-32 (M5) | 1/16 Rc (PT) | 7 – 100PSI | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
N/A | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differential Drain | For Air Only |
| 2000-XX | 1/8″ or 1/4″ NPT | 1/8″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
N/A | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
| 2010-XX | 1/8″ or 1/4″ NPT | 1/8″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
N/A | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
| 3000-XX | 1/4″ or 3/8″ NPT | 1/8″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
Steel Bowl Guard | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
| 3010-XX | 1/4″ or 3/8″ NPT | 1/8″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
Steel Bowl Guard | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
| 4000-XX | 3/8″ or 1/2″ NPT | 1/4″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
Steel Bowl Guard | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
| 4010-XX | 3/8″ or 1/2″ NPT | 1/4″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
Steel Bowl Guard | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
| 4000-06 | 3/4″ NPT | 1/4″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
Steel Bowl Guard | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
| 4010-06 | 3/4″ NPT | 1/4″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
Steel Bowl Guard | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
| 5000-XX | 3/4″ or 1″ NPT | 1/4″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
Steel Bowl Guard | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
| 5010-XX | 3/4″ or 1″ NPT | 1/4″ NPT | 7 – 125PSI (0.5 – 8.5 kgf/cm^2) | 150PSI (9.9 kgf/cm^2) |
40 – 140°F (5 – 60°C) |
5 Micron Filter (Option);
25 Micron (Standard Sintered Brass Filter) |
Polycarbonate (Standard);
Aluminum Metal (Option) |
Steel Bowl Guard | Die-Cast ADC12 Aluminum | Relieving Type | NBR | Semi-Auto Differntial Drain (Standard)
Automatic Drain (Option) |
For Air Only |
These FRL components are of modular design with joiner clamps. The joiner clamps allow easy connection and disconnection of FRL components for simple installation and maintenance.
For more information about these products…
Download a Catalog
