STC and All Air provide a large selection of manual air valves, foot-operated air valves, and lever operated air valves for a variety of pneumatic applications. STC Manual Air Valves are the solution to many common pneumatic applications.

Product Lineup

Three Way, Three Port, Two Position Valves (3/2)

Show Product Specifications

Port Size (NPT) Description Pneumatic Symbol

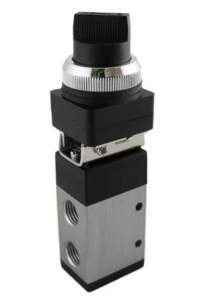

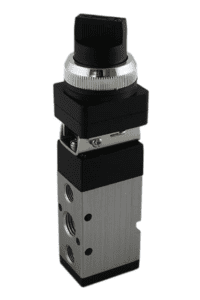

MSV-98322TB STC 2 Position Switch 1/4″ NPT Two Position Switch
Cv 0.89		 STC Pneumatic Symbol

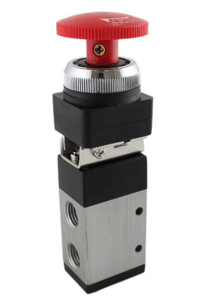

MSV-98322EB STC Emergency Stop Detented 1/4″ NPT Emergency Stop
Detented
Cv 0.89		  STC Pneumatic Symbol

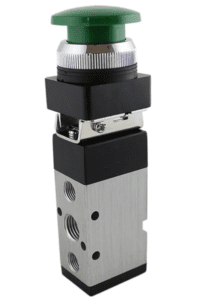

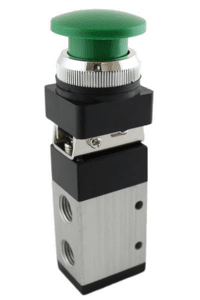

MSV-98322PB  STC Palm Button Momentary 1/4″ NPT Palm Button
Momentary
Cv 0.89		 STC Pneumatic Symbol

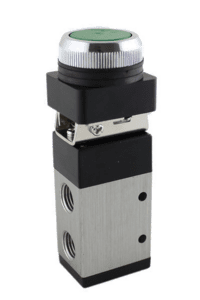

MSV-98322PP STC Push Button Momentary 1/4″ NPT Push Button
Momentary
Cv 0.89		  STC Pneumatic Symbol

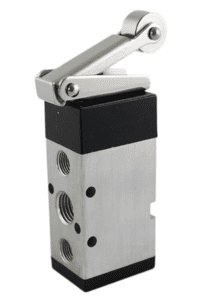

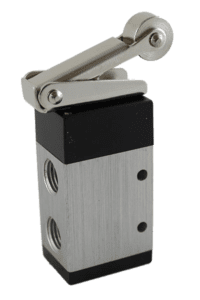

MSV-98322R STC Roller Lever Momentary 1/4″ NPT Roller Lever
Momentary
Cv 0.89		  STC Pneumatic Symbol

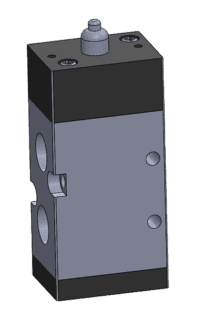

MSV-98322  STC Pin Plunger Valves 1/4″ NPT Pin Plunger Valves
Cv 0.89		 STC Pneumatic Symbol
TSV98322M

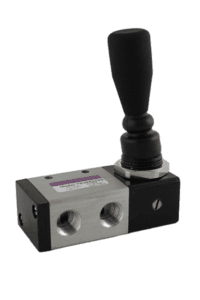

TSV98322S		 STC Lever 1/4″ NPT Lever
M = Detented
S = Non-Detented		  STC Pneumatic Symbol

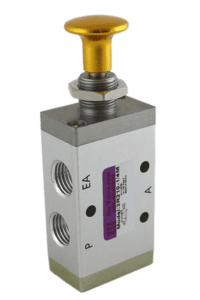

3R210-1/4M

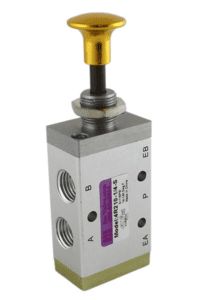

3R210-1/4S		 STC Pull/Push 1/4″ NPT Pull/Push
M = Detented
S = Non-Detented		 STC Pneumatic Symbol

Four Way, Five Port, Two Position Valves (5/2)

Show Product Specifications

Port Size (NPT) Description Pneumatic Symbol
MSV-86522TB STC Two Position Detented Switch 1/4″ NPT Two Position
Detented Switch
Cv 0.89		 STC Pneumatic Symbol

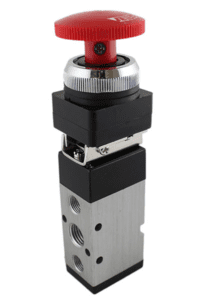

MSV-86522EB STC Emergency Stop Detented 1/4″ NPT Emergency Stop
Detented
Cv 0.89		 STC Pneumatic Symbol

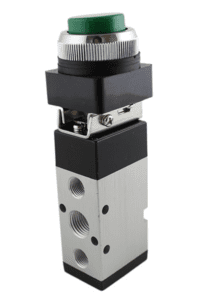

MSV-86522PB STC Palm Button Momentary 1/4″ NPT Palm Button
Momentary
Cv 0.89		 STC Pneumatic Symbol

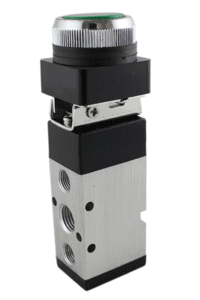

MSV-86522PP STC Push Button Momentary 1/4″ NPT Push Button
Momentary
Cv 0.89		 STC Pneumatic Symbol

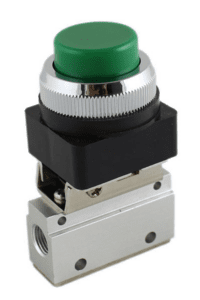

MSV-86522PPL  STC High Push Button Momentary 1/4″ NPT High Push Button
Momentary
Cv 0.89		 STC Pneumatic Symbol
MSV-86522R STC Roller Lever 1/4″ NPT Roller Lever
Cv 0.89		 STC Pneumatic Symbol
MSV-86522  STC Pin Plunger Valve 1/4″ NPT Pin Plunger Valve
Cv 0.89		 STC Pneumatic Symbol
TSV86522M
TSV86522S		 STC Lever 1/4″ NPT Lever
M = Detented
S = Non-Detented		 STC Pneumatic Symbol
4R210-1/4M
4R210-1/4S		  STC Pull/Push 1/4″ NPT Pull/Push
M = Detented
S = Non-Detented		 STC Pneumatic Symbol
MPV522 STC Pull/Push 1/4″ NPT Toggle Switch
Cv 1.00		 STC Pneumatic Symbol

Three Way, Two Port, Two Position Valves (3/2)

Show Product Specifications

Port Size (NPT) Description Pneumatic Symbol

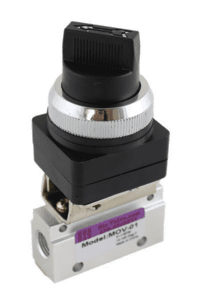

MOV-01 STC Two Position Switch Detented 1/8″ NPT Two Position Switch Detented
Cv 0.67		 STC Pneumatic Symbol
MOV-02 STC Roller Lever Momentary 1/8″ NPT Roller Lever
Momentary
Cv 0.67

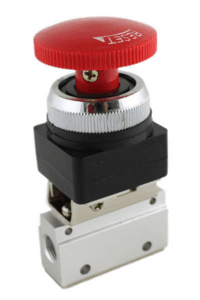

MOV-03EB STC Emergency Stop Detented 1/8″ NPT Emergency Stop
Detented
Cv 0.67		 STC Pneumatic Symbol

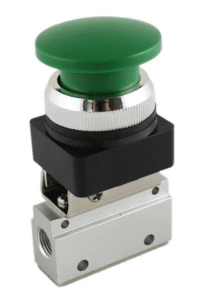

MOV-03PL STC Push Button Momentary 1/8″ NPT Push Button
Momentary
Cv 0.67		 STC Pneumatic Symbol

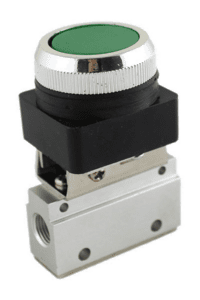

MOV-03PP STC Flush Push Button Momentary 1/8″ NPT Flush Push Button
Momentary
Cv 0.67		 STC Pneumatic Symbol
MOV-03PB STC Palm Button Momentary 1/8″ NPT Palm Button
Momentary
Cv 0.67		 STC Pneumatic Symbol

Four Way, Five Port, Three Position Valves (5/3)

Show Product Specifications

Port Size (NPT) Description Pneumatic Symbol
4H230C-M
4H230C-S		 STC Center Lever 1/4″ NPT Closed Center Lever Air Valve
M = Detented
S = Non-Detented		 STC Pneumatic Symbol
4H230E-M
4H230E-S		 STC Center Lever 1/4″ NPT Exhaust Center Lever Air Valve
M = Detented
S = Non-Detented		 STC Pneumatic Symbol
4H230P-M
4H230P-S		 STC Center Lever 1/4″ NPT Pressure Center Lever Air Valve
M = Detented
S = Non-Detented		 STC Pneumatic Symbol
HV 410 STC Hand Valve 1/4″ NPT Hand Valve
Cv 1.68		 STC Pneumatic Symbol
HV 420 STC Hand Valve 1/4″ NPT Hand Valve
Closed Center
Cv 1.68		 STC Pneumatic Symbol

Foot Operated Air Valves

Show Product Specifications

Port Size (NPT) Description Pneumatic Symbol
FV220-1/4 STC Foot Valve Momentary 1/4″ NPT Foot Valve
Momentary		 STC Pneumatic Symbol
FV320-1/4 STC Foot Valve Momentary 1/4″ NPT Foot Valve
Momentary		 STC Pneumatic Symbol
FV420-1/4 STC Foot Valve Momentary 1/4″ NPT Foot Valve
Momentary		 STC Pneumatic Symbol
4F210-1/4 STC Foot Valve Momentary 1/4″ NPT Foot Valve
Momentary		 STC Pneumatic Symbol
4F210L-1/4 STC Foot Valve Detented 1/4″ NPT Foot Valve
Detented		 STC Pneumatic Symbol
4F210G-1/4 STC Shielded Foot Valve Momentary 1/4″ NPT Shielded Foot Valve
Momentary		 STC Pneumatic Symbol
4F210GL-1/4 STC Shielded Foot Valve Detented 1/4″ NPT Shielded Foot Valve
Detented		 STC Pneumatic Symbol

Accessories

Show Product Specifications

Available Sizes (Standard) Available Sizes (Metric)
Quick Exhaust STC Quick Exhaust Tube OD 1/8″;
Tube OD 1/4″;
Tube OD 3/8″;
Tube OD 1/2″;		 N/A
Shuttle Valve STC Shuttle Valve Tube OD 1/8″;
Tube OD 1/4″;
Tube OD 3/8″;
Tube OD 1/2″;		 N/A
Speed Control Muffler STC Speed Control Muffler Tube OD 1/8″;
Tube OD 1/4″;
Tube OD 3/8″;
Tube OD 1/2″;		 N/A
Muffler STC Muffler Tube OD 1/8″;
Tube OD 1/4″;
Tube OD 3/8″;
Tube OD 1/2″;		 Tube OD 10-32;
In-Line Flow Control
(Panel Mount)		 STC In-Line Flow Control Tube OD 1/8″;
Tube OD 1/4″;
Tube OD 3/8″;
Tube OD 1/2″;		 N/A
Namur Flow Control Adaptor STC Namur Flow Control Adapter Tube OD 1/4″; N/A
In-Line Flow Control STC In-Line Flow Control Tube OD 1/8″;
Tube OD 1/4″;
Tube OD 3/8″;
Tube OD 1/2″;		 N/A
Union Valve STC Union Valve Tube OD 1/8″;
Tube OD 1/4″;		 N/A

Specifications

Model No. Description Cv Operating Pressure Operating Temperature Action Working Medium Body Material Seal Material Lubrication Model No. Description Cv Operating Pressure Operating Temperature Action Working Medium Body Material Seal Material Lubrication
FV Series Foot Valves 0.89 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required FV Series Foot Valves 0.89 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
HV Series Hand Valves 1.68 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required HV Series Hand Valves 1.68 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
MOV Series Hand Valves 0.67 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required MOV Series Hand Valves 0.67 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
MPV Series Toggle Valves 1.0 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required MPV Series Toggle Valves 1.0 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
MSV Series Hand Valves 0.89 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required MSV Series Hand Valves 0.89 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
TSV Series Lever Valves 1.0 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required TSV Series Lever Valves 1.0 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
3R-4R Series Pull/Push Valves 0.89 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required 3R-4R Series Pull/Push Valves 0.89 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
4F Series Foot Valves 1.68 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required 4F Series Foot Valves 1.68 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
4H Series Lever Valves 0.89 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required 4H Series Lever Valves 0.89 0 to 116PSI 14 to 140°F (-10 to 60°C) Direct Acting 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
Model No. Description Orifice (mm) Operating Pressure Operating Temperature Working Medium Body Material Seal Material Lubrication
ASC Series Flow Control Valves 1/8″ = 4.6; 1/4″ = 6.0; 3/8″ = 6.2; 1/2″ = 9.6; 3/4″ = 9.8 0 to 140PSI 14 to 140°F (-10 to 60°C) 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
AS Series Flow Control Valves 1/8″ = 4.6; 1/4″ = 6.0; 3/8″ = 6.2; 1/2″ = 9.6; 3/4″ = 9.8 7 to 145PSI 14 to 140°F (-10 to 60°C) 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
QE Series Quick Exhaust Valves 1/8″ = 4.6; 1/4″ = 6.0; 3/8″ = 6.2; 1/2″ = 9.6; 3/4″ = 9.8 0 to 145PSI 14 to 140°F (-10 to 60°C) 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required
ST Series Shuttle Valves 1/8″ = 4.6; 1/4″ = 6.0; 3/8″ = 6.2; 1/2″ = 9.6; 3/4″ = 9.8 0 to 145PSI 14 to 140°F (-10 to 60°C) 40 micron filtered air or inert gas Aluminum (Anodized) NBR Not Required

Solenoid Valve Guide

Valve Configurations Functions
2 Way Valve Configuration: 2 Position Valve to turn on and off
3 Way Valve Configuration: 2 Position Valve to fully extend single acting cylinder (spring return cylinder)
4 Way Valve Configuration: 2 Position Valve to fully extend and retract double acting cylinder
4 Way Valve Configuration: 3 Position, Closed-Center Valve to stop a double acting cylinder in partial stroke, all ports are shut off
4 Way Valve Configuration: 3 Position, Exhaust-Center Valve to have both cylinder ports open to exhaust such that the cylinder can be extended and retracted manually to facilitate set-up
4 Way Valve Configuration: 3 Position, Pressure-Center Valve to stop a double acting cylinder in partial stroke with pressure on both ends of the cylinder
