STC’s high performance line of solenoid process valves offer a wide range of capabilities to suit your unique operating conditions. STC Process Valves are versatile – several materials are available, including brass, 304 Stainless Steel, 316 Stainless Steel, PTFE (Teflon), and aluminum. ATEX and Explosion-Proof coil options, as well as UL & CSA (cURus) approved coils, are available for many valves to suit your application. All Air and STC also offer a selection of timer switches and power saving devices.
Product Lineup
Show Product Specifications
| Model – Port Size | Voltage | Features | Valve Symbol | |
|---|---|---|---|---|
| 2P025 1/8 – 1/8″NPT 2P025 1/4 – 1/4″NPT |
 |
1 =12VDC 2 =24VDC2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air 2 Way Direct Acting Normally Closed 22 SCFM @100 PSI Pressure: Vacuum to 115 PSI Temperature: 32 to 50 °F Engineering Nylon Plastic Body Response Time <20msec Coil Power 3 to 6.5W |
 |
| 2P025 1/8S – 1/8″NPT 2P025 1/4S – 1/4″NPT |
|
1 =12VDC 2 =24VDC2A =24VAC 3 =110VAC 4 =220VAC |
Service: Water, Air, Liquid 2 Way Direct Acting Normally Closed 22 SCFM @100 PSI Pressure: Vacuum to 115 PSI Temperature: 32 to 50 °F Engineering Nylon Plastic Body Response Time <20msec Wetted Surfaces: Nylon and Stainless Steel Coil Power 3 to 6.5W |
|
| 2P025 1/8A – 1/8″NPT 2P025 1/4A – 1/4″NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC E or ATEX=Explosion Proof Coil |
Service: Water, Air, Liquid 2 Way Direct Acting Normally Closed 20 SCFM @100 PSI Pressure: Vacuum to 115 PSI Temperature: 32 to 50 °F Engineering Acetal Plastic Body Response Time <20msec Wetted Surfaces: Acetal and Stainless Steel Coil Power 3 to 6.5W |
|
| 2P050 1/4 – 1/4″ Female NPT 2P050 3/8 – 3/8″ Female NPT 2P050 3/8F – 3/6″ Push-In Fitting |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
Service: Water, Air, Liquid 2-Way, Normally Closed Direct Acting Body: Delrin Plastic (customizable to any plastic) Wetted Surfaces: Delrin, Stainless Steel, NBR, FKM O-Ring Operating Temperature: 32 to 122°F Operating Pressure: Vacuum to 50PSI Coil Power: 20W |
|
| 2V025-1/8 – 1/8″NPT 2V025 1/4 – 1/4″NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC E or ATEX=Explosion Proof Coil |
Service: Air 2-Way, Normally Closed Direct Acting Body: Anodized Aluminum Operating Temperature: -4 to 140°F Operating Pressure: Vacuum to 115PSI Coil Power: 3 to 6.5W Response Time: <20msec 22SCFM at 100PSI |
|
| 2T060-1/4 – 1/4″NPT 2T060-3/8 – 3/8″NPT 2T060-1/2 – 1/2″NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |

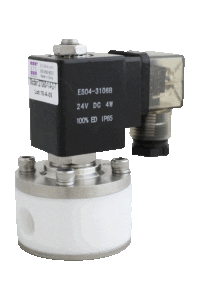

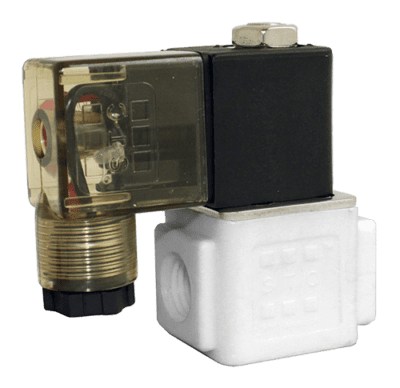

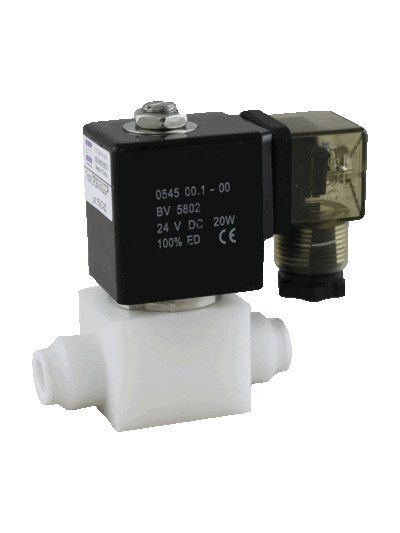

Normally Closed, Direct Acting 2 Way. Teflon Valve; Fluid Temperature:-20°C to 180°C Valve Body: PTFE Seal: FKM Wetted Surfaces: PTFE, FKM Operating Pressure: 0 to 22 PSI; Compatible Fluid: Corrosive fluid & gas, acid, alkali, etc. |
|

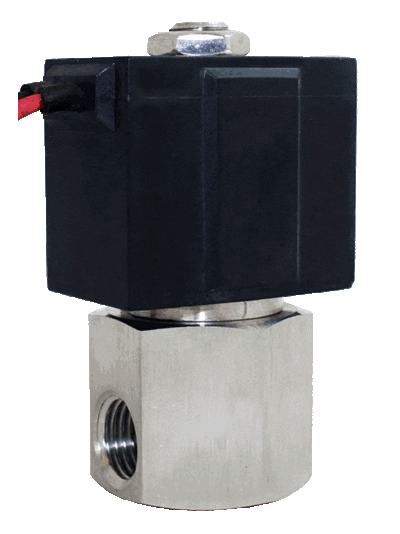

| 2S012-1/8A – 1/8″NPT 2S012-1/4A – 1/4″NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC E or ATEX =Explosion Proof Coil |

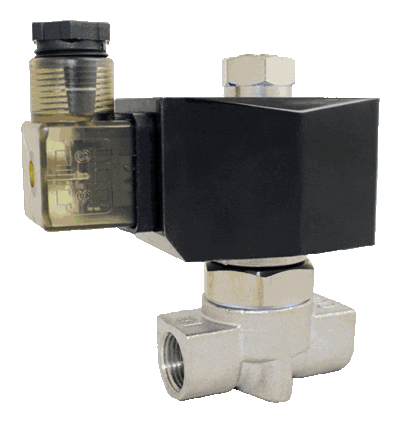

Service: Air, Liquid, Oil, Water 2 Way Direct Acting Normally Closed Stainless Steel Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C) Seal: NBR Pressure: 0 to 200PSI; Response Time <20msec. Coil Power 3 to 6.5W |
|
| 2S020-1/8A – 1/8″NPT 2S020-1/4A – 1/4″NPT |
|
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC E or ATEX =Explosion Proof Coil |
Service: Air, Liquid, Oil, Water 2 Way Direct Acting Normally Closed Stainless Steel Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C) Seal: NBR Pressure: Vacuum to 150 PSI; Response Time <20msec. Coil Power 3 to 6.5W |
|
| 3S012-1/8A – 1/8″NPT 3S012-1/4A – 1/4″NPT |
|
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC E or ATEX=Explosion Proof Coil |
Service: Air, Liquid, Oil, Water 3 Way Universal Direct Acting Normally Closed: Vacuum to 60 PSI Normally Open: Vacuum to 150 PSI Diverter Valve 1 input to 2 output: Vac.- 150 PSI Stainless Steel Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C) Seal: NBR Response Time <20msec. Coil Power 3 to 6.5W |
 |
| 2S025-1/8H – 1/8″NPT 2S025-1/4H – 1/4″NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air, Liquid, Oil, Water 2 Way Direct Acting Normally Closed Stainless Steel Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C) Seal: NBR Pressure: 0 to 150 PSI; 110-220AC 0 to 120 PSI; 12-24V Response Time <20msec. Coil Power 10-14W |
|
| 2W025-1/4H – 1/4″NPT |  |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air, Liquid, Oil, Water 2-Way, Normally Closed Direct Acting Body: Brass Operating Temperature: 14 to 176°F (-10 to 80°C) Operating Pressure: 0 to 150PSI Coil Power: 10 to 14W Response Time: Less than 20msec |
|
| 2S025-1/4 – 1/4″NPT 2S035-1/4 – 1/4″NPT 2S040-3/8 – 3/8″NPT 2S050-1/4-V – 1/4″NPT 2S050-3/8 – 3/8″NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
Service: Air, Liquid, Oil, Water 2 Way Direct Acting Normally Closed Stainless Steel Valve Body Temperature: 14 -176 °F (-10 TO 80 °C), with NBR Seal; 5 to 248 °F with Viton Seal; Pressure: 025: Vacuum to 200 PSI 035: Vacuum to 170 PSI 040: Vacuum to 150 PSI 050: Vacuum to 80 PSI Response Time <20msec. Coil Power 13 to 20W |
|
| 2W025-1/4 – 1/4″NPT 2W035-1/4 – 1/4″NPT 2W040-3/8 – 3/8″NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air, Liquid, Oil, Water 2 Way Direct Acting Normally Closed Brass Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C) (with NBR Seal) 5 to 248 °F (-15 TO 120 °C) (with Viton Seal) Pressure: Vacuum to 150 PSI Response Time <20msec. Coil Power 13 to 20W |
|
| 2H012-1/8 – 1/8″NPT |  |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air, Water, Liquid 2 Way Direct Acting Normally Closed Stainless Steel Solenoid Valve Temperature: 14 -176 °F (-20 TO 85 °C) Seal: PTFE Pressure: 0 to 1000 PSI Response Time <20msec. Coil Power 14W |
|
| 3S020-1/4 – 1/4″NPT 3S035-1/4 – 1/4″NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
Service: Air, Liquid, Oil, Water 3 Way Direct Acting Normally Closed or Open Valve Body: Stainless Steel Seal: Viton Temp.: 5 -248 °F (-15 to120 °C) Pressure: Vacuum to 100 PSI (2mm orifice) Vacuum to 60 PSI (3.5mm orifice) Response Time <20msec. Coil Power 13 to 20W |
|
| 2SO030-1/4 – 1/4″ NPT 2SO040-3/8 – 3/8″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air, Liquid, Oil, Water 2-Way, Normally Open Direct Acting Body: Stainless Steel Operating Temperature: NBR Seal: 14 to 176°F, FKM Seal: 5 to 248°F Operating Pressure: Vacuum to 90PSI Coil Power: 30W |
|
| 2WO040-3/8 – 3/8″ NPT |  |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air, Liquid, Oil, Water 2 Way Direct Acting Normally Open Brass Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C), with NBR Seal; 5 to 248 °F (-15 TO 120 °C), with Viton Seal; Pressure: Vacuum to 90 PSI Coil Power 30W |
 |
| 2V130-3/8 – 3/8″ NPT 2V130-1/2 – 1/2″ NPT 2V250-3/4 – 3/4″ NPT 2V250-1 – 1″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC E or ATEX=Explosion Proof Coil |
Service: Air, Liquid, Oil, Water Pilot Operated Diaphragm Normally Closed Two Way Diaphragm Brass Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C), with NBR Seal; 5 to 248 °F (-15 TO 120 °C), with Viton Seal; Pressure: 5 to115PSI Option: 5 to 150 PSI Service: Air, Water, Oil, Gas Coil power 3 to 6.5W |
|
| 2S160-3/8 – 3/8″ NPT 2S160-1/2 – 1/2″ NPT 2S200-3/4 – 3/4″ NPT 2S250-1 – 1″ NPT 2S350-1 1/4 – 1-1/4″ NPT 2S400-1 1/2 – 1-1/2″ NPT 2S500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
Service: Air, Liquid, Oil, Water Direct Lift Diaphragm Normally Closed Two Way Diaphragm 304 Stainless Steel Solenoid ValveTemperature: 14 -176 °F (-10 TO 80 °C), with NBR Seal; 5 to 248 °F (-15 TO 120 °C), with Viton Seal; Pressure: Vacuum to 150 PSI AC Coil Vacuum to 100 PSI DC Coil Coil Power 13 to 20W |
|
| 2W160-3/8 – 3/8″ NPT 2W160-1/2 – 1/2″ NPT 2W200-3/4 – 3/4″ NPT 2W250-1 – 1″ NPT 2W350-1 1/4 – 1-1/4″ NPT 2W400-1 1/2 – 1-1/2″ NPT 2W500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
Service: Air, Liquid, Oil, Water Direct Lift Diaphragm Normally Closed Two Way Diaphragm Brass Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C), with NBR Seal; 5 to 248 °F (-15 TO 120 °C), with Viton Seal; Pressure: Vacuum to 150 PSI AC Coil Vacuum to 100 PSI DC Coil Coil Power 13 to 20W |
|
| 2SO160-3/8 – 3/8″ NPT 2SO160-1/2 – 1/2″ NPT 2SO200-3/4 – 3/4″ NPT 2SO250-1 – 1″ NPT 2SO350-11/4 – 1 1/4″ NPT 2SO400-1 1/2 – 1 1/2″ NPT 2SO500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air, Liquid, Oil, Water Direct Lift Diaphragm Normally Open Two Way Diaphragm 304 Stainless Steel Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C), with NBR Seal; 5 to 248 °F (-15 TO 120 °C), with Viton Seal; Pressure: Vacuum to 90 PSI Option: Vacuum to 150 PSI Coil Power 30 W to 38W |
 |
| 2WO160-3/8 – 3/8″ NPT 2WO160-1/2 – 1/2″ NPT 2WO200-3/4 – 3/4″ NPT 2WO250-1 – 1″ NPT 2WO350-1 1/4 – 1 1/4″ NPT 2WO400-1 1/2 – 1 1/2″ NPT 2WO500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air, Liquid, Oil, Water Direct Lift Diaphragm Normally Open Two Way Diaphragm Brass Solenoid Valve Temperature: 14 -176 °F (-10 TO 80 °C), with NBR Seal; 5 to 248 °F (-15 TO 120 °C), with Viton Seal; Pressure: Vacuum to 90 PSI Option: Vacuum to 150 PSI Coil Power 30 W to 38W |
|
| 2L170-1/2 – 1/2″ NPT 2L170-3/4 – 3/4″ NPT 2L200-1 – 1″ NPT 2L300-1 1/2 – 1 1/2″ NPT 2L500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC2A =24VAC 3 =110VAC 4 =220VAC |
Service: Air, Liquid, Oil, Steam, Water Pilot Piston Normally Closed Two Way Brass Solenoid Valve for Air, Liquid & Steam Temperature: 23 to 356 °F (-5 TO 180 °C) Seal: PTFE Pressure: 7 to 232 PSI Vacuum Reverse Flow Direction Installation: Valve Vertical, Horizontal Flow Coil Power 30 to 40W |
|
| 2LS150-3/8 – 3/8″ NPT 2LS150-1/2 – 1/2″ NPT 2LS200-3/4 – 3/4″ NPT 2LS250-1 – 1″ NPT 2LS320-11/4 – 1 1/4″ NPT 2LS400-11/2 – 1 1/2″ NPT 2LS500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110AC 4 =220VAC |
2 Way, Direct Lift Piston Normally Closed Body: 304 Stainless Steel Seals: PTFE Media Temp. 23 to 356°F Ambient Temp. 23-110°F Pressure: 0 to 120 PSI AC Coil 0 to 80 PSI DC Coil Option: 0 to 150 PSI Coil: Class H, IP65 Service: Air, Liquid, Steam Coil Power 30W |
|
| 2P160-1/2 – 1/2″ NPT 2P200-3/4 – 3/4″ NPT 2P250-1 – 1″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |

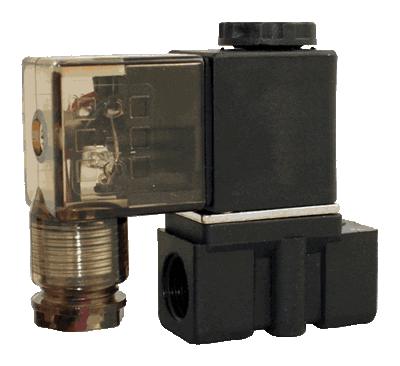

2 Way Direct Lift Diaphragm Normally Closed Two Way Diaphragm Engineered Nylon Solenoid Valve Temperature: 32-122°F (0-50°C) Seal: NBR Pressure: Vacuum to 90 PSI Service: Air, Liquid, Oil, Water Vacuum Reverse Flow Direction Coil Power 30W |
|
| 2PO160-1/2 – 1/2″ NPT 2PO200-3/4 – 3/4″ NPT 2PO250-1 – 1″ NPT |
|
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC |
2 Way Direct Lift Diaphragm Normally Open Engineered Nylon Solenoid Valve Temperature: 32-122°F (0-50°C) Seal: NBR Pressure: Vacuum to 90 PSI Service: Air, Liquid, Oil, Water Vacuum Reverse Flow Direction Coil Power 30W |
|
| 2MS120-3/8 – 3/8″ NPT 2MS150-1/2 – 1/2″ NPT 2MS200-3/4 – 3/4″ NPT 2MS250-1 – 1″ NPT 2MS320-1 1/4 – 1 1/4″ NPT 2MS400-1 1/2 – 1 1/2″ NPT 2MS500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
2 Way, Pilot Piston, Normally Closed Body; 304 Stainless Steel Seals: PTFE Operating Temp -6 to 356 °F (-20 TO 180 °C) Operating Pressure: Standard: 6 to 230 PSI Options: Medium: 6 to 580 PSI (DC) Medium: 6 to 725 PSI (AC) High: 87 to 1160 PSICoil: Class H, IP65, 20W, CE Service: Air, Liquid, Steam Coil Power 13 to 20W |
|
| 2MSO120-3/8 – 3/8″ NPT 2MSO150-1/2 – 1/2″ NPT 2MSO200-3/4 – 3/4″ NPT 2MSO250-1 – 1″ NPT 2MSO320-1 1/4 – 1 1/4″ NPT 2MSO400-1 1/2 – 1 1/2″ NPT 2MSO500-2 – 2″ NPT |
|
1 =12VDC 2 =24VDC 2A =24VAC 3 =110AC 4 =220VAC |
2 Way, Pilot Piston, Normally Open Body; 304 Stainless Steel Seals: PTFE Operating Temp -6 to 356 °F (-20 TO 180 °C) Pressure: 6 to 145 PSI Coil: Class H, IP65, 20W, CE Service: Air, Liquid, Steam Coil Power 13 to 20W |
|
| 2E100-3/8 – 3/8″ NPT 2E150-1/2 – 1/2″ NPT 2E200-3/4 – 3/4″ NPT 2E250-1 – 1″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
2 Way, Pilot Piston, Normally Closed Body: Stainless Steel Seals: PTFE Operating Temp -40 to 356 °F (-40 to180 °C) Pressure: 87 to 1450 PSI; Option: 87 to 2300 PSI; Max. Pressure: 1450 PSI @ 72°F Coil: Class H, IP65, 20-25W, CE Service: Air, Liquid, Steam Coil Power 13 to 28W |
|
| 2D150-3/8 – 3/8″ NPT 2D150-1/2 – 1/2″ NPT 2D200-3/4 – 3/4″ NPT 2D250-1 – 1″ NPT 2D320-11/4 – 1 1/4″ NPT 2D400-11/2 – 1 1/2″ NPT 2D500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110AC 4 =220VAC ATEX=Explosion Proof Coil |
2 Way, Slow Closing Pilot Diaphragm Normally Closed (Option: Normally Open) Body: Brass Seals: NBR (Buna N); Option: Viton, EPDM Media Temp. 14 to 176°F (14 to 266°F Viton) Ambient Temp. 23-110°F Pressure: 4 to 175 PSI Coil: Class H, IP65 Service: Water, Air, Oil, Gas Coil Power 12-20W |
|
| 2DS150-3/8 – 3/8″ NPT 2DS150-1/2 – 1/2″ NPT 2DS200-3/4 – 3/4″ NPT 2DS250-1 – 1″ NPT 2DS320-11/4 – 1 1/4″ NPT 2DS400-11/2 – 1 1/2″ NPT 2DS500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110AC 4 =220VAC ATEX=Explosion Proof Coil |
2 Way, Slow Closing Pilot Diaphragm Normally Closed (Option: Normally Open) Body: 304 Stainless Steel (Option: 316SS) Seals: NBR (Buna N); Option: Viton, EPDM Media Temp. 14 to 176°F (14 to 266°F Viton) Ambient Temp. 23-110°F Pressure: 4 to 175 PSI Coil: Class H, IP65 Service: Water, Air, Oil, Gas Coil Power 12-20W |
|

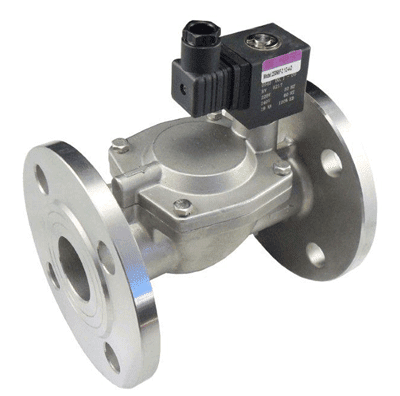

| 2DS500-2F – 2″ Flange 2DS650-2 1/2F – 2 1/2″ Flange 2DS800-3F – 3″ Flange 2DS1000-4F – 4″ Flange 2DS1500-6F – 6″ Flange |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110AC 4 =220VAC |
2 Way, Pilot Piston, Normally Closed Body; 304 Stainless Steel Seals: NBR (BUNA N) Operating Temp 23 to 176 °F (-5 TO 80 °C) Pressure: 6 to 175 PSI Maximum Pressure: 175 PSI @ 72°F Coil: Class H, IP65, 20W, CE Service: Air, Liquid Coil Power 13 to 20W |
|
| 2DSO500F – 2″ Flange 2DSO650F – 2 1/2″ Flange 2DSO800F – 3″ Flange 2DSO1000F – 4″ Flange 2DSO1500F – 6″ Flange |
|
1 =12VDC 2 =24VDC 2A =24VAC 3 =110AC 4 =220VAC |
2 Way, Pilot Piston, Normally Open Body; 304 Stainless Steel Seals: NBR (BUNA N) Operating Temp 23 to 176 °F (-5 TO 80 °C) Pressure: 6 to 120 PSI Maximum Pressure: 120 PSI @ 72°F Coil: Class H, IP65, 30W, CE Service: Air, Liquid Coil Power 20 to 30W |
|
| 2R130-3/8 – 3/8″ NPT 2R150-1/2 – 1/2″ NPT 2R200-3/4 – 3/4″ NPT 2R250-1 – 1″ NPT 2R320-11/4 – 1 1/4″ NPT 2R400-11/2 – 1 1/2″ NPT 2R500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
2 Way, Pilot Diaphragm Normally Closed (Option: Normally Open) Body: Brass Seals: NBR (Buna N); Option: Viton, EPDM Media Temp. 14 to 176°F (14 to 266°F Viton) Ambient Temp. 23-110°F Pressure: 7 to 188 PSI Coil: Class H, IP65 Service: Water, Air, Oil, Gas Coil Power 12-20W Option: Explosion Proof) |
|
| 2RS130-3/8 – 3/8″ NPT 2RS150-1/2 – 1/2″ NPT 2RS200-3/4 – 3/4″ NPT 2RS250-1 – 1″ NPT 2RS320-11/4 – 1 1/4″ NPT 2RS400-11/2 – 1 1/2″ NPT 2RS500-2 – 2″ NPT |
 |
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
2 Way, Pilot Diaphragm Normally Closed (Option: Normally Open) Body: 304 Stainless Steel (Option: 316SS) Seals: NBR (Buna N); Option: Viton, EPDM Media Temp. 14 to 176°F (14 to 266°F Viton) Ambient Temp. 23-110°F Pressure: 7 to 188 PSI Coil: Class H, IP65 Service: Water, Air, Oil, Gas Coil Power 12-20W Option: Explosion Proof) |
|
| 2R130-3/8 – 3/8″ NPT 2RO150-1/2 – 1/2″ NPT 2RO200-3/4 – 3/4″ NPT 2RO250-1 – 1″ NPT 2RO320-11/4 – 1 1/4″ NPT 2RO400-11/2 – 1 1/2″ NPT 2RO500-2 – 2″ NPT |
|
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
Service: Water, Air, Oil, Gas 2-Way, Normally Open Pilot Diaphragm Body: Brass Seal: NBR Option: FKM, EPDM Operating Temperature: NBR Seal: 14 to 176°F, FKM Seal: 14 to 266°F Ambient Temperature: 23 to 110°F Operating Pressure: AC: 4.5 to 185PSI (3/8″-1″), AC: 4.5 to 116PSI (1 1/4″-2″), DC: 4.5 to 87PSI Coil Power: 12 to 20W Coil: Class H, IP65 |
|
| 2RSO130-3/8 – 3/8″ NPT 2RSO150-1/2 – 1/2″ NPT 2RSO200-3/4 – 3/4″ NPT 2RSO250-1 – 1″ NPT 2RSO320-11/4 – 1 1/4″ NPT 2RSO400-11/2 – 1 1/2″ NPT 2RSO500-2 – 2″ NPT |
|
1 =12VDC 2 =24VDC 2A =24VAC 3 =110VAC 4 =220VAC ATEX=Explosion Proof Coil |
Service: Water, Air, Oil, Gas 2-Way, Normally Open Pilot Diaphragm Body: 316 Stainless Steel Seal: NBR Option: FKM, EPDM Operating Temperature: NBR Seal: 14 to 176°F, FKM Seal: 14 to 266°F Ambient Temperature: 23 to 110°F Operating Pressure: AC: 4.5 to 185PSI (3/8″-1″), AC: 4.5 to 116PSI (1 1/4″-2″), DC: 4.5 to 87PSI Coil Power: 12 to 20W Coil: Class H, IP65 |
|
| 200C-1-E – 12VDC 200C-2-E – 24VDC 200C-2A-E – 24VAC 200C-3-E – 110VAC(50/60Hz) 200C-4-E – 220VAC (50/60Hz) |
 |
12VDC 24VDC 24VAC 110VAC(50/60Hz) 220VAC (50/60Hz) |
Solenoid Coils and Accessories
Show Product Specifications
| Voltage | Electrical Connection | Power Rating | Applications | Specifications | ||
|---|---|---|---|---|---|---|
| 200C |  |
1 = 12VDC 2 = 24VDC2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
D = DIN (with LED indicator and conduit connector) | 3W 4.8W 6.5W |
For 2P, 2V, 3V, and 4V 200-400 Series Solenoid Valves |
Insulation: F Class, IP65 Duty Cycle: 100% ED CE Certification Installed with 12″ Wires DIN 43650B |
| 200C |  |
1 = 12VDC 2 = 24VDC2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet | 3W 4.8W 6.5W |
For 2P, 2V, 3V, and 4V 200-400 Series Solenoid Valves |
Insulation: F Class, IP65 Duty Cycle: 100% ED CE Certification 10″ Lead Wires |
200C Coil Accessories
Show Product Specifications
| Voltage | Electrical Connection | Power Rating | Applications | Specifications | ||
|---|---|---|---|---|---|---|
| 200C-DIN-AC |  |
N/A | D = DIN | N/A | For 200C DIN VAC Coil | LED Indicator and Strain Relief Connector, DIN 43650B |
| 200C-DIN-DC | |
N/A | D = DIN | N/A | For 200C DIN VDC Coil | LED Indicator and Strain Relief Connector, DIN 43650B |
| 200C-DIN N1/2 |  |
N/A | D = DIN | N/A | For 200C DIN Coil | 200C DIN Coil Conduit Connector with 1/2″ NPT Connector, DIN 43650B |
| 200C-DIN 2M-LED |  |
N/A | D = DIN | N/A | For 200C DIN Coil | 200C DIN Coil Connector with 2 meter cable, DIN 43650B |
| 200C-DIN-12-24D-S |  |
For 12-24 VAC/VDC Coil | D = DIN | N/A | For 200C DIN Coil | DIN Connector for 200C DIN Coil (12-24 VAC/VDC) with LED Indicator & MOV Suppression, DIN 43650B |
| 200C-DIN-110D-S | |
For 110-120 VAC Coil | D = DIN | N/A | For 200C DIN Coil | DIN Connector for 200C DIN Coil (110-120VAC) with LED Indicator & MOV Suppression, DIN 43650B |
2W200C Coil
Show Product Specifications
| Voltage | Electrical Connection | Power Rating | Applications | Specifications | ||
|---|---|---|---|---|---|---|
| 2W200C |  |
1 = 12VDC 2 = 24VDC2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
D = DIN (with conduit connector) | 12W 14W 20W |
For 2S/2W025-250, 3S/3W020-035 Series Solenoid Valves with DIN and 5/16″ Strain Relief Connection | Insulation: H Class, IP65 Duty Cycle: 100% ED DIN 43650A |
2W200C Coil Accessories
Show Product Specifications
| Voltage | Electrical Connection | Power Rating | Applications | Specifications | ||
|---|---|---|---|---|---|---|
| 2W200C-DIN-AC or DC |  |
AC or DC Versions Available | D = DIN | N/A | For 2W200C Coil | DIN Housing with strain relief connector, LED Indicator, DIN 43650A |
| 2W200C-DIN-AC-DC | |

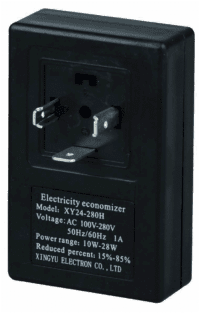

N/A | D = DIN | N/A | For 2W200C Coil | AC to DC Converter – DIN Housing with LED Indicator, Strain Relief Connector, DIN 43650A |
| 2W200C-DIN N1/2 |  |
N/A | D = DIN | N/A | For 2W200C Coil | DIN Housing with 1/2″ NPT Connector, DIN 43650A |
| 2W250C-DIN-1/2M |  |
N/A | D = DIN | N/A | For 2W200C Coil | Molded DIN Housing with 0.5 Meter 3*0.75mm2 PVC Cable Connector, DIN 43650A |
| 2W250C-DIN-1M | |
N/A | D = DIN | N/A | For 2W200C Coil | Molded DIN Housing with 1 Meter 3*0.75mm2 PVC Cable Connector, DIN 43650A |
| 2W250C-DIN-2M | |
N/A | D = DIN | N/A | For 2W200C Coil | Molded DIN Housing with 2 Meter 3*0.75mm2 PVC Cable Connector, DIN 43650A |
Other Coils
Show Product Specifications
| Voltage | Electrical Connection | Power Rating | Applications | Specifications | ||
|---|---|---|---|---|---|---|
| 2WO250C |  |
1 = 12VDC 2 = 24VDC2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
D = DIN (with conduit connector) | 25-30W | For 2LS120-200, 2MS/2MSO120-500, 2P/2PO160-260, 2S/2W350-500, 2SO/2WO160-260 Series Solenoid Valves with DIN and 5/16″ Strain Relief Connection | Insulation: H Class, IP65 Duty Cycle: 100% ED DIN 43650A |
| 2W350C |  |
1 = 12VDC 2 = 24VDC2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
D = DIN (with conduit connector) | 25-40W | For 2L170-300, 2LS250-500, 2SO/2WO350-500 Series Solenoid Valves with DIN and 5/16″ Strain Relief Connection | Insulation: H Class, IP65 Duty Cycle: 100% ED DIN 43650A |
Explosion Proof Coils
Show Product Specifications
| Voltage | Electrical Connection | Applications | Specifications | ||
|---|---|---|---|---|---|
| 200C |  |
1-E = 12VDC 2-E = 24VDC3-E = 110VAC 4-E = 220VAC (50/60Hz) |
1/2″ NPT conduit connection & 24″ Three-Strand Wires | ATEX Explosion Proof Coil for Models: 2P025, 2V025, 2S012-020, 3S012, 2V130-250, 3V110-410, 4V110-410 (Valve Body is Not Included) |
IP65, Class F Insulation, 100% Duty Cycle DC = 4.5W (12VDC) / 4.6W (24VDC); AC = 6.8VA 1/2″ NPT Conduit Connection with 24″ Three-Strand Wires RoHS CompliantCSA 202633 Certificate Specifications: Class I, Div 1, Groups A, B, C, & D Class I, Div 2, Groups A, B, C, & D Class II, Groups E, F, & G; Class IIIFM 3006713 Certificate Specifications: Class I, Div 1, Groups A, B, C, D, T4, Ta = 60°C Encapsulation/Exp. Class I, Zone 1, AEx m II T4, Ta = 60°C Dust-Ignition Class II/III, Div 1, Groups E, F, & G, T4, Ta = 60°C Nonincendive Class I, Div 2, Groups A, B, C, D, T4, Ta = 60°C Suitable for Class II, II, Div 2, Groups E, F, G, T4, Ta = 60°C |
| 200C |  |
1-ATEX = 12VDC 2-ATEX = 24VDC2A-ATEX = 24VAC 3-ATEX = 110VAC 4-ATEX = 220VAC (50/60Hz) |
DIN 43650B Connection with 10ft 3-Wired Cable & Sleeve | ATEX Explosion Proof Coil for Models: 2P025, 2V025, 2S012-020, 3S012, 2V130-250, 3V110-410, 4V110-410 (Valve Body is Not Included) |
ATEX Explosion Proof Coil Ex II 2 G Ex mb IIC T4Gb Ex 2 D EX mb tb IIIC T130°C Db IP65, Class F Insulation, 100% Duty Cycle Max. Media Temp. 176°F (180°C) Ambient Temp: -4 to 122°F (-20 to 50°C) RoHS Compliant |
| 2W200C |  |
1-ATEX = 12VDC 2-ATEX = 24VDC2A-ATEX = 24VAC 3-ATEX = 110VAC 4-ATEX = 220VAC |
DIN 43650A Connection with 10ft 3-Wired Cable & Sleeve | ATEX Explosion Proof Coil for Models: 2P050, 2S025-050, 3S020-035, 2S160-250, 2W160-250, 2R130-500, 2RS130-500, 2RSO130-500, 2RO130-500 (Valve Body is Not Included) |
ATEX Explosion Proof Coil Ex II 2 G Ex mb II T4 Gb Ex II 2 D EX tb IIIC T130°C Db IP65, Class F Insulation, 100% Duty Cycle Max. Media Temp. 176°F (180°C) Ambient Temp: -4 to 122°F (-20 to 50°C) RoHS Compliant |
To connect DIN coil:
- Remove the Philip screw from the plastic housing and unplug it from the DIN coil.
- From the screw opening, use the screw to push the terminal block out of the plastic housing.
- Note the 1, 2, and ground markings on the underside of the DIN enclosure.
- For DC DIN coil, connect 1 to Positive, 2 to Negative.
- For AC DIN coil, connect 1 to HOT wire, 2 to Neutral wire, and if required, connect ground to ground wire.
To connect Grommet coil:
- For DC Coil, connect one of the two wires to Positive, and the other wire to Negative.
- For AC Coil, connect one of the two wires to HOT wire, and the other wire to Neutral wire.
Digital Timers
Show Product Specifications
| Voltage | Electrical Connection | Applications | Specifications | ||
|---|---|---|---|---|---|

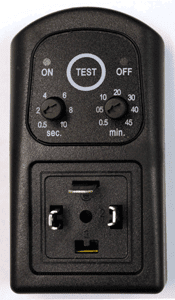

| 2W200C-T |  |
24-240VDC or AC 50/60Hz, 1A |

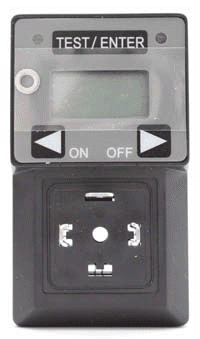

DIN43650A Connection | For 2W200C, 2W350C, 2WO Coils | On/Off Timer Switch On/Off Adjustment Duration: On 0.5 seconds to 10 seconds, Off 30 seconds to 45 minutes. |
| 2W200C-T-D |  |
24-240V DC or AC 50/60 HZ, 1A | Termination: DIN43650A | For 2W200C, 2W350C, 2WO Coils | Digital On/Off Timer Switch On/Off Adjustment Duration: On 0.5 seconds to 10 seconds, Off 30 seconds to 45 minutes. Size: 88 x 48 x 21 (mm) Protection: IP 65, EN60529 |
| 2W200C-T-DH |  |
110-220VAC 50/60HZ, 1A | Termination: DIN43650A | For 2W200C, 2W350C, 2WO Coils | Programmable Digital On/Off Timer Switch On/Off Single or Multi Cycles Adjustment Duration: On 1 second to 99 seconds, Off 1 second to 99 hours. Size: 88 x 48 x 21 (mm) Protection: IP65, EN0529 Downloads: 2W200C-T-D.PDF |
| 2W200C-T-DL | |
7-36V DC or AC, 3A | Termination: DIN43650A | For 2W200C, 2W350C, 2WO Coils | Programmable Digital On/Off Timer Switch On/Off Single or Multi Cycles Adjustment Duration: On 1 second to 99 seconds, Off 1 second to 99 hours. Size: 88 x 48 x 21 (mm) Protection: IP65, EN0529 Downloads: 2W200C-T-D.PDF |
| 2W200C-PS-H |  |
100-280VAC 50/60HZ, 1A | Termination: DIN43650A | For 2W200C, 2W350C, 2WO Coils | Power Save Device High Power Start Up Time: 0.3 – 2.5 seconds Energy Save Rate: 15 to 85% Power Up Grade: 20 to 300% (AC Only) Size: 88 x 48 x 21 (mm) Protection: IP65, EN60529 Downloads: 2W200C-PS.PDF |
| 2W200C-PS-L | |
12-36V DC or AC, 2A | Termination: DIN43650A | For 2W200C, 2W350C, 2WO Coils | Power Save Device High Power Start Up Time: 0.3 – 2.5 seconds Energy Save Rate: 15 to 85% Power Up Grade: 20 to 300% (AC Only) Size: 88 x 48 x 21 (mm) Protection: IP65, EN60529 Downloads: 2W200C-PS.PDF |
For more information about these products…
Download a Catalog
