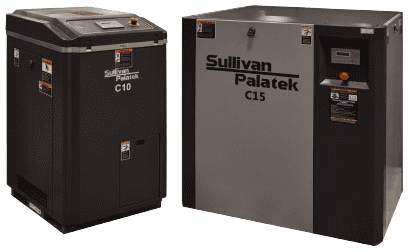

C Series Lubricated – Rotary Screw Compressor
Compact and energy-efficient, the Sullivan Palatek C Series electric rotary screw air compressors are low noise units ideal for auto body shops and small facilities. The simple internal structure makes maintenance easy.
Standard models are offered in 5-30 hp, and integrated dryer packages are available from 10-30 hp.
- Energy efficient
- Quiet – 68dba
- TEFC motor
- 208/230/460/3/60 voltage
- Microprocessor controlled
- Multipoint measuring and protection of pressure and temperature
- RS-485 communication interface function
- Seven function maintenance schedule/monitoring
- Full function electrical control for motor protection: motor overload relay, phase protection
- Single phase 5-10 hp, tri-voltage 10-30 hp

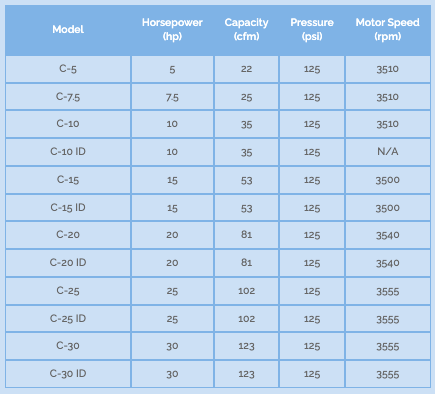

| Model | Horsepower (hp) |
Capacity (cfm) |
Pressure (psi) |
Motor Speed (rpm) |
|---|---|---|---|---|
| C-5 | 5 | 22 | 125 | 3510 |
| C-7.5 | 7.5 | 25 | 125 | 3510 |
| C-10 | 10 | 35 | 125 | 3510 |
| C-10 ID | 10 | 35 | 125 | N/A |
| C-15 | 15 | 53 | 125 | 3500 |
| C-15 ID | 15 | 53 | 125 | 3500 |
| C-20 | 20 | 81 | 125 | 3540 |
| C-20 ID | 20 | 81 | 125 | 3540 |
| C-25 | 25 | 102 | 125 | 3555 |
| C-25 ID | 25 | 102 | 125 | 3555 |
| C-30 | 30 | 123 | 125 | 3555 |
| C-30 ID | 30 | 123 | 125 | 3555 |
For more information about these products…
Download a Catalog
