Industrial Electric Air Compressors

In industries that require constant and dependable air power, Sullivan-Palatek’s industrial electric air compressors are expertly engineered to be both reliable and energy efficient in the most demanding of environments.

These electric air compressors are unmatched in industries that rely heavily on continuous and reliable air power. These compressors are meticulously engineered to meet the highest standards of performance and efficiency, making them the perfect choice for even the most demanding environments. With a focus on dependability, Sullivan-Palatek ensures that their compressors deliver a consistent and steady flow of air, enabling businesses to operate smoothly without any disruptions.

Product Lineup

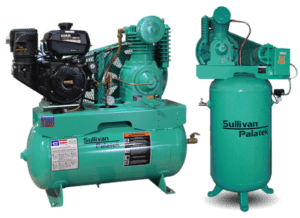

Reciprocating Industrial Electric Compressors 5-13 HP

Sullivan Palatek Reciprocating Industrial Electric Compressors 5-13 HP
Horizontal and vertical 60, 80, and 120 gallon tank mount electric motor and gas driven piston compressors ranked among the best industrial air compressors in the industry.

For more information about this product…
 Download a Catalog

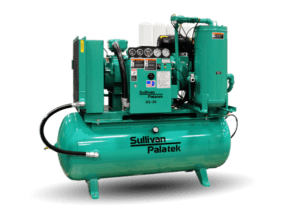

M Series Industrial Electric Compressors 5, 7.5, 10 HP

Sullivan Palatek M Series Compressors
Engineered to be both reliable and versatile, the M-Series industrial air compressor is another energy efficient continuous duty compressed air solution developed by Sullivan-Palatek. The M-Series compressors are offered in 5, 7.5 and 10 hp. These units are equipped with full voltage magnetic starters, automatic dual control, and easily replaceable combination pleated and foam dry type air filters. Compact in size, they are ideally made to be used in smaller industrial settings such as automotive shops, small machining factories and textile workshops.

  • Three-phase open drip motor options include 200/208/230/460 volts (single-phase capable)
  • Full voltage magnetic starter with 115-volt control power
  • Instrumentation includes a line pressure gauge, oil temperature gauge, and hour meter
  • Automatic dual control
  • Spin-on type oil filter and separator elements provide ease of maintenance.
  • Tank mount, elevated platform, and acoustical enclosure options are available.
  • Separator trap – Captures and automatically drains condensed water, oil, and dirt.

For more information about this product…
 Download a Catalog

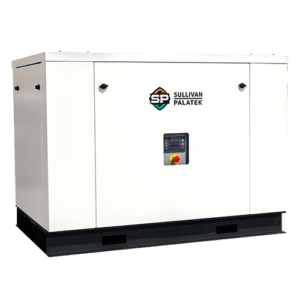

SPM Series Industrial Electric Compressors 5, 7.5 HP

Sullivan Palatek SPM Series Industrial Electric Compressors 5, 7.5 HP

Sullivan-Palatek SPM Series 5 & 7.5 HP Rotary Screw Compressors are setting a new standard in compressed air solutions. Crafted with cutting-edge technology, sleek modern design, and a commitment to high energy efficiency, the SPM Series is your reliable partner for meeting all your compressed air needs.

Elevate your compressed air solutions with the Sullivan-Palatek SPM-5-7.5 Series. Experience unmatched performance, reliability, and efficiency for all your industrial and commercial needs.

  • Modular oil flooded rotary screw industrial air compressor
  • Continuous Duty
  • 230/460 volt 3-phase Total Enclosed Fan Cooled (TEFC) Premium Efficient Motor
  • Full Voltage magnetic starter with 115 volt control power
  • T1 Microprocessor Controller
  • Air Cooled Oil Cooler with Air Cooled Aftercooler
  • Factory fill of Palasyn 45 synthetic oil
  • Spin on type oil filter and separator element for ease of maintenance

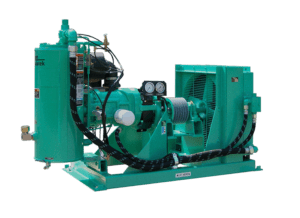

LSC Series Line Shaft Compressors

Sullivan Palatek LSC Series Line Shaft Compressors
The LSC air compressor series is designed to utilize a line shaft driven from a diesel engine. It has pillow blocks for easy belt installation and three models will cover applications from 15-60 HP. They have simple pneumatic controls and a temperature safety shut down to protect them.

  • COMPRESSOR – Continuous duty oil flooded rotary screw industrial air compressor
  • PILLOW BLOCK – Solidly mounted and aligned to compressor shaft allowing drive shaft direct connection and minimizing power loss
  • FRAME – Rugged steel construction
  • COUPLING & DRIVE – Compressor is flange mounted to frame for positive alignment and directly driven by low maintenance coupling
  • AIR INTAKE FILTER – Heavy duty dry type with replaceable element
  • SEPARATOR TANK – ASME coded 200 PSIG sump tank, minimum pressure check valve, relief valve, high-efficiency replaceable oil separator element, fluid level sight indicator, and vented fill cap
  • COOLING SYSTEM – Air cooled with air-cooled oil cooler and aftercooler. Compressor temperature maintained by auto-adjusting thermo valve
  • CONTROLS – Full modulation pneumatic control for smooth control. Pilot unloader valve for minimizing power with no air demand.
  • INSTRUMENTATION – Air pressure and discharge temperature gauges
  • PROTECTIVE DEVICES – High temperature shut down switch for interfacing to driver’s safety circuit. Overpressure relief valve
  • LUBRICATION – Factory filled with Palasyn 45. Equipped with microfiber full flow, spin on oil filter.

For more information about this product…
 Download a Catalog

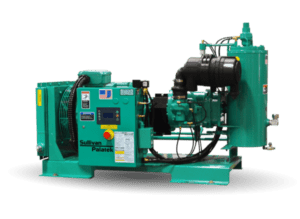

D Series Industrial Electric Compressors 15-40 HP

Sullivan Palatek D Series Industrial Electric Compressors 15-40 HP
Engineered to be both dependable and versatile, the D-Series industrial electric direct drive rotary screw air compressor is one of many energy-efficient solutions developed by Sullivan-Palatek. The D-Series compressors are offering a range of 15-40 hp. They are equipped with an easily readable microprocessor, a coupling and air end mounted to the motor C-face. It utilizes a sizeable oversized separator element & sump tank as well as easily replaceable oil & air intake filters. With their compact size and high reliability, these machines are ideal for smaller industrial settings such as automotive shops, small machining facilities, and fabrication facilities.

  • Microprocessor controller with sequencer, lead-lag, and remote monitoring for up to 8 machines
  • Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
  • The motor starter has a water-tight, dust-tight, sleet resistant NEMA 4 enclosure for indoor and outdoor use
  • The air end, manufactured by Sullivan-Palatek, has advanced rotor design features; oversize radial thrust bearings, and precision working rotary screws that provide virtually no wear
  • Protective devices include class 20 solid-state overload relay, high temperature and overpressure shutdown switches, and anti-restart pressure switch preventing starting while air compressor is pressurized
  • Coupling and drive: the compressor is flange mounted to motor C-face for positive alignment and directly coupled for increased efficiency
  • Cooling system equipped with double pass air-cooled aftercooler with thermostatic control for maintaining the appropriate oil operating temperature within 15 degrees of ambient
  • Using oversized coolers allows for greater cooling performance at high temperatures
  • Oversized dry type air intake filter with easily replaceable elements
  • One-piece lube fill elbow and level sight glass, a vented cap for pressure release when removing
  • Inlet/check valve features a one-piece housing for dependable performance and complete modulation

For more information about this product…
 Download a Catalog

DG Series Industrial Electric Compressors 25-40 HP

Sullivan Palatek DG Series Industrial Electric Compressors 25-40 HP
Developed to be dependable and efficient, the DG-Series industrial electric direct gear drive air compressor is another versatile Sullivan-Palatek product. The DG-Series compressors offer a range of 25-40 hp. The compressor is a continuous duty, and fluid flooded rotary screw that is directly coupled to the motor for positive alignment. The compressors compact size makes it the ideal product for smaller industrial settings such as food processing, automotive shops and fabrication workshops.

  • Microprocessor controller with sequencer, lead-lag, and remote monitoring for up to 8 machines
  • Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
  • Slow turning, low RPM motors = quieter compressor and longer-lasting due to motor speed
  • The motor starter has a water-tight, dust-tight, sleet resistant NEMA 4 enclosure for indoor and outdoor use
  • The air end, manufactured by Sullivan-Palatek, has advanced rotor design features; oversize radial thrust bearings, and precision working rotary screws that provide virtually no wear
  • Protective devices include class 20 solid-state overload relay, high temperature, and overpressure shutdown switches, and anti-restart pressure switch preventing starting while air compressor is pressurized
  • Couplings and drive: the compressor is flange mounted to motor C-face for positive alignment and directly coupled for increased efficiency
  • Cooling system equipped with double pass air-cooled aftercooler with thermostatic control for maintaining the appropriate oil operating temperature to within 15 degrees of ambient
  • Oversized dry type air intake filter with easily replaceable elements
  • One-piece lube fill elbow and level sight glass, vented cap for pressure release when removing
  • Inlet/check valve features a one-piece housing for dependable performance and complete modulation

For more information about this product…
 Download a Catalog

UD Series Industrial Electric Compressors 40-50 HP

Sullivan Palatek UD Series Industrial Electric Compressors 40-50 HP
Reliable in any environment, the UD-Series industrial electric updraft model air compressor is another versatile product developed by Sullivan-Palatek. The UD-Series compressors are available in a range of 40-50 hp. The compressors updraft design allows for hot air to be recovered or exhausted through the top of the machine. Additionally, a dedicated fan motor, a side by side lube cooler, and an air-cooled aftercooler allow for easy cleaning. This compressors energy efficient design and small footprint make it an ideal product for medium-sized plastics manufacturing plants, woodworking shops, and dry-cleaning facilities.

  • The up-draft cooler design vents air away from the package. This is a possible space-saving feature that allows heat recovery that could be used for various purposes: supplement space heating, heating of liquids, drying processes, etc.
  • Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
  • The motor starter has a water-tight, dust-tight, sleet resistant NEMA 4 enclosure for indoor and outdoor use
  • The standard T1 microprocessor controller displays status, warnings, maintenance, and is capable of sequencing multiple compressors (gauges are optional)
  • One-piece inlet/check valve housing for dependable performance and complete modulation
  • Heavy-duty dry type air intake filter with easily replaceable elements

For more information about this product…
 Download a Catalog

SP11 Series Industrial Electric Compressors 25-40 HP

Sullivan Palatek SP11 Series Industrial Electric Compressors 25-40 HP
The SP11 Series by Sullivan-Palatek is specifically crafted to prioritize efficiency, size, and maintenance, making it an invaluable asset in smaller industrial settings, automotive shops, and metal and plastic fabrication facilities.
The SP11 products offer exceptional noise reduction capabilities and the choice to include a sound enclosure for individuals who prefer a quieter experience.

  • NEMA Premium Efficient, TEFC motor
    • Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture
    • All NEMA Premium ratings have a 1.25 Service Factor, resulting in cooler operation and extended life of the motor
    • Class F insulation (impregnation resin and magnet wire are class H)
    • All Cast Iron Construction, including Terminal Box and Fan Cover
    • Solid feet for reduced vibration levels and impact absorptionOptimized ventilation system for cooler operation and extended life
    • Flange mounted for positive alignment
  • Starter/Control Box Water Separator – Wye-Delta Starer in NEMA 4 – Achieve lower starting current Demand
  • T1 MPC Controller
    • Programmable remote start/stop functionalityProgrammable power failure auto restart
    • Running hours/hours loaded/unloaded
    • Service timers and warnings, inhibits, alarms and shut-down protections
    • Full system monitoring of all vital parameters
    • MODBUS output for DCS visibility and control
    • Multi-compressor sequencing and control
  • Minimum pressure valve
  • Blowdown solenoid
  • Pressure regulator
  • Air/Oil separator tank
  • Air aftercooler
  • Water separator
  • E-Stop

SP13 Series Industrial Electric Compressors 40-60 HP

Sullivan Palatek SP13 Series Industrial Electric Compressors 40-60 HP
The SP13 is designed for optimized efficiency, size, and maintenance. Manufactured by Sullivan-Palatek, this industrial electric air compressor ranges from 40-60 hp.
This unit’s small footprint and versatility make it a useful product for both metal and plastic fabrication facilities, as well as the food and beverage industry. This versatile product is also remarkably quiet, with an optional sound enclosure.

  • NEMA Premium Efficient, Severe Duty TEFC motor
  • The motor control assembly has a NEMA 4 enclosure for safe use in industrial environments.
  • Equipped with an enhanced user display, the Q1 controller is capable of web access and remote monitoring with the sequencing of up to 12 compressors.
  • The new SP13-Series airend is designed for efficiency, performance, and low maintenance.
  • The new high-flow, low-loss inlet valve is designed for increased efficiency and dependable performance.
  • The compressor assembly is flange mounted to the motor’s C-face for positive alignment.
  • Optimized Air-Oil separators have less restriction and reduce fluid carryover to less than 1 ppm with an 8,000-hour maintenance frequency.
  • Filled with PAL-EXTRA 44, a fully synthetic premium lubricant formulated to prevent varnish under higher temperatures and harsh conditions with an 8,000-hour extended drain interval
  • Condensate separator with timed auto-drain collects and automatically drains condensate.
  • Optimized electro-pneumatic controls reduce energy consumption in an unloaded state.
  • Auto-Dual control
  • Cooler clean-outs for ease of cleaning
  • Raised face 4-bolt flange at the compressor’s outlet to prevent stresses on plumbing and to aid in the installation
  • Heavy-Duty single pass Air/Oil coolers reduce system losses for improved efficiency and performance up to 104°F

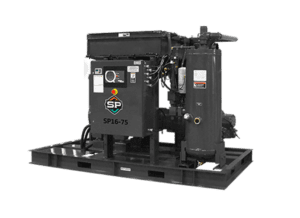

SP16 Series Industrial Electric Compressors 60-125 HP

Sullivan Palatek SP16 Series Industrial Electric Compressors 60-125 HP
The SP16 is designed to optimize size, efficiency, and operation. Manufactured by Sullivan-Palatek, this industrial electric air compressor is offered in a range of 60-125 hp. This versatile product is also remarkably quiet, operating at 66-72 dBa, with the acoustical enclosure. The small footprint and versatility of this unit make it a useful product for both metal and plastic fabrication facilities, and the food and beverage industry.

  • Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
  • Slow turning, low RPM motors = quieter compressor and longer-lasting due to motor speed
  • The motor starter has a water-tight, dust-tight, sleet resistant NEMA 4 enclosure for indoor and outdoor use
  • Equipped with an enhanced display Q1 microprocessor, the controller is capable of web access monitoring and sequencing up to 12 compressors
  • SP16-Series air end manufactured by Sullivan-Palatek
  • One-piece inlet poppet valve housing designed for dependable performance
    The compressor is flange mounted to motor C-face for positive alignment

For more information about this product…
 Download a Catalog

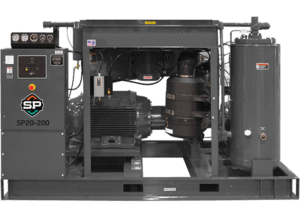

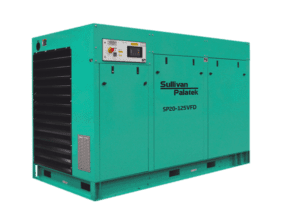

SP20 Series Industrial Electric Compressors 125-300 HP

Sullivan Palatek SP20 SERIES
The SP20 Series is engineered to maximize efficiency while maintaining tremendous power. This industrial electric air compressor is offered in a range of 125-300 hp. These units boast robust Sullivan-Palatek made air ends at its core and oversized coolers for more demanding real-world environments. This dependable, heavy-duty machine is the perfect product for the aerospace industry, heavy goods manufacturing, and for the food and beverage industry.

  • Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type for indoor and outdoor use
  • Slow turning, low RPM motors = quieter compressor and longer-lasting due to motor speed
  • 460-volt MFV with 115-volt control
  • This unit includes a one-piece inlet poppet valve housing for reliable performance
  • Manufactured with a display Q1 microprocessor, the controller is capable of web access monitoring and sequencing up to 12 compressors
  • The compressor is flange mounted to motor C-face for positive alignment
  • The air intake filter includes an oversized dry type with easily replaceable elements

For more information about this product…
 Download a Catalog

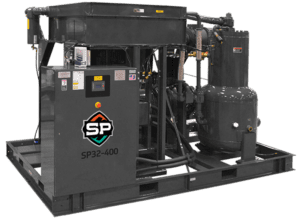

SP32 Series Industrial Electric Compressors 300-450 HP

Sullivan Palatek Sullivan Palatek SP32 SERIES
Engineered for superior power and performance, the SP32 Series delivers sustainable compressed air solutions while still maintaining Sullivan-Palatek’s expected durability. This industrial electric air compressor is offered in a range of 300-450 hp. These units boast robust Sullivan-Palatek made air ends at its core and oversized coolers for more demanding real-world environments. This machine’s dependability and strength make it the ideal product for heavy goods manufacturing, the automotive industry, and even the metal fabrication industry.

  • Motor with Totally Enclosed Fan-Cooled (TEFC) enclosure type
  • Slow turning, low RPM motors = quieter compressor and longer-lasting due to motor speed
  • Air end manufactured by Sullivan-Palatek
  • 460-volt, solid state with 115-volt control motor starter
  • Equipped with a Q1 microprocessor, the controller is able to handle the web access monitoring and sequencing of up to 12 compressors
  • The air intake filter includes an oversized dry type with easily replaceable elements
  • The compressor is flange mounted to motor C-face for positive alignment

For more information about this product…
 Download a Catalog

VFD Series Variable Frequency Drive Electric Compressors 15-450 HP

Sullivan Palatek VFD Series Variable Frequency Drive Electric Compressors 15-450 HP
Expertly engineered to save energy and cut consumption costs, the Variable Frequency Drive (VFD) Series compressors supply the exact amount of air each shift requires. No more, no less. The VFD’s are some of the many industrial electric compressed air solutions offered by Sullivan-Palatek.

  • Wide power range for 208V, 230V, and 460V
  • Pressure transducer motor speed control
  • Factory Settings:
    • Programmable digital outputs
    • Digital inputs
    • Programmable outputs: four relays, four transistors
    • Eight programmable parameter sets with S-curves, power off function, PID process controller, electronic motor protection, internal timer. Output frequencies up to 160 Hz with output voltage stabilization; switching frequencies up to 16kHz; output phase monitoring.
    • DC bus circuit connection, moto thermal sensor connection, hardware current line
  • The VFD helps reduce energy. Operating at 70% capacity, the VFD consumes 10% less power than a standard compressor operating with on-off control and 20% less than a compressor with modulating control.
  • The VFD has a soft start feature that maintains a low starting current. It reduces stress on the site power supply and also reduces motor wear.
  • The VFD system complies with the Electro-Magnetic Compatibility standard and is UL/CSA listed.
  • The VFD system is not limited to a fixed number of starts per hour.
  • VFD 50HP and up have dedicated fan and motor drives to improve cooling and improve compressor efficiencies

For more information about this product…
 Download a Catalog

CDD Compressor/Desiccant Dryer Packages 5-30 HP

Sullivan Palatek CDD Compressor/Desiccant Dryer Packages 5-30 HP
The CDD is a practical solution to the problems of oil, water vapor and contaminants in compressed air systems. It supplies clean, dry air for critical applications.
Compressed air, a reliable source of pneumatic power in many applications, is adversely affected by oil, dirt, and water. In a variety of applications (automotive paint booths, concrete plants, and general manufacturing facilities, for example) moisture, particulate, and oil in compressed air lines contribute to lower productivity, higher operating costs, and increased maintenance.
The CDD 3-in-1 duplex system typically requires less than 10% of air for regeneration and achieves a -40º F pressure dew point for flow rates of up to 200 cfm. The modular design allows for expansion to accommodate changes in air system requirement of flow rates from 40 cfm to 200 cfm.

For more information about this product…
 Download a Catalog
