Valves and Accessories
Universal Components, Inc. is well known for it high flow ball valves which can be actuated pneumatically, manually, or electrically. They are available is stainless steel, carbon steel, and brass. This type of valve is able to handle high pressures of air, liquids, and most gases. In addition to having some of the lowest prices and best quality products in the market place, Univervsal Components also offers quick delivery. Gauges, filters, strainers, and mufflers, are also standard products for this supplier.
Product Lineup

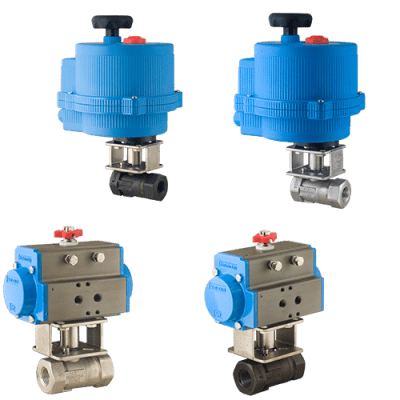

Actuated Valves

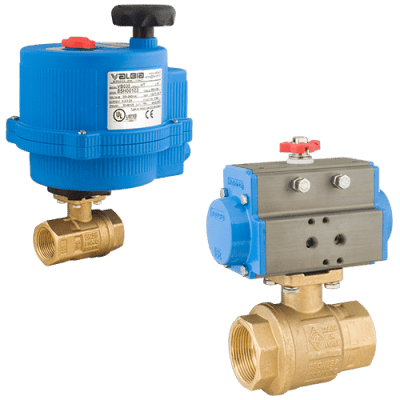

B2F Series Actuated Valves (Brass 600 PSI)
Pneumatic or Electrically Actuated
Available in Sizes 1/4″ – 4″
- 2-way Brass Full Port
- 29 Hg-600 PSI W.O.G Cold Non-Shock
- 150 WSP
- -4 ⁰F to 366⁰F
- PTFE Seats & Thrust washer
- FKM (Viton) Stem seal

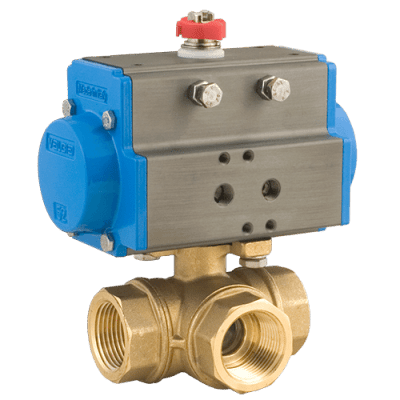

B2S-TL-TT Series Actuated Valves (Brass 400 PSI 3 Way)
Pneumatic or Electrically Actuated
Available in Sizes 1/4″ – 3″
- 3-way Brass Full Port
- 29 Hg-400 PSI W.O.G Cold Non-Shock
- -20 ºF to 344ºF

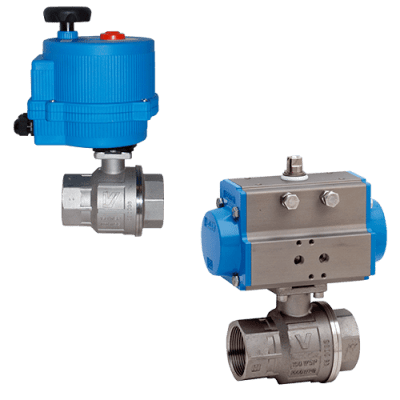

S2F Series Actuated Valves (Stainless 1000PSI)
Pneumatic or Electrically Actuated
- 316 Stainless Steel Full Port Ball Valve
- ISO 5211 Mounting Pad
- 1000psi WOG – 150psi Steam
- PTFE Seats with Viton® O-Ring Backed Seat
- Temperature 0⁰F to 366⁰F
S2FDM Stainless Actuated Valves (2000 PSI 2-way)
Pneumatic or Electrically Actuated
Available in Sizes 1/2″ – 2″
- All Sizes Full Port
- 2,000 psi W.O.G., 160 psig Steam
- 316 SS Ball and Stem, CF8M SS Body
- RPTFE Seat, Packing, Gasket and Washers, w/Viton O-Ring
- Temperature -20°F to 200°F at 2,000psi
- -20°F to 300°F at 1,200psi
- S-Tek Seats Available, 30°, 60°, 90° V-Port Option Available

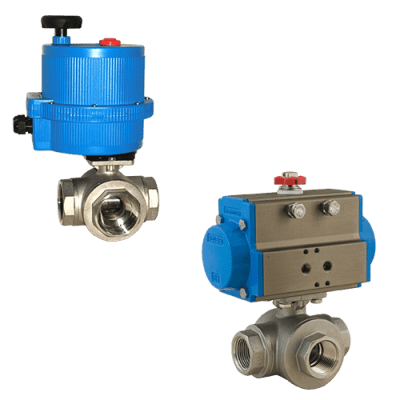

S2F-TL-TT Series Actuated Valves (Stainless 1000 PSI)
Pneumatic or Electrically Actuated
Available in Sizes 1/4″ – 4″
- Stainless Steel 3-Way Ball Valve
- 29” Hg -1000psi WOG (1/4” to 1”) 800psi(1-1/4” to 2”)
- IS0 5211 Mounting Pad
- Four Seat Design for sealing Between Pressurized Ports
- RTFE Seats with Viton® O-Rings
- Temp -20°F to 450°F
- Available Standard and Full-Port

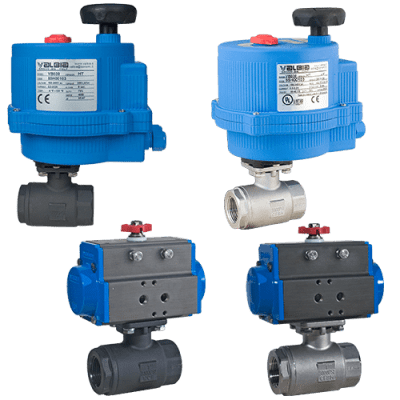

SS6M & CS6M Series Actuated Valves (6000 PSI Seal Welded)
Pneumatic or Electrically Actuated
Stainless Steel or Carbon Steel
Available in Sizes 1/2″ – 2″
- Seal Welded, Full Port Ball Valve
- Available in Stainless and Carbon Steel
- 6000psi WOG
- Delrin® Seats and Viton® O-Rings
- NACE MR0175-90
- API 607-4 Fire Safe / API 608 Compliance
- API Standard 6D
2F3M Series Actuated Valves (3000 PSI Nace MR-0175)
Pneumatic or Electrically Actuated
Available in Sizes 1/4″ – 2″
- Stainless Steel and Carbon Steel
- ISO 5211 Mounting Pad
- 29”-Hg – 3000psi (100oF)
- Full Port Ball Valve ( 2” Reduced port)
- Delrin® Seats, Viton® O-Rings
- NACE MR-0175
- Temp -20°F to 185°F

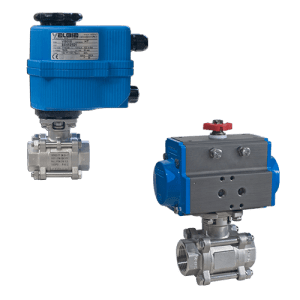

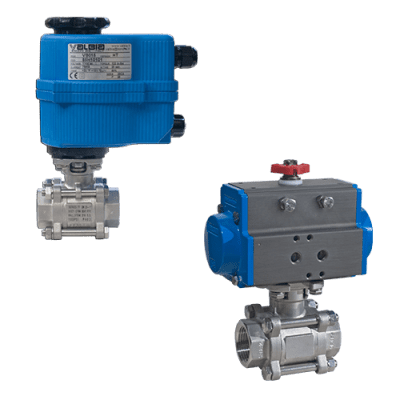

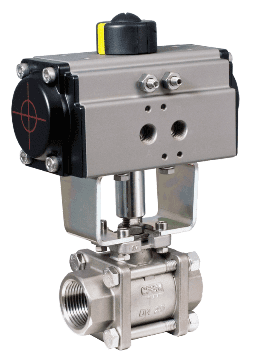

S3FDM Series Actuated Valves (1000 PSI 3-Piece)
Pneumatic or Electrically Actuated
Available in Sizes 1/2″ – 2″
- Stainless Steel 3-Piece Full Port Ball Valve
- ISO 5211 Mounting Pad
- 1000psi WOG 1/4” – 2” (2-1/2” – 4” 800psi)
- PTFE Seats and Viton® O-Ring
- Temperature -40⁰F to 440⁰F

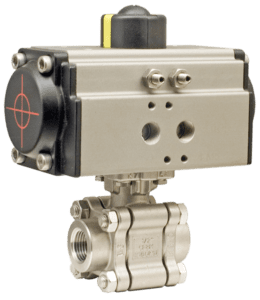

S3F22 Series Actuated Valves (2250 PSI Fire Safe)
Pneumatic or Electrically Actuated
Available in Sizes 1/4″ – 4″
- 3-Piece Stainless or Carbon Steel Ball Valve
- 29Hg-3000 PSI (1/4″ to 3/4″) 2250psi (1″ to 3″)WOG Cold Non-Shock
- 250psi WSP
- Seats, TFM Standard, See Chart
- Fire Safe to API607-4
- Weld in Place Design
- ASME/ANSI B16-34 Class 600
- NACE MRO175
S3FV Series Actuated Valves (S90V Series) (V-Cut Ball Valve)
Pneumatic or Electrically Actuated
Available in Sizes 1/2″ – 4″
- Stainless Steel, Three-Piece, V-Cut Ball Valve
- 1000 PSI WOG, 250 PSI Steam
- ISO 5211 Mounting Pad
- 25% carbon PTFE seats
- Precise flow control and throttling capability
- Available in NPT and Socket Weld
- NACE MR 017/ISO 15156 AND NACE MR 0103
- Temperature -4⁰F to 406⁰F
- 30 and 60 Degree Ports Available, Per Request (S30v, S60V)
- 3-pc Design Permits In-line Service to Reduce Down Time

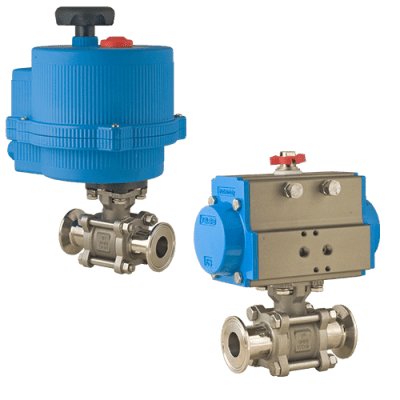

STC Series Actuated Valves (Sanitary Tri-Clamp)
Pneumatic or Electrically Actuated
Available in Sizes 1/4″ – 6″
- Stainless Steel Full Port
- Sanitary Tri-Clamp Ball Valve
- IS0 5211 Mounting Pad
- 29Hg – 1000psi WOG Cold Non-Shock
- Cavity Filled Teflon Seats (Standard Seats Optional)
- Temperature 0⁰F to 400⁰F
- Complies With FDA, USDA, and 3A

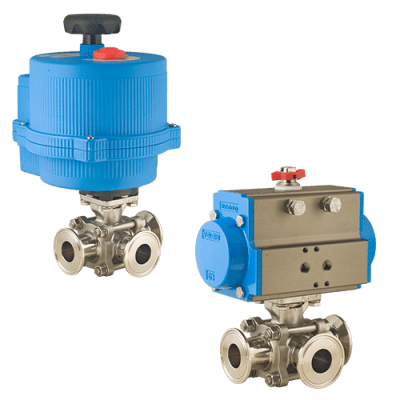

STC TT&TL Series Actuated Valves (Sanitary Tri-Clamp 3-Way)
Pneumatic or Electrically Actuated
Available in Sizes 1/2″ – 4″
- Stainless Steel 3-way
- Sanitary Tri-Clamp Ball Valve
- IS0 5211 Mounting Pad
- 1000 PSI
- Cavity Filled Teflon Seats Standard (Non-Cavity Filled Seats Optional)
- Meets FDA, USDA, and 3A Requirements (Cavity Filled Only)

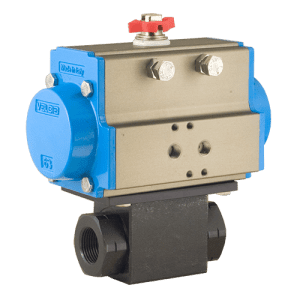

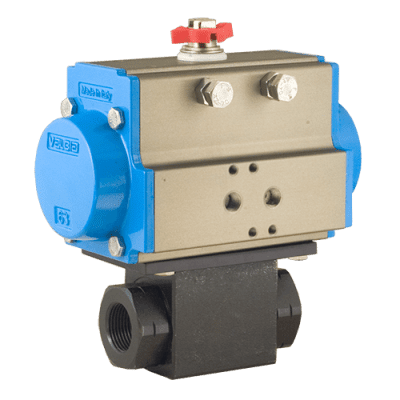

CFM Series Actuated Valves (Hydraulic Service High Pressure)
Pneumatically Actuated
Available in Sizes 1/4″ – 2″, 7/16″ -20 – 2-1/2″-12
- 2-way Carbon Steel Full Port
- ¼” – ½” 7350 psi WOG
- 1”- 1- ½” 5145 psi WOG
- ¾” & 2” 5880 psi WOG
- Delrin® Seats and Viton® O-rings
- -20 ºF to 215ºF
CFM-TL Series Actuated Valves (Carbon Steel-3 Way High Pressure)
Pneumatically Actuated
Available in Sizes 1/4″ – 2″, 7/16″ -20TL – 2-1/2″-12TL
- 3-way Carbon Steel Full Port
- ¼” – 3/8” 5880 psi WOG
- ½” – 2 “ 5145psi WOG
- Delrin® Seats and Viton® O-rings
- -20 ⁰F to 215⁰F

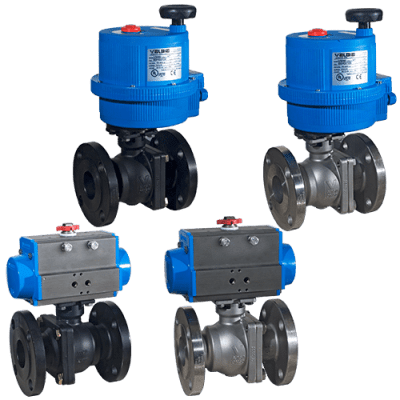

FF150-300 Series Actuated Valves (ANSI Class 150-300)
Pneumatic or Electrically Actuated
Available in Sizes 1/2″ – 12″
- Full Port Split Body ANSI Class 150 & 300
- Class 150 29Hg – 285psi, Cold Non-Shock
- Class 300 29Hg – 740psi, Cold Non-Shock
- Live Loaded Stem Design, Anti-Static Device
- Temp -50°F to 400°F
- Fire Safe Approved API 607-4
- Available with Optional Seats and V-Ball Option C/F

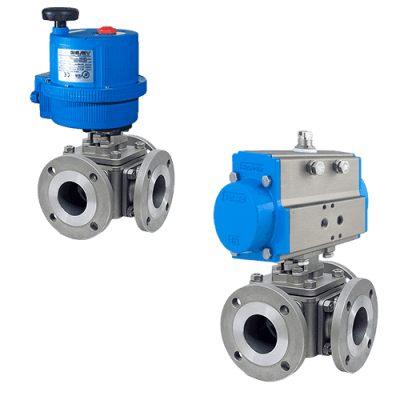

FF150 TT&TL Series Actuated Valves (ANSI Class 150-300)
Pneumatic or Electrically Actuated
Carbon Steel or Stainless Steel
Available in Sizes 3/4″ – 12″
- Full Port 3-Way ANSI Class 150 Flange Valve
- Available in T and L Port
- 3 Seat Design Maintains Proper Ball Position
- Available with Optional Seats

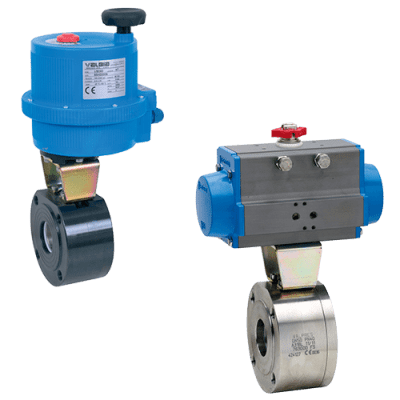

WFF150-300 Series Actuated Valves (ANSI Class 150-300)
Pneumatic or Electrically Actuated
Carbon Steel or Stainless Steel
Available in Sizes 1/2″ – 6″
- Full Port Wafer ANSI Class 150 & 300
- Class 150 29Hg – 285psi, Cold Non-Shock
- Class 300 29Hg – 740psi, Cold Non-Shock
- Stainless Steel Ball and Stem
- Blow-Out Proof Stem with Adjustable Stem Packing
- Temperature -4°F to 366°F

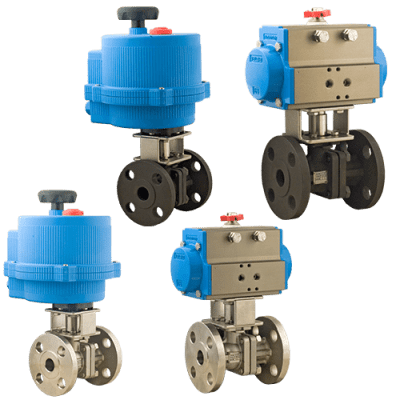

FF150DM Series Actuated Valves (ANSI Class 150-300)
Pneumatic or Electrically Actuated
Carbon Steel or Stainless Steel
Available in Sizes 1″ – 4″
- Full Port ANSI Class 150 Flange Valve
- ISO 5211 Mounting Pad
- Fire Safe Certified to API607, 6TH Edition
- Designed to ANSI B16.5, B16.10, B16.34
- Complies with NACE MR 0175/ISO 15156 and NACE MR 0103

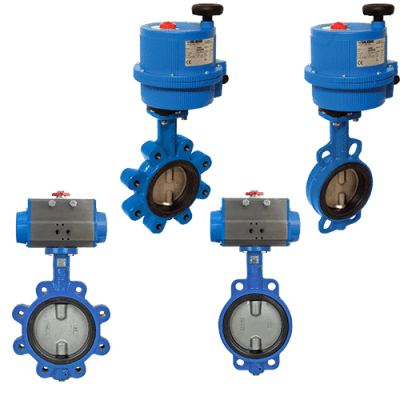

Industrial Resilient Seat Butterfly Valves
Pneumatic or Electrically Actuated
- ANSI 125 & ANSI 150 CLASS
- ISO 5211 Mounting Pad
- Epoxy Coated Cast Iron Body
- STAINLESS DISC (epoxy coated NLA)
- EPDM Resilient Seat (Standard)
- API609 Face to Face Flange
- Temperature -30⁰F to 250⁰F
- 2″-12″ With EPDM Seats are NSF 61, ANSI 372 Certified

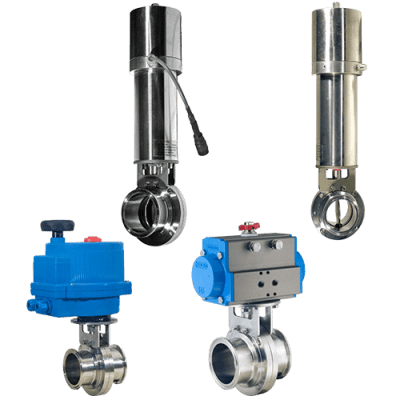

Sanitary Tri-Clamp Butterfly Valves
Pneumatic or Electrically Actuated
Available in Sizes 1/4″ – 12″
- Stainless Steel ASTM 316L Grade
- Surface Finish Meets 3-A, FDA & USDA Standards
- 316L Mirror Finish Disc Provides an Even Flow Preventing Obstructions and Restrictions
- EPDM Seats (Standard)
- FDA Approved Silicone, Viton and White Viton Seals are Available
(SSET = EPDM, SSST = SILICONE, SSVT = VITON, SSWVT = WHITE VITON) - Pressure -110 PSI @ 200 Degrees F
- Complies with FDA, USDA and 3A

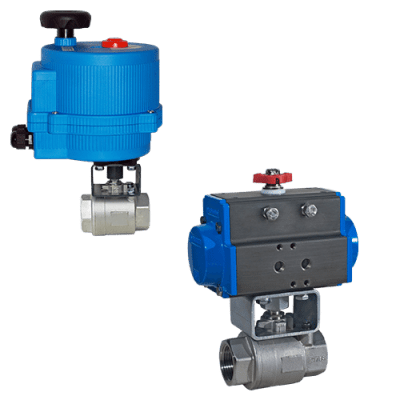

S2S Series Actuated Valves (Stainless 2000PSI)
Pneumatic or Electrically Actuated
Available in Sizes 1/4″ – 1/2″
- Stainless Steel
- Standard Port 2-Piece Ball Valve
- 29” Hg – 2000psi WOG
- RTFE Seats and PTFE Seals
- Temperature -20⁰F to 400⁰F
For more information about this product…
Download a Catalog
Ball Valves
Brass Ball Valves
Bronze Ball Valves
Stainless Steel Ball Valves
Carbon Steel Ball Valves
Nickel Plated Ball Valves
“Dead” Man Valves
3-Way Valves
Manual & Actuated Valves

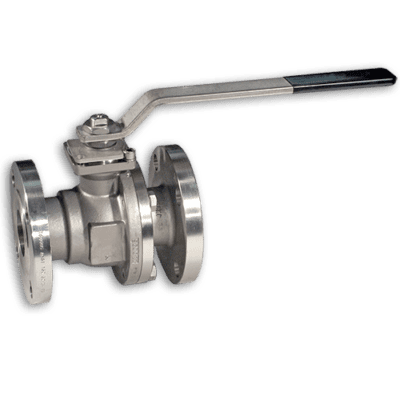

Flange Valves
For more information about this product…
Download a Catalog
Butterfly Valves
Industrial Resilient Seat Butterfly Valves
Sanitary Tri-Clamp

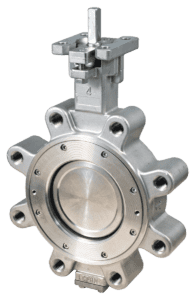

High Performance Butterfly Valves
For more information about this product…
Download a Catalog
Multi-Purpose Relief Valves
CV19 Series Multi-Purpose Relief Valves
CV500 Series Multi-Purpose Relief Valves
For more information about this product…
Download a Catalog

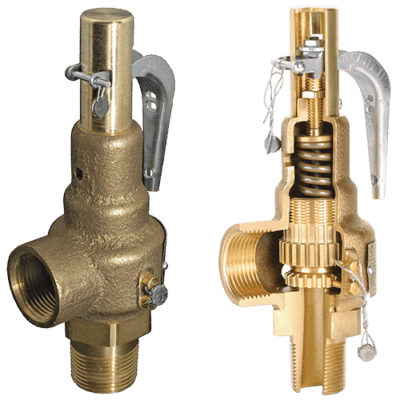

Safety Relief Valves
PSNC & PBNC Series Safety Relief Valves (Stainless And Brass, High Accuracy)
NCHL2 Series Safety Relief Valves (Non-Code Brass)
CV & CVH Series Safety Relief Valves (Code Brass)
SSCV & SSCVH Series Safety Relief Valves (Stainless Construction)
CVM, NCM & NCA Series Safety Relief Valves (Brass General Purpose)
For more information about this product…
Download a Catalog

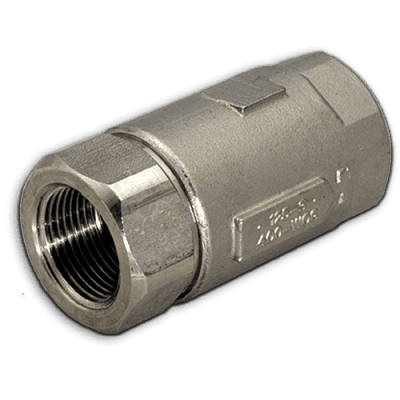

Check Valves
BC Series Check Valves (400 PSI up to 2″, 175 PSI 2.5″ & up)
SCI Series Check Valves (800 PSI WOG)
SC Series Check Valves (400 PSI, 125 Steam)
BCMF Series Check Valves (0.5-150 PSI, 200 Max)
SCMF Series Check Valves (0.5-150 PSI 200 Max)
SHSC Series Check Valves (High Pressure)
CHSC Series Check Valves (High Pressure)
CHC Series Check Valves (High Pressure)
SCFW Series Check Valves (Class 150 & Class 300)
BPC Series Check Valves (250 PSI)
SCTC Series Check Valves (150 PSI)
SSWC Series Check Valves (200 PSI Max)
SWC Series Check Valves (200 PSI Max)
For more information about this product…
Download a Catalog

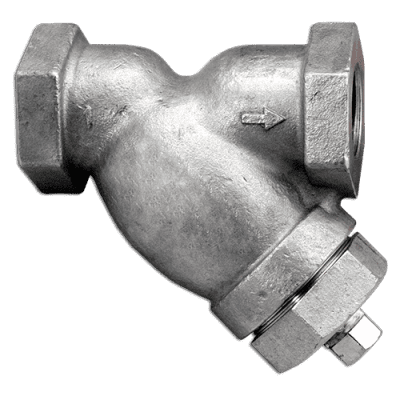

Y Strainers
YSB Series Y Strainers
YSCS Series Y Strainers
YSSS Series Y Strainers
YSCI Series Y Strainers
YS150SS/CS Series Y Strainers
YS300SS/CS Series Y Strainers
For more information about this product…
Download a Catalog

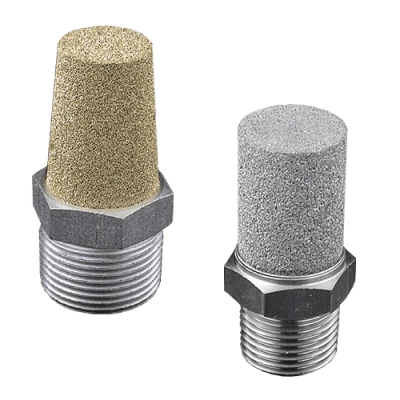

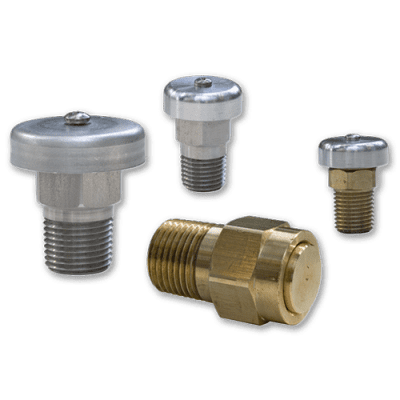

Mufflers
SBM-SSBM Series Mufflers
BV-SSBV Series Breather Vents
SCM-SSCM, Series Speed Control Mufflers
HPM Series Mufflers
MHS-MHA Series Mufflers
MHM-FHM Series Mufflers
For more information about this product…
Download a Catalog
Inline Filters
HIT Series, Hydraulic In-Line T-Type Filters
HIF Series, Hydraulic In-Line Filters
PIF-PIFB Series, Pneumatic Filters
For more information about this product…
Download a Catalog

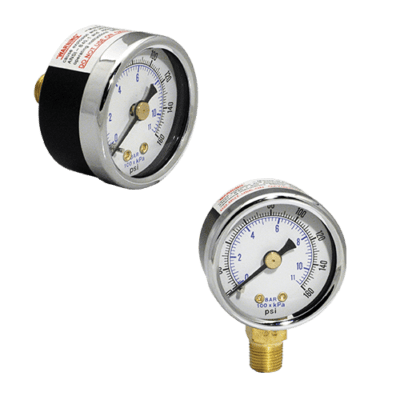

Gauges
