Air Preparation
Versa offers an array of air preparation options including Filters, Regulators and combination Filter/Regulator with standard and High Pressure capabilities. Versa Regulators and Filters are dependable and will keep your pneumatic system stable and reliable.
Product Lineup

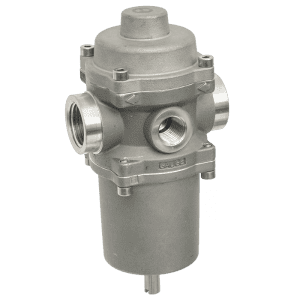

Filter/Regulator
Stainless
The all 316 stainless steel construction of Versa’s regulators and filter/regulators is ideal for sour gas and/or corrosive environments, NACE Compliant, and adaptable to offshore environments. This high quality instrument optimizes your operation and provides extremely stable and repeatable control of gas pressure. Oversized valving achieves high flow rates with minimal pressure drop.
- Design Packed balance pintle
- Construction Stainless Steel body, FKM (Fluorocarbon) sealing
- Service Pneumatic to 290 psi (20 bar)
- Port Sizes/Orifice/Flow
1/4″ NPT / 2.1 Cv
3/8″ NPT / 3.3 Cv
1/2″ NPT / 4.2 Cv
1″ NPT / 11.1 Cv - Style Side-ported
Filters
Stainless
Versa’s AR316 Series of stainless steel filters are designed to withstand the harshest environments and deliver the clean media you require.
Available with a broad range of pressures, mounting options, fluid capacity, and drains to meet your requirements.
The all 316 stainless steel construction of Versa’s filters are ideal for sour gas and/or corrosive environments, NACE Compliant, and adaptable to offshore environments. This high-quality instrument optimizes your operation and provides the clean media you require.
- Construction Stainless Steel body, FKM (Fluorocarbon) sealing
- Service Pneumatic to 290 psi (20 bar)
- Port Sizes/Orifice/Flow
1/4″ NPT / 2.1 Cv
3/8″ NPT / 3.3 Cv
1/2″ NPT / 4.2 Cv
1″ NPT / 11.1 Cv - Style Side-ported
High Pressure Filters
Stainless

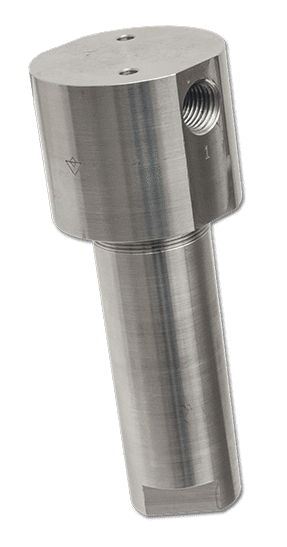

Versa’s AFH-316 Series high pressure filter
The AFH-316 Series is designed to handle up to 6000 psi input. The durable 316L stainless steel filter is available with polyethylene or 316 stainless steel filter elements. It is ideal for challenging applications such as pipelines, offshore platforms, and sour gas media.
Versa’s AFH-316 Series high pressure filter is designed to accept up to 6000 psi input and is available in three configurations.
- 1/4” NPT inline mounting
- 1/4” NPT inline mounting with additional outlet port in the cap
- Manifold mount
- Construction Stainless Steel body, FKM (Fluorocarbon) sealing
- Filtration Polyethylene 10 or 25 micron, 316 stainless steel 3,10 or 25 micron
- Supply Max
0-6000 psig (0-414 bar)
0-4000 psig (0-275 bar)
0-1600 psig (0-110 bar) - Port Size/ Flow 1/4″ NPT / 0.73 Cv
- Style Side-ported or manifold mounted
High Pressure Regulators
Stainless

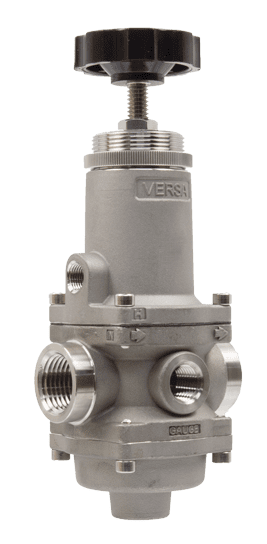

Versa’s high-pressure stainless steel regulators are designed to withstand the harshest environments while providing highly accurate pressure regulation.
Versa’s single stage, high pressure regulator is designed to accept up to 6000 psi input and reduce it to a working range of 10 to 500 psi. Making the ARH ideal for first cut Natural Gas high pressure regulator.
The ARFA stainless steel construction is ideal for sour gas and/or corrosive environments and is NACE compliant meeting sulfide stress cracking material requirements for NACE Standard MR0175. The ARFB model, only the wetted parts are NACE compliant.
- Construction Stainless Steel body, FKM (Fluorocarbon) sealing
- Filtration Polyethylene 10 or 25 micron, 316 stainless steel 3,10 or 25 micron
- Supply Max
0-6000 psig (0-414 bar)
0-4000 psig (0-275 bar)
0-1600 psig (0-110 bar) - Port Size/ Flow 1/4″ NPT / 0.73 Cv
- Style Side-ported or manifold mounted
Regulators
Stainless

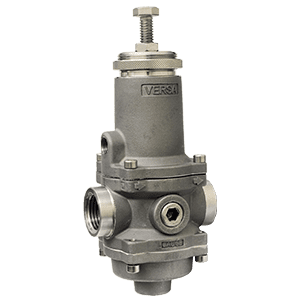

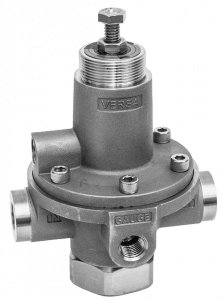

Versa’s AR316 Series of stainless steel regulators are designed to withstand the harshest environments while providing highly accurate pressure regulation
This high quality instrument optimizes your operation and provides extremely stable and repeatable control of gas pressure.
The all 316 stainless steel construction of Versa’s regulators is ideal for sour gas and/or corrosive environments, NACE Compliant, and adaptable to offshore environments. This high quality instrument optimizes your operation and provides extremely stable and repeatable control of gas pressure. Oversized valving achieves high flow rates with minimal pressure drop.
- Design Packed balance pintle
- Construction Stainless Steel body, FKM (Fluorocarbon) sealing
- Service Pneumatic to 290 psi (20 bar)
- Port Size/ Flow
1/4″ NPT / 2.1 Cv
3/8″ NPT / 3.3 Cv
1/2″ NPT / 4.2 Cv
1″ NPT / 11.1 Cv - Style Side-ported
