Versa Valves Manifold Systems combine valves, regulators and accessories into Versa’s innovative modular air package concept. These actuator control system manifolds simplify your application by combining many tools into one.

Product Lineup

DMAP

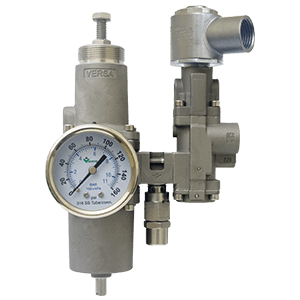

Versa Valves DMAP Manifold System

The Versa DMAP product will meet your FR package requirements for clean, dry air protecting your investment and ensuring optimal performance of your pneumatic system.

The basic DMAP system is made of two configurable modules.
Module one: the air preparation module consisting of filter/regulators, gauges and drains.
Module two: the control valve module, a solenoid-operated, direct-acting, 3-way control valve.

Based on Versa’s AR-316 FR Series. This proven design is small, high flow, simple and configurable. Regulators can supplied a with tamper proof adjustment locknut, an auto drain or a hand knob for pressure adjustment as options.

Versa’s D-316 Series solenoid operated, direct acting valve. This proven design is small, yet yields high flow. D-316 valves are also simple and configurable in design. The D-316 Series has become a leader in the ¼” size control package market. Furthermore, the D-316 Series is available with our World Solenoid with global agency approvals.

Like all D-316 Family of valves the solenoid housing rotates 360° without need for tools, disassembly or valve re-adjustment. The D-316 high performance valve can be mounted in any orientation for simplified installation and connection.

VMAP

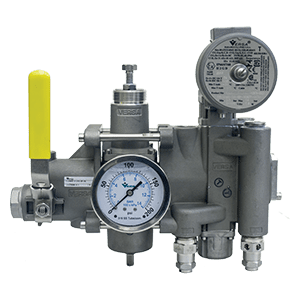

Versa Valves VMAP
The Versa VMAP (V316 Modular Air Package) is a compact air management system, providing a full range of pneumatic accessories and functions to meet the needs of most control systems in the actuator control industry. Major components include shutoff valves, filter/regulators, speed controls, and directional control valves. Versa’s VMAP simplifies the design process by combining all the components of a common circuit into one integrated assembly. Whether a standard shutoff circuit or an intricate control system, VMAP’s features meet the requirements of any control project. VMAP will reduce costs, components, engineering, vendors, weight, and time with only one component to mount.

For more information about this product…
 Download a Catalog

CMAP

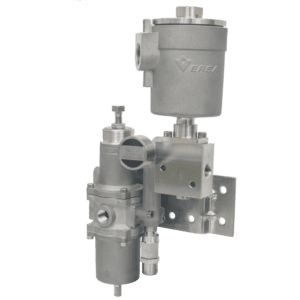

Versa Valves CMAP
The CMAP 316 Stainless Steel system includes a filter/regulator, gauge, and directional control valve all in one unit. The CMAP is fully factory assembled and tested providing assurance that it will be installed trouble-free on your control package.

A CMAP system is easily specified and includes integral mounting holes for ease of installation, reducing engineering time and costs. Further benefits include reduction of fittings and tubing.

The basic CMAP system is made of two configurable modules.

  • Module one is the air preparation unit consisting of a filter/regulator, gauge, and drain
  • Module two is the control valve unit offered in many 3-way variations.5 bar)
