AIGNEP’s cylinder position sensors are designed to deliver precise piston detection in pneumatic cylinders, enhancing automation accuracy and control. These compact sensors mount directly onto the cylinder body and reliably monitor piston movement throughout its stroke. Ideal for a wide range of industrial applications, they provide dependable feedback for efficient, real-time position monitoring in automated systems.

Product Lineup

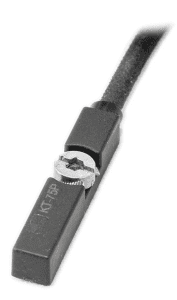

DT01 Series Sensors

AIGNEP DT01 Series Sensors

Magnetic Switches

  • Connection: ø 2,8 – 2 Wire PU
    R2M = 2MT
    RM8 – M8 Connector
  • Switching logic: SPST, Normally open
  • Sensor type: Reed Switch
  • Voltage Range: 5÷240V DC/AC
  • Switching current: 100 mA max
  • Contact rating: 10W max
  • Max voltage drop: 0,3V
  • Output status indicator: Red Led
  • Operating frequency: 200 Hz
  • Working Temperature: -10 °C to +70 °C
  • Shock: 30 G
  • Vibration: 9G
  • Protection degree: IEC 60529 IP67
  • Protection Circuit: NO

DT02 Series Sensors

AIGNEP DT02 Series Sensors

Magnetic Switches

  • Connection: ø 2,8 – 3 Wire PU
    P2M = 2MT
    PM8 – M8 Connector
  • Switching logic: Solid State Output, Normally open
  • Sensor type: PNP Current Sourcing
  • Voltage Range: 10÷28V DC
  • Switching current: 80 mA max
  • Contact rating: 2W max
  • Max voltage drop: 10mA @ 24 V DC max, 1,5V max
  • Output status indicator: Red/Green Led
  • Operating frequency: 1000 Hz
  • Magnetic requirement: 50 Gauss
  • Working Temperature: -10 °C to +60 °C
  • Shock: 50 G
  • Vibration: 9G
  • Protection degree: IEC 60529 IP67

DC01 Series Sensors

AIGNEP DC01 Series Sensors

Magnetic Switches

  • Connection: ø 2,8 – 2 Wire PUR
    R2M = 2MT
    RM8 – M8 Connector
  • Switching logic: SPST, Normally open
  • Sensor type: Reed Switch
  • Voltage Range: 5÷120V DC/AC
  • Switching current: 100 mA max
  • Contact rating: 100W max
  • Max voltage drop: 3,0V
  • Output status indicator: Red Led
  • Operating frequency: 200 Hz
  • Magnetic requirement: 70 Gauss
  • Working Temperature: -10 °C to +70 °C
  • Shock: 30 G
  • Vibration: 9G
  • Protection degree: IEC 60529 IP67
  • Protection Circuit: NO

DC02 Series Sensors

AIGNEP DC02 Series Sensors

Magnetic Switches

  • Connection: ø 2,8 – 3 Wire PU
    P2M = 2MT
    PM8 – M8 Connector
  • Switching logic: Solid State Output, Normally open
  • Sensor type: PNP Current Sourcing
  • Voltage Range: 10÷28V DC
  • Switching current: 80 mA max
  • Contact rating: 2W max
  • Max voltage drop: 10mA @ 24 V DC max, 1,5V max
  • Leakage current: 0,05mA max
  • Output status indicator: Red/Green Led
  • Operating frequency: 1000 Hz
  • Magnetic requirement: 40 Gauss
  • Working Temperature: -10 °C to +60 °C
  • Shock: 50 G
  • Vibration: 9G
  • Protection degree: IEC 60529 IP67

DC03 Series Sensors

AIGNEP DC03 Series Sensors

Magnetic Switches

  • Connection: ø 2,6 – 3 Wire PVC
    P2M = 2MT
    PM8 – M8 Connector
  • Switching logic: Solid State Output, Normally Open
  • Sensor type: PNP Current Sourcing
  • Voltage Range: 4,5÷28V DC
  • Switching current: 50 mA max
  • Contact rating: 1,5W max
  • Max voltage drop: 10mA @ 24 V DC max, 0,5V @ 50mA max
  • Leakage current: 0,01mA max
  • Output status indicator: Red Led
  • Operating frequency: 1000 Hz
  • Magnetic requirement: 40 Gauss
  • Working Temperature: -10 °C to +70 °C
  • Shock: 50 G
  • Vibration: 9G
  • Protection degree: IEC 60529 IP67

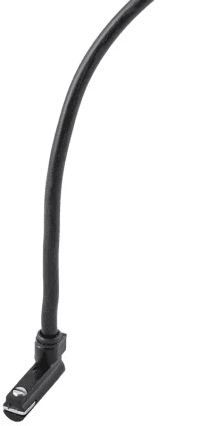

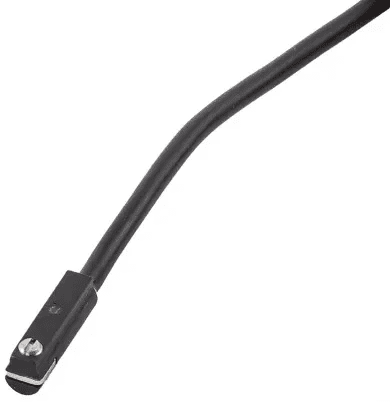

DC04 Series Sensors

AIGNEP DC04 Series Sensors

Magnetic Switches

  • Connection: ø 2,6 – 3 Wire PVC
    P2M = 2MT
    PM8 – M8 Connector
  • Switching logic: Solid State Output, Normally Open
  • Sensor type: PNP Current Sourcing
  • Voltage Range: 4,5÷28V DC
  • Switching current: 50 mA max
  • Contact rating: 1,5W max
  • Max voltage drop: 10mA @ 24 V DC max, 0,5V @ 50mA max
  • Leakage current: 0,01mA max
  • Output status indicator: Red Led
  • Operating frequency: 1000 Hz
  • Magnetic requirement: 40 Gauss
  • Working Temperature: -10 °C to +70 °C
  • Shock: 50 G
  • Vibration: 9G
  • Protection degree: IEC 60529 IP67

DTEX03 Series Sensors

AIGNEP DTEX03 Series Sensors
ATEX Magnetic Switches

  • Connection: ø 2,8 – 3 Wire PU
    P2M = 2MT
  • Switching logic: Solid State Output, Normally Open
  • Sensor type: PNP Current Sourcing
  • Voltage Range: 10÷28V DC
  • Switching current: 200 mA max
  • Contact rating: 5,5W max
  • Max voltage drop: 10mA @ 24 V DC max, 1,5V @ 50mA max
  • Leakage current: 0,05mA max
  • Output status indicator: Red/Yellow Led
  • Operating frequency: 1000 Hz
  • Magnetic requirement: 50 Gauss
  • Working Temperature: -10 °C to +70 °C
  • Shock: 50 G
  • Vibration: 9G
  • Protection degree: IEC 60529 IP67

DSL1 Series Sensors

AIGNEP DSL1 Series Sensors
AIGNEP DSL1 Series Sensors
Magnetic Switches

  • Connection: 2 Wire PVC
    C225 = 2,5MT
    M8 – 0,3MT – M8 Connector
  • Switching logic: Normally Open
  • Sensor type: Reed Switch
  • Voltage Range: 3-120V AC/DC
  • Max current at 25°C: 50 mA max
  • Max power/Resistive load: 10W
  • Max voltage drop: 3.2V
  • Output status indicator: Yellow Led
  • Response time: 0.5 ms max
  • Decay time: 0.1 ms max
  • Electric life (resistive load): 4×107
  • Working Temperature: -20 °C to +70 °C
  • Protection degree: IP68
  • Short Circuit: No
  • Type of Cylinder Mount: Longitudinal Only

DSL4 Series Sensors

AIGNEP DSL4 Series Sensors
AIGNEP DSL4 Series Sensors
Magnetic Switches

  • Connection: 3 Wire PVC
    N225 = 2,5MT
    M8 – 0,3MT – M8 Connector
  • Switching logic: Normally Open
  • Sensor type: PNP – Hall
  • Voltage Range: 10-30V DC
  • Max current at 25°C: 200 mA max
  • Max power/Resistive load: 6W
  • Max voltage drop: 0.8V
  • Output status indicator: Yellow Led
  • Response time: 0.2 ms max
  • Decay time: 0.1 ms max
  • Electric life (resistive load): 4×107
  • Working Temperature: -20 °C to +70 °C
  • Protection degree: IP68
  • Short Circuit: No
  • Type of Cylinder Mount: Longitudinal Only

DSH2 Series Sensors

AIGNEP DSH2 Series Sensors
AIGNEP DSH2 Series Sensors
Magnetic Switches

  • Connection: 2 Wire PVC
    R2F20 = 2MT
    R2FM8 – 0,3MT – M8 Connector
  • Switching logic: Normally Open
  • Sensor type: Reed Switch
  • Voltage Range: 5-120V AC/DC
  • Max current at 25°C: 100 mA max
  • Max power/Resistive load: 10W
  • Max voltage drop: <5V
  • Output status indicator: Yellow Led
  • Response time: 0.5 ms max
  • Decay time: 0.1 ms max
  • Electric life (resistive load): 107
  • Working Temperature: -20 °C to +70 °C
  • Protection degree: IP67 II
  • Short Circuit: No
  • Type of Cylinder Mount: Axial and Longitudinal

DSH4 Series Sensors

AIGNEP DSH4 Series Sensors
AIGNEP DSH4 Series Sensors
Magnetic Switches

  • Connection: 3 Wire PUR
    H3F20 = 2MT
    H3FM8 – 0,3MT – M8 Connector
  • Switching logic: Normally Open
  • Sensor type: PNP – Hall
  • Voltage Range: 10-30V DC
  • Max current at 25°C: 100 mA max
  • Max voltage drop: <2.5V
  • Output status indicator: Yellow Led
  • Decay time: <30 ms
  • Electric life (resistive load): Infinite
  • Working Temperature: -25 °C to +85 °C
  • Protection degree: IP67
  • Short Circuit: No
  • Type of Cylinder Mount: Axial and Longitudinal
