Actuators

<< Back to In-House Components page

Save Money with our in-house brand of components!

We offer an array of quality actuators at reasonable prices, including Standard Cylinders, Mini Cylinders, Twin-Rod Cylinders, Tri-Rod Cylinders, Rodless Magnetic Cylinders, Compact Cylinders, Slides, Grippers, Rotary Cylinders & more!

Good Quality Product
for a Great Price!

Product Lineup

Standard Cylinders

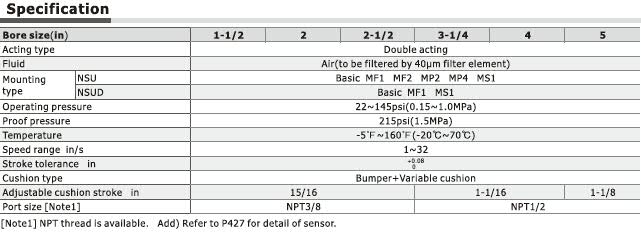

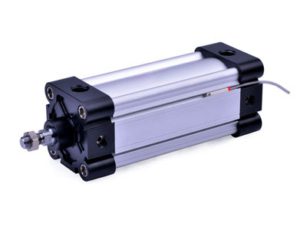

NSU Series Standard Cylinder

All Air Brand-NSU Series ActuatorFeatures

  • Standard cylinder manufactured to NFPA Standards
  • High quality piston seal resulting in tight fit and oil preservation
  • Buffer adjustment is smooth and steady
  • Many sizes and mounting options available

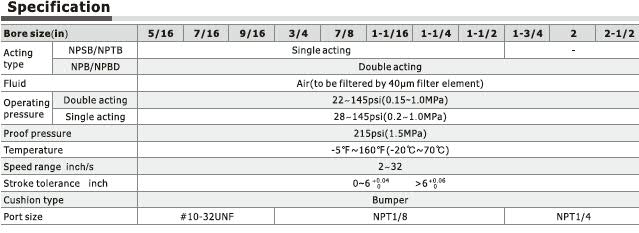

NPB Series Mini Cylinder

All Air Brand-NPB Series ActuatorFeatures

  • Compact structure, small volume and light weight
  • High piston rod guide precision, no additional lubricant needed
  • Stainless steel piston rod for corrosive applications
  • Many sizes and mounting options available
  • Small cylinder diameter and quick reaction, for high frequency applications
TR Series Twin-Rod Cylinder

All Air Brand-TR Series ActuatorFeatures

  • Meets JIS standard
  • Bumper to reduce impact
  • Good resistance to bending and twisting moments
  • Can be mounted in three directions
  • Magnetic switch slots around cylinder body, allowing for inducting switch

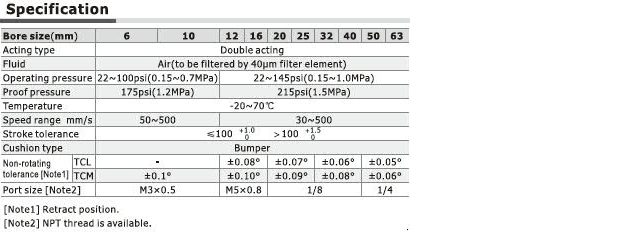

TC Series Tri-Rod Cylinder
(TCL, TCM Series)

All Air Brand-TCL,TCM Series ActuatorFeatures

  • Meets JIS standard
  • Steel/bronze bearing guides can bear high torque and radial load
  • Air intake is optional
  • High precision installation possible
  • 4 mounting slots for multiple mounting options

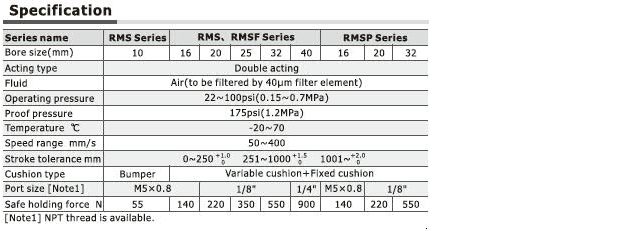

RMS Series Rodless Magnetic Cylinder

All Air Brand-RMS Series ActuatorFeatures

  • Dust-proof
  • Compact
  • Rubber bumpers and cushions on both ends ensure smooth action
RMT Series Rodless Magnetic Cylinder
(With Guide)

All Air Brand-RMT Series ActuatorFeatures

  • Dust-proof
  • Compact
  • Rubber bumpers and cushions on both ends ensure smooth action
  • Double guides ensure high precision and can withstand side load or prejudicial load
RMTL Series Rodless Magnetic Cylinder
(With Exactitude Guide)

All Air Brand-RMTL Series ActuatorFeatures

  • Dust-proof
  • Compact
  • Rubber bumpers and cushions on both ends ensure smooth action
  • Double guides ensure high precision and can withstand side load or prejudicial load
RMH Series Rodless Magnetic Cylinder
(With Linear Guide)

All Air Brand-RMH Series ActuatorFeatures

  • Dust-proof
  • Compact
  • Rubber bumpers and cushions on both ends ensure smooth action
  • Double guides ensure high precision and can withstand side load or prejudicial load

Pick a Product – Let Us Give You a Quote
You’ll be Amazed at How Much You Can Save!

Rotary Actuators

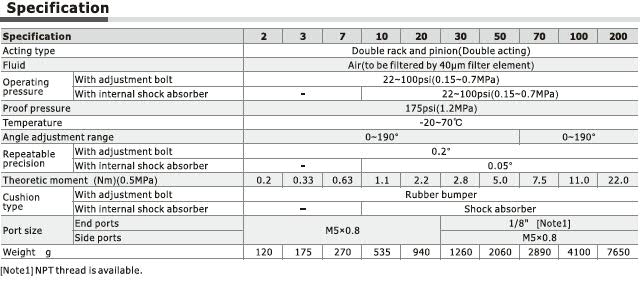

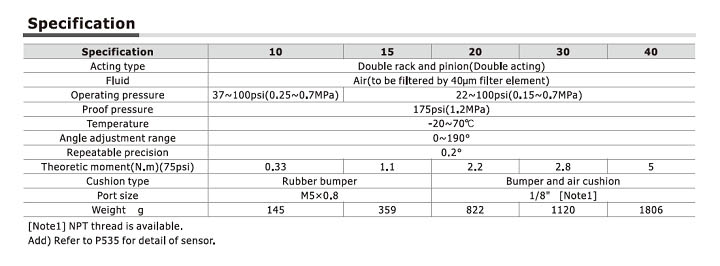

HRQ Series Rotary Table Cylinder

All Air Brand-HRQ Series Rotary Table CylinderFeatures

  • Ultra-stable rack and pinion design
  • Dual cylinder doubles output thrust
  • Guide hole on the both sides of the cylinder body
  • Two buffer modes available: adjustment bolt buffer and internal shock absorber

Pick a Product – Let Us Give You a Quote
You’ll be Amazed at How Much You Can Save!

Slides

HGS Series Compact Slide Cylinder

All Air Brand-HGS Series Slide Table CylinderFeatures

  • Rail is made from high rigidity, corrosion resistant stainless steel
  • Connecting pin is high strength steel alloy for impact resistance and durability
  • Adjustable stroke equipment is available
  • Sensors can be installed easily in cylinder grooves
  • Body and slider with positioning pin hole for easy and accurate dismounting and positioning
HLF Series Slide Table Cylinder

All Air Brand-HLF Series Slide Table CylinderFeatures

  • Cross rollers and cylinder integration effectively reducing cylinder thickness
  • Mounting is possible in 2 directions
  • Piping is possible in 2 directions
HLH Series Compact Slide Cylinder

All Air Brand-HLH Series Slide Table CylinderFeatures

  • Integrated miniature linear roller ball bearing
  • Mounting is possible in 4 directions
  • Piping is possible in 3 directions
HLQ Series Compact Slide Cylinder
(HLQ, HLQL Series)

All Air Brand-HLQ Series Slide Table CylinderFeatures

  • Recirculating linear ball bearing results in high rigidity, antirust and dustproofing
  • Mounting is possible in 3 directions
  • Magnetic switch slots around cylinder body, allowing for inducting switch
  • Dual rod doubles output thrust
HLS Series Compact Slide Cylinder
(HLS, HLSL Series)

All Air Brand-HLS Series Slide Table Cylinder SpecsFeatures

  • Roller bearing creates high precision, high rigidity, high load and non-rotation
  • Mounting is possible in 2 directions
  • Magnetic switch slots around cylinder body, allowing for inducting switch
  • Dual rod doubles output thrust

Compact Actuators

NACQ Series Compact Cylinder

All Air Brand-NACQ Series Compact ActuatorFeatures

  • Meets JIS standard
  • C clip connects cylinder body and back or front cover, piston and piston rod are riveted for compactness and reliablility
  • Excellent abrasion resistance and durability
  • High quality piston seal resulting in tight fit and grease preservation
  • Compact structure can effectively save installation space
  • Magnetic switch slots around cylinder body, allowing for inducting switch

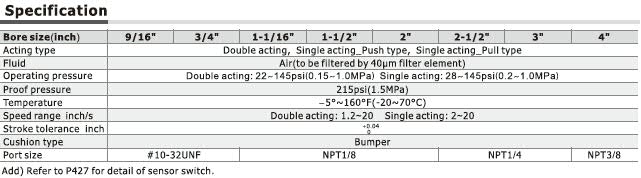

NACF Series Round Compact Cylinder

All Air Brand-NACF Series Round Compact ActuatorFeatures

  • Sensor can be directly fixed into groove of the cylinder
  • Compatible sensors: CMSH, DMSH(S)
  • Female thread and Male thread rods available
  • Imperial cylinder: Bore sizes: 9/16”, 3/4”, 1-1/16”, 1-1/2”, 2”, 2-1/2”, 3”, 4″
  • Multiple mounting accessories

Pick a Product – Let Us Give You a Quote
You’ll be Amazed at How Much You Can Save!

Grippers

HFD Series Compact Air Gripper

All Air Brand-HFD Series Compact Air GripperFeatures

  • Double-track design increases the load span
  • Double piston drive, double output, for greater clamping force
  • Jaw rails are made of stainless steel for high rigidity and corrosion resistance
  • Can be fixed in four directions and has a high degree of freedom
  • Overall height is reduced by about 50% compared to parallel jaw product of the same clamping force
HFC Series Air Gripper
(Parallel Open / Close Style)

All Air Brand-HFC Series Air Gripper SpecsFeatures

  • Cuniform block in interior of the air gripper creates larger gripping force
  • Bumper in front of piston, reduces noise
  • Precise repeatable grip
HFCQ Series Air Gripper
(Hollow Type)

All Air Brand-HFCQ Series Air GripperFeatures

  • Cuniform block in interior of the air gripper creates larger gripping force
  • Bumper in front of piston, reduces noise
  • Precise repeatable grip
  • HFCQ series is Parallel open/close hollow style
HFZ Series Air Gripper
(Ball Bearing)

All Air Brand-HFZ Series Air GripperFeatures

  • Integrated with linear guide rail for high rigidity and high precision
  • Magnetic switch slots allow installation of DMSG(S)\CMSG type inducting switch
  • Initial position of clamping jaw can be customized to meet different working conditions
  • Mounting holes on side and tail
  • Positioning hole can improve precision and consistency of repeated dismounting and positioning
HFK Series Air Gripper
(Roller Bearing)

All Air Brand-HFK Series Air GripperFeatures

  • Integrated with linear guide roller for high rigidity and high precision
  • Magnetic switch slots allow installation of DMSG(S)\CMSG type inducting switch
  • Initial position of clamping jaw can be customized to meet different working conditions
  • Can be mounted from three directions
  • Positioning hole can improve precision and consistency of repeated dismounting and positioning
HFKL Series Air Gripper
(Longer Stroke)

All Air Brand-HFKL Series Air GripperFeatures

  • Integrated with linear guide roller for high rigidity and high precision
  • Magnetic switch slots allow installation of DMSG(S)\CMSG type inducting switch
  • Initial position of clamping jaw can be customized to meet different working conditions
  • Can be mounted from three directions
  • Positioning hole can improve precision and consistency of repeated dismounting and positioning
HFP Series Air Gripper
(Mechanical Parallel Style)

All Air Brand-HFP Series Air GripperFeatures

    • Lever type gripping reduces cost

Finger clamps when piston rod pushes out and stretches when piston rod retracts

  • Sheet metal is installed between finger and body to reduce abrasion and extend service life
  • Magnetic switch slots allow installation of inducting switch
  • Two finger types available
  • Contact area between finger and body is enlarged to enhance gripping accuracy
  • Can be mounted from two directions
  • HFKP series is parallel style roller bearing/dustproof type
HFY Series Air Gripper
(Angular Style)

All Air Brand-HFY Series Air GripperFeatures

  • Can be mounted from three directions
  • Improved gripping angle, wide range of actual use
  • Large gripping torque using a single piston structure
  • Easy and convenient to adjust the speed of opening and closing with integrated with variable flow valve
  • Precise positioning accuracy
  • Magnetic switch slots allow installation of inducting switch

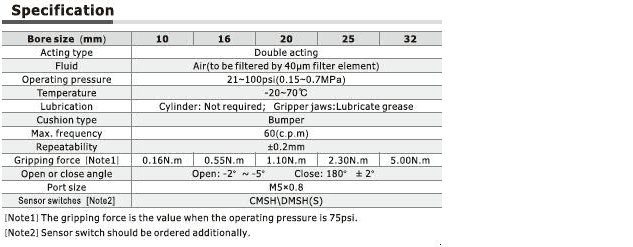

HFR Series Air Gripper
(180° Open / Close Style)

All Air Brand-HFR Series Air GripperFeatures

  • Dust proof fingers
  • Magnetic switch slots allow installation of inducting switch
  • Sheet metal is installed between finger and body to reduce abrasion and extend service life
  • 180°open/close type, simplified gripping action
  • Can be mounted from three directions
HFT Series Wide Air Gripper

All Air Brand-HFR Series Wide Air GripperFeatures

  • Designed for large workpiece
  • Double pistons to increase clamping force
  • Magnet is included in standard configuration
  • Gripper opening or closing can be precisely synchronized with rack & pinion mechanism

Pick a Product – Let Us Give You a Quote
You’ll be Amazed at How Much You Can Save!

Give Us a Call Today  1-800-AllAir
