Air Preparation

<< Back to In-House Components page

Save Money with our in-house brand of components!

We offer a wide selection of quality air preparation equipment at reasonable prices, including Filters, Regulators, Lubricators, Combination Units, Vacuum Components, Reflux valves, Oil Mist Filters & more!

Good Quality Product
for a Great Price!

Product Lineup

FRLs

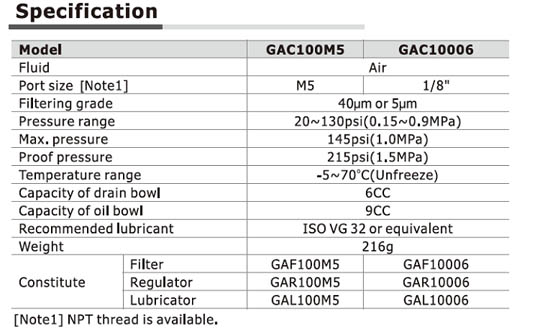

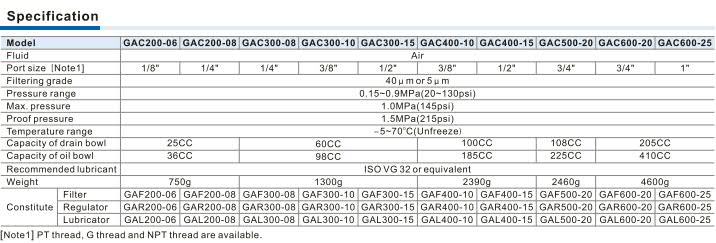

GAC Series FRL Combination

All Air Brand-GAC Series FRLFeatures

  • Gap seal structure for reliable supply adjustment
  • Adjustable oil feed
  • Refill oil even while under pressure
  • Negative pressure drip nozzle for minimized misting
  • Quick and reliable mounting clamps
  • High precision pressure adjustment
  • High efficiency moisture elimination
  • Two drain types available: automatic drain or semi-auto
  • Bowl available in PC, Nylon or metal

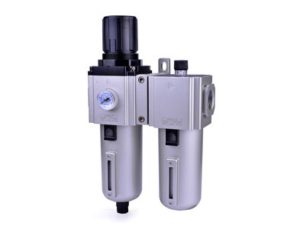

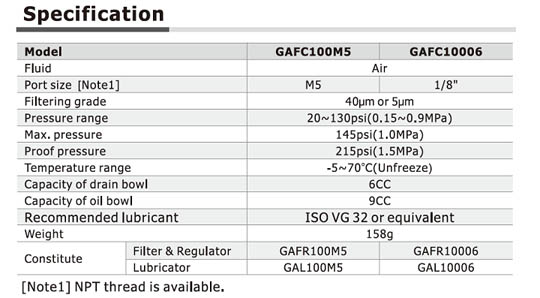

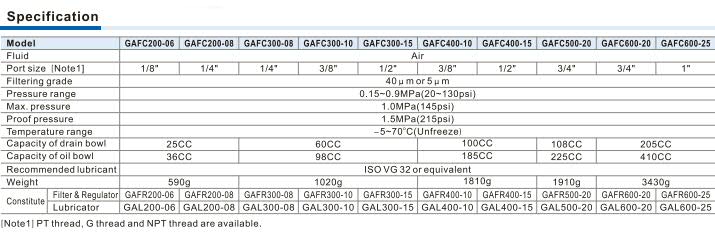

GAFC Series FRL Combination

All Air Brand-GAFC Series FRLFeatures

  • Quick and reliable mounting clamps
  • High precision pressure adjustment
  • High efficiency moisture elimination
  • Two drain types available: automatic drain or semi-auto
  • Bowl available in PC, Nylon or metal

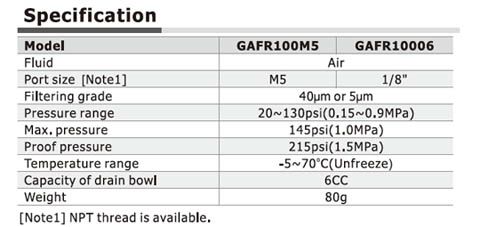

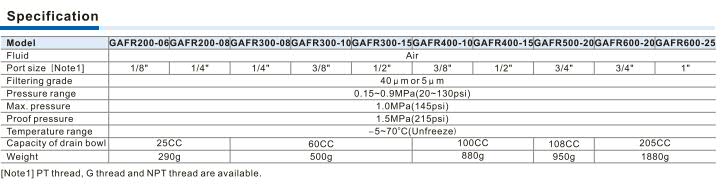

GAFR Series Filter & Regulator

All Air Brand-GAFR Series Filter RegulatorFeatures

  • Self-locking to prevent external movement
  • Balanced design for pressure adjustment mechanism
  • Effectively separates liquid from air and reliably filters solids using unique diversion structure
  • Filtering grades: 5μm or 40μm
  • Two drain types available: automatic drain or semi-auto
  • Bowl available in PC, Nylon or metal

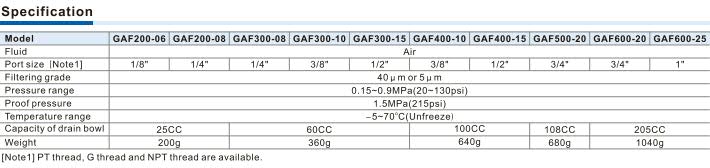

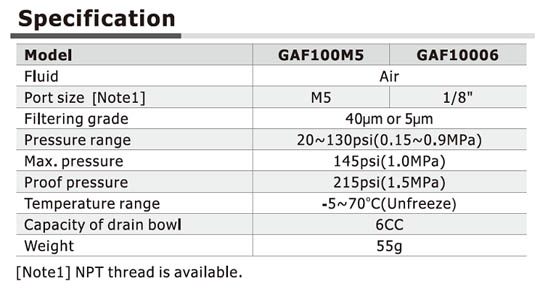

GAF Series Filter

All Air Brand-GAF Series FilterFeatures

  • Effectively separates liquid from air and reliably filters solids using unique diversion structure
  • Low pressure loss, high efficiency air/water separation and large drain bowl capacity
  • Filtering grades: 5μm or 40μm
  • Three drain types available: manual drain, semi-auto or automatic
  • Two drain types available: automatic drain or semi-auto
  • Bowl available in PC, Nylon or metal

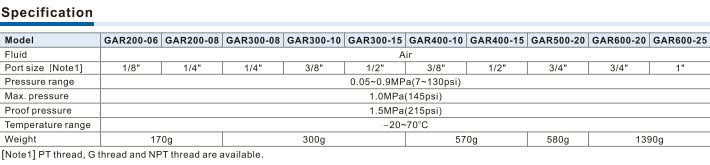

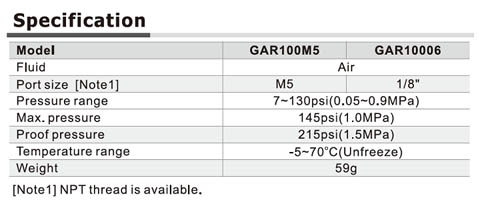

GAR Series Regulator

All Air Brand-GAR Series RegulatorFeatures

  • Self-locking to prevent external movement
  • Balanced design for pressure adjustment mechanism
  • Panel or bracket installation options

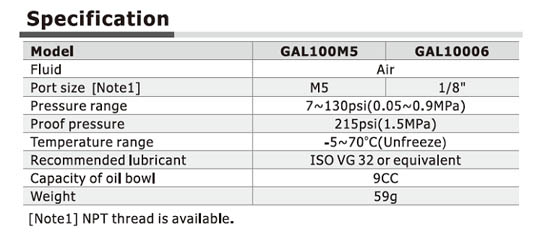

GAL Series Lubricator

All Air Brand-GAL Series LubricatorFeatures

  • Gap seal structure for reliable supply adjustment
  • Adjustable oil feed
  • Negative pressure drip nozzle for minimized misting
  • Bowl available in PC, Nylon or metal
  • Refill oil even while under pressure
  • Large oil bowl
GT Series Preparation Unit
(Short PC Bowl Type)
GTC, GTFC, GTFR, GTF, GTL Series

All Air Brand-GT Series FRLFeatures

  • The bowl is made of PC and is short for applications with space requirements
  • Two drain types available: automatic drain or semi-auto

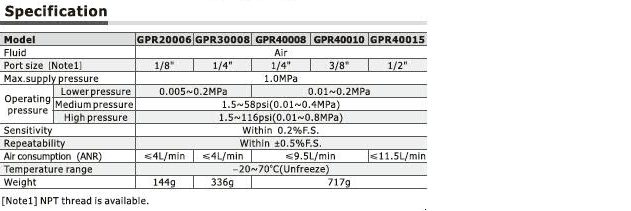

GPR Series Precision Regulator

All Air Brand-GPR Series RegulatorFeatures

  • High pressure regulating accuracy and rapid-response
  • Good pressure and flow
  • Easy installation, by bracket or directly
  • High pressure, medium pressure and low pressure can be selected

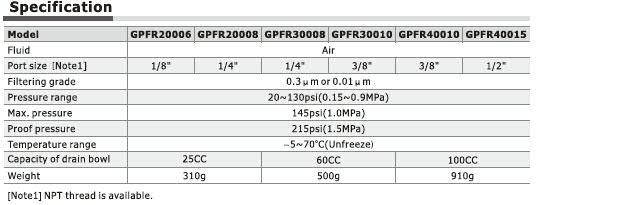

GPFR Series Precision Filter & Regulator

All Air Brand-GPFR Series Filter RegulatorFeatures

  • Self-locking to prevent external movement
  • Balanced design for pressure adjustment mechanism
  • Effectively separates liquid from air and reliably filters solids using unique diversion structure
  • Filtering grades: 3μm or 01μm
  • Two drain types available: automatic drain or semi-auto
  • Bowl available in PC, Nylon or metal

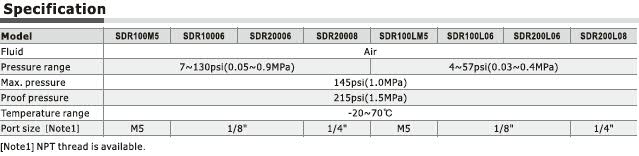

SDR Series Regulator

All Air Brand-SDR Series RegulatorFeatures

  • Back pressure structure, compact, cost-effective, easy installation
  • Broad regulating range, stable output pressure
  • Single unit installation, easy to mount
GZ Series

All Air Brand-GZ Series FRLFeatures

  • Modular design can be used with G series FRL (requires bracket)
  • Can be used as manual 3/2 way valve
  • Meets OSHA (Occupational Safety & Health Administration) standards

Vacuum Components

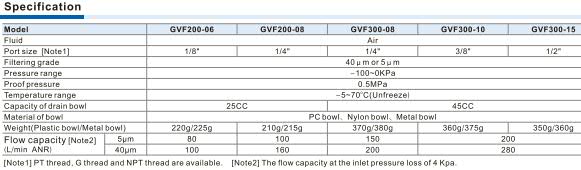

GVF Series Vacuum Filter

All Air Brand-GVF Series Vacuum FilterFeatures

  • Effectively separates liquid from air and reliably filters solids using unique diversion structure
  • Low pressure loss, high efficiency air/water separation and large drain bowl capacity
  • Filtering grades: 5μm or 40μm
  • Bowl available in PC, Nylon or metal

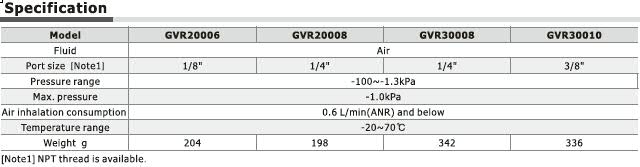

GVR Series Vacuum Regulator

All Air Brand-GVR Series Vacuum RegulatorFeatures

  • Self-locking to prevent external movement
  • Stable pressure regulation, low drift
  • Panel or bracket installation options

Pick a Product – Let Us Give You a Quote
You’ll be Amazed at How Much You Can Save!

Accessories

GA Series Reflux Valve

Features

  • This reflux valve can be used with GA series regulator
  • Convenient to install and won’t change the external dimension of regulator

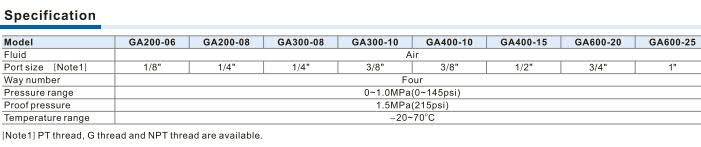

GA Series Gas-Distribution Block & Bracket

All Air Brand-GA Series Gas Distribution BlockFeatures

  • Installed between G series regulator (or filter & regulator) and GA series lubricator
  • Several kinds of bracket can be used to connect regulator and lubricator
  • Optional brackets are type T, type L and type U
Brackets

All Air Brand-Air Prep BracketsFeatures

  • For joining Air Preparation units in sequence

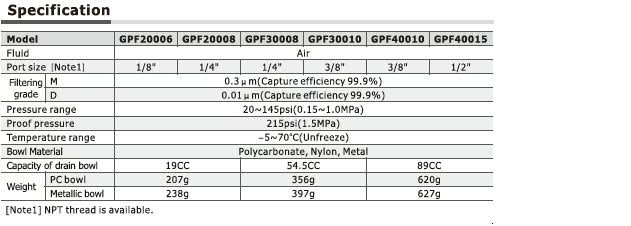

GPF Series Oil Mist Filter

All Air Brand-GPF Series Oil Mist FilterFeatures

  • Minimal pressure drop, oil mist removal efficiency up to 99% and large drain bowl
  • 3μm and 01μm filtering grades available
  • Two drain types are available: semi-auto drain, and automatic drain
  • Bowl available as polycarbonate, nylon or metal

Pick a Product – Let Us Give You a Quote
You’ll be Amazed at How Much You Can Save!

Give Us a Call Today  1-800-AllAir
