Champion Quick-Lock tubing, compressed air piping, provides total solutions for air, vacuum and inert gas systems.

Quick-Lock from Champion has taken piping systems to a new level. Without compromising any structural strength, Champion provides an aluminum product that is ten times lighter than steel.

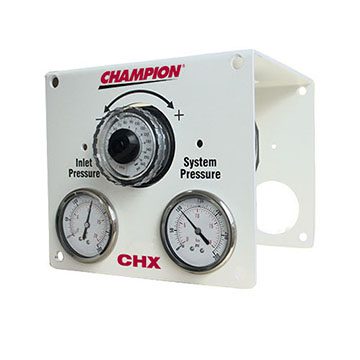

The CHX Series is a balanced flow controller that provides an economical and reliable single point of control when it comes to controlling the air pressure delivered to your operation.

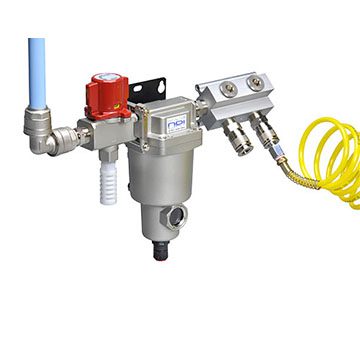

One of the largest hurdles of a compressed air system is removing in-line water build-up despite the placement of upstream dyers and filters. the DRI Products are tools specially designed to prevent this in-line water build-up.

Product Lineup

Compressed Air Piping Kits Quick-Lock/Big-Lock Tubing

Champion Pneumatic Air Piping
High Quality Aluminum Compressed Air Piping Systems

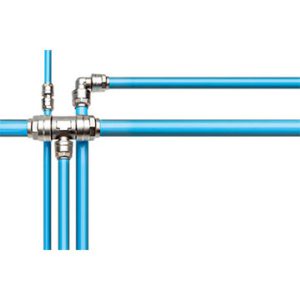

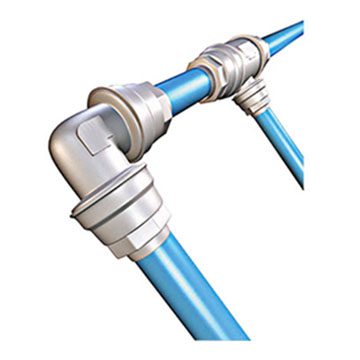

Quick-Lock Tubing is a solid metal piping system that provides superior strength with a lightweight design. The nickel plated brass fittings and powder coated extruded aluminum pipe provides a system that is easy to install, while ensuring high performance and versatility. It offers the performance of traditional heavy steel piping at the cost of systems using plastics. The revolutionary lock-and-seal design ensures a totally safe and leak-free structure for all applications. This tubing is designed for compressed air, inert gasses, vacuum, automotive, and manufacturing applications.

Total Solution

Champion offers a total solution for Compressed Air, Vacuum, Nitrogen and Inert Gas applications. Ranging in size from 14 mm (½”) to 63 mm (2½”) for Quick-Lock and 70 mm (2½”) to 273 mm (10″)
for Big-Lock, Champion offers four color options to meet all system demands.

With the pairing of Quick-Lock and Big-Lock, Champion can easily provide piping for any application from a 1–2 bay garage to a large industrial manufacturing facility.

Ease of Installation

Champion offers the easiest and fastest installation available. There is no welding, gluing or threading, and very little skill is needed for a professional installation. With the purchase of nylon clips or wire hangers, an installation crew can clip tubing securely to a wall or hang from the ceiling and around beams. No special tools are required and both pieces are easily adjustable for a quick and efficient install.
