PVC Tubing
Reinforced & Clear PVC Tubing Options
Clear PVC Tubing
Our clear vinyl tubing features a smooth interior and exterior surface that prevents sediment accumulation and resists bacterial growth. It is FDA-approved for food contact, making it ideal for clean-critical industries. The clear composition allows for easy, effective fluid handling in liquid transfer applications. Our clear tubing has a hardness of 80A durometer and a working pressure of 3:1 safety factor.
Reinforced PVC Tubing
Our reinforced PVC tubing utilizes an open-weave inner braid for increased working pressures up to 250 psi. The smooth-bore, full-flow I.D. dimensions are sized to fit standard commercial barbed fittings. As a more durable alternative to clear PVC tubing, our reinforced vinyl tubing is ideal for high-pressure applications in beverage dispensers, ink printers, aerospace components and more.
Additional Poly Vinyl Tubing Options
All non-reinforced Freelin-Wade PVC tubing is phthalate-, latex- and BPA-free and exhibits excellent chemical and oxidation resistance. Our tubing features a smooth, polished inner wall to reduce sediment accumulation with barbed fittings for secure connections. We offer customization options on all available PVC piping, including:
- 65 Shore A PVCC
- 70 Shore A PVC
- 80 Shore A PVC
Custom PVC Tubing Available
To meet your unique application and performance requirements, Freelin-Wade & All Air can provide vinyl tubing in custom sizes and colors. Custom sizes are available in 65 Shore A, 70 Shore A, and 80 Shore A durometer PVC.
Standard color is clear #10. Our standard PVC tubing is available in a wide range of custom colors. Reinforced PVC tube is only available in clear #10. All colors can be custom printed with the numbers or lettering you need for easy installation and identification.
Custom cutting (to length) and packaging are also available. Contact us today to discuss your custom PVC tubing requirements.
Additional Features & Benefits of Freelin-Wade’s Clear PVC Tubing
- Securely grips barbed fittings
- Cost-effective alternative to overengineered solutions
- Gamma and EtO sterilizable
- Non-standard colors available
- Custom sizes available from 0.090” to 0.75” OD
- Materials certificate available showing full traceability
- Made in the USA
Product Lineup

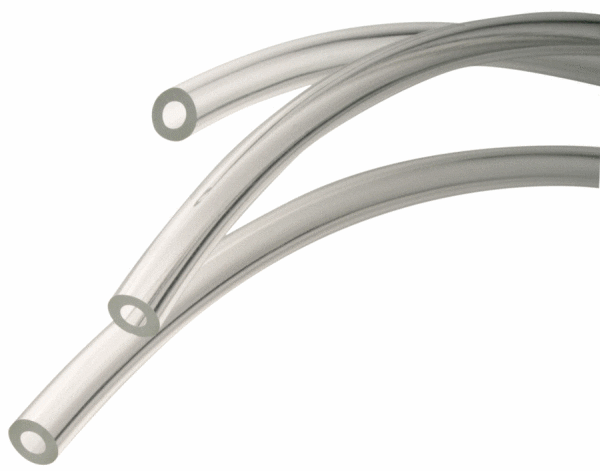

Clear PVC Tubing
Our non-reinforced clear vinyl tubing is manufactured using a safe, non-phthalate plasticizer. We pioneered the use of this environmentally-friendly material in the plastic tubing industry.
Our clear vinyl tubing features a smooth interior and exterior surface that prevents sediment accumulation and resists bacterial growth. It is FDA-approved for food contact, Cal Prop 65 compliant, and meets USPVI testing requirements. This makes our vinyl tubing ideal for food and beverage, medical, pharmaceutical, and other clean-critical industries.
Non-Reinforced Clear Vinyl Tubing Specifications
- Temperature range: -30° to 150°F (-34° to 66°C)
- Hardness: 80A durometer
- Working pressure: 3:1 safety factor
- Resin compliance: FDA (food contact), RoHS, REACH, USPVI, CA Prop 65, USPVI testing requirement
- Suggested fittings: barb
- Packaging options: 100’ bags, 200’ reels, 500’ reels, 1,000’ reels; samples also available
- Made in the USA

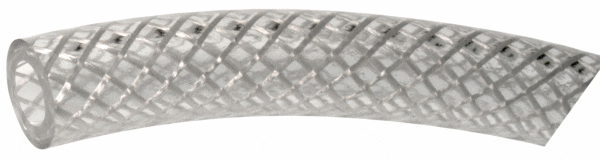

Reinforced Vinyl Tubing
Our reinforced PVC tubing features an open-weave inner braid, making it tough enough for applications with working pressures up to 250 psi. The smooth-bore, full-flow I.D. dimensions are sized to fit standard commercial barbed fittings.
Freelin- Wade’s reinforced vinyl hose is crystal clear for easy monitoring of fluid flow. It has a smooth inner and outer surface that prevents sediment accumulation, and is bacteria and pathogen resistant. This makes it an ideal tubing solution for pharmaceutical, medical, food and beverage, and other clean-critical applications.
Reinforced PVC Hose Specifications
- Temperature range: -30° to 150°F (-34° to 66°C)
- Vacuum rating: to 18” Hg
- Hardness: 80A durometer
- Working pressure: 3:1 safety factor
- Suggested fittings: barb
- Color: clear #10
- Packaging options: 100’ lengths; samples also available
- Made in the USA
For more information about these products…
Download a Catalog
