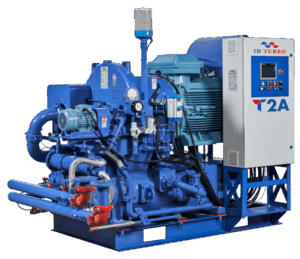

T2A Series Centrifugal Compressor

Oil-Free, Water Cooled
132-250 kW | 4-9 bar | 1.394-2.700 m³/h
T2A series consists of vital components, such as air cooler, main motor, control panel, gear box, suction filter and all these will be fitted into one compact package. This simple design allows for smaller installation space and shorter installation time. The structure of the robust gear box provides the customers with high reliability by utilizing tilting pad journal bearing, customized core parts(Impeller, diffuser). These parts are designed with anti-wearing technology, built for long life and stable operation.

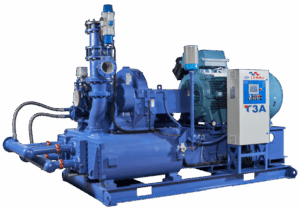

T3A Series Centrifugal Compressor

Oil-Free, Water Cooled
400-1.400 kW | 2-11 bar | 8.200-15.000 m³/h
The T3A series is the newest model range in the middle segment between the TRE and TRX series. With the T3A series, IHI DALGAKIRAN offers products with optimized specifications for customers around the world thanks to its aerodynamic design, low maintenance requirements and easy installation.

TRA Series Centrifugal Compressor

Oil-Free, Water Cooled
200-600 kW | 2-11 bar | 2.400-6.600 m³/h
TRA is the most compact 3-stage compression Centrifugal Compressor model of IHI. TRA series offers high energy saving , low maintenance, saving on space and easy operation compared to rotary screw compressors. After its launch in 2009, TRA series have continuously satisfied customers who previously used rotary screw compressors with reduction of life cycle cost.

• Advanced Energy Saving
• Effect of 3 phase compression – TRATM
• Simple And Reliable Design – TRATM
• 100% Oil Free

TRE Series Centrifugal Compressor

Oil-Free, Water Cooled
355-1.060 kW | 2-16 bar | 3.600-11.400 m³/h
TRE series is one of the most popular centrifugal compressors in the world and its market share is over 80% in Japan.
Thanks to various aerodynamic design , low maintenance and easy installation, TRE series is the best matching compressor to customers.

• Advanced Energy Saving
• Simple And Reliable Design – TRE
• High reliability
• 100% Oil Free

TRX Series Centrifugal Compressor

Oil-Free, Water Cooled
710-2.000 kW | 2-10 bar | 8.200-22.000 m³/h
TRX series is the largest model in IHI’s industrial air centrifugal compressors line up. TRX series offer optimized specification thanks to wide range of aerodynamic design , low maintenance and easy installation.

• Advanced Energy Saving
• High reliability
• Simple And Reliable Design – TRX
• 100% Oil Free

T2 Series Centrifugal Compressor

T2 series is the latest 2-stage compression Centrifugal Compressor model designed to be compact and robust with state of the art aerodynamic design and providing stable operation through Inlet guide vane. space-saving is also an advantage of this model as compared to rotary screw compressors.

• High reliability
• 100% Oil Free (zero class)
• Energy Saving
• Simple and Reliable Design
• Low Maintenance
• User/Friendly Operation
• Higher Efficiency
• 100% Oil Free

T3 Series Centrifugal Compressor

T3 series is the latest model Centrifugal Compressor which fits in the middle range between TRE and TRX series. With T3 series, IHI has been able to offer optimized specification thanks to wide range of aerodynamic design, low maintenance and easy installation for more customers all over the world.

• Advanced Energy Saving
• High reliability
• Simple And Reliable Design – T3
• 100% Oil Free

For more information about these products…
 Download a Catalog
