Vacuum Equipment

The Koganei Vacuum Equipment line includes everything you need to create a reliable and efficient workflow. Actuators with Vacuum Pads, Bernoulli Grippers, Vacuum Pads & Cups, Sensors & Switches, Valves, Vacuum Regulators, Filters & Water Separators, Vacuum Generators & Micro Ejectors, Vacuum Pumps & Compressors, and Vacuum Air Volumes & Reservoirs make up this product line.

Actuators with Vacuum Pads

BDAV Series – Actuators with Vacuum Pads

Koganei BDAV Series – Actuators with Vacuum Pads

  • Cylinders Securely Cover Vacuum Pickup – Transfer
  • Multi-mount Hollow Rod Structure
  • Suction & Conveyance with Minimal Stroke
  • Easier Installation – Tube Connections One Side

Vacuum Bernoulli Grippers

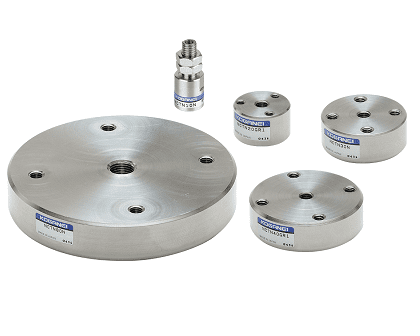

NCT Series – Non Contact Bernoulli Grippers

Koganei NCT Series – Non Contact Bernoulli Grippers

  • Non-contact Transfer – Glass, Semiconductor Wafers
  • Holds Relatively Convex or Concave Workpieces
  • Powerful Suction Force – Holds Porous Workpieces
  • No Contact Marks or Scratches on the Workpiece

Vacuum Pads / Cups

KP Series – Vacuum Pads

Koganei KP Series – Vacuum Pads

  • Perfect for small, lightweight transport systems
  • Outstanding reliability – no suction errors
  • Conductive Vacuum Pads Available
  • Halogen Process Vacuum Pads Available
KPT Series – Bellows Type Vacuum Pads

Koganei KPT Series – Bellows Type Vacuum Pads

  • Perfect for Handling Objects with Curved or Angled Surfaces
  • Automatically Adjusts to Various Workpiece Heights
  • 19 Sizes from 2.5 to 50 mm Diameter with 1.5 or 2.5 Folds
  • Pad Materials from Silicone or NBR Rubber
KPJ Series – Bellows Type Vacuum Pads

Koganei KPJ Series – Bellows Type Vacuum Pads

  • Perfect for Handling Objects with Curved or Angled Surfaces
  • 3 Sizes in Various Pad Materials for Specialized Applications
  • Oil-free Fluorine Type Virtually Eliminates Suction Marks
  • Electroconductive Silicone Type Prevents Static Charge

For more information about these products…
 Download a Catalog

Vacuum Sensors / Switches

MSU – Multi Channel – Sensor Controller

Koganei MSU - Multi Channel - Sensor Controller

  • Non-contact Transfer – Glass, Semiconductor Wafers
  • Holds Relatively Convex or Concave Workpieces
  • Powerful Suction Force – Holds Porous Workpieces
  • No Contact Marks or Scratches on the Workpiece
PSU – Multi Channel – Sensor Controller

Koganei PSU - Multi Channel - Sensor Controller

  • Four Point Simultaneous Detections – Single Controller
  • Separate Settings for Each of Four Channels
  • Mix Connections with Sensors with Differing Ranges
  • PC Connectable, Microscope Workpiece Detection
FSU – Single Controller, Multi-channel, Flow Rate Sensor

Koganei FSU - Single Controller, Multi-channel, Flow Rate Sensor

  • Detects Workpieces Lifted by Vacuum
  • Single Controller Detects 4 Points at Same Time
  • Three Types of Sensor Heads Depending on Flow Rate
  • Four Different Modes of Window Comparator Output
FS1U – Separate 1 Channel Flow Rate Sensor Controller

Koganei FS1U - Separate 1 Channel Flow Rate Sensor Controller

  • Same Ease of Use as a Pressure Switch
  • 4-digit LED Display, Changeable Green or Red
  • RS232C Allows Configuration by Computer
  • Three Different Modes of Window Comparator Output
PS3 – Electronic Pressure Switch

Koganei PS3 - Electronic Pressure Switch

  • Pressure Switch with Micro Ejector
  • Mount for Single Unit or on AS Manifold
  • 12 or 24 VDC Operation
  • Lead Wires of 500mm or 2000mm
GS6 Series – Digital Pressure Switch

Koganei GS6 Series – Digital Pressure Switch

  • Two-screen, Three-color Display
  • Check Current & Threshold Values at Same Time
  • Reliable, Responsive for Vacuum & Positive Pressure
  • Copy Function Offers Easy Operation
PS4 Series – Electronic Pressure Switch

Koganei PS4 Series - Electronic Pressure Switch

  • Highly Reliable, More Responsive than Solid State
  • Reliable, Responsive for Vacuum & Positive Pressure
  • Three-directional Mounting- Design Flexibility
  • Polycarbonate Body, Polyacetal Port Material

Vacuum Valves

005 Series – Micro 3-port Pneumatic Solenoid Operated Vacuum Valves

Koganei 005 Series - Micro 3-port Pneumatic Solenoid Operated Vacuum Valves
Direct acting valve series with 5.9mm width and weighs only 4.5grams and consumes 0.5watt power consumption. The Selection Guide provides a summary of the 2 different Micro 3-port Pneumatic Solenoid Operated Vacuum Valves. The 005 Series variations include

  • Ultra Compact Valve, PCB Pin or Plug-in Connector Std
  • Inline, Subbase, Split Manifold, & Mono Block Manifold
  • Universal Plumbing Operation
  • 100 Million + Cycle Life
  • RoHS Compliance
G010 / HG010 Series – Pneumatic Solenoid Operated Vacuum Valves

Koganei G010 / HG010 Series - Pneumatic Solenoid Operated Vacuum Valves
A 10mm direct acting valve that offers the most model options in a direct acting valve series for almost every industry and application requiring positive pressure and vacuum pressure. The Selection Guide provides a summary of the 6 different Pneumatic Solenoid Operated Vacuum Valves. The G010 / HG010 Series variations include

  • Compact Valve, Lead Wire & Plug-in Connector Std
  • Inline, Subbase, Mono Block Manifold
  • Cleanroom Models Standard
  • Heat Resistant and Low Leak Option
  • FKM Seal and Food Grade Grease
  • RoHS Compliance
030 / H030 Series – Pneumatic Solenoid Operated Vacuum Valves

Koganei 030 / H030 Series - Pneumatic Solenoid Operated Vacuum Valves
The most compact in size 5 port solenoid valve that is available as inline and up to 20 valve station manifolds in 3 different manifold configurations. The Selection Guide provides a summary of the 2 different Pneumatic Solenoid Operated Vacuum Valves. The 030 / H030 Series variations include

  • Compact Valve with Lead Wire and Plug-in Connector Std
  • Inline, Subbase, Mono Block Manifold
  • Cleanroom Models Standard
  • Heat Resistant and Low Leak Option
  • FKM Seal and Food Grade Grease
  • RoHS Compliance
050 / H050 Series – Pneumatic Solenoid Operated Vacuum Valves

Koganei 050 / H050 Series - Pneumatic Solenoid Operated Vacuum Valves

This series offers most compact in size double solenoid valve configuration from KOGANEI available with LED indicators. The Selection Guide provides a summary of the 2 different Pneumatic Solenoid Operated Vacuum Valves. The 050 / H050 Series variations include

  • Lead Wire and DIN Connector
  • Direct Acting, Inline Single or Double Solenoid
  • Poppet Design Allows for Fast Response with Minimal Leakage
  • Cleanroom Option
  • FKM Seal Option
  • RoHS Compliance
100 Series – Pneumatic Solenoid Operated Vacuum Valves

Koganei 100 Series - Pneumatic Solenoid Operated Vacuum Valves
A direct acting valve series that gives you multiple ways to connect for vacuum operations in both 2 and 3 port designs. The Selection Guide provides a summary of the 2 different Pneumatic Solenoid Operated Vacuum Valves. The 100 Series variations include

  • Lead Wire and DIN Connector
  • Inline, Mono Block Manifold
  • Low Temperature Seals
  • Ozone Resistant Option
  • FKM Seals and Food Grade Grease
  • RoHS Compliance
200 Series – Pneumatic Solenoid Operated Vacuum Valves

Koganei 200 Series - Pneumatic Solenoid Operated Vacuum Valves
Flexibility in design with multiple ways to connect vacuum for different operations in both 2 and 3 port designs. The Selection Guide provides a summary of the 2 different Pneumatic Solenoid Operated Vacuum Valves. The 200 Series variations include

  • Lead Wire and DIN Connector
  • Inline, Mono Block Manifold
  • Low Temperature Seals
  • Ozone Resistant Option
  • FKM Seal and Food Grade Grease
  • RoHS Compliance
K Series – High-Speed Pneumatic Solenoid Operated Vacuum Valves

Koganei K Series - High-Speed Pneumatic Solenoid Operated Vacuum Valves
The world’s fastest direct acting valve series with a cycle rate up to 500Hz in a 10mm width body. The Selection Guide provides a summary of the 6 different Pneumatic High-Speed Pneumatic Solenoid Operated Vacuum Valves. The K Series variations include

  • High-speed Response
  • IP67 Protection Rating
  • Power Saving Circuit Option
  • Non-oil Specification
  • Surge Suppression Circuit
  • RoHS Compliance
F Series – Pneumatic Solenoid Operated Vacuum Valves

Koganei F Series - Pneumatic Solenoid Operated Vacuum Valves
100+ million cycle life tested and rated directional control valve series that can switch direction of the cylinder ports and from double to single solenoid without any additional parts needed. The Selection Guide provides a summary of the 20 F Series – Pneumatic Solenoid Operated Vacuum Valves. The F Series variations include

  • Direct Wiring, D-Sub, Flat Cable or Serial Communication
  • Inline, Subbase, Mono Block and Split Type Manifold
  • Switchable Output Ports Direct on Valve or Manifold
  • Field Selectable Single or Double Solenoid Operation
  • Available with Two 3-way Valves in One Body
  • RoHS Compliance
PA / PB Series – Pneumatic Solenoid Vacuum Valves

Koganei PA / PB Series - Pneumatic Solenoid Vacuum Valves
This directional control valve series provides a flow rate up to 2.0Cv and allows users to switch from double solenoid to single solenoid. The Selection Guide provides a summary of the 12 different PA / PB Series – Pneumatic Solenoid Operated Vacuum Valves. The PA / PB Series variations include

  • Lead Wire, Plug-in, DIN, D-Sub, Flat Cable, Terminal, Serial
  • Inline, Subbase, Stacking Body, Monoblock Manifold,
  • IP 65 Option
  • Optional Integrated Piloted Operated Check Valves
  • Switchable to Single Solenoid Function
  • RoHS Compliance
Round Direct Series – Pneumatic Solenoid Operated Vacuum Valves

Koganei Round Direct Series - Pneumatic Solenoid Operated Vacuum Valves

A Valve Series designed to meet and exceed low leak specifications for OEM applications. The Selection Guide provides a summary of the 3 different Pneumatic Solenoid Operated Vacuum Valves. The Round Direct Series variations include

  • Lead Wire, Conduit, and Terminal Box
  • Inline and Mono Block Manifold
  • Can Operate in High-frequency Applications
  • Long Cycle Life (>10 Million)
  • Double & Latching Solenoid (“Keep”) Options
  • RoHS Compliance
Round Indirect Series – Pneumatic Solenoid Operated Vacuum Valves

Koganei Round Indirect Series - Pneumatic Solenoid Operated Vacuum Valves

Highly reliable, long life and valves that provide low leak performance. The Selection Guide provides a summary of the 9 different Round Indirect Series – Pneumatic Solenoid Operated Vacuum Valves. The Round Indirect Series variations include

  • Diaphragm / Poppet Type Construction
  • Double & Latching Solenoid (“Keep”) Options
  • Can Operate in High-frequency Applications
  • Long Cycle Life (>10 Million)
  • Resistant to Leakage and Sticking Caused by
  • Contamination
  • RoHS Compliance
Round Air-Piloted Series – Vacuum Valves

Koganei Round Air-Piloted Series – Vacuum Valves

Highly reliable, long life and valves that provide low leak performance. ideal for your air logic circuits or where electricity is not available. The Selection Guide provides a summary of the 16 different Round Air-Piloted Vacuum Valves. The Round Air-Piloted Series variations include

  • Rc 1/8 Pilot Port
  • Inline Plumbing Available
  • Diaphragm & Poppet Designs for High Frequency Operation
  • Vacuum Piloted Version Available
  • Unique Double Air Pilot Model Available
  • RoHS Compliance

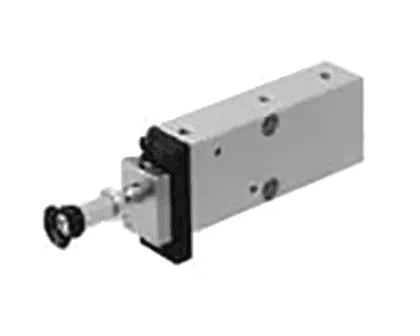

125 /250 /2503 Series – Manual Vacuum Valves

Koganei 125 /250 /2503 Series - Manual Vacuum Valves

Many variations of user actuator available. Highly reliable, long life and valves that provide low leak performance. The Selection Guide provides a summary of the 5 different Manual Vacuum Valves. The 125 /250 /2503 Series variations include

  • Diaphragm Type Construction
  • Compact & Lightweight
  • No Sliding Seals Allow for High Cycle Life
  • Can Be Mounted in Any Direction
  • Designed for Non-lube Systems
  • RoHS Compliance
125 /250 /2503 Series – Mechanical Vacuum Valves

Koganei 125 /250 /2503 Series - Mechanical Vacuum Valves

Highly reliable, long life and valves that provide low leak performance with a variety of mechanical actuators available. The Selection Guide provides a summary of the 4 different Mechanical Vacuum Valves. The 125 /250 /2503 Series variations include

  • Diaphragm Type Construction
  • Compact & Lightweight
  • No Sliding Seals Allow for High Cycle Life
  • Can Be Mounted in Any Direction
  • Designed for Non-lube Systems
  • RoHS Compliance
MV Series – Pneumatic Solenoid Operated Vacuum Valves

Koganei MV Series - Pneumatic Solenoid Operated Vacuum Valves

Perfect for vacuum control of a suction transport system using a vacuum pump. Electronic vacuum switch with easy-to-view LED.The Selection Guide provides a summary of the 3 different MV Series Vacuum Valves. The MV Series variations include

  • Micro-ejector Control for Vacuum Pump Systems
  • Single Subbase & Manifolds up to 8 stations
  • Multiple Vacuum Control & Breaking Circuits Standard
  • Optional Filter Prevents Contamination
  • 5 Different Vacuum Switch & Sensor Options
  • RoHS Compliance

For more information about these products…
 Download a Catalog

Vacuum Regulators

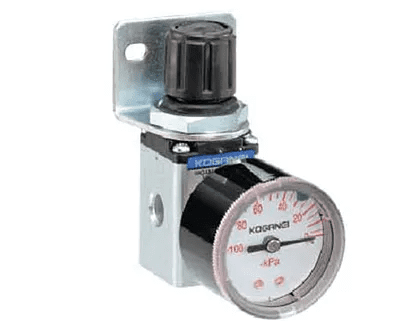

VR Series – Vacuum Regulators

Koganei VR Series – Vacuum Regulators

  • Mount on Vacuum Line Enable Desired Pressure Setting
  • Light Smooth Pressure Regulation – Regulator Knob
  • Lightweight and Compact
  • Easily Mounts on a Panel Simply by Drilling Holes
GV40 Series – Vacuum Gauge

Koganei GV40 Series – Vacuum Gauge

  • 40 mm [1.575 in] Outside Diameter
  • Designed for More Sensitive Measurements
  • Preset Markers Available
  • Panel mount in any Direction
NVR Series – Pilot Vacuum Regulators

Koganei NVR Series – Pilot Vacuum Regulators

  • Vacuum Pilot System – Diaphragm Indirect Operation
  • Outstanding Pressure Stability
  • Stands up to Fluctuating Flow Rates
  • External pilot type also available.

For more information about these products…
 Download a Catalog

Vacuum Filters & Water Separators

iB Series – Cyclone Water Separators

Koganei iB Series – Cyclone Water Separators

  • Half the Size – 99% Drain Separation
  • Maintenance free – No Filter Element
  • Select NO or NC Type Auto Drain
  • Ozone Resistance, NCU Specifications, Copper Free
FR Series – Vacuum Filters

Koganei FR Series – Vacuum Filters

  • Compact, Lightweight Vacuum Filter
  • Diaphragm Provides Good Regulating
  • Easy to Install and Use at Airline Ends
  • Conforms to Non-grease Specification

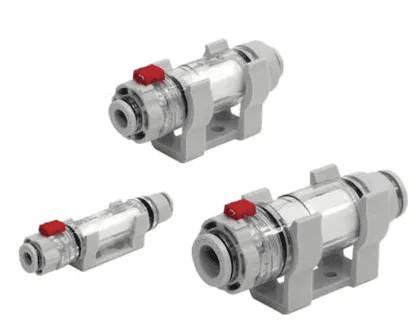

VLF Series – In-Line Vacuum Filters

Koganei VLF Series – In-Line Vacuum Filters

  • Built-In Tube Fittings for Compact Envelope
  • Simple Snap-in Mounting Bracket
  • Transparent Element Housing for Easy Monitoring
  • Optional SUS 303 Specification
VSF Series – In-line Vacuum Filters

Koganei VSF Series - In-line Vacuum Filters

  • Built-in Tube Fitting & Stem for Simple Installation
  • Directly Integrated Filter Element
  • Semi-Transparent Housing for Easy Monitoring
  • Compact Envelope
PLF Series – Hollow Membrane In-Line Vacuum Filters

Koganei PLF Series – Hollow Membrane In-Line Vacuum Filters

  • Hollow Fiber Membrane Element
  • Long Operating Life
  • High Flow in a Compact Envelope
  • Transparent Element Housing for Easy Monitoring

Vacuum Generators / Micro Ejectors

FME Series – Micro Ejector

Koganei FME Series – Micro Ejector

  • Conventional Exhaust Sound Largely Reduced
  • 20% Reduction in Air Consumption
  • Maximum Vacuum Level -90 kPa [-26.6 in.Hg]
  • Responds to Low Pressure Line for Energy Savings
PME Series – Inline Ejector

Koganei PME Series – Inline Ejector

  • Inline Design Instantly Converts Pressure Lines Into Vacuum
  • Integrated Push-to-Connect Fittings for Easy Installation
  • Replaceable Filter Element Prevents Internal Contamination
  • High Vacuum Flow Rate and Low Supply Pressure Models
ME Series – Micro Ejector

Koganei ME Series – Micro Ejector

  • Compact Configuration can be Mounted on Moving Parts
  • Simple vacuum generating device
  • Compressed Air for High-speed Transport
  • Does not Damage the Workpiece.
MED Series – Multistage Micro Ejector

Koganei MED Series – Multistage Micro Ejector

  • Two-level Nozzle Construction
  • Approximately Twice the Suction Flow Rate
  • With the Same Nozzle Diameter
  • Mount in any Direction, No Lubrication
MEDT Series – Multistage Micro Ejector

Koganei MEDT Series – Multistage Micro Ejector

  • Two-level Nozzle Construction
  • Approximately Twice the Suction Flow Rate
  • With the Same Nozzle Diameter
  • Mount in any Direction, No Lubrication

Vacuum Pumps / Compressors

DPV Series – Desktop Vacuum Compressors

Koganei DPV Series – Desktop Vacuum Compressors

  • Compact Design Fits into an A4-size Area
  • Low Noise Design (55 dB)
  • Lightweight – (4.6 kg [10.141 lb.]
  • Installed on Either the Compressor or Vacuum Side

For more information about these products…
 Download a Catalog

Vacuum Air Volumes / Reservoirs

DPT Series – Air Tank

Koganei DPT Series - Air Tank

  • Desktop Size
  • Mount Horizontal or Vertical
  • Quick Tube Fitting
  • Drain Port – Hand Valve or Block-off Plug
