Meanwell LED drivers offer reliable and efficient solutions for any LED-based device, ensuring a constant power supply for optimal performance. LEDs, renowned for their energy efficiency, find applications across diverse industries. Despite their longevity and minimal heat generation, LEDs are susceptible to temperature and voltage fluctuations, affecting their lifespan and efficiency. To counteract this, a dependable LED driver, such as those from Meanwell, is indispensable. Ranging from the 16 WATT PCD-16 to powerful 320 WATT models, Meanwell provides a comprehensive selection, including dimmers and DC/DC constant current drivers. Choosing a Meanwell LED driver ensures top-notch manufacturing quality, safeguarding the investment in LED systems by preventing malfunctions and ensuring consistent performance.

Product Lineup

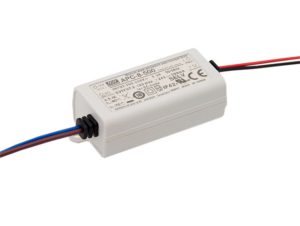

AP Series LED Driver

MeanWell AP Series LED Driver
Wattage :

  • 8W~35W

Features:

  • 90~264VAC input
  • Rectangular plastic case with IP42 level
  • Class II design, without FG
  • Low cost, small and compact size
  • Constant voltage mode for APV series
  • Constant current mode for APC series
  • Suitable for indoor LED lighting and moving sign applications

Models:
C.V.:APV-8 / APV-12 / APV-16 / APV-25 / APV-35
C.C.:APC-8 / APC-12 / APC-16 / APC-25 / APC-35

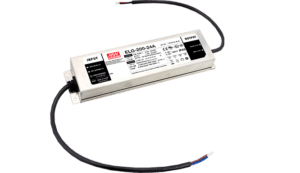

ELG Series LED Driver

MeanWell ELG Series LED Driver
Wattage :

  • 75W~300W

Features:

  • 100~305VAC input range
  • Metal case, IP67/IP65 design for indoor or outdoor installations
  • Function options:
    output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150 BE-Type)
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
  • Suitable for LED street lighting and outdoor LED lighting
  • 5 years warranty

Models:
C.V.+C.C.:ELG-75 / ELG-100 / ELG-150 / ELG-200 / ELG-240 / ELG-300
ELG-U:ELG-100U / ELG-150U

ELG-C Series LED Driver

MeanWell ELG Series LED Driver
Wattage :

  • 75W~300W

Features:

  • 100~305VAC input range
  • Constant current (C.C.) output
  • Constant power (C.P.) output
  • Built-in active PFC function
  • No load/standby power consumption <0.5W
  • Metal case, IP67/IP65 design for indoor or outdoor installations
  • Function options:
    output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150-C BE-Type)
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
  • Suitable for LED street lighting and outdoor LED lighting
  • 5 years warranty

Models:
C.C.:ELG-75-C / ELG-100-C / ELG-150-C / ELG-200-C / ELG-240-C
C.P.:ELGC-300

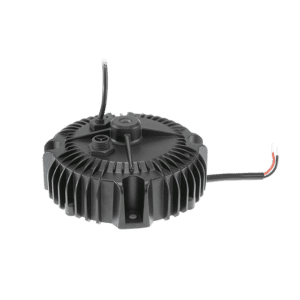

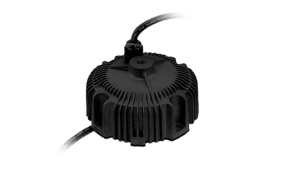

HBG(P) Series LED Driver

MeanWell HBG(P) Series LED Driver
Wattage :

  • 60W~240W

Features:

  • Circular shape design:
    HBG-60 : plastic case; HBG-100/160/240 : metal case; HBG-60P/100P/160P/240P : PCB type
  • 90~305VAC input, built-in active PFC function [90~295VAC for HBG-60(P)]
  • Circular shape design: HBG-60: plastic case, HBG-100/160/240: metal case HBG-60P/100P/160P/240P:PCB type
  • IP67/IP65 design for indoor or outdoor installations for HBG-100/160/240
  • Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) for HBG-100(P)/160(P)/240(P) B type
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HBG-100/160 only)
  • Suitable for LED high/low bay lighting, stage lighting and spot lighting
  • 5 years warranty

Models:
Case:HBG-60 / HBG-100(DA) / HBG-160(DA) / HBG-200(DA) / HBG-240(DA) / HBGC-300
PCB:HBG-60-P / HBG-100P(DA) / HBG-160P(DA) / HBG-240P

HLG Series LED Driver

MeanWell HLG Series LED Driver
Wattage :

  • 40W~600W

Features:

  • 90~305VAC input, built-in active PFC function
  • 96% high efficiency (HLG-600H)
  • Metal case, IP67/IP65 design for indoor or outdoor installations
  • Function options:
    output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
  • Suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement
  • IP68/-55℃ startup/10G vibration options available (Please contact MEAN WELL for details)
  • 7 years warranty

Models:
C.V.+C.C.:HLG-40H / HLG-60H / HLG-80H / HLG-100H / HLG-120H / HLG-150H / HLG-185H / HLG-240H / HLG-320H / HLG-480H / HLG-600H

HLG-C Series LED Driver

MeanWell HLG Series LED Driver
Wattage :

  • 70W~480W

Features:

  • 90~305VAC input, built-in active PFC function
  • Constant current output with high output voltage >60VDC
  • Metal case, IP67/IP65 design for indoor or outdoor installations
  • Function options:
    output adjustable via potentiometer; 3 in 1 dimming (1~10Vdc or 10V PWM signal or resistance); timer dimming; smart timer dimming
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (HLG-240H-C/320H-C only)
  • Suitable for LED street lighting and outdoor LED lighting
  • 7 years warranty

Models:
C.C.:HLG-60H-C / HLG-80H-C / HLG-120H-C / HLG-185H-C / HLG-240H-C / HLG-320H-C / HLG-480H-C

LDB-L/LW Series LED Driver

MeanWell LDB-L/LW Series LED Driver
Wattage :

  • 300/350/500/600mA

Features:

  • Constant current DC/DC buck-boost LED driver
  • High efficiency up to 91%
  • Comply with EN55015 and FCC part 15 without additional input filter and capacitors
  • PWM dimming and remote ON/OFF control
  • Suitable for buck-boost type lighting systems (additional mother board is required)
  • Pin, wire style for choice

Models:
Buck-boost:LDB-L

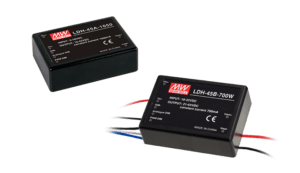

LDH Series LED Driver

MeanWell LDH Series LED Driver
Wattage :

  • 350~1750mA

Features:

  • Constant current output DC/DC step-up LED driver
  • High efficiency up to 95%
  • Comply with EN55015 without additional any components
  • PWM+analog dimming and remote ON/OFF control
  • Suitable for boost type lighting systems (Additional mother board is required)
  • Pin, wire style for choice

Models:
Step-up:LDH-25 / LDH-45(DA) / LDH-65

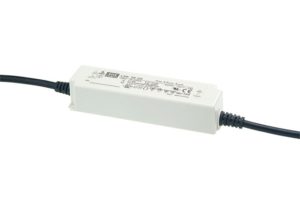

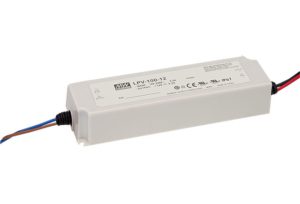

LP Series LED Driver

MeanWell LP Series LED Driver
Wattage :

  • 18W~150W

Features:

  • 90~264VAC input (except for 18W and 150W)
  • Slim plastic case with IP67 level
  • Economical design
  • Withstand 300VAC surge input for 5 seconds (LPV/C-20/35/60/100)
  • -30~70℃ wide operation range
  • Suitable for economical LED lighting and moving sign applications
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPVL-150 only)

Models:
C.V.:LPH-18 / LPV-20 / LPV-35 / LPV-60 / LPV-100 / LPVL-150 / LPV-150
C.C.:LPHC-18 / LPC-20 / LPC-35 / LPC-60 / LPC-100 / LPC-150

HVG(C) Series LED Driver

MeanWell HVG(C) Series LED Driver
Wattage :

  • 65W~1000W

Features:

  • Wide input range 180~528VAC
  • Metal case, IP67/IP65 design for indoor or outdoor installations
  • Built-in active PFC function
  • Function options:
    output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); timer dimming; smart timer dimming
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (except for HVG-65 and HVGC-65/100)
  • Suitable for LED street lighting and outdoor LED lighting applications
  • 5 years warranty

Models:
C.V.+C.C.:HVG-65 / HVG-100 / HVG-150 / HVG-240 / HVG-320 / HVG-480
C.C.:HVGC-65 / HVGC-100 / HVGC-150 / HVGC-240 / HVGC-320
C.P.:HVGC-480 / HVGC-650 / HVGC-1000

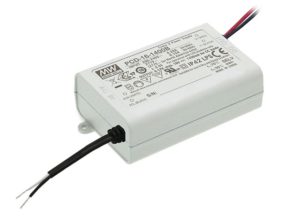

PCD Series LED Driver

MeanWell PCD Series LED Driver
Wattage :

  • 16W~60W

Features:

  • 16W/25W: 90~135VAC or 180~295VAC 40W/60W: 180~295VAC
  • AC phase-cut dimming, work with leading and trailing edge TRIAC dimmers
  • Fully isolated plastic case with IP42 level
  • Built-in active PFC function
  • Class II design, without FG
  • Constant current mode
  • Suitable for indoor LED lighting

Models:
C.C.:PCD-16 / PCD-25 / PCD-40 / PCD-60

LDD-L/ LDDS-H/ NLDD-H Series LED Driver

MeanWell LDD-L/ LDDS-H/ NLDD-H Series LED Driver
Wattage :

  • 300/350/500/600/700mA

Features:

  • Constant current output DC/DC step-down converter
  • High efficiency up to 97%
  • PWM dimming and remote ON/OFF control
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully encapsulated with IP67 level for pin and wire style
  • Suitable for driving illumination LED
  • 3 years warranty

Models:
C.C: LDD-L / LDDS-H / NLDD-H

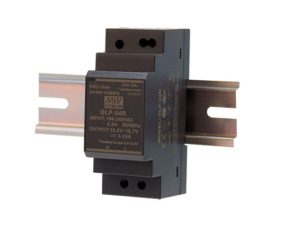

DLP-04 Series LED Driver

MeanWell DLP-04 Series LED Driver
Wattage :

  • 4

Features:

  • 90~295VAC full range input
  • Slim design
  • Plastic case with class II
  • No load/standby power consumption<0.5w( type L)
  • Withstand 300VAC surge input for 5 seconds
  • -20~+60℃ working temperature
  • Protections: short circuit / over voltage
  • Dimension: DLP-04R : 35*90*54.5 mm (W*H*D)
    DLP-04L : 145*38*22 mm (L*W*H)
  • 3 years warranty

Models:
Din Rail Type: DLP-04R
Slim Type:DLP-04L

LDC Series LED Driver

MeanWell LDC Series LED Driver
Wattage :

  • 35W~80W

Features:

  • Constant power output
  • Flicker free design
  • 3 in 1 dimming:0~10Vdc、PMW signal or resistance
  • Built-in active PFC function
  • No load power consumption <0.5W
  • working temperature: -25~+90℃
  • Protections: short circuit /
  • UL/ENEC/TUV/CCC/CB/CE certified
  • 5 years warranty

Models:
C.P.:LDC-35 / LDC-55 / LDC-80

XLG Series LED Driver

MeanWell XLG Series LED Driver
Wattage :

  • 20W~320W

Features:

  • Wide input range 100~305VAC (90~305VAC for XLG-20)
  • Constant power mode with adjustable output current (Constant current mode for XLG-20)
  • Built-in active PFC function and Efficiency up to 90%
  • Dimming functions: 3 in 1 / DALI
  • Protections: Short circuit/ Over voltage/ Over temperature
  • Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N) for XLG-20
  • 5 years warranty

Models:
3-in-1 Dimming:XLG-20 / XLG-25 / XLG-50 / XLG-75 / XLG-100 / XLG-150 / XLG-200 / XLG-240 / XLG-320 / XLG-240-48-ABV / XLG-320-48-ABV
DALI Dimming: XLG-50-DA2 / XLG-75-DA2 / XLG-100-DA2 / XLG-150-DA2 / XLG-200-DA2 / XLG-240-DA2 / XLG-320-DA2

XBG Series LED Driver

MeanWell XBG Series LED Driver
Wattage :

  • 100W~240W

Features:

  • Wide range 100~305VAC mains input
  • Built-in active PFC function and constant power mode
  • AC input cable with waterproof connector for flexible using
  • Surge protection: 6 KV /4KV
  • Protections: short circuit, over voltage, over temperature
  • Life time >50,000 Hrs. and 5 years warranty

Models:
XBG-100 / XBG-160 / XBG-240

SLD Series LED Driver

MeanWell SLD Series LED Driver
Wattage :

  • 50~150W

Features:

  • Wide input range 110~305VAC
    (120~305VAC for SLD-150)
  • Slim and linear housing design
  • Built-in active PFC function and efficiency up to 90% (up to 93% for SLD-150)
  • Design with class 2/II and SELV
  • Protections: Short circuit/ Over voltage/ Over temperature
  • 3 years warranty
    (5 years warranty for SLD-150)

Models:
SLD-50 / SLD-80 / SLD-150

LCM- IoT Series LED Driver

MeanWell LCM- IOT Series LED Driver
Wattage :

  • 25W~60W

Features:

  • Constant Current output and adjustable by dip switch
  • Flicker-free design
  • Plastic housing and class II design without FG
  • Built-in active PFC function
  • Dimming functions: Bluetooth Mesh and Push dim
  • Surge protection with 2KV(L-N)
  • Protections: Short circuit/Over voltage/Over temperature

Models:
LCM-25-IoT / LCM-40-IoT / LCM-60-IoT

PWM-IoT Series LED Driver

MeanWell PWM- IOT Series LED Driver
Wattage :

  • 60W~200W

Features:

  • Constant Voltage output with 12V/24V/48V
  • Flicker free design
  • Plastic housing and class II design without FG
  • Built-in active PFC function
  • Surge protection with 2KV(L-N)
  • Protections: Short circuit/Over voltage/Over temperature

Models:
PWM-60-IoT / PWM-120-IoT / PWM-200-IoT

GSV Series LED Driver

MeanWell GSV Series LED Driver
Wattage :

  • 30W~60W

Features:

  • Various DC Plug Converter available
  • Class II/2 power unit, no FG
  • Constant voltage design
  • Built-in active PFC function with EN61347-1 regulation
  • No load power consumption<0.5W

Models:
GSV30 / GSV60

DLC-02 LED Driver

MeanWell DLC-02 Series LED Driver
Wattage :

  • 8W

Features:

  • Comply with IEC 62386 DALI-2, and Part 101/103/207/208/301/302/303/304
  • 2 x channels of DALI bus, for control gear and control device using
  • 4 x programmable relays, for electrical switch or curtains control
  • DLC software for system settings or remotely through internet
  • Built-in LCD display and control buttons to set and view settings
  • Built-in timer IC, commission schedule
  • Communication interface: RJ-45 and KNX, for connection expansion with other building automation systems
  • DIN-Rail mounting, compact design 8SU width (144x 90x 58.4mm)

Models:
DLC-02 / DLC-02-KN

NHDD Series LED Driver

MeanWell NHDD Series LED Driver
Wattage :

  • 40W

Features:

  • Constant current mode output
  • For DC 380V BUS lighting luminaire driver on board (DoB) solution available
  • Plastic housing and fully encapsolated
  • Built-in PWM and remote ON/OFF control
  • Protections: Short circuit / Over temperature
  • 5 years warranty

Models:
NHDD-40

XLC Series LED Driver

MeanWell XLC Series LED Driver
Wattage :

  • 25W~60W

Features:

  • Constant power design with wide range current adjustable (H type)
  • Constant voltage output models available (12V/24V/48V)
  • Full voltage input 110~305VAC (with PFC function)
  • Plastic case with double insulation and Class II/2 design
  • Compliant with IEEE 1789 and ErP flicker-free standards
  • Standby power consumption <0.5W
  • Minimum dimming brightness <0.1% (DALI-2 DT6)
  • Compliant with emergency lighting (EL) functions
  • Dimming function: 3 in 1, DALI-2; KNX, IoT (Optional)
  • Output and dimming circuit comply with isolation design
  • Optional independent or built-in LED power supply
  • 5 years warranty and >50,000 hrs lifetime

Models:
XLC-25 / XLC-40 / XLC-60

XLN Series LED Driver

MeanWell XLN Series LED Driver
Wattage :

  • 25W~60W

Features:

  • Constant power design with wide range current adjustable (H type)
  • Constant voltage output models available (12V/24V/48V)
  • Output current adjusted by NFC sensing
  • Full voltage input 110~305VAC (with PFC function)
  • Plastic case with double insulation and Class II/2 design
  • Compliant with IEEE 1789 and ErP flicker-free standards
  • Standby power consumption <0.5W
  • Minimum dimming brightness <0.1% (DALI-2 DT6)
  • Fully encapsulated with IP67
  • Compliant with emergency lighting (EL) functions
  • Dimming function: 3 in 1, DALI-2; KNX, IoT (Optional)
  • Output and dimming circuit comply with isolation design
  • Optional independent or built-in LED power supply
  • 5 years warranty and >50,000 hrs lifetime

Models:
XLN-25 / XLN-40 / XLN-60

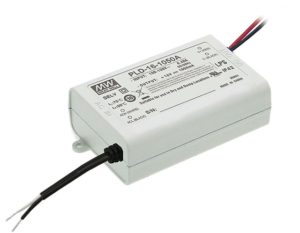

PLD Series LED Driver

MeanWell PLD Series LED Driver
Wattage :

  • 16W~60W

Features:

  • 16W: 90~135VAC or 180~295VAC
    25W: 90~295VAC
    40W/60W: 180~295VAC
  • Built-in active PFC function
  • Fully isolated plastic case with IP42 level
  • Class II design, without FG
  • Constant current mode
  • Suitable for indoor LED lighting

Models:
C.C.:PLD-16 / PLD-25 / PLD-40 / PLD-60

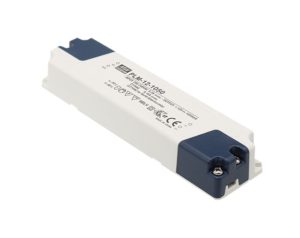

PLM Series LED Driver

MeanWell PLM Series LED Driver
Wattage :

  • 12W~40W

Features:

  • 110~295VAC input (180~295VAC input for E type)
  • Built-in active PFC function
  • Fully isolated plastic case with IP30 level
  • Class II design, without FG
  • Push terminal I/O
  • Constant current mode
  • No load power consumption<0.5W
  • Suitable for indoor LED lighting

Models:
C.C.: PLM-12 / PLM-25

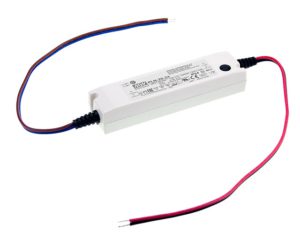

LPF Series LED Driver

MeanWell LPF Series LED Driver
Wattage :

  • 16W~90W

Features:

  • 90~305VAC input, built-in active PFC function
  • Fully isolated plastic case with IP67 level (16W optional)
  • Class II design, without FG
  • Built-in 3 in 1 dimming function for D type (1~10VDC, PWM signal or resistance)
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries (LPF-90/90D)
  • Suitable for LED lighting and moving sign applications
  • 5 years warranty

Models:
C.V.+C.C.:LPF-16 / LPF-25 / LPF-40 / LPF-60 / LPF-90
C.C. (3 in 1 Dimming): LPF-16D / LPF-25D / LPF-40D / LPF-60D / LPF-90D

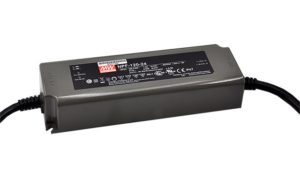

NPF Series LED Driver

MeanWell NPF Series LED Driver
Wattage :

  • 40W~200W

Features:

  • 90~305VAC input, built-in active PFC function
  • Fully isolated plastic case with IP67 level
  • Class II design, without FG
  • No load/standby power consumption<0.15W (<0.5W for D type)
  • Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off ) for D type
  • Type “HL” LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries [NPF-40(D)/-60(D)/-120(D) only]
  • Suitable for LED lighting and moving sign applications
  • 5 years warranty

Models:
C.V.+C.C.:NPF-40 / NPF-60 / NPF-90 / NPF-120 / NPF-200
C.C. (3 in 1 Dimming): NPF-40D / NPF-60D / NPF-90D / NPF-120D

PWM Series LED Driver

MeanWell PWM- IOT Series LED Driver
Wattage :

  • 40W~200W

Features:

  • 90~305VAC input, built-in active PFC function
  • Fully isolated plastic case with IP67 level
  • Constant voltage PWM style output
  • Class II design, without FG
  • No load power consumption<0.5W
  • Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off)
  • Suitable for LED strip lighting
  • 5 years warranty

Models:
C.V.: PWM-40 / PWM-60(DA) / PWM-90(DA) / PWM-120(DA) / PWM-200

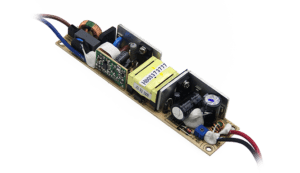

PLC Series LED Driver

MeanWell PLC Series LED Driver
Wattage :

  • 30W~96W

Features:

  • 90~264VAC input, built-in active PFC function
  • Fully isolated plastic case with screw terminal style of I/O
  • Suitable for indoor LED lighting and moving sign applications

Models:
C.C.: PLC-30 / PLC-45 / PLC-60
C.V.+C.C.: PLC-100

PLN Series LED Driver

MeanWell PLN Series LED Driver
Wattage :

  • 20W~96W

Features:

  • 90~295VAC input (90~277VAC for PLN-20), built-in active PFC function
  • Fully isolated plastic case with IP64 level
  • Suitable for indoor LED lighting and moving sign applications

Models:
C.C.: PLN-20 / PLN-30 / PLN-45 / PLN-60
C.V.+C.C.: PLN-100

HLN Series LED Driver

MeanWell HLN Series LED Driver
Wattage :

  • 40W~80W

Features:

  • 90~305VAC input, built-in active PFC function
  • Fully isolated plastic case with IP64 level
  • Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for B type
  • User adjustable output voltage and current level for A type
  • Suitable for indoor LED lighting and moving sign applications

Models:
C.V.+C.C.: HLN-40H / HLN-60H / HLN-80H

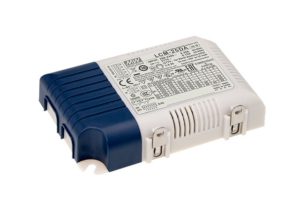

LCM Series LED Driver

MeanWell LCM Series LED Driver
Wattage :

  • 25W~60W

Features:

  • 180~295VAC input for 40W/60W, 180~277VAC input for 25W
  • Constant current mode
  • Built-in active PFC function
  • Multiple-stage output current level selectable by DIP switch
  • Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)
  • Built-in DALI interface and push dimming function for DA type
  • DALI device type 6 (DT6) and device type 8 (DT8) available for LCM-40TW
  • Suitable for indoor LED lighting applications

Models:
3 in 1 Dimming: LCM-25 / LCM-40(EO) / LCM-60(EO)
DALI Dimming: LCM-25DA / LCM-40DA / LCM-40TW / LCM-60DA

LCM-U Series LED Driver

MeanWell LCM Series LED Driver
Wattage :

  • 40W~60W

Features:

  • 90~132VAC input only
  • Constant current mode
  • Built-in active PFC function
  • Multiple-stage output current level selectable by DIP switch
  • Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)
  • Built-in DALI interface and push dimming function for DA type
  • Suitable for indoor LED lighting applications

Models:
3 in 1 Dimming: LCM-40U(EO) / LCM-60U(EO)
DALI Dimming: LCM-40UDA / LCM-60UDA

PLP Series LED Driver

MeanWell PLP Series LED Driver
Wattage :

  • 30W~60W

Features:

  • 90~264VAC input , built-in active PFC function
  • Suitable for built-in LED lighting systems

Models:
C.C.: PLP-30 / PLP-60

HLP Series LED Driver

MeanWell HLP Series LED Driver
Wattage :

  • 60W~80W

Features:

  • 90~305VAC input, built-in active PFC function
  • Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)
  • Suitable for built-in LED lighting systems

Models:
C.C.: HLP-60H / HLP-80H

For more information about these products…
 Download a Catalog
