Pneumatic Air Cylinders

Nason manufactures compact pneumatic cylinders and linear actuators for the most demanding applications.

Nason pneumatic cylinders, also known as air cylinders, use compressed air to activate internal pistons and move them along a linear path. Nason’s compact pneumatic cylinders are highly efficient, delivering the same power as larger competitive products in a smaller package.

These air cylinders are manufactured in the USA from aluminum or stainless-steel bar stock, providing significantly more cycles of productive service than other cylinders. In addition to using the highest quality materials, the bore is honed to a mirror finish to optimize performance and lengthen the life of the seals.

Product Lineup

NFPA Series Pneumatic Cylinder

250 PSI

Nason’s 250 PSI NFPA pneumatic cylinder features precision-machined bores and floating rod bearings, delivering the highest-quality engineering available. With prestressed high-carbon steel construction, this NFPA tie rod air cylinder eliminates axial loading of the cylinder tube and maintains compression on tube and end seals.

NFPA interchangeable
Available in 10 bore sizes (from 1/2″ to 12″)
250 PSI pneumatic
Capable of strokes up to 10 feet
Permanently lubricated

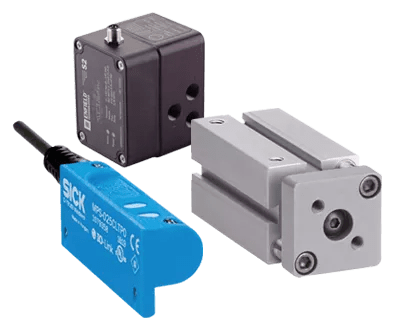

Proportional Control System

Pneumatic Actuator Control System

The cost-saving Proportional Control System combines the power of a pneumatic cylinder with the control of a proportional actuator — delivering high performance and custom precision pneumatic control for a variety of applications.

The system features a controlling pneumatic cylinder with an internal magnet and T-slot, an Enfield Technologies S2-005-U-04 positioning system and a SICK MPS-T sensor in 32, 64, 96, 128, 160, 192, 224 or 256 mm lengths.

Allows for unlimited mid-stroke positions in cylinder range
Extends cylinder life by preventing slamming
Lower price point than electric actuator of the same output
Operates in the most challenging conditions
Delivers higher output in a more compact space
Speeds up to 14″/sec
±1/16″ to ±1/64″ accuracy, dependent on cylinder length
0-10 bar / 0-150 psi operating pressure
.18 CV / 170 SLPM 5.5 to 0 bar / 6 SCFM 80 to 0 psi
5 micron particulate / 0.3 micron coalescing input air required

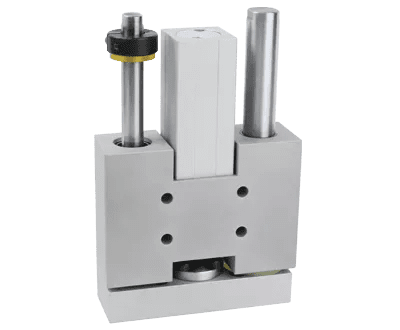

H-Block (HB) Series Guided Pneumatic Cylinder

Heavy Duty

This guided pneumatic slide cylinder accepts linear ball bearings with case hardened steel guide rods to provide high load capacity, low deflection, and low friction. Ideal for automated systems, manufacturing operations and other demanding load-bearing applications, this guided air cylinder can alternatively accept composite slide bearings with larger diameter chrome plated 1050 steel guide rods and bearing material. It’s the perfect heavy-duty pneumatic cylinder to handle impact, vibration, and weighty loads.

Case-hardened 1566 steel guide rods accept linear ball bearings
Chrome-plated 1050 steel guide rods accept composite slide bearings
Field-rebuildable, durable LH-Series actuators
Optional magnetic pistons
Internal/external bumpers provide maximum noise reduction
Optional external extend stroke bumpers
Optional adjustable stroke collars
Sturdy aluminum tooling plates for through mounting or tapped-hole mounting
Guide rods piloted into tooling plate
Rod alignment couplings connect tool plate to cylinder rod

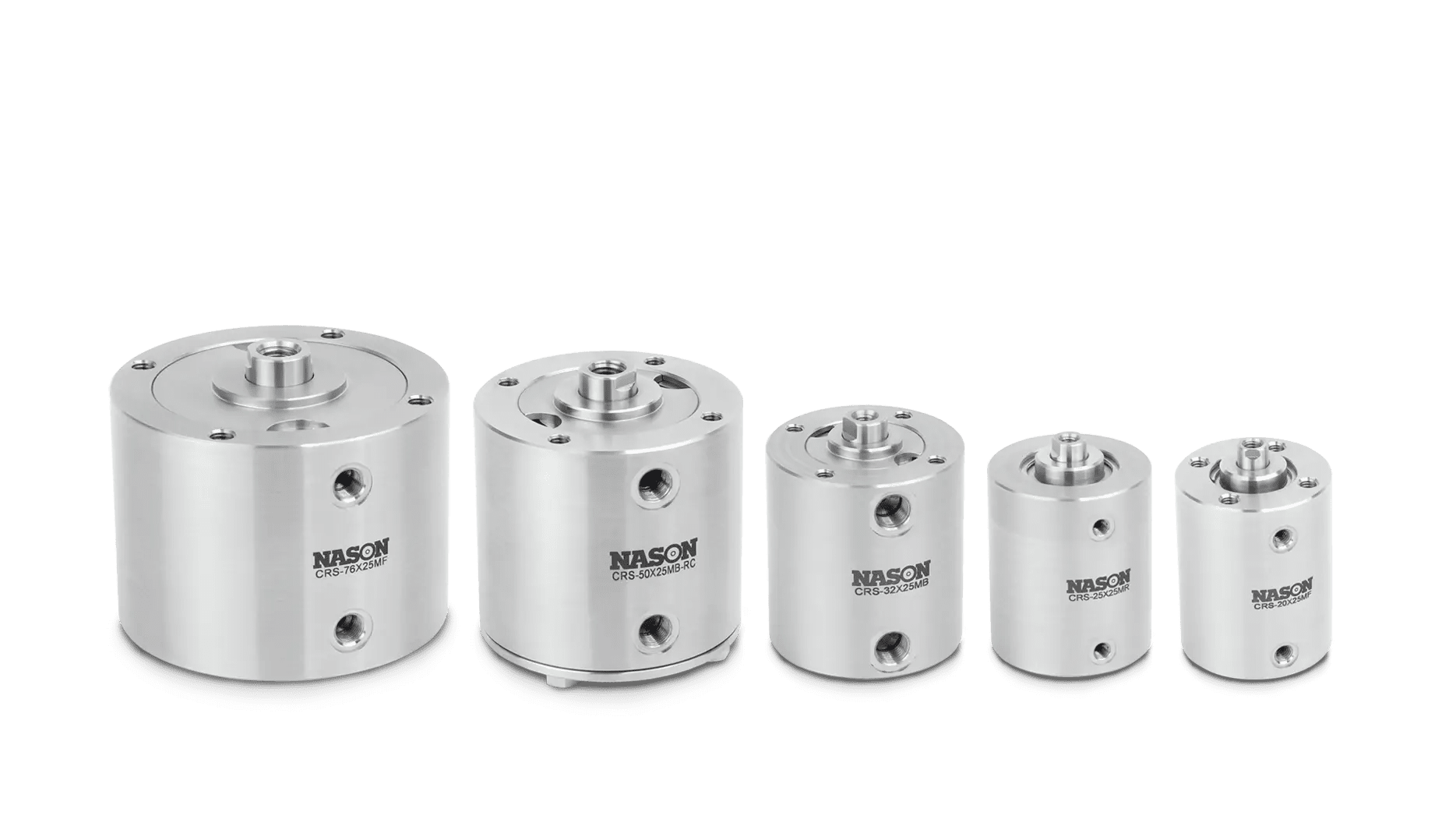

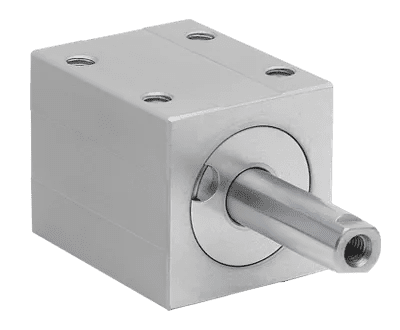

CR Series Stainless Steel Pneumatic Cylinders

Nason’s CR series stainless steel pneumatic cylinders are designed for smooth startup and operation. Constructed with low-friction Nitrile seals and factory lubricated with FDA-complaint food-grade PTFE-impregnated grease, the stainless steel cylinders’ precision-machined components and low-friction bearings ensure long life and effortless operation.

Unlike aluminum or other metals, the stainless steel in the CR Series is non-porous and highly resistant to corrosion. This makes these stainless steel cylinders ideal for applications that require strict compliance to purity and quality standards, such as pharmaceutical and food preparation, or areas that need to stand up to punishing elements, such as wash-down environments.

Compact size
Clean design – the smooth exteriors eliminate areas that tend to trap dirt or grease
Rugged construction – thick-walled 303 stainless steel housings and caps with hardened 302 stainless steel retaining wires. Rugged chrome-plated 303 stainless steel rods
Rebuildable – field-repairable
Versatile design – available in metric bore and rod sizes with inch or metric mounting and porting
Magnetic piston option – allow end-of-stroke position sensing with Nason’s “S” series sensors

L Series Low-friction Pneumatic Cylinder

Available in three models (LS, LE and LH), Nason’s L Series low-friction pneumatic cylinder was designed with today’s automation equipment in mind. This low-pressure pneumatic cylinder offers more power in a smaller footprint than comparable pancake or compact cylinders. And with its low-friction nitrile seals and PTFE-impregnated grease lubrication, the L Series is optimized for low start-up and running friction.

Bored thick-walled housing featuring anodized aluminum with honed finish
Chrome-plated 303 SS rods in self-lubricating bronze bearings
Bore and rod sizes are metric in design, with inch or metric mounting and porting
Easily customizable
Field-rebuildable

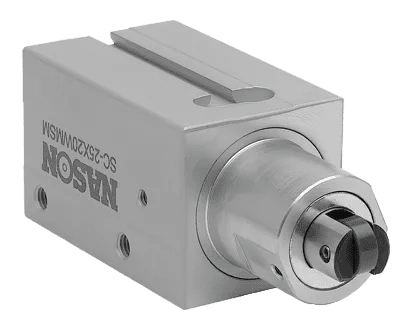

SC Series Pneumatic Stopper Cylinder

Available in seven different mounting styles and three rod end configurations, Nason’s SC series pneumatic stopper cylinder was designed for today’s demanding conveyor systems — with more power in a smaller footprint than comparable models on the market.

More compact and powerful than comparable competitive products
60,000 PSI tensile strength bearings with oversized 100,000 PSI yield strength rod for maximum stopping power
Bore and rod sizes are metric in design, with inch or metric mounting and porting
Five threaded mounting options
Two flange mounting options
Easily customizable
Field-rebuildable

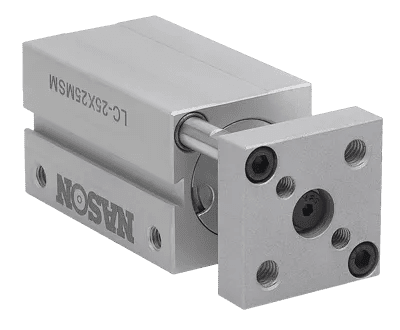

LC Series Non-Rotating Pneumatic Cylinder

Available in both side- and rear-mounted variations, Nason’s LC series non-rotating pneumatic cylinder was designed to deliver compact, load-carrying, long-lasting performance in today’s most demanding applications. This non-rotating air cylinder features a variety of bores and strokes, making it an ideal choice for design engineers in a wide range of industries.

Precision-machined, self-lubricating actuator components
Guide rods are piloted into tooling plate, providing more rigidity and easier disassembly for modifications
Thick anodized aluminum tooling plate
Standard magnetic piston sensing
Field-rebuildable

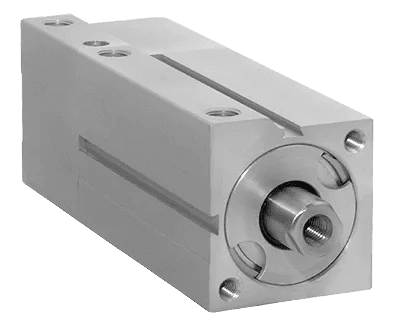

BS Series Back-to-Back Air Cylinders

The BS series back-to-back air cylinder is based on the same rugged, proven design of Nason’s L series cylinder with thick-walled, custom aluminum extrusions that are precision bored and honed.

High-strength aluminum internal components machined to exacting specifications control seal squeezes and stroke tolerances. Precision-ground, chrome-plated 303 stainless steel rods are built for long life, and the dual-piloted center cap keeps the rod ends and bores in strict alignment. The unique design of the back-to-back air cylinder saves up to 15% more space than two standard cylinders side by side.

Hardened doublewound 302 stainless steel retaining wires
Low friction rod cup seals (with integral wiper on specified models)
Fabric-reinforced phenol resin wear strips (on specified models)
Thick-walled, machined bore, high strength aluminum housings
Hard chrome-plated 303 stainless steel rods
Pilot cap keeps bores and rods aligned (reduces OAL up to 15%)
Self-lubricating sintered bronze bearings
Patented retention method
Low friction figure-eight piston seal
Solid, one-piece Magnet Ring (on “M” style piston types)

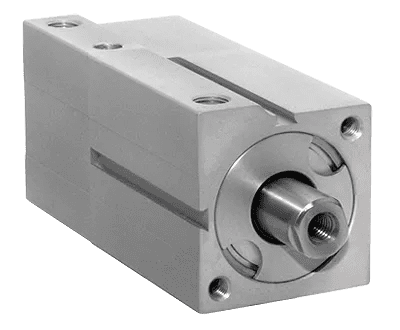

PS Series Multi-Position Pneumatic Cylinders

The P series multi-position air cylinder is based on the same rugged, proven designs of Nason’s L series cylinder. Thick-walled, custom aluminum extrusions are precision bored and honed.

Machined to exacting specifications, high-strength aluminum internal components control seal squeezes and stroke tolerances. Chrome-plated 303 stainless steel rods are precision-ground for long life.

The dual-piloted head design of this multi-position pneumatic cylinder aligns bores and rods, reducing overall length up to 15% compared to two standard cylinders bolted together.

Hardened double-wound 302 stainless steel retaining wires
Fabric-reinforced phenol resin wear strips (on specified models)
Pilot head (reduces OAL up to 15%)
Patented retention method
Low friction figure-eight piston seals
Thick-walled, machined bore, high strength aluminum housings
Solid, one-piece Magnet Ring (on “M” style piston types)
Hard chrome-plated 303 stainless steel rods
Self-lubricating sintered bronze bearings
Low friction rod cup seals (with integral wiper on specified models)

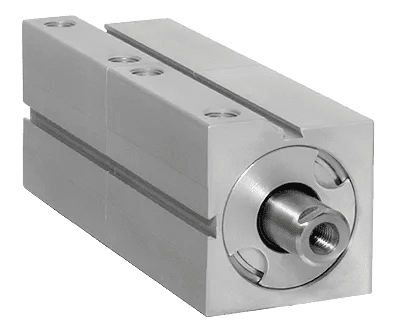

TS Series Tandem Pneumatic Cylinder

The TS series tandem pneumatic cylinder is based on the same rugged, proven designs of Nason’s L series cylinders, featuring durable custom aluminum extrusions that are precisely bored and honed.

Chrome-plated 303 stainless steel rods are precision ground for long life. Seal squeezes and stroke tolerances are controlled by high-strength aluminum internal components machined to exacting specs.

Internal porting from the rear cylinder piston to the front cylinder piston simplifies plumbing, while the dual piloted head design aligns bores and rods. This tandem air cylinder packs the same power as two standard cylinders, but fits inside a 15% smaller footprint.
