Lubricators
Air Lubricators provide lubrication for most general air preparation applications in a pneumatic system. Parker Lubricators provide optimum and uniform lubrication with fine micro-mist particles of 2 micron or smaller to pneumatic components, including those with complex piping arrangements.
Product Lineup
Standard Mist Lubricators

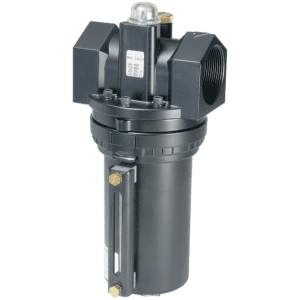

Standard Mist Lubricators – 09L Series (Large High-Flow)
The 09L is a mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the 09L is easily configurable to your application.
- Hi-Flow Mist Lubricator
- Mounting: In-line
- Port Size: 2″
- Port Type: NPT
- Flow (SCFM): 1000 @ 90 PSIG
- Temperature Rating (ºF): 32° to 150°
- Temperature Rating (ºC): 0° to 66°
- Pressure Rating (psig): 0 to 150
- Pressure Rating (bar): 0 to 10.3 (Polycarbonate Bowl), 0 to 17.2 (Metal Bowl)
- Body Material: Zinc Alloy
- Weight (lb): 10.2 (1 qt.), 13.7 (3 qt.)
- Drains: Manual
- Seals – Nitrile

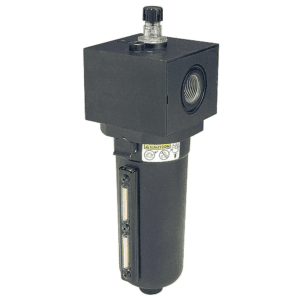

Standard Mist Lubricators – L606 Series (Heavy Duty High-Flow)
The L606 is an industrial mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the L606 is easily configurable to your application.
- Hi-Flow Lubricator
- Mounting: In-Line or Mounting Bracket
- Port Size: 3/4″, 1″
- Port Type: NPT, BSPP
- Flow (SCFM): 325 (3/4″), 350 (1″)
- Temperature Rating (ºF): 40° to 125° (G Bowl Option), 40° to 150° (E and W Bowl Options)
- Temperature Rating (ºC): 4.4° to 52° (G Bowl Option), 4.4° to 65.6° (E and W Bowl Options)
- Pressure Rating (psig): 0 to 300 (E Bowl Option), 0 to 150 (G Bowl Option), 0 to 250 (W Bowl Option)
- Pressure Rating (bar): 0 to 20.4 (E Bowl Option), 0 to 10.2 (G Bowl Option), 0 to 17.2 (W Bowl Option)
- Body Material: Zinc
- Weight (lb): 4.2 (W Bowl Option), 5.5 (E Bowl Option), 7.2 (G Bowl Option)
- Drains: Twist Drain
- Seals: Nitrile

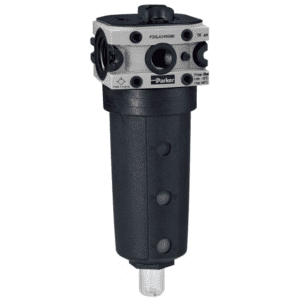

Standard Mist Lubricators – P3NL Series (High-Flow)
Parker’s P3NL is a mist lubricator that injects an oil aerosol into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the P3NL is easily configurable to your application.
- High-Flow Mist Lubricator
- Mounting: In-line or Mounting Bracket
- Port Size: 3/4″, 1″, 1-1/2″
- Port Type: BSPP, NPT
- Flow (SCFM): 240 (3/4″), 250 (1″), 260 (1-1/2″) @ 90 PSIG
- Temperature Rating (ºF): 32° to 175°
- Temperature Rating (ºC): 0° to 80°
- Pressure Rating (PSIG): 0 to 250
- Pressure Rating (Bar): 0 to 17.2
- Body Material: Aluminum
- Bowl Material: Aluminum
- Weight (lb): 3.5 (3/4″ & 1″), 4.6 (1-1/2″)
- Drains: N/A
- Seals: Nitrile

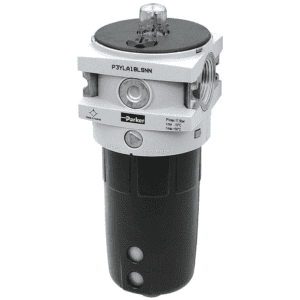

Global Standard Mist Lubricators – P3YL Series (High-Flow)
Parker’s P3YL is a mist lubricator that injects an oil aerosol into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the P3YL is easily configurable to your application.
- High-Flow Mist Lubricator
- Mounting: In-line or Mounting Bracket
- Port Size: 3/4″, 1″
- Port Type: BSPP, NPT
- Flow (SCFM): 343 (3/4″), 390 (1″)
- Temperature Rating (ºF): 14° to 140°
- Temperature Rating (ºC): -10° to 60°
- Pressure Rating (psig): 0 to 253.8
- Pressure Rating (bar): 0 to 17.5
- Body Material: Aluminum
- Weight (lb): 1.8
- Drains: N/A
- Seals: Nitrile

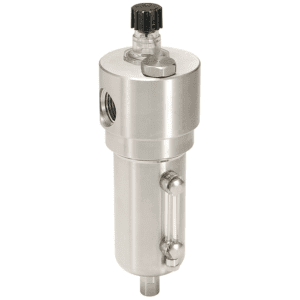

Stainless Steel Standard Mist Lubricators – PL10 Series (Standard)
The PL10 is a stainless steel mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the PL10 is easily configurable to your application.
- Stainless Steel Lubricator
- Mounting: In-line
- Port Size: 1/2″
- Port Type: NPT, BSPP
- Flow (SCFM): 100 @ 90 PSIG
- Temperature Rating (ºF): 0° to 150°
- Temperature Rating (ºC): 0° to 66°
- Pressure Rating (psig): 0 to 150
- Pressure Rating (bar): 0 to 10.3
- Body Material: 316 Stainless Steel
- Weight (lb): 1.9
- Drains: Twist
- Seals: Fluorocarbon

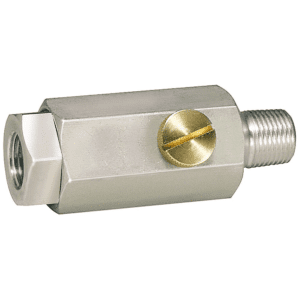

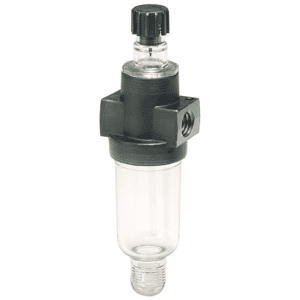

Standard Mist Lubricators – 02L Series (In-Line Miniature)
Parker’s 02L is an inline lubricator that will assure proper lubrication for small pneumatic hand tools. These inline lubricators put the oil source right at the tool. Oil capacity is 1/4 ounce, enough to last through an average 8 hour shift. This lubricator requires cyclical or intermittent airflow for proper operation and consequently works best when installed at the tool inlet or on a short hose near the tool. The 02L is a great low cost, point of use lubricator that can be easily configured to your application.
- Miniature Lubricator
- Mounting: In-line
- Port Size: 1/4″, 3/8″
- Port Type: NPT, BSPT
- Flow (SCFM): 29 (1/4″), 30 (3/8″)
- Temperature Rating (ºF): 32° to 150°
- Temperature Rating (ºC): 0° to 65.5°
- Pressure Rating (psig): 0 to 200
- Pressure Rating (bar): 0 to 13.8
- Body Material: Aluminum
- Weight (lb): 0.2
- Drains: N/A
- Seals: Nitrile
Standard Mist Lubricators – 04L Series (Miniature)
The 04L is a mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available the 04L is easily configurable to your application.
- Miniature Mist Lubricator
- Mounting: In-line or Mounting Bracket
- Port Size: 1/8″, 1/4″
- Port Type: NPT, BSPP, BSPT
- Flow (SCFM): 20
- Temperature Rating (ºF): 32° to 125° (Polycarbonate Bowl), 32° to 175° (Metal Bowl)
- Temperature Rating (ºC): 0° to 52° (Polycarbonate Bowl), 0° to 80° (Metal Bowl)
- Pressure Rating (psig): 0 to 150 (Polycarbonate Bowl), 0 to 250 (Metal Bowl)
- Pressure Rating (bar): 0 to 10.3 (Polycarbonate Bowl), 0 to 17.2 (Metal Bowl)
- Body Material: Zinc
- Weight (lb): 0.4
- Drains: Twist
- Seals: Nitrile
Standard Mist Lubricators – 06L Series (Compact)
The 06L is a mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. This lubricator can be mounted using a modular connector to other 06 Series Prep-Air II product. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the 06L is easily configurable to your application.
- Compact Mist Lubricator
- Mounting: In-line or Mounting Bracket
- Port Size: 1/4″, 3/8″, 1/2″
- Port Type: NPT, BSPP
- Flow (SCFM): 40 (1/4″), 60 (3/8″), 90 (1/2″)
- Temperature Rating (ºF): 32° to 125° (Polycarbonate Bowl), 32° to 175° (Metal Bowl)
- Temperature Rating (ºC): 0° to 52° (Polycarbonate Bowl), 0° to 80° (Metal Bowl)
- Pressure Rating (psig): 0 to 150 (Polycarbonate Bowl), 0 to 250 (Metal Bowl)
- Pressure Rating (bar): 0 to 10.3 (Polycarbonate Bowl), 0 to 17.2 (Metal Bowl)
- Body Material: Zinc
- Weight (lb): 1.2
- Drains: Twist
- Seals: Nitrile
Standard Mist Lubricators – 07L Series (Standard)
The 07L is a mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. This lubricator can be mounted using a modular connector to other 07 series Prep-Air II product. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the 07L is easily configurable to your application.
- Standard Mist Lubricator
- Mounting: In-line or Mounting Bracket
- Port Size: 3/4″
- Port Type: NPT, BSPP
- Flow (SCFM): 90
- Temperature Rating (ºF): 32° to 125° (Polycarbonate Bowl), 32° to 175° (Metal Bowl)
- Temperature Rating (ºC): 0° to 52° (Polycarbonate Bowl), 0° to 80° (Metal Bowl)
- Pressure Rating (psig): 0 to 150 (Polycarbonate Bowl), 0 to 250 (Metal Bowl)
- Pressure Rating (bar): 0 to 10.3 (Polycarbonate Bowl), 0 to 17.2 (Metal Bowl)
- Body Material: Zinc
- Weight (lb): 1.9
- Drains: Twist
- Seals: Nitrile
Global Standard Mist Lubricators – P31L Series (Miniature)
The P31L is a mini mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. This lubricator can be mounted using a modular connector to other Global series product. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the P31L is easily configurable to your application.
- Standard Mist Lubricator
- Mounting: In-line or Mounting Bracket
- Port Size: 1/4″
- Port Type: NPT, BSPP, BSPT
- Flow (SCFM): 40
- Temperature Rating (ºF): 0 to 150 (Polycarbonate Bowl) | 0 to 250 (Metal Bowl)
- Temperature Rating (ºC): 0 to 10.3 (Polycarbonate Bowl) | 0 to 17.2 (Metal Bowl)
- Pressure Rating (psig): 14° to 125° (Polycarbonate Bowl) | 14° to 150° (Metal Bowl)
- Pressure Rating (bar): -10° to 52° (Polycarbonate Bowl) | -10° to 65.5° (Metal Bowl)
- Body Material: Aluminum
- Weight (lb): 0.29
- Drains: Manual
- Seals: Nitrile
Global Standard Mist Lubricators – P32L Series (Compact)
The P32L is a compact mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. This lubricator can be mounted using a modular connector to other Global series product. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the P32L is easily configurable to your application.
- Standard Mist Lubricator
- Mounting: In-line or Mounting Bracket
- Port Size: 1/4″ | 3/8″ | 1/2″
- Port Type: NPT, BSPP, BSPT
- Flow (SCFM): 38| 70 | 90
- Temperature Rating (ºF): 0 to 150 (Polycarbonate Bowl) | 0 to 250 (Metal Bowl)
- Temperature Rating (ºC): 0 to 10.3 (Polycarbonate Bowl) | 0 to 17.2 (Metal Bowl)
- Pressure Rating (psig): 14° to 125° (Polycarbonate Bowl) | 14° to 150° (Metal Bowl)
- Pressure Rating (bar): -10° to 52° (Polycarbonate Bowl) | -10° to 65.5° (Metal Bowl)
- Body Material: Aluminum
- Weight (lb): 0.68
- Drains: Manual
- Seals: Nitrile
Global Standard Mist Lubricators – P33L Series (Standard)
The P33L is a standard mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. This lubricator can be mounted using a modular connector to other Global series product. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. With the various options available, the P33L is easily configurable to your application.
- Standard Mist Lubricator
- Mounting: In-line or Mounting Bracket
- Port Size: 1/2″ | 3/4″
- Port Type: NPT, BSPP, BSPT
- Flow (SCFM): 110 | 150
- Temperature Rating (ºF): 0 to 150 (Polycarbonate Bowl) | 0 to 250 (Metal Bowl)
- Temperature Rating (ºC): 0 to 10.3 (Polycarbonate Bowl) | 0 to 17.2 (Metal Bowl)
- Pressure Rating (psig): 14° to 125° (Polycarbonate Bowl) | 14° to 150° (Metal Bowl)
- Pressure Rating (bar): -10° to 52° (Polycarbonate Bowl) | -10° to 65.5° (Metal Bowl)
- Body Material: Aluminum
- Weight (lb): 1.04
- Drains: Manual
- Seals: Nitrile
Global FRL Lubricators
The Global FRL Lubricators are available in (3) sizes: Miniature (P31L), Compact (P32L) and Standard (P33L). These lubricators can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate. With the various options available, the Global FRL Lubricators are easily configurable with other Global FRL products.
The Global FRL Lubricators are available in (3) sizes: Miniature (P31L), Compact (P32L) and Standard (P33L). These lubricators can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and a precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate. With the various options available, the Global FRL Lubricators are easily configurable with other Global FRL products.
These units are ideal for low and high flow applications that demand uniform lubrication in a robust package. ISO/ASTM VG32 oil is suggested for lubrication and will allow the product to perform at peak performance. Do not use oils with additives, compounded oils containing solvents, graphite, detergents or synthetic oils.
These units are ideal for low and high flow applications that demand uniform lubrication in a robust package. ISO/ASTM VG32 oil is suggested for lubrication and will allow the product to perform at peak performance. Do not use oils with additives, compounded oils containing solvents, graphite, detergents or synthetic oils.
- Maximum Flow Rate: P32 Lubricator: 38 scfm or 17 dm3/sec (1/4″) | 70 scfm or 33 dm3/sec (3/8″) | 90 scfm or 42 dm3/sec
- (1/2″), P33 Lubricator: 110 scfm or 52 dm3/sec (1/2″) | 150 scfm or 71 dm3/sec (3/4″), P31 Lubricator: 52 scfm or 25 dm3/sec (1/4″)
- Minimum Flow Rate: 0.5 dm3/sec, 1 SCFM
- Product Type: Global Modular Lubricators: Mini | Compact | Standard
- Port Type: NPT| BSPP| BSPT
- Port Size: 1/4″ | 3/8″ | 1/2″ | 3/4″
- Body Material: Aluminum
- Bowl Type: Aluminum (Bowl capacity: P31 0.6oz | P32 4oz | P33 6oz), Polycarbonate (Bowl capacity: P31 0.6oz | P32 4oz | P33 6oz)
- Seal Material: Nitrile
- Operating Pressure: 0 to 150 (Polycarbonate Bowl) | 0 to 250 (Metal Bowl), 0 to 10.3 (Polycarbonate Bowl) | 0 to 17.2 (Metal Bowl) bar
- Operating Temperature: 14° to 125° (Polycarbonate Bowl) | 14° to 150° (Metal Bowl) °F, -10° to 52° (Polycarbonate Bowl) | -10° to 65.5° (Metal Bowl) °C
Atomized Micro-Mist Lubricators
Micro-Mist Lubricators – Prep-Air II 15L Series (Economy)
Parker’s 15L is a micro-mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. This lubricator can be mounted using a modular connector to other 05 Series Prep-Air II products. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. The lubricator should be used where only a very small amount of lubrication is desirable or where it is necessary for the oil to remain suspended in the air stream for long distances.
- Micro-Mist
- Size Oil Particles: 5 μm
- NPT and BSPP
- Port Sizes: 1/4″, 3/8″
- Body Material: Zinc
- Bowl Material: Polycarbonate or Zinc
- Seals: Nitrile
- Pressure Rating of Polycarbonate Bowl: 0 to 150 psig or 0 to 10.4 bar
- Pressure Rating of Metal Bowl: 0 to 250 psig or 0 to 17.2 bar
- Temperature Rating of Polycarbonate Bowl: 32° to 125°F or 0° to 51°C
- Temperature Rating of Metal Bowl: 32° to 175°F or 0° to 79°C
- Minimum Flow For Lubrication at 100 PSIG – 2 SCFM
- High Flow 1/4″ – 40 SCFM
- High Flow 3/8″ – 40 SCFM
- Drain Type: Manual Twist
- Weight: 1 lbs or 0.45 kg
Micro-Mist Lubricators – Prep-Air II 16L Series (Compact)
Parker’s 16L is a micro-mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. This lubricator can be mounted using a modular connector to other 06 Series Prep-Air II products. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. The lubricator should be used where only a very small amount of lubrication is desirable or where it is necessary for the oil to remain suspended in the air stream for long distances.
- Micro-Mist
- Size Oil Particles: 5 μm
- NPT and BSPP
- Port Sizes: 1/4″, 3/8″, 1/2″
- Body Material: Zinc
- Bowl Material: Polycarbonate or Zinc
- Seals: Nitrile
- Pressure Rating of Polycarbonate Bowl: 0 to 150 psig or 0 to 10.4 bar
- Pressure Rating of Metal Bowl: 0 to 250 psig or 0 to 17.2 bar
- Temperature Rating of Polycarbonate Bowl: 32° to 125°F or 0° to 51°C
- Temperature Rating of Metal Bowl: 32° to 175°F or 0° to 79°C
- Minimum Flow For Lubrication at 100 PSIG – 1 SCFM
- High Flow 1/4″ – 40 SCFM
- High Flow 3/8″ – 60 SCFM
- High Flow 1/2″ – 90 SCFM
- Drain Type: Manual Twist
- Weight: 1.2 lbs or 0.5 kg
Micro-Mist Lubricators – Prep-Air II 17L Series (Standard)
Parker’s 17L is a micro-mist lubricator that injects a mist of oil into the flowing air stream to automatically provide the correct amount of internal lubrication for air tools and other pneumatic devices. This type of lubricator can be precisely adjusted to a very low oil flow rate because only a portion of the oil drops seen in the sight dome travels downstream. Proportional oil is delivered over a wide range of air flows and precision needle valve assures repeatable oil delivery. A slight adjustment can provide a desired mist rate.
This unit is ideal for low and high flow applications that demand uniform lubrication in a robust package. This lubricator can be mounted using a modular connector to other 07 Series Prep-Air II products. F442 oil is suggested for lubrication and will allow the product to perform at peak performance. The lubricator should be used where only a very small amount of lubrication is desirable or where it is necessary for the oil to remain suspended in the air stream for long distances.
- Micro-Mist
- Size Oil Particles: 5 μm
- NPT and BSPP
- Port Sizes: 1/2″, 3/4″
- Body Material: Zinc
- Bowl Material: Polycarbonate or Zinc
- Seals: Nitrile
- Pressure Rating of Polycarbonate Bowl: 0 to 150 psig or 0 to 10.4 bar
- Pressure Rating of Metal Bowl: 0 to 250 psig or 0 to 17.2 bar
- Temperature Rating of Polycarbonate Bowl: 32° to 125°F or 0° to 51°C
- Temperature Rating of Metal Bowl: 32° to 175°F or 0° to 79°C
- Minimum Flow For Lubrication at 100 PSIG – 1 SCFM
- High Flow 1/4″ – 40 SCFM
- High Flow 3/8″ – 60 SCFM
- High Flow 1/2″ – 90 SCFM
- Drain Type: Manual Twist
- Weight: 1.9 lbs or 0.9 kg

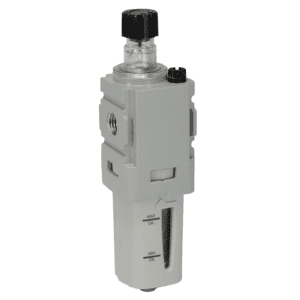

Lubricators Nano Mist – P3XL Series (Lite)
The P3XL nano-mist lubricator is self regulating & automatically adjusts oil feed to the flow demand to give a constant oil/air mixture ratio, this prevents unauthoried adjustment of oil, extending refill periods, giving extended life & performance to air tools/motors & other pneumatic devices. This unit is ideal for high flow applications that demand uniform lubrication in a robust package. For Synthetic oil and glycol based anti-freeze. With 5 & 50mg/m³ atomiser options available the P3XL is easily configurable to other P3X products to suit various applications.
This unit is ideal for high flow applications that demand uniform lubrication in a robust package. Shell Cassida Fluid HF-VG15 oil is suggested for lubrication and will allow the product to perform at peak performance. Can be used with synthetic compressor oils & glycol based anti-freeze.
- Product Type: Nano-Mist Lubricator
- Oil Particle Size: 0.2 μm
- Port Type: BSPP | NPT
- Port Size: 1/2″ | 3/4″ | 1/2″ NPT only
- Body Material: High Tech Polymer
- Bowl Type: High Tech Polymer
- Seal Material: Nitrile
- Operating Pressure: 232, 16 bar
- Operating Temperature: 14° to +140° °F, -10° to +60° °CMinimum Flow Rate: 14.8 @ 91 psig SCFM, 7 @ 6.3 bar dm3/sec
- Maximum Flow Rate: 165 @ 91 psig SCFM, 78 @ 6.3 bar dm3/sec
- High Flow 3/8″ – 60 SCFM
- High Flow 1/2″ – 90 SCFM
- Drain Type: Manual Twist
- Weight: 1.9 lbs or 0.9 kg
For more information about these products…
Download a Catalog
