Air Preparation
Simplify Pneumatic System Design with Compact, Application-Focused Solutions
Pisco delivers a complete line of air-preparation products from high-efficiency filters and precision pressure regulators to silencers, air dryers, and tanks, ensuring your pneumatic systems receive clean, stable, and properly regulated air. Their in-line air filters and hollow-fiber membrane filters remove particles and oil mist down to 0.01 µm, while the pressure regulators and combined filter/regulator units maintain consistent air pressure for reliable operation. For applications requiring moisture removal, Pisco’s fiber-type dryers and dry-unit series enhance air quality and system longevity. Whether you need basic filtration or a full-featured FRL setup, Pisco’s air-prep components deliver dependable, quality air for industrial environments.
Explore Pisco Pneumatic, Vacuum, and Automation Products
Filters

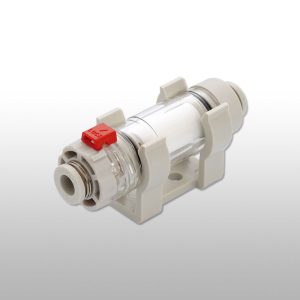

In-line Air Filter

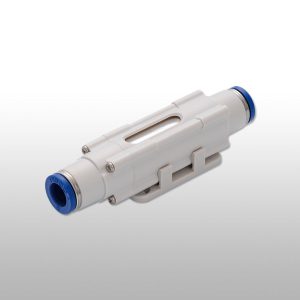

Hollow Fiber Membrane Filter
With a filtering accuracy of 0.01 μm and trapping efficiency of 99.99%, Hollow Fiber Membrane filters are suitable for semiconductor, measuring instruments, printing and medical industries.
- Fluid medium(*1): Air, Nitrogen
- Max. operating pressure(*3): 1.0MPa(at 20℃)
- Operating temp. range: 5～50℃
- Filtering accuracy(*2): 0.01μm(Trapping efficiency: 99.99%)
- Pressure resistance: 1.5MPa(at 20℃)
- Differential Pressure resistance: 0.25MPa(at 20℃)
- Remark: with Explosion-Proof Cover, Oil-Free spec.

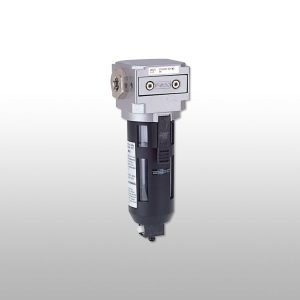

Air Filter
- Manual or Auto draining
- Port size: Rc1/4, Rc3/8
- Fluid medium: Air
- Max. operating pressure: 1.0MPa
- Min. operating pressure: 0.05MPa
- Pressure resistance: 1.5MPa
- Operating temp. range: 5～50℃
- Filtering accuracy(*): 5μm(Trapping efficiency: 99.99%)
- Bowl capacity: 30cc
Mist Filter
Filter for dust and oil mist.
- Manual or Auto draining
- Port size: Rc1/4, Rc3/8
- Fluid medium: Air
- Max. operating pressure: 1.0MPa
- Min. operating pressure: 0.05MPa
- Pressure resistance: 1.5MPa
- Operating temp. range: 5～50℃
- Filtering accuracy(*): 3μm(Trapping efficiency: 99.99%)
- Bowl capacity: 30cc
Micromist Filter
Filter for tiny dust and oil mist.
- Manual or Auto draining
- Port size: Rc1/4, Rc3/8
- Fluid medium: Air
- Max. operating pressure: 1.0MPa
- Min. operating pressure: 0.05MPa
- Pressure resistance: 1.5MPa
- Operating temp. range: 5～50℃
- Filtering accuracy(*): 1μm(Trapping efficiency: 99.99%)
- Bowl capacity: 30cc

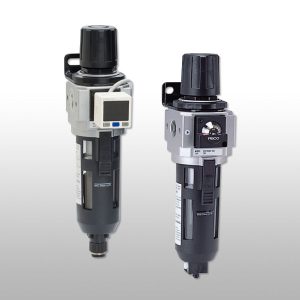

Filter Regulator
- Port size: Rc1/4, Rc3/8
- Fluid medium: Air
- Max. operating pressure: 1.0MPa
- Min. operating pressure: 0.05MPa
- Pressure setting range: 0.05～0.85MPa
- Pressure resistance: 1.5MPa
- Operating temp. range: 5～50℃
- Filtering accuracy(*): 5μm(Trapping efficiency: 99.99%)
- Bowl capacity: 30cc

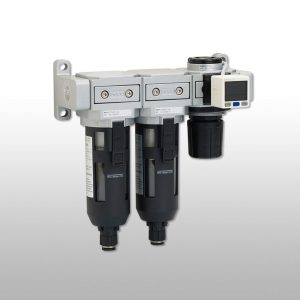

Filter and Regulator Combination Unit Series
Air Filter(Filtering accuracy :5μm), Mist Filter (Filtering accuracy: 0.3μm), Micromist Filter (Filtering accuracy: 0.01μm), Combined regulator.
Air Filter
- Port size: Rc1/4, Rc3/8
- Fluid medium: Air
- Max. operating pressure: 1.0MPa
- Min. operating pressure: 0.05MPa
- Pressure resistance: 1.5MPa
- Operating temp. range: 5～50℃
- Filtering accuracy(*): 5μm(Trapping efficiency: 99.99%)
- Bowl capacity: 30cc
Mist Filter Manual drain
- Port size: Rc1/4, Rc3/8
- Fluid medium: Air
- Max. operating pressure: 1.0MPa
- Min. operating pressure: 0.05MPa
- Pressure resistance: 1.5MPa
- Operating temp. range: 5～50℃
- Filtering accuracy(*): 0.3μm(Trapping efficiency: 99.9%)
- Bowl capacity 30cc
Micromist Filter
- Port size: Rc1/4、Rc3/8
- Fluid medium: Air
- Max. operating pressure: 1.0MPa
- Min. operating pressure: 0.05MPa
- Pressure resistance: 1.5MPa
- Operating temp. range: 5～50℃
- Filtering accuracy(*): 0.01μm(Trapping efficiency: 99.9%)
- Bowl capacity: 30cc

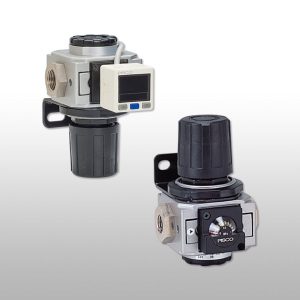

Regulator
- Port size: Rc1/4、Rc3/8
- Fluid medium: Air
- Max. operating pressure: 1.0MPa
- Pressure setting range: 0.05MPa～0.85MPa
- Pressure resistance: 1.5MPa
- Operating temp. range: 5～50℃
Dryers

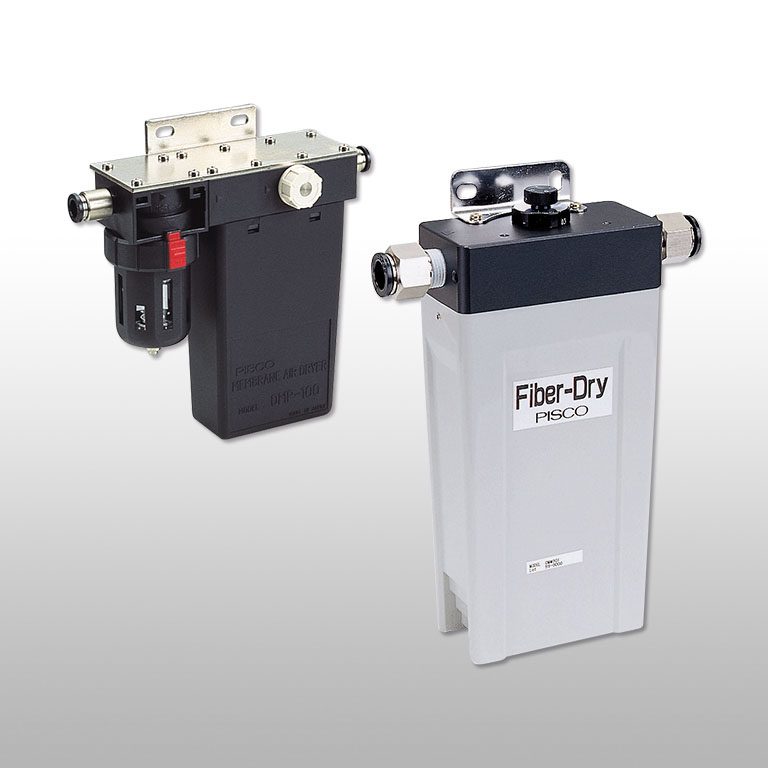

Fiber Dry Series

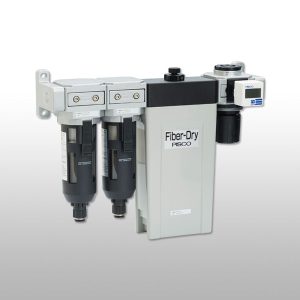

Dry Unit Series
Have a Challenge? Let’s Find the Right Automation Solution.
Need help replacing a component, improving machine performance, or choosing the right product for your application? All Air Inc. helps customers solve pneumatic automation, motion control, sensing, machine safety, robotics, and industrial equipment challenges with trusted manufacturer partnerships, technical product knowledge, and responsive application support.
