Fittings

Pisco fittings come in a wide variety of models to meet all your pneumatic needs.

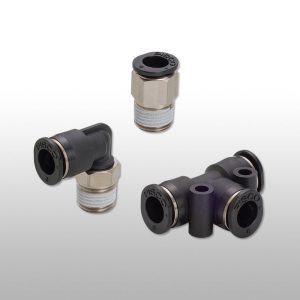

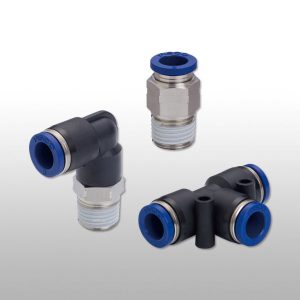

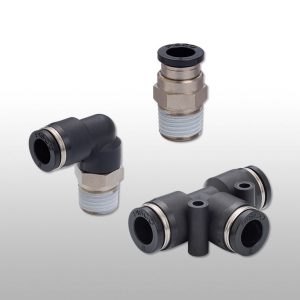

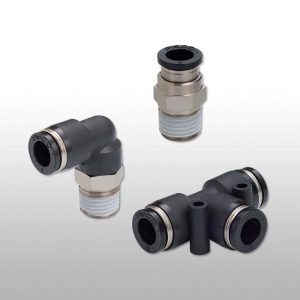

Tube Fitting Standard Series

Pisco Tube Fitting Standard SeriesThe Tube Fitting comes in a wide variety of models to meet all your needs in pneumatic piping.
Water is admitted conditionally.

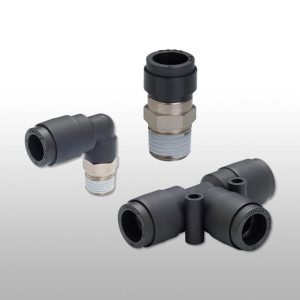

Tube Fitting Mini Series

Pisco Tube Fitting Mini SeriesMini-type fitting is 40% smaller than the standard type fitting.

 Download a Catalog

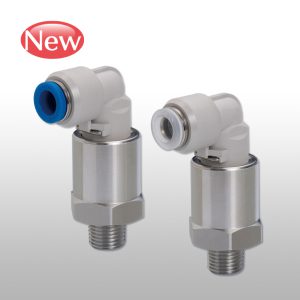

Tube Fitting SUS316

Pisco Tube Fitting SUS316Newly introducing Lock-claws type Push-in fitting made of SUS316.

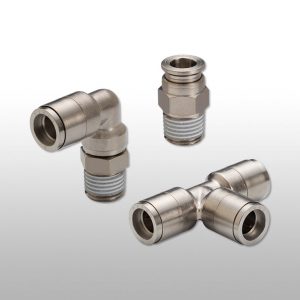

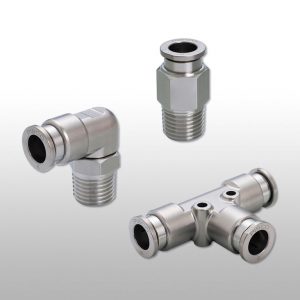

Tube Fitting Stainless SUS304 Series

Pisco Tube Fitting Stainless SUS304 SeriesThis tube fitting serves best where strength is required or the atmosphere contains chemicals.

 Download a Catalog

Tube Fitting Stainless SUS303 like Corrosivity Series

Pisco Tube Fitting Stainless SUS304 SeriesThis tube fitting serves best where strength is required or corrosive atmosphere.

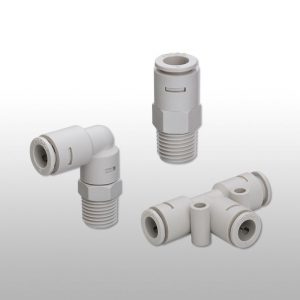

Tube Fitting Chemical

Pisco Tube Fitting ChemicalAll-resin (PPS) made fitting, which possesses excellent heat resistance, noncombustible (UL94 V-0 equivalent) and chemical resistance and the seal is made of fluoric rubber, to meet a wide variety of applications.

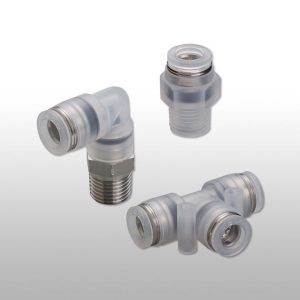

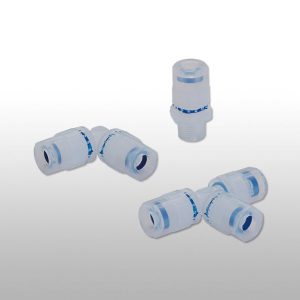

Tube Fitting PP / SUS304

Pisco Tube Fitting PP / SUS304PP (Polypropylene) is selected for the body material and EPDM for seal material to adapt to clean environment.

Tube Fitting PP / SUS303 like Corrosivity Series

Pisco Tube Fitting PP / SUS304PP (Polypropylene) is selected for the body material and EPDM for seal material to adapt to clean environment.

 Download a Catalog

Tube Fitting EG

Pisco Tube Fitting EGTube Fitting EG type adopts antistatic resin material.
Best suitable for the environment dislikes static electricity.

 Download a Catalog

Tube Fitting Spatter

Pisco Tube Fitting SpatterThe joint made of a flame-retarded resin is highly resistant to spatters (UL94 V-0 equivalent).
The cover prevents malfunction of the release ring due to spatter.

Tube Fitting Brass

Pisco Tube Fitting BrassNot only the body but also the release ring is made of brass, so that these models feature excellent flame/spatter resistance and heat resistance.

 Download a Catalog

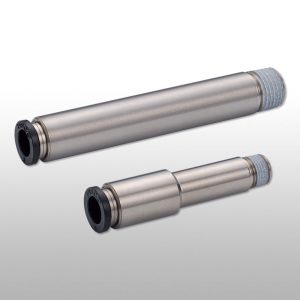

Tube Fitting Long

Pisco Tube Fitting LongThis type of tube fitting comes in eight lengths to suit your applications.

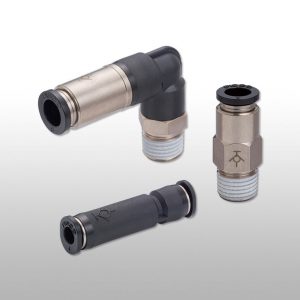

Stop Fitting

Pisco Stop FittingPush-in fitting with built-in stop valve.
The flow-shut mechanism will operate to stop the air flow when the tube is disconnected and allow air flow when the tube is connected.

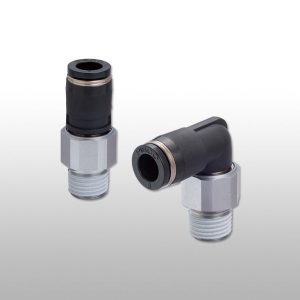

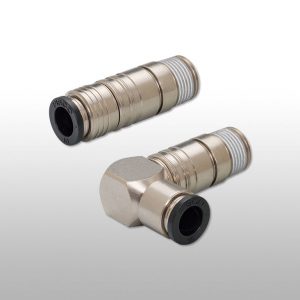

Rotary Joint

Pisco Rotary JointThese piping joints are used for swiveling and swinging connections.

 Download a Catalog

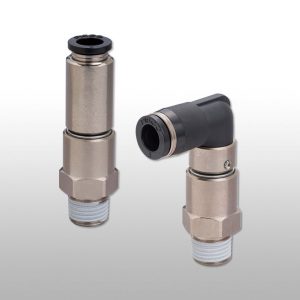

High Rotary Joint

Pisco High Rotary JointPush-in fitting joint best suitable for high-speed swiveling and swinging connections.

 Download a Catalog

Rotary Joint SUS304

Pisco Rotary joint SUS304Push-in fittings for rotary section piping in corrosion-resistant environments.
Water specification type (RWL) can be used with water.

Connector

Pisco ConnectorThe Connector realizes simultaneous connection and disconnection of multiple lines.
It makes easy moving of the devices.

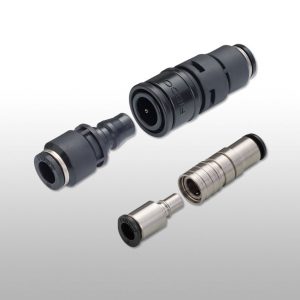

Light Coupling

Pisco Light CouplingThe Light Coupling is small and light weight, which enable attach and detach with only one hand.
Compatible with other manufacturer’s couplings.

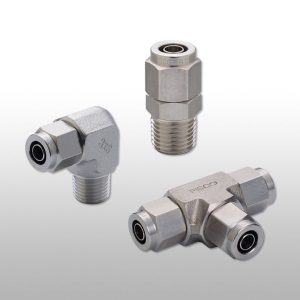

Tube Fitting Stainless SUS316 Compression Fitting Series

Pisco Tube Fitting Stainless SUS316 Compression Fitting SeriesCompression fitting made of SUS316, which is highly resistant to corrosion.

 Download a Catalog

Fluororesin Fitting

Pisco Fluororesin FittingSuitable for chemical liquid piping in semiconductor manufacturing process.

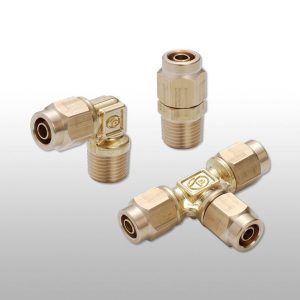

All Brass Compression Fitting

Pisco All Brass Compression FittingBy using special brass in the main metal body, this product line has achieved the high resistant performance against water.
Best suitable for Auto Industry and Thermal Control for mold tooling.

 Download a Catalog

Die Temperature Control Fitting

Pisco Die Temperature Control FittingMolding Die Temperature control coupling.
Push the release sleeve and remove the joint part, then you see no projection on the die.

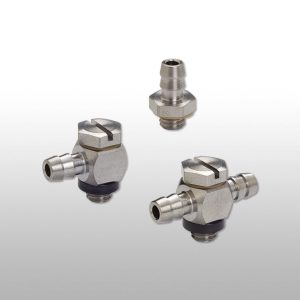

Minimal Fitting

Pisco Minimal FittingBarb joint best suitable for space-saving piping.
They are optimal for piping vacuum equipment. (Use with vacuum tube.)

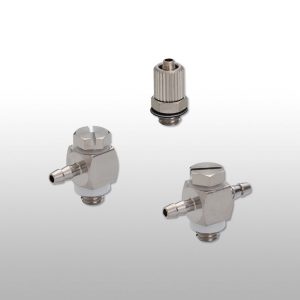

Minimal Fitting – Stainless SUS303 like Corrosivity Series

Pisco Minimal Fitting - Stainless SUS303 like Corrosivity SeriesThis ultra small barb fitting is best suitable for requiring corrosive resistance or use in chemical atmosphere where space-saving piping is required.

 Download a Catalog

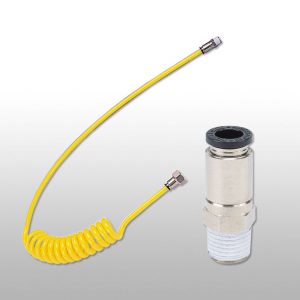

Coiling Tube with Twist-proof Joint

Pisco Coiling Tube with Twist-proof JointThis fitting absorbs the twist in the tubing of pneumatic tools, etc.

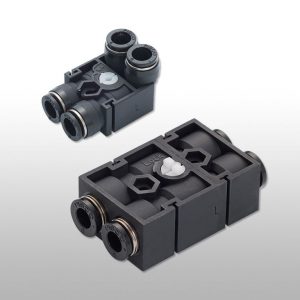

2-Circuit Junction Block

Pisco 2-Circuit Junction BlockThis add-on type concentrated branching joint serves two lines the same time.

Multi-Independent Port Rotating Manifold

Pisco Multi-Circuit Rotary JointBest suitable for piping of index tables or other rotary equipment.

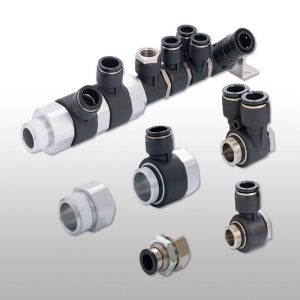

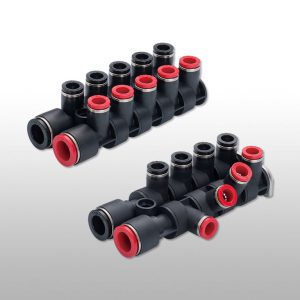

Main Block

Pisco Main BlockThese block parts can be assembled freely into a variety of manifold blocks for concentrated branching.

Color Cap

Pisco Color CapColor caps can be used for identification of different applications of the joints.
