Breathing Air Purifiers

Pneumatech Breathing Air Purifiers assure safe working environment in a wide range of applications. Built to exceed standards, Breathing Air Dryers provide certified breathing air, even in situations with polluted intake air to ensure personnel safety at all times. The seven-filtration stages of the Breathing Air Dryers have been carefully designed to make sure the air quality at the outlet complies with stringent international standards.

Many of us would directly relate breathing air to the air that we breathe from the atmosphere. Compressed air for breathing shall not contain contaminants at a concentration which can cause toxic or harmful effect. There are so many industrial applications that need breathing air which are often not considered.

The air protects the workers engaged in tasks like:

  • Asbestos removal
  • Tank cleaning
  • Sand blasting
  • Laboratory work
  • Spray painting
  • Pharmaceutical manufacturing

Advantages of our breathing air dryers

  • Seven-stage filtration: Carefully designed to make sure the air quality at the outlet complies with EN12021 and European Pharmacopeia
  • Compact: Compact and easy to connect design make the purifiers a perfect solution for your breathing air needs
  • High-quality: Guaranteed air purity thanks to highly efficient glass fibre media; significant energy savings with lower pressure drops

Product Lineup

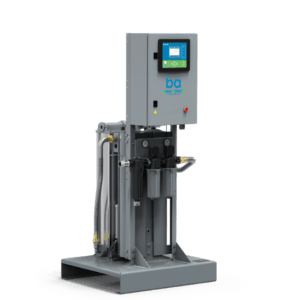

BA 25 – 300 S – Breathing Air Purifiers

Pneumatech BA 25 - 300 S – Breathing Air Purifiers

  • Breathing Air Purifiers for industrial applications.
  • Dew points achievable: -40°C/-40°F
  • Inlet pressure range: 4-13 barg/58-189 psig
  • Ambient temperature range : 5-40°C/41-104°F
  • Inlet temperature range : 5-50°C/41-122°F
  • Power supply : 230 VAC 50 Hz/115 VAC 50Hz
  • Maximum concentration of O2 – 21,4%
  • Reduced concentration of CO2 below 500 ppm
  • Reduced concentration of SO2/NOx below 2 ppm

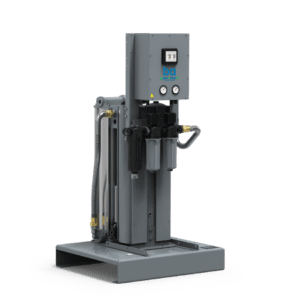

BA 25 – 300 HE – Breathing Air Purifiers

Pneumatech BA 25 - 300 HE – Breathing Air Purifiers

  • Breathing Air Purifiers for industrial applications
  • Dew points achievable: -40°C/-40°F
  • Inlet pressure range: 4-13 barg/58-189 psig
  • Ambient temperature range : 5-40°C/41-122°F
  • Inlet temperature range : 5-50°C/41-122°F
  • Power supply : 230 VAC 50 Hz / 115 VAC 50Hz
  • Maximum concentration of O2 – 21,4%
  • Reduced concentration of CO2 below 500 ppm
  • Low noise level
  • Compliance with stringent international standards

For more information about these products…
 Download a Catalog
