Compressed Air Filters

A compressed air filter removes contaminants that can be present in compressed air. Different filter types are available for different types of contaminants. For general applications, we provide oil coalescing, particulate and oil vapor filters in a range of flows and pressures. Pneumatech is also your partner for breathing air, silicone-free, sterile and process filtration.

Pneumatech offers a Standard (S) range and a High Efficiency (HE) range of compressed air filters to best meet your process needs. Both filter ranges offer similar benefits such as:

Maximum contaminant removal.
Energy savings.
Increased reliability.
Easy maintenance.

The HE range is engineered for minimal pressure drops and offers significant energy savings over time. Pneumatech filters are available in a number ofgrades (P, G, C, S, D and V) and sizes:

Filter Grades

P – Coalescing and particulate general purpose pre-filter
G – Coalescing filters for general purpose protection, removing solid particles and oil aerosol
C – High performance coalescing filters for general purpose protection removing solid particles and oil aerosol
S – Particulate filters for dust protection, removing solid particles
D – High performance particulate filters for dust protection, removing solid particles
V – Oil vapor and odor removal filter

Use Pneumatech Filters To

Protect and increase the efficiency of your Pneumatech refrigerant and desiccant air dryers
Remove oil and solid particles from the compressed air network at the source
Protect sensitive instruments and pneumatic equipment from contamination

Assured Air Purity

When compressed air comes into direct or indirect contact with your product, a much higher level of contaminant control is required. Particular attention needs to be given to contaminants that might appear during the compression and distribution of the air.

Pneumatech filters have been fully tested and qualified according to the latest ISO8573 and ISO12500 standards. Tests have been conducted in-house as well as in external labs; and are independantly validated by TÜV.

The Innovative Technologies Behind Our Filters

Enhanced high-performance stainless steel filter cores ensure ultimate strength and low risk of implosion
New, enhanced media ensure high filter efficiency, low pressure drop and guaranteed lifetime performance
Dust filter – with a large particulate capacity which prolongs filter lifetime
Filter elements have been designed to guarantee proper sealing
Ease of use with push-on element

Product Lineup

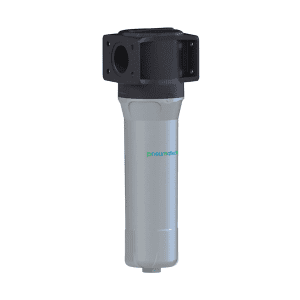

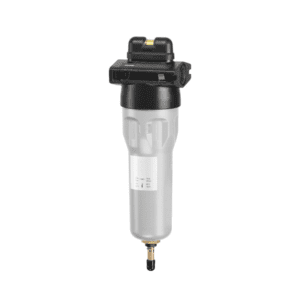

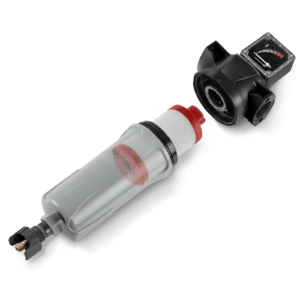

Ultimate Filters

With energy efficiency and low total cost of ownership the Pneumatech Ultimate Filter surpasses conventional filters in the market place, providing to be the most advanced filter yet.

The expertly engineered Ultimate Series not only achieves the highest air purity standards in line with ISO 8573-1:2010, it also incorporates the latest in filtration technology. The new filter housing reduces differential pressure loss which, when combined with the new element design, significantly improves air flow and performance, making the Ultimate filter one of the most energy efficient filter housings available.

With a range that incorporates coalescence filters, dust filters, activated carbon filters and water separators, available in a wide range of port sizes suitable for installation worldwide.

Pneumatech utilizes deep pleated media to deliver market leading filtration performance. The new forward thinking design delivers exceptional results in both oil aerosol removal and particulate retention; significantly reducing differential pressure and energy consumption for low operational lifetime costs. Engineered to deliver a step change in performance, the new ultimate element optimizes filtration efficiencies and produces compressed air in line with the highest standards of air purity, meeting the quality classes specified in ISO 8573-1: 2010.

Features & Benefits
Flow-Optimised Design
Increased Performance
NEW Filtration Technology
Robust design & EP corrosion protection
Market leading performance
New externally accessible drain
Simplified serviceability

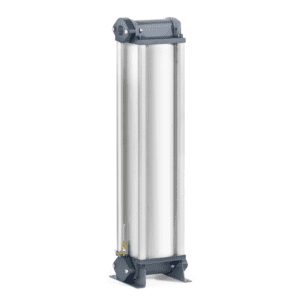

VT 1-9 Carbon Towers

Pneumatech’s VT activated carbon towers and vessels are high-efficiency filtration products designed to meet the most demanding industry applications. Examples are pharmaceutical, medical, food & beverage, electronics and chemical industries.

Guaranteed air purity with residual oil content below 0,003 mg/m³
Significant energy savings & limited system operating costs
Certified oil class 1 performance, according to ISO8573-1:2010
Compact and reliable product design

VT 11-15 Carbon Towers

Guaranteed air purity with residual oil content below 0,003 mg/m³
Significant energy savings & limited system operating costs
Certified oil class 1 performance, according to ISO8573-1:2010
Compact and reliable product design

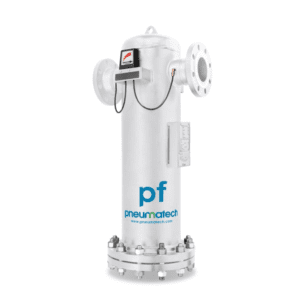

FF Flanged Air Filters

The flanged filter range contains the same type of robust, highly-efficient filter cartridges as the threaded range. The cartridges are contained in a welded steel housing and provided with flanged connections at the compressed air inlet and outlet. The filter housings are completely cleaned: zinc phosphate and KTL-coated on the inside and outside and externally painted afterwards. This guarantees a housing lifetime of at least 20 years. All flanged filters are standard equipped with a zero-loss electronic drain and differential pressure gauge with voltage-free contact connections. The special rotating system of the bottom cover makes filter cartridge replacement very straightforward.

Guaranteed Air Purity
Significant Energy Savings
Highest Quality Standards
Robust Design
Easy Service And Installation

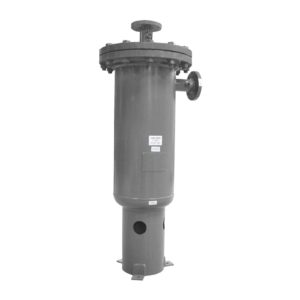

PMR Mist Eliminators

With only 10% of the pressure drop of a regular coalescing filter and an expected service life 20-30 times longer than conventional filers, the PMR series is the only choice for efficient removal of mist sized particles.

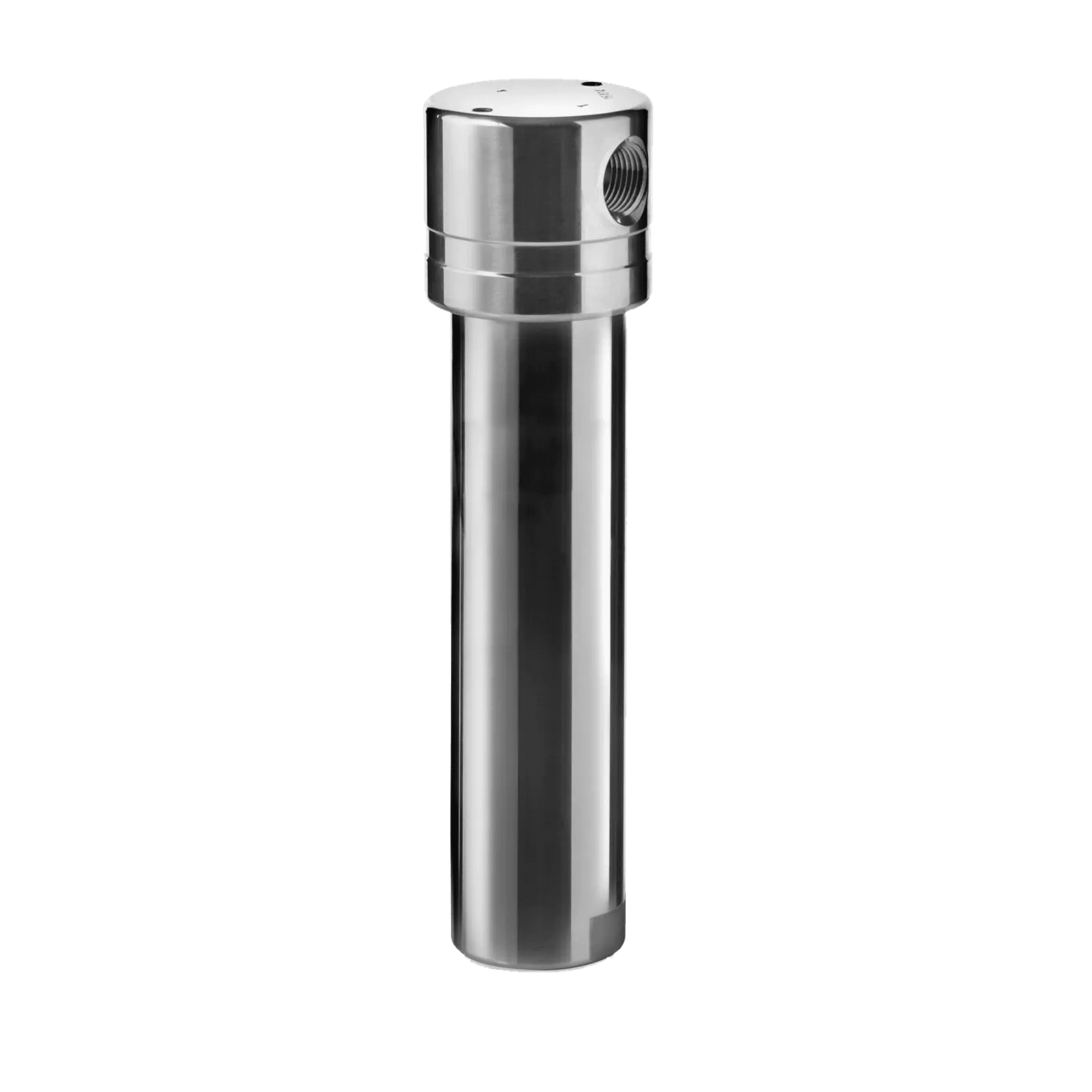

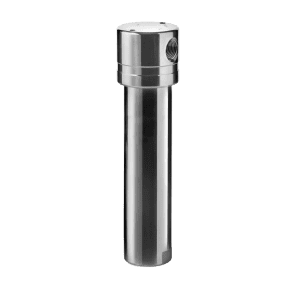

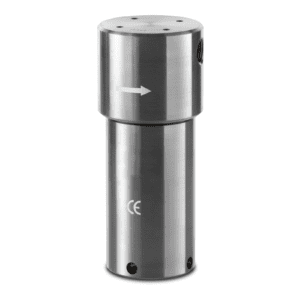

HP PF Series – High Pressure Air Filters

The new Pneumatech high pressure filter has been developed in close cooperation with our customers. The high pressure filters are used in many customer applications such as: laser cutting, PET bottling, pressure testing of components, high pressure die casting, foundry cooling, seismic exploration, autoclave and diving applications.

The high pressure filters are available in 3 pressure ranges: the 725 psi(g) range is available in both aluminum and stainless steel housings. As the performance of both filters is the same, the choice between the 2 can be made based on the customer’s preference. The 1450 and 5000 psi(g) filters are both available in stainless steel housings. Our aluminum and stainless steel housings are designed to withstand operational pressures of 725, 1450 and 5000 psi(g). We have verified this in the design phase but we also perform a hydrostatic pressure test for every filter that leaves production.

High reliability
Maximum contaminant removal
Significant energy savings & low system operating costs
Easy to service

FP Process Filters

In process industries where the risk of corrosion of the compressed air systems components is high, our process filter range meets the mark. The filter housing is made from stainless steel and the surface has been smoothened with advanced mechanical and electro-polishing techniques. A milk pipe connection between the filter head and the bowl prevents contamination by micro-organisms.

Enhanced high-grade stainless steel filter housing
Ultimate strength
Advanced filter cartridge design
Wide range of cartridges to suit application needs
All components meet the FDA requirements for contact with food
100% integrity tested (DOP test)

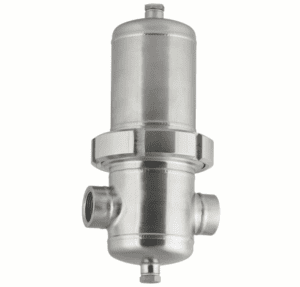

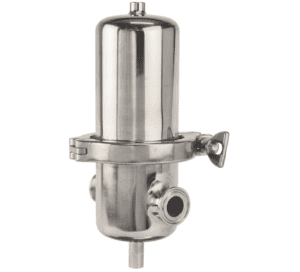

FS Sterile Filters

FS filter housings are made out of stainless steel with a surface that has been smoothened. The upper and lower filter filter parts are connected by sanitary tri clamp fitting and the side connections are made out of sanitary ISO flanges. As a result, there is no void inside the entire filter housing and there is little to no risk of microorganism contamination. The filter elements are manufactured with silicon to ensure robustness at high operating and sterilization temperatures. All this results in a highly-efficient and exceptionally strong filter.

Enhanced high-grade stainless steel filter housing
Advanced filter cartridge design
100% integrity tested (DOP test)
Approved for food applications

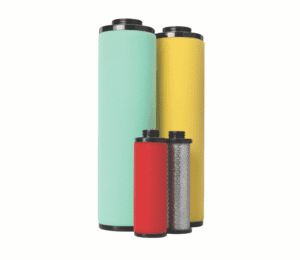

Pneumatech Alternative line filter cartridges

Pneumatech offers superior quality alternative line filters for all major brands including Domnick Hunter, Zander, Donaldson and many more. We can supply filtration solutions for any grade or class of air quality to suit all air compressor needs.

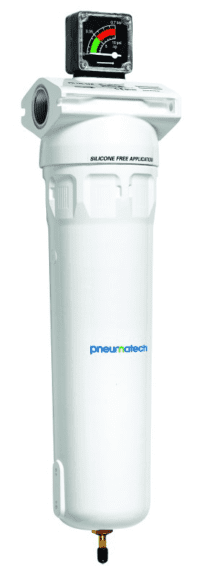

SLF Series – Silicone-Free Filters

The SLF filters are free from substances that could cause defects in the paint. The filters are manufactured in a controlled environment that ensures silicone is not present on the components used or introduced in the production process. All filters are subject to dimensional inspection, pressure & performance testing and a paint compatibility test.
