Product Lineup

Aluminum & Stainless Steel Cylinders

Model Bore Size (mm) Stroke (mm) Magnet (Optional) Options

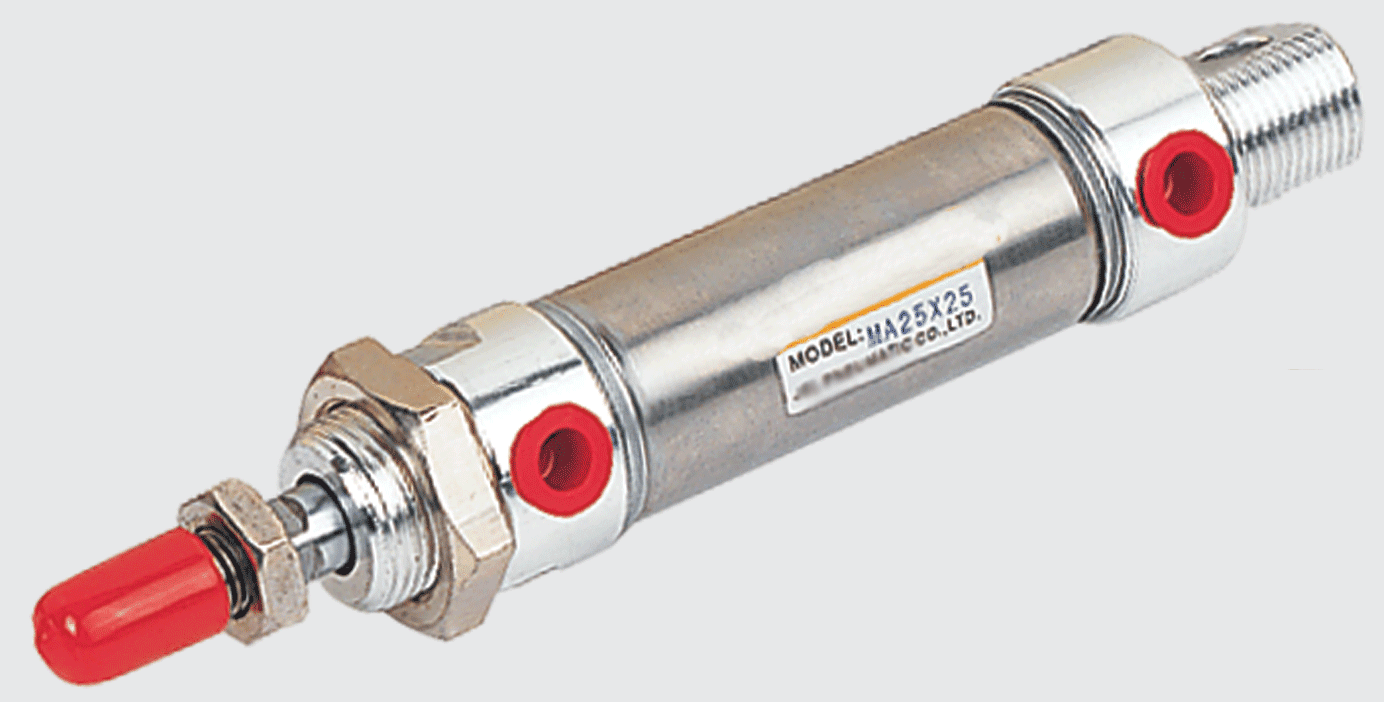

MA Series Stainless Steel Round Cylinder Double Acting-MA
Single Acting-MSA
STC Valve MA Series Stainless Steel Round Cylinder 12, 16, 20, 25, 32, 40 25-500 Standard = without magnet
S = Magnet for Hall Sensor
Mounting Options:
Standard= Standard Front Nose Mount and Back Pivot Mount
LB = Front & Back Mount
FA = Front Mounting Flange
FB = Back Mounting Flange
SDB = Back Clevis Bracket with Pin
I = Rod Pivot with Pin

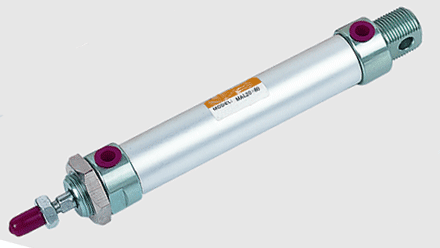

MAL Series Aluminum Round Cylinder Double Acting-MAL
Single Acting-MALS
STC Valve MAL Series Aluminum Round Cylinder 16, 20, 25, 32, 40 25-500 Standard = without magnet
S = Magnet for Hall Sensor
Mounting Options: Standard= Standard Front Nose Mount and Back Pivot Mount LB = Front & Back Mount FA = Front Mounting Flange FB = Back Mounting Flange SDB = Back Clevis Bracket with Pin I = Rod Pivot with Pin

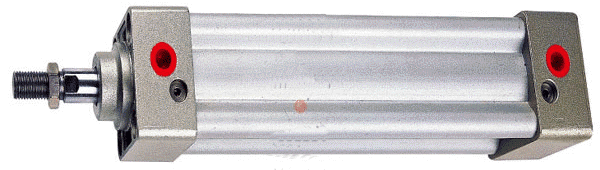

SC Series Tie-Rod Cylinder Double Acting-SC STC Valve SC Series Tie-Rod Cylinder 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 320 25-1000 Standard = without magnet
S = Magnet for Hall Sensor
Mounting Options:
Standard= Standard Mount
LB = Foot Mount
FA = Front Mounting Flange
FB = Back Mounting Flange
CA = Pivot Bracket with Pin
CB = Clevis Bracket with Pin
TCM = Swinging Type Attaching Foot Seat
Y/I = Rod Clevis or Pivot with Pin
SU Series Enclosed Tie-Rod Cylinder Double Acting-SU STC Valve STC Valve SC Series Tie-Rod Cylinder 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 320 25-1000 Standard = without magnet
S = Magnet for Hall Sensor
Mounting Options: Standard= Standard Mount LB = Foot Mount FA = Front Mounting Flange FB = Back Mounting Flange CA = Pivot Bracket with Pin CB = Clevis Bracket with Pin TCM = Swinging Type Attaching Foot Seat Y/I = Rod Clevis or Pivot with Pin
SDA Series Compact Round Cylinder Double Acting-SDA
Single Acting-SSA
STC Valve STC Valve STC Valve SC Series Tie-Rod Cylinder 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 5-130 Standard = without magnet
S = Magnet for Hall Sensor
Thread Type Options:
Standard= Shaft with Female Thread

Reed Switches

Part No. Description Specifications
AL-03R-MA MAL Reed Switch for MA or MAL cylinder STC Valve Reed Switches
  • Reed Switch 5-240 V (DC/AC)
  • 100mA
  • 10W
  • with 39″ Lead Wires
  • CE
AL-11R-SDA Reed Switch for SDA cylinder STC Valve Reed Switches
  • Reed Switch 5-240 V (DC/AC)
  • 100mA
  • 10W
  • with 39″ Lead Wires
  • CE
AL-21R-SC SU Reed Switch for SC or SU cylinder STC Valve Reed Switches
  • Reed Switch 5-240 V (DC/AC)
  • 100mA
  • 10W
  • with 39″ Lead Wires
  • CE
